Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear
Implement the Code for controlling the retraction and extension of Airplane’s landing gear
In this project, controlling the retraction and extension of Airplane’s landing gear can be implemented using Finite State Machine (FSM). FSM is the most efficient algorithm which is mathematical model of computation.
Overview of the Project:
In this project, a Finite State Machine is used to manage the retraction and extension of an airplane's landing gear (FSM). The most efficient algorithm is the FSM, which is a mathematical processing model.
Actually an airplane has 3 gears for landing: Nose gear, Left gear, Right gear.
There is an electrically powered hydraulic pump that applies pressure to the gears to bring it down or pull it up.
There is a limit switch on each leg of the gear. One extra squat switch is installed in the nose gear to assess whether the plane is on the ground or not.
Goals:
- Valve's direction can be controlled.
- Controlling the retraction and extension of the landing gear on an aeroplane.
Code controlling the retraction and extension of Airplane’s landing gear can be implemented using Finite State Machine (FSM). FSM is the most efficient algorithm which is mathematical model of computation.
#include
#include
//declaring functions for each states
void GearDown();
void CheckingBeforeTakeOFF();
void RisingGear();
void GearUp();
void CheckBeforeLanding();
void LoweringGear();
//creating an array of 6 states in order call the function upon requirement
static void(*statetable[])(void)={GearDown, CheckingBeforeTakeOFF, RisingGear, GearUp, CheckBeforeLanding, LoweringGear};
//gear states
typedef enum State
{
GEAR_DOWN,
CHECKING_BEFORE_TAKEOFF,
RISING_GEAR,
GEAR_UP,
CHECK_BEFORE_LANDING,
LOWERING_GEAR,
}State_Type;
//switch states
typedef enum Switch
{
open, closed
}Switch_status;
//pilot lever states
typedef enum pilot_lever
{
down, falling, rising, up
}pilot_lever;
//hydraulic control states
typedef enum hydraulic_mechanism
{
enabled, disabled
}hydraulic_mechanism;

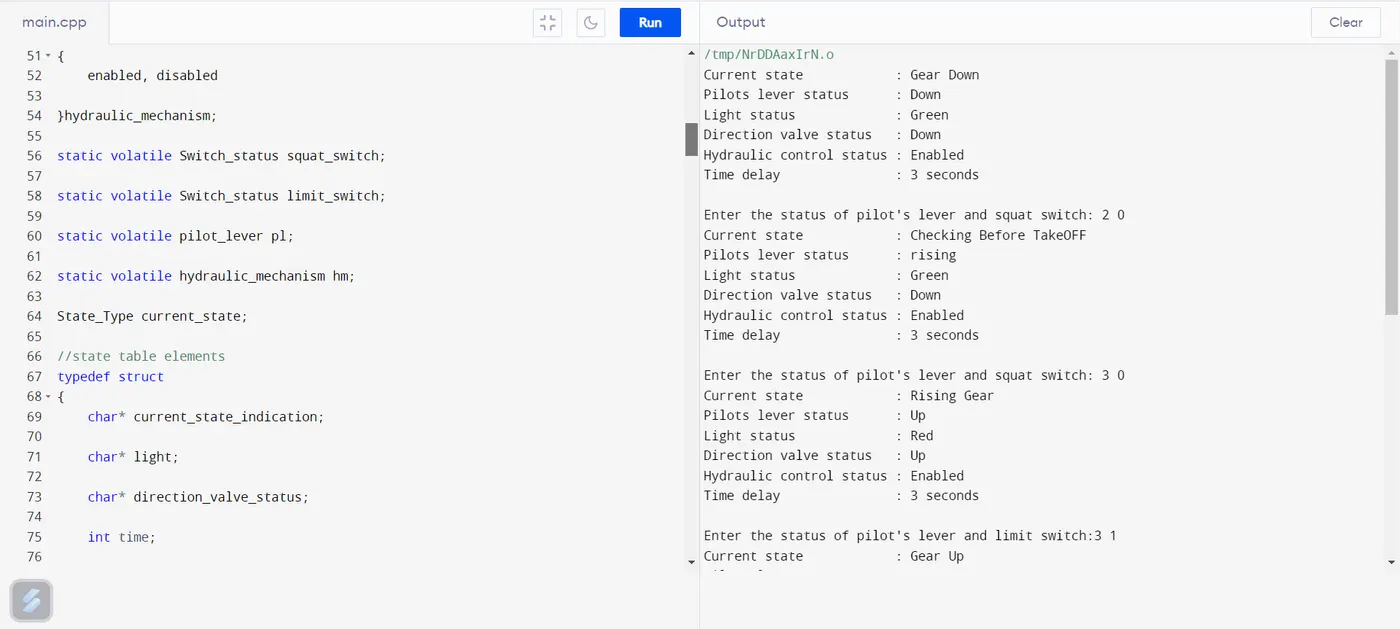

static volatile Switch_status squat_switch;
static volatile Switch_status limit_switch;
static volatile pilot_lever pl;
static volatile hydraulic_mechanism hm;
State_Type current_state;
//state table elements
typedef struct
{
char* current_state_indication;
char* light;
char* direction_valve_status;
int time;
char* hydraulic_control;
char* pilot_lever_status;
}State_Table;
//creating state table
static State_Table State_Machine[6]={
{"Gear Down", "Green", "Down", 3, "Enabled", "Down"},
{"Checking Before TakeOFF", "Green", "Down", 3, "Enabled", "rising"},
{"Rising Gear", "Red", "Up", 3, "Enabled", "Up"},
{"Gear Up", "Off", "Up", 3, "Disabled", "Up"},
{"Check Before Landing", "Red", "Down", 3, "Enabled", "falling"},
{"Lowering Gear", "Green", "Down", 3, "Enabled", "Down"}
};
int main()
{
while(1)
{
statetable[current_state](); //calling each state functions
}
}
//when airplane is grounded or parked
void GearDown(void)
{
current_state = GEAR_DOWN;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);

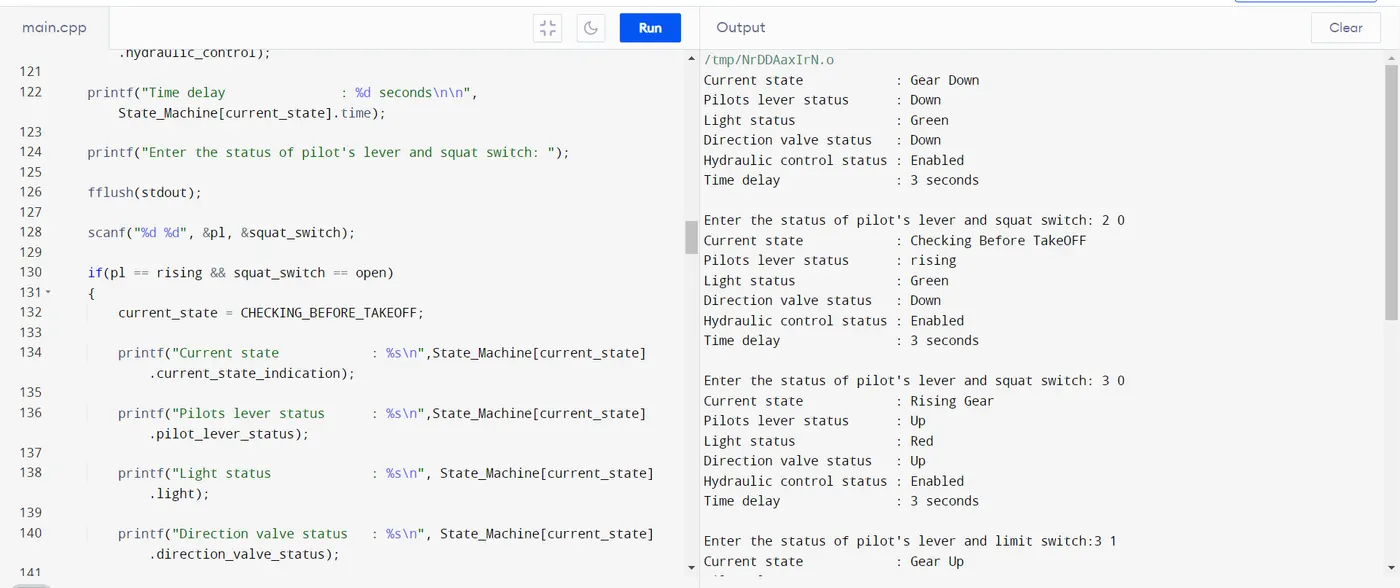

printf("Enter the status of pilot's lever and squat switch: ");
fflush(stdout);
scanf("%d %d", &pl, &squat_switch);
if(pl == rising && squat_switch == open)
{
current_state = CHECKING_BEFORE_TAKEOFF;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
else
{
GearDown();
}
}

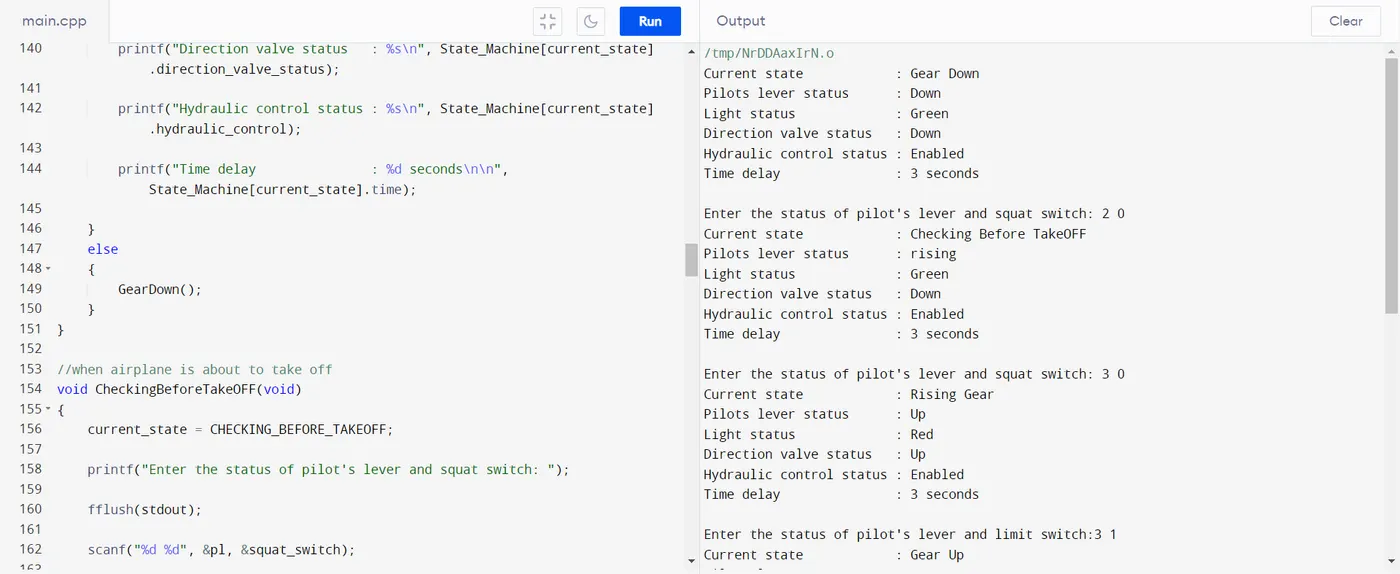

//when airplane is about to take off
void CheckingBeforeTakeOFF(void)
{
current_state = CHECKING_BEFORE_TAKEOFF;
printf("Enter the status of pilot's lever and squat switch: ");
fflush(stdout);
scanf("%d %d", &pl, &squat_switch);
if(pl == falling && squat_switch == closed)
{
GearDown();
}
else if(pl == up && squat_switch == open)
{
current_state = RISING_GEAR;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
}

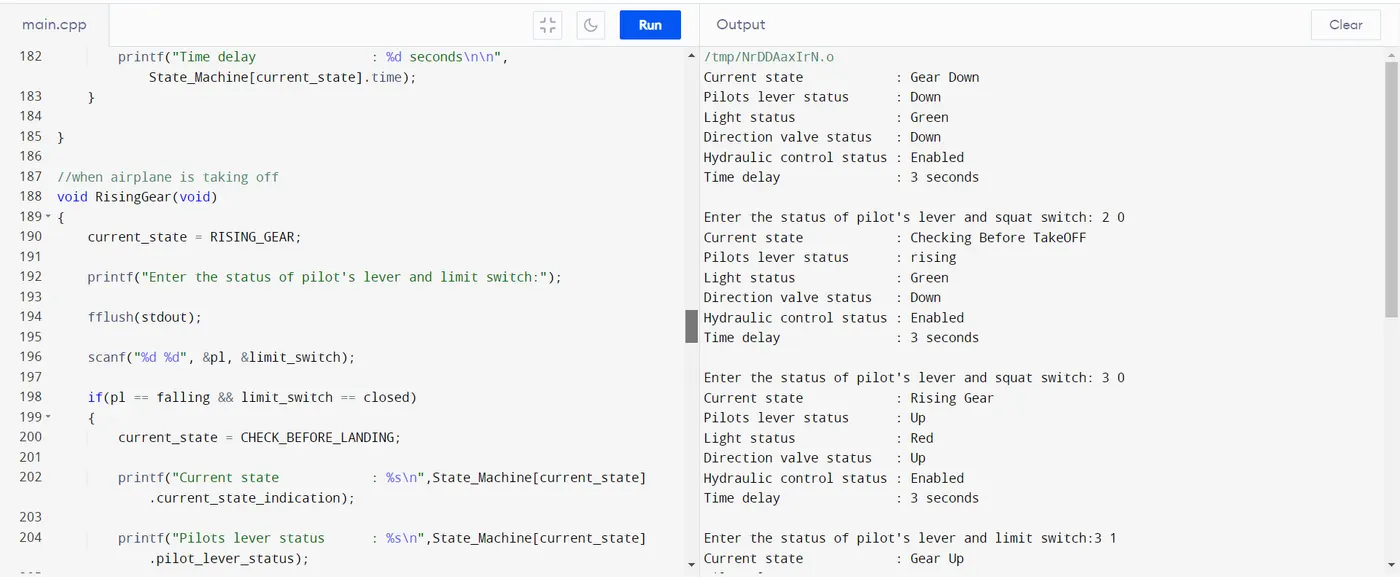

//when airplane is taking off
void RisingGear(void)
{
current_state = RISING_GEAR;
printf("Enter the status of pilot's lever and limit switch:");
fflush(stdout);
scanf("%d %d", &pl, &limit_switch);
if(pl == falling && limit_switch == closed)
{
current_state = CHECK_BEFORE_LANDING;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
else if(pl == up && limit_switch == closed)
{
current_state = GEAR_UP;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
}

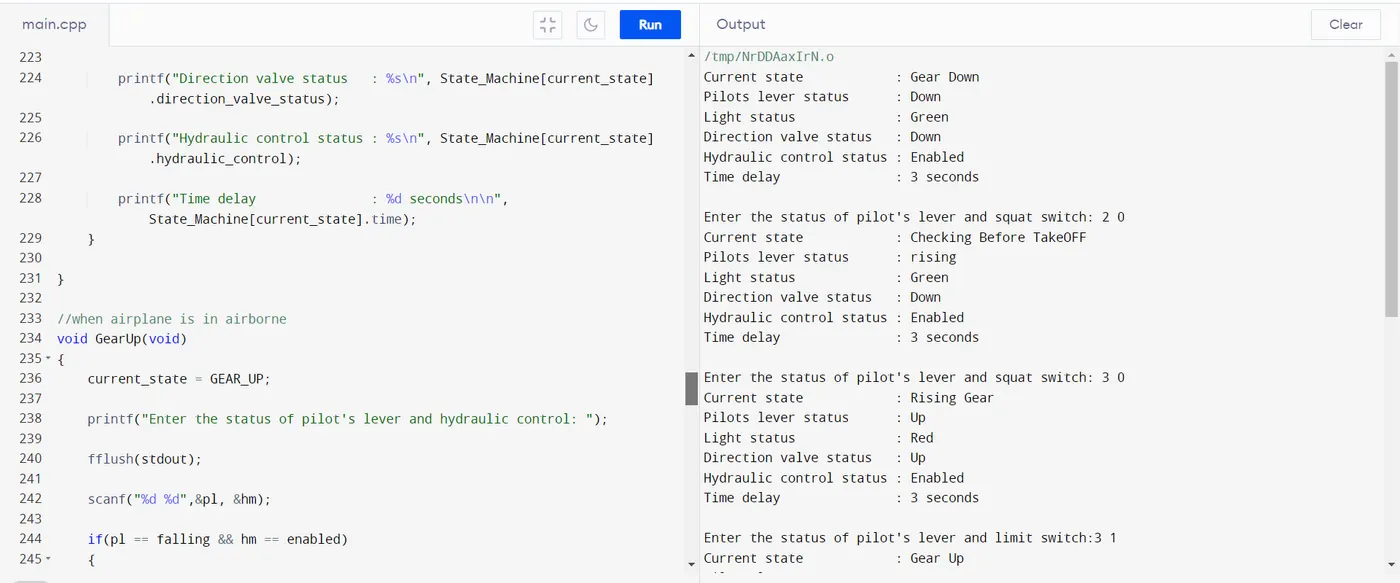

//when airplane is in airborne
void GearUp(void)
{
current_state = GEAR_UP;
printf("Enter the status of pilot's lever and hydraulic control: ");
fflush(stdout);
scanf("%d %d",&pl, &hm);
if(pl == falling && hm == enabled)
{
current_state = CHECK_BEFORE_LANDING;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
else if(pl == up && hm == disabled)
{
GearUp();
}
}
//when airplane is about to land
void CheckBeforeLanding(void)
{
current_state = CHECK_BEFORE_LANDING;
printf("Enter the status of pilot's lever and hydraulic control: ");
fflush(stdout);
scanf("%d %d", &pl, &hm);
if(pl == down)
{
current_state = LOWERING_GEAR;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
else if(pl == falling)
{
CheckBeforeLanding();
}
}

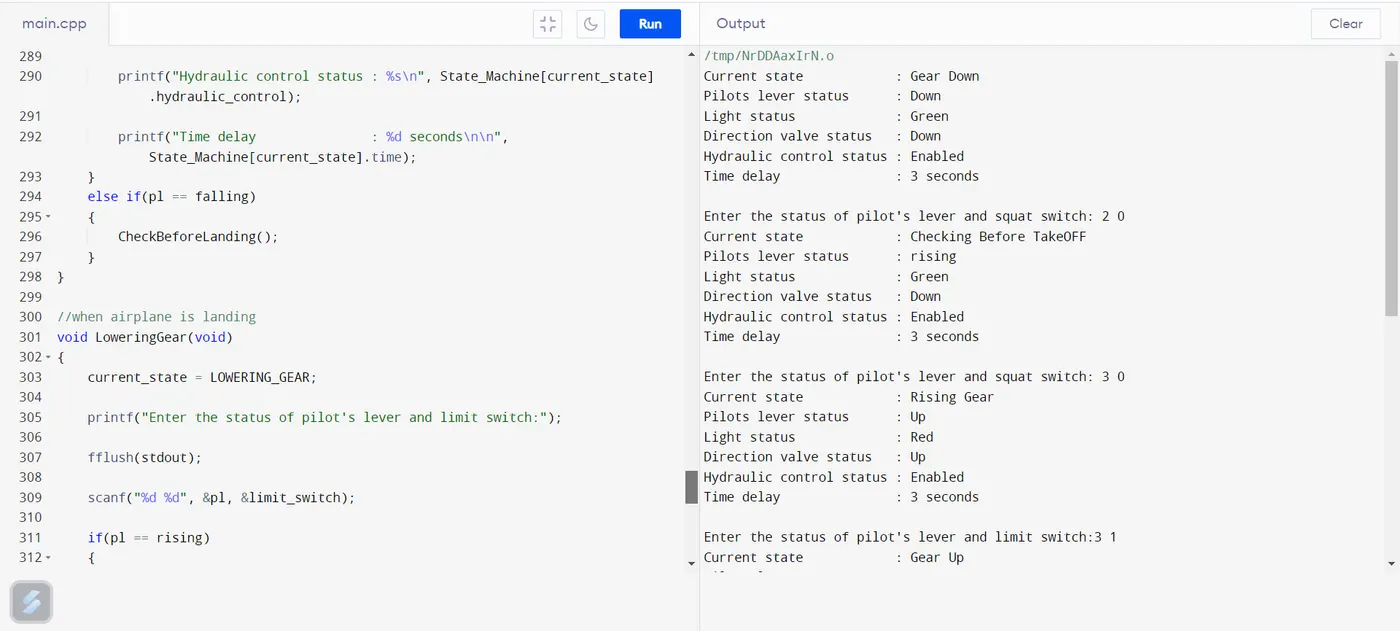

//when airplane is landing
void LoweringGear(void)
{
current_state = LOWERING_GEAR;
printf("Enter the status of pilot's lever and limit switch:");
fflush(stdout);
scanf("%d %d", &pl, &limit_switch);
if(pl == rising)
{
current_state = CHECKING_BEFORE_TAKEOFF;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
else if(pl == down && limit_switch == open)
{
current_state = GEAR_DOWN;
printf("Current state : %s\n",State_Machine[current_state].current_state_indication);
printf("Pilots lever status : %s\n",State_Machine[current_state].pilot_lever_status);
printf("Light status : %s\n", State_Machine[current_state].light);
printf("Direction valve status : %s\n", State_Machine[current_state].direction_valve_status);
printf("Hydraulic control status : %s\n", State_Machine[current_state].hydraulic_control);
printf("Time delay : %d seconds\n\n", State_Machine[current_state].time);
}
}

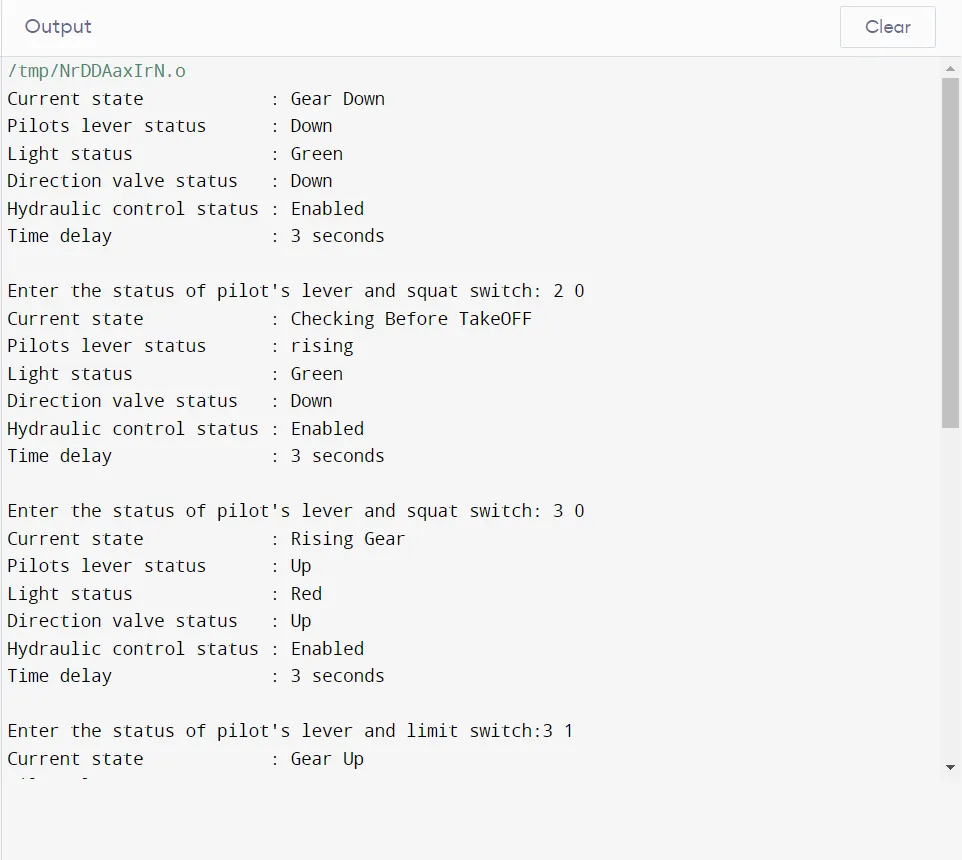

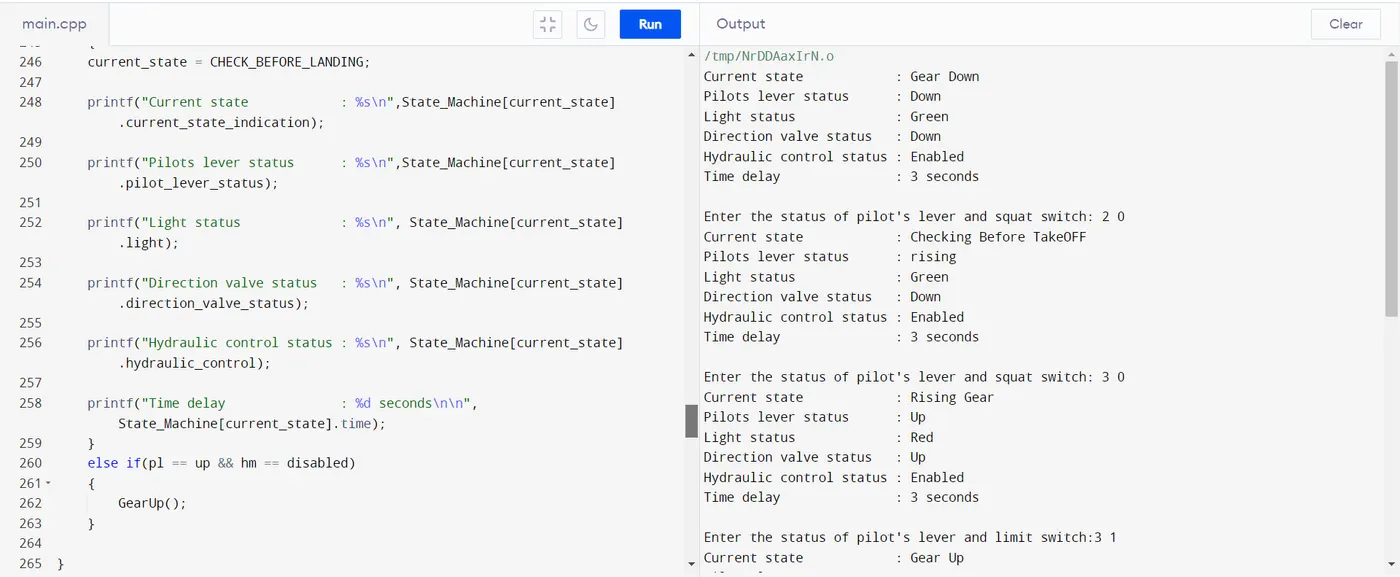

Output :
Current state : Gear Down
Pilots lever status : Down
Light status : Green
Direction valve status : Down
Hydraulic control status : Enabled
Time delay : 3 seconds
Enter the status of pilot's lever and squat switch: 2 0
Current state : Checking Before TakeOFF
Pilots lever status : rising
Light status : Green
Direction valve status : Down
Hydraulic control status : Enabled
Time delay : 3 seconds
Enter the status of pilot's lever and squat switch: 3 0
Current state : Rising Gear
Pilots lever status : Up
Light status : Red
Direction valve status : Up
Hydraulic control status : Enabled
Time delay : 3 seconds

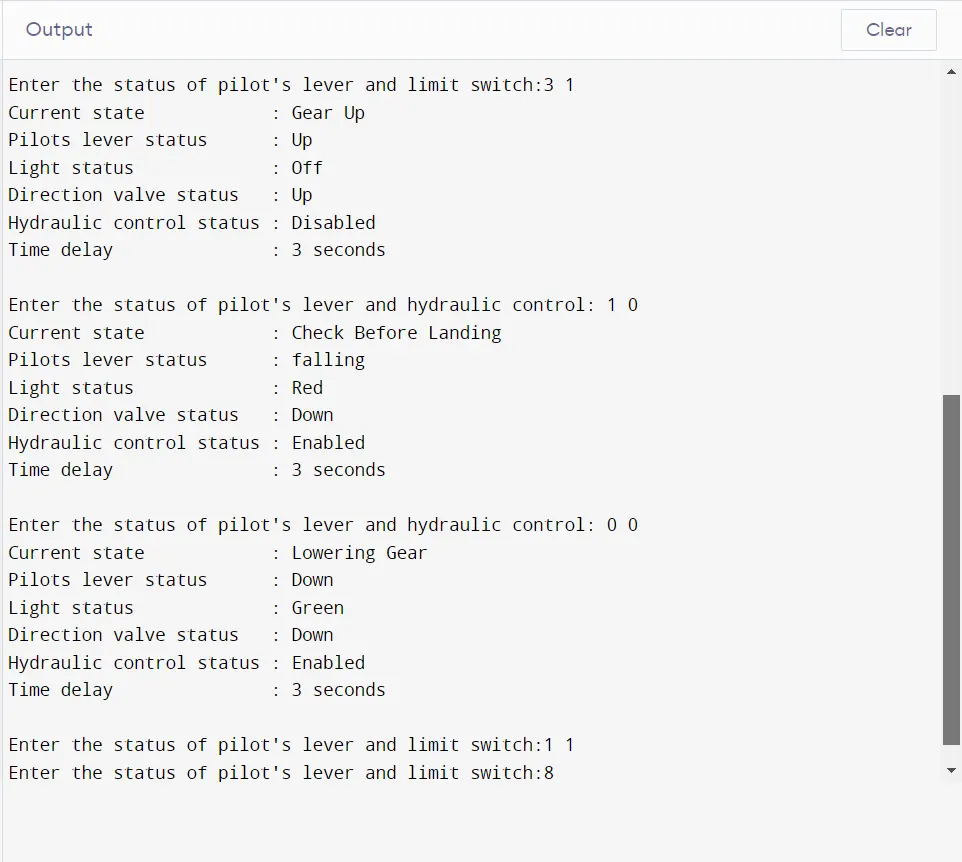

Enter the status of pilot's lever and limit switch:3 1
Current state : Gear Up
Pilots lever status : Up
Light status : Off
Direction valve status : Up
Hydraulic control status : Disabled
Time delay : 3 seconds
Enter the status of pilot's lever and hydraulic control: 1 0
Current state : Check Before Landing
Pilots lever status : falling
Light status : Red
Direction valve status : Down
Hydraulic control status : Enabled
Time delay : 3 seconds
Enter the status of pilot's lever and hydraulic control: 0 0
Current state : Lowering Gear
Pilots lever status : Down
Light status : Green
Direction valve status : Down
Hydraulic control status : Enabled
Time delay : 3 seconds
Enter the status of pilot's lever and limit switch:1 1
Enter the status of pilot's lever and limit switch:8

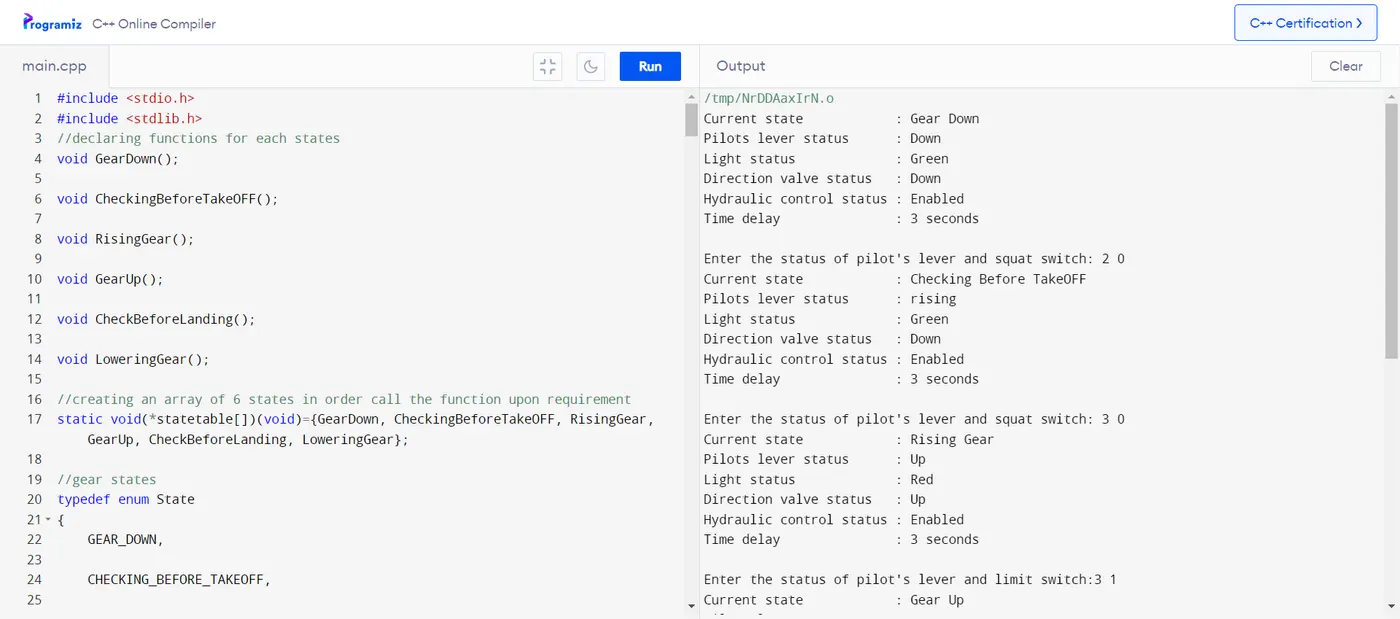

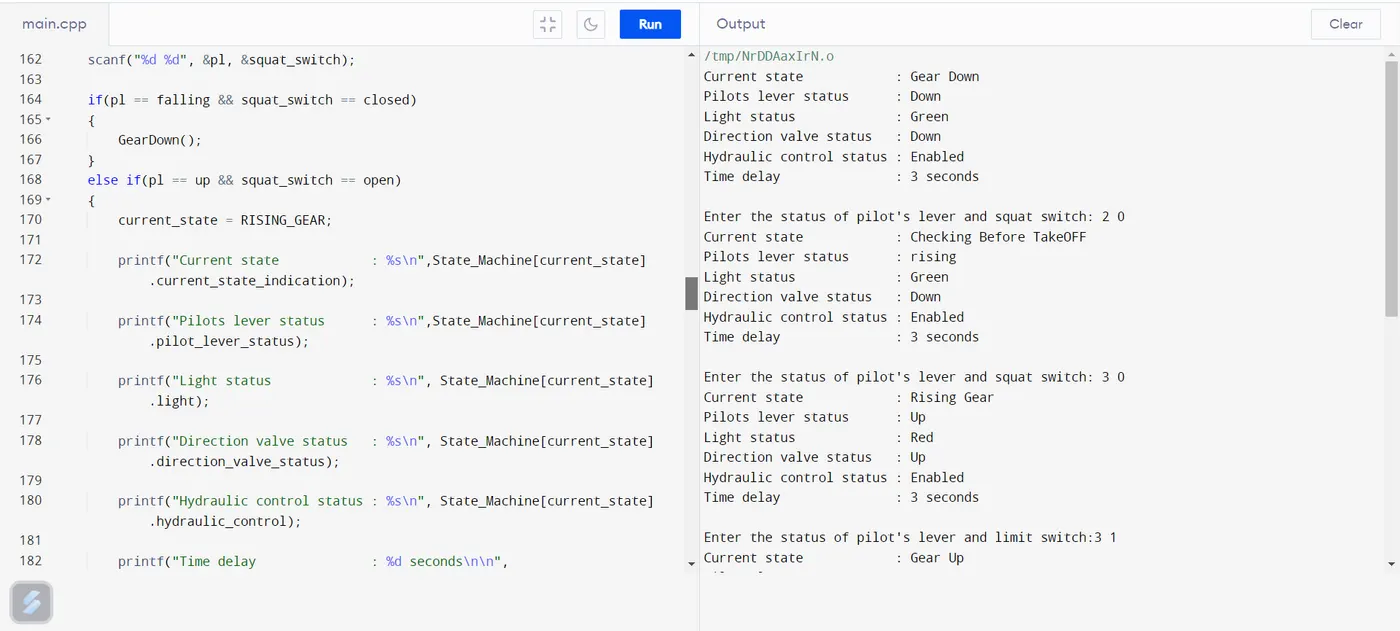

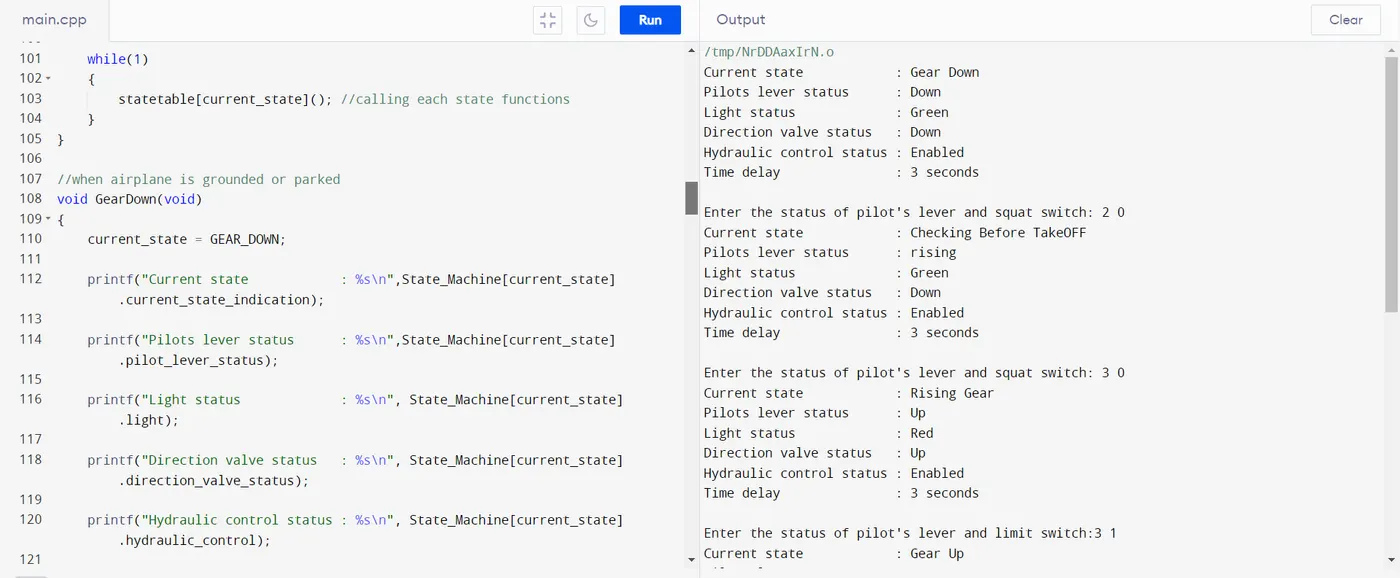

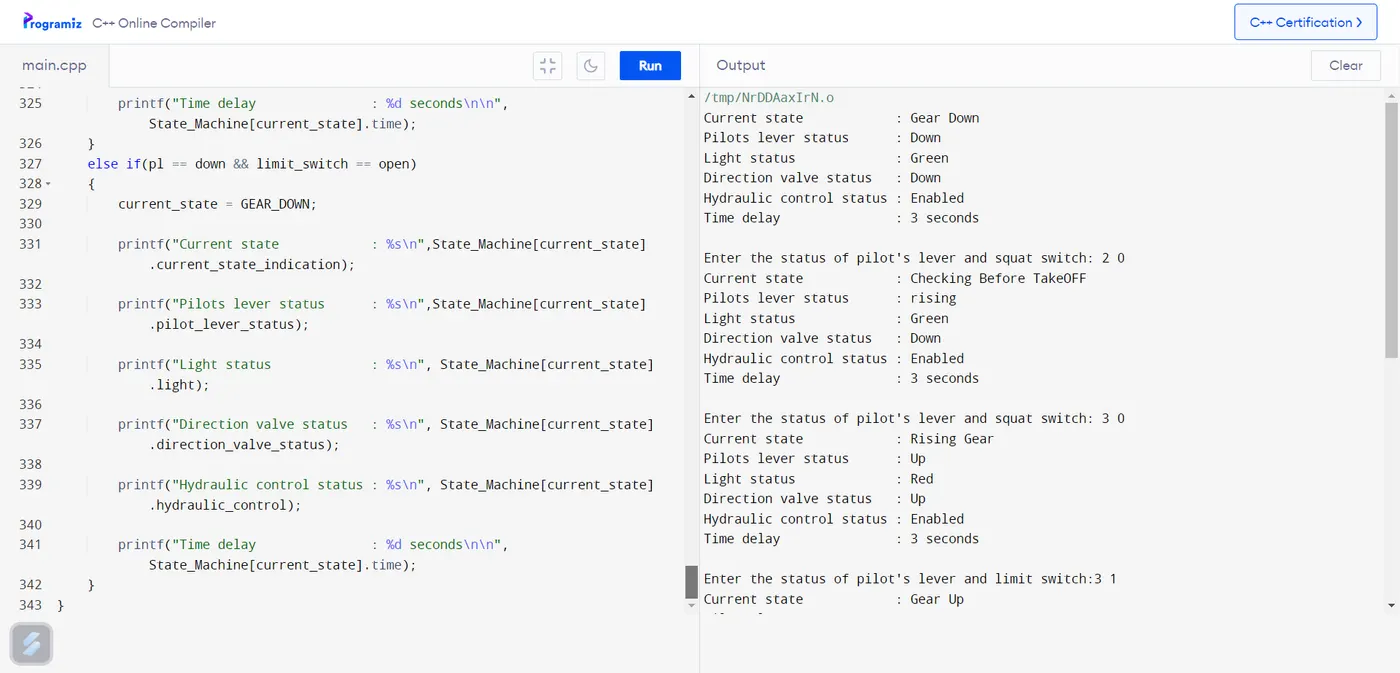

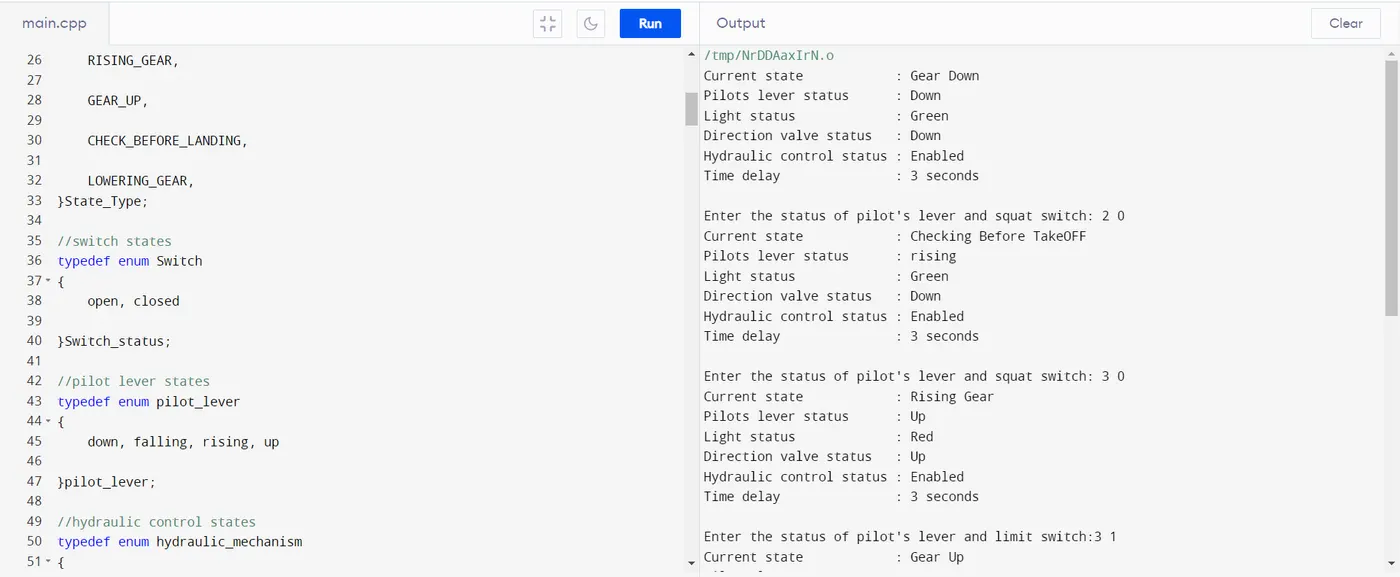

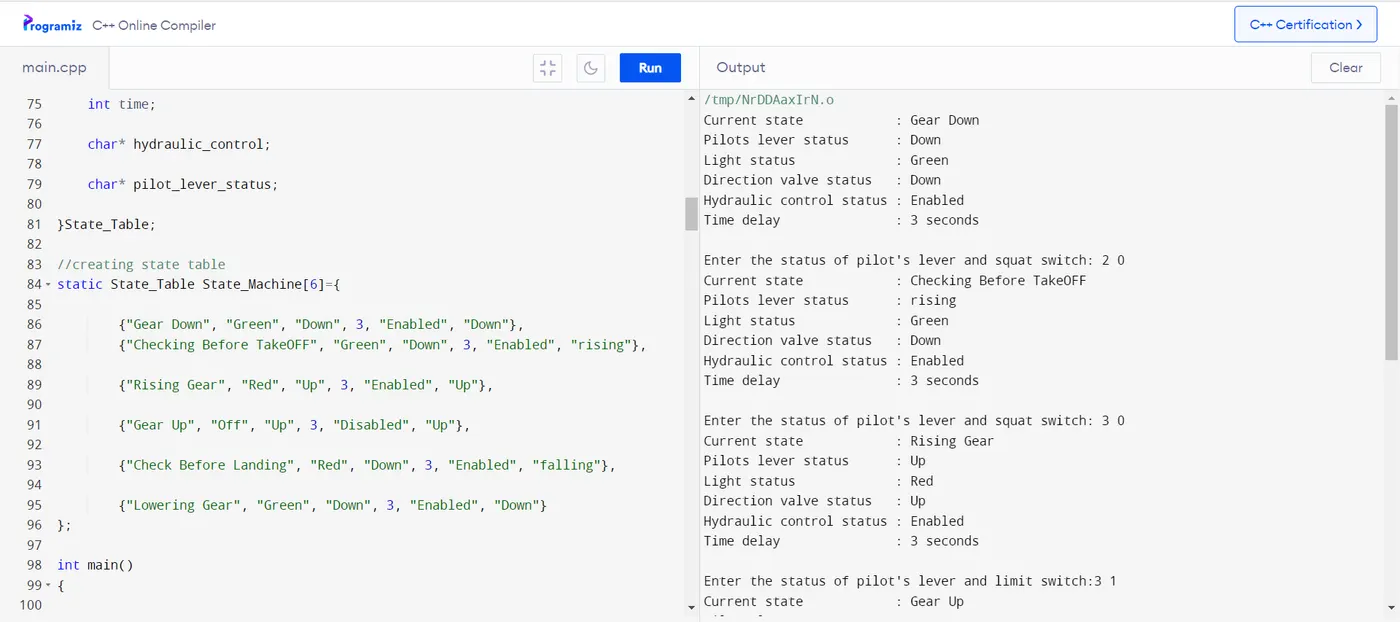

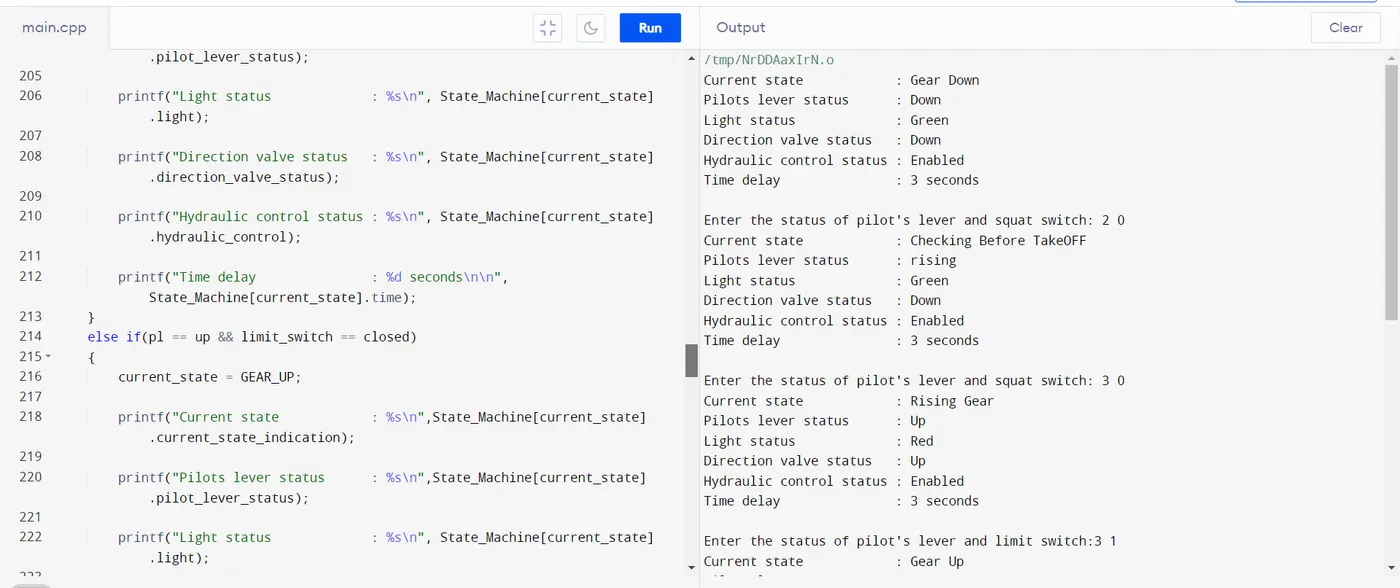

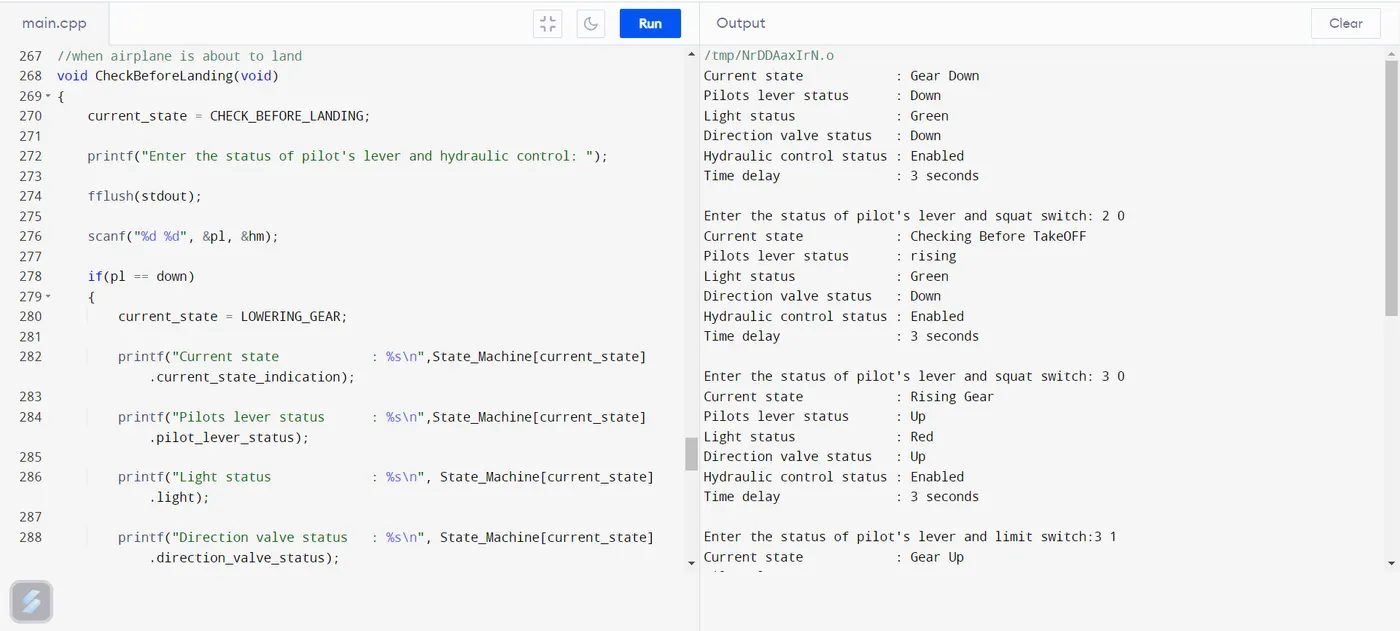

RESULTS:
