Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear
HEADER FILE
"fsm.h"
#ifndef FSM_H_
#define FSM_H_
#include
// Function Declarations
void Initiate_state_machine();
void GearDown();
void CheckBeforeTakeoff();
void RaisingGear();
void GearUp();
void CheckBeforeLanding();
void LoweringGear();
// Calling different states
typedef enum State
{
GEAR_DOWN,
CHECK_BEFORE_TAKEOFF,
RAISING_GEAR,
GEAR_UP,
CHECK_BEFORE_LANDING,
LOWERING_GEAR
}State_type;
// Calling different switch status
typedef enum Switch
{
// value of on = 0 , off = 1
on,
off
}Switch_status;
// Calling different pilot lever status
typedef enum pilot_lever
{
// value of raising =0, falling = 1, up =2, down=3
Raising,
falling,
up,
down
}Pilot_lever_status;
// Calling different hydraulic mechanism status
typedef enum hydraulic_mechanism
{
// value of working = 0, not working = 1
working,
not_working
}Hydraulic_mechanism_status;
static volatile Switch_status squat_switch;
static volatile Switch_status limit_switch;
static volatile Pilot_lever_status pilot_lever;
static volatile Hydraulic_mechanism_status hydraulic_mechanism;
State_type curr_state;
typedef struct
{
char* curr_state_indication;
char* light;
char* direction_valve_status;
char* gas_pressurized_spring_status[2];
char* landing_gear_hydraulic_control;
}State_table;
// calling State Table
static State_table State_machine[6] =
{
{"GearDown", "Green", "Down", "Enabled",0,0},
{"CheckBeforeTakeoff", "Green", "Down", "Enabled",0,0},
{"RaisingGear", "Red", "Up", "Enabled", "Disabled", "Enabled"},
{"GearUp", "Off", "Null", "Disabled",0,0},
{"CheckBeforeLanding", "Green", "Down", "Enabled",0,0},
{"LoweringGear", "Green", "Down", "Enabled", "Disabled", "Enabled"}
};
#endif /* FSM_H_ */
SOURCE FILE
"main.c"
#include
#include "fsm.h"
static void(*state_table[])(void) = {GearDown, CheckBeforeTakeoff, RaisingGear, GearUp,
CheckBeforeLanding, LoweringGear};
int main()
{
Initiate_state_machine(); //calling function
while(1)
{
state_table[curr_state]();
}
}
// GEAR DOWN
void GearDown(void)
{
curr_state = GEAR_DOWN;
printf("Enter the status of pilot's lever and squat switch:");
fflush(stdout);
scanf("%d %d", &pilot_lever, &squat_switch);
if(pilot_lever == Raising && squat_switch == on)
{
curr_state = CHECK_BEFORE_TAKEOFF;
printf("Current state : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
}
else
{
GearDown();
}
}
// CHECK BEFORE TAKEOFF
void CheckBeforeTakeoff(void)
{
curr_state = CHECK_BEFORE_TAKEOFF;
printf("Enter the status of pilot's lever, squat switch and hydraulic mechanism:");
fflush(stdout);
scanf("%d %d %d", &pilot_lever, &squat_switch, &hydraulic_mechanism);
if(pilot_lever == falling && squat_switch == off)
{
GearDown();
}
else if(pilot_lever == up && squat_switch == on && hydraulic_mechanism == working)
{
curr_state = RAISING_GEAR;
printf("Current state : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light : %s\n", State_machine[curr_state].light);
printf("Status of Direction valve :%s\n", State_machine[curr_state].direction_valve_status);
}
else if(pilot_lever == up && squat_switch == on && hydraulic_mechanism == not_working)
{
curr_state = RAISING_GEAR;
printf("Current state : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light : %s\n", State_machine[curr_state].light);
printf("Status of Direction valve :%s\n", State_machine[curr_state].direction_valve_status);
printf("Status of Gas Pressurized Spring System :%s\n",
State_machine[curr_state].gas_pressurized_spring_status[hydraulic_mechanism]);
}
}
//RAISING GEAR
void RaisingGear(void)
{
curr_state = RAISING_GEAR;
printf("Enter the status of pilot's lever and limit switch:");
fflush(stdout);
scanf("%d %d", &pilot_lever, &limit_switch);
if(pilot_lever == falling && limit_switch == on)
{
curr_state = CHECK_BEFORE_LANDING;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Landing Gear Hydraulic Control : %s\n", State_machine[curr_state].landing_gear_hydraulic_control);
}
else if(pilot_lever == up && limit_switch == off)
{
curr_state = GEAR_UP;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Landing Gear Hydraulic Control : %s\n", State_machine[curr_state].landing_gear_hydraulic_control);
}
else
{
RaisingGear();
}
}
// GEAR UP
void GearUp(void)
{
curr_state = GEAR_UP;
printf("Enter the status of pilot's lever:");
fflush(stdout);
scanf("%d", &pilot_lever);
if(pilot_lever == falling)
{
curr_state = CHECK_BEFORE_LANDING;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Landing Gear Hydraulic Control : %s\n", State_machine[curr_state].landing_gear_hydraulic_control);
}
else
{
GearUp();
}
}
// CHECK BEFORE LANDING
void CheckBeforeLanding(void)
{
curr_state = CHECK_BEFORE_LANDING;
printf("Enter the status of pilot's lever and hydraulic mechanism:");
fflush(stdout);
scanf("%d %d", &pilot_lever, &hydraulic_mechanism);
if(pilot_lever == down && hydraulic_mechanism == working)
{
curr_state = LOWERING_GEAR;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Status of Direction valve : %s\n", State_machine[curr_state].direction_valve_status);
}
else if(pilot_lever == down && hydraulic_mechanism == not_working)
{
curr_state = LOWERING_GEAR;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Status of Direction valve : %s\n", State_machine[curr_state].direction_valve_status);
printf("Status of Gas Pressurized Spring System :%s\n",
State_machine[curr_state].gas_pressurized_spring_status[hydraulic_mechanism]);
}
if(pilot_lever == (up||Raising || falling))
{
CheckBeforeLanding();
}
}
// LOWERING GEAR
void LoweringGear(void)
{
curr_state = LOWERING_GEAR;
printf("Enter the status of pilot's lever and limit switch:");
fflush(stdout);
scanf("%d %d", &pilot_lever, &limit_switch);
if(pilot_lever == Raising && limit_switch == off)
{
curr_state = CHECK_BEFORE_TAKEOFF;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
}
if(pilot_lever == down && limit_switch == on)
{
curr_state = GEAR_DOWN;
printf("Current State is : %s\n", State_machine[curr_state].curr_state_indication);
printf("Light is : %s\n", State_machine[curr_state].light);
printf("Landing Gear Hydraulic Control : %s\n", State_machine[curr_state].landing_gear_hydraulic_control);
}
else
{
LoweringGear();
}
}
void Initiate_state_machine()
{
curr_state = GEAR_DOWN; // initial state of machine is Gear Down state //
printf("The Finite State Machine is Initialized and current the program is in GearDown and Light is :
%s\n",State_machine[curr_state].light);
}
MAKEFILE
all: main.c fsm.h
gcc main.c fsm.h -o main -I.
clean:
rm main.exe

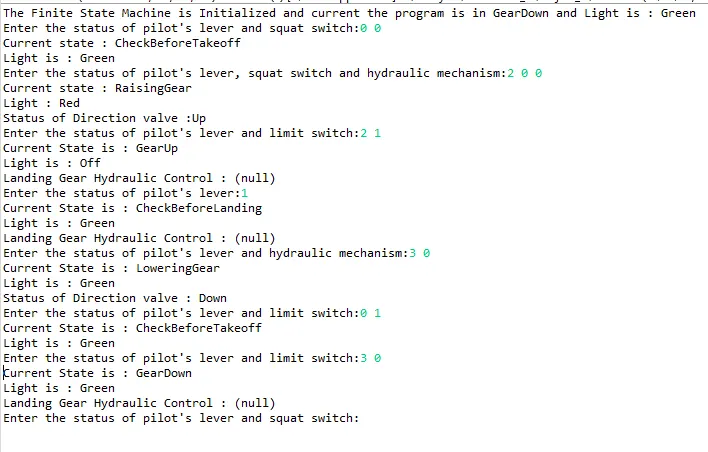

OUTPUT
