Project 2-Highway Assistant-Lane Changing Assistant

Highway Assistant – Lane Changing Assistant:

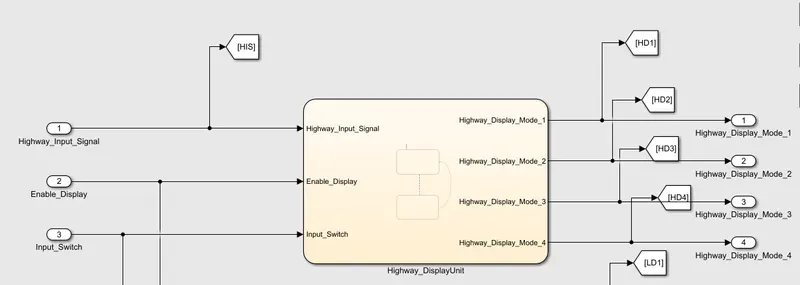

The Simulink model,SLDD and model Advisor Report are Attached below.

Steps to create model is given below with screenshot.

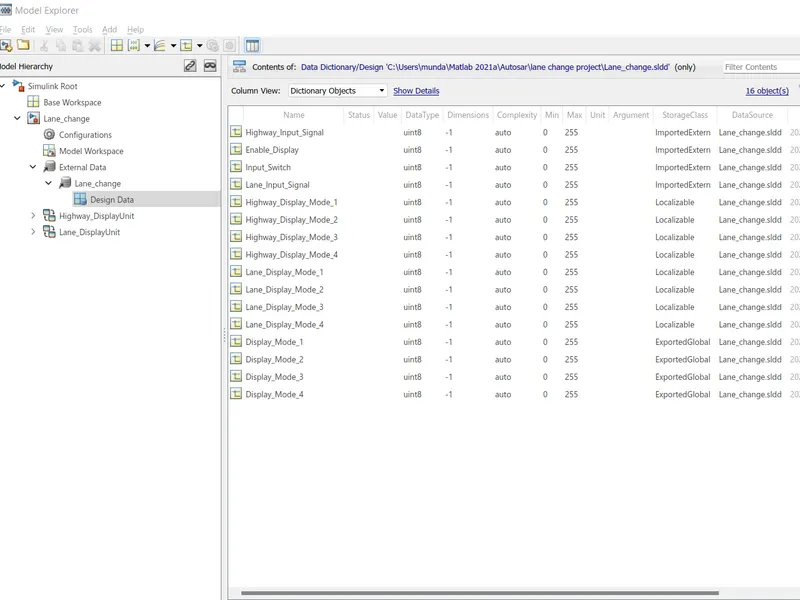

Sldd File created using given information as shown below.

Requirement No 1 [Highway_DisplayUnit]:

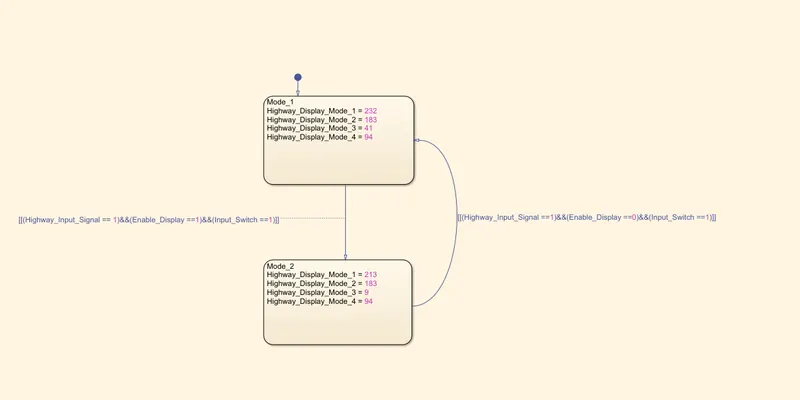

Stateflow:

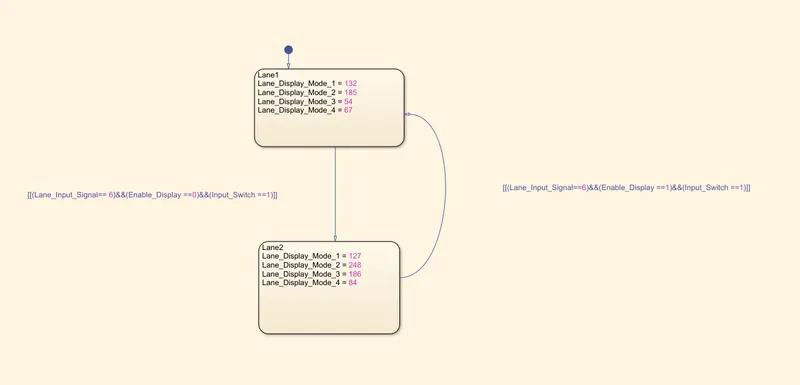

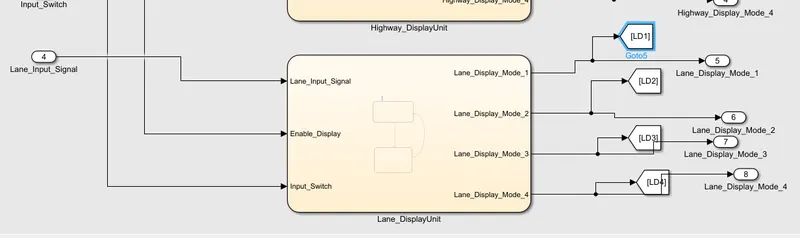

Requirement No 2 [Lane_DisplayUnit]:

Stateflow:

Requirement No 3:

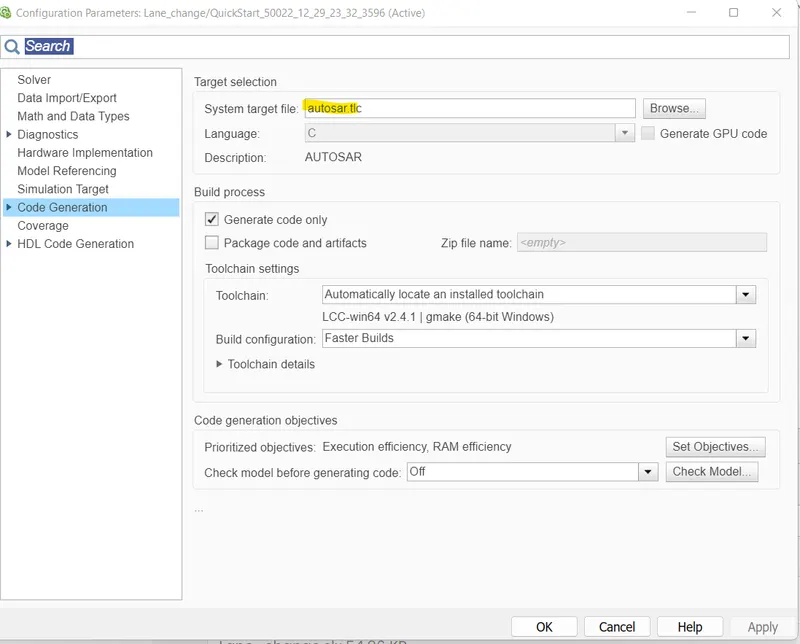

Code generation selected as Autosar.tlc

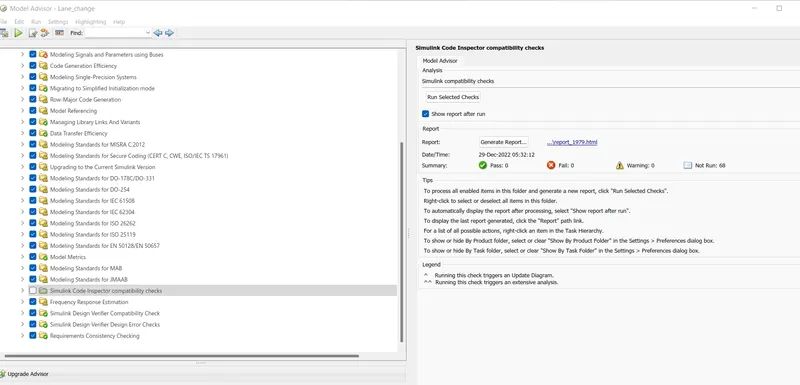

Model Advisor report is generated and file is attached below:

For Autosar mapping we have select the Autosar component from apps and then select Autosar Dictionary as shown below

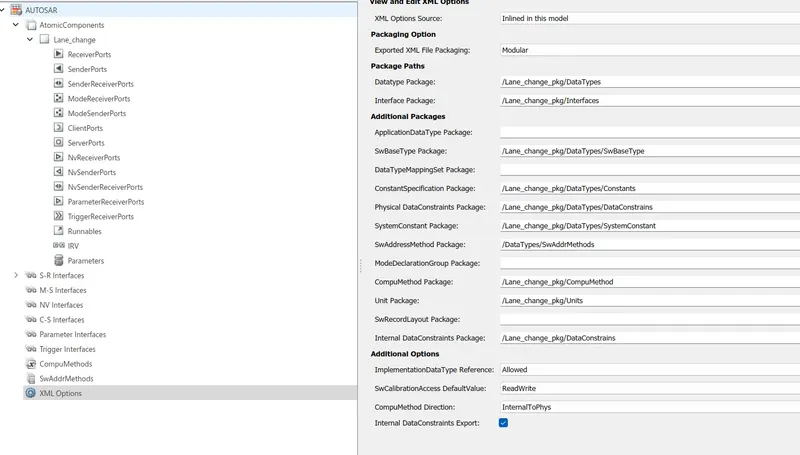

XML option is created

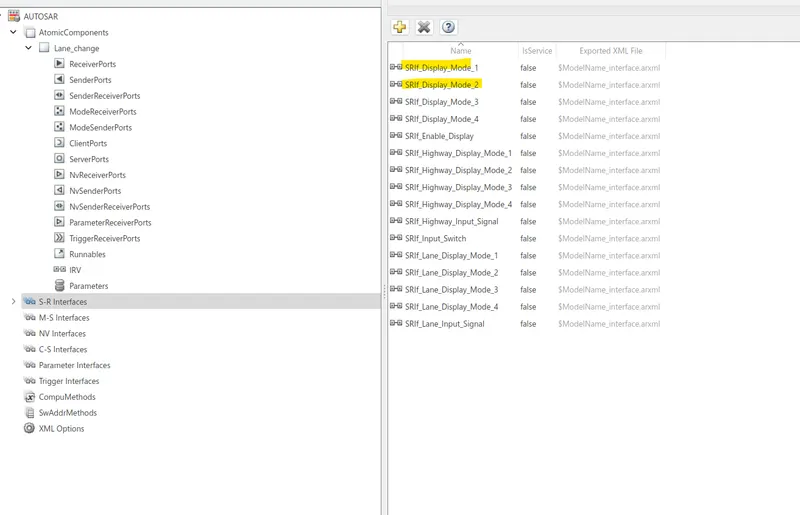

Then S-R interfaces are added

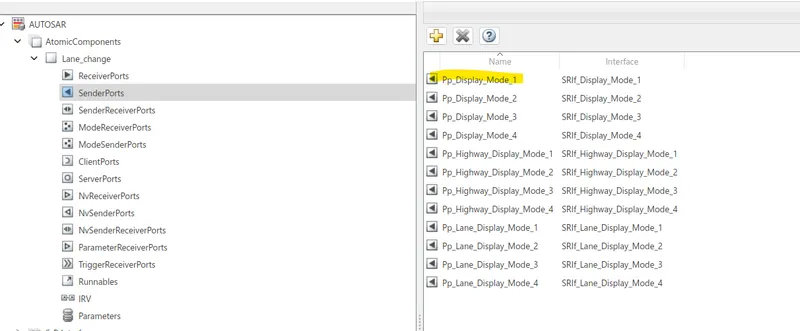

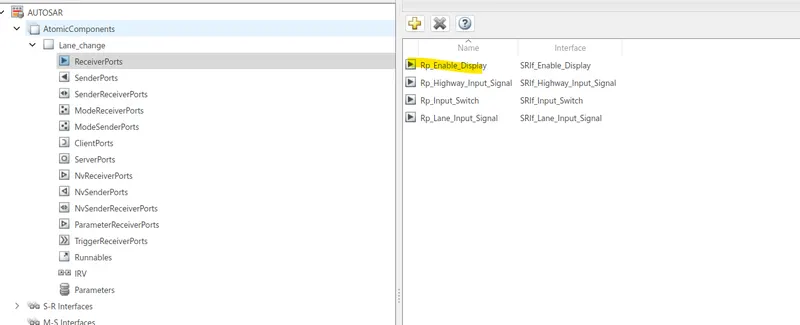

Receiver and sender ports also added as shown below

then save the model and inports and outports are shown below.

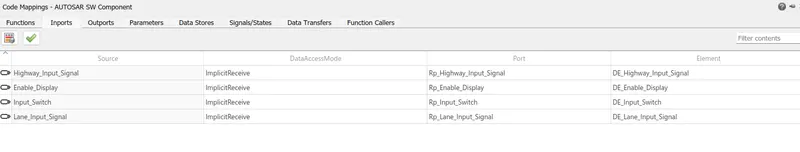

Inports

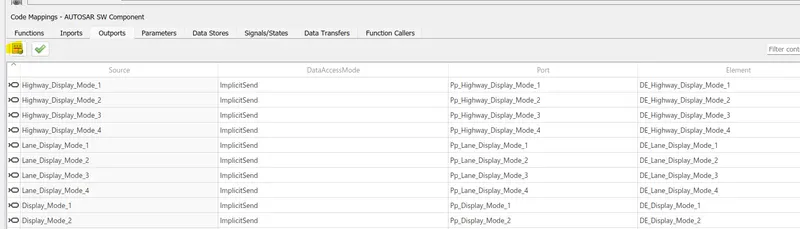

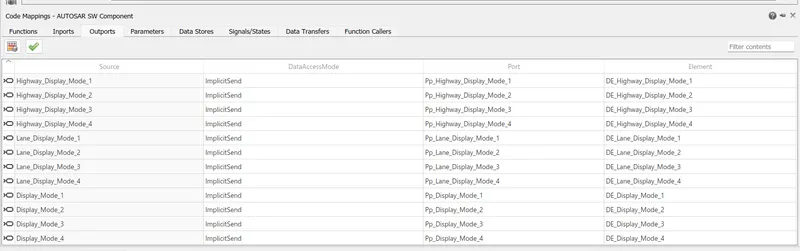

Outports

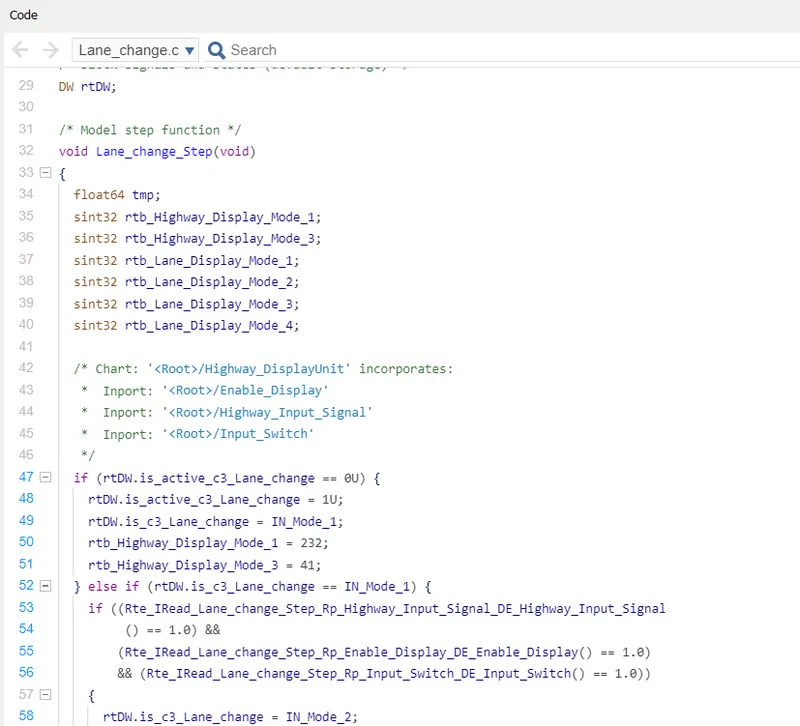

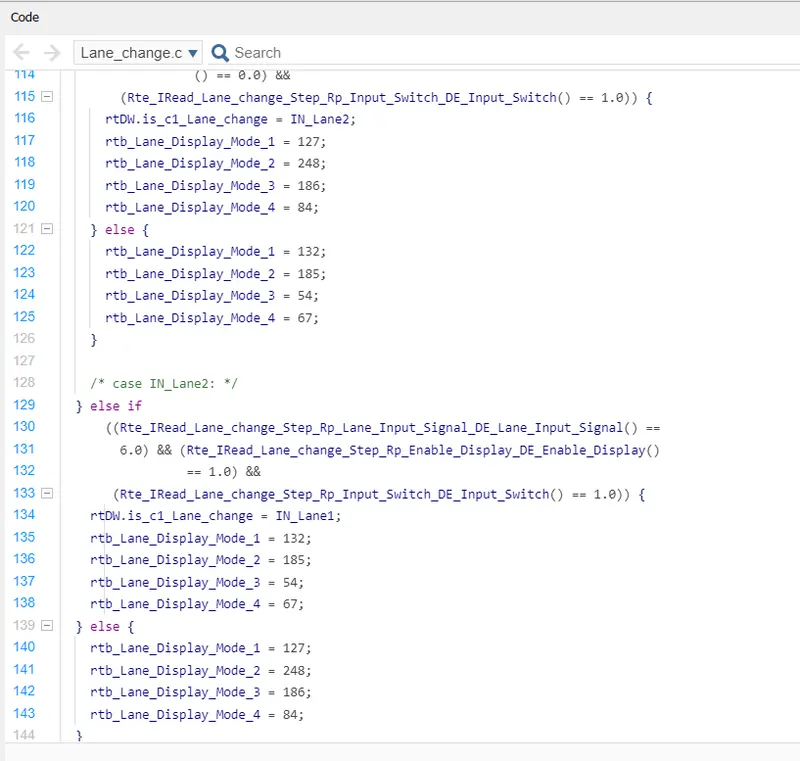

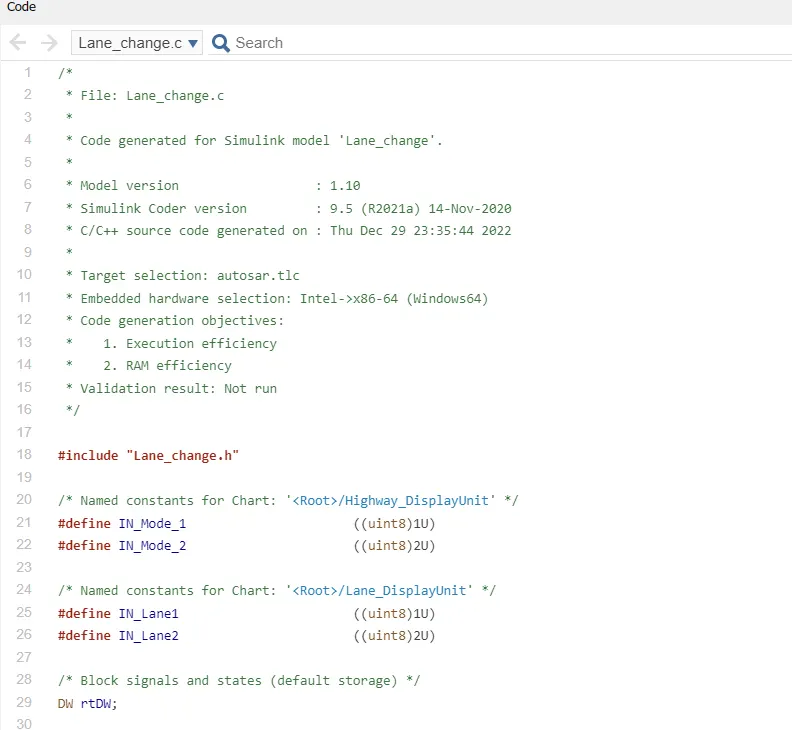

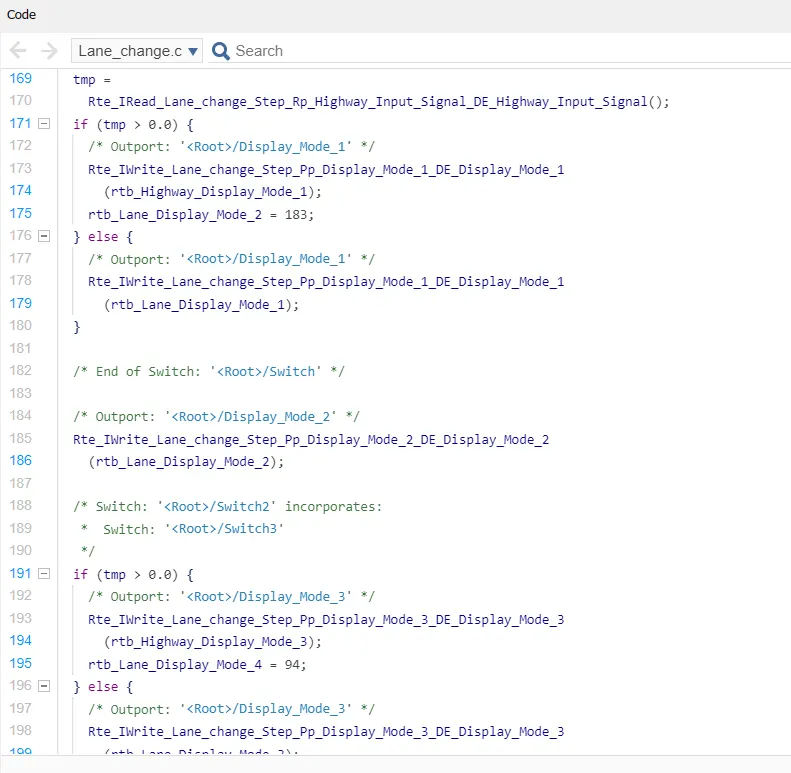

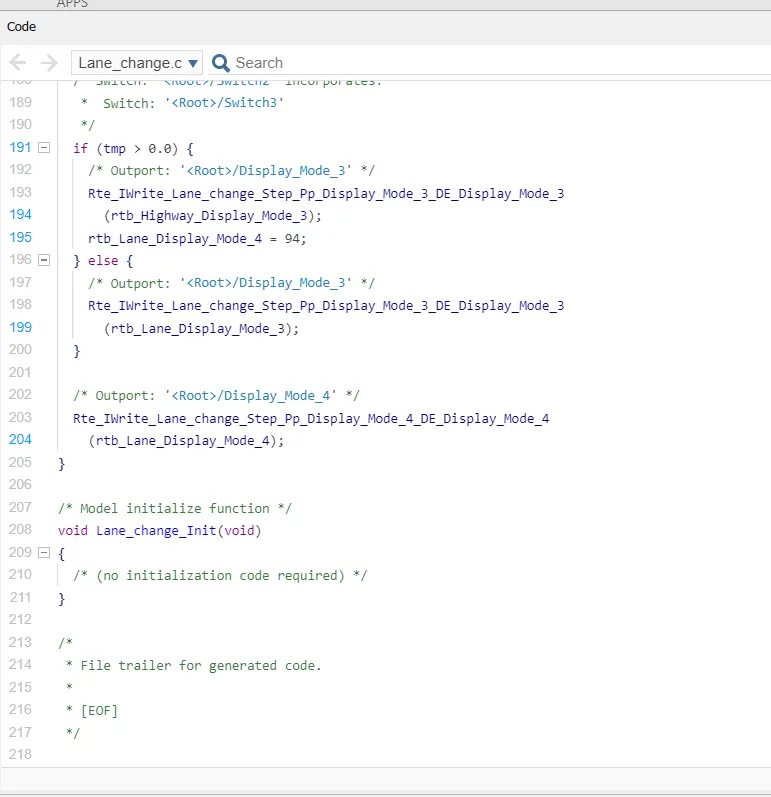

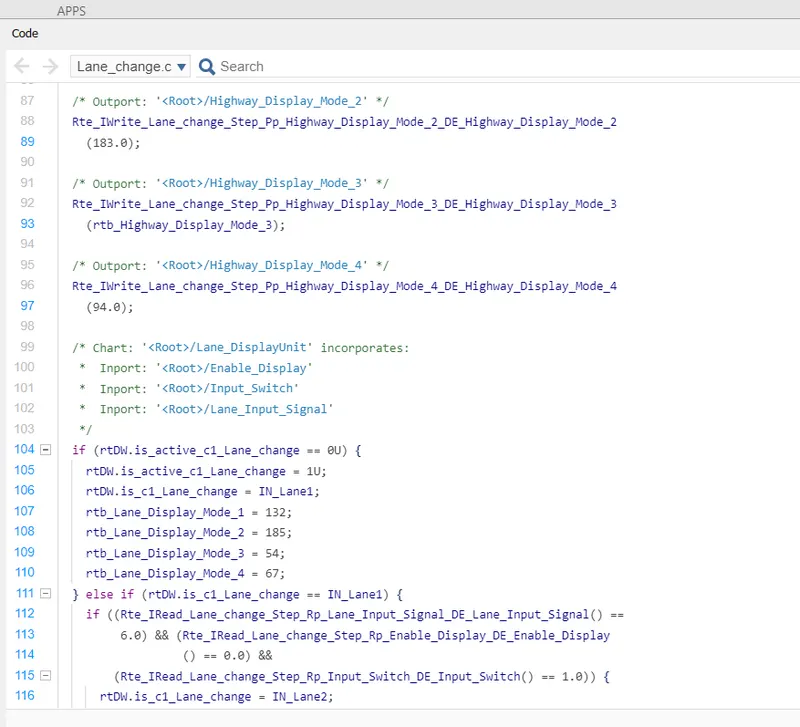

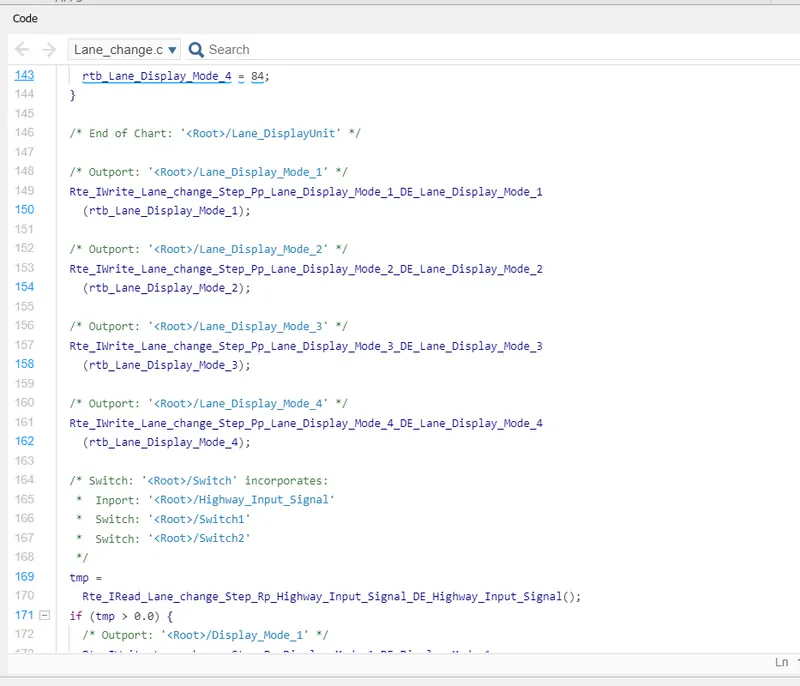

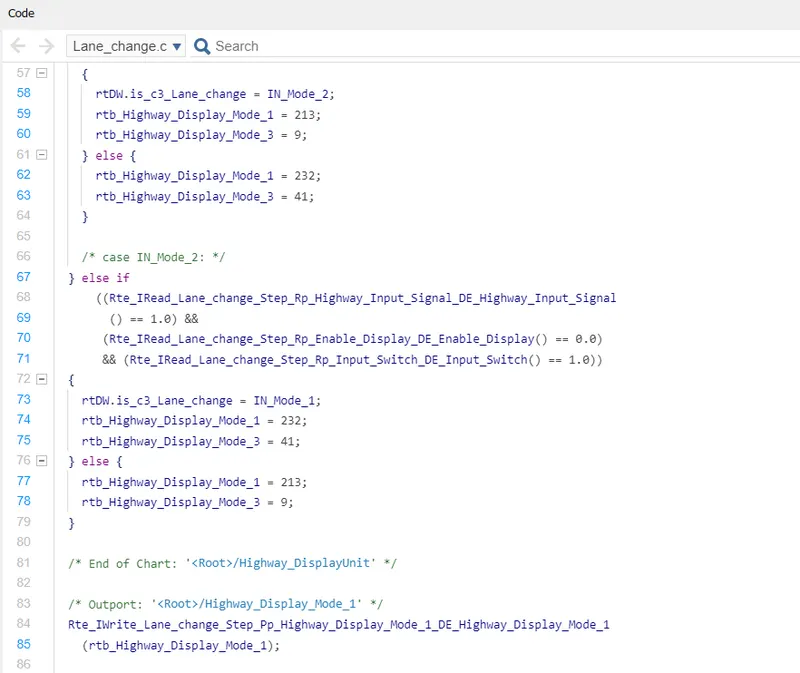

Then code generation is done :
