Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM : Create a 3 dimensional model of the residential building with a rendered view

PROCEDURE

APPLY UNITS (MM) & LIMITS & Z,A.

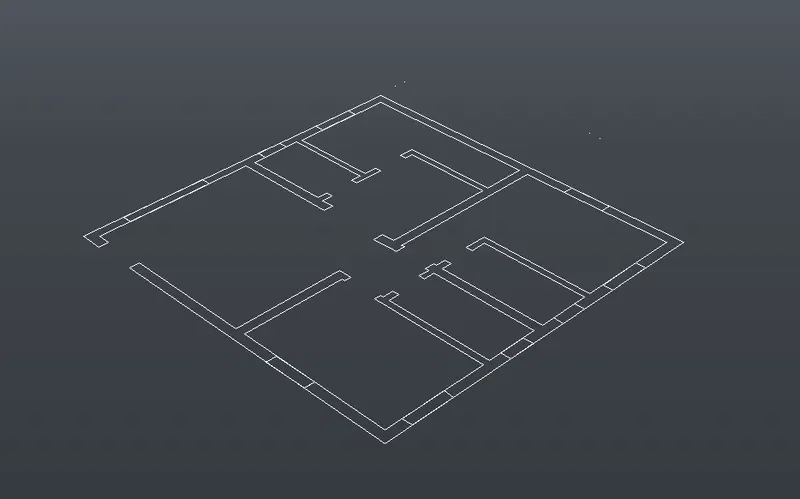

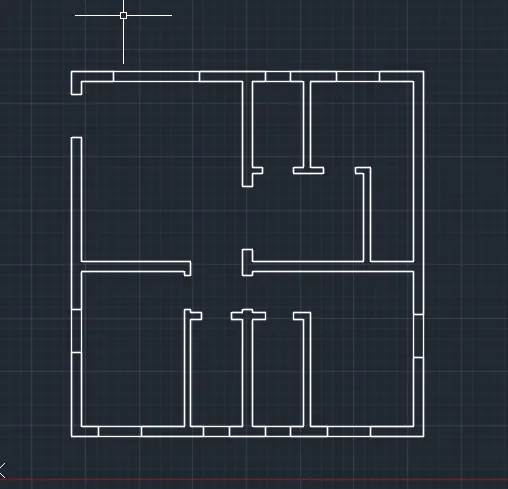

CREATE A 2D PLAN AND ELEVATION OF THE BUILDING

COMMADS UDESD FOR 2D DRAWING ( L,REC,O,TR,J,...)

NOW CHANGE WORKING SPACE TO 3D MOULDING

IT LOOKS IN 3 DIMENSIONS

NOW USE THE BOUNDARY 'BO' COMMAND SELECT ALL THE WALL POSTIONS

KEEP IN SHADED

FROM A LAYER TO WALL AND KEEP COLOUR

KEEP THE WALL LAYER AND CONTINUE

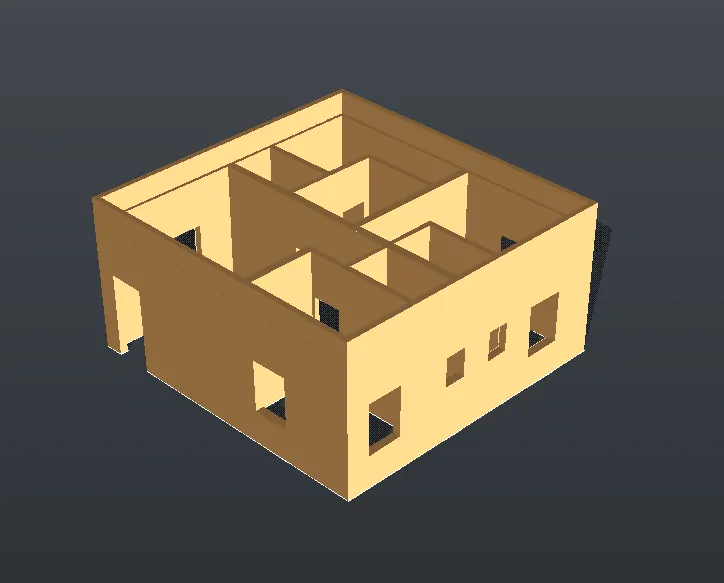

NOW USE THE 'EXT' EXTRUDE , SELECT ALL THE WALL AND MESTION THE HIGHT REQUIRED (3600)

AGAIN SELECT THE BO AND MARK ALL WINDOWS, USE EXT AND RISE UP TO (900)

USE THE UNION 'UNI' AND SELECT ALL THE WALL ITS BECOME ONE UNIT

AND SAME THING FROM TOP SHOULD BE DONE

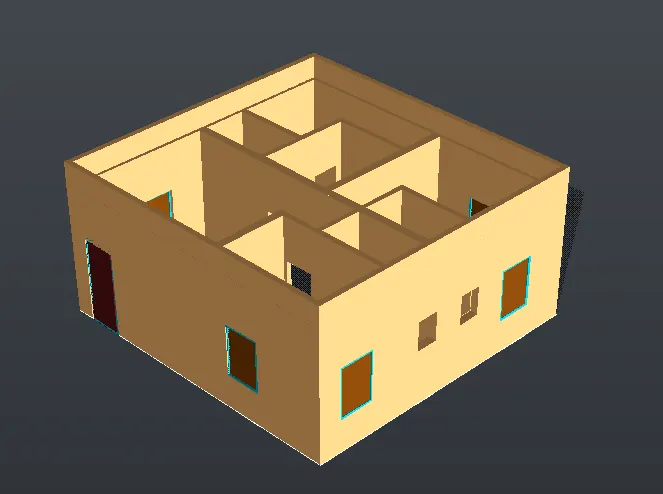

CREATE A LAYERS FRAME , DOOR , WINDOW,VENTILATERS AT POOJA, TOILET ROOMS. GIVE COLOUR TO EACH LAYER AND USE LAYER WHEN DRAWING.

COMMADS REC,L,O,EXT,SUB,BO,3DO,..

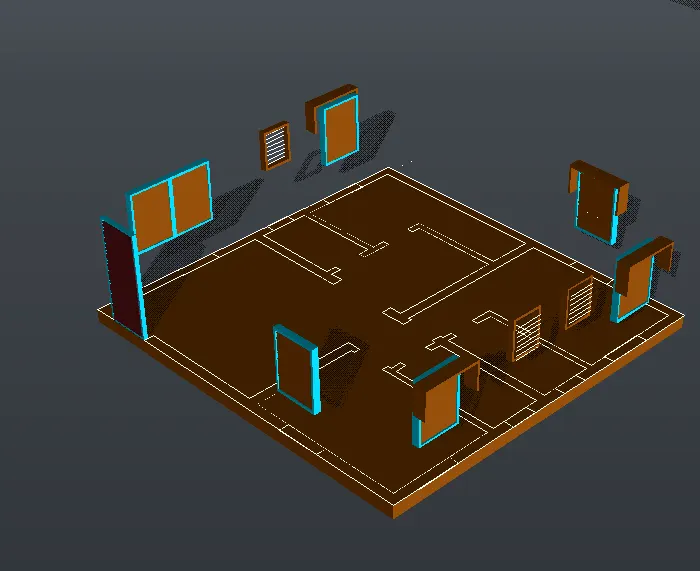

NOW FORM THE FRAMES AND STRUCTURES FOR WINDOWS AND DOORS BY CONSIDERING THE DIMESTIONS FROM ELEVATION

USE LAYERS SLAB,PROJECTION

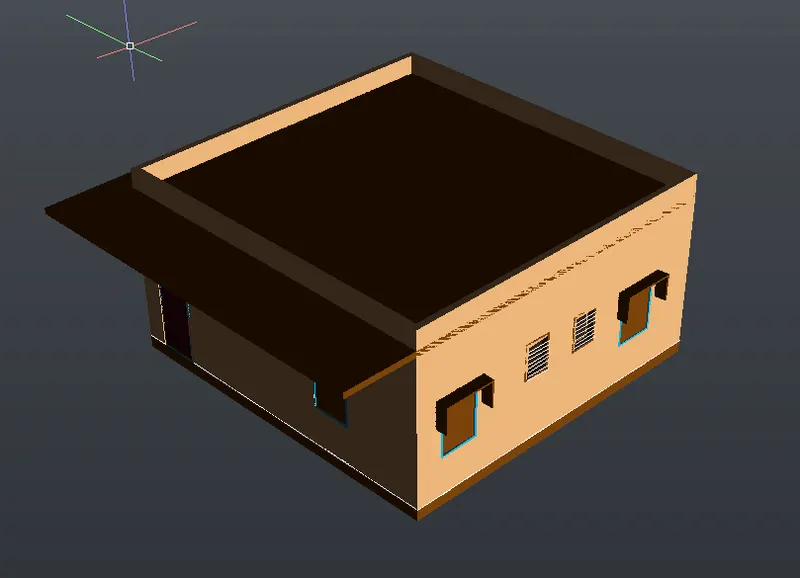

NOW FORM THE PLITH, SLAB, PROJECTIONS FOR WINDOWS AND PARAPET WALL.

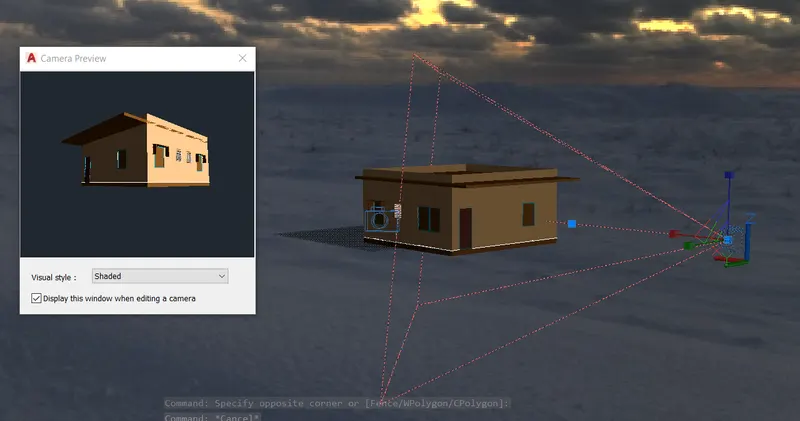

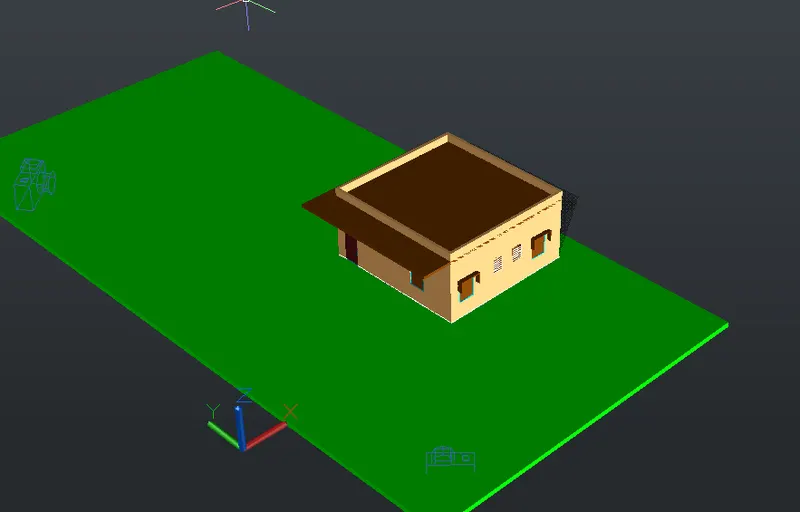

SET UP CAMERA AND SET UP THE VIEWS

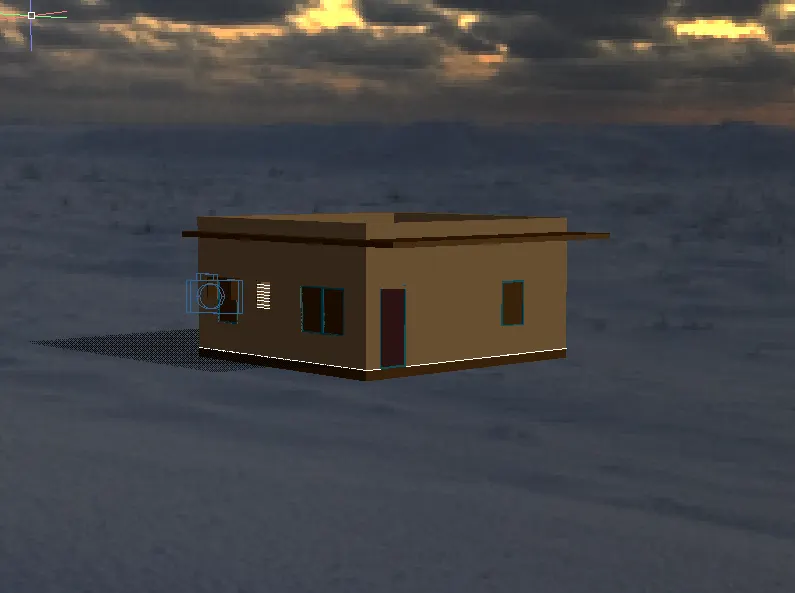

GO TO VISUALICE AND SET UP LIGHT, SHADOW,SUN,SKY ETC..

RESULT : Created a 3 dimensional model of the residential building
