Project 2_Creating a 3D rendered model for a Residential Building in AutoCad
PROJECT- 2
AIM OF THE PROJECT- Creating a 3D rendered model for a Residential Building in AutoCad.
Introduction- Commands Used For Drawing The 3D Rendered View Of Building Are As Follows.
- Extrude- Location: Draw > Modeling > Extrude
- Sweep- Location: Draw > Modeling > Sweep
- Union- Location: Modify > Solids Editing > Union
- Subtract- Location: Modify > Solids Editing > Subtract
- Intersect- Location: Modify > Solid Editing > Intersect
- Revolve- Location: Draw > Modeling > Revolve

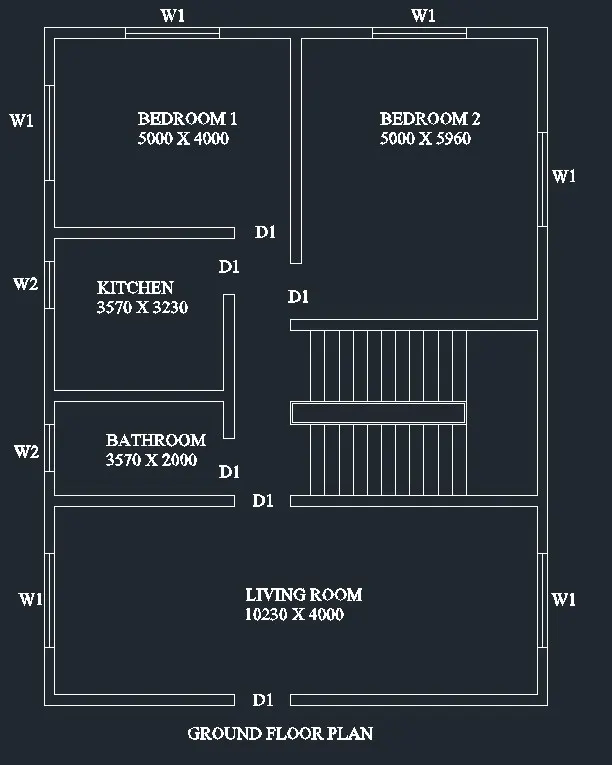

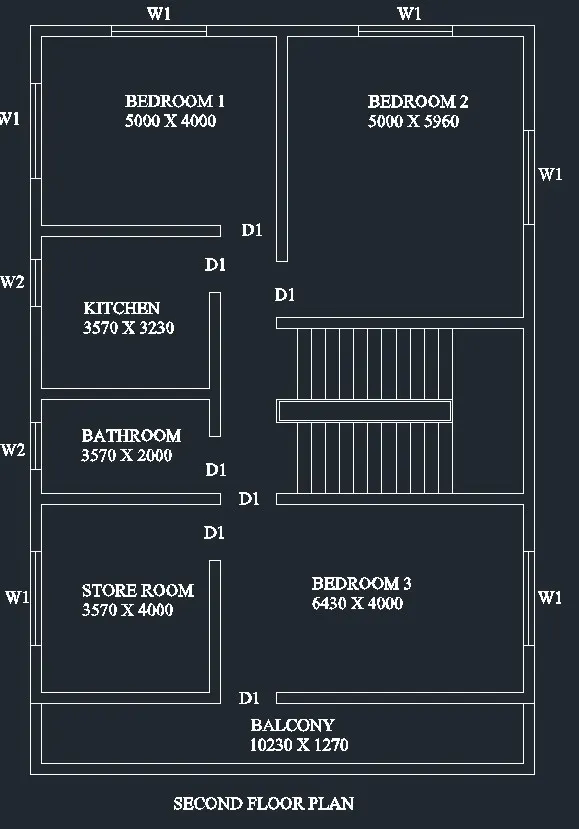

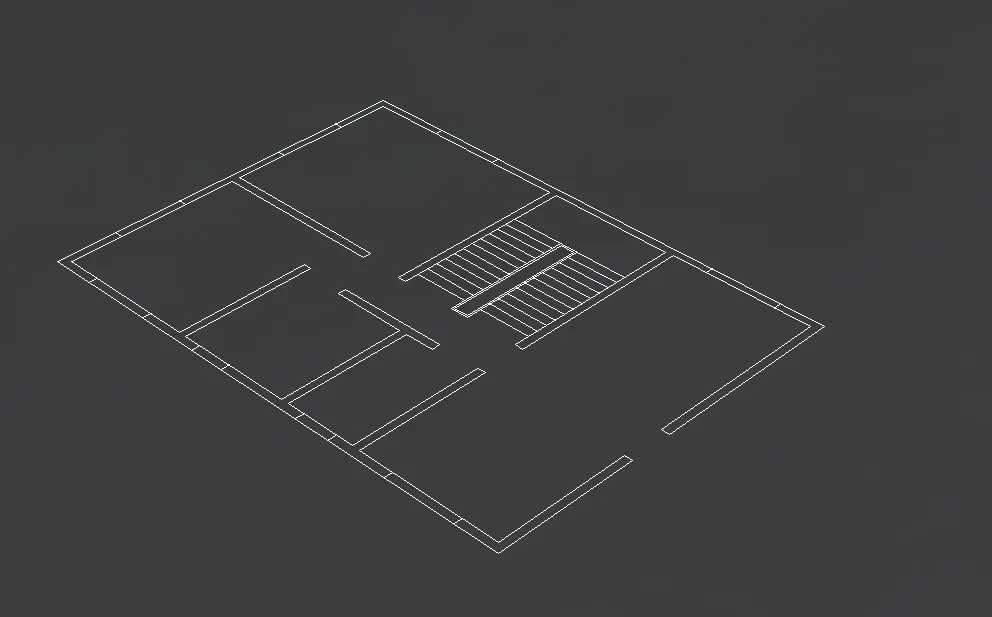

STEPS FOR CREATING A PLAN-
l Open Auto Cad.
l In the right left corner click on the settings icon that is the icon of workspace.
l Select 3d modelling.
l Enter UN (Units ) command in the command box and change the type as decimal and select precision as 0.0
l Now enter Dim style in command box and modify the settings and select primary units as decimal and give precision as 0.0
l Select line command and draw in top or 2D mode.
l Line command is used to draw the plan.
l Command X line and draw line in X Direction as well as in Y direction.
l Trim the unwanted corner lines.
l Offset 230 for wall.
l Offset 5000 for bedroom in X direction and 5000 in Y direction.
l Offset 2000 in X and 2000 in Y direction both for bath and WC.
l Offset 1000 for was basin.
l All walls are 230 mm thick.
l Line command is used to draw windows and doors.
l Size of windows are 2000 X 2000 and 1000 X 1000.
l Size of door is 1200 X 2100.
l Landing width is 1500
l Tread is 300 and rise is 150.
l Mtext command is used to give naming to the plan.
STEPS FOR CREATING THE 3D PLAN.
l In the right left corner click on the settings icon that is the icon of workspace.
l Select 3d modelling.
l Command boundary and in that select region.
l Create boundaries as well as regions of the plan.

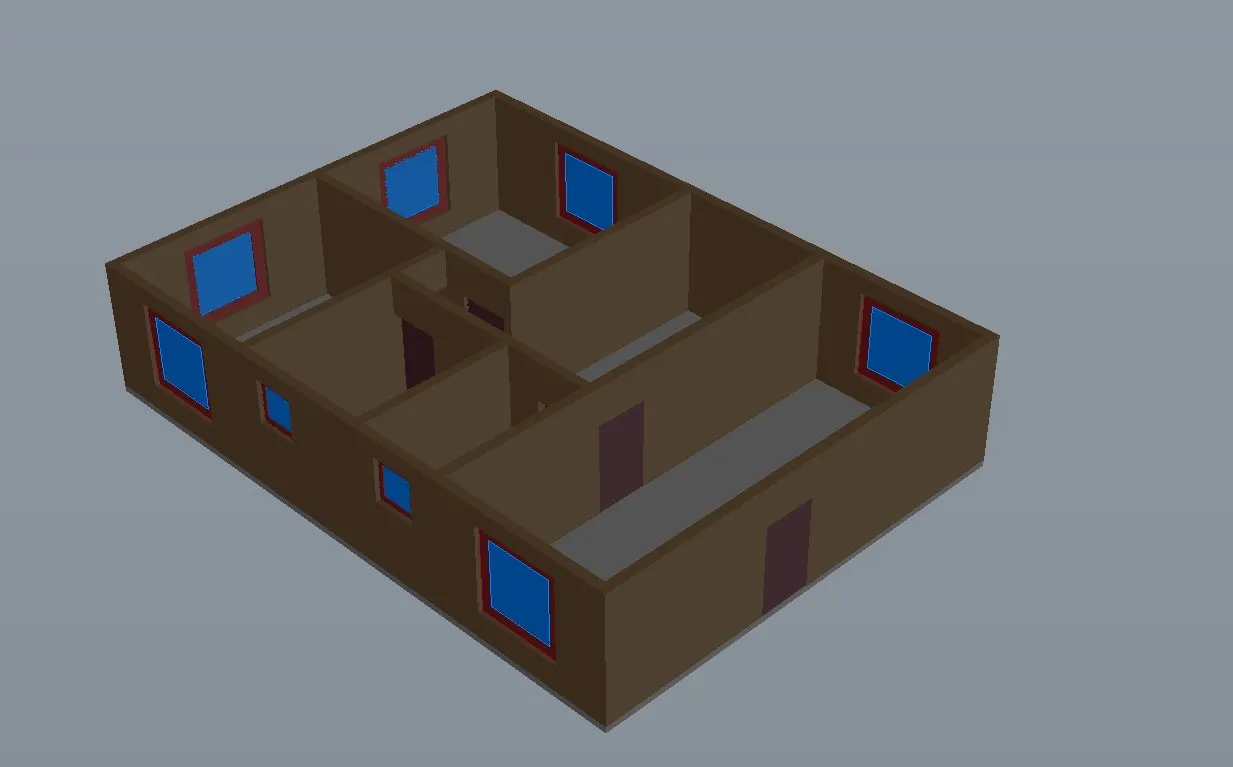

l Extrude the regions that are the walls to the height of 3000 from bottom.
l Floor to floor height of the building is 3000.
l Create different type of layers using layer properties like 3D walls, window frames, slab, window glass etc as desired.
l Assign colors to each layer separately

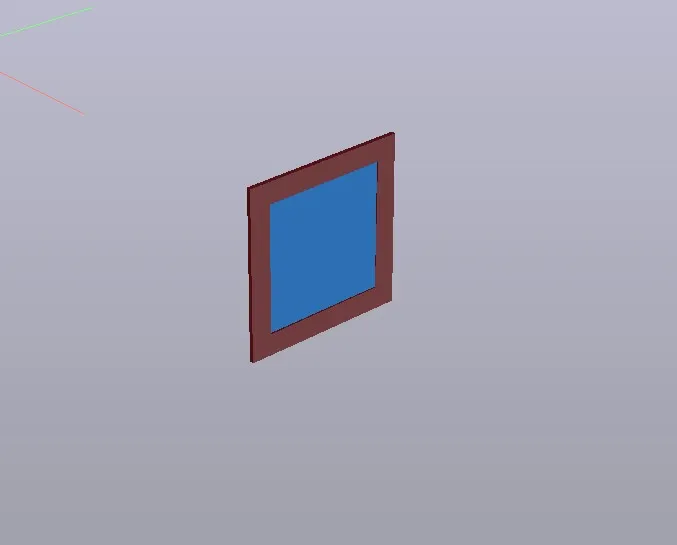

l Line command is used to draw the windows and doors.
l Extrude the windows and doors to the suitable depth.
l Rotated 3D is used to rotate the objects as in windows and doors.
l Move and copy command is used to move the windows to their desired locations.

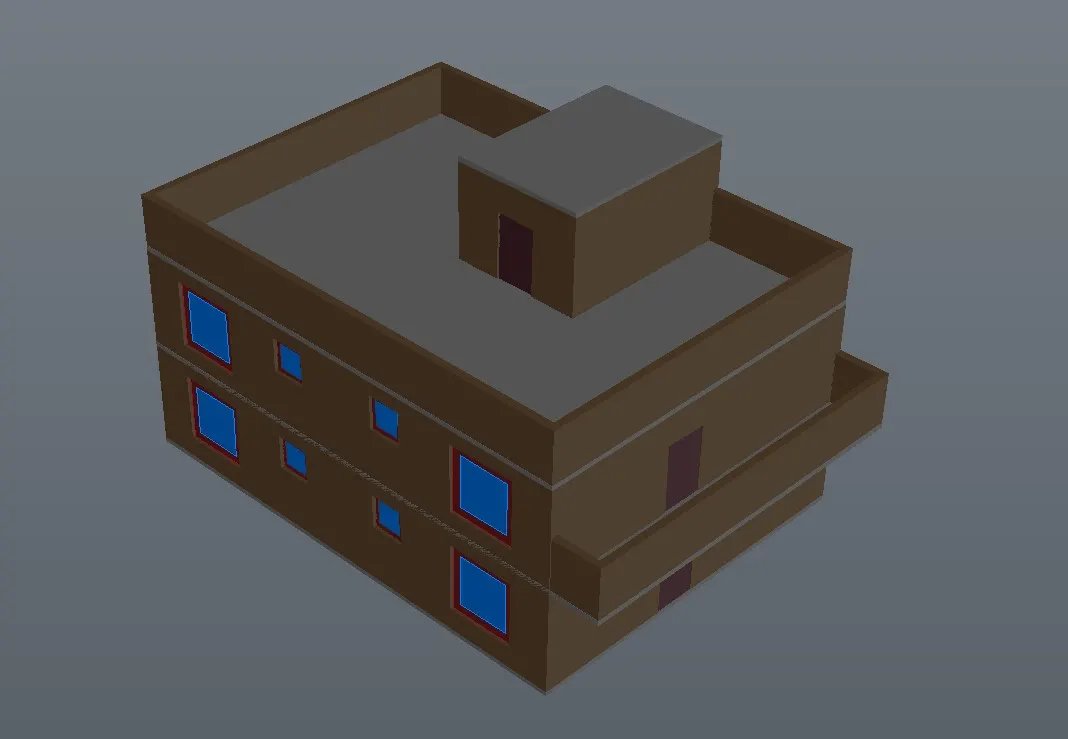

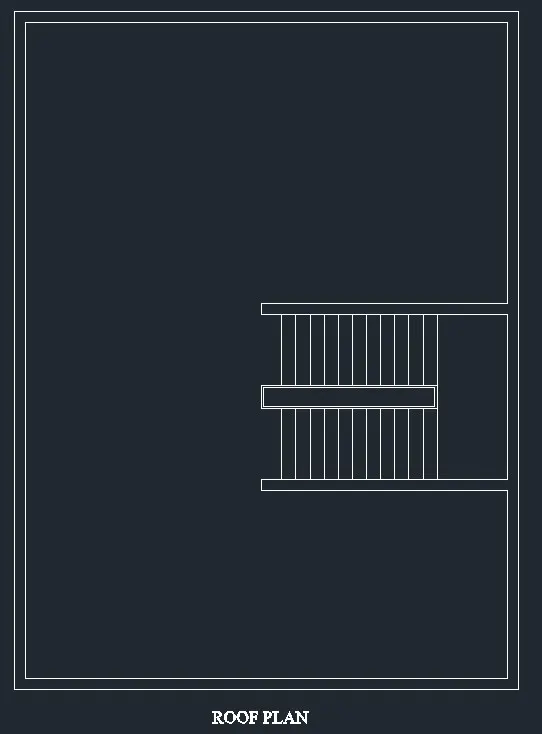

l Command polyline at the terrace and create the parapet wall at the top of the building.
l Command polyline and create the plinth of the building of 600 at the bottom.
l Create the staircase and extrude it to the distance of 1200.
l Create the mumty separately and place it on the top of the building.

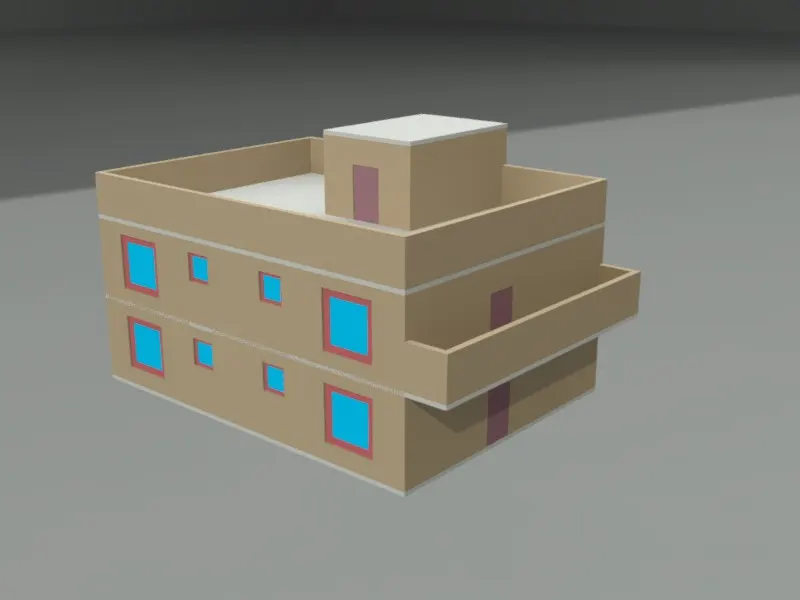

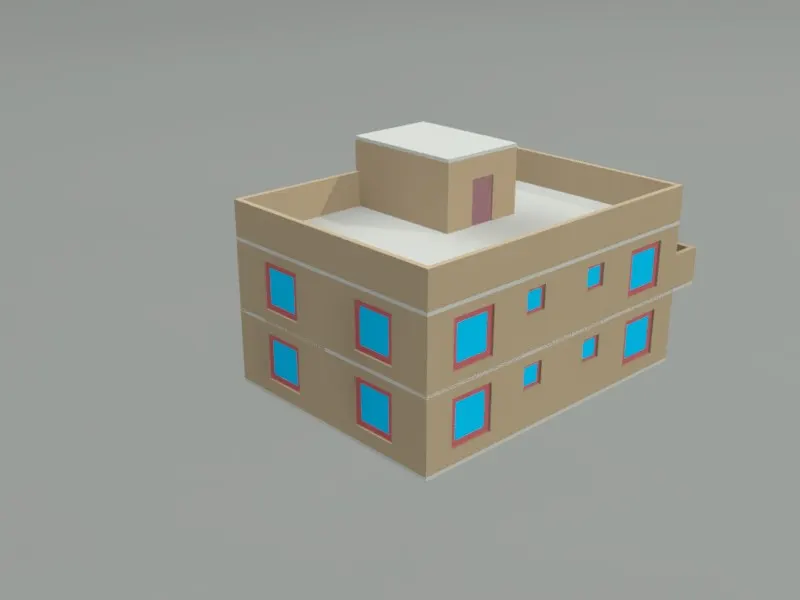

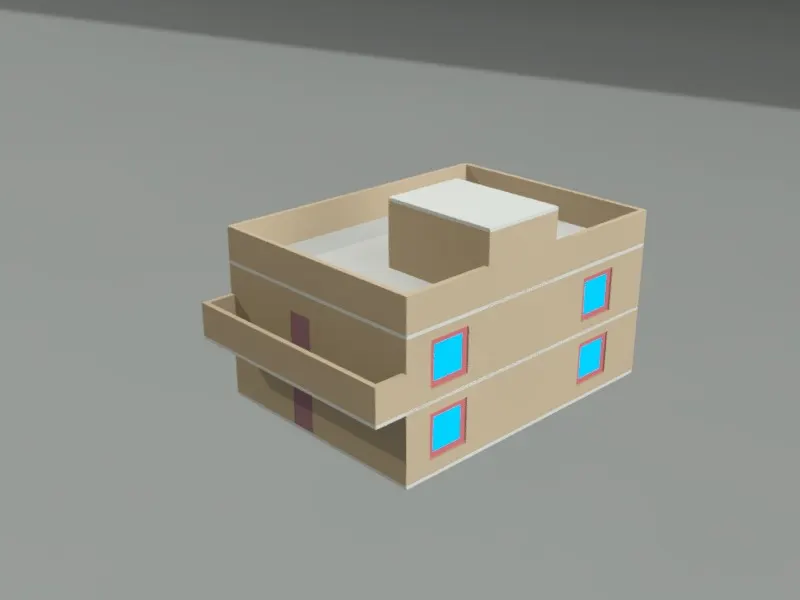

STEPS FOR RENDERING-
l Go to the visualize tab from the fibbon.
l This will give access to the panels like light, sunlight, Camera, Animations, Render and Views.

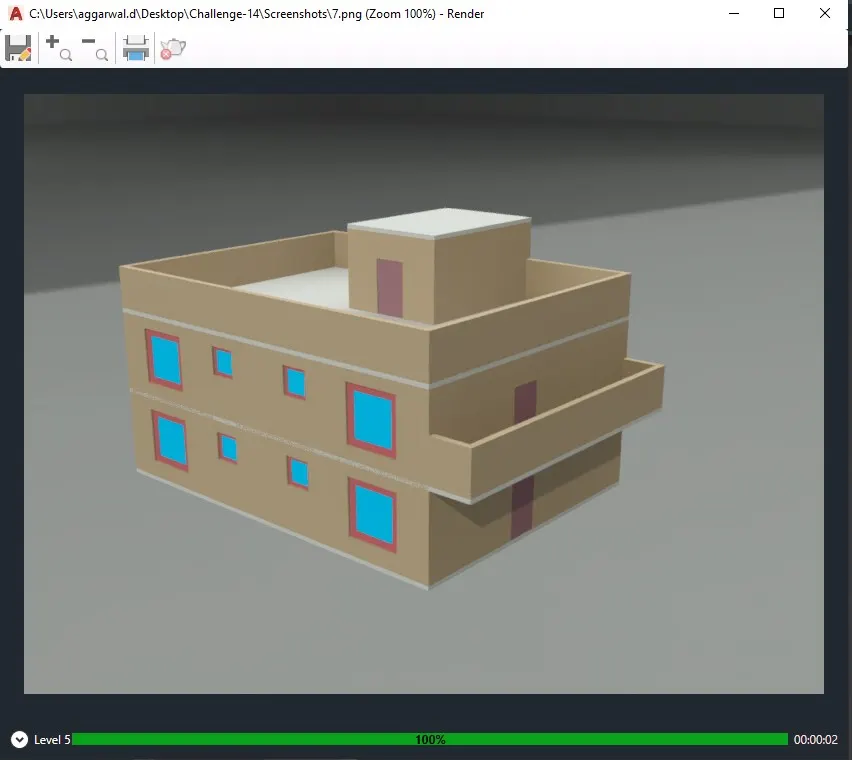

l Create different views using the camera anf render the building.
l Place the lights at the desired locations.
