Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

• PROJECT : Create a 3 dimensional model of the residential building with a rendered view.



• AIM:
• TO DRAW THE 3D  RESIDENTIAL BUILDING AND TO CREATE THE RENDERED VIEW



• PROCEDURE :



• DIMENSION :
• EXTERNAL WALLS : 9"
• WINDOW : 3'X4'
• DOORS : 4'X7'
• ALL DIMENSION IN INCHES



• PROCEDURE :
• click on autocad software and start the application
• command : qnew
• click on advance setting
• unit : engineering precission 0'-0"
• angle : decimal degree presicion 0
• angle measure : EAST and click on NEXT
• angle direction : counterclockwise
• then provide  requried area
• press : enter
• keep ortho on
• keep grid mode off
• press : enter
• command : UN (for units )
• unit : engineering precision 0'-0"
• scalce inches
• press : enter



• STEP BY STEP PROCEDURE :

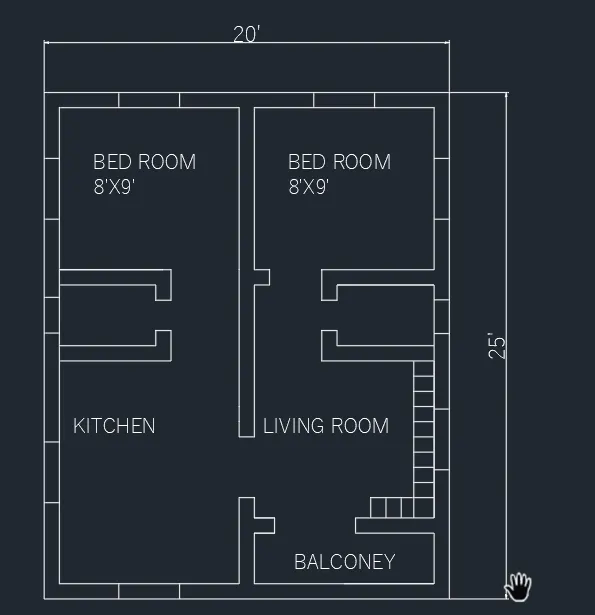

• DRAW A 2D FLOOR PLAN :
• command : REC (for rectangle )
• select the start point anywhere
• click on dimension
• length : 20'
• width : 25'
• press : enter
• command : O (for ofset )
• select the object
• give the ofset distance as 9"
• press : enter
• command : X (for expode )
• select the object
• press : enter
• command : o (for ofset )
• distance : 8;
• press : enter
• again ofset :
• distance 9"
• press : enter
• complete the whole plane by using ofset , line , and triam command
• press : enter
• then draw window and door by using ofset, line command
• command : DIMLIN (for dimension )
• give the dimension )
• press : enter
• command : MTEXT (for text )
• write the text as shown in plan
• press : enter
•



• go to the workspace
• select the 3d workplace
• visual style 2d wirwframe
• command : 3d orbit
• command : UCS

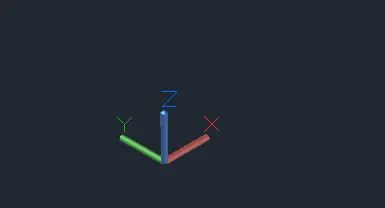

• ucs direction as shown in fig
•

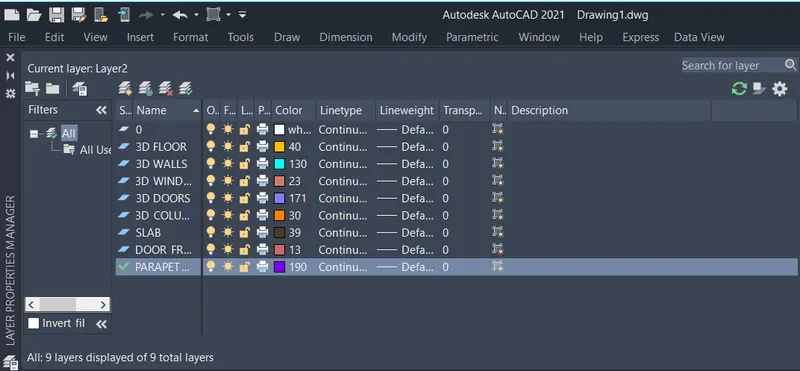

• then create a layers as shown in fig
• go to layers
• create a new layers
•
• click on top view
• command : REC (for rectangle )
• click anywhere for first point
• click on dimension
• length : 25'
• width :30'
• press : enter
• command : O (for ofset )
• distance : 9"
• press : enter
• commnd : EXT (For extude )
• select the object
• extude height 9"
• press : enter
• command : REC (for rectangle )
• for column
• draw requried sizes of rectangle
• make it region
• command : EXT (FOR EXTUDE )
• Select the columns
• heigth : 7'
• press : enter
• command: REC (FOR RECTANGLE )
• select the first point
• click on dimension
• distance : 20'
• width :25'
• press : enter
• make it region
• command : EXT (for extude )
• height : 9"

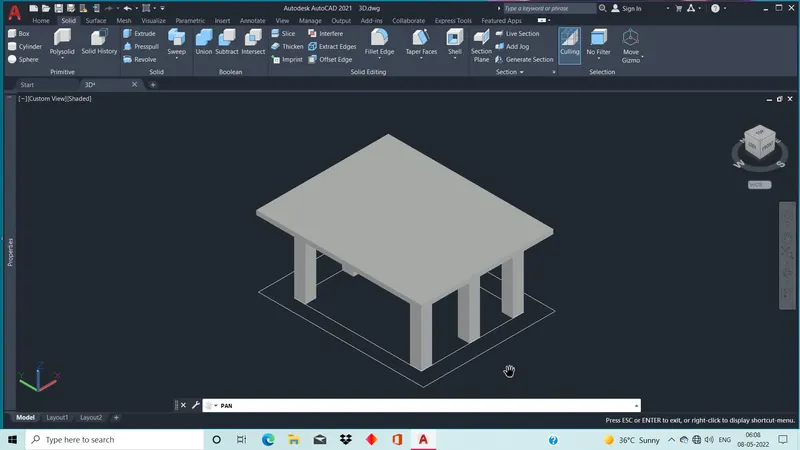

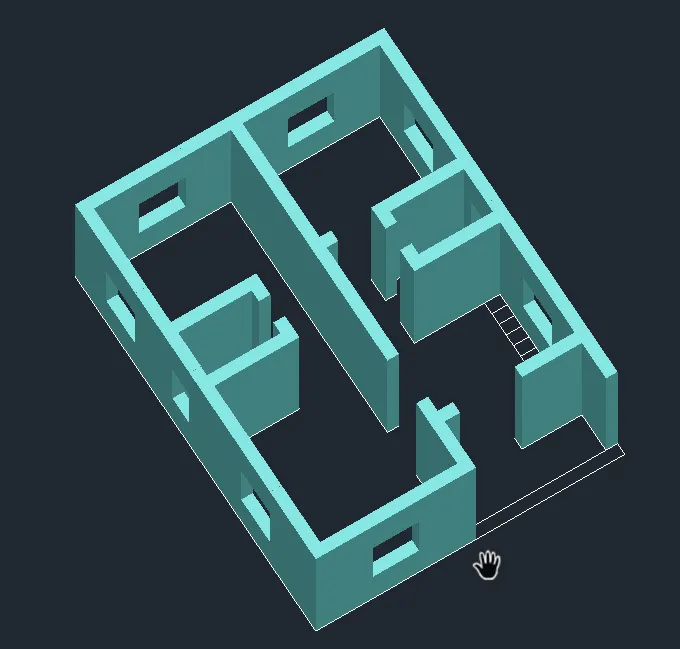

• for floor as show below
• command : MOVE
• placed it properly
• press : enter
•



• command : COPY
• copy the floor plan
• select the base point
• and copy it
• command : 3dorbit
• command : UCS
• ucs direction shown below
•



• command : EXT (for extude )
• select the boundary
• extude height is 10'
• press : enter
• give the height of walls 10'
• then ,
• command : REC (for rectangle )
• for window
• select the boundary
• command : EXT (FOR extude )
• select the extude height is 3'
• press : enter
• command : copy
• put dynamic ucs on
• select the base rectangle
• put it at top of wall
• command :ext (for extude )
• select the object
• and extude it at requried height
• press : enter
• command : UNION
• select the solid surface
• press : enter
• go to the view
• create a new view

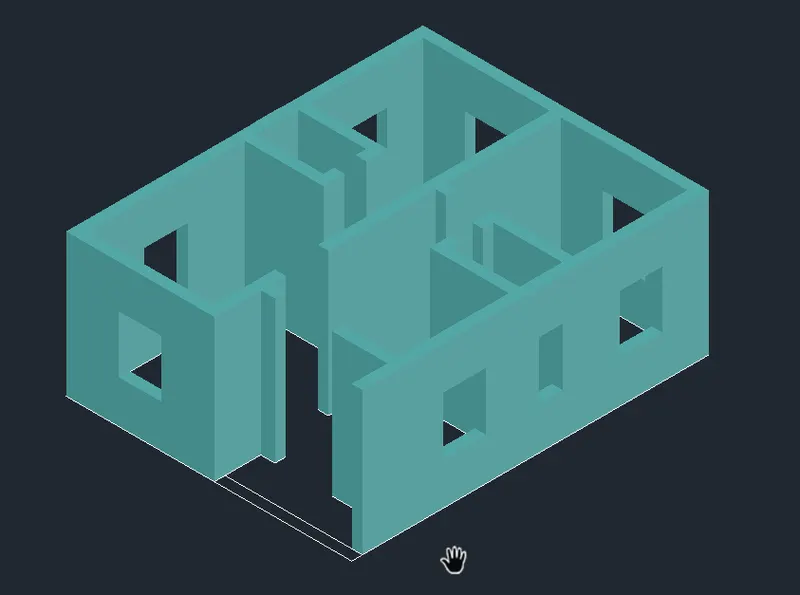

• as shown in fig
• VIEW 1 :
•



• VIEW 2:
•





• FOR DOORS AND WINDOW :
• command : UCS
• select the proper dimension
• command : REC (for rectangle )
• select the start point anywhere
• click on dimension
• length : 4'
• width : 7'
• press : enter
• command : x (for explode )
• select the object
• press : enter
• put object snap on
• command : L (for line )
• select the midpoint of top of window
• and divide the window in two parts
• command : REC (for rectange )
• give the start point
• and draw the rectangle
• command : copy
• click on multiple
• select the base point of rectangle
• and copy it
• command : MI (for mirror )
• select the all small rectangle
• and mirror it as shown in fig
• command : JOIN
• select all content
• press : enter

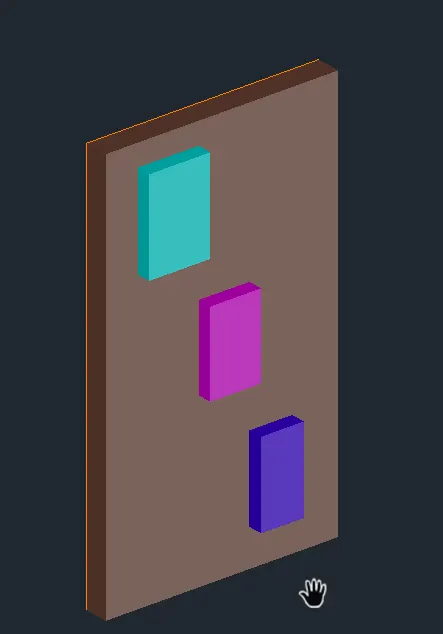

• command : EXT (FOR entude )
• slect the panal of door and extude it at -5"
• press enter
• command : presspull
• select the small rectangle
• give distance 2"
• press : enter
• door is ready
• in this way create a window
•
• by using move and ucs command placed all doors and window at proper postion
• command : COPY
• select the first floor
• and coppy it
• command : REC (for rectangle )
• draw the rectangle for slab of the first floor
• then command : O (ofset )
• distance : 9"
• press : enter
• command : PRESSPULL
• slect the rectangle
• and give 9" slab
• press : enter
• again coppy
• and give the 2nd and 3rd floor
• same way
• again command : REC (for parapet wall )
• draw the rectangle
• command : presspull
• give the height of parapet wall is 7'
• press : enter
• then draw the swimming pull
• command : L (FOR LINE )
• draw the stracture shown below
• command : F (for filete )
• click on RADIUS
• give the filite radius is 9"
• click on multiple and filite it
• command : JO (for join )
• slect the object
• press  : enter
• command : O (for ofset )
• distance : 9"
• press enetr
• coomand : PRESSPULL
• select the swimming pull object
• give the height is 3'6"
• press enter

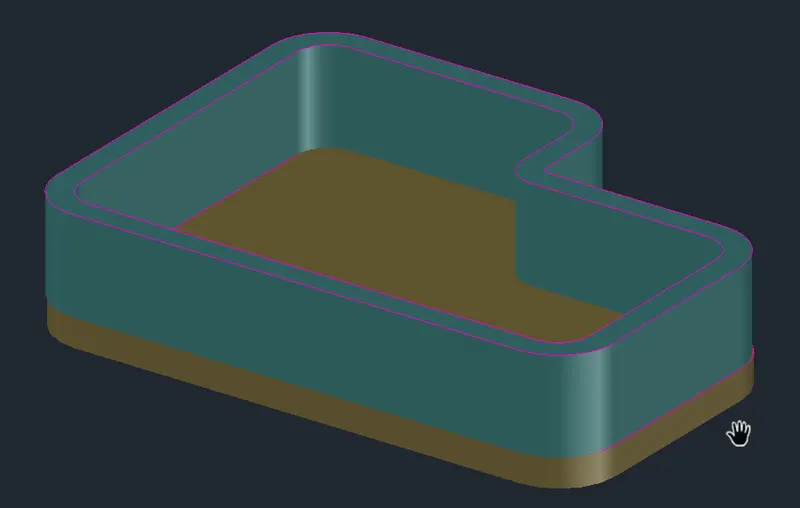

• the object sown below
•

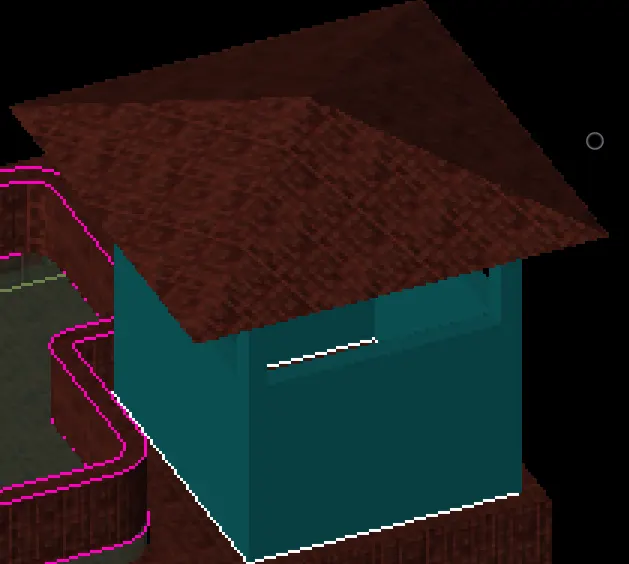

• then draw the upper room
• draw the rectangel as per recquriment
• command : o " ( for ofset )
• distance : 9"
• press : enter
• command : PRESSPULL
• select the wall
• give height as 7'
• press : enter
• commans peryamed
• for room
• draw it
• and place it properly by using move nd ucs command
•
• commad : UNION
• select the solid surface
• make it union

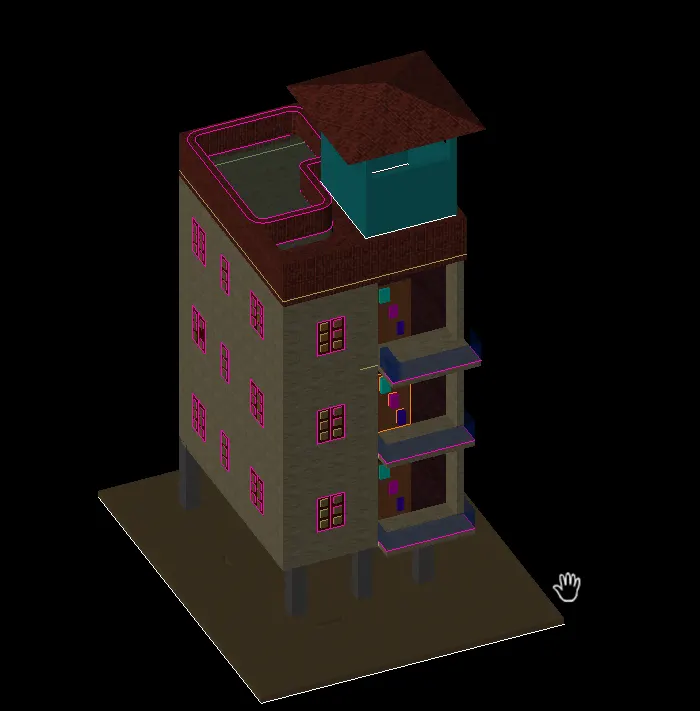

• in this way 3D building ready
• command : MAT (for material )
• click on HOME
• then go to the autocad labrioury
• select the material
• like wood , stone , floor tile , glass , water etc
• appy all the material to the building
• press : enter
•
• command : CAMERA
• placed the camera at requried height and select the requried target
• create two camera view
• press : enter
• command : RR (FOr render )
• and give the rendering to the building



• RESULTS :



• COMMAND USED :
• START : QSTART
• UNITS : UN
• LINE : L
• RECTANGLE : REC
• CIRCLE : C
• OFSET : O
• TEXT : MTEXT
• DIMENSION : DIMLIN
• EXPLODE : X
• TRIAM : TR
• BOUNDERY : BO
• SHADED
• REGION
• PRESSPULL
• EXTUDE : EXT
• JOIN : J
• COPY
• UCS
• 3DMIRROR
• 3DROTATE
• MOVE
• UNION
• SUBSTRACT



• RENDERING :
•



• RENDERING :
•
