Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
1) Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-
MArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
Ans:

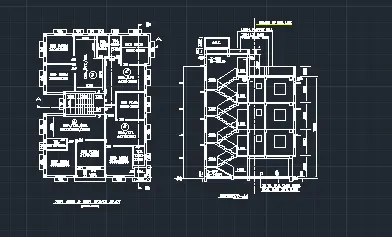

Aim: To Create a layout of the plan and section A of the project in challenges 7
Procedure :
In command type units > mm > decimal
, command type limax > 100.100
, command type limit > 0.0
In the command prompt type layout > template>Tutorial arch .m
Type Ms in the command to specify the center of the
Drawing then click on the name button to edit the name Type Mv in the command to add the
View

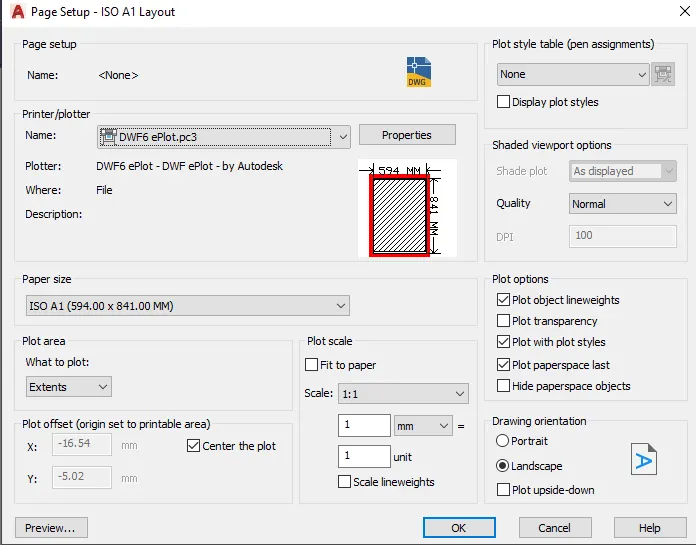

Check by typing ctrl + p in command prompt type page setup at command prompt

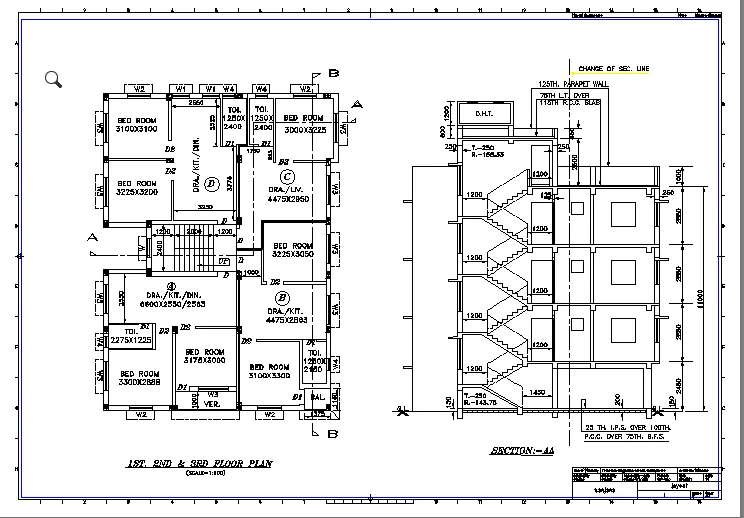

Final Result:

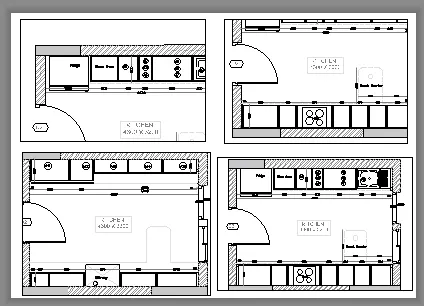

2) Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot
Aim: To create layout of the kitchen drawn in challenge 9 . Use A4 size page for the layout and take a plot
Procedure:
Type ps and ms in command to set view

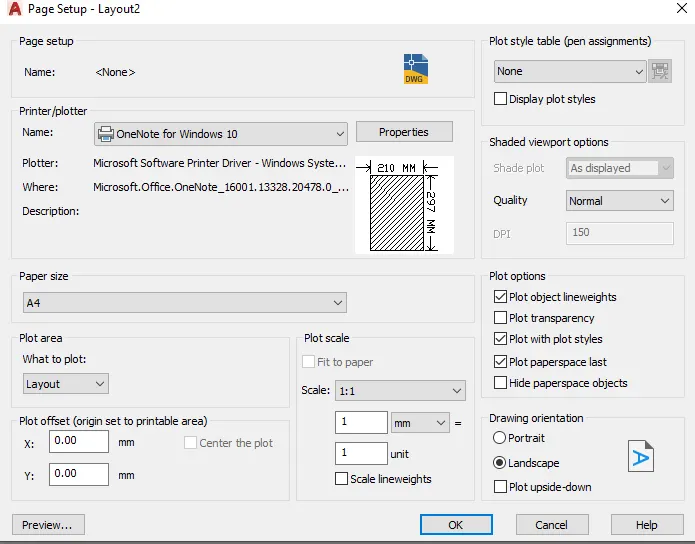

Page type set in command to change size to A4
Click arrow icon to change view

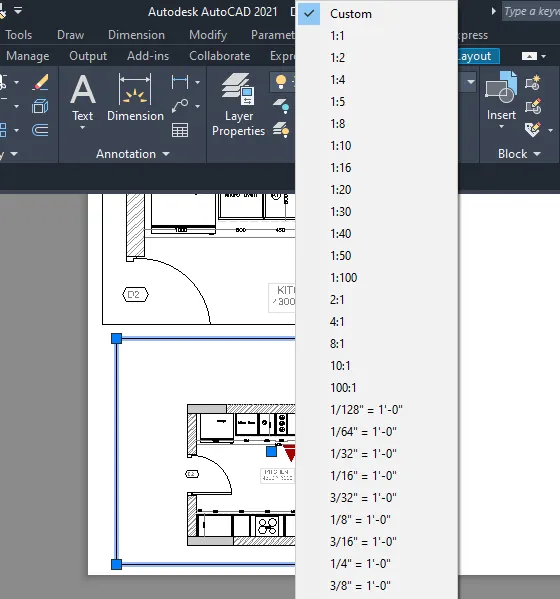

Final Result:

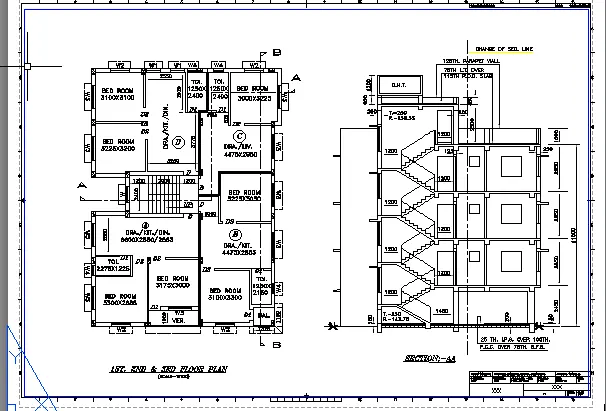

- Create a layout of the section created in Challenges 9.Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot
Aim:
To Create layout of the section created in challenges 9
Procedure:
Open file that makes up Challenge 9 Go to Layout in Command Prompt Mode MV
Change scale accordingly Use Ms and ps in Command Prompt to adjust view accordingly

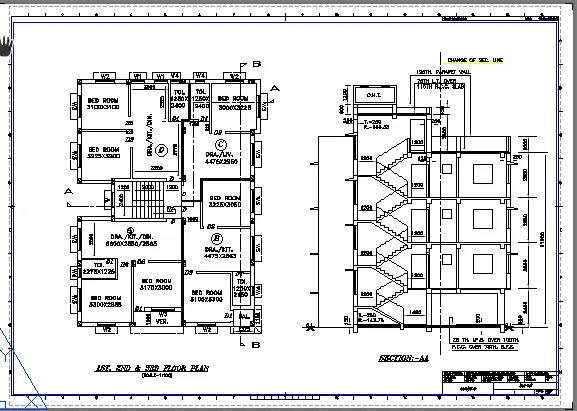

Result:
