Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim:- To create a 3 dimensional model of the residencial building with a rendered view.

Command:- line,offset,trim,copy,move,paste,mirror,rec,cir,3drot,ucs,boundary,regin,extrude,layer,sweep,presspul

Procedure:-

• Open Auto Cad.
• In the right left corner click on the settings icon that is the icon of workspace.
• Select 3d modelling.
• Enter UN (Units ) command in the command box and change the type as decimal and select precision as 0.0
• Now enter Dim style in command box and modify the settings and select primary units as decimal and give precision as 0.0

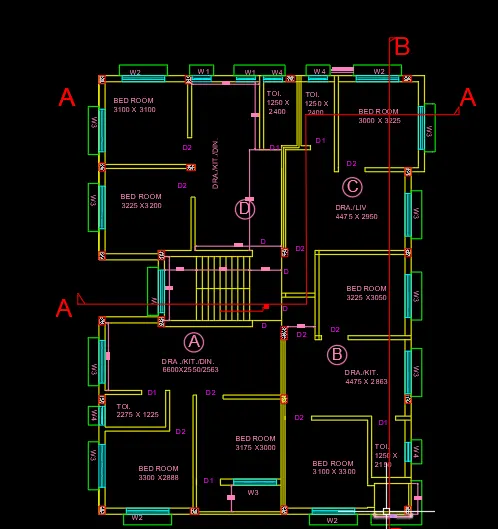

• Select line command and draw in top or 2D mode.
• Line command is used to draw the plan.
• Command X line and draw line in X Direction as well as in Y direction.
• Trim the unwanted corner lines.
• Offset 230 for wall.
• create ground floor.
• All walls are 230 mm or 150 mm thick.
• Line command is used to draw windows and doors.
• Size of window is 1600 x 1280.
• Size of doors are 900 X 1830 and 1000X 1830.
• Tread is 250 and rise is 158.
• Mtext command is used to give naming to the plan.

STEPS FOR CREATING THE 3D PLAN.

• In the right left corner click on the settings icon that is the icon of workspace.
• Select 3d modelling.
• Command boundary and in that select region.
• Create boundaries as well as regions of the plan.
• Extrude the regions that are the walls to the height of 2700 from bottom.

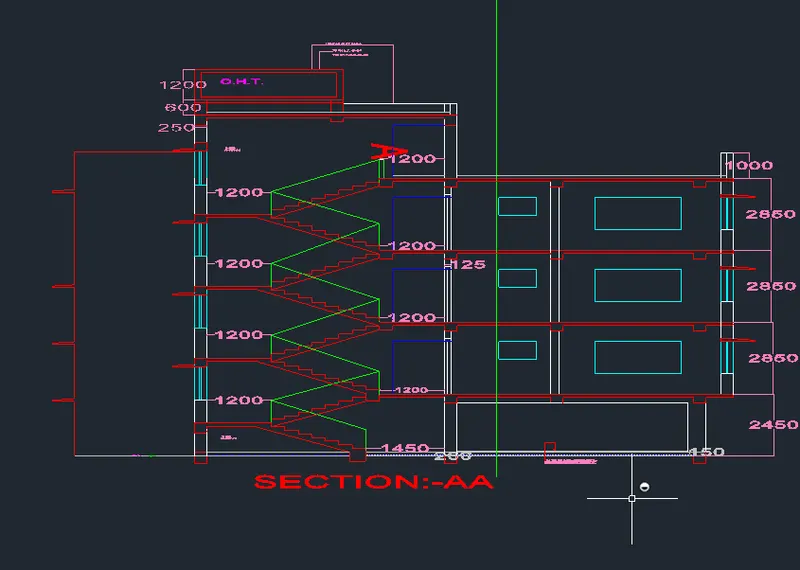

• Floor to floor height of the building is 2850
• Create different type of layers using layer properties like 3D walls, window frames, slab, window glass etc as desired.
• Assign colors to each layer separately
• Line command is used to draw the windows and doors.
• Extrude the windows and doors to the suitable depth.
• Rotated 3D is used to rotate the objects as in windows and doors.
• Move and copy command is used to move the windows to their desired locations.
• Command polyline at the terrace and create the parapet wall at the top of the building.

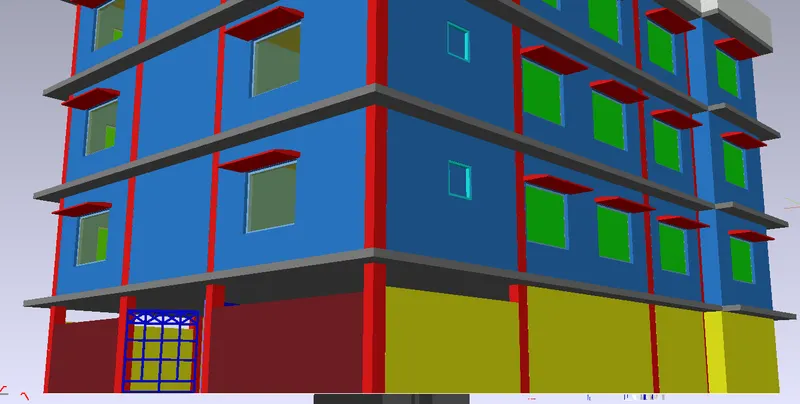

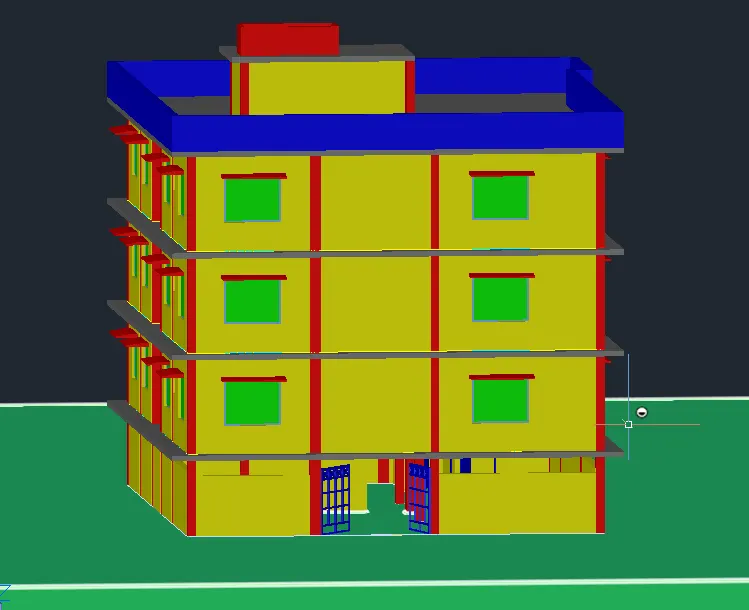

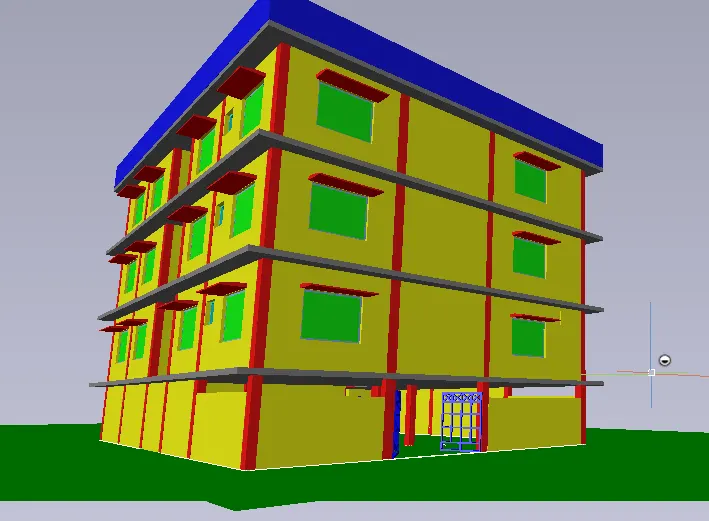

Result:-

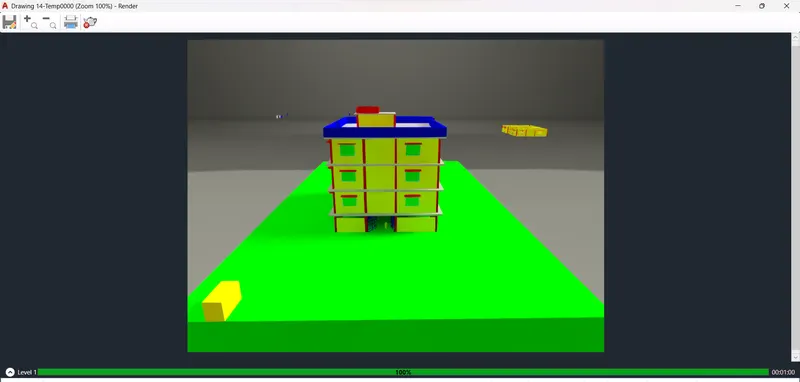

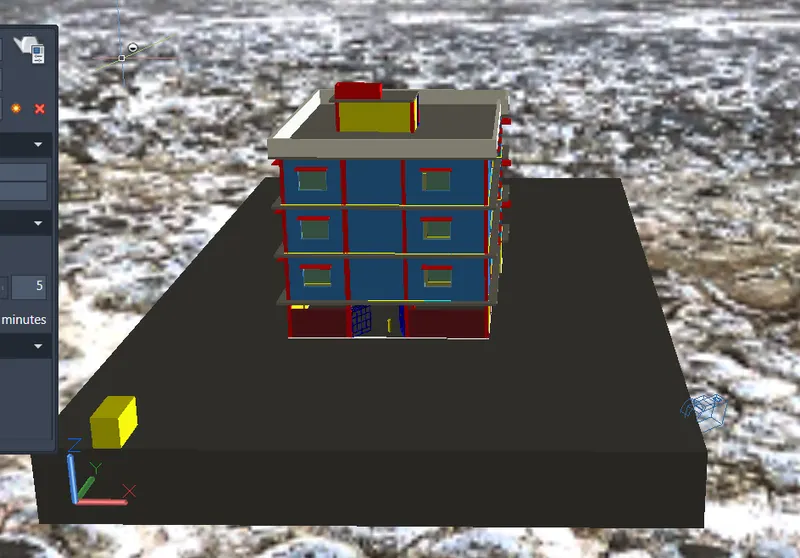

STEPS FOR RENDERING-

• Go to the visualize tab from the fibbon.
• This will give access to the panels like light, sunlight, Camera, Animations, Render and Views.

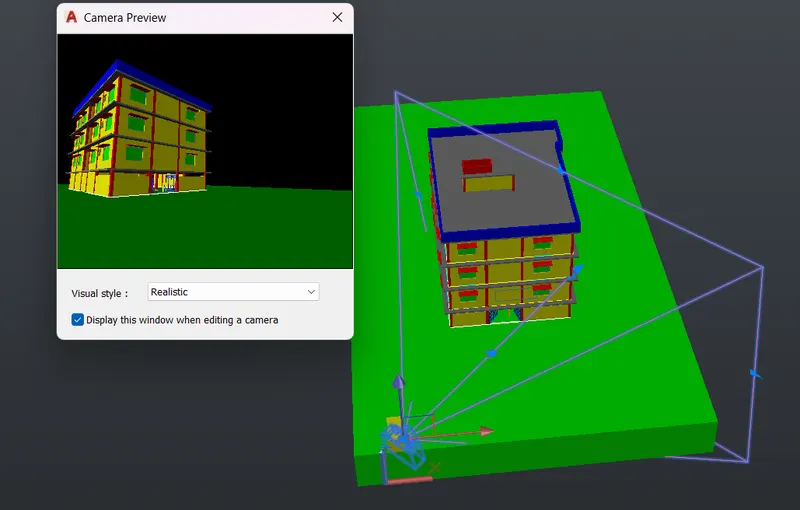

• Create different views using the camera anf render the building.
• Place the lights at the desired locations.
