Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

1)

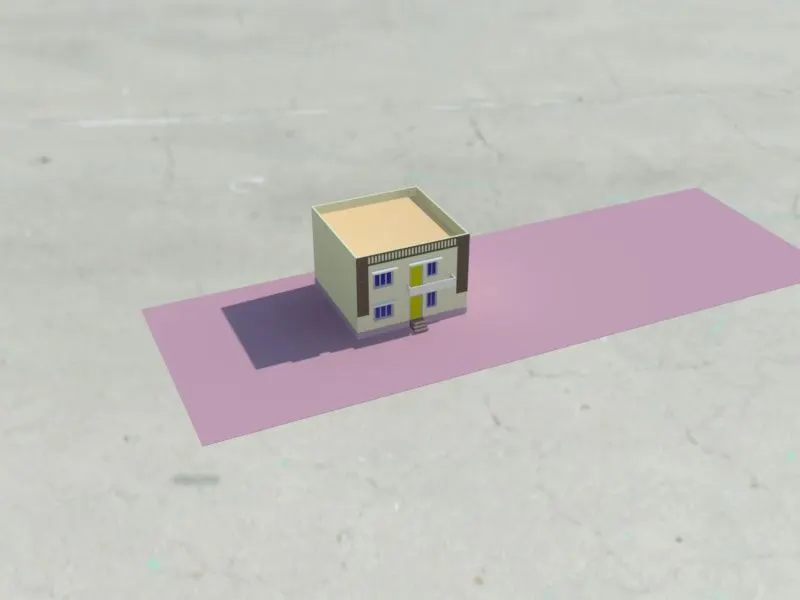

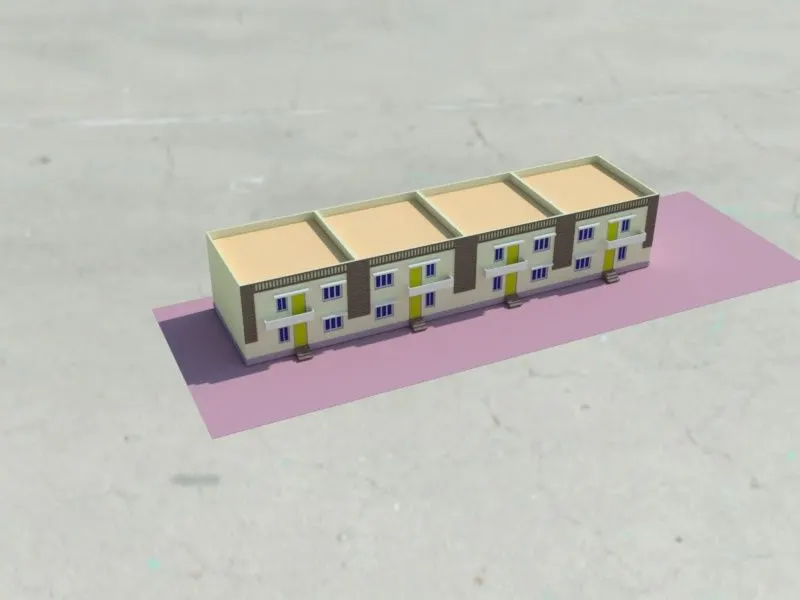

AIM: To Create a 3 dimensional model of the residential building with a rendered view.

PROCEDURE:

• To draw the 3d model of residential building by using 3d tools and 2d tools wherever required.
• first we will draw the 2d plan of the given plot.
• after that it will change to the 3d plane.
• using the extrude command we will develope the most of the elevation.
• and also layers are provided for different objects.
• after completion of the 3d model we will start the rendering.

Result: I understand the how to draw the 3d modeling of a residential building.
