Project 2_Creating a 3D rendered model for a Residential Building in AutoCad
Aim & Introduction Aim
This challenge aims to let the student utilize the tools in Autocad to create a 3D sketch. It aims to help the student familiarize with thedifferent 3D commands present in the AutoCAD software. This challenge aims to correlate the 2D drawing into 3D sketches
Introduction
The AutoCAD software provides different tools. used in this challenge is as described below:
Line- creates line object
Polyline- creates rectangle line object
Rectangle- creates rectangles object
Circle- create circle object
Trim-Cut unwanted lines or shapes with the provided cutting edges
Extended- Extend lines to opposite corners
Move- Move objects to particular locations
Copy- Copy obejects to particular locations
Rotate- Rotate selected objects to a particular angle with respect to base point
Array- Copy an object in a set path linearly or polarly
Join- Joins separated line objects to a particular angle with respect to base point Dimlinear(DLI)- provides vertical or horizontal linear/ straight dimensions Dimligned(DAL)- Provides dimensions with respect to the angle of the object Dimangular(DAN)- Provides angular dimensions between two line objects.
Quicklinedimension(QDIM)-provides quick dimension of a geometry Leader- creates an arrow head line
Layer- Provides identification of line or object groups by their properties
Units- Open "Drawings Units" window to specify to modify the dimension properties
Hatch- provides hatching pattern in a given object or internal point
3D orbit- allows panning in the 3D view

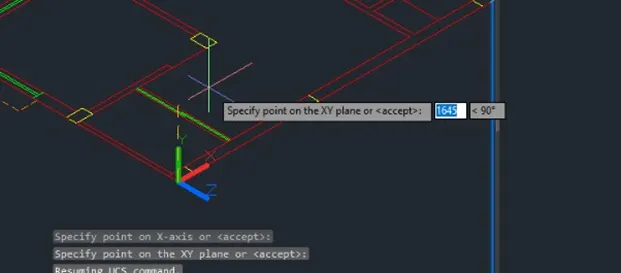

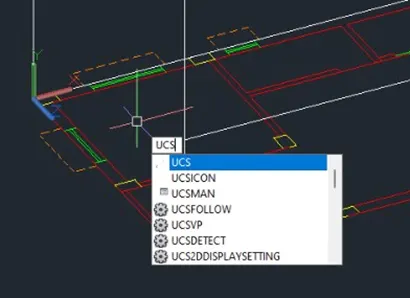

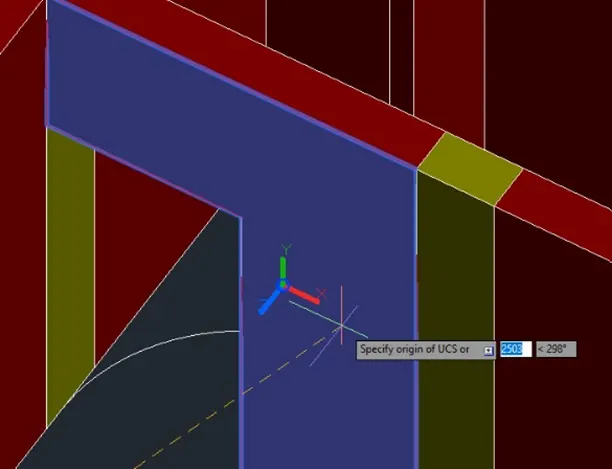

Extrude- Creates a 3D solid, surfaces, or 2D regions by subtraction UCS- Manages defined user corodinate systems
Union-Unions two solid or two region objects
Sketch and procedure:
Create a 3D model of the residential building with a rendered view Procedure:

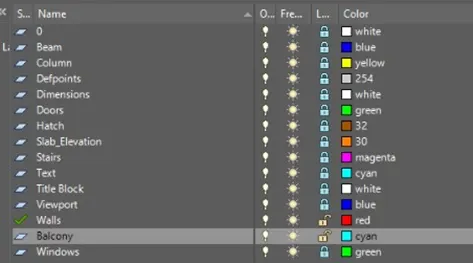

-----> Decide the layers

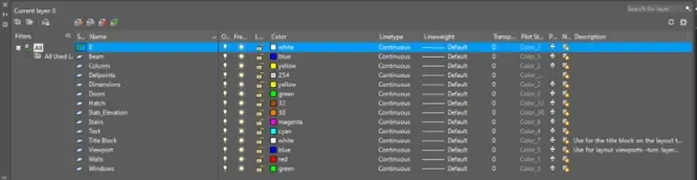

These layers can be adjusted later as per requirement. Use the layer command

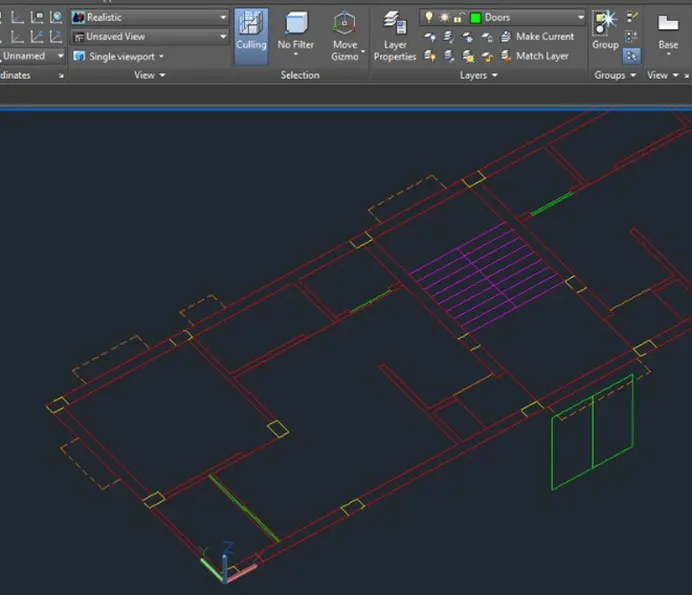

-----> Proceed with the plan drawing

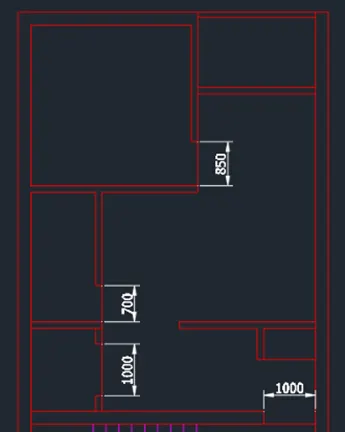

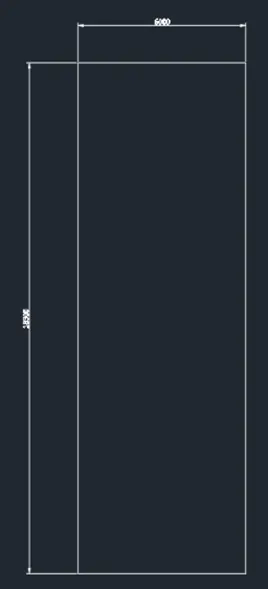

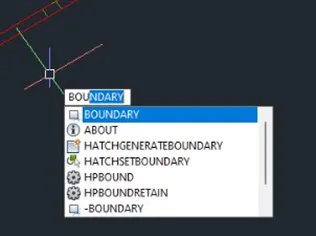

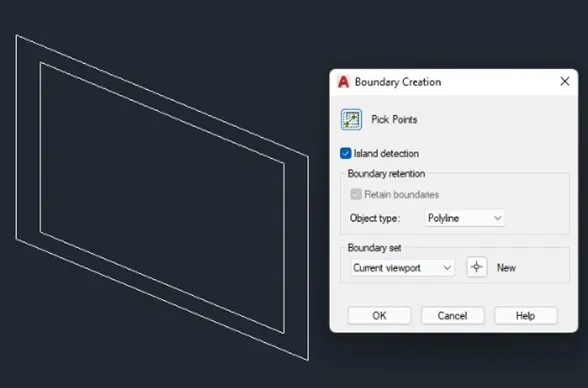

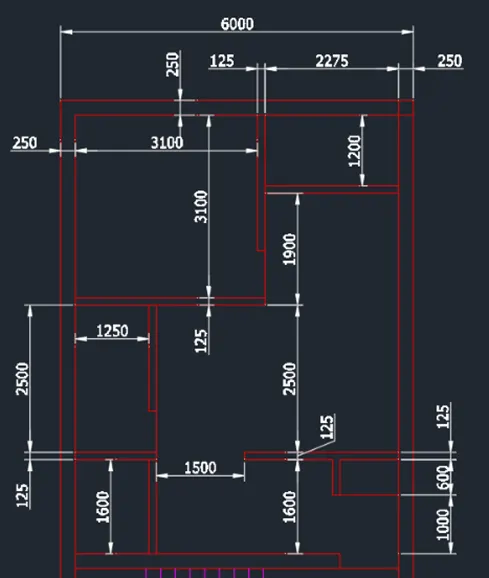

Create boundary using object. Dimension 6m by 18.3m

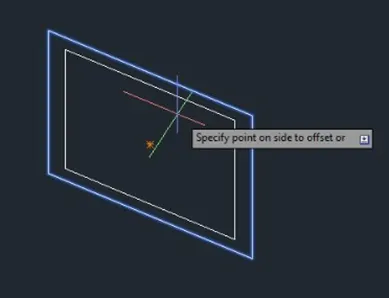

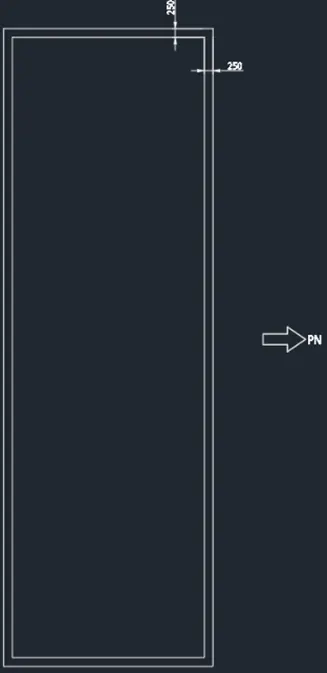

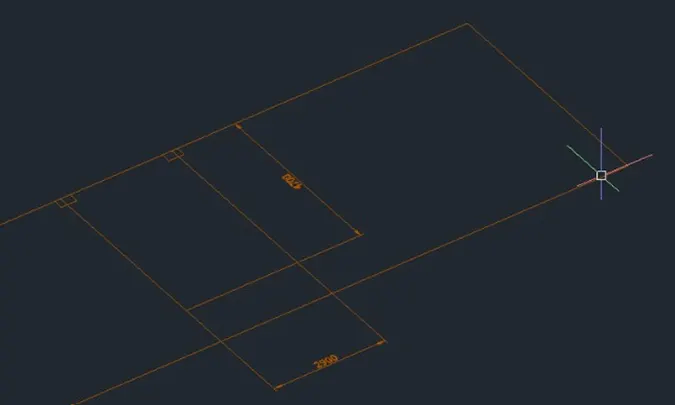

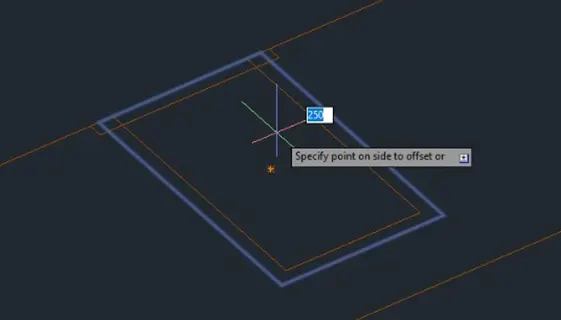

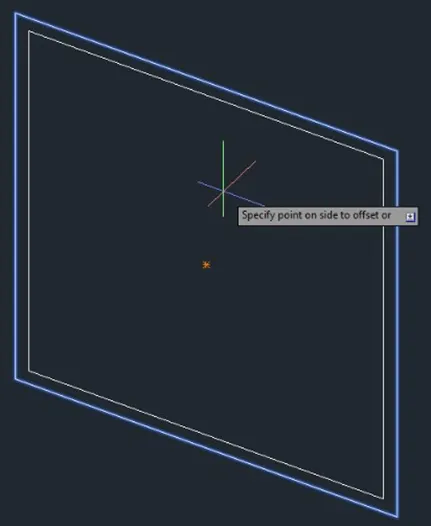

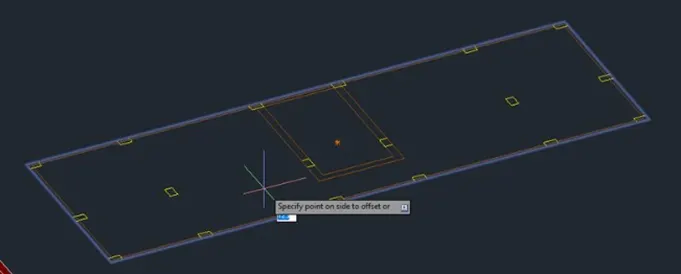

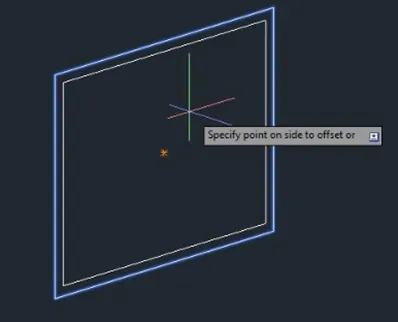

Offset it by 250 towards the inside to project the wall. Add the plant north facing east
Now create a projected boundaries for the layout. Add lines and use the extend/trim command to sketch the plan
Start the top, position stairs in the middle

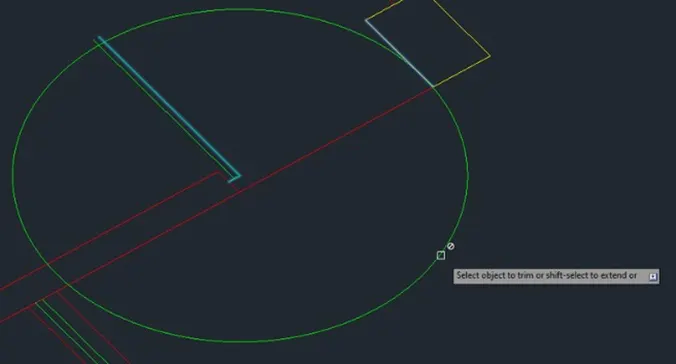

Use line and trim tool to add the wall openings and trim the unnecessary lines

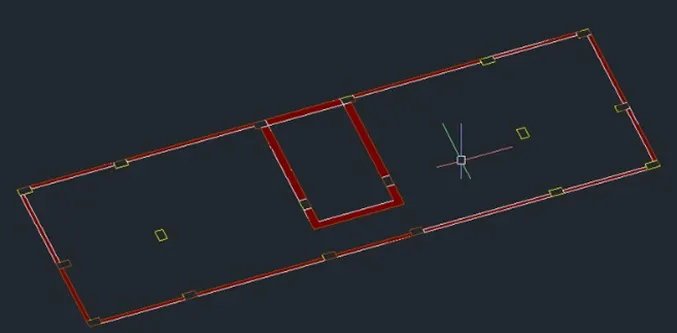

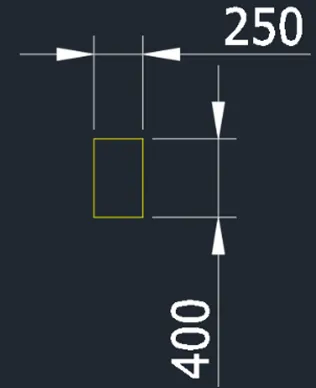

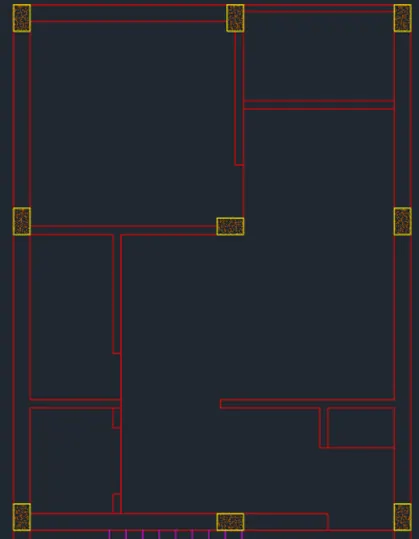

Add the columns. Column size is 250x400mm

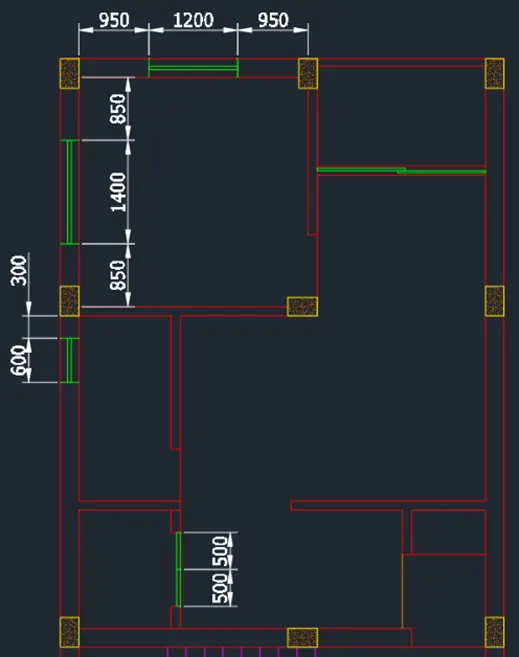

Add the doors and windows at locations where it is needed
Create the stair provosion at the middle part

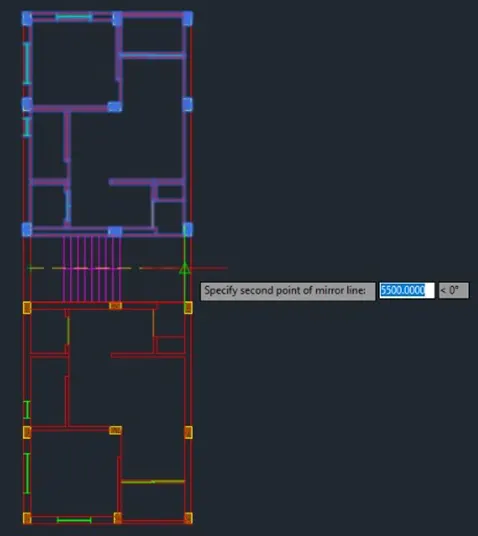

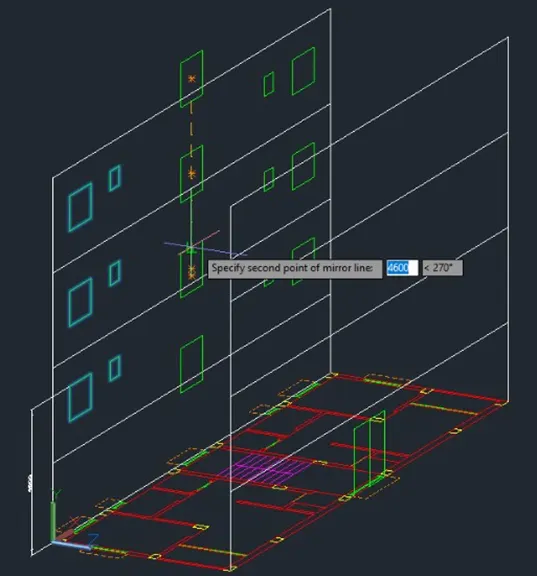

Mirror the layout of the top room and mirror it on the other side. include the column walls, windows and door to the other side

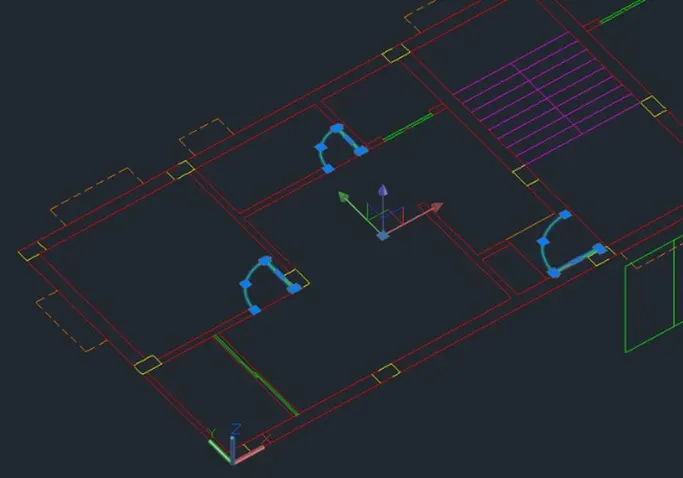

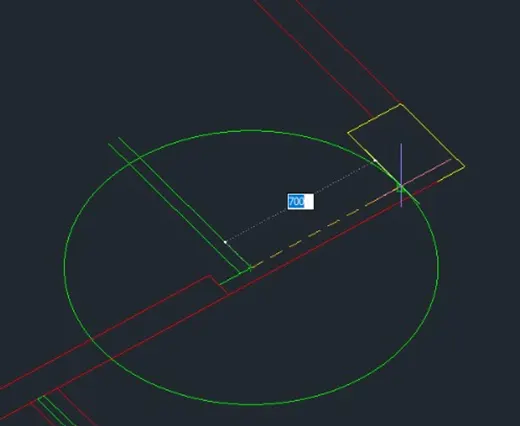

Add the door sysmbol
Trim and close the edges
Copy the door sysmbol to the doors

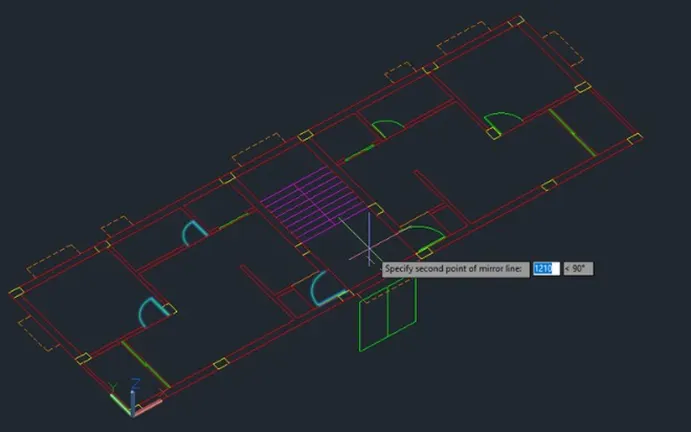

Mirror to the other side

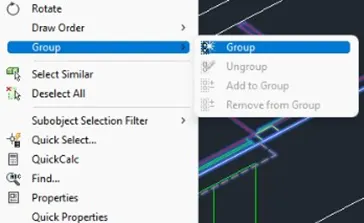

Turn the plan into a group

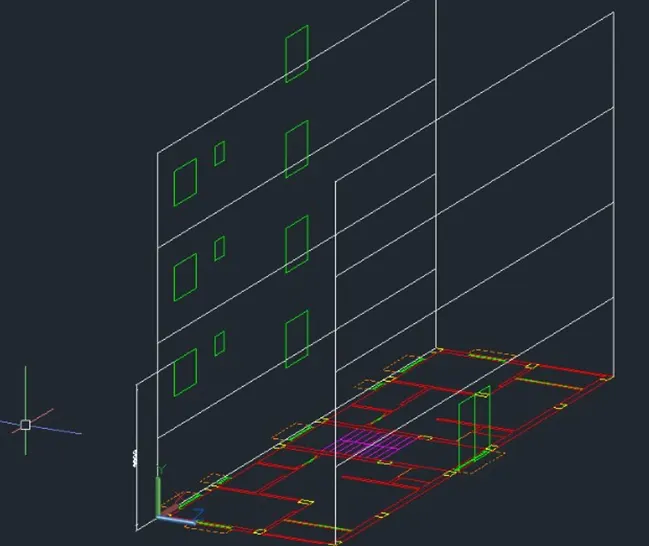

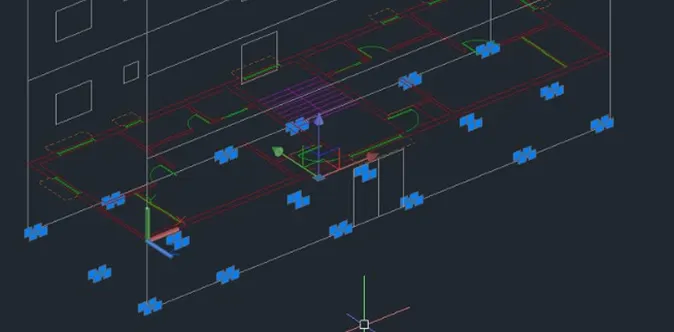

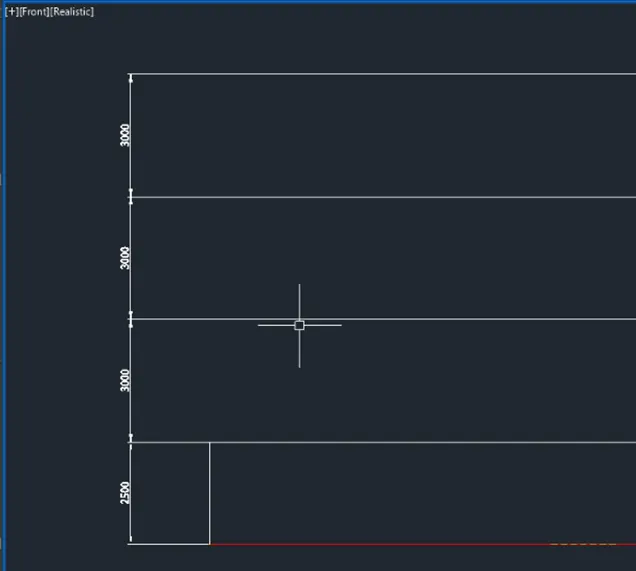

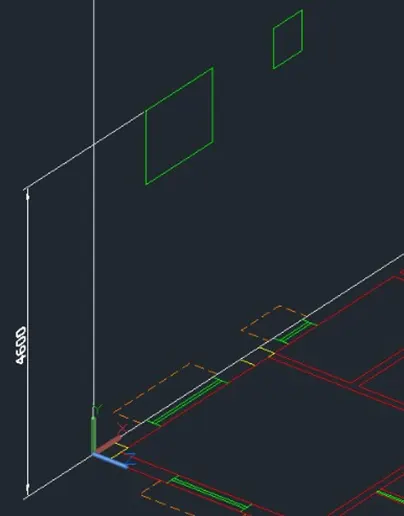

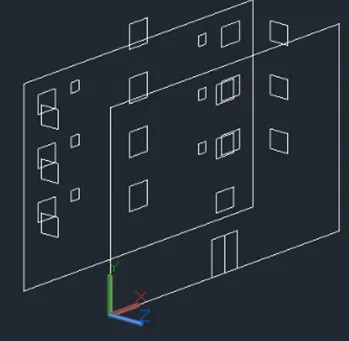

----->Create the front and side elevation of the drawing in the front view

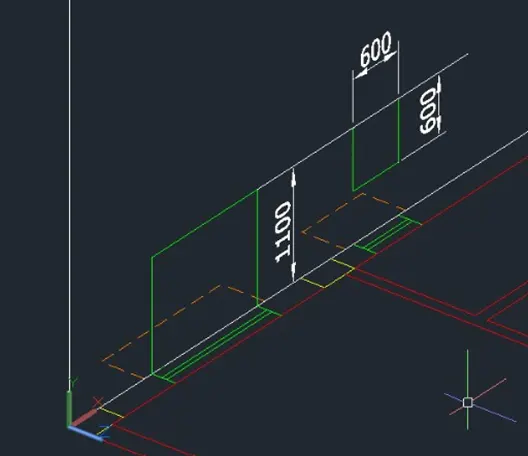

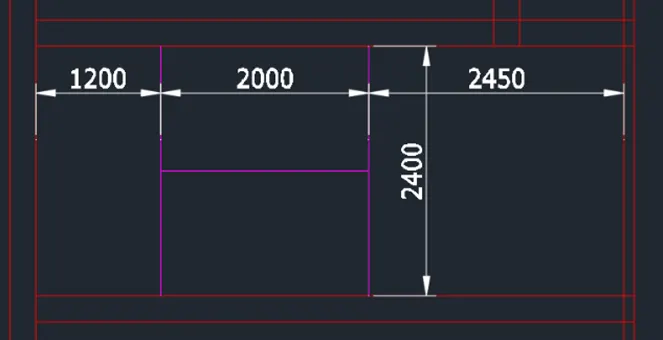

Add the window and door locations

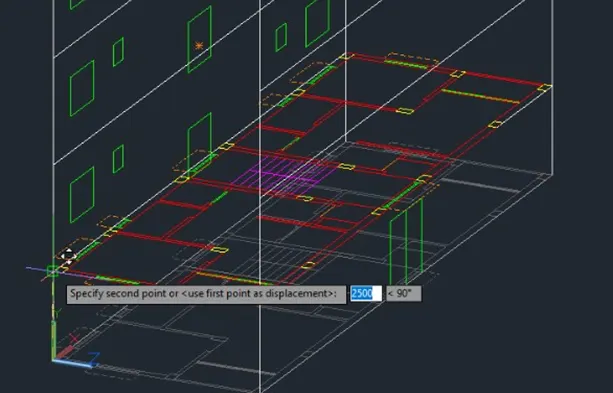

---> Proceed to extrusion of columns. Move elevation to the second floor
Turn off the other layers to avoid selecting them

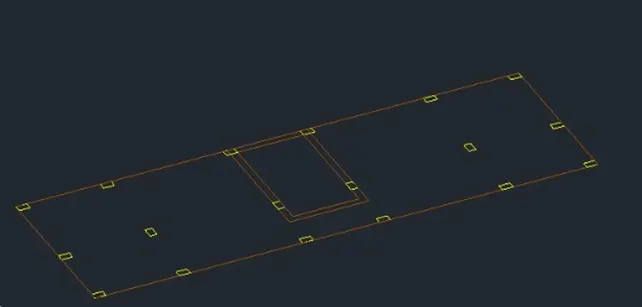

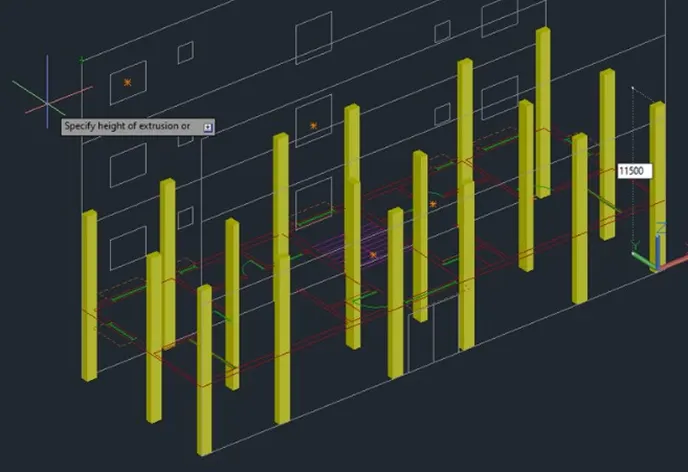

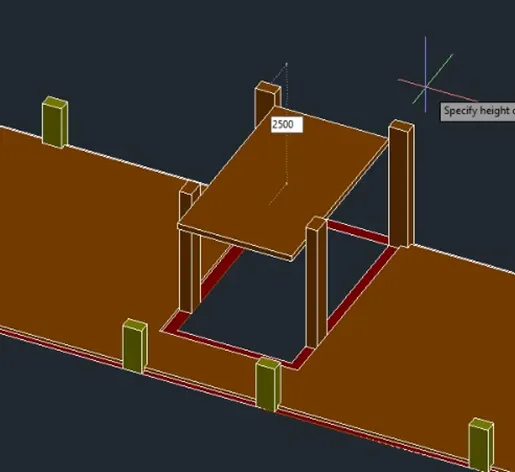

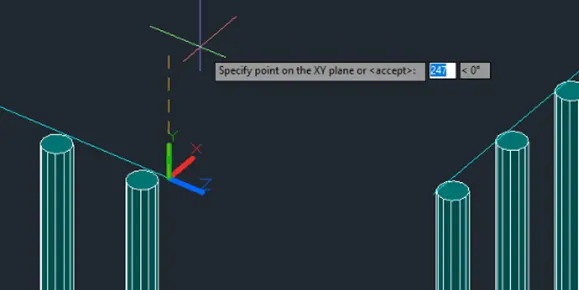

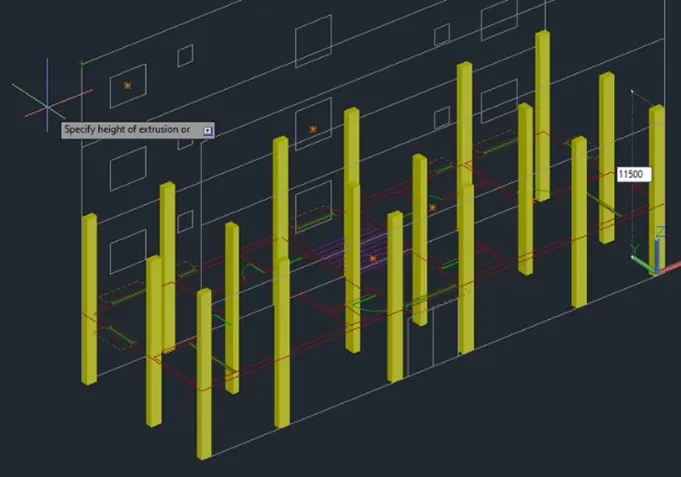

Extrude the columns. Isolate the column layer to avoid selecting the others
Move the columns to the bottom

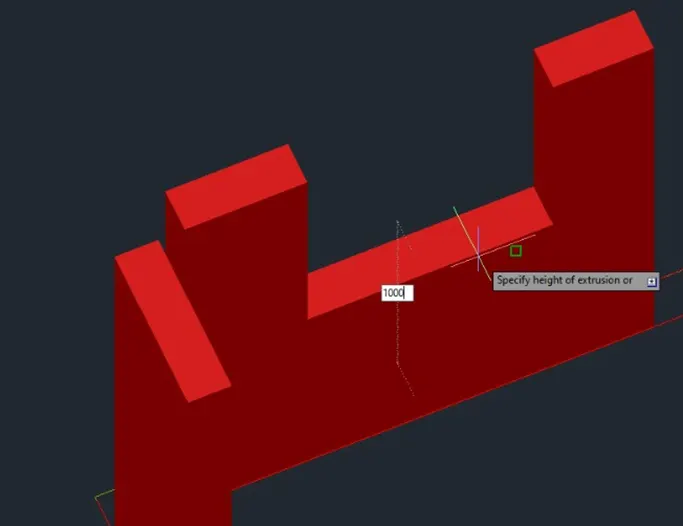

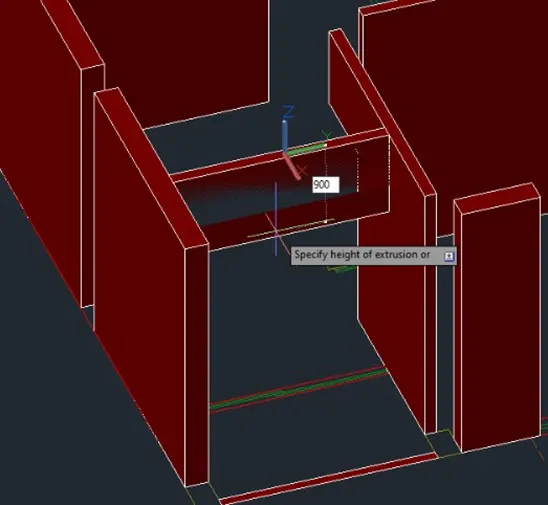

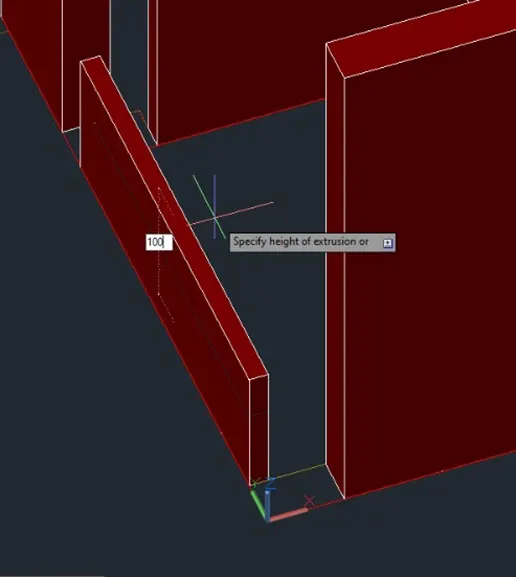

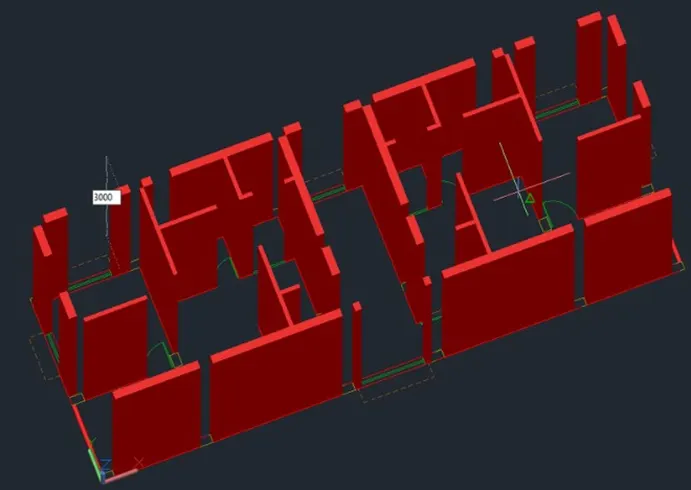

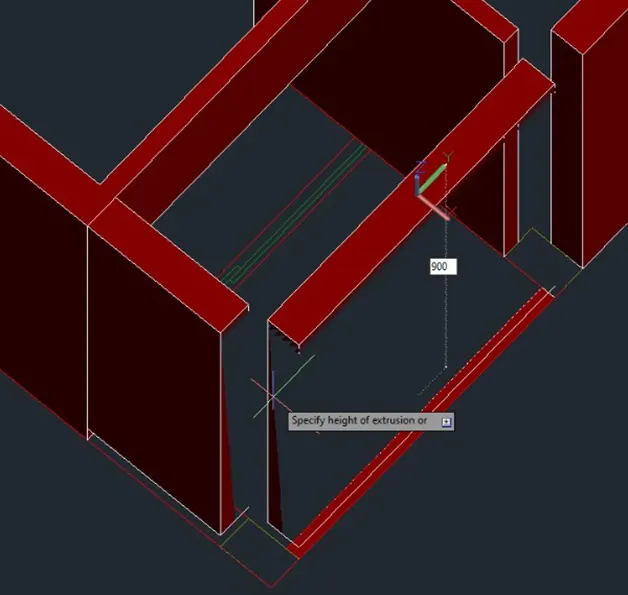

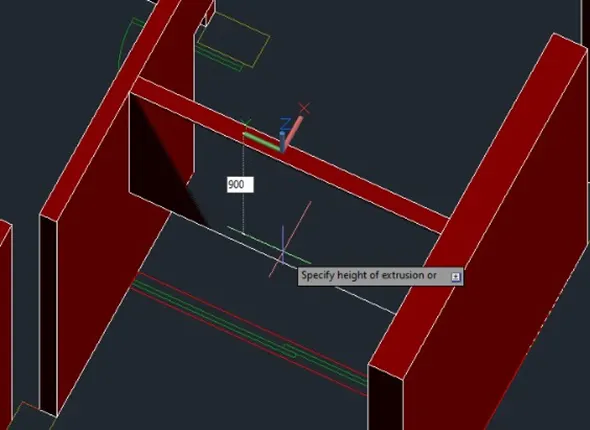

Extrude to the structure height

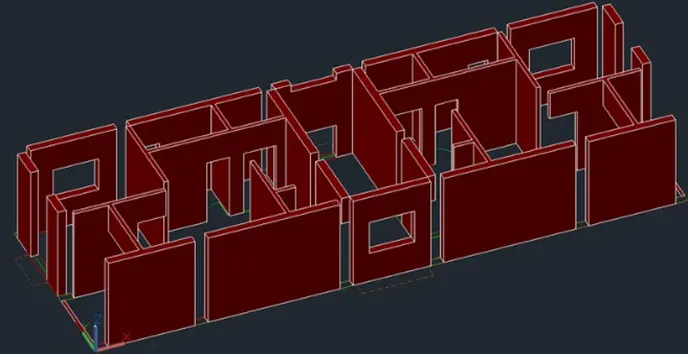

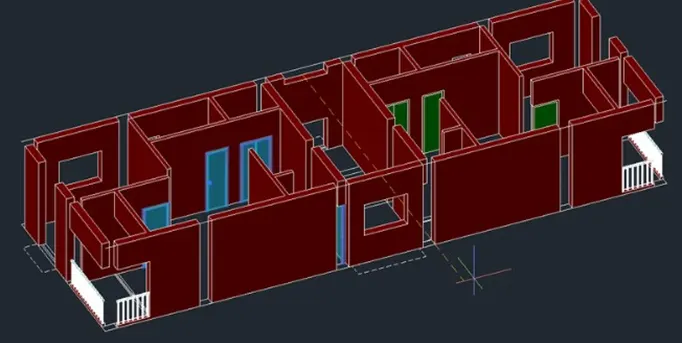

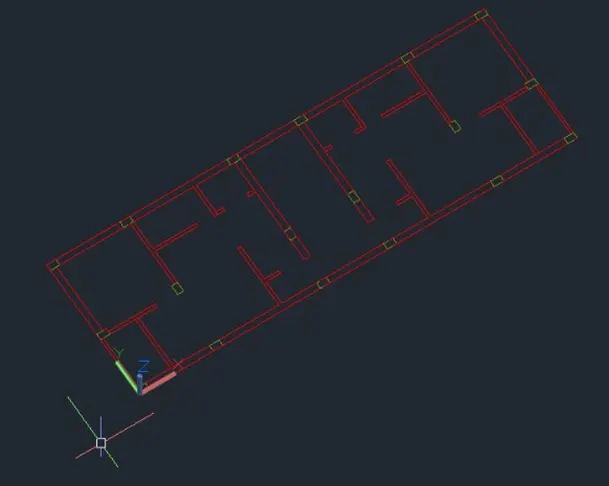

Turn on all the laures and proceed with the walls on the 2nd floor

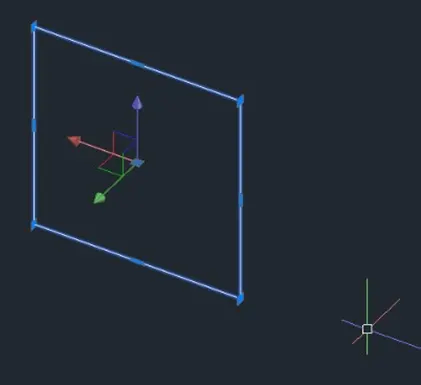

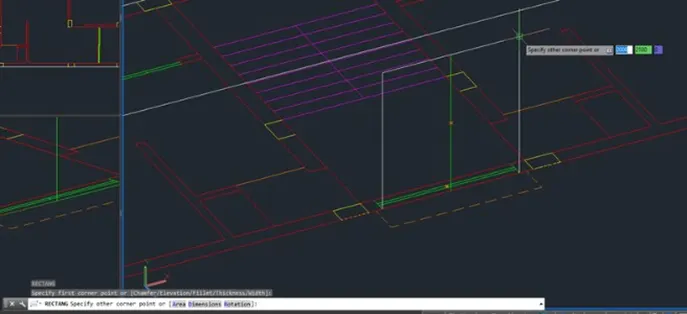

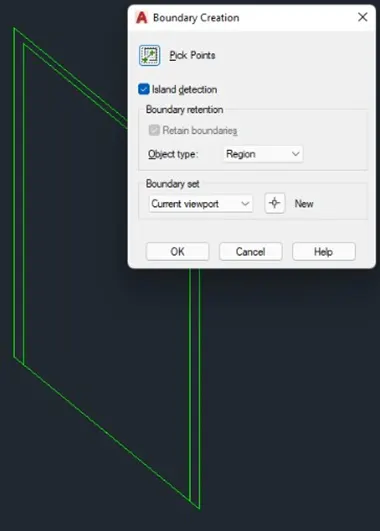

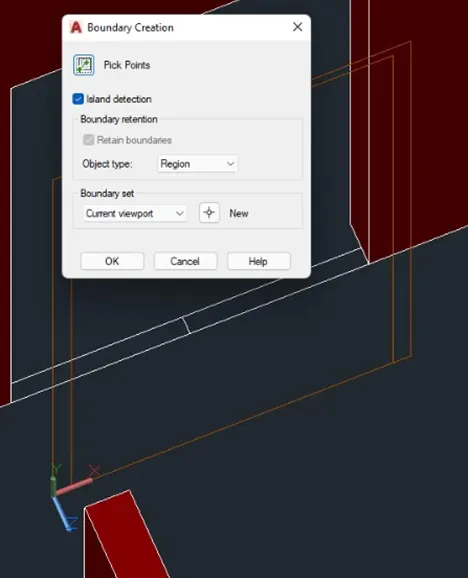

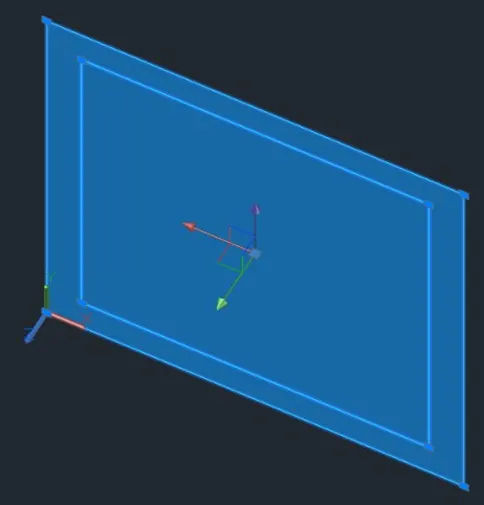

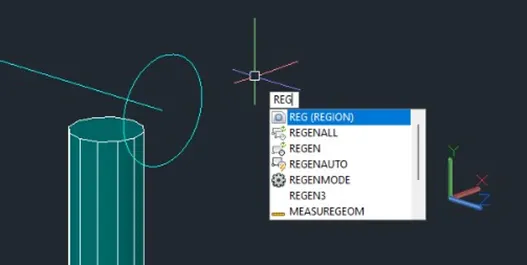

Create regions for extrusions
Turn off unnecessary layers

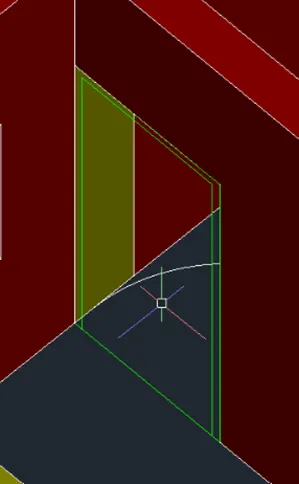

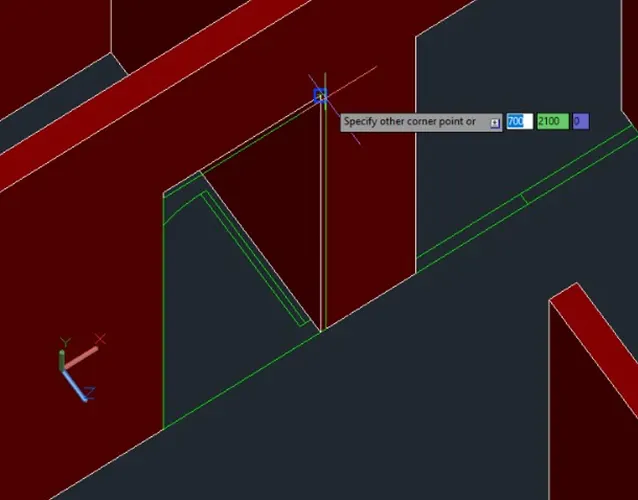

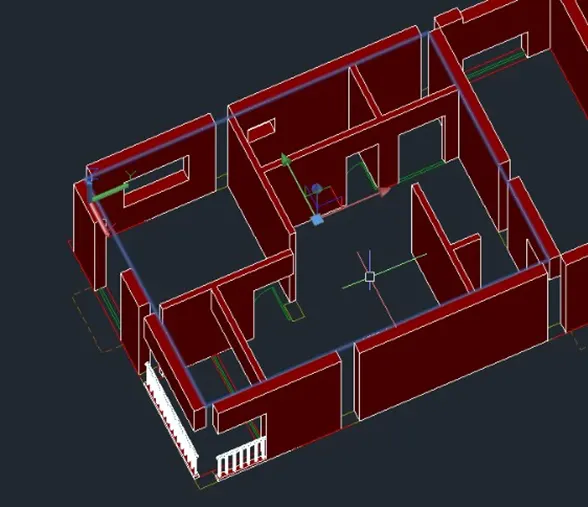

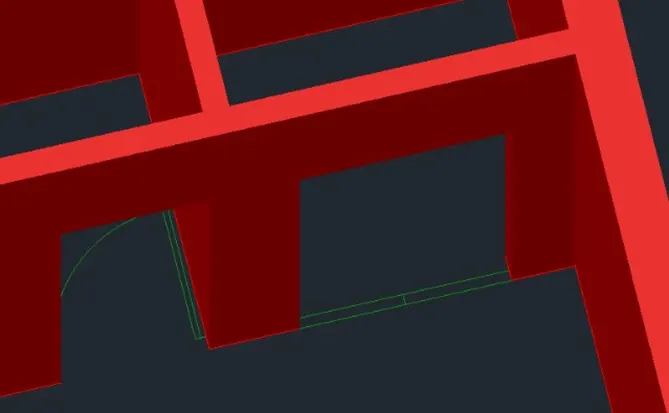

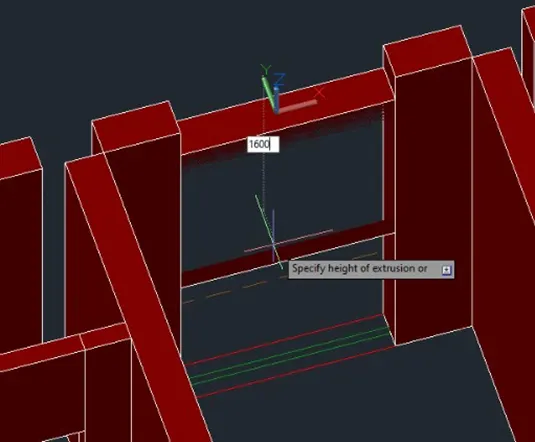

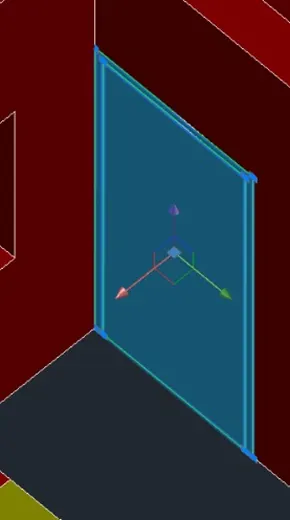

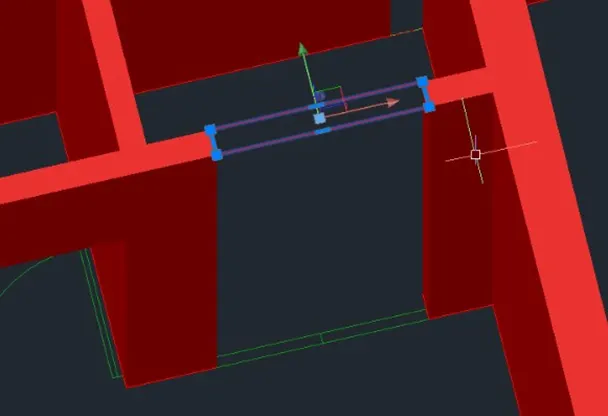

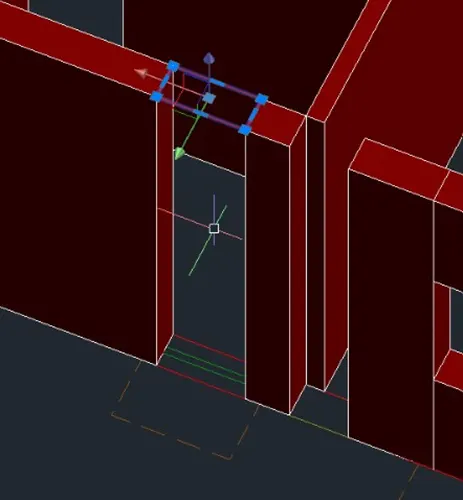

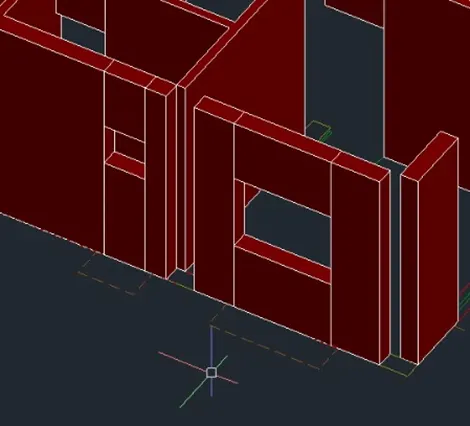

Create the opening

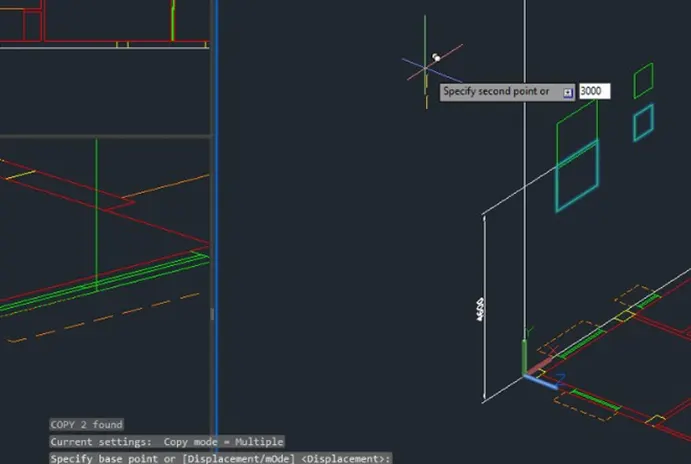

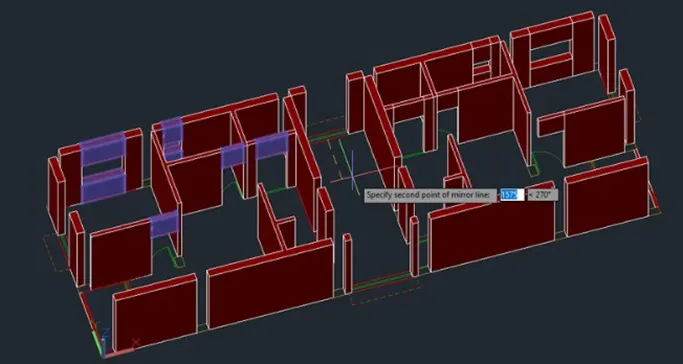

Copy the opening edges to the other side mirror is also applicable

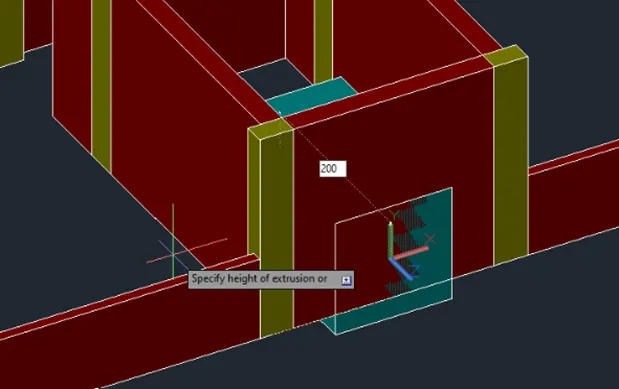

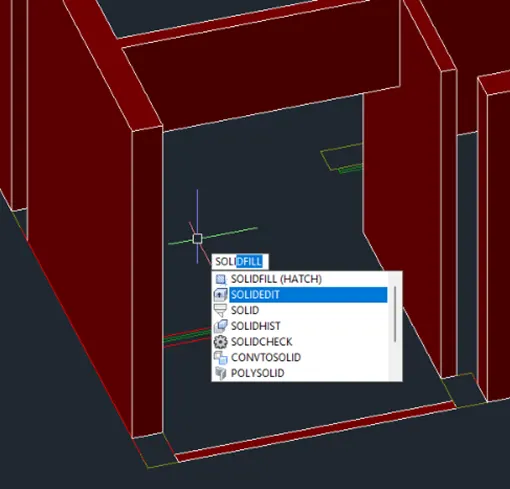

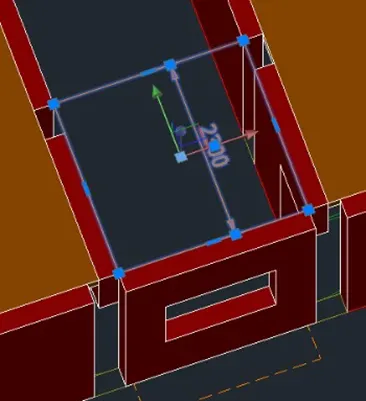

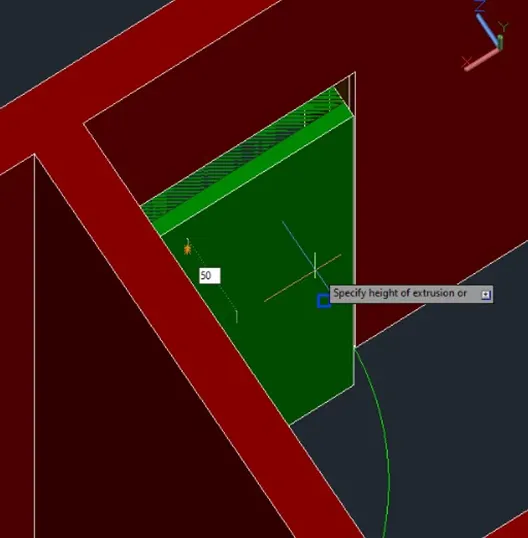

Create the opening for the stair

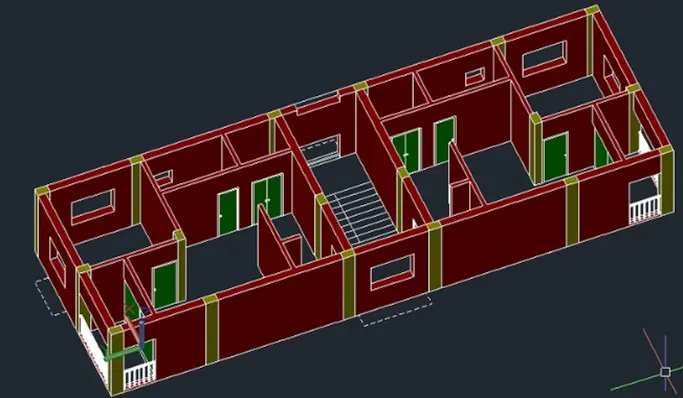

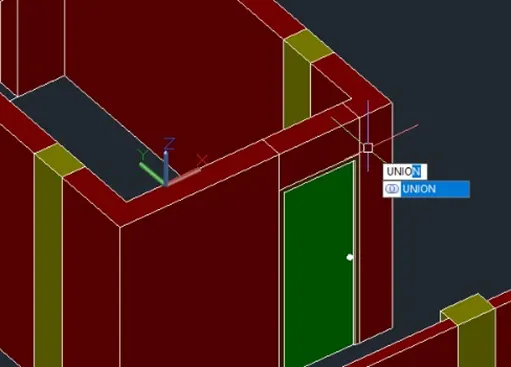

Join the 3D solids using union

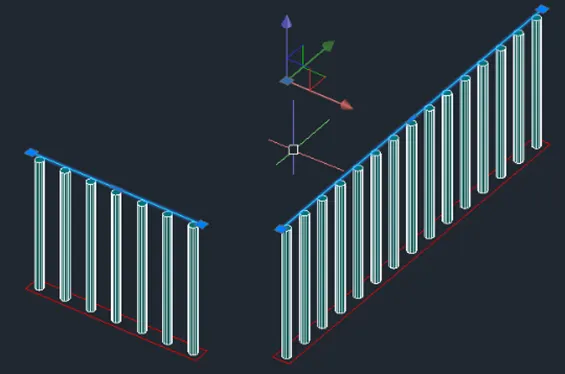

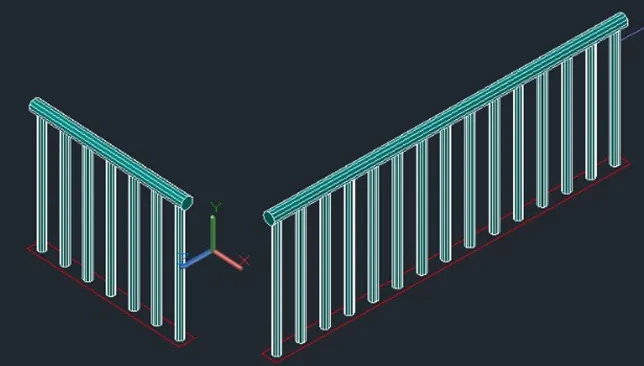

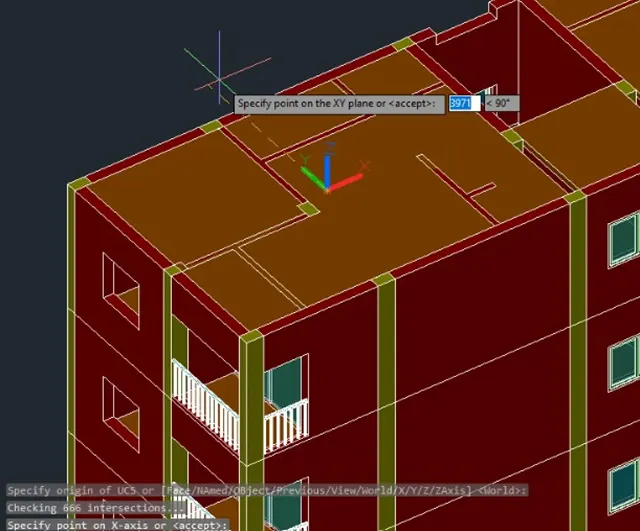

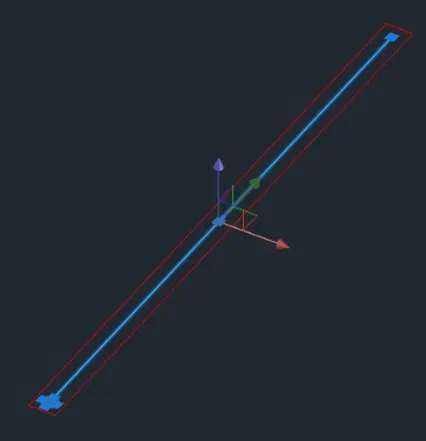

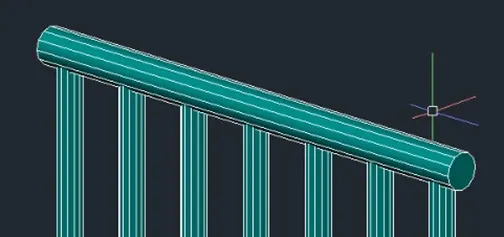

Proceed with the balcony

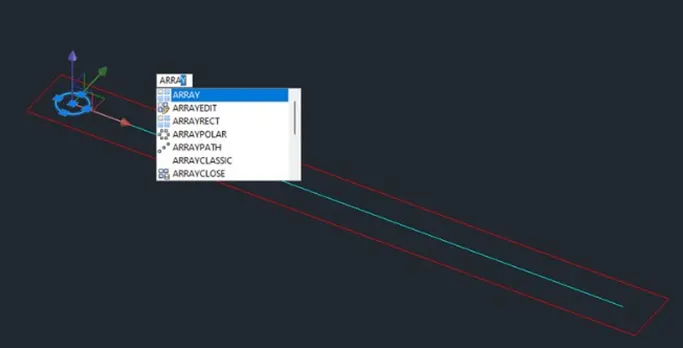

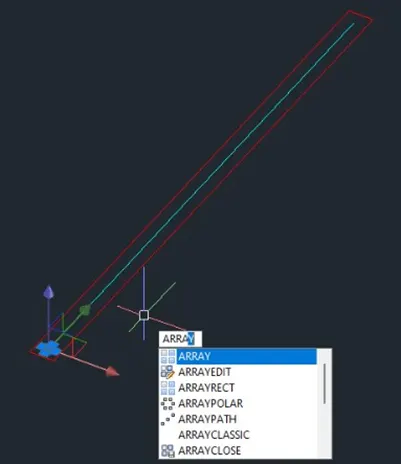

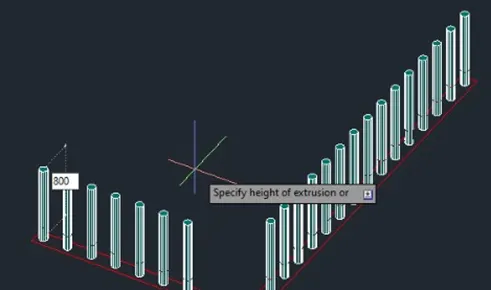

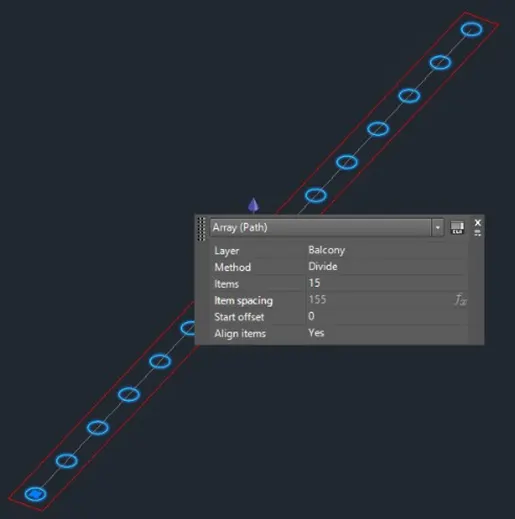

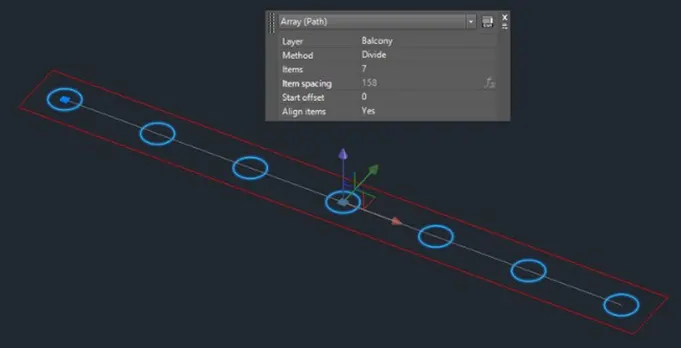

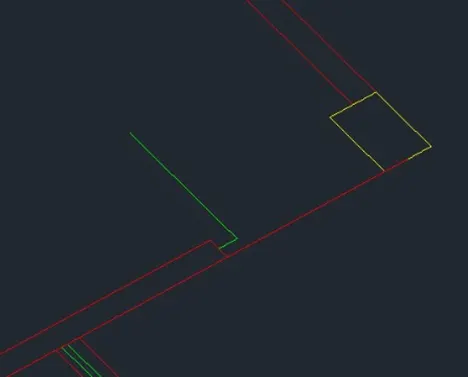

Explode the array for extrusion

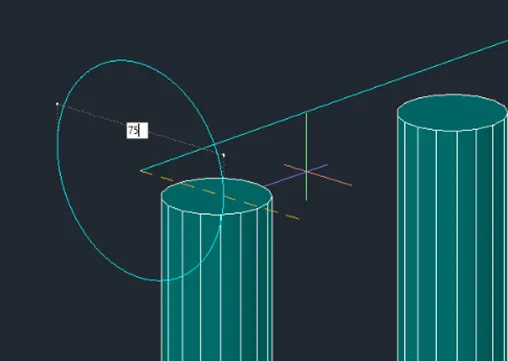

Add the line on top
Do the same on the other side

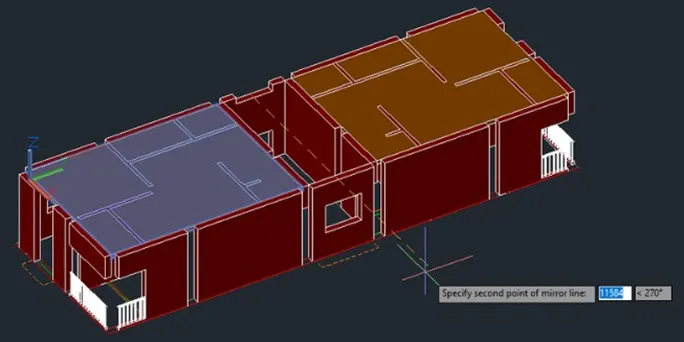

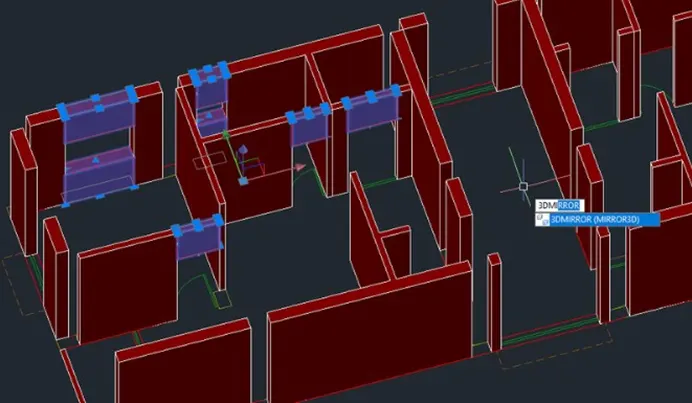

Mirror to the other side of the building

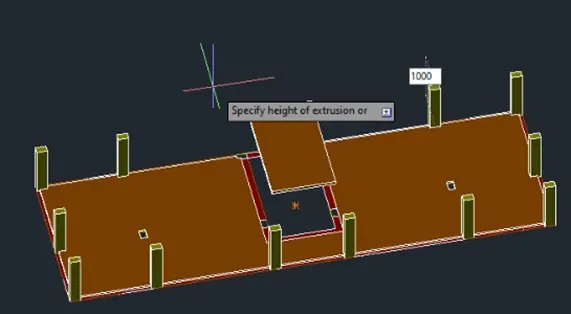

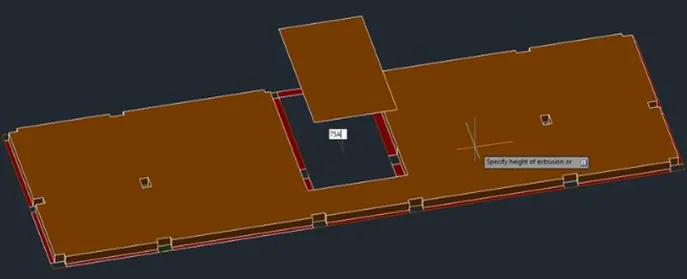

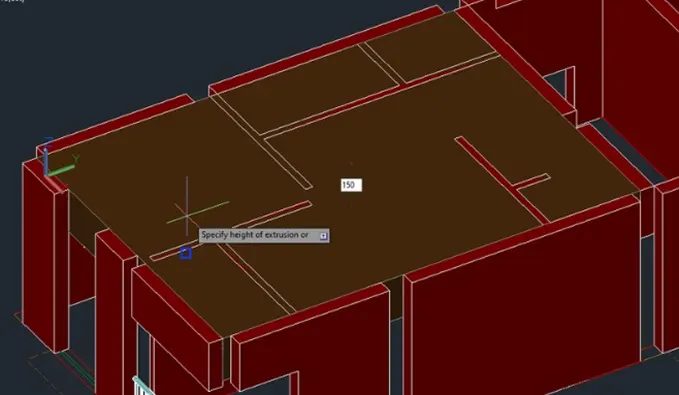

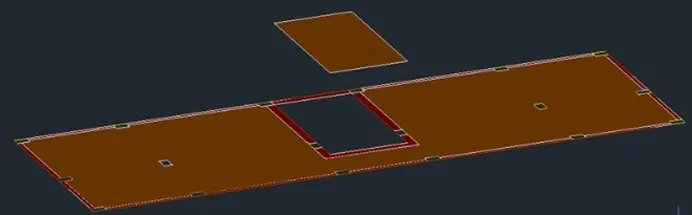

Add the slabs

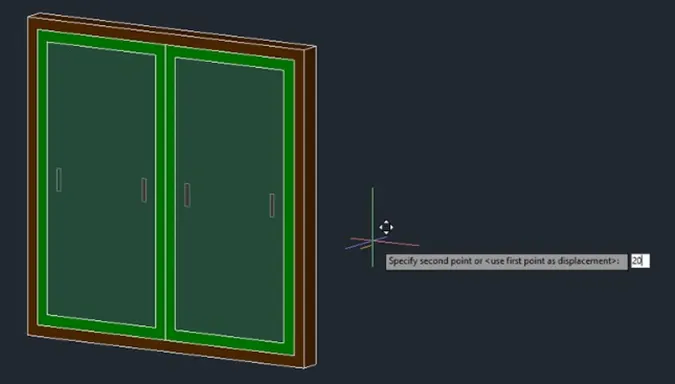

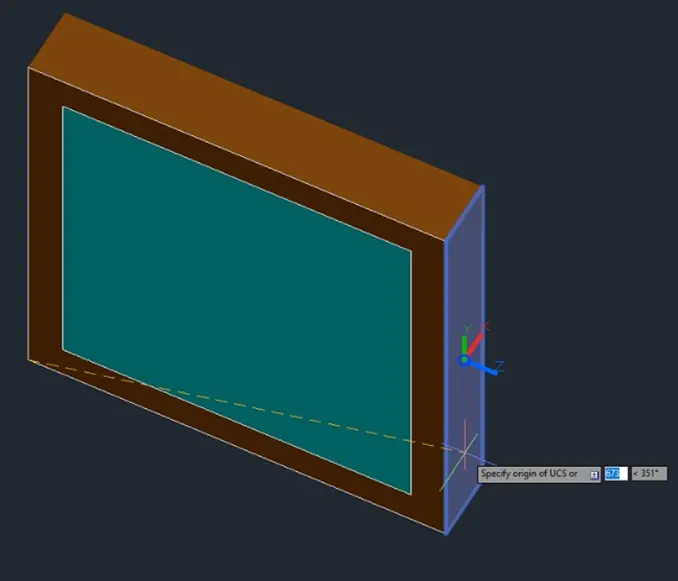

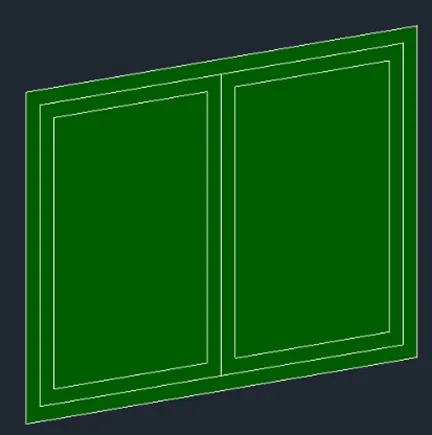

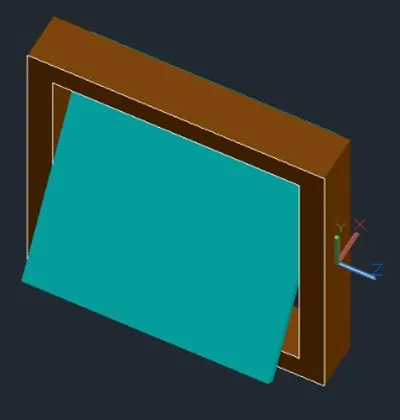

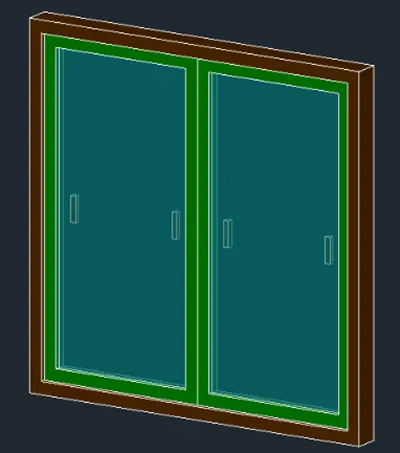

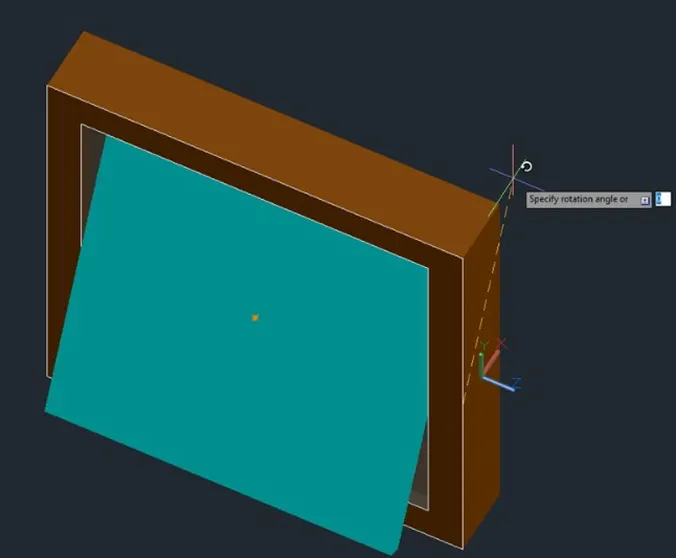

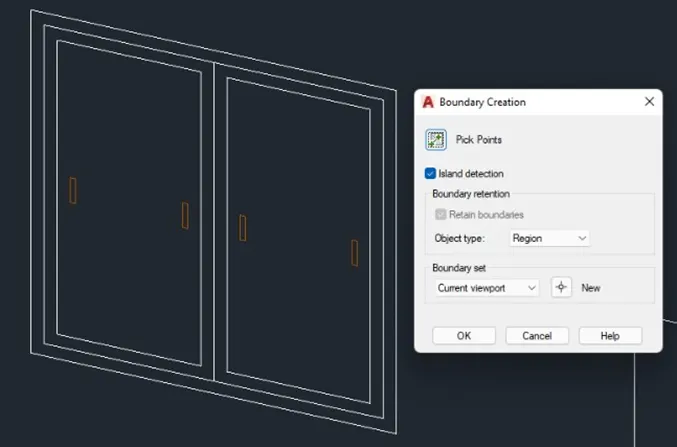

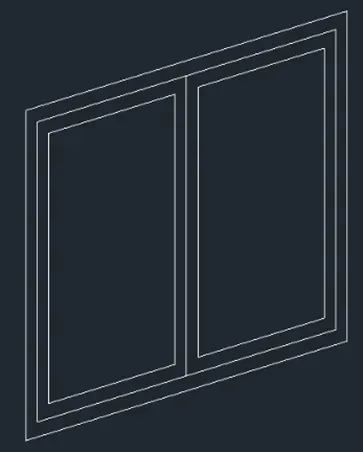

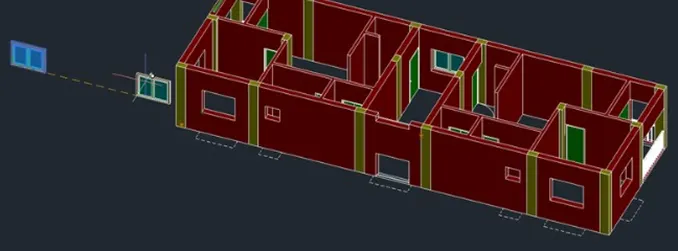

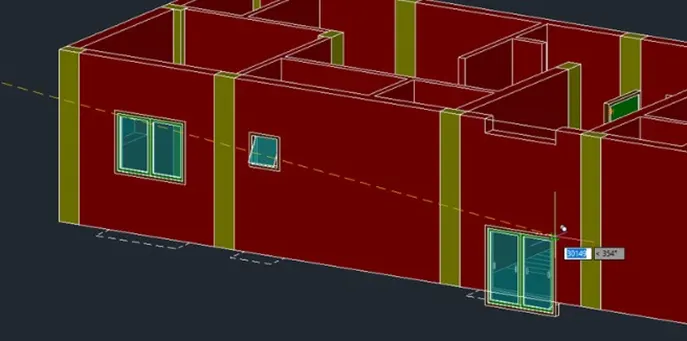

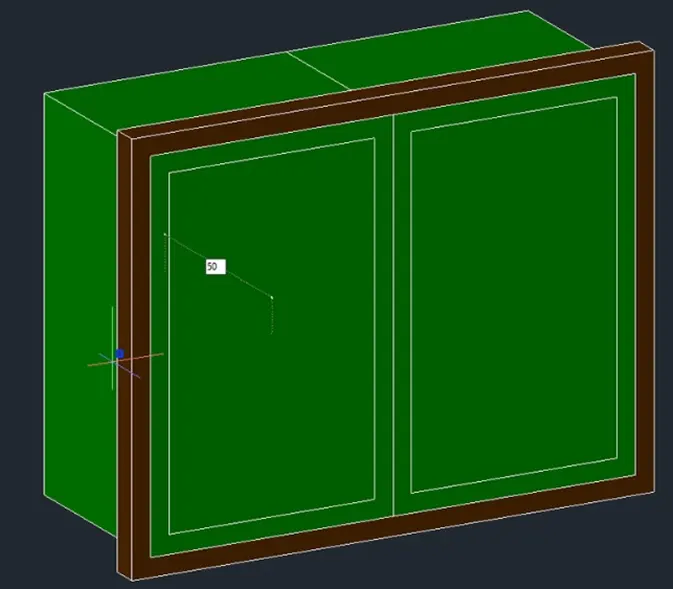

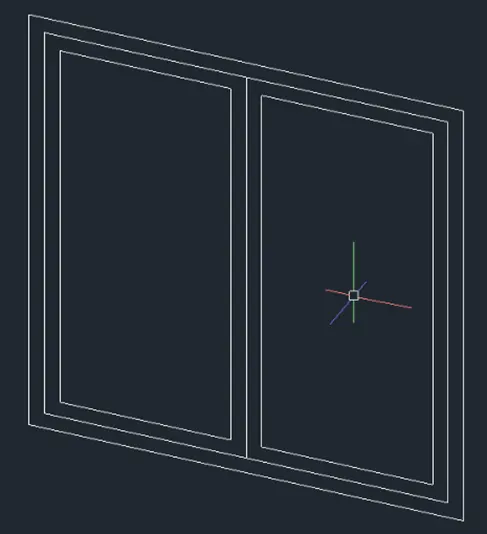

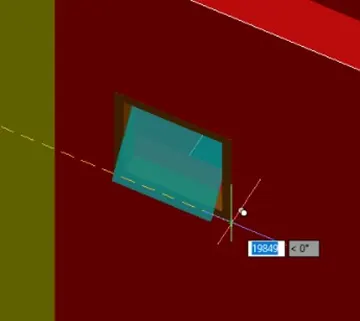

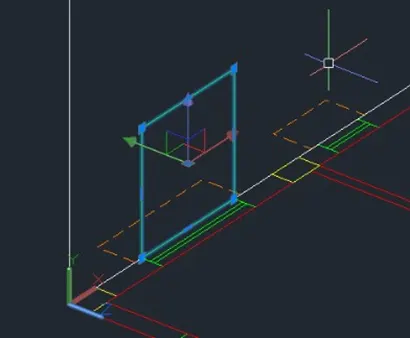

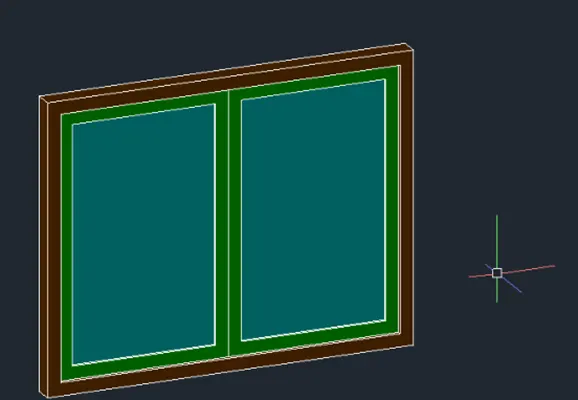

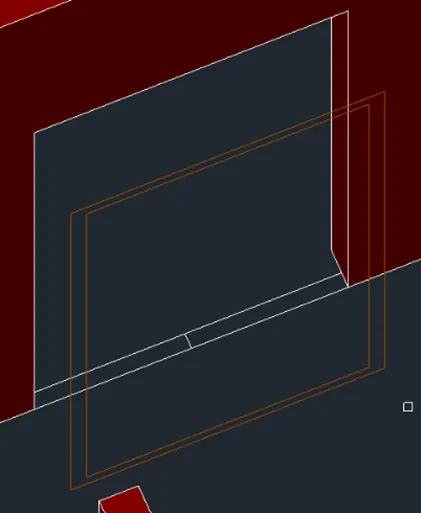

Create the door and window faces

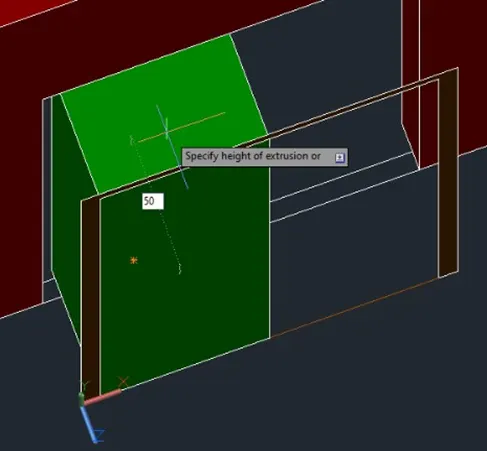

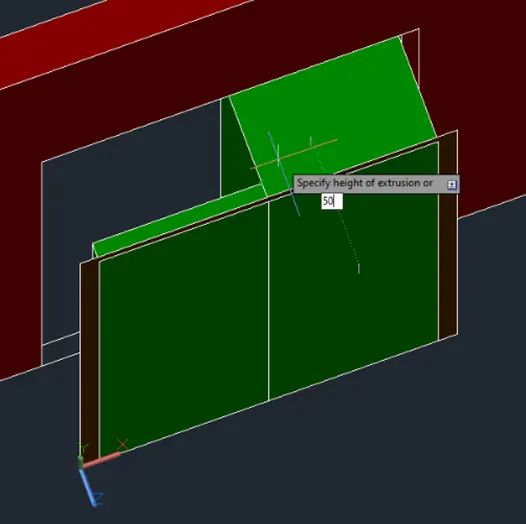

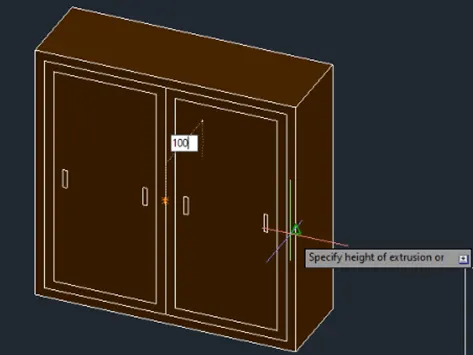

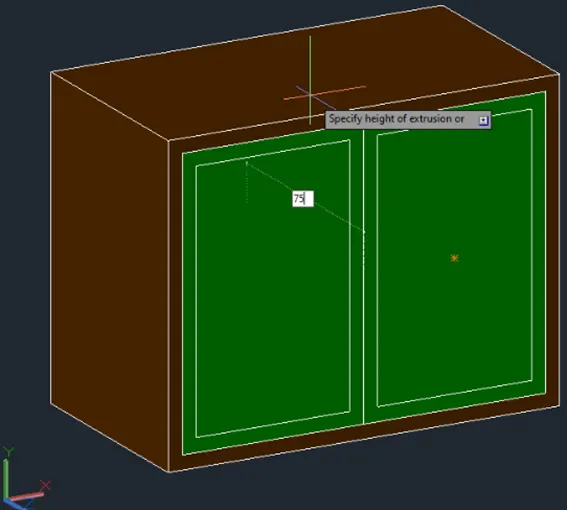

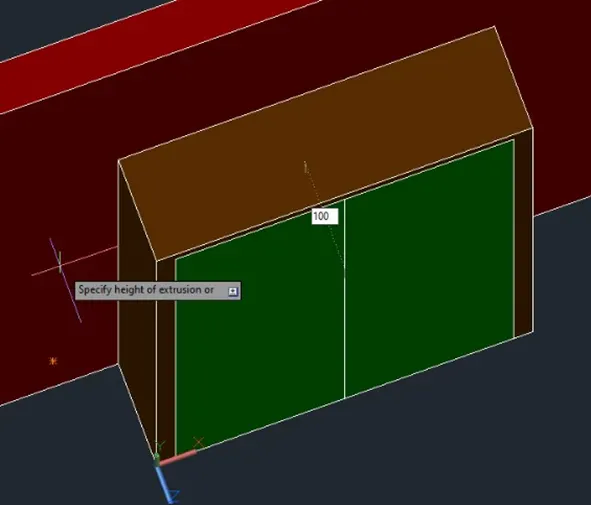

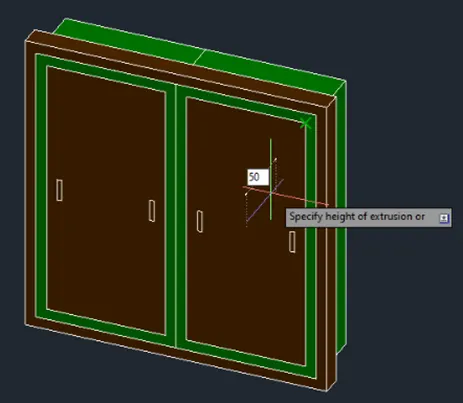

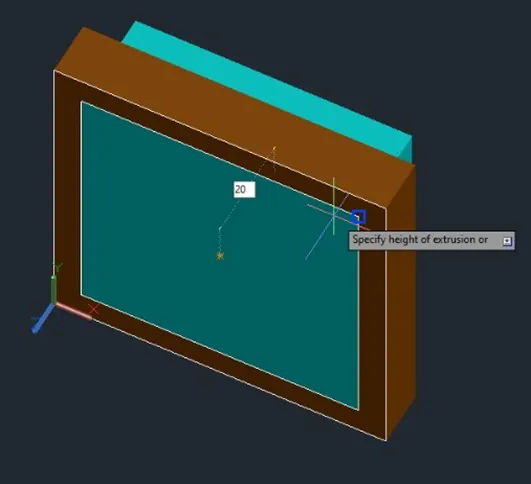

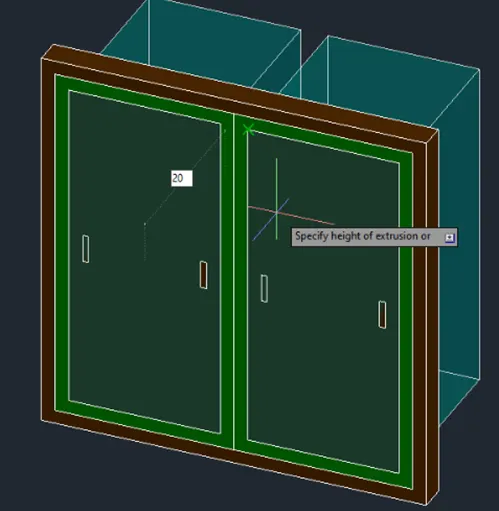

Extrude for solidity
Mirror the other side

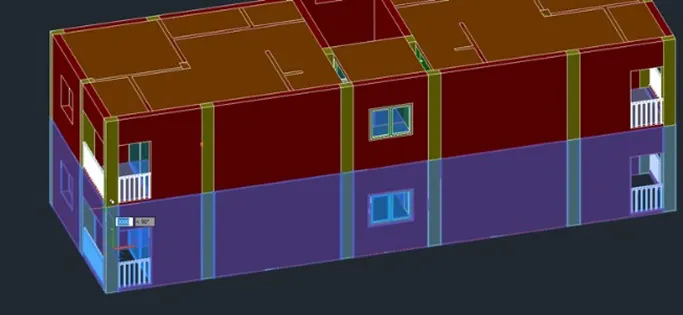

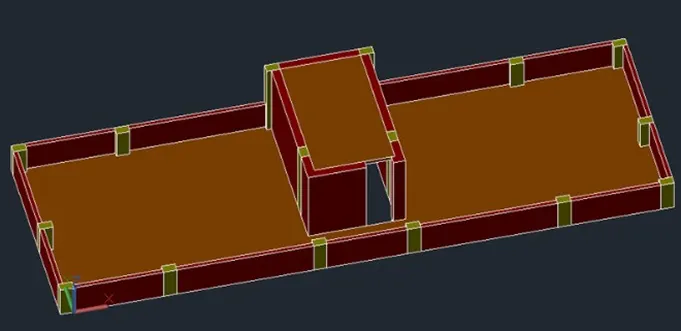

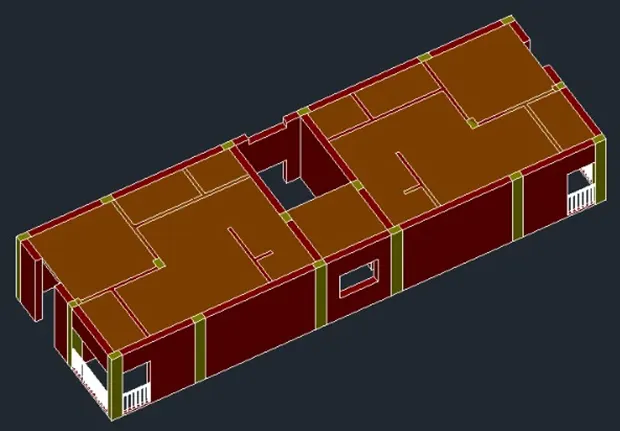

Once the first floor is done, copy it to duplicate the floors

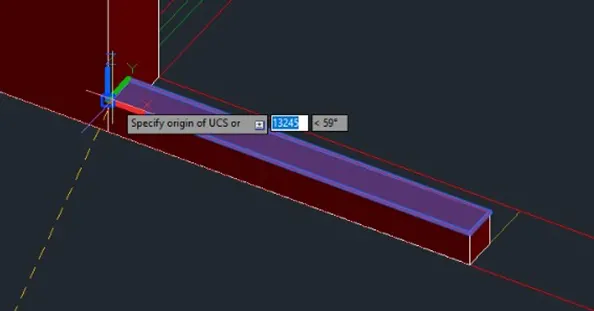

Create the balcony

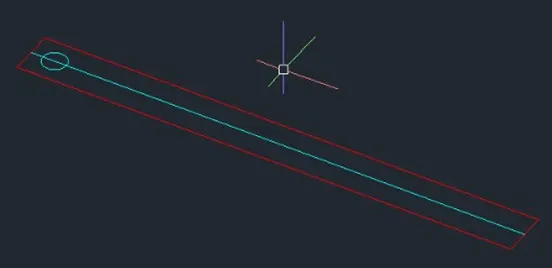

Separate the line for better view
Add the boundaries for extrusion

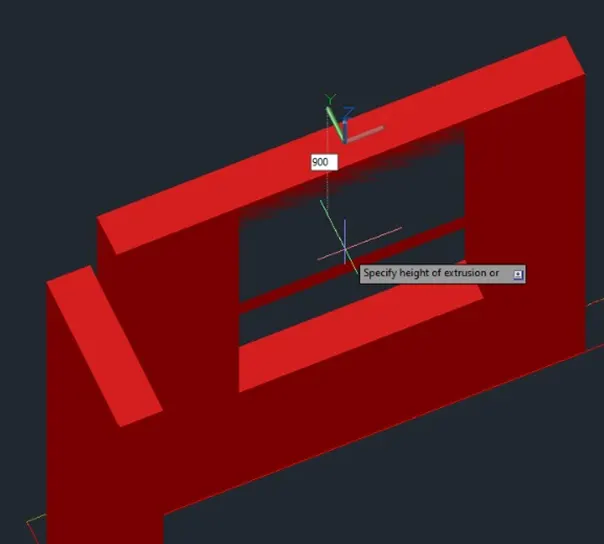

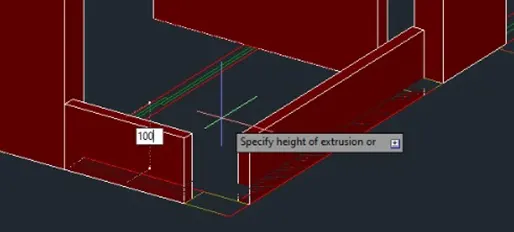

Extrude to specificified height
Create the missing windows then proceed to the first floor

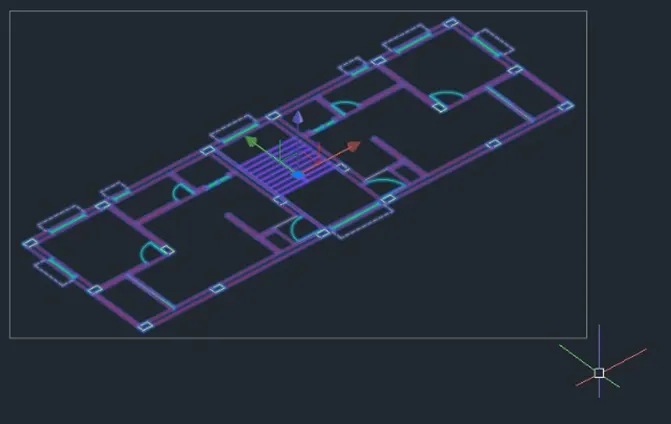

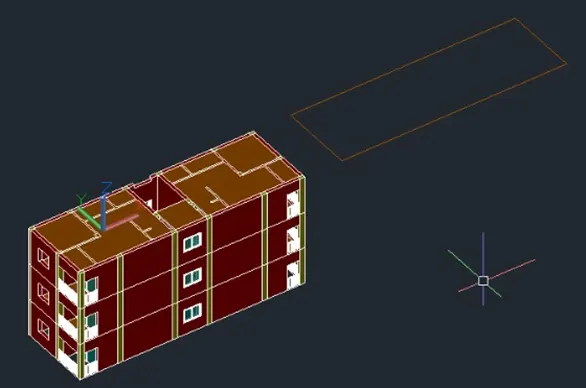

Proceed with the 1st floor plan

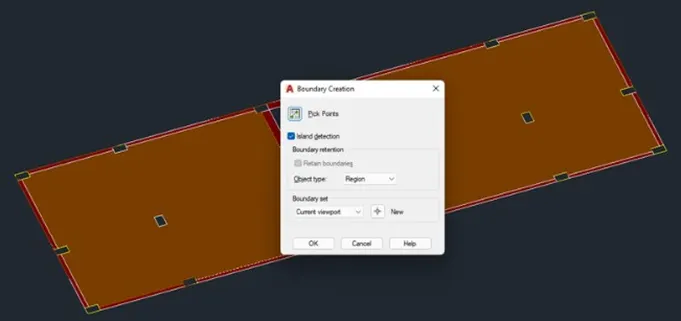

Add the regions

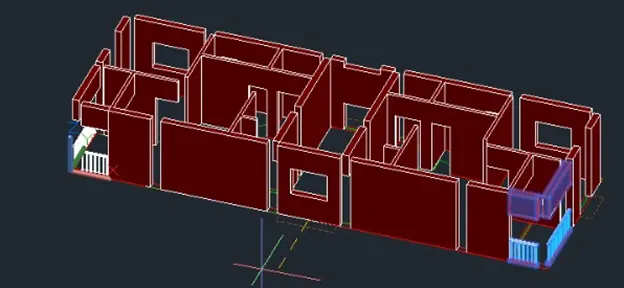

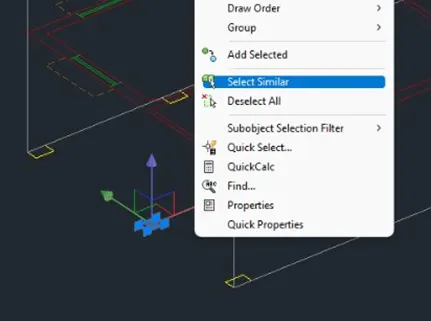

Extrude and join with the solids

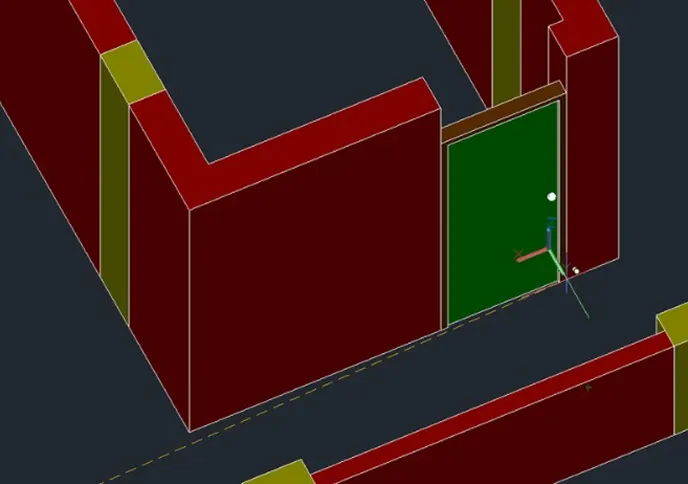

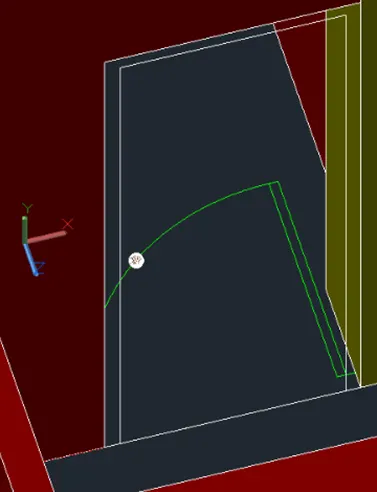

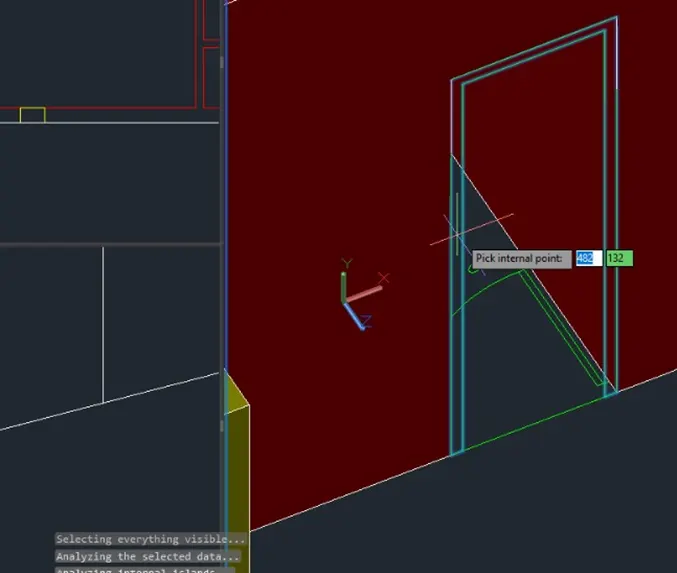

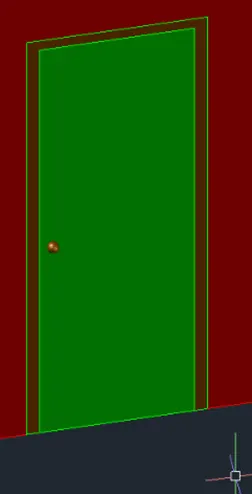

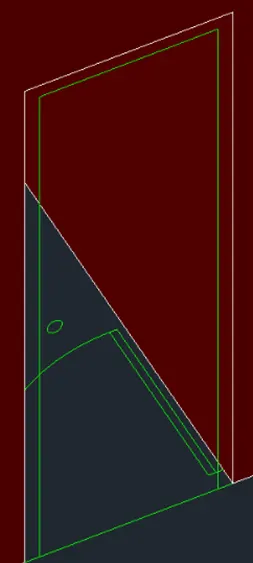

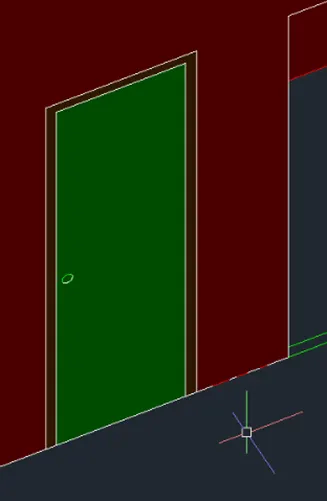

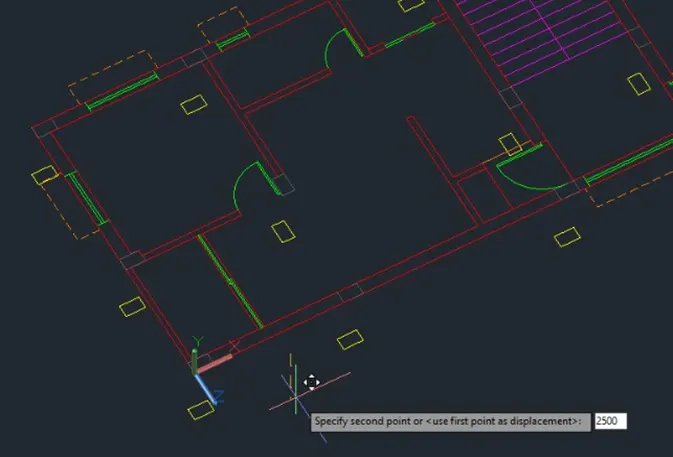

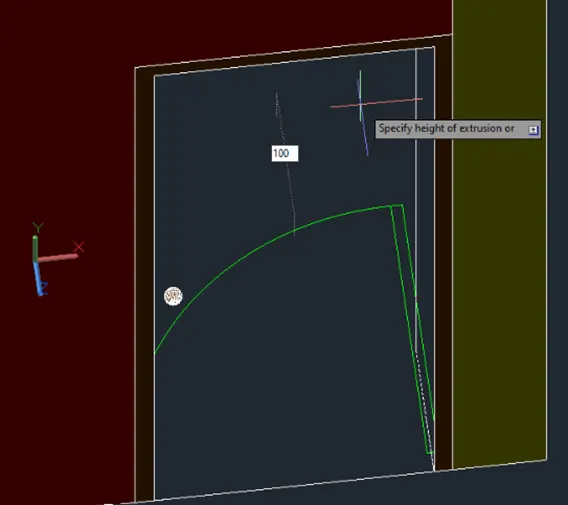

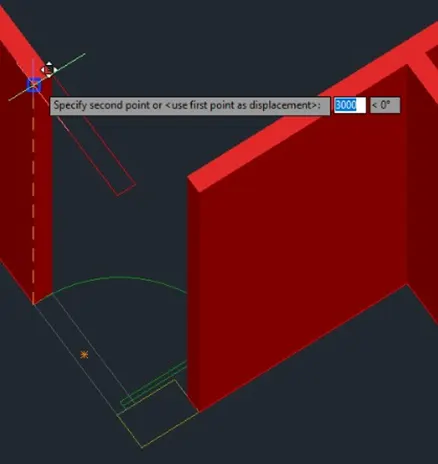

Add the doors

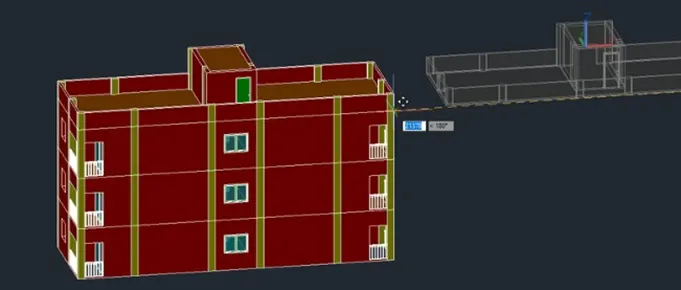

Union the available solids

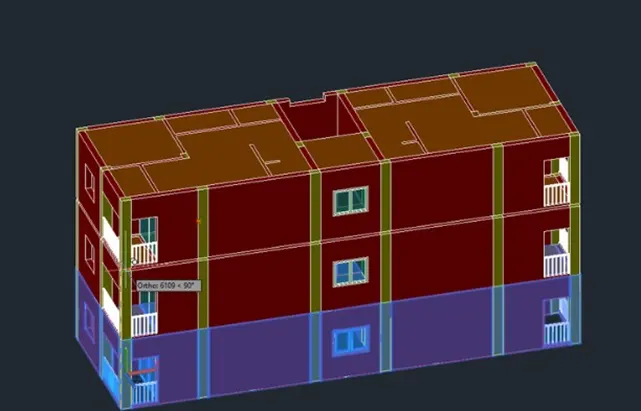

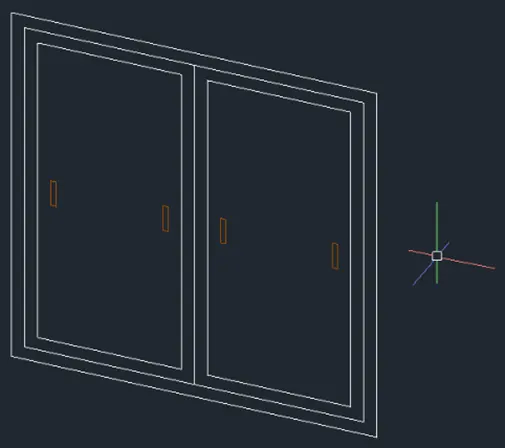

Add materials

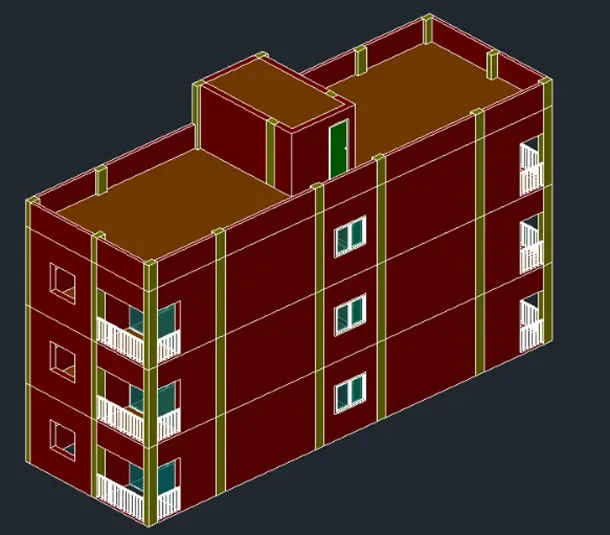

Result:
Conclusion
The AutoCAD software allows 3D sketches where solid objects or 3D surfaces are present. By using 3D function of the AutoCAD software, one can illustarte or convert a 2D sketch into a 3D illustartion
