Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim:

To Create d 3d inmensinalmodel of the residential building with a rendered view

Procedure:

in the command prompt type units >0'-0''>engineering >inches
In the command prompt tyPe linmax >100,100,
in the command prompt type limits 0,0
In the command prompt type z>a
In the command prompt typelto draft the desired lines
In the 3d model it is changed to top view to draw the plan
In the ribbon bar> select layers to create layers for walls, doors, windowS
In the plan view the steps are also drawn with R-(6''), T-1'
In the command prompt type Xl to draw the infinite lines
In the command prompt type ddc (Design centre) to add the interior components like sofa, dinning table,
kitchen, utility room, Bedroom,Tollet
In the command prompt ype offset is used to give the thickness of the wall of dimensions 4
In the command prompt type trim to trim the extra lines

the command prompt type Mt to give the text

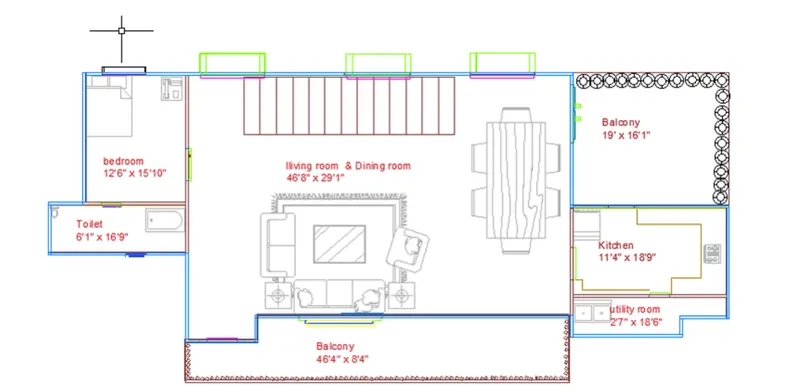

the Dimensions are bedroom (126 x 1510) tolet (61 x 16'9),Living & dining room ( 468 x 291) , Balcony
(19' xi6T), Kitchen (14 x 189),utity room (27 x18 6)

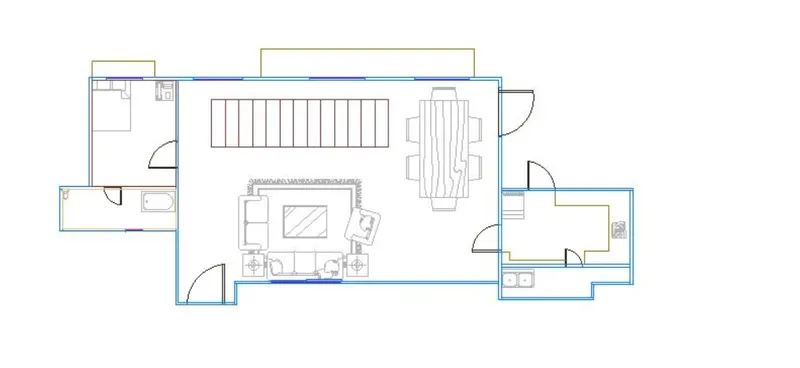

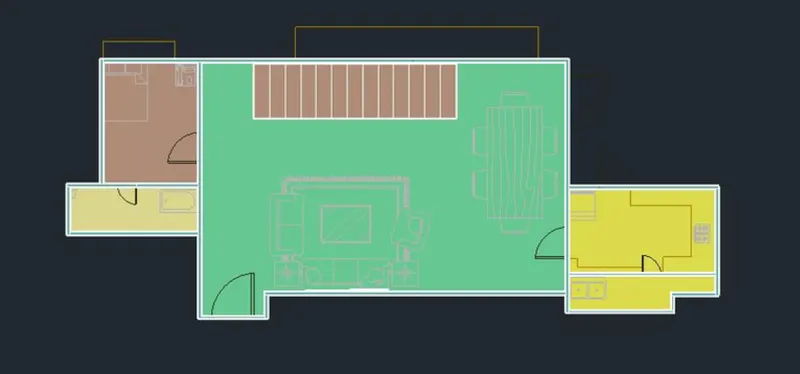

after the plan is created in the top view we go to south west view

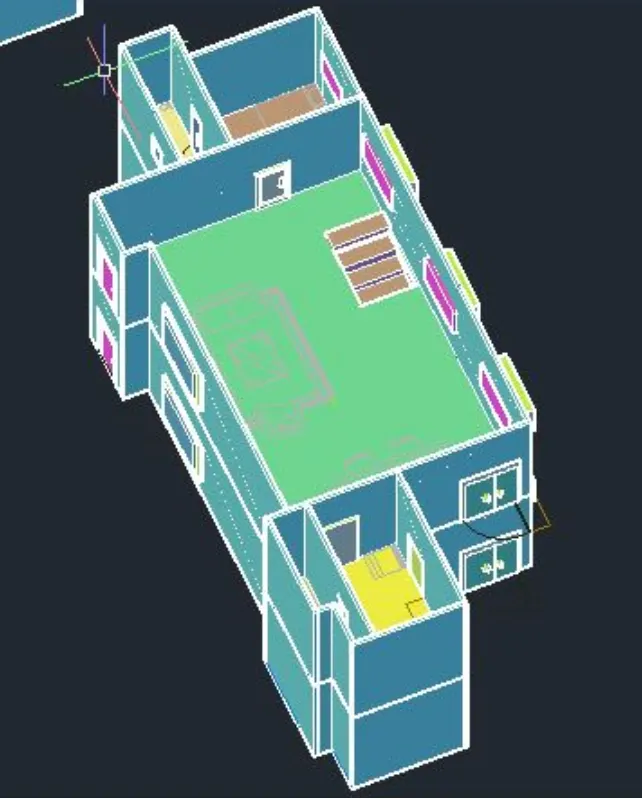

In the south west view , In the command prompt type extrude or we can select it from the ribbon bar

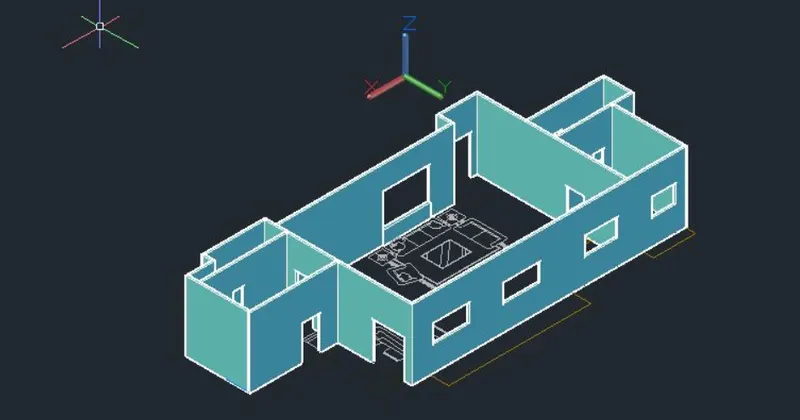

With the help of the extrude command only the walls are extrude
The window and doors are not extruded

For the first tlbor the opening is created for the staircase with the help of the substract command
In the command prompt type rec at the staircase top and then extrude it to the certain height
Therfore with the help of substract command the opening is created

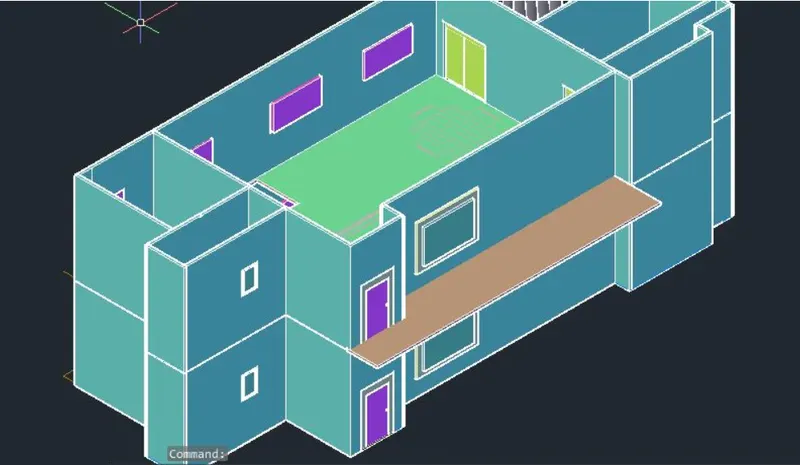

In the command prompt type rec to draw the balcony layout and it is extruded to a particular height

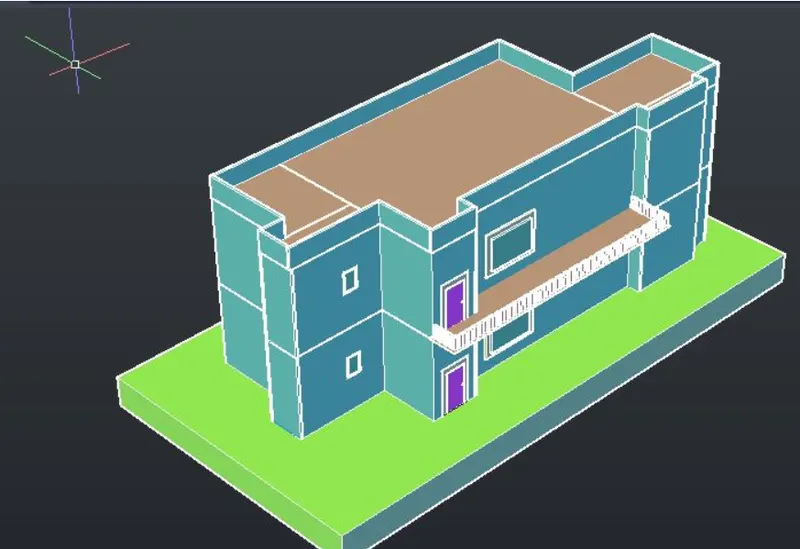

In the command prompt type cir draw the circle and extrude trapper it to get the railings

In the command prompt type polygon 4 sides inside the circle draw the rectangle and extrude > to get the railings

After all this is done half our plan is complete
Now in the ribbon bar > visualize> material browser ( to add the materials)
for walls differnt stone materials are added
For terrace masonary brick material is added
for windows and doors glass materials are added

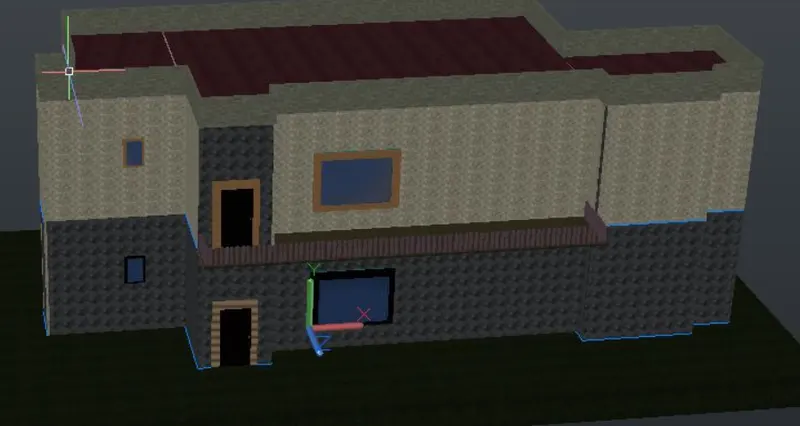

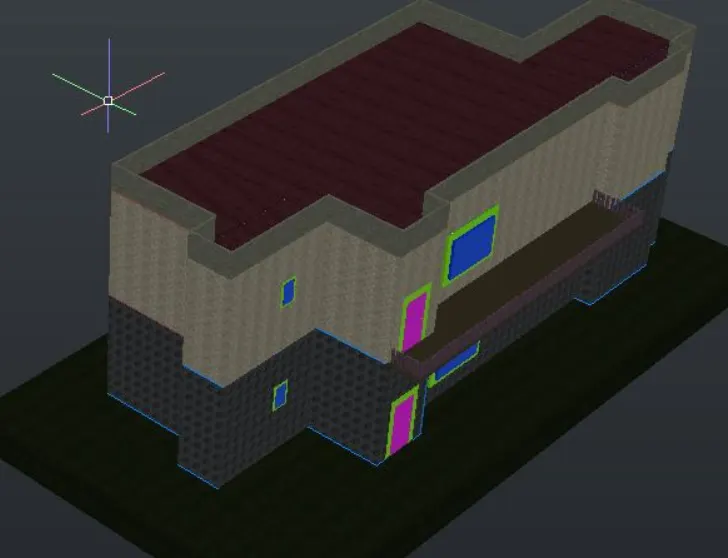

All this can be seen in realistic view
After all this is done, Now we go to Ribbar tab visualize Render
While doing render options we modify the sun setting sky background exposure seting

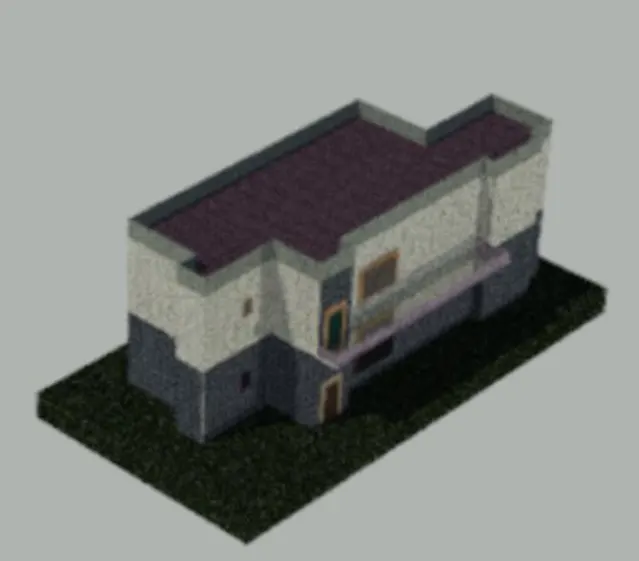

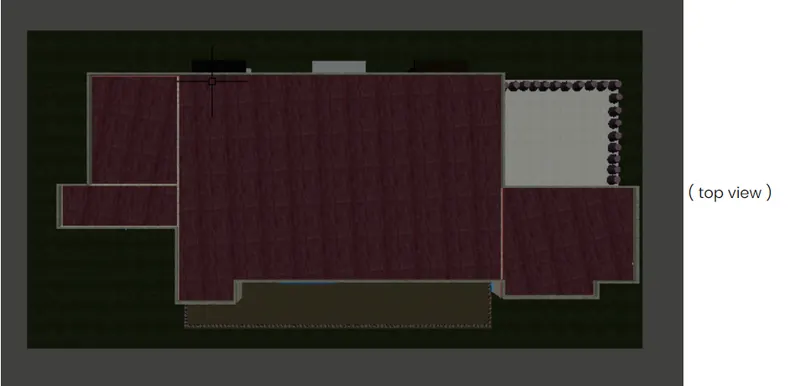

Final Result :
