Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER

Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading.

Aim - Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL

DESIGNER.

Procedure -

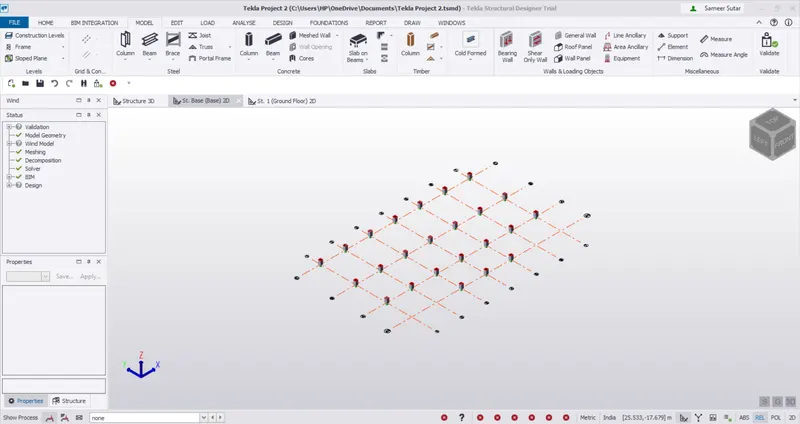

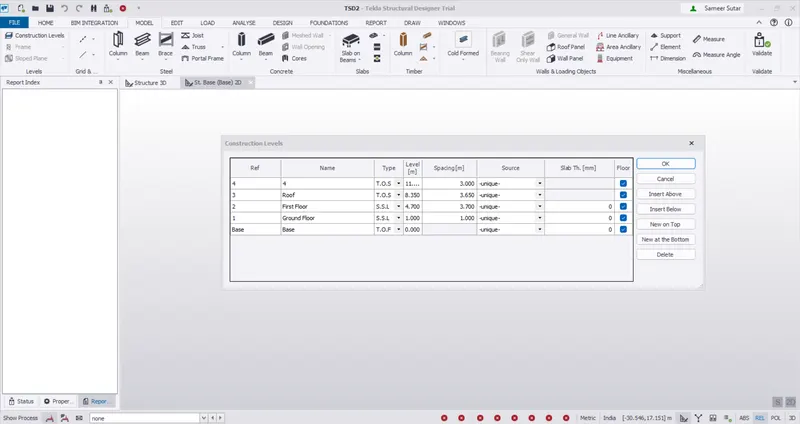

1. Firstly open the new tekla file and create the construction levels for the structure with ground, first floor, roof tank and base level.

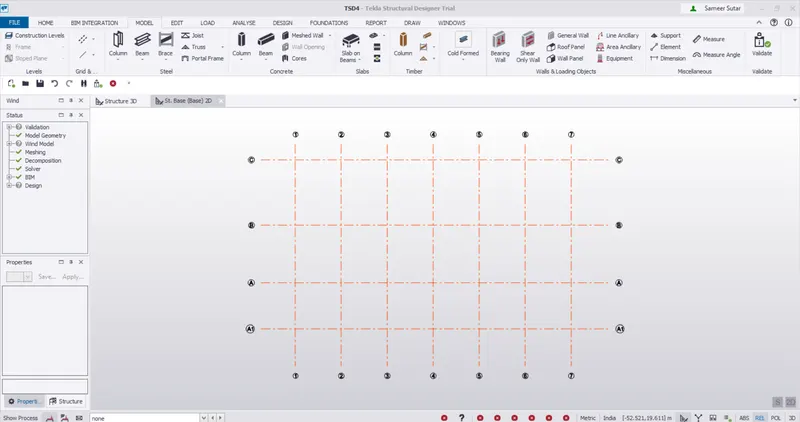

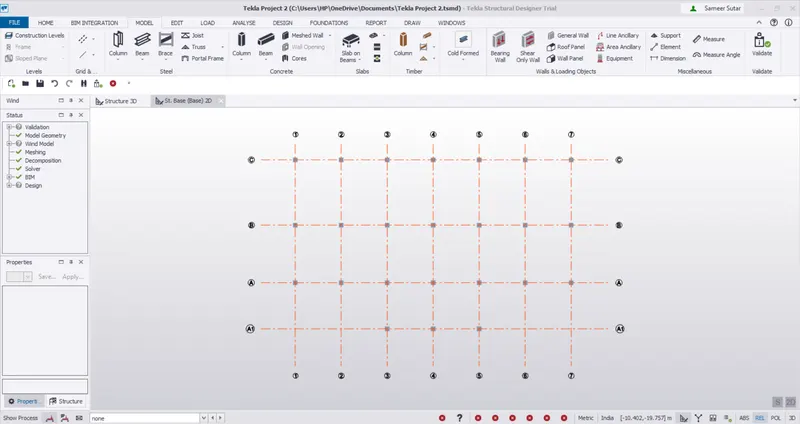

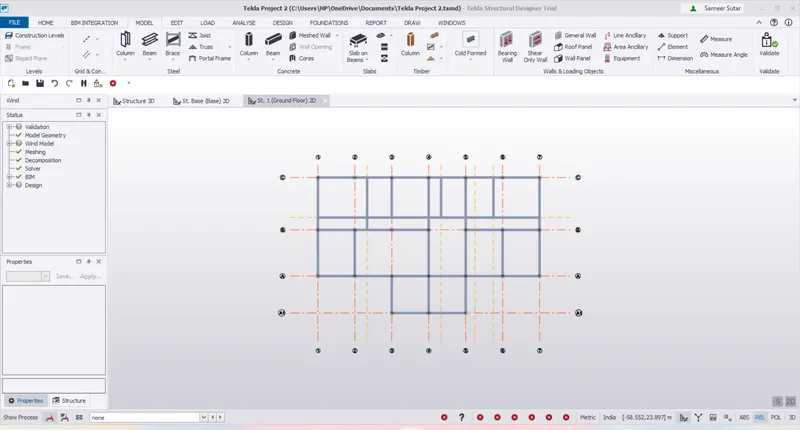

2. Now construct horizontal and vertical grids as per attachment.

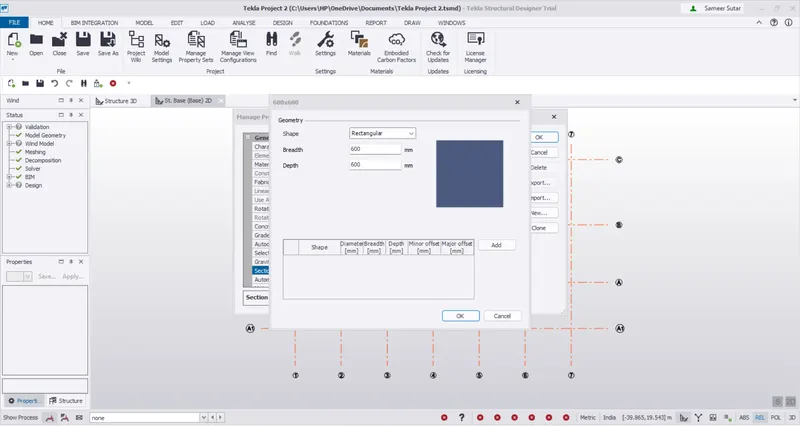

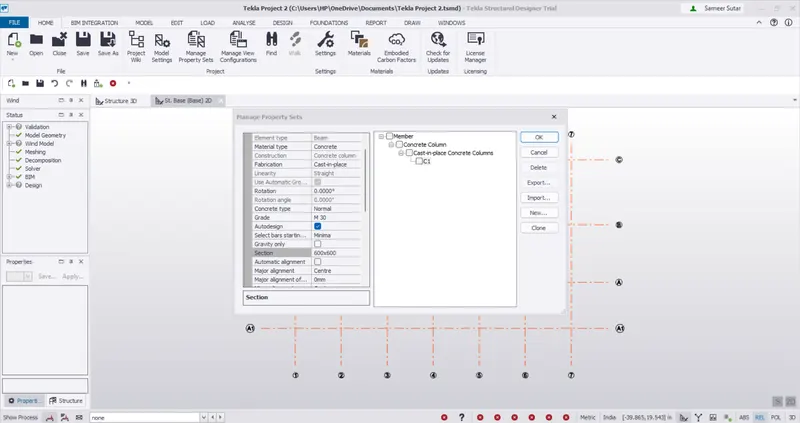

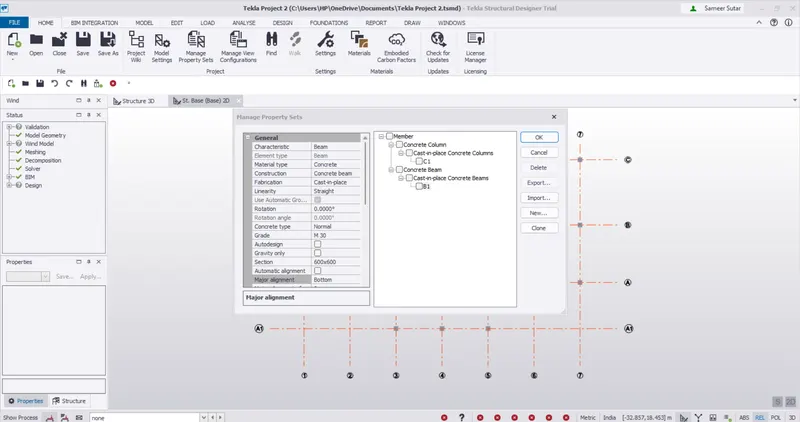

3. Using manage property sets create member used for the modelling.

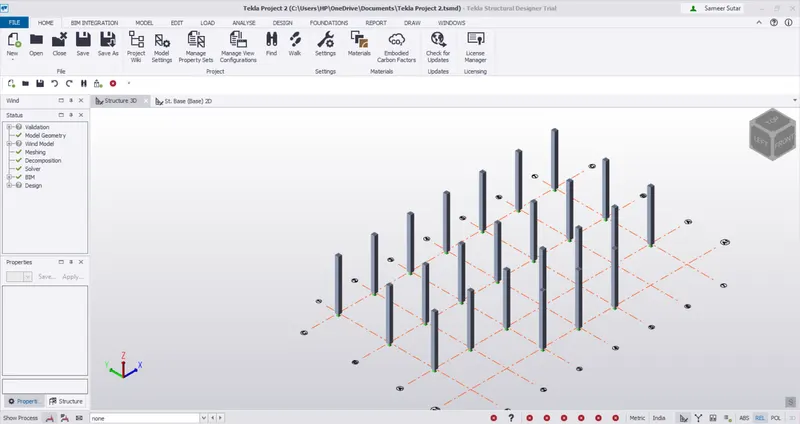

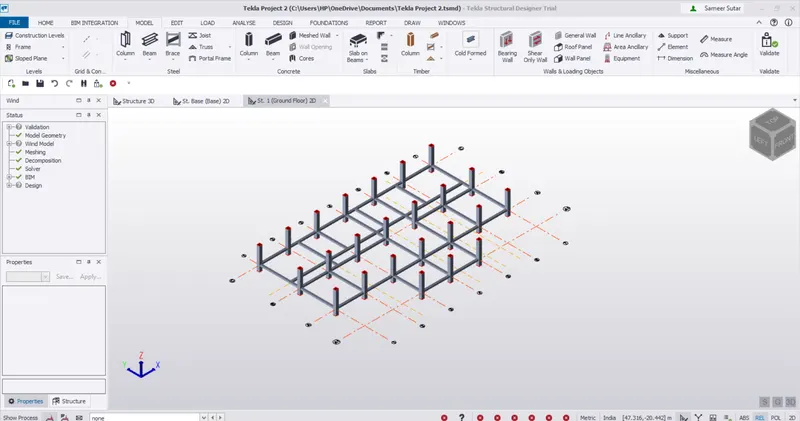

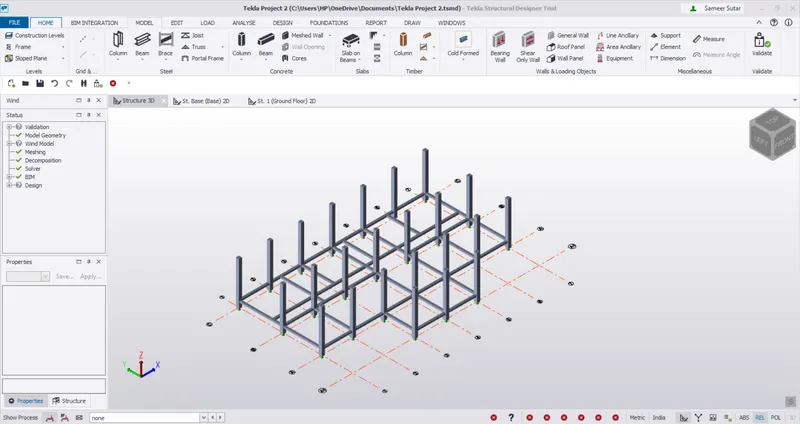

4. In the model tab click on columns and create concrete columns.

5. Similarly create beam as well.

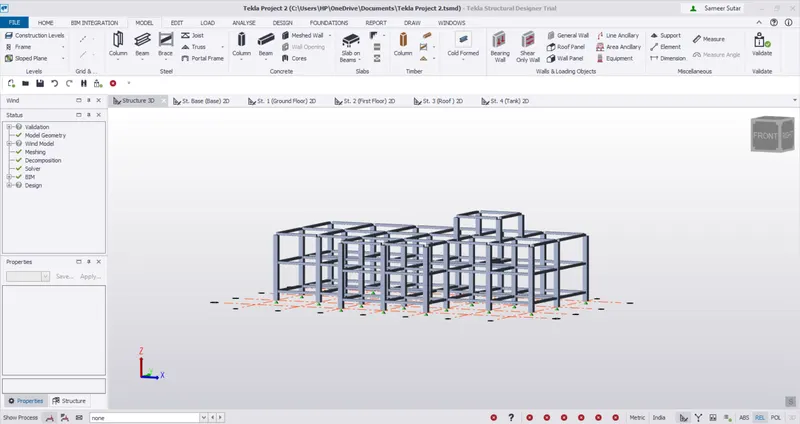

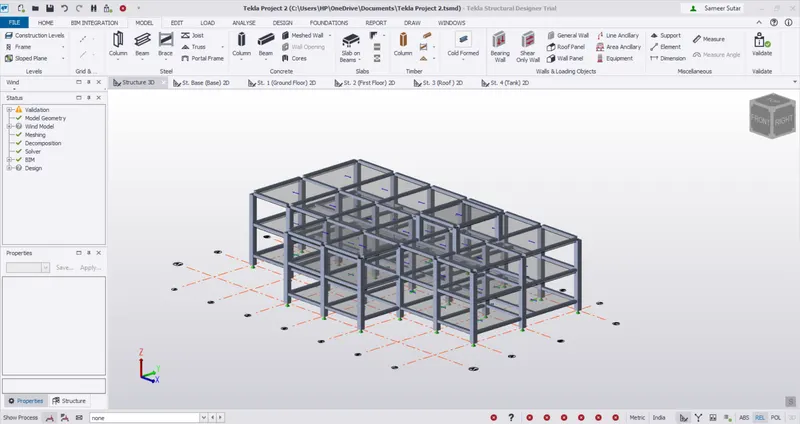

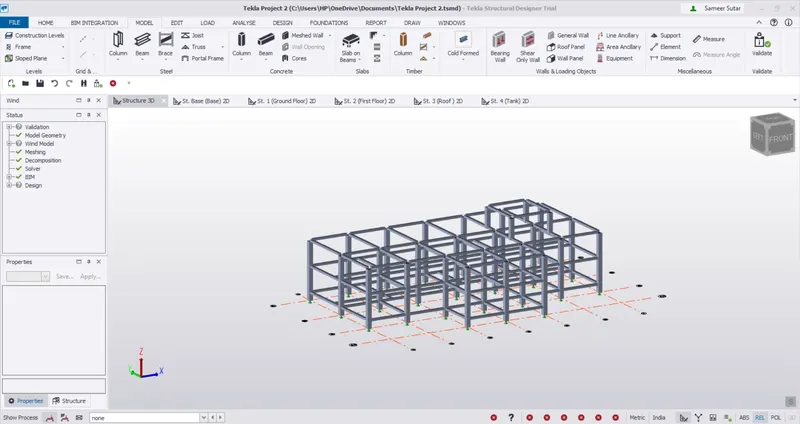

6. Click on 3D structure view for conformation.

7. Repaet the same process for the levels as per the plan.

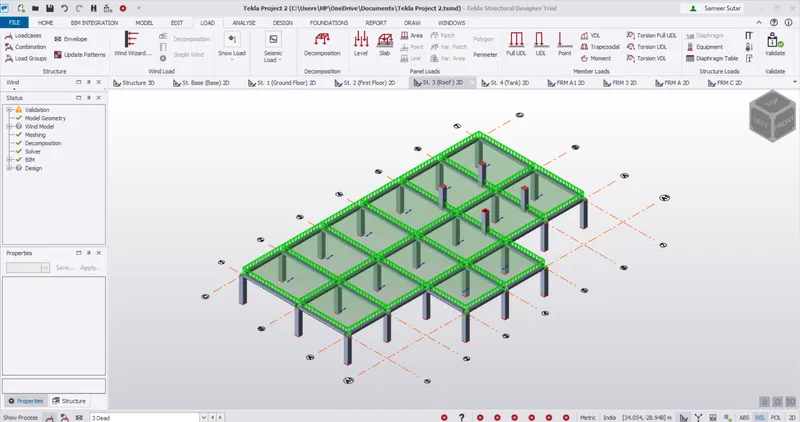

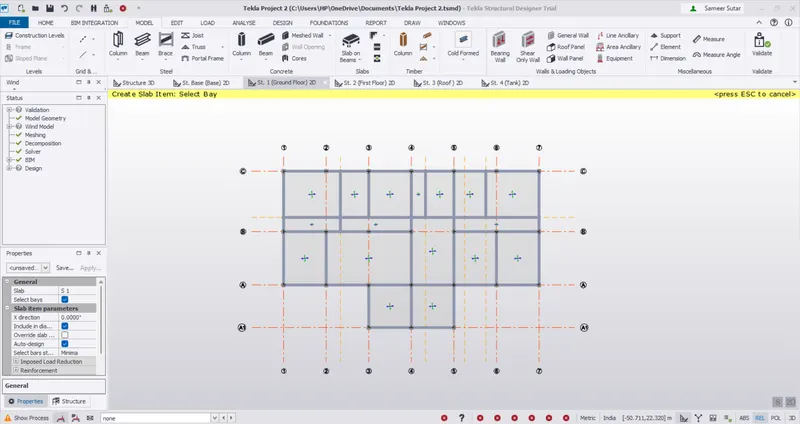

8. Select slabs on beams and insert slabs for all the floors where ever required.

9. Go to 3D view to get clear view of the slabs inserted.

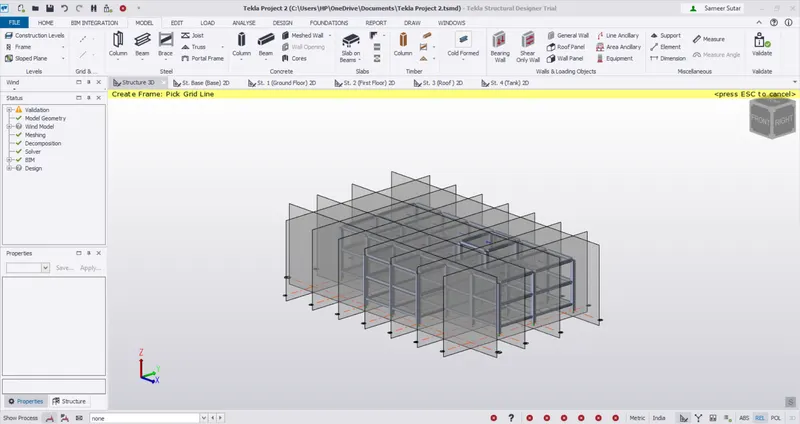

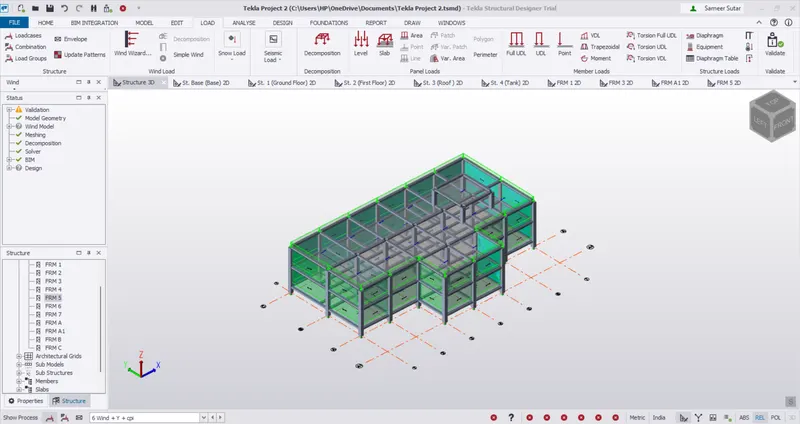

10. Insert frames which will be helpful while applying loads on the structure.

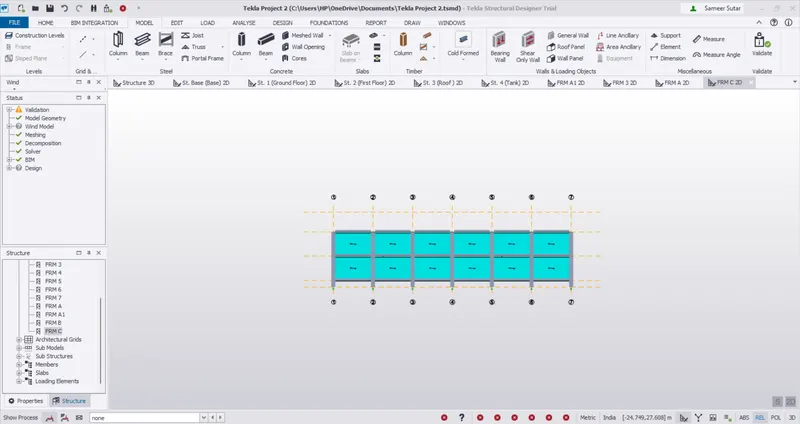

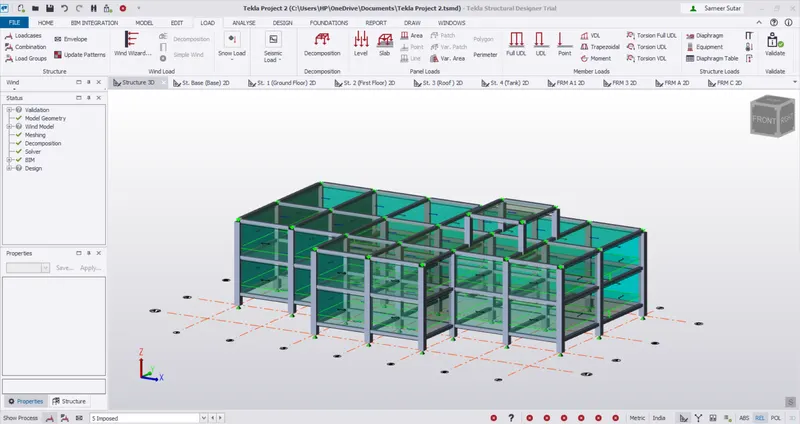

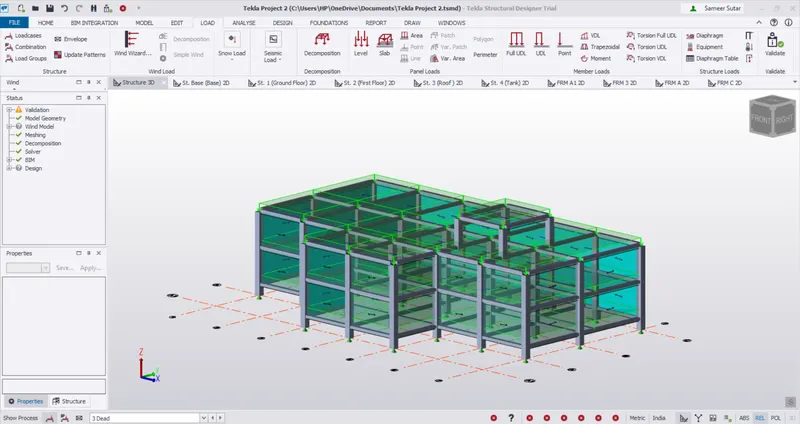

11. Add wall panels to the structure.

12. Repeat the same steps for all the walls.

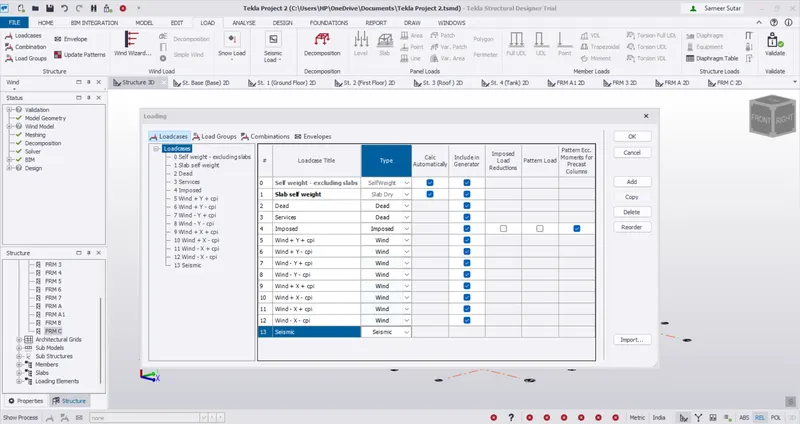

13. Go to the loads and create the new load cases.

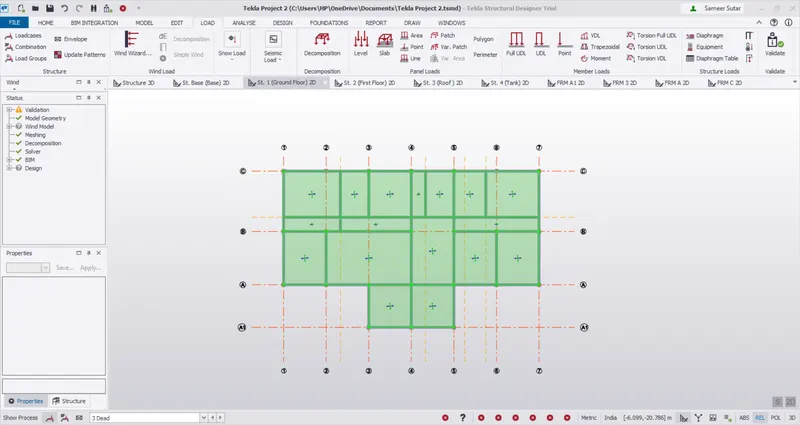

14. Add the dead loads on the beams.

15. Succesffully added the dead load on the beams.

16. Repeat the same procedure for all the floors.

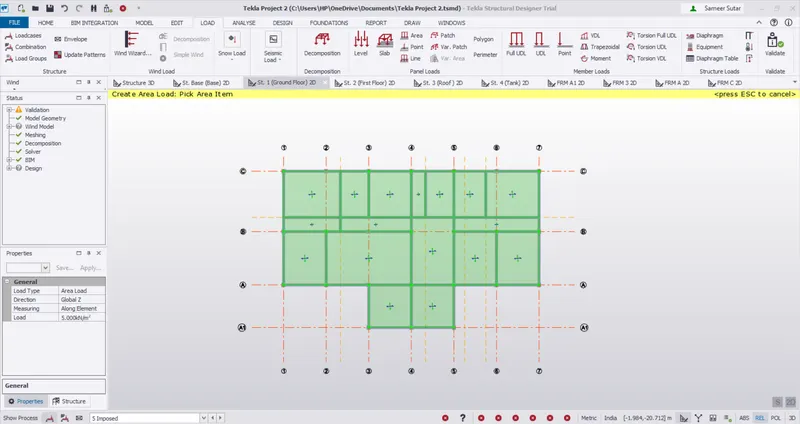

17. Add live load on the structure for all the floors.

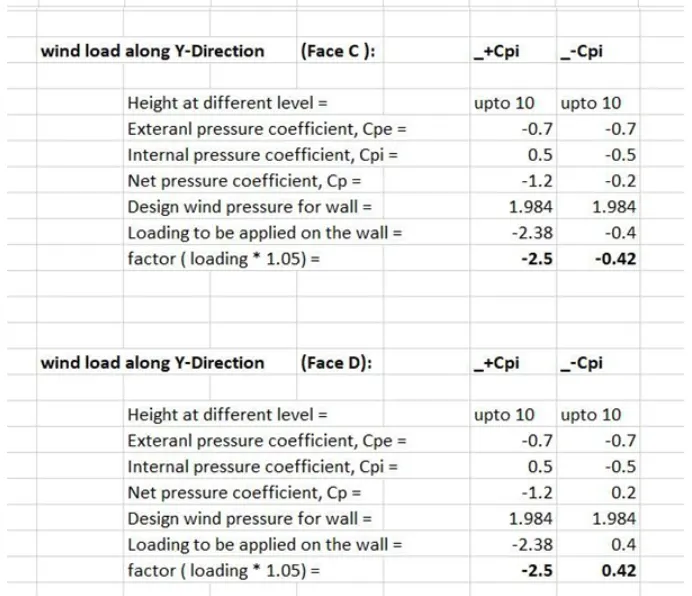

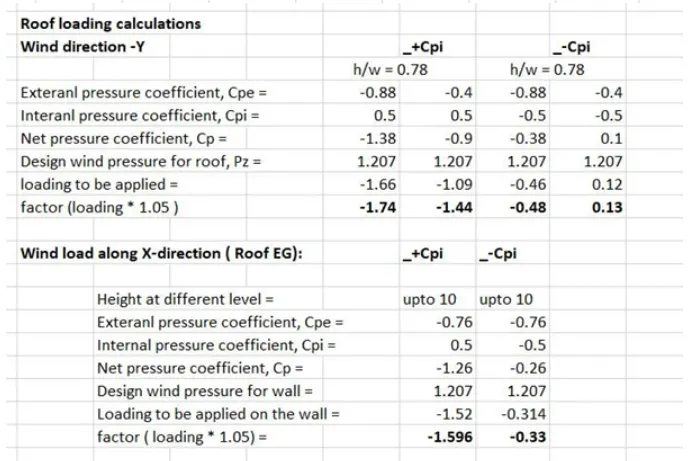

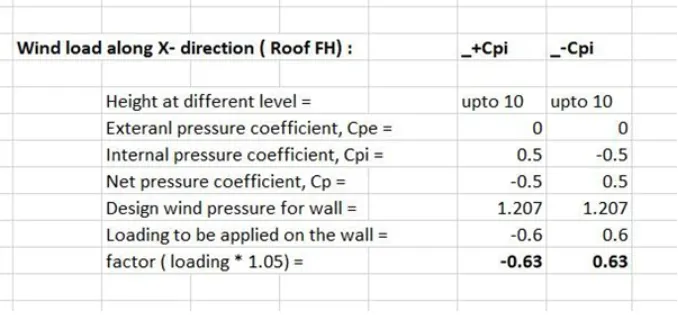

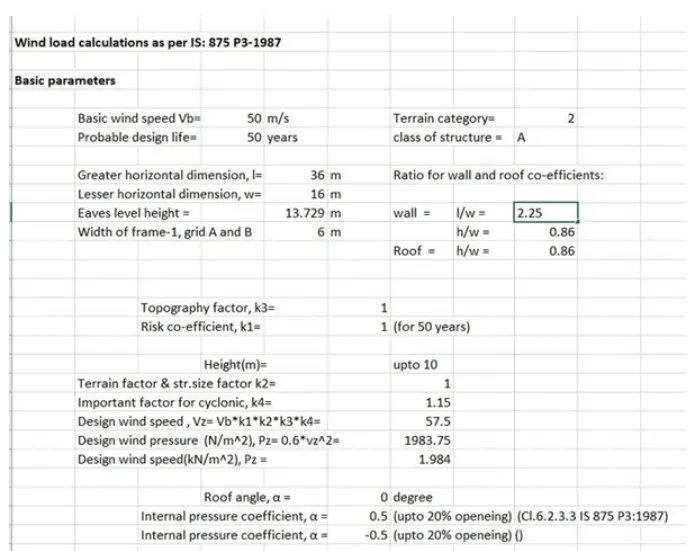

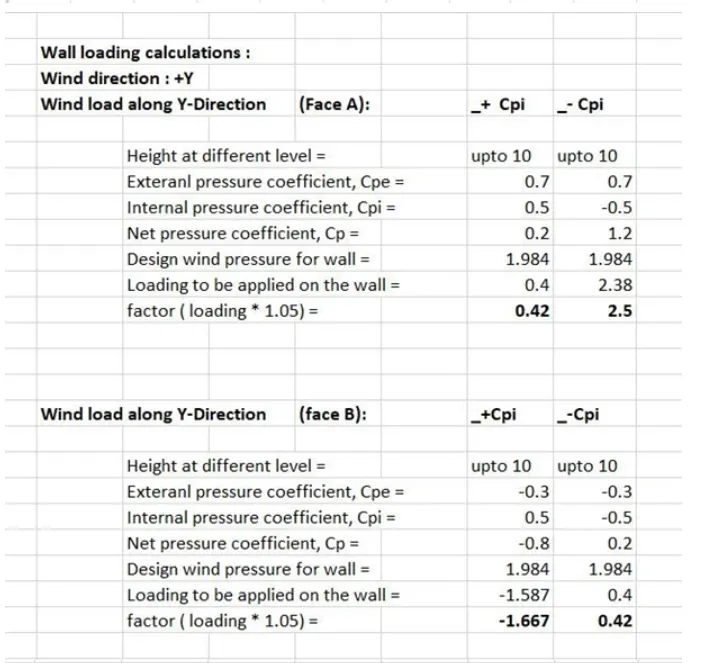

18. Do the wind load calculations for all the sides for both X and Y ( Including both +cpi and -cpi values ).

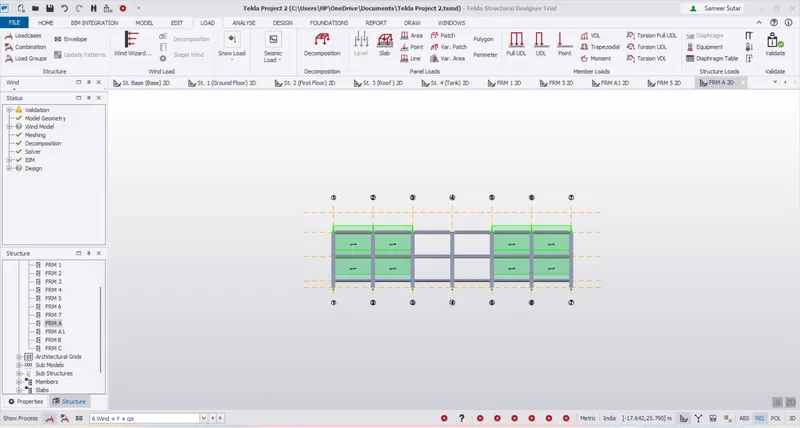

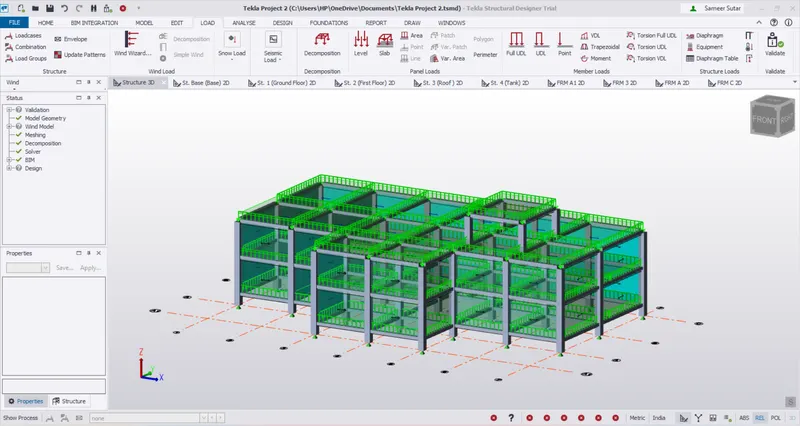

19. Start applying the wind loads on the structure.

20. Repeat the same process for all the sides.

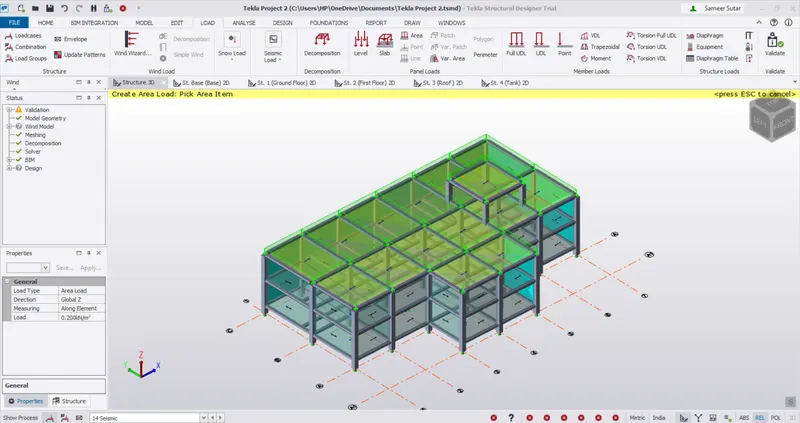

21. Add roof panels to the structure also add the roof loads.

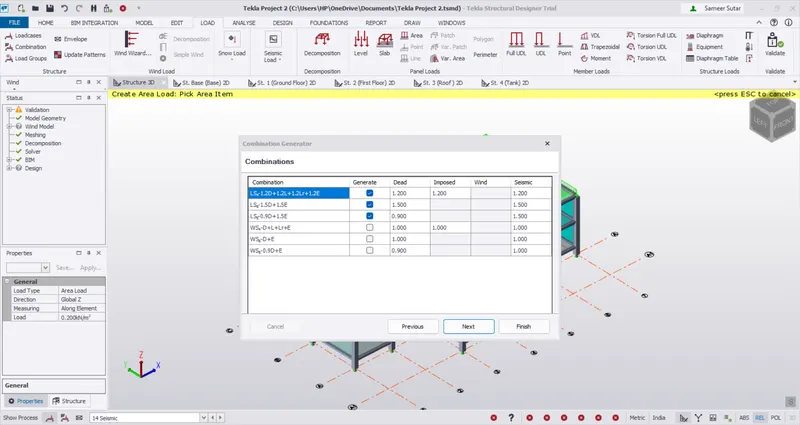

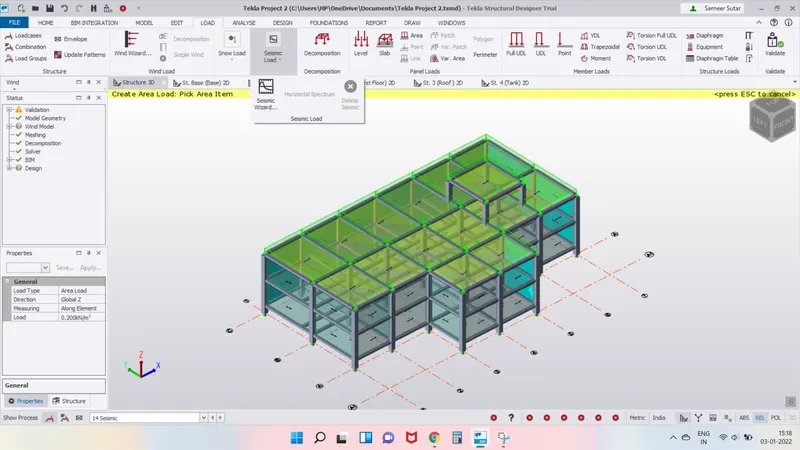

22. Apply seismic load on the structure by selecting seismic wizard.

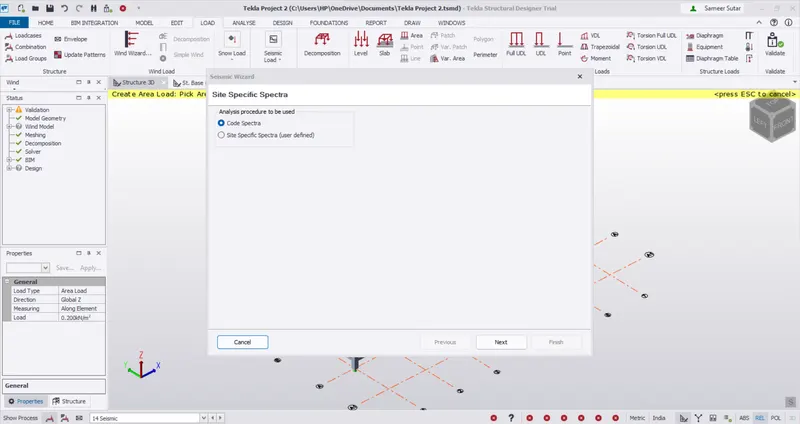

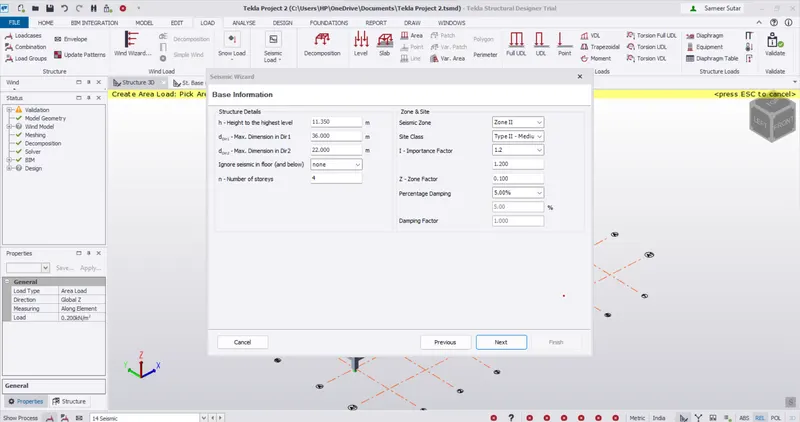

23. Seisic wizard dialogue box appears

24. Enter the required values required for seismic load calculations.

25. Apply load on structure which will be applied and visible now.

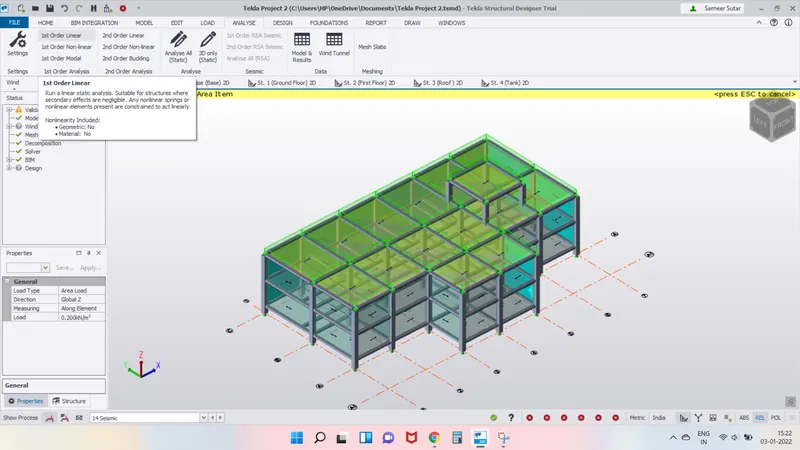

26. Analyze the structure by selecting 1st order Linear option.

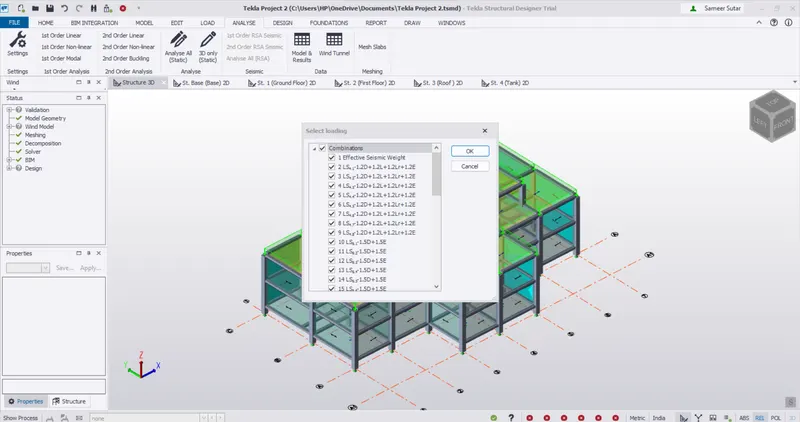

27. Select all the loadings required for the analysis.

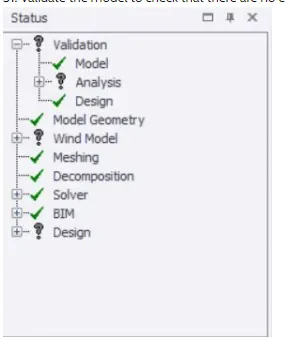

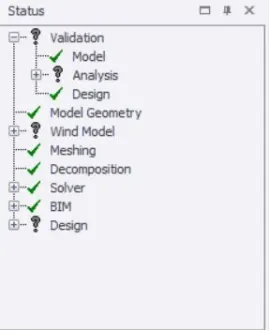

28. Validate the model to check that there are no errors.

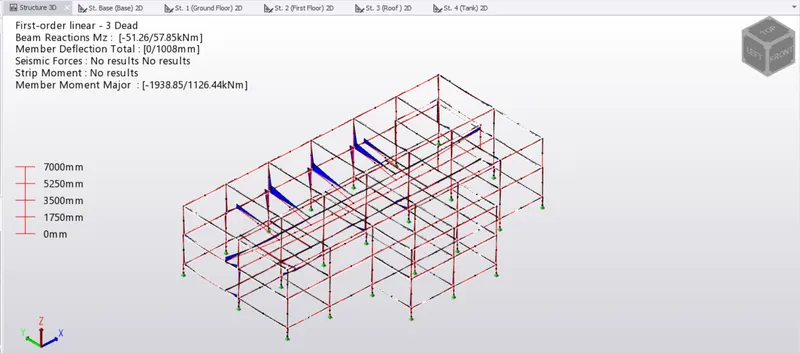

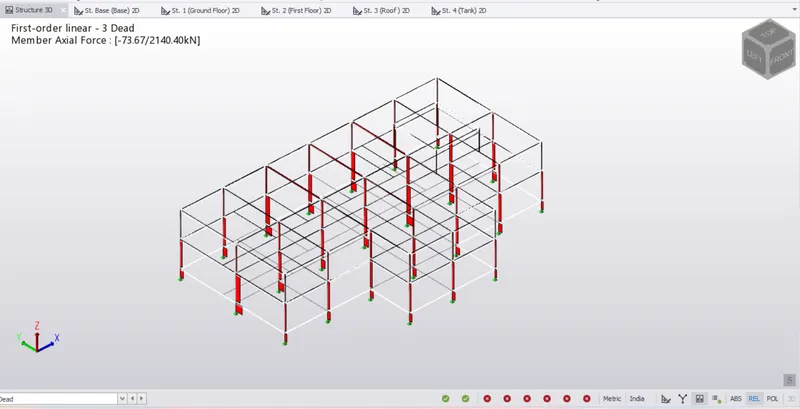

29. Check the axial load diagram.

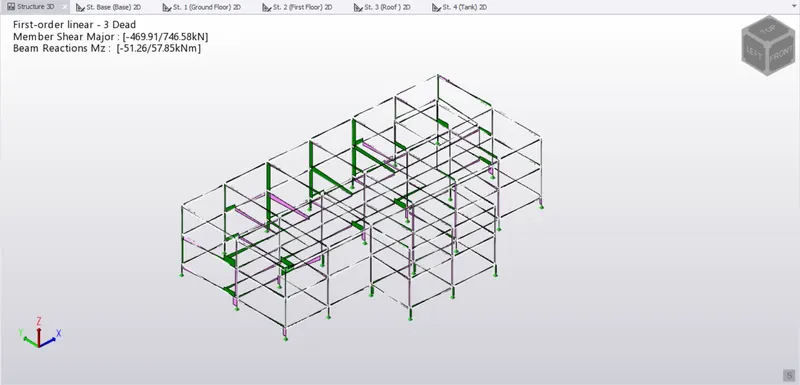

30. Check the shear force and bending moment diagram.

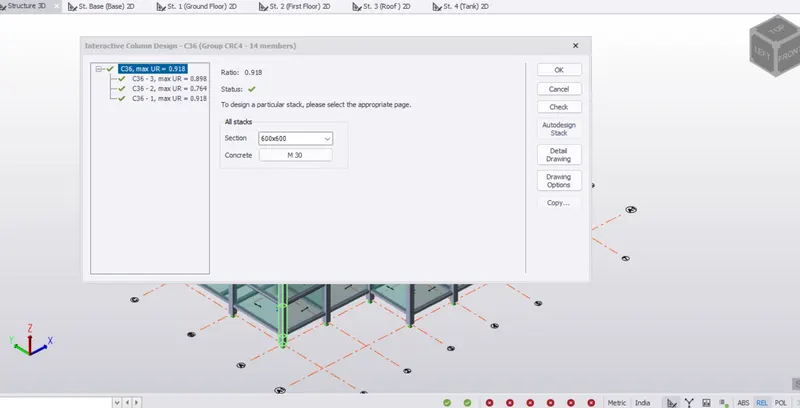

31. Click on check and after selecting the member and click on interactive design and perform the design of all members.

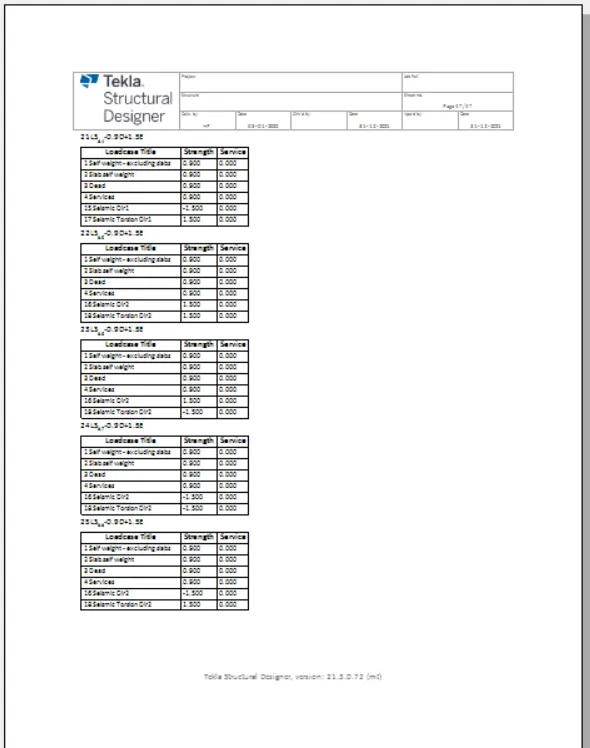

32. click on model reports in the report tab.

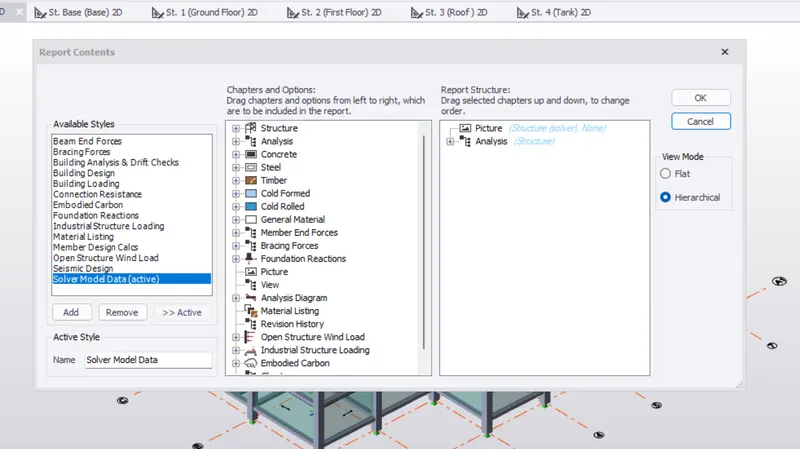

33. Select the conctents as per requirement and drag it into conctents tab.

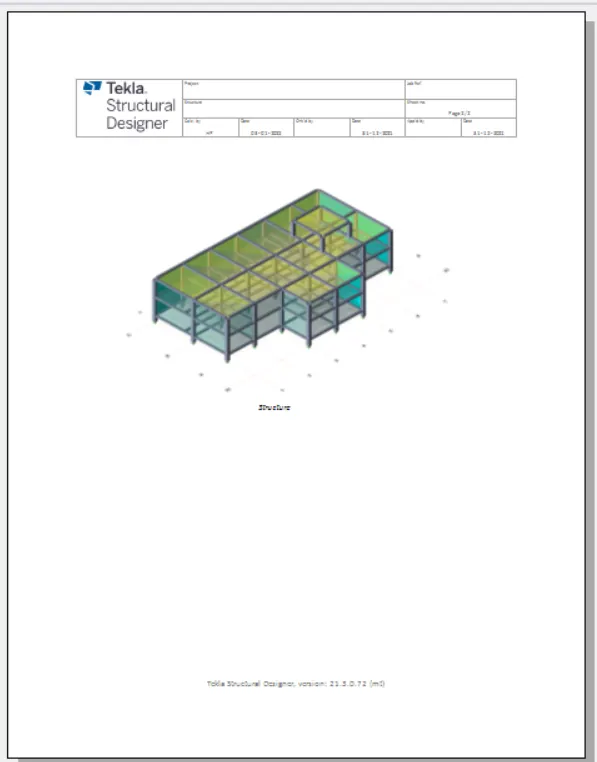

34. Click on show reports option.

Results -

The structure is designed as per given plan and loaded and analyzed and the structure was found to be error free.

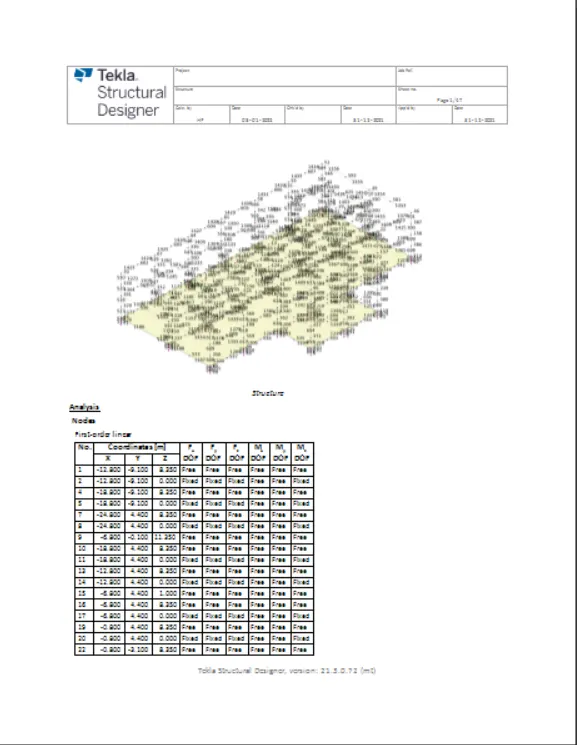

Reports.
