Project 2 Adaptive Cruise Control

AIM:To develop an Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic using the given Data.

Step:1

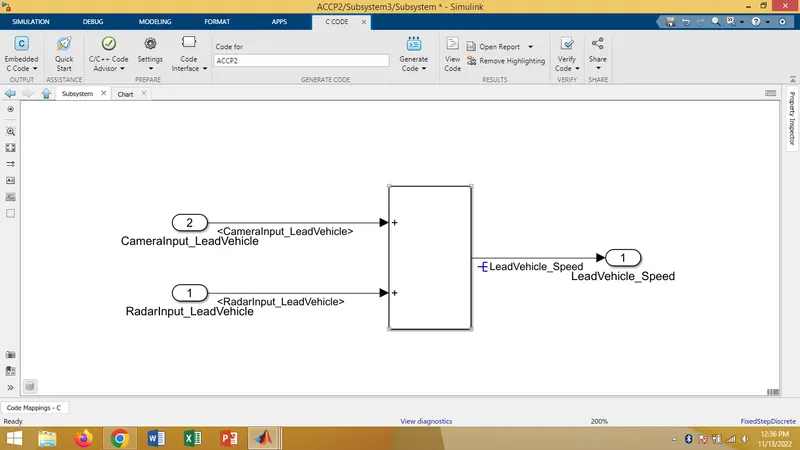

Here we need three sub system and at first we desing the lead vehicle data as shown below.

Step2:

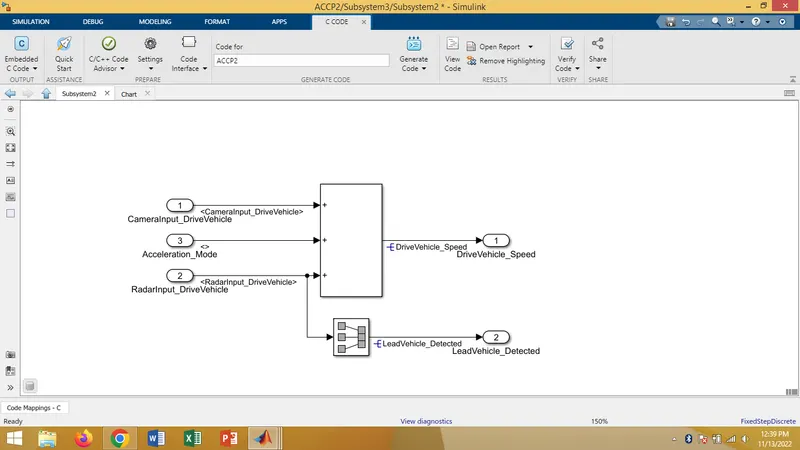

then created the drive vehicle design as shown below

Step 3:

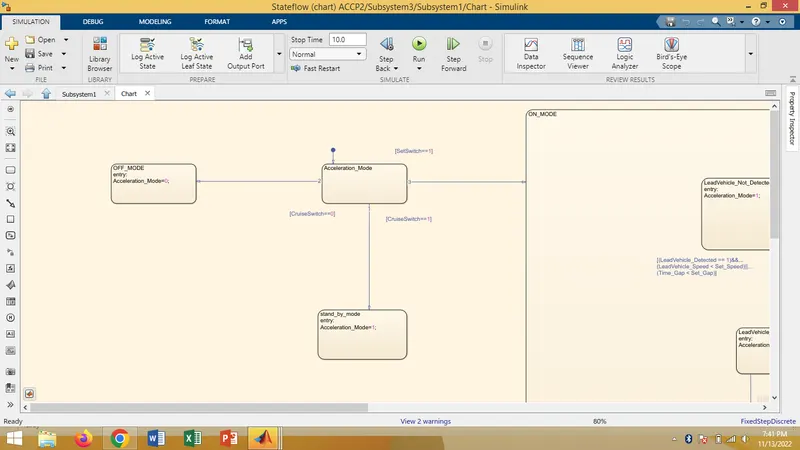

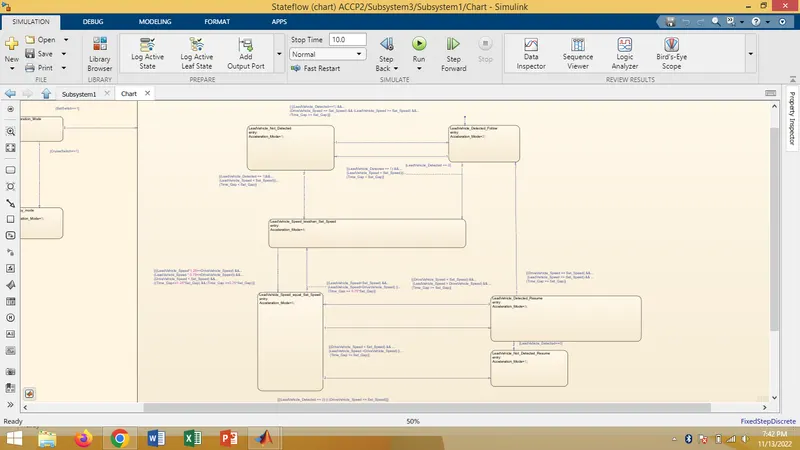

Here we created the program logic as per the requirement of ACC

STEP 4:

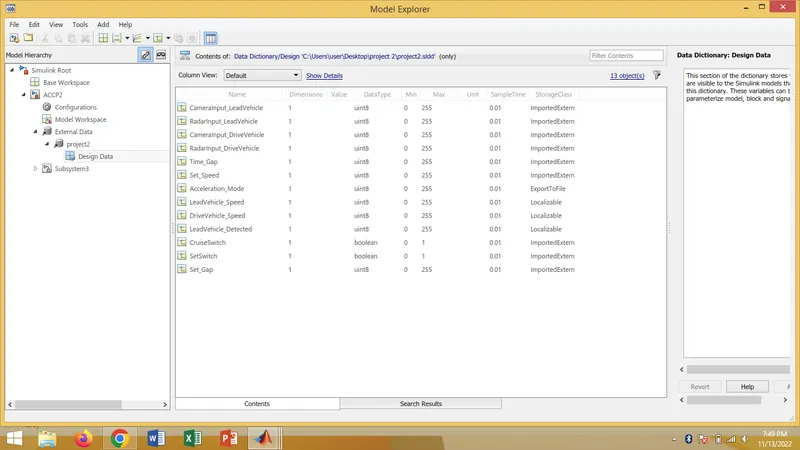

Here is the SLDD created as per the requirment

Step 5: After completion of the model,model configuartion has been done and model advisory report has generated and the file is attached below.

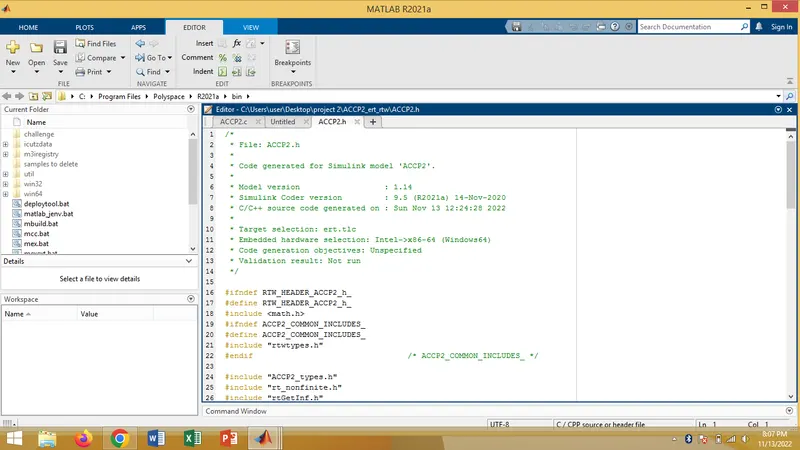

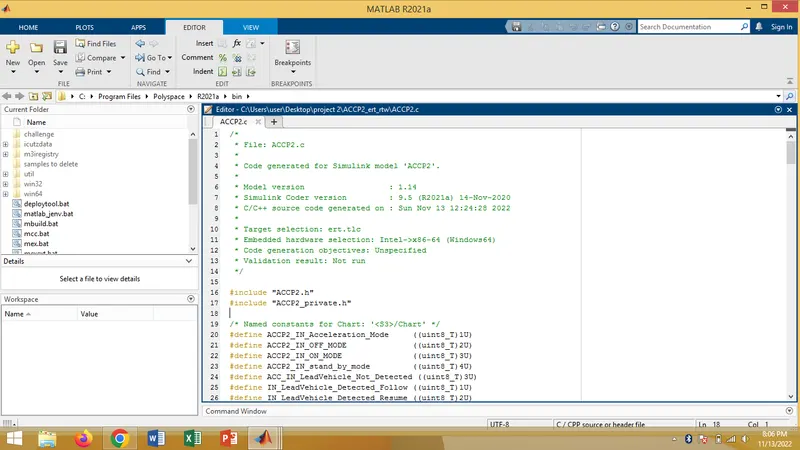

Step 6: the next step is code generation .APPS ->embedded coder-> C code-> Generate code.hence the code is generated with .c and .h files and the file is attached below.

Result:Here we created a model for ACC as per the given parametrs and created SLDD as per the parameters given and attached this SLDD to the model succesfully.And then we have created model advisory report and code for this model succesfully.
