Project 1 (Mini Project on Vehicle Direction Detection

Aim:Aim of the Mini project is to make a system which will detect the direction of vehicle with corresponding to the road sign.Hence here we are comparing the streeing wheel direction with road sign using camera input and alerting the driver about the direction of the road.

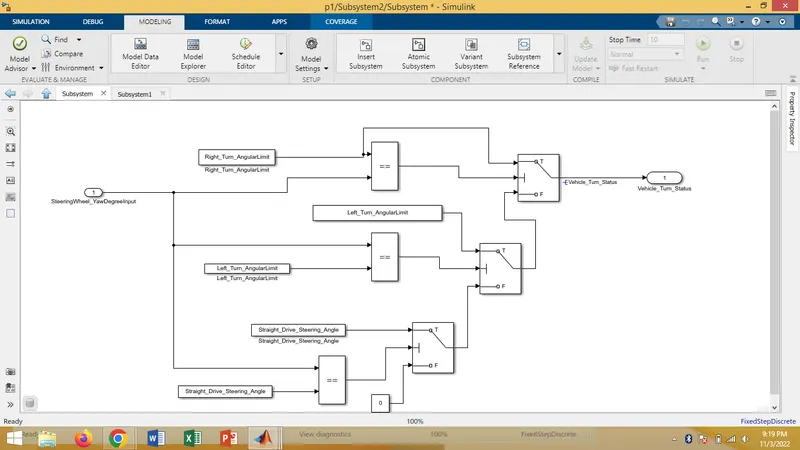

step 1: creating a model to compare against 3 angular values, one each for left turn, right turn & straight drive which will give an output of vehicle turn status.

step:2

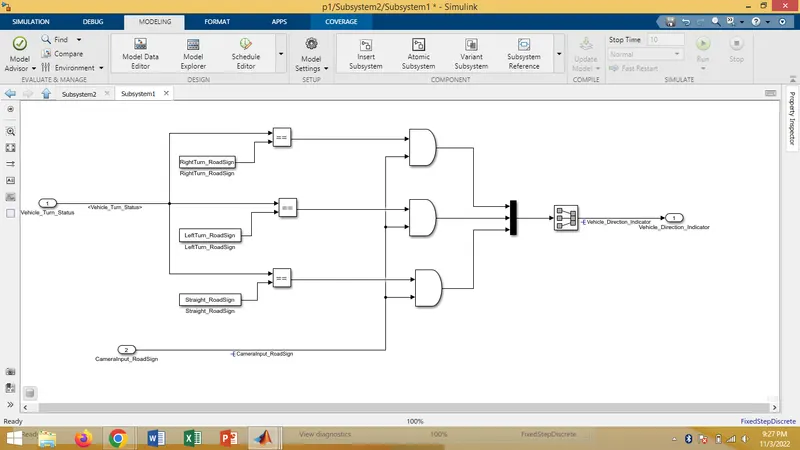

here we have created a system for comparing vehicle streering status with angular values and also with camera inputs.we will get an output of vehicle direction indicator here.

step 3:

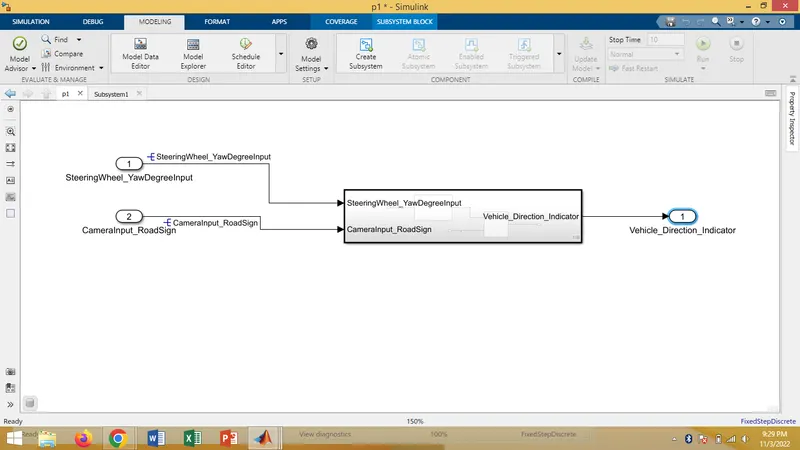

we have created a sub system that includes both the sub systems.

step 4:

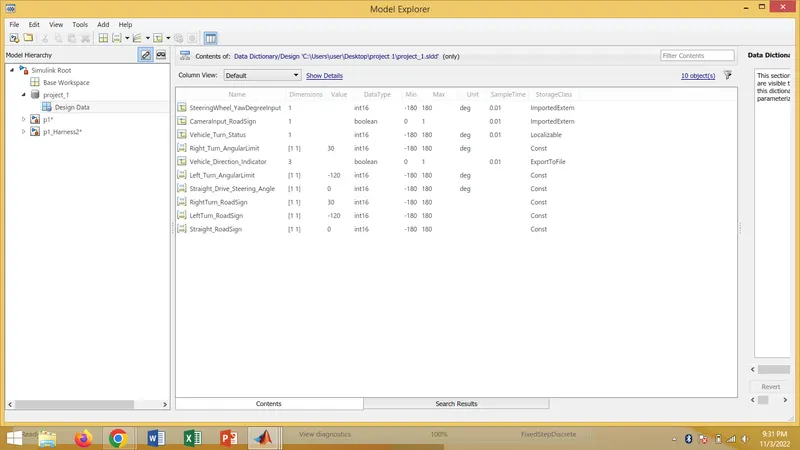

Create SLDD for the system as per the requirment and link it with the system.

step5:

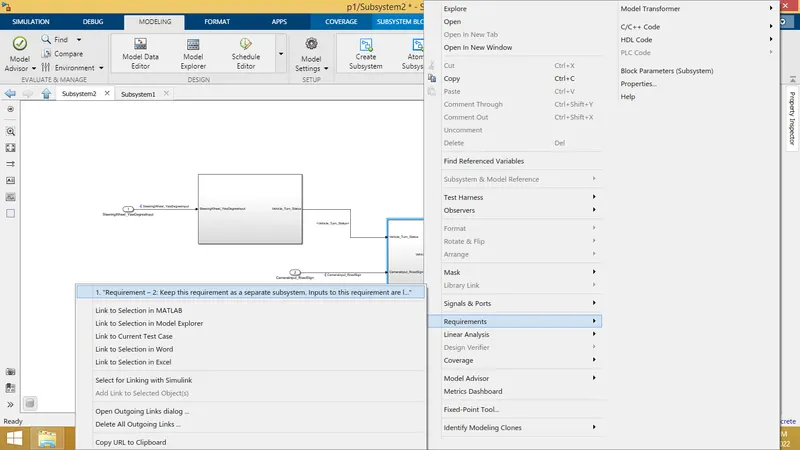

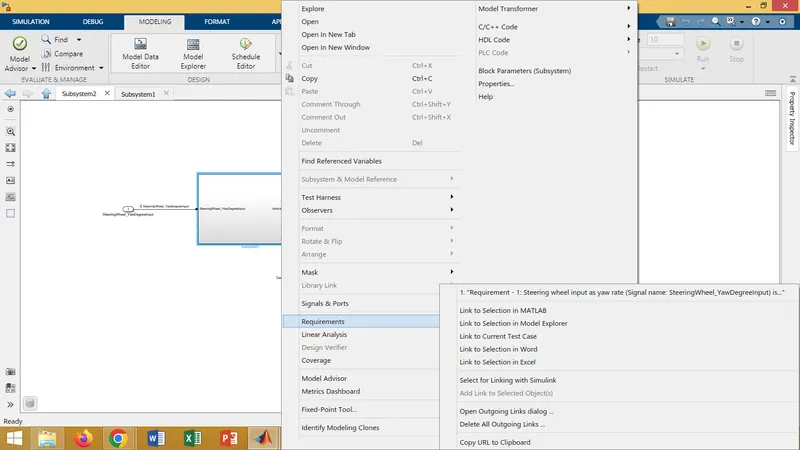

*Make necessary requirement tagging.

* Resolve the corresponding signals.

*Make the system Atomic.

*Run the system and check for any errors .if no errors go to next step.

Step6:

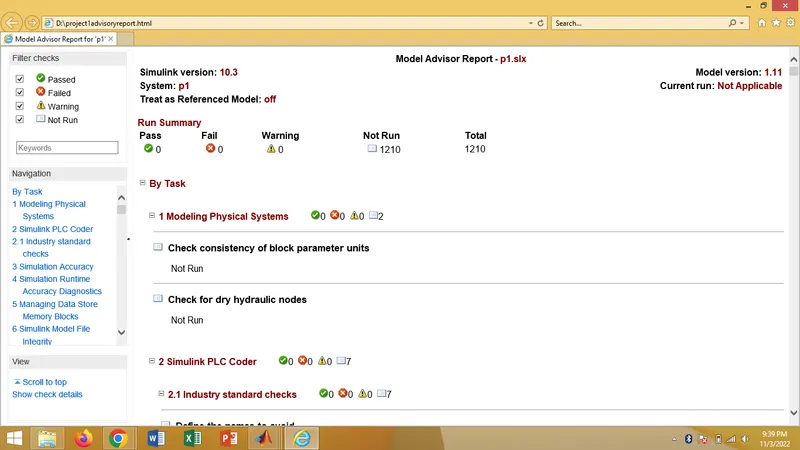

create an model advisory report

Step 7:

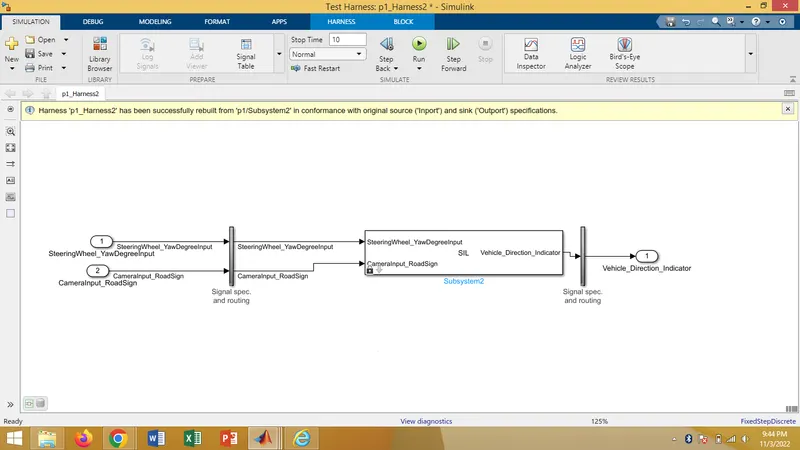

Create SIL model

Result:

Here we have created a model for vehicle direction detection and tested it using SIL and created advisory report for the model.And also we have done requirment tagging and signal resolvings.hence we concluded the aim of this project.
