Project 2 Adaptive Cruise Control

Aim:

To Make the adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic signals an requirement

Objective:

Develop Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.

Follow all the MBD related processes, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.

Configuration Parameters change.

If choosing code generation, Storage class for Input signals, ImportedExtern, Storage class for Output signal, Export to File, Storage class for local signals, localizable; Storage class for calibration signals, Const.

Choose sample time for all signals as 0.01

Theory: Adaptive Cruise Control (ACC),

Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic.

Driving in heavy traffic or keeping a safe distance to the preceding vehicle calls for a high level of concentration.

The Adaptive Cruise Control feature can reduce the stress on the driver by automatically controlling the vehicle speed & maintaining a predefined minimum distance to the preceding vehicle. As a consequence, the driver enjoys more comfort & can concentrate on the road a little better.

A radar sensor is usually at the core of the Adaptive Cruise Control. Installed at the front of the vehicle, the system permanently monitors the road ahead. As long as the road ahead is clear, the cruise control feature maintains the speed set by the driver.

If the system spots a slower vehicle within its detection range, it gently reduces speed by releasing the accelerator or actively engaging the brake control system. If the vehicle ahead speeds up or changes lanes, the cruise control automatically accelerates to the driver’s desired speed.

AnStandard Adaptive Cruise Control can be activated from speeds of around 30 km/h (20 mph) upwards and supports the driver, primarily on cross-country journeys or on freeways.

The cruise control stops & go variant is also active at speeds below 30 km/h (20 mph). It can maintain the set distance to the preceding vehicle even at very low speeds and can decelerate to a complete standstill.

When the vehicle remains stopped longer, the driver needs only to reactivate the system, for example by briefly stepping on the gas pedal to return to cruise control mode. In this way, cruise control stops & goes support the driver even in heavy traffic and traffic jams

1.

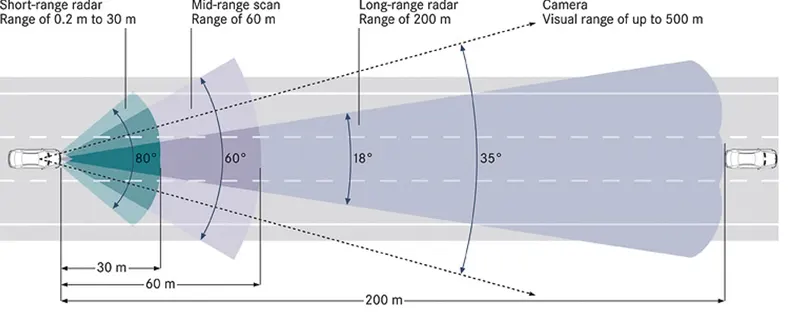

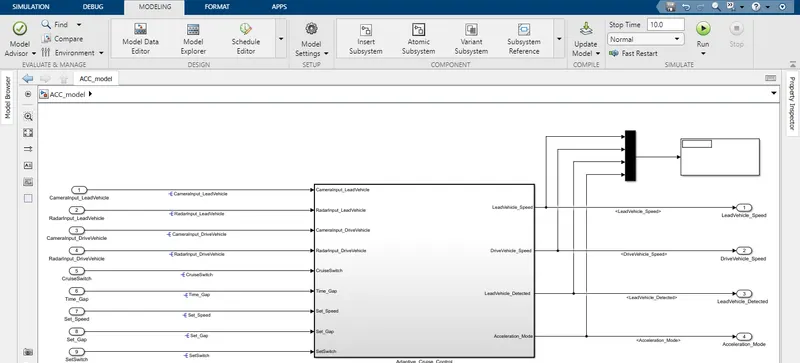

Simulink model:

Exp,

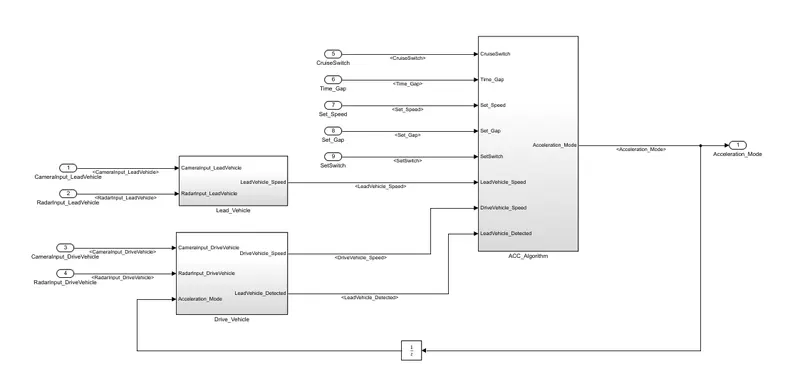

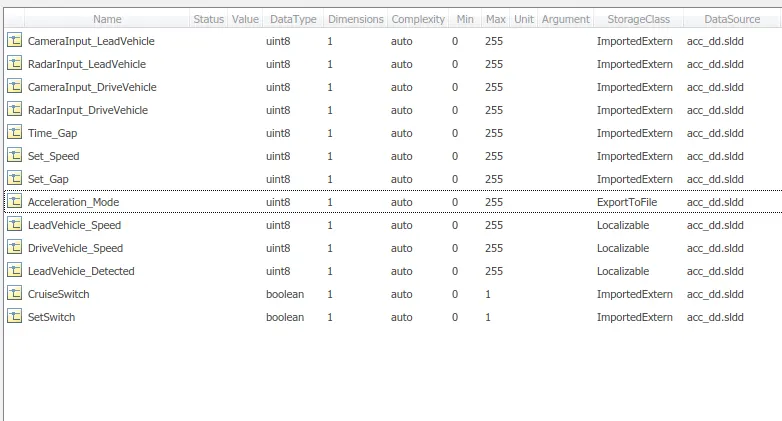

Signal an calibration details:

Signal / Calibration Name	Signal Type	Data Type	Dimension	Min	Max	Initial Value	Units
CameraInput_LeadVehicle	Input	Uint8	1	0	255	-	-
RadarInput_LeadVehicle	Input	Uint8	1	0	255	-	-
CameraInput_DriveVehicle	Input	Uint8	1	0	255	-	-
RadarInput_DriveVehicle	Input	Uint8	1	0	255	-	-
Time_Gap	Input	Uint8	1	0	255	-	-
Set_Speed	Input	Uint8	1	0	255	-	-
Set_Gap	Input	Uint8	1	0	255	-	-
CruiseSwitch	Input	Boolean	1	0	1	-	-
SetSwitch	Input	Boolean	1	0	1	-	-
Acceleration_Mode	Output	Uint8	1	0	255	-	-
LeadVehicle_Speed	Output	Uint8	1	0	255	-	-
DriveVehicle_Speed	Output	Uint8	1	0	255	-	-
LeadVehicle_Detected	Output	Uint8	1	0	255	-	-

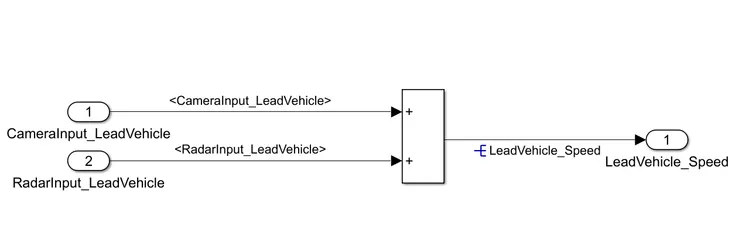

Requirement 1– Lead Vehicle:

1. Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
2. Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.
3. We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
4. Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm.

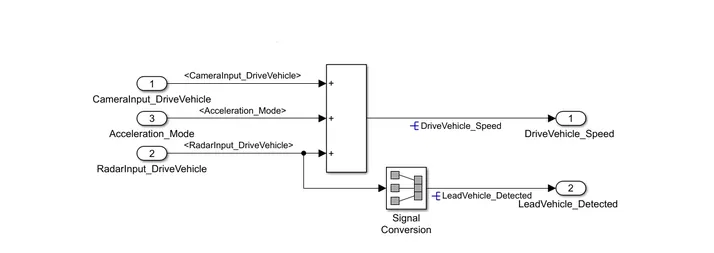

Requirement 2 – Drive Vehicle:

1. Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
2. Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
3. Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
4. Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
5. Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.

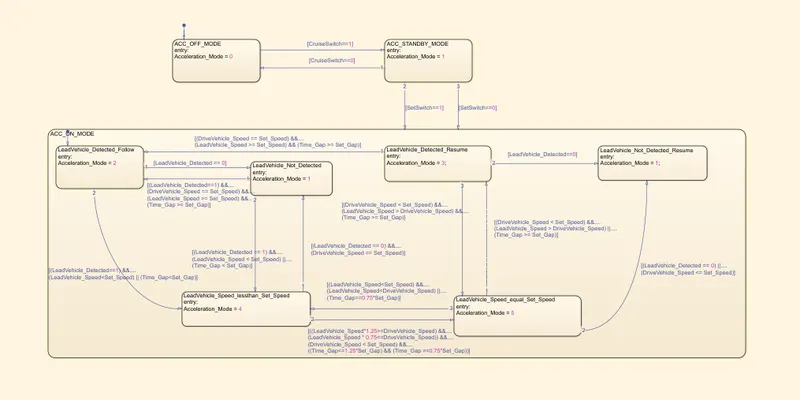

Requirement 3 – Adaptive Cruise Control Algorithm:

1. Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
2. The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
3. Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
4. Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
5. Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.

Requirement 3a – ACC OFF MODE state logic:

1. This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
2. This state is governed by input signal CruiseSwitch.
3. If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode

Requirement 3b – ACC STANDBY MODE state logic:

1. This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
2. This state is governed by both input signals CruiseSwitch & SetSwitch.
3. If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
4. If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.

Requirement 3c – ACC ON MODE state logic:

This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:

1. LeadVehicle_Detected_Follow (Default)
2. LeadVehicle_Not_Detected
3. LeadVehicle_Detected_Resume
4. LeadVehicle_Not_Detected_Resume
5. LeadVehicle_Speed_lessthan_Set_Speed
6. LeadVehicle_Speed_equal_Set_Speed

Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):

1. This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
2. Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
3. Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).

Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):

1. Output signal Acceleration_Mode is equal to 1.
2. Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
3. Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]

Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):

1. Output signal Acceleration_Mode is equal to 3.
2. Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
3. Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
4. Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]

Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):

1. Output signal Acceleration_Mode is equal to 1.

Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):

1. Output signal Acceleration_Mode is equal to 4.
2. Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
3. Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]

Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):

1. Output signal Acceleration_Mode is equal to 5.
2. Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
3. Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
4. Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed

Model Explorere:

C code:

#include "ACC_model.h"
#include "ACC_model_private.h"

/* Named constants for Chart: '/Chart' */
#define ACC_IN_LeadVehicle_Not_Detected ((uint8_T)3U)
#define ACC_model_IN_NO_ACTIVE_CHILD ((uint8_T)0U)
#define ACC_model_IN_OFF_mode ((uint8_T)1U)
#define ACC_model_IN_ON_mode ((uint8_T)2U)
#define ACC_model_IN_Standby_mode ((uint8_T)3U)
#define IN_LeadVehicle_Detected_Follow ((uint8_T)1U)
#define IN_LeadVehicle_Detected_Resume ((uint8_T)2U)
#define IN_LeadVehicle_Not_Detected_Res ((uint8_T)4U)
#define IN_LeadVehicle_Speed_equal_Set_ ((uint8_T)5U)
#define IN_LeadVehicle_Speed_lessthan_S ((uint8_T)6U)

/* Block states (default storage) */
DW_ACC_model_T ACC_model_DW;

/* External inputs (root inport signals with default storage) */
ExtU_ACC_model_T ACC_model_U;

/* External outputs (root outports fed by signals with default storage) */
ExtY_ACC_model_T ACC_model_Y;

/* Real-time model */
static RT_MODEL_ACC_model_T ACC_model_M_;
RT_MODEL_ACC_model_T *const ACC_model_M = &ACC_model_M_;

/* Model step function *
void ACC_model_step(void)
{
/* Outputs for Atomic SubSystem: '/Subsystem2' */
/* Sum: '/Add' incorporates:
* Inport: '/CameraInput_DriveVehicle'
* Inport: '/RadarInput_DriveVehicle'
* UnitDelay: '/Unit Delay'
*/
ACC_model_Y.DriveVehicle_Speed = (ACC_model_U.CameraInput_DriveVehicle +
ACC_model_Y.Acceleration_Mode) + ACC_model_U.RadarInput_DriveVehicle;

/* Sum: '/Add' incorporates:
* Inport: '/CameraInput_LeadVehicle'
* Inport: '/RadarInput_LeadVehicle'
*/
ACC_model_Y.LeadVehicle_Speed = ACC_model_U.CameraInput_LeadVehicle +
ACC_model_U.RadarInput_LeadVehicle;

/* Chart: '/Chart' incorporates:
* Inport: '/CruiseSwitch'
* Inport: '/RadarInput_DriveVehicle'
* Inport: '/SetSwitch'
* Inport: '/Set_Gap'
* Inport: '/Set_Speed'
* Inport: '/Time_Gap'
* UnitDelay: '/Unit Delay'
*/
if (ACC_model_DW.is_active_c3_ACC_model == 0U) {
ACC_model_DW.is_active_c3_ACC_model = 1U;
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_OFF_mode;
ACC_model_Y.Acceleration_Mode = 0.0;
} else {
switch (ACC_model_DW.is_c3_ACC_model) {
case ACC_model_IN_OFF_mode:

ACC_model_Y.Acceleration_Mode = 0.0;
if (ACC_model_U.CruiseSwitch == 1.0) {
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_Standby_mode;
ACC_model_Y.Acceleration_Mode = 1.0;
}
break;

case ACC_model_IN_ON_mode:
if (ACC_model_U.CruiseSwitch == 0.0) {
ACC_model_DW.is_ON_mode = ACC_model_IN_NO_ACTIVE_CHILD;
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_OFF_mode;
ACC_model_Y.Acceleration_Mode = 0.0
} else if (ACC_model_U.SetSwitch == 0.0) {
ACC_model_DW.is_ON_mode = ACC_model_IN_NO_ACTIVE_CHILD;
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_Standby_mode;
ACC_model_Y.Acceleration_Mode = 1.0;
} else {
switch (ACC_model_DW.is_ON_mode) {
case IN_LeadVehicle_Detected_Follow:
ACC_model_Y.Acceleration_Mode = 2.0;
if (ACC_model_U.RadarInput_DriveVehicle == 0.0) {
ACC_model_DW.is_ON_mode = ACC_IN_LeadVehicle_Not_Detected;
ACC_model_Y.Acceleration_Mode = 1.0;
} else if (((ACC_model_U.RadarInput_DriveVehicle == 1.0) &&
(ACC_model_Y.LeadVehicle_Speed < ACC_model_U.Set_Speed)) ||
(ACC_model_U.Time_Gap < ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Speed_lessthan_S;
ACC_model_Y.Acceleration_Mode = 4.0;
}
break;

case IN_LeadVehicle_Detected_Resume:
ACC_model_Y.Acceleration_Mode = 3.0;
if ((ACC_model_Y.DriveVehicle_Speed < ACC_model_U.Set_Speed) &&
(ACC_model_Y.LeadVehicle_Speed > ACC_model_Y.DriveVehicle_Speed) &&
(ACC_model_U.Time_Gap >= ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Speed_equal_Set_;
ACC_model_Y.Acceleration_Mode = 5.0;
} else if ((ACC_model_Y.DriveVehicle_Speed == ACC_model_U.Set_Speed) &&
(ACC_model_Y.LeadVehicle_Speed >= ACC_model_U.Set_Speed) &&
(ACC_model_U.Time_Gap >= ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Detected_Follow;
ACC_model_Y.Acceleration_Mode = 2.0;
} else if (ACC_model_U.RadarInput_DriveVehicle == 0.0) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Not_Detected_Res;
ACC_model_Y.Acceleration_Mode = 1.0;
}
break;

case ACC_IN_LeadVehicle_Not_Detected;
ACC_model_Y.Acceleration_Mode = 1.0;
if ((ACC_model_U.RadarInput_DriveVehicle == 1.0) &&
(ACC_model_Y.DriveVehicle_Speed == ACC_model_U.Set_Speed) &&
(ACC_model_Y.LeadVehicle_Speed >= ACC_model_U.Set_Speed) &&
(ACC_model_U.Time_Gap >= ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Detected_Follow;
ACC_model_Y.Acceleration_Mode = 2.0;
} else if (((ACC_model_U.RadarInput_DriveVehicle == 1.0) &&
(ACC_model_Y.LeadVehicle_Speed < ACC_model_U.Set_Speed)) ||
(ACC_model_U.Time_Gap < ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Speed_lessthan_S;
ACC_model_Y.Acceleration_Mode = 4.0;
}
break;

case IN_LeadVehicle_Not_Detected_Res;
ACC_model_Y.Acceleration_Mode = 1.0;
break;

case IN_LeadVehicle_Speed_equal_Set_:
ACC_model_Y.Acceleration_Mode = 5.0;
if ((ACC_model_U.RadarInput_DriveVehicle == 0.0) ||
(ACC_model_Y.DriveVehicle_Speed <= ACC_model_U.Set_Speed)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Not_Detected_Res;
ACC_model_Y.Acceleration_Mode = 1.0;
} else if (((ACC_model_Y.DriveVehicle_Speed < ACC_model_U.Set_Speed) &&
(ACC_model_Y.LeadVehicle_Speed >
ACC_model_Y.DriveVehicle_Speed)) || (ACC_model_U.Time_Gap
>= ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Detected_Resume;
ACC_model_Y.Acceleration_Mode = 3.0;
} else if (((ACC_model_Y.LeadVehicle_Speed < ACC_model_U.Set_Speed) &&
(ACC_model_Y.LeadVehicle_Speed <
ACC_model_Y.DriveVehicle_Speed)) || (0.75 *
ACC_model_U.Set_Gap == ACC_model_U.Time_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Speed_lessthan_S;
ACC_model_Y.Acceleration_Mode = 4.0;
}
break;

default:
/* case IN_LeadVehicle_Speed_lessthan_Set_Speed: */
ACC_model_Y.Acceleration_Mode = 4.0;
if ((ACC_model_U.RadarInput_DriveVehicle == 0.0) &&
(ACC_model_Y.DriveVehicle_Speed == ACC_model_U.Set_Speed)) {
ACC_model_DW.is_ON_mode = ACC_IN_LeadVehicle_Not_Detected;
ACC_model_Y.Acceleration_Mode = 1.0;
} else if ((ACC_model_Y.LeadVehicle_Speed * 1.25 >=
ACC_model_Y.DriveVehicle_Speed) &&
(ACC_model_Y.LeadVehicle_Speed * 0.75 <=
ACC_model_Y.DriveVehicle_Speed) &&
(ACC_model_Y.DriveVehicle_Speed < ACC_model_U.Set_Speed) &&
(ACC_model_U.Time_Gap <= 1.25 * ACC_model_U.Set_Gap) &&
(ACC_model_U.Time_Gap >= 0.75 * ACC_model_U.Set_Gap)) {
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Speed_equal_Set_;
ACC_model_Y.Acceleration_Mode = 5.0;
}
break;
}
}
break;

default:
/* case IN_Standby_mode: */
ACC_model_Y.Acceleration_Mode = 1.0;
if (ACC_model_U.CruiseSwitch == 0.0) {
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_OFF_mode;
ACC_model_Y.Acceleration_Mode = 0.0;
} else if (ACC_model_U.SetSwitch == 1.0) {
ACC_model_DW.is_c3_ACC_model = ACC_model_IN_ON_mode;
ACC_model_DW.is_ON_mode = IN_LeadVehicle_Detected_Follow;
ACC_model_Y.Acceleration_Mode = 2.0;
}
break;
}
}

/* End of Chart: '/Chart' */
/* End of Outputs for SubSystem: '/Subsystem2' */

/* Outport: '/LeadVehicle_Detected ' incorporates:
* Inport: '/RadarInput_DriveVehicle'
*/
ACC_model_Y.LeadVehicle_Detected = ACC_model_U.RadarInput_DriveVehicle;
}

/* Model initialize function */
void ACC_model_initialize(void)
{
/* (no initialization code required) */
}

/* Model terminate function */
void ACC_model_terminate(void)
{
/* (no terminate code required) */
}

/*
* File trailer for generated code.
*
* [EOF]
*/

Result:

We make the Adaptive Cruise Control is successfully completed an the output is showing in display.
