Project 2

1. The SOC of the battery at 2 *104second of the battery operation

answer :



blocks used :

1) Battery :

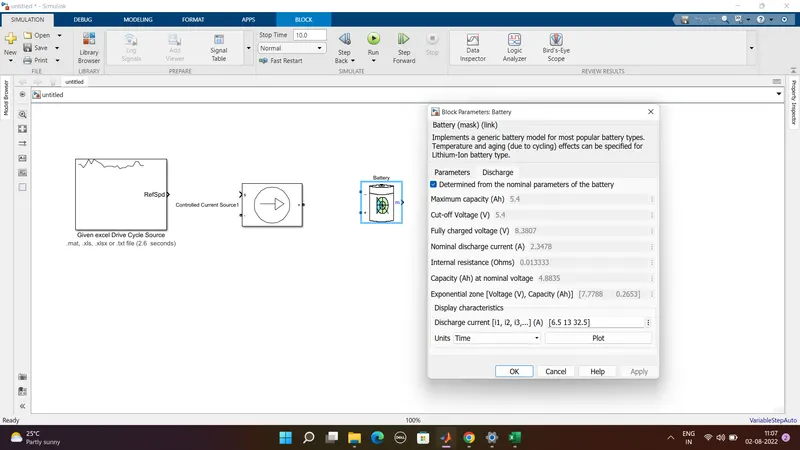

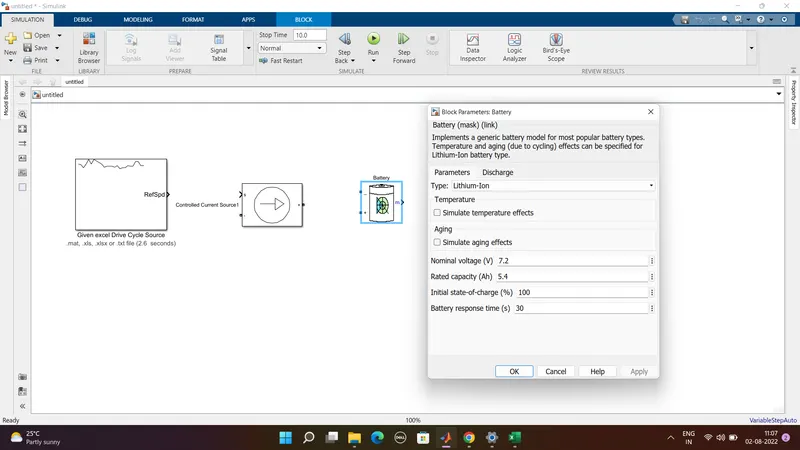

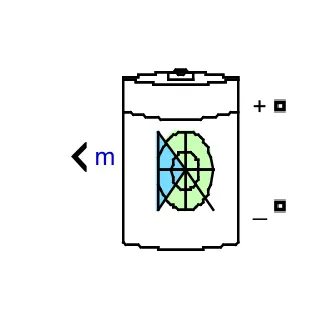

• Here the battery block can be found in the director of electrical/specialized power systems/electrical drives/extra sources
• Here we used default values of the Li-ion battery.

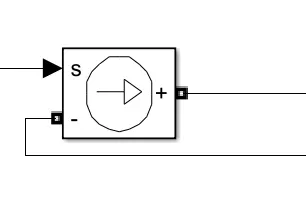

2) Controlled voltage source:

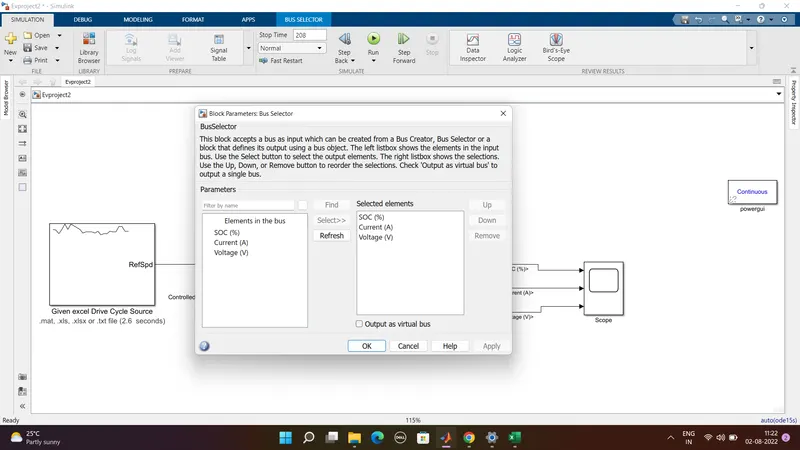

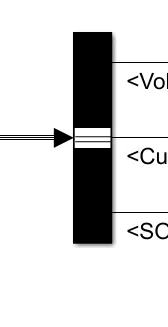

3) Bus selector



4 Drive cycle:

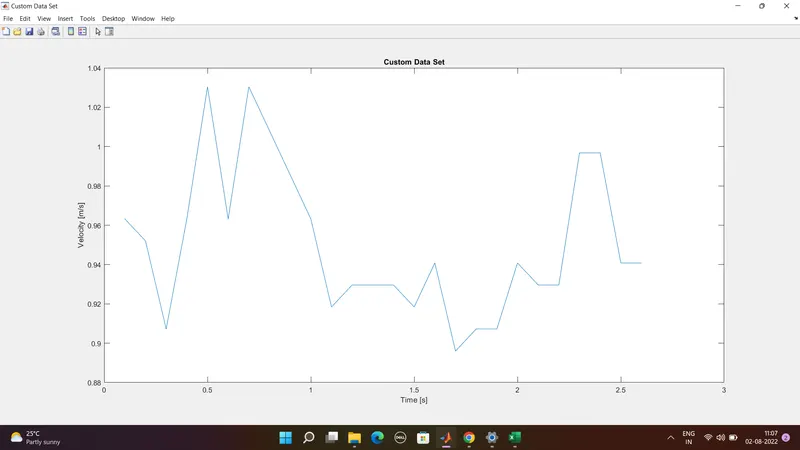

Drive cycle input plot:

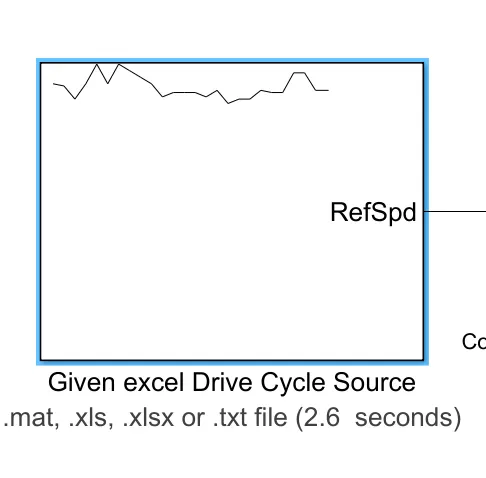

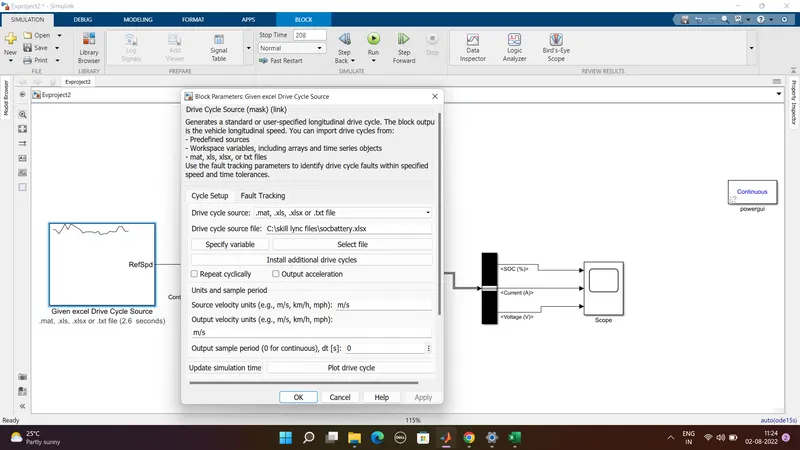

• This current cycle is given as the input to the model through the drive cycle input block i.e excel file wich is given in the question
• Here the drive cycle stop time is 2*104 i.e 208sec
• so the simulation run time is 208sec

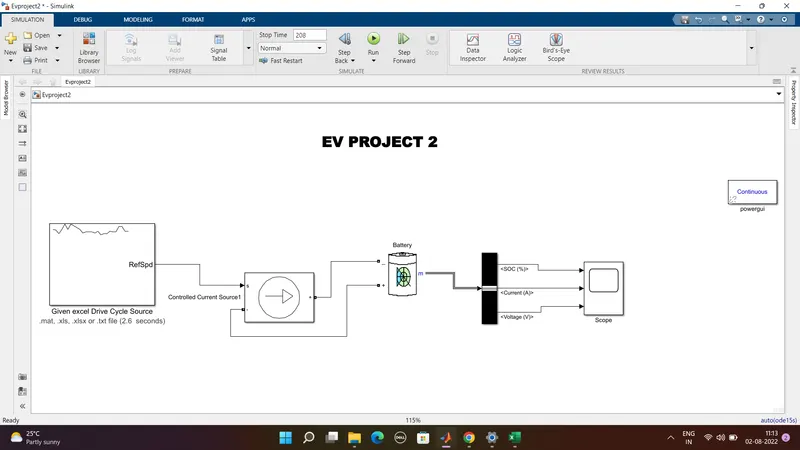

• Here the output of the drive cycle is given to the current controlled source which is connected to the battery as a load
• so here the battery is dicharged accroding to this siginal given by the data which is excel data input drive cycle data
• Here the power gui block is rquired for any simulation of the simulink model
• It mainly used to store the equivalent simulink circuit which represents the state space model
• The ouput of a battery is given to the scope through the bus selector the bus selector outputs the battery siginals to the scope

Output results:

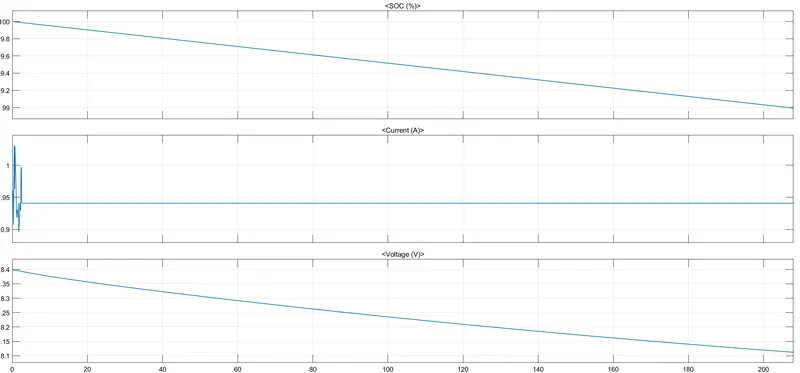

The above graph gives the results of SOC voltage and current

Here we operated the soc of battery at 2*104

And we can also see that how the soc of the battery changes it mainly decreases from the 100 to 99 and voltage aslo dcreses

# maximum heat

1. The max heat generation of the battery :-

Answer:-

-> The maximum current in the drive cycle is -0.896 at 2 minutes(120 seconds)

--> maximum heat generated =I^2Rt=(-0.896^2)*2*120=192.676 milli Joule

-->The total heat generated =Joule heat+Entropic heat

     =192.676 milli+2(192.676 milli)

     =74.248 milli joules.
