Project 2

1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:

Width	30m
Length	50m
Eave Height	9m
Bay spacing	6m
Soil type	Medium
Safe Bearing Capacity	200 kN/m2
Roof slope	1 in 12

Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS 875

1. Prepare a Design Basis Report for the project
2. Create structural model using STAAD Pro Connect Edition
3. Prepare DL, LL, WL and EQL load calculations as per IS 875 standards
4. Design using MS – Excel
   1. Steel column
   2. Rafter
   3. Base plate
   4. Pedestal
   5. Z- purlin

1. Design Foundations using STAAD Foundation.
2. Attach necessary sketches and drawings wherever required.
3. All stipulations, assumptions and design parameter must adhere to Indian Standards.

1. Prepare a Design Basis Report for the project

• PDF Format attached below,

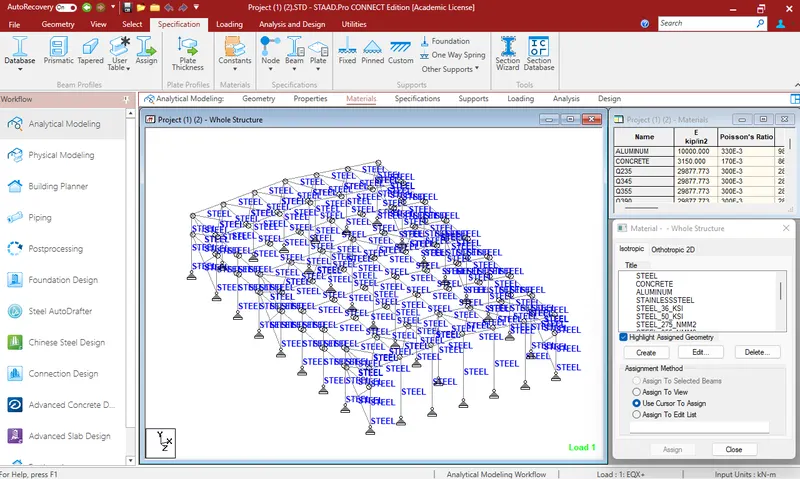

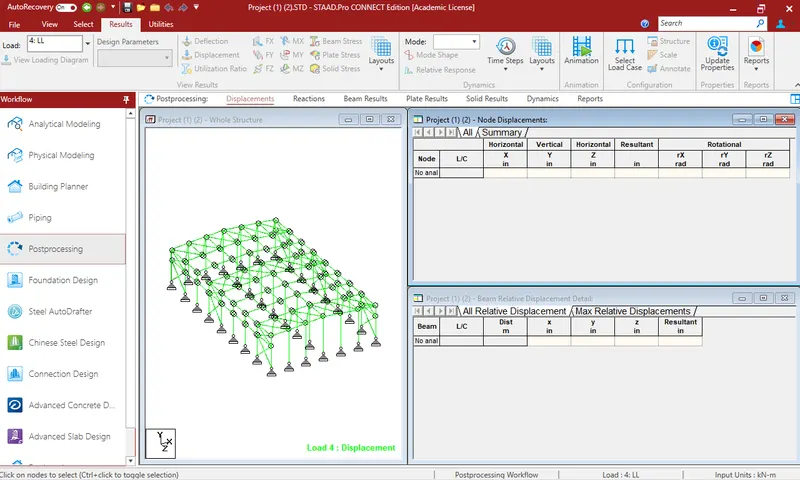

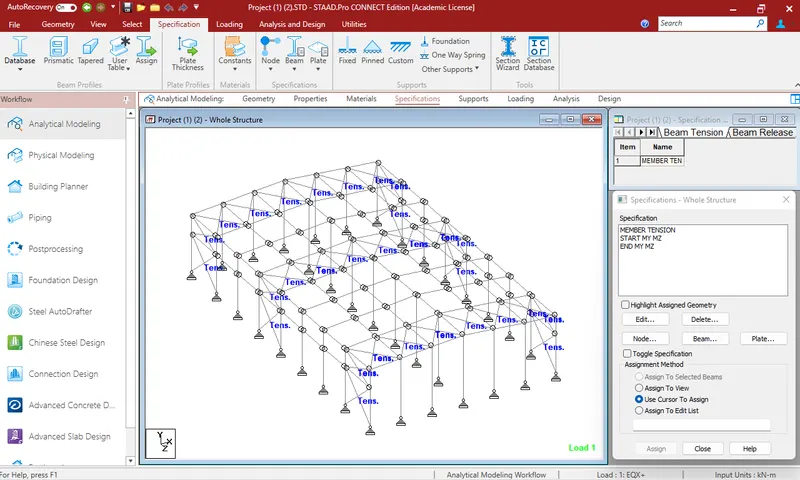

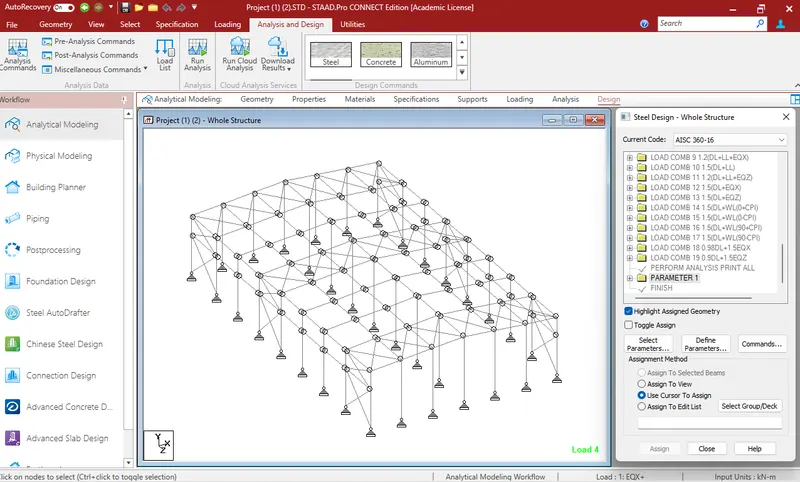

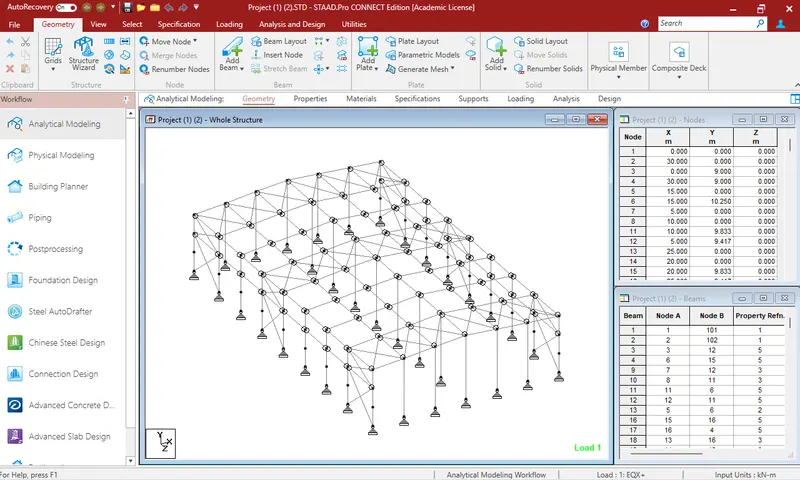

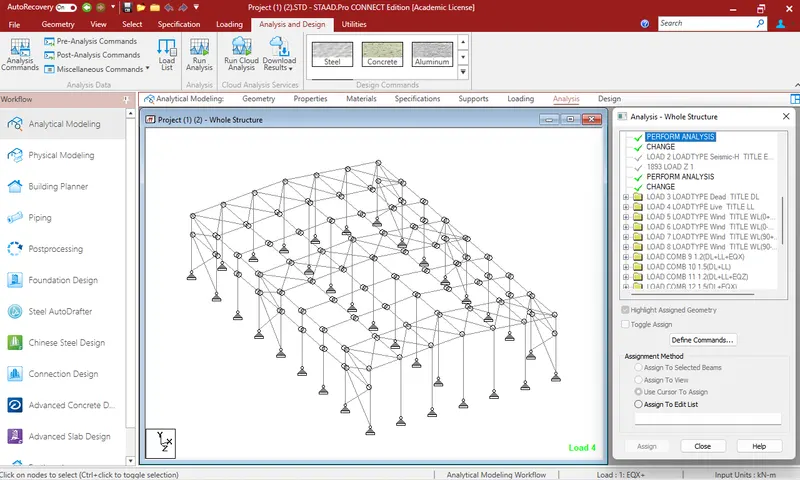

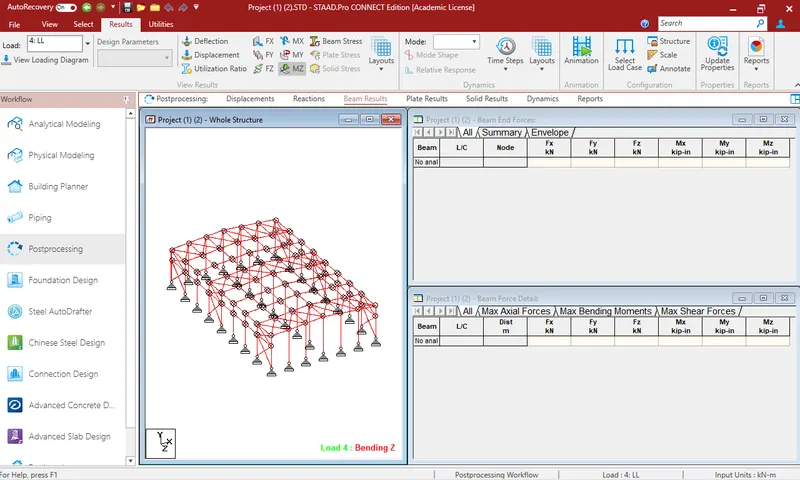

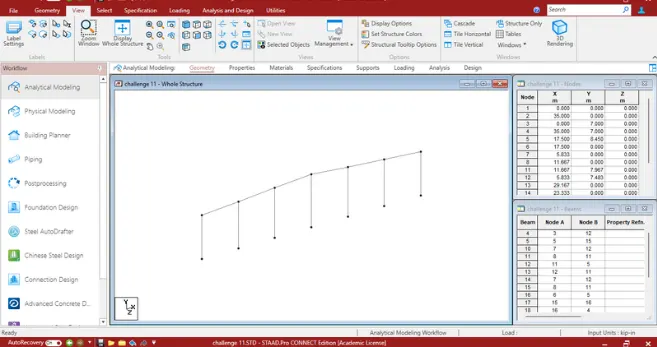

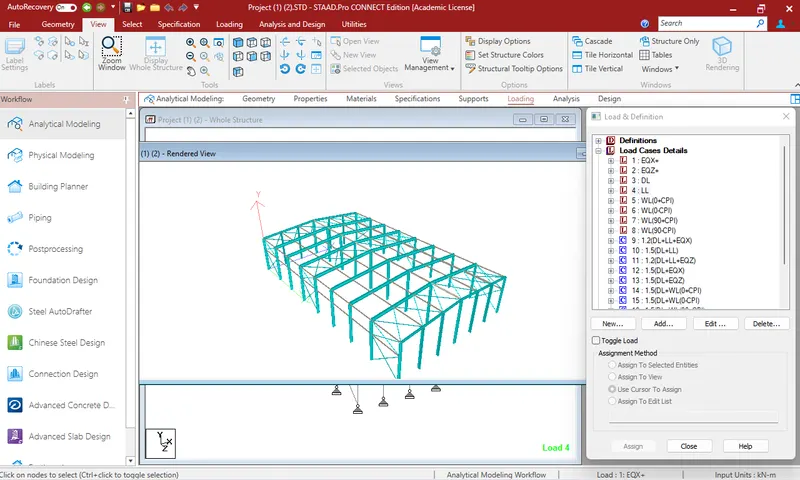

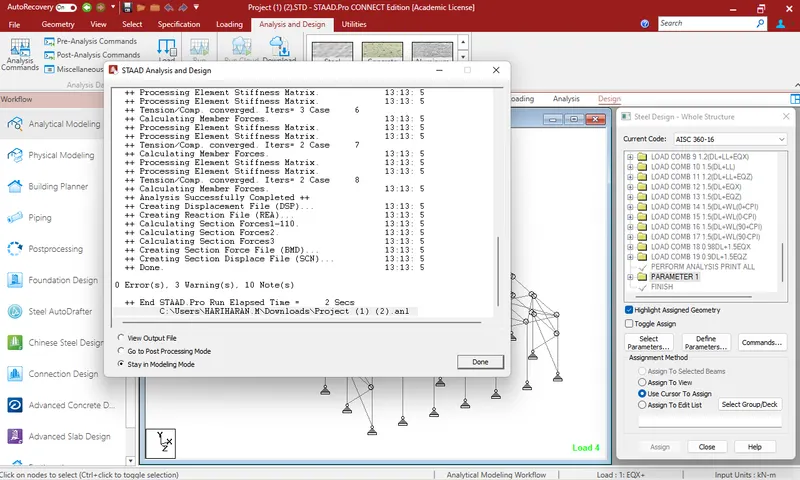

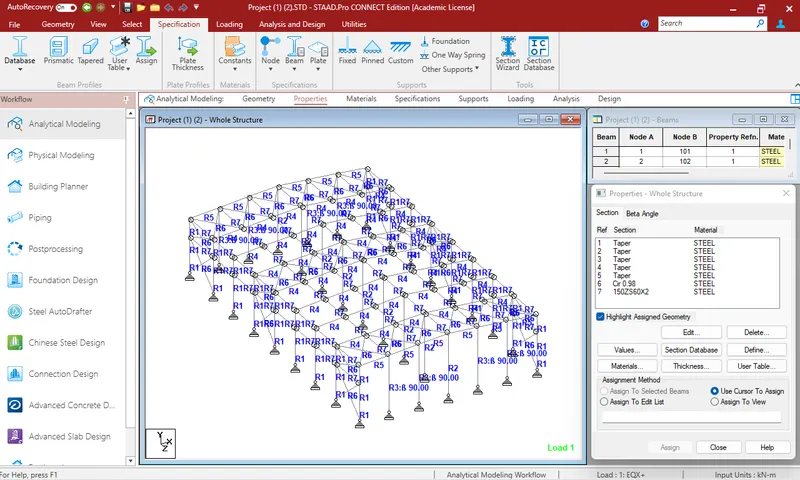

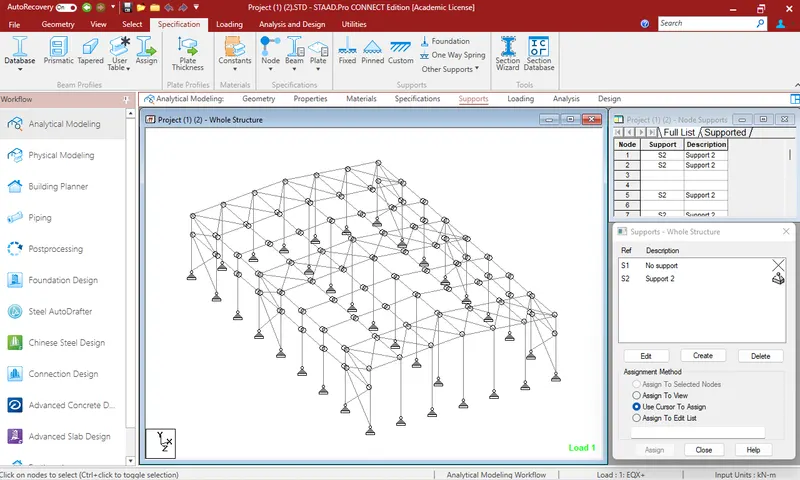

2. Create structural model using STAAD Pro Connect Edition

•
•
•
•
•
•
•

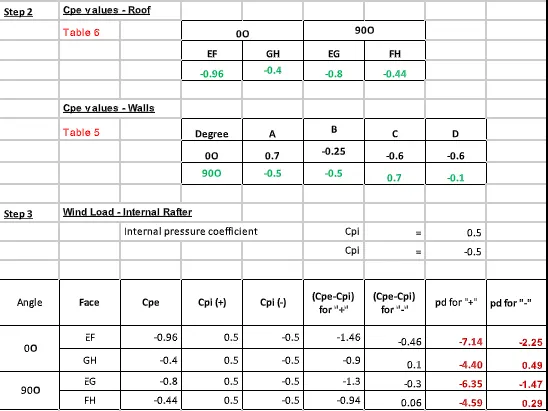

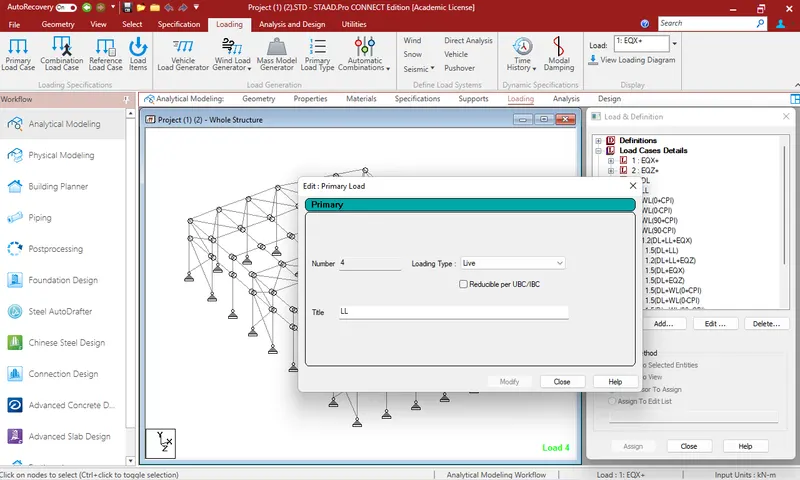

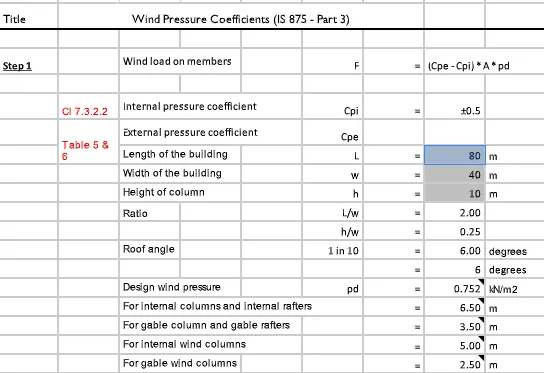

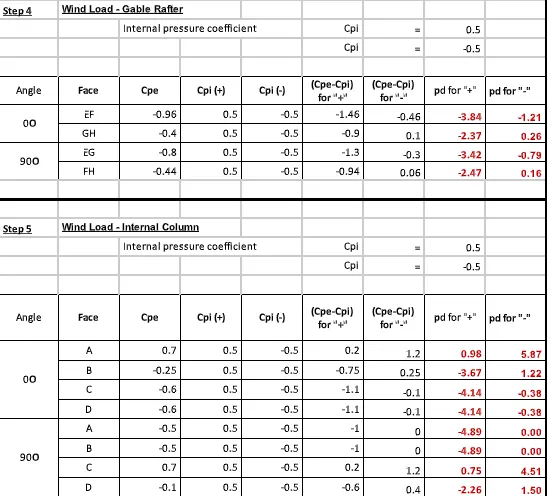

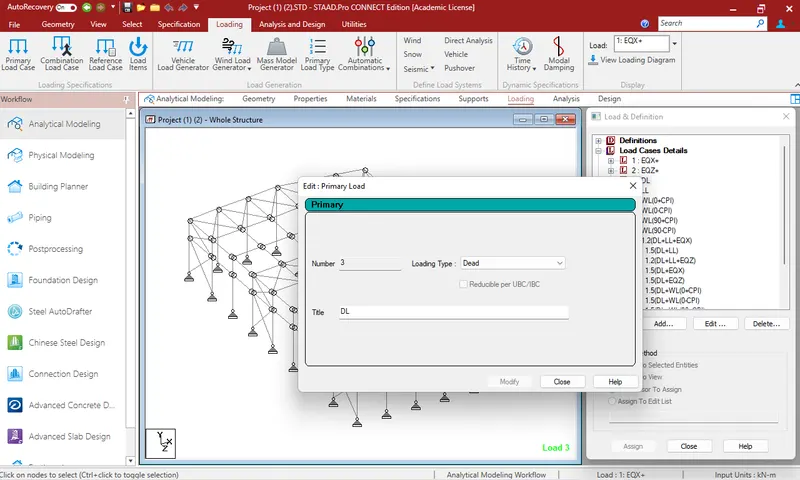

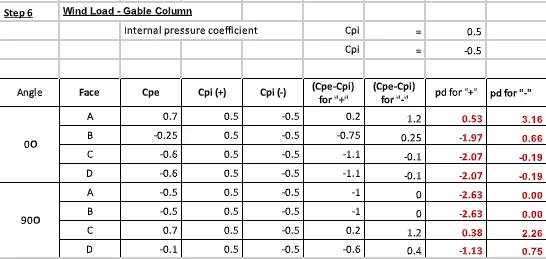

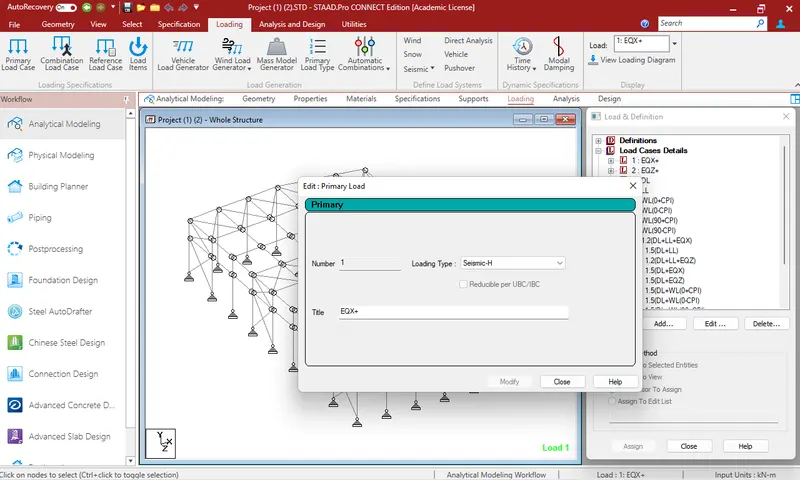

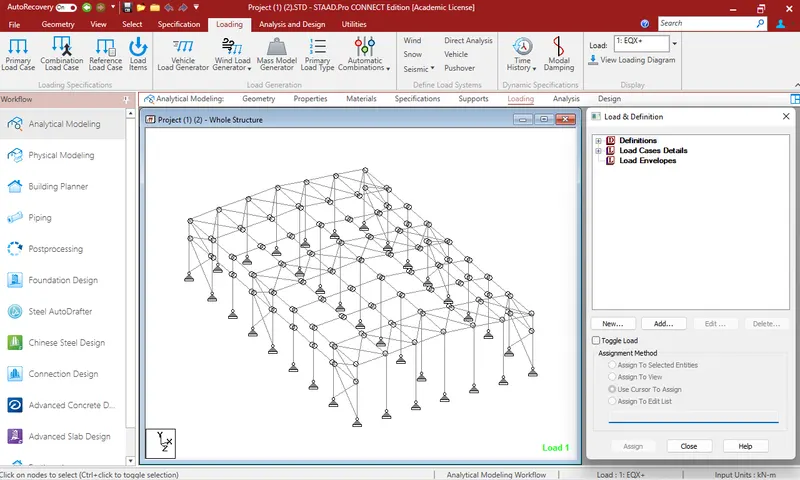

1. prepare DL, LL, WL and EQL load calculations as per IS 875 standards.

•
•
•
•
•
•
•
•
•

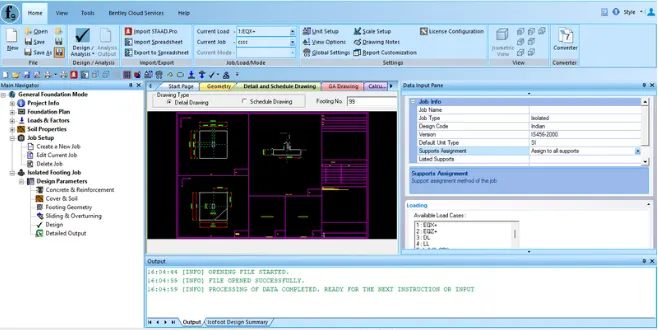

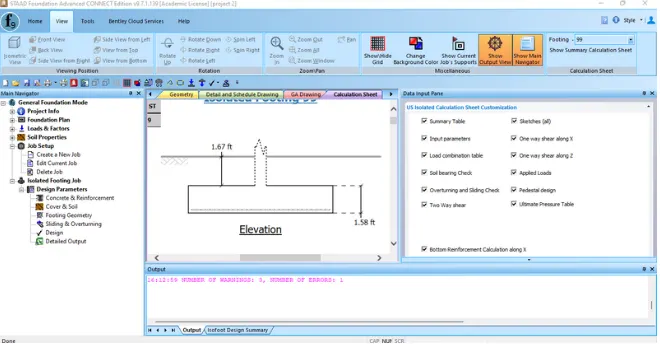

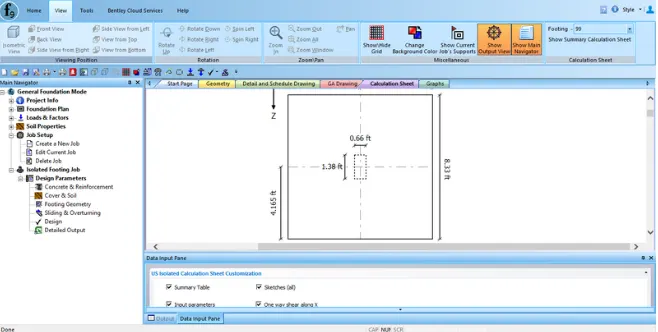

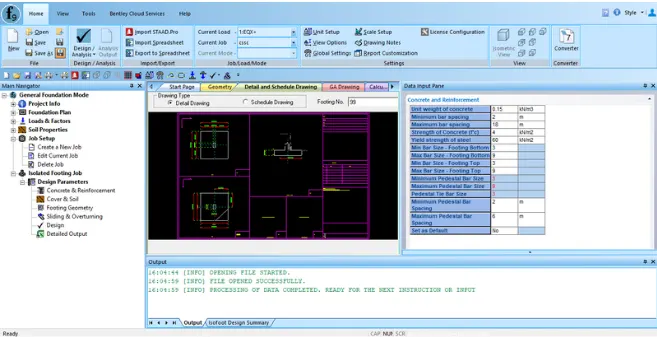

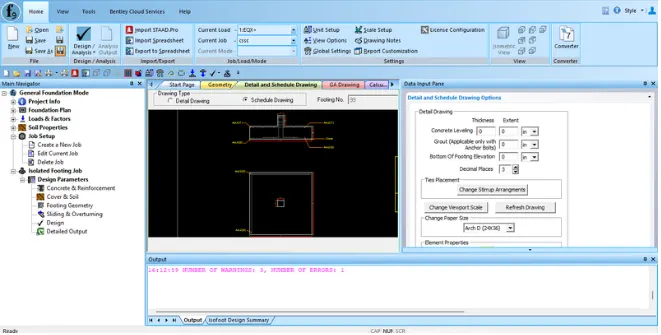

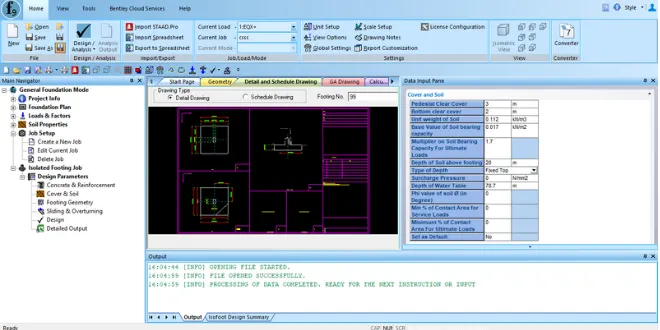

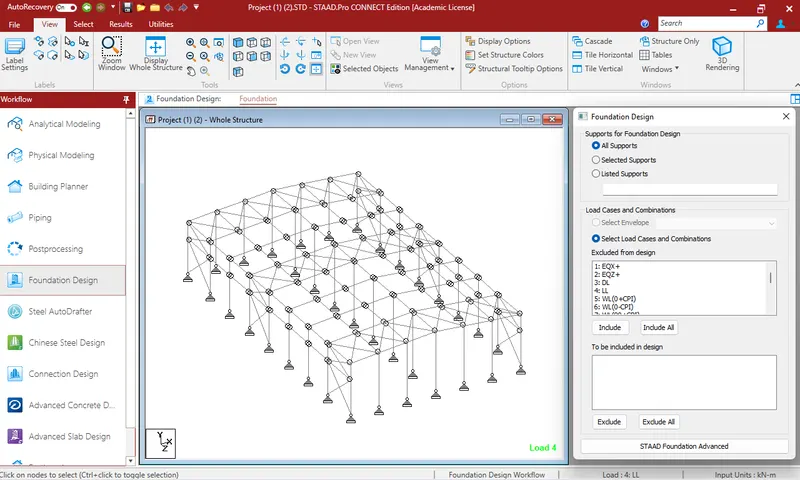

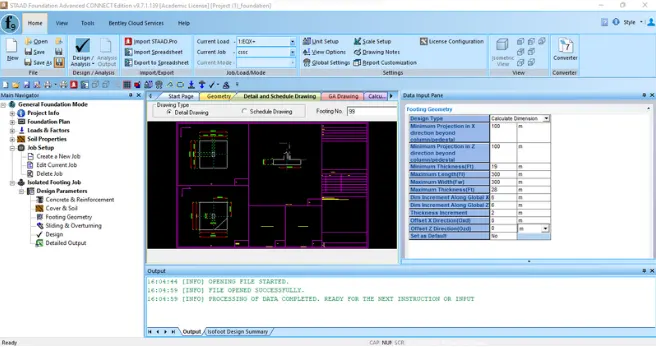

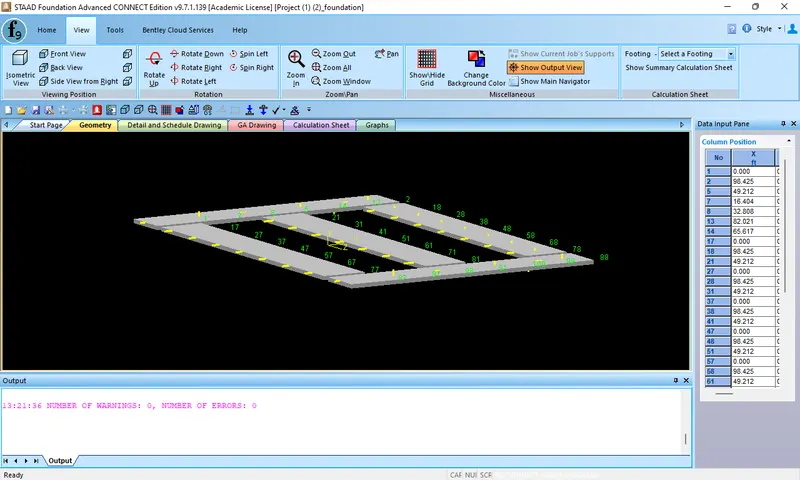

1. Design Foundations using STAAD Foundation.

•
•
•
•
•
•
•
•
•

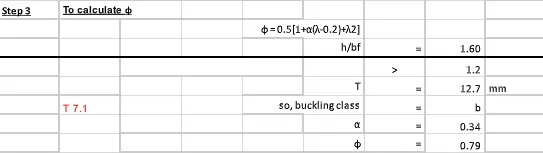

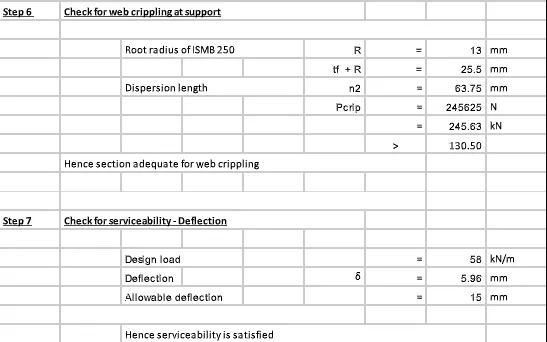

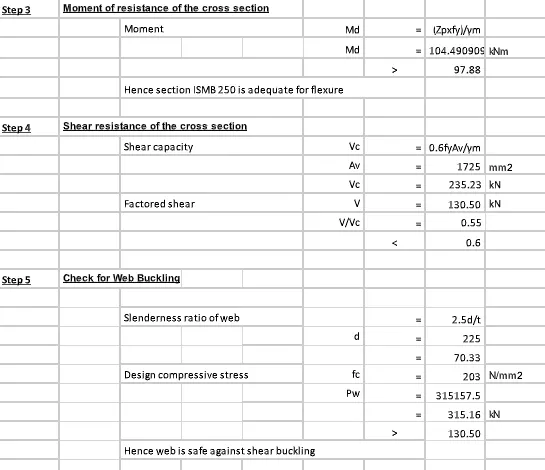

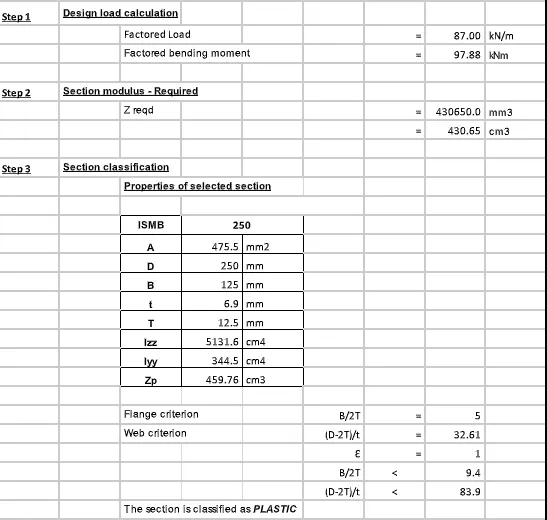

1. Design using MS – Excel

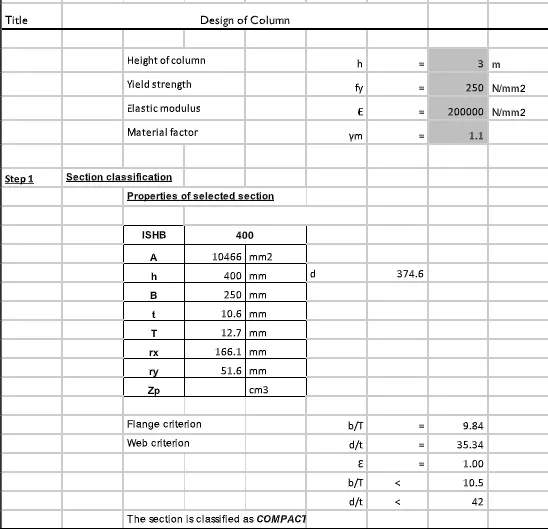

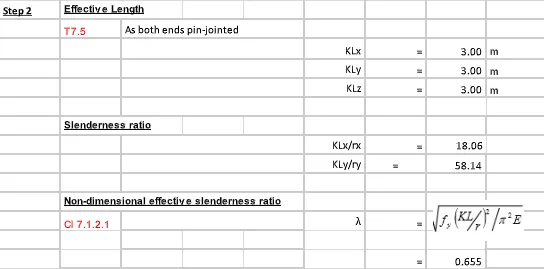

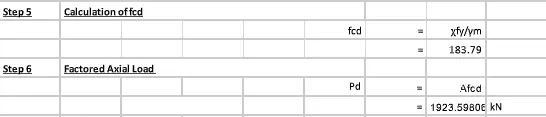

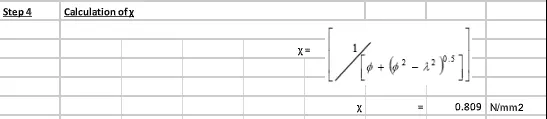

   1. Steel column

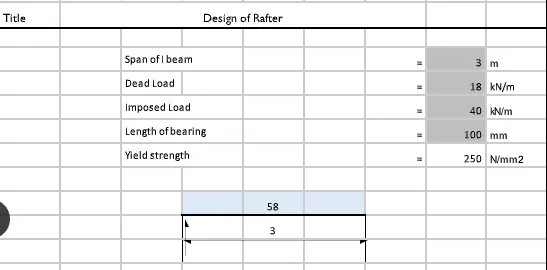

   2. Rafter

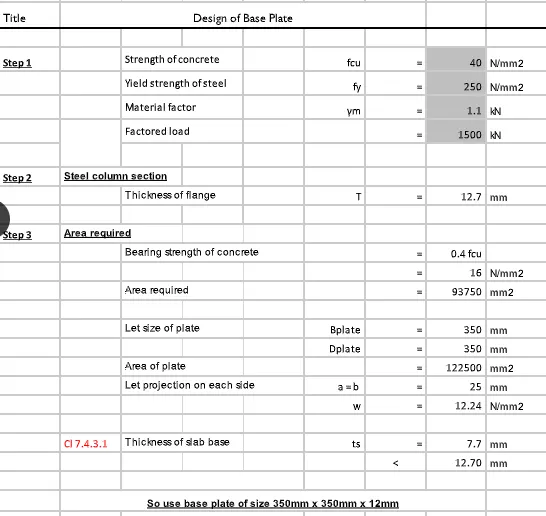

   3. Base plate
   4. Pedestal
   5. Z- purlin

•
•
•
•
•

•
•
•
•

•
•
•
•

•

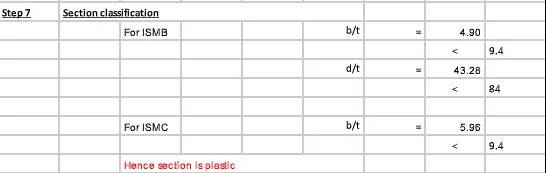

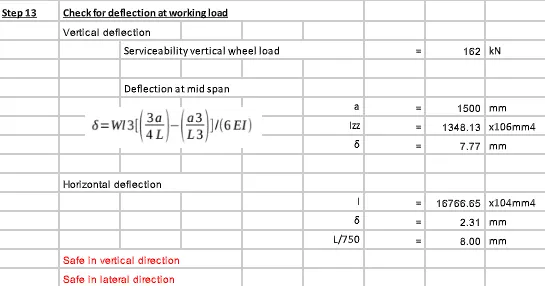

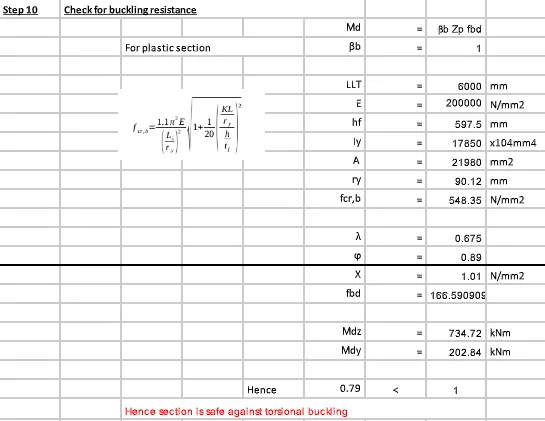

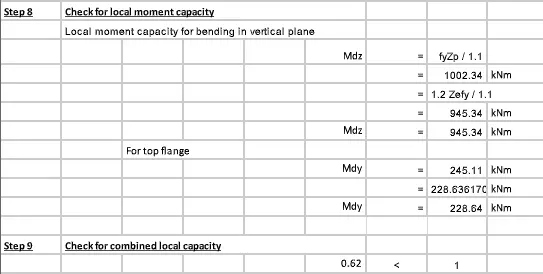

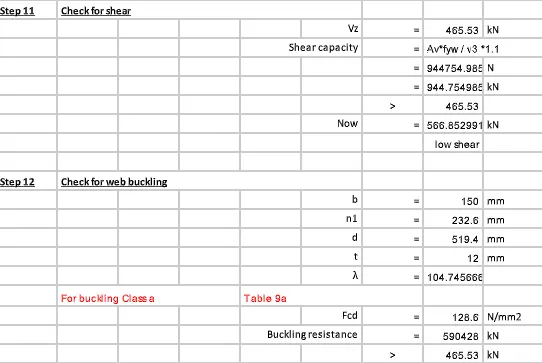

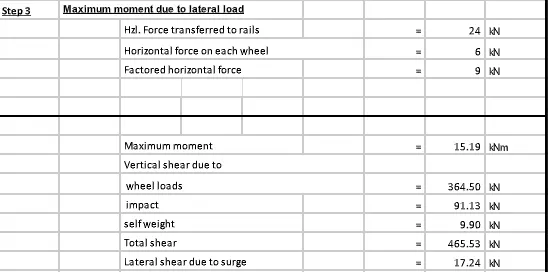

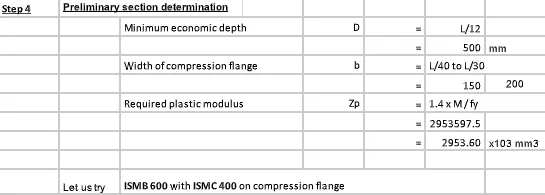

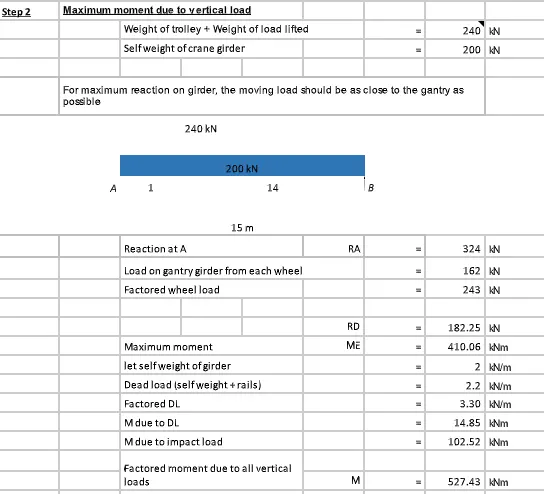

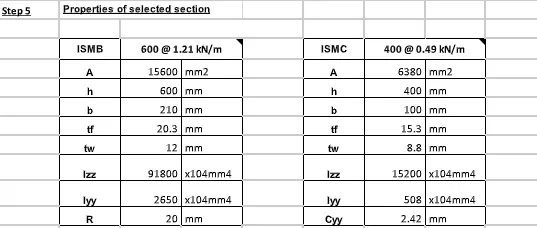

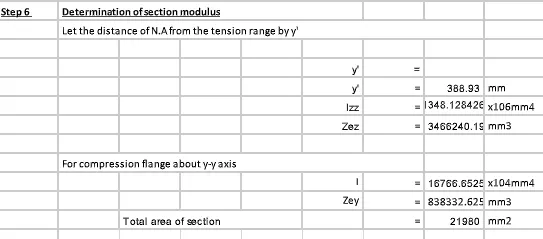

2. Design a simply supported gantry girder to carry electric overhead travelling crane

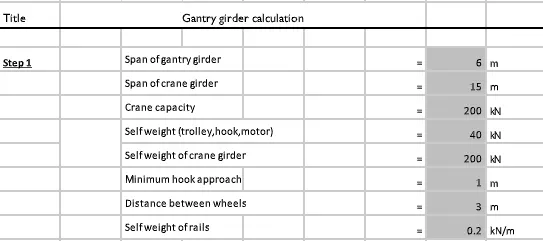

Given:

Span of gantry girder = 7 m

Span of crane girder = 9 m

Crane capacity = 250 kN

Self-weight of trolley, hook, electric motor etc. = 40 kN

Self-weight of crane girder excluding trolley = 100 kN

Minimum hook approach = 1.0 m

Distance between wheels = 3 m

Self-weight of rails = 0.2 kN/m

•
•
•
•
•
•
•
•
•
•
•
•
