Project 2

IIjaas Ahamed20 Jul 2022
CATIA

AIM

TO Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.

CONCLUSION

All the given routings are given in the assembly anf flatterns are done.drawing also preapared and showed.

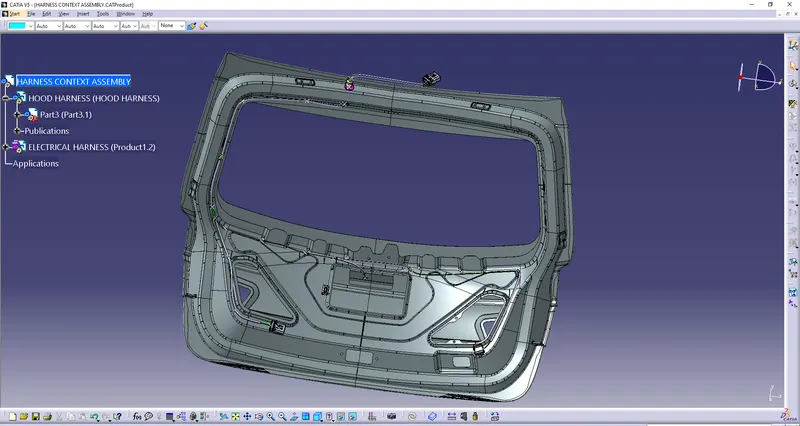

HARNESS CONTEXT ASSEMBLY

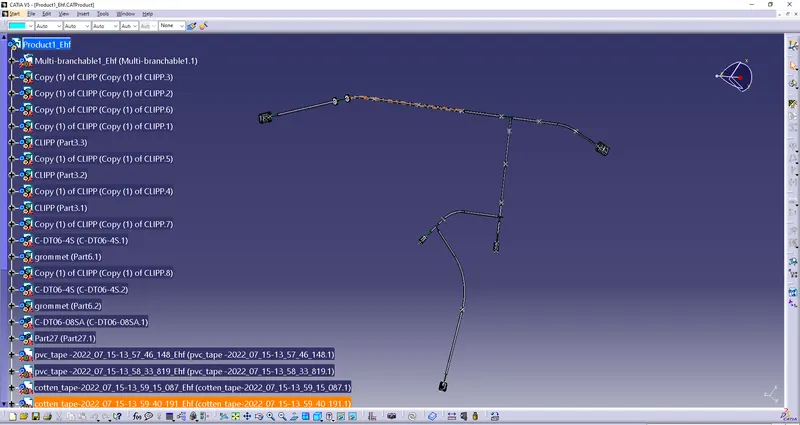

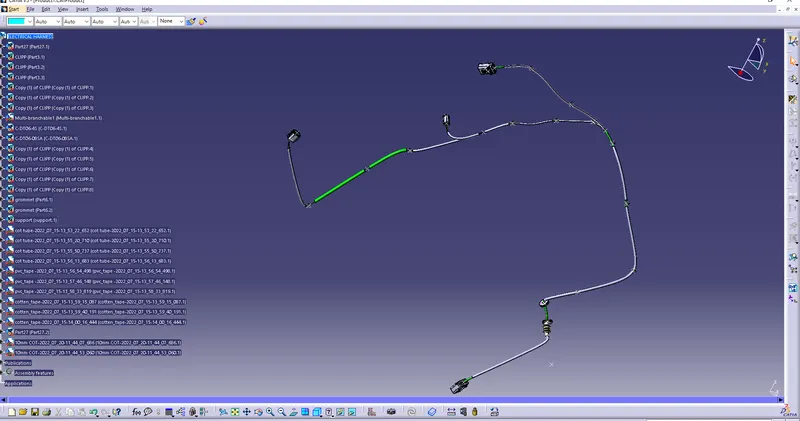

ELECREICAL HARNESS ASSEMBLY

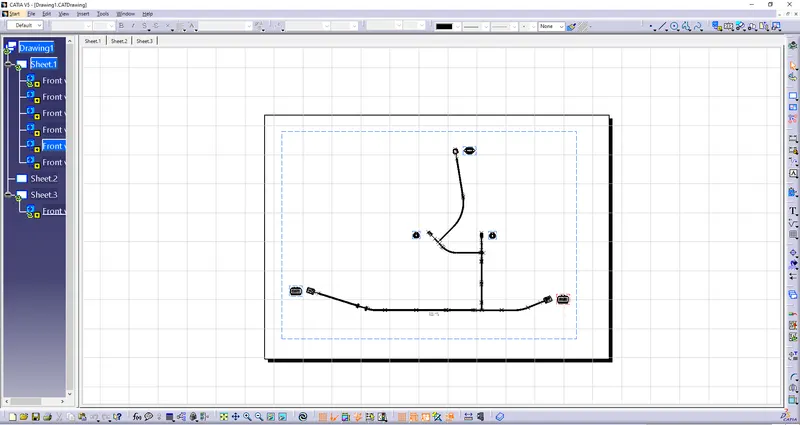

elecrical flatterning

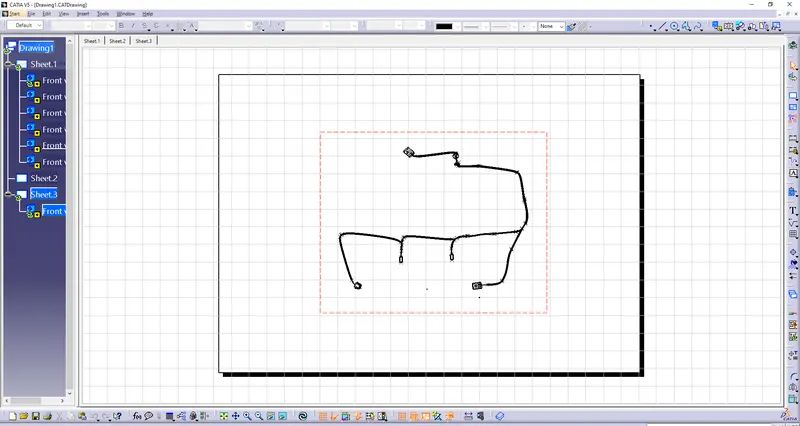

drawing,bill of materials and 3d models
