2D Meshing on the Instrumental Panel

AIM :- To perform 2d meshing on the instrumental panel by checking the geometrical errors and mesh with the given element Quality criteria.

PROCEDURE :-

STEP 1 :- Importing the model to the ANSA software.

• To import the model to ANSA we have to have ".ansa or .igs".
• First, open ANSA software and go toFILE and open the file and upload the file to ANSA.

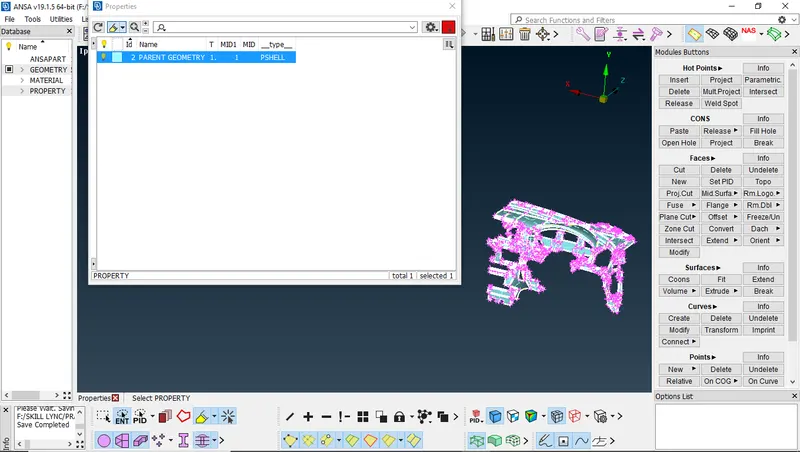

"IMAGE 1: Import the geometry to ANSA"

STEP 2 :- Performing the geometry cleanup on the model (INSTRUMENTAL PANEL)

• After the model is opened in the ANSA, we have to change the orientation of the model to grey
• After the orientation is done we have to perform the geometry clean up on the model
• After the orientation is done we have to perform Geometry cleanup on the model by using the TOPO option which is in the FACES command in TOPO modulus.

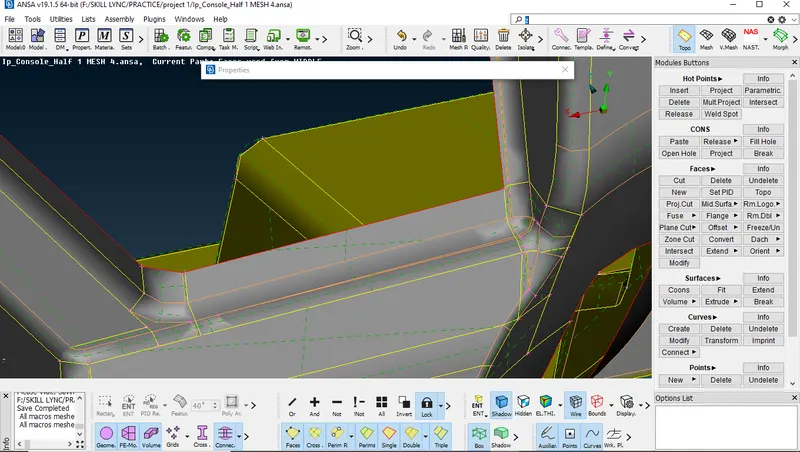

"IMAGE 2 : Topo clean up in the model "

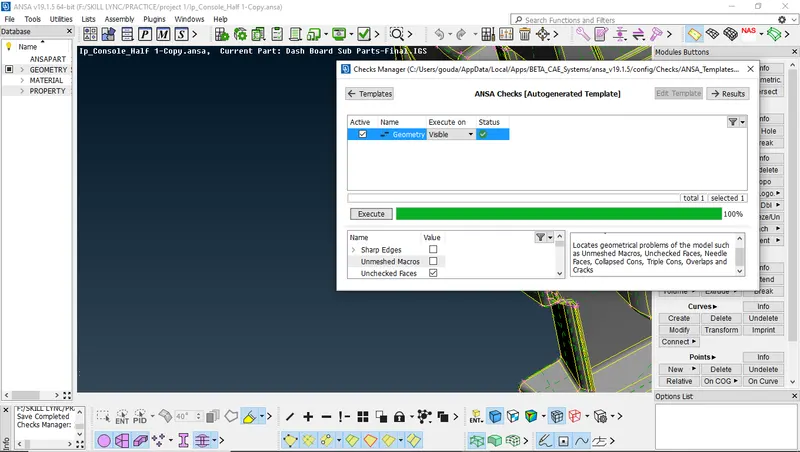

• To Perform geometry clean-up. we have to go to TOOLS <CHECKS<GEOMETRY.

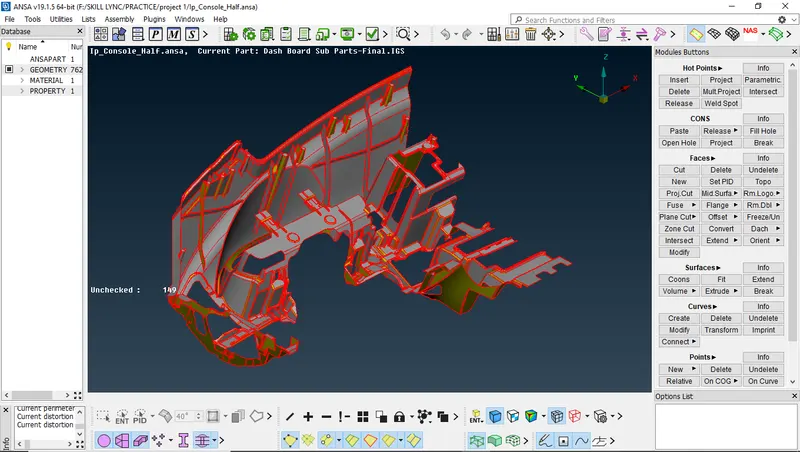

"IMAGE 3 : Geometry clean up on the model "

• After the geometry clean-up is done we have to set different PIDs for the models. LIST<PROPERTIES

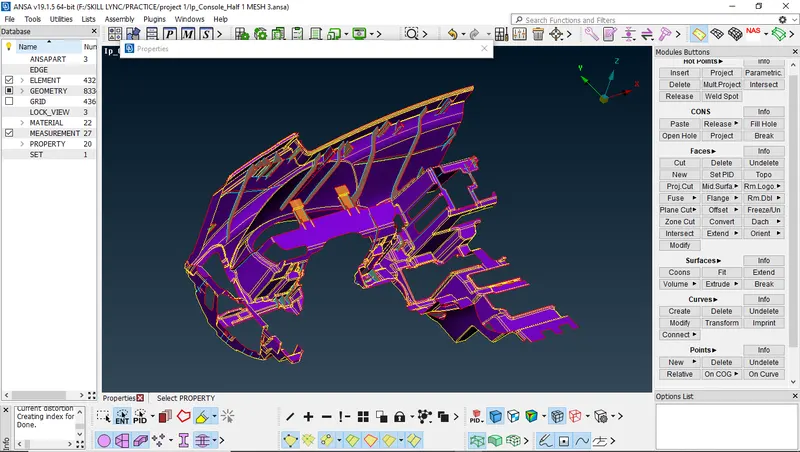

"IMAGE 4:Setting PID for the model "

STEP 3 :- Obtaining mid surface of the model.

• After the geometry check-up is done on the model. We have to obtain the mid surface of the model.
• We have different methods to get the mid surface like OFFSET option, MIDDLE option, SKIN option, CASTING option in the FACES command in TOPO modulus.

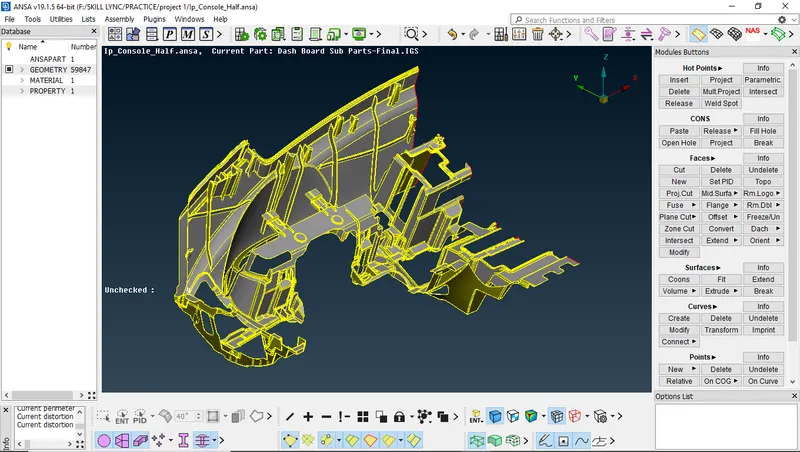

"IMAGE 5: Mid surface of the model "

• Dog houses in this model should be captured as a "Cross pattern" in Mid surface since dog houses are solid (Hollow from inside) and are not having any thickness.

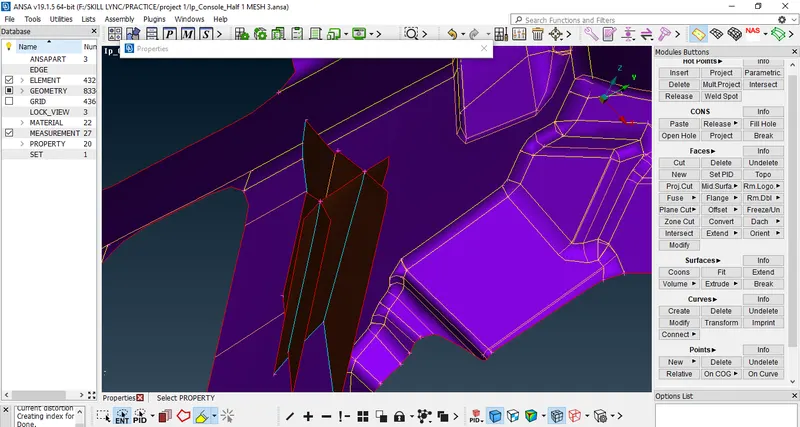

"IMAGE 6: Cross pattern on the dog house in the model "

• Make sure to measure the thickness of the model before using the offset option because the offset distance should be half the original length. so make sure to measure a few areas which are required and store them.
• By using all the options get mid for the model.

STEP 4 :- Setting the Quality criteria and mesh parameters.

• After the mid surface is generated, we have to set the mesh parameters and the quality criteria.
• To set the quality and mesh parameters we have to go to UTILITIES modulus.
• In the mesh parameters, we have to set the minimum, maximum, average length, and type of mesh.
• In the Quality criteria, we have to set the quality according to the requirements of the customer.
• UTILITIES < QUALITY CRITERIA for setting the quality criteria.

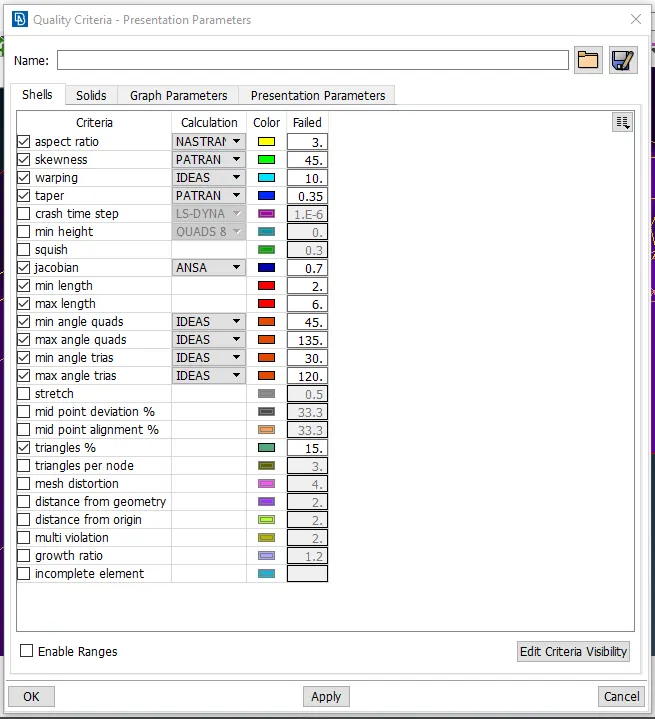

"IMAGE 7: Quality Criteria"

• UTILITIES < MESH PARAMETERS for setting the mesg parameters.

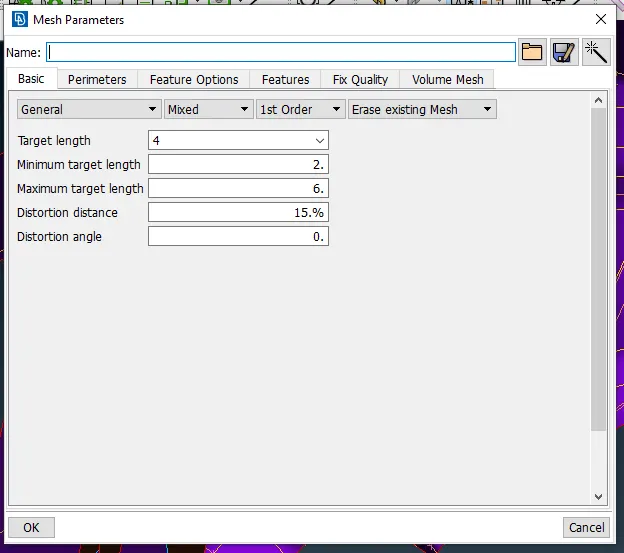

"IMAGE 8:Mesh parameters "

STEP 5 :- Performing the topological clean-up on the mid surface.

• After the mid surface is generated we have to do some topological clean-up on the model as we will have unwanted double and triple cons on in the model.
• By using the CUT option with a left mouse click, we can remove the double cons. FACES<CUT.
• We have to delete some surfaces and create new surfaces on the mid surface.
• By using the NEW option in FACES we can create new faces. FACES<NEW<(FILLTER,COONS).
• After the topological clean-up is done on the model we have to start modeling the mid surface.

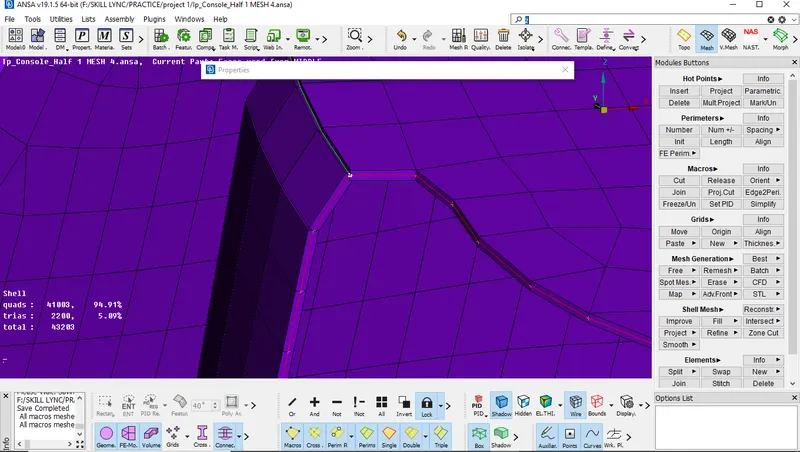

"IMAGE 9:Topological clean up on the mid surface of the model "

STEP 6 :- Meshing the mid surface.

• After the topological clean-up is done on the mid surface. We have to mesh the mid surface of the model.
• First, we have to set the LENGTH in the PARAMETERS of the model with Average length. MESH MODULES< PARAMETERS<LENGTH<PERAMETERS/MACROS.
• The Trias in the mesh model has to remove or improve by using SPLIT, SWAP option in ELEMENTS Option In MESH MODULE.
• Finally, the mesh needs to have ZERO OFF elements, ZERO UNMESHED SURFACES with minimum TRIA ELEMENTS.

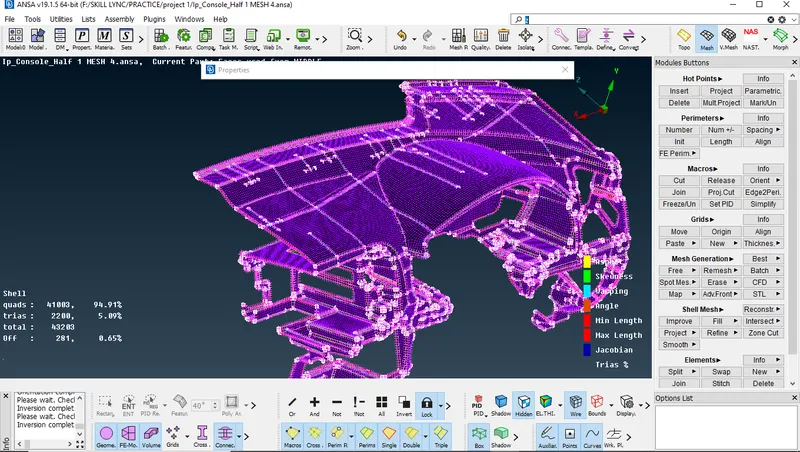

"IMAGE 10: Mesh on the mid surface of the model "

STEP 7 :- Appling the thickness to the meshed model.

• After the modeling of the model is done we have to apply the thickness of the model as per the parent geometry.
• As we have measured and stored the lengths, refer and apply the thickness on the meshed model.
• Finally, the model has meshed and the thickness is applied to the meshed model.

"IMAGE 11: Mesh model after appling thickness "

LEARNING OUTCOMES :-

• Learned how to import the geometry to ANSA.
• Learned how to do geometry clean-up.
• Learned how to set up PID for the model.
• Learned how to do mid surfacing.
• Learned how to do the topological clean-up on the mild surface.
• Learned how to mesh the mid surface generated.
• Learned how to improve the mesh.
• Learned how to apply thickness to the model.

CONCLUSION :- The modeling and the meshing of the Instrument panel model is performed according to the given mesh parameters and quality criteria.
