Project 2
PROJECT_C
Aim: to Design Fixture for the given panel data
performing 3D finish, 2D detailing and Documentation for the fixture .
3D Finish is a process where the design is being completely finished and to be ready for final simulation and 2D detailing.
- while finishing the design the nominality is checked which the easy assembly of all the units.
- the hole concenticity and hole sizes are checked which ensures the assembly of different parts
- the gaps between the different units are checked to ensure the proper individual working of different units

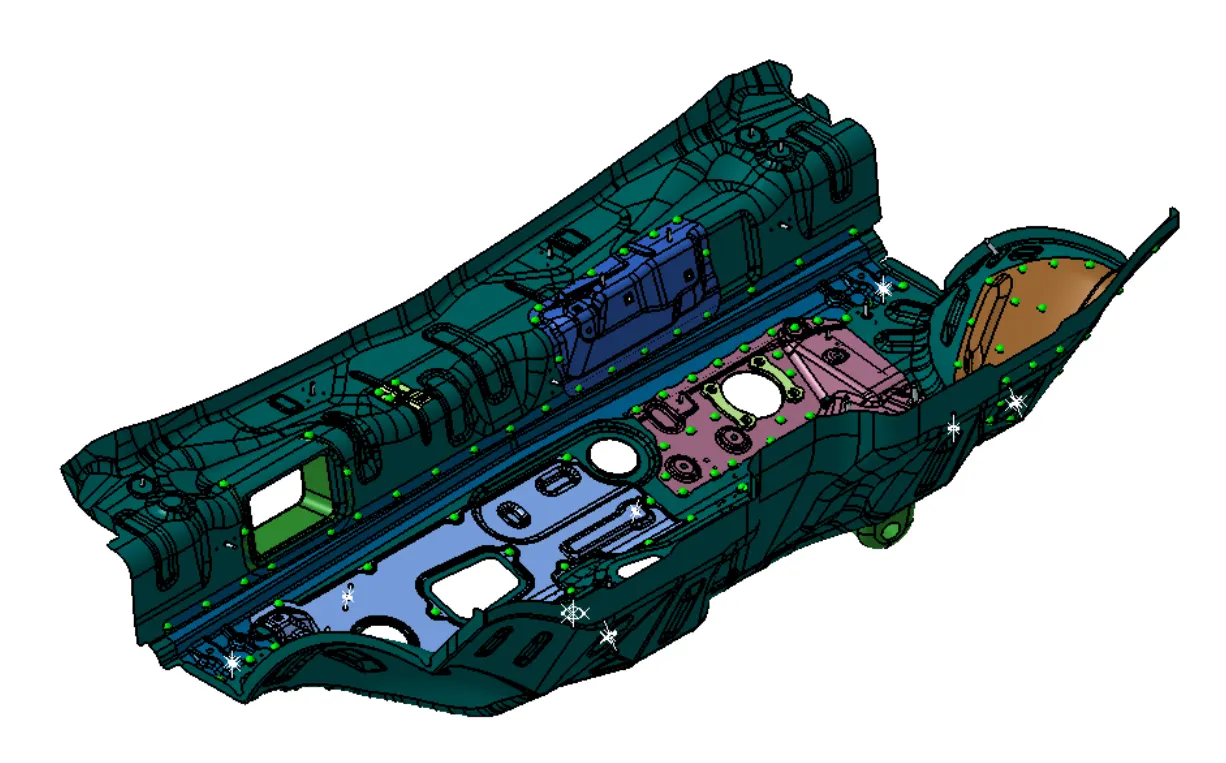

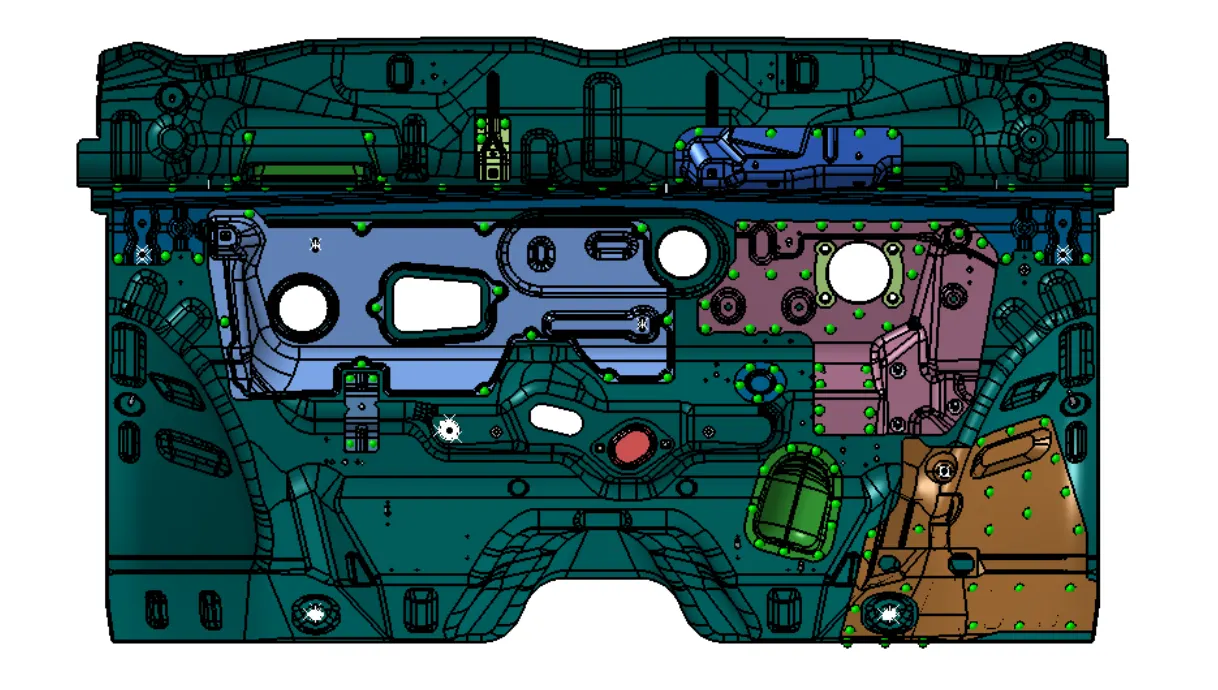

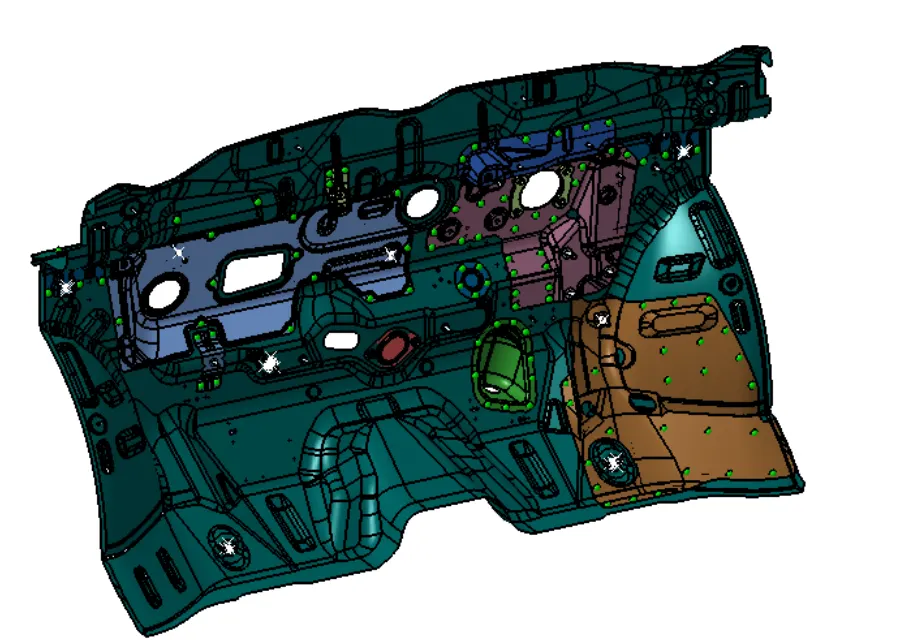

PANEL DATA

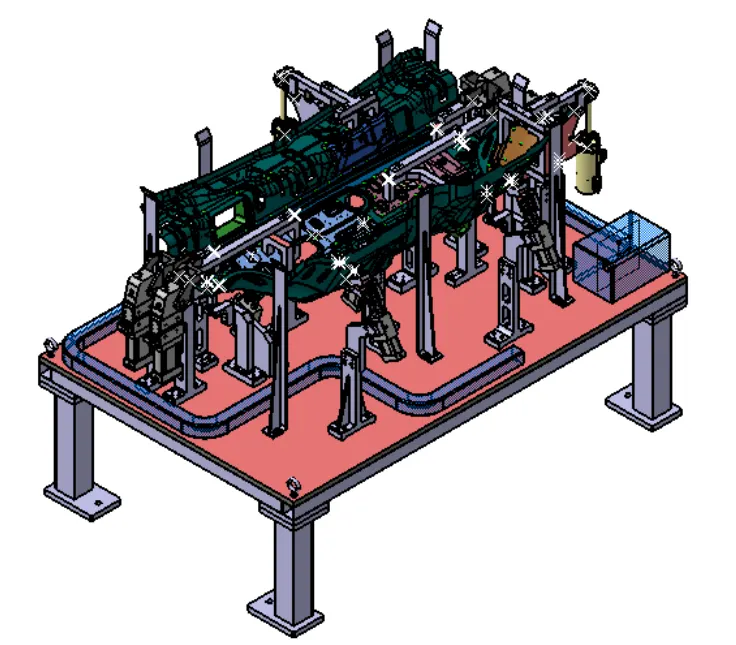

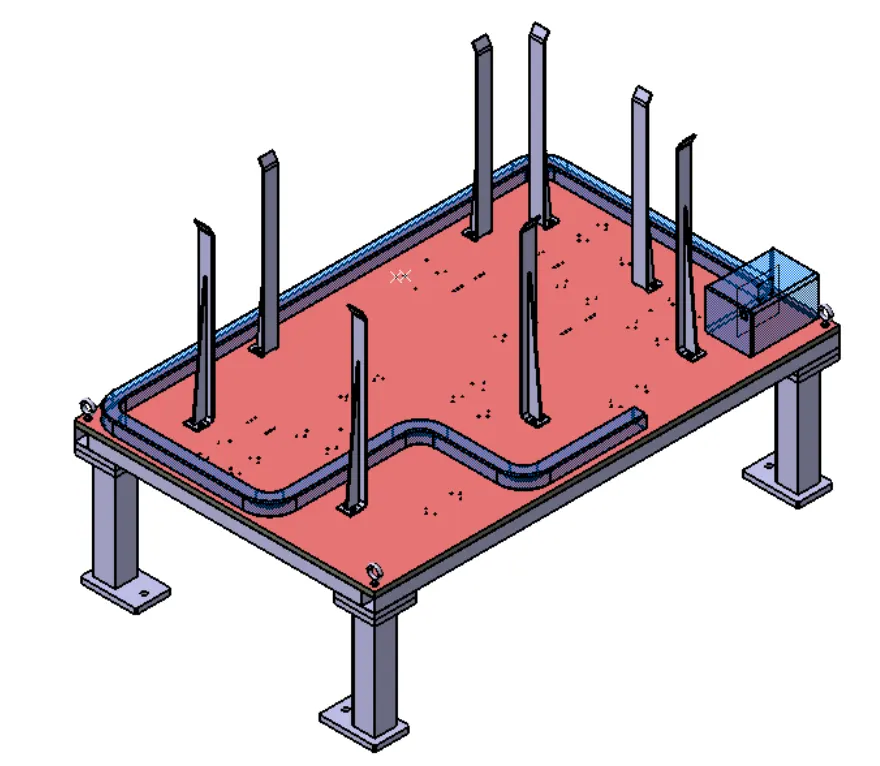

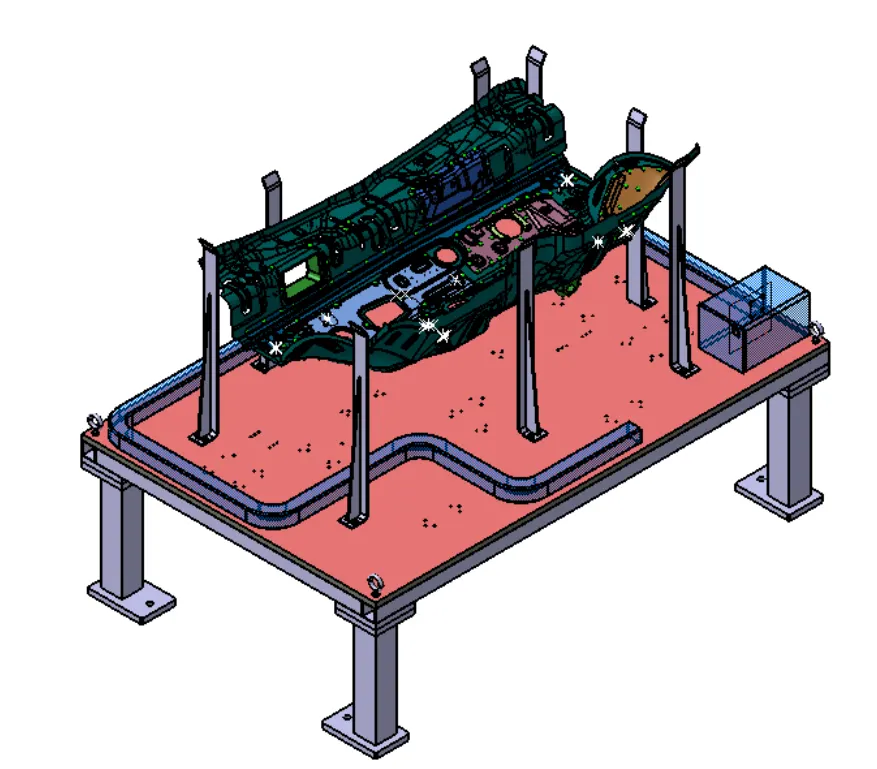

Assembly of BIW FIXTURE DESIGN
ASSEMBLY
PROJECT_C

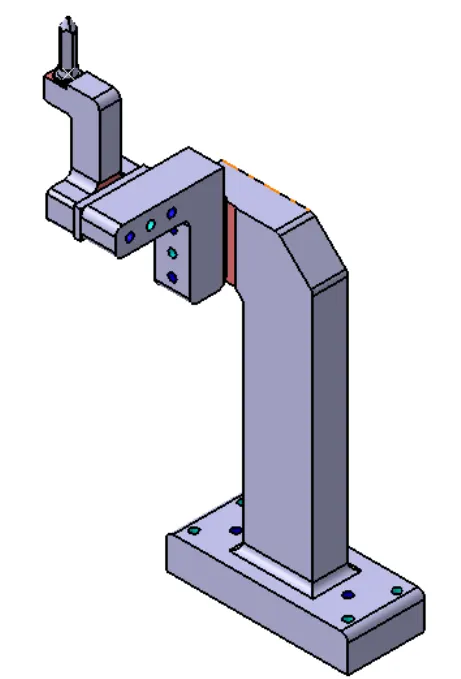

1. BASE UNIT
PO0C_Z003_ST02_01_00_BASE UNIT
WITH PANEL

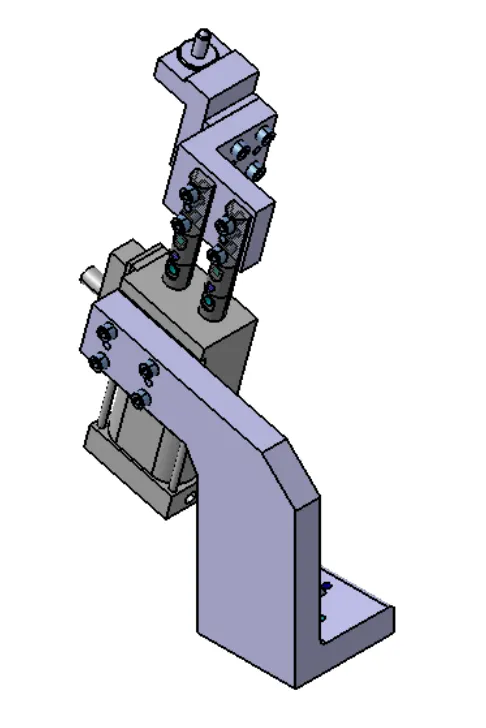

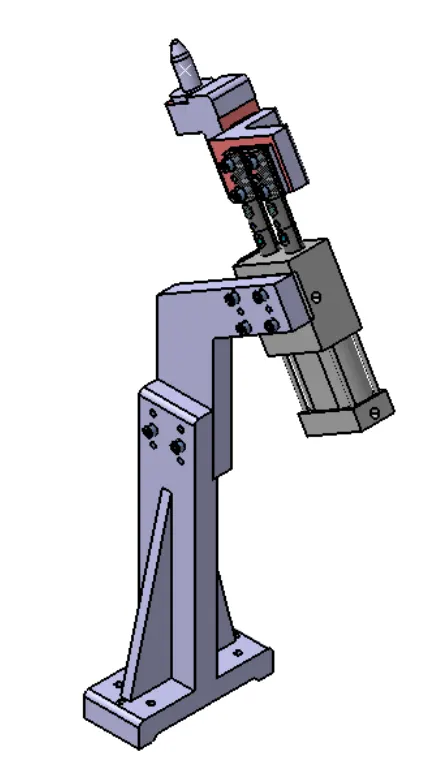

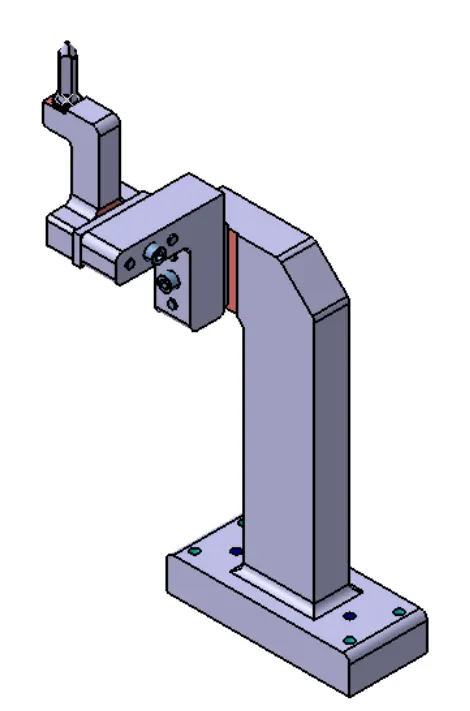

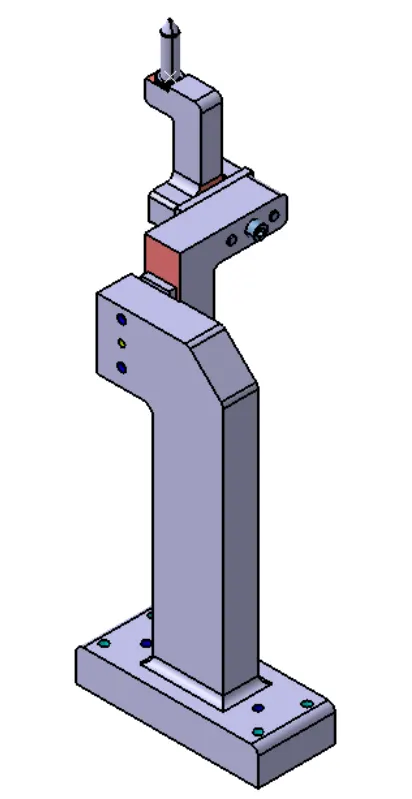

2. PINN UNIT
PO0C_Z003_ST02_02_00_PIN UNIT

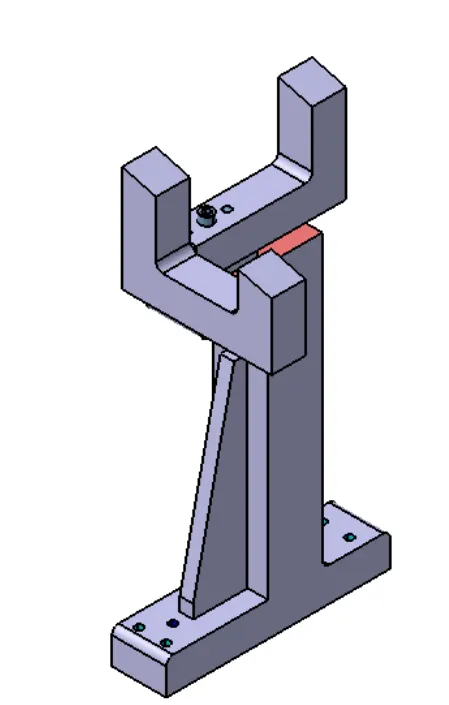

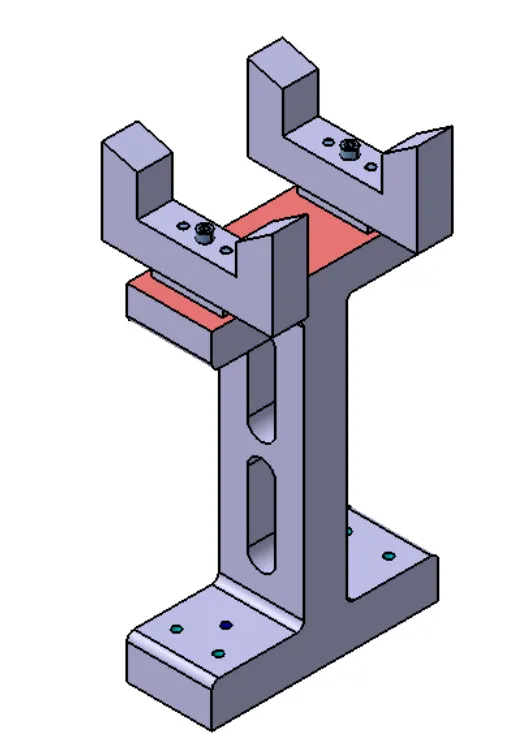

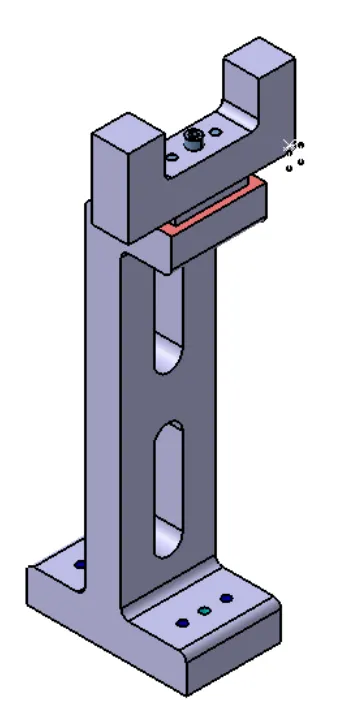

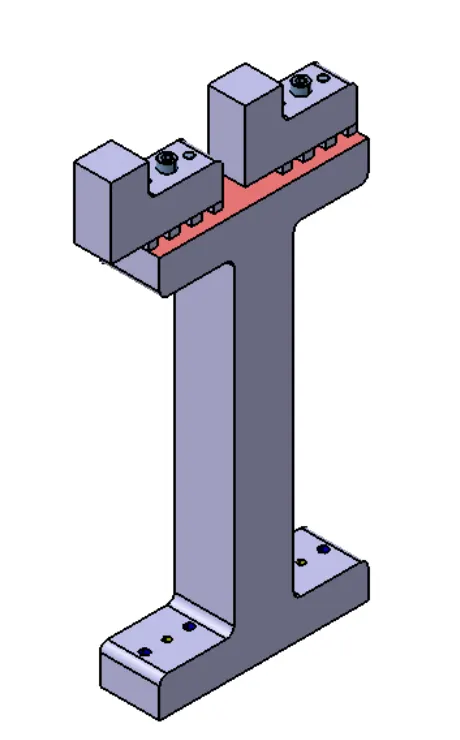

3. REST UNIT
PO0C_Z003_ST02_03_00_REST_UNIT

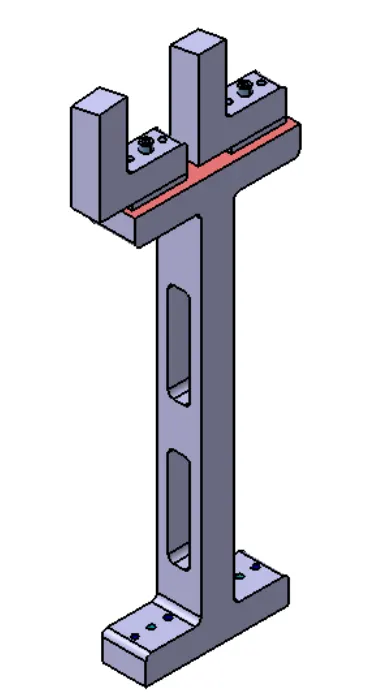

4. REST UNIT
PO0C_Z003_ST02_04_00_REST_UNIT
5. PO0C_Z003_ST02_05_00_REST_UNIT

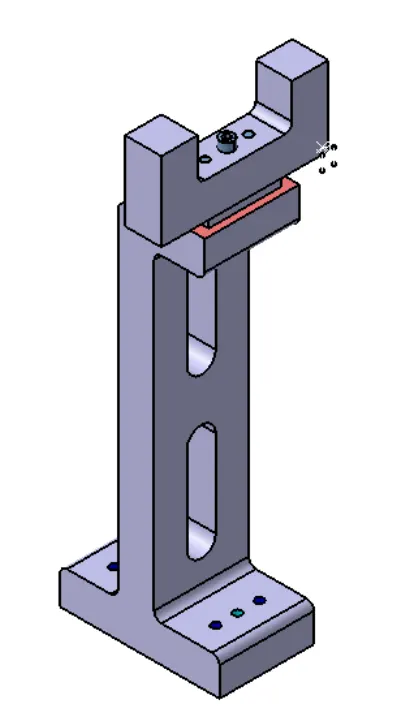

6. REST UNIT
PO0C_Z003_ST02_06_00_REST_UNIT

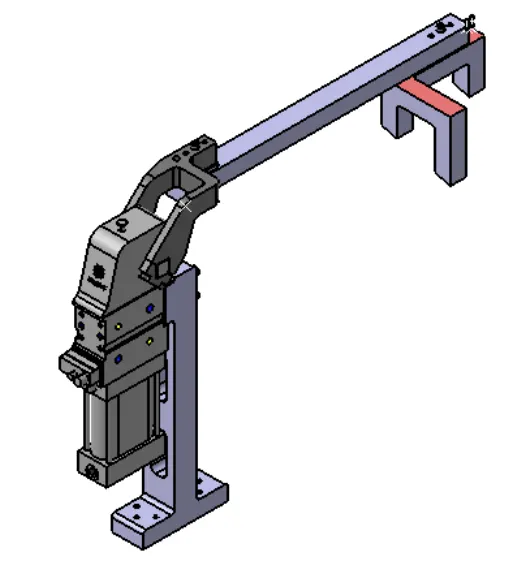

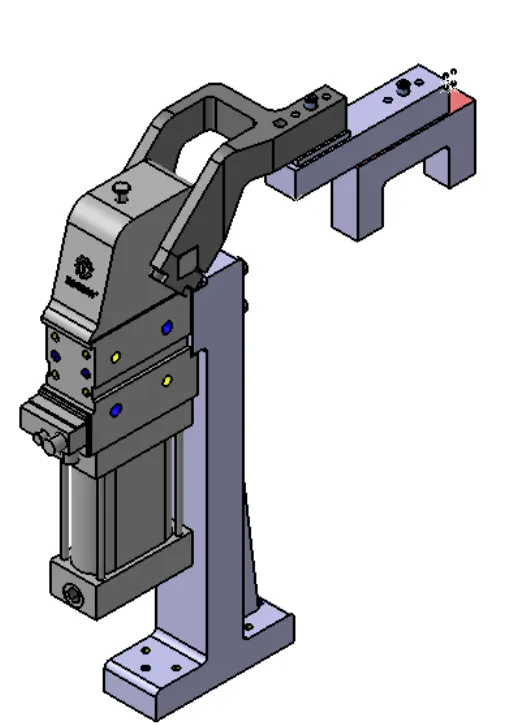

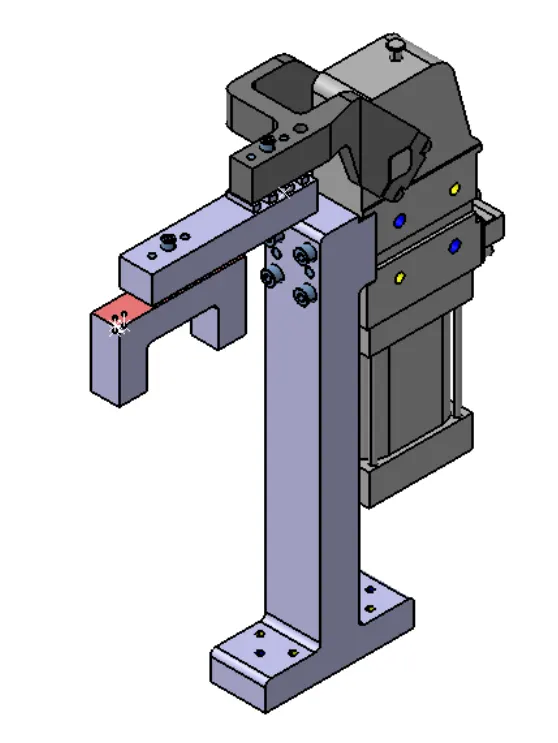

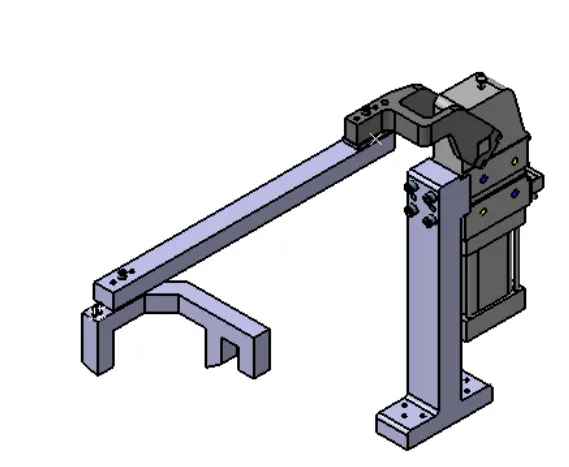

7. CLAMP UNIT
PO0C_Z003_ST02_07_00_CLAMP UNIT
8. REST UNIT
PO0C_Z003_ST02_08_00_REST_UNIT
9. CLAMP UNIT
PO0C_Z003_ST02_09_00_CLAMP UNIT
10. REST UNIT
PO0C_Z003_ST02_10_00_REST_UNIT

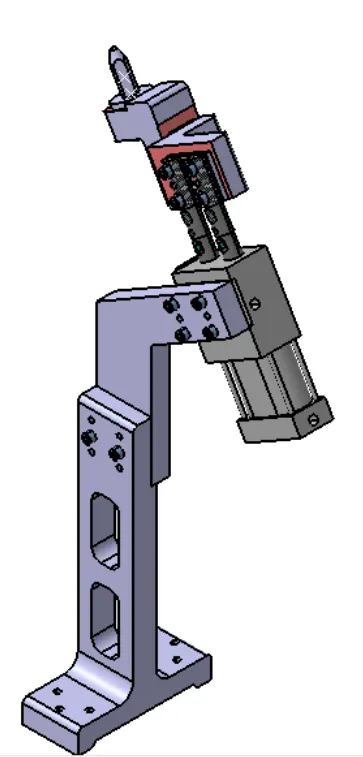

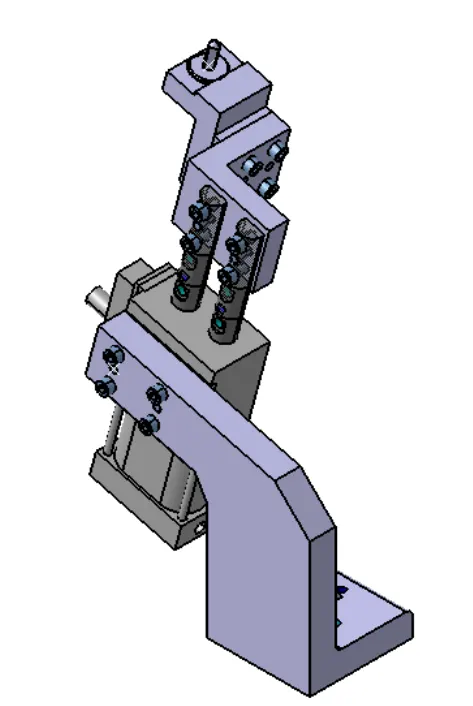

11. PIN UNIT
PO0C_Z003_ST02_11_00_PINIT
12. CLAMP UNIT
PO0C_Z003_ST02_12_00_CLAMP UNIT
13. CLAMP UNIT
PO0C_Z003_ST02_13_00_CLAMP UNIT
14. PIN UNIT
PO0C_Z003_ST02_14_00_PIN_UNIT

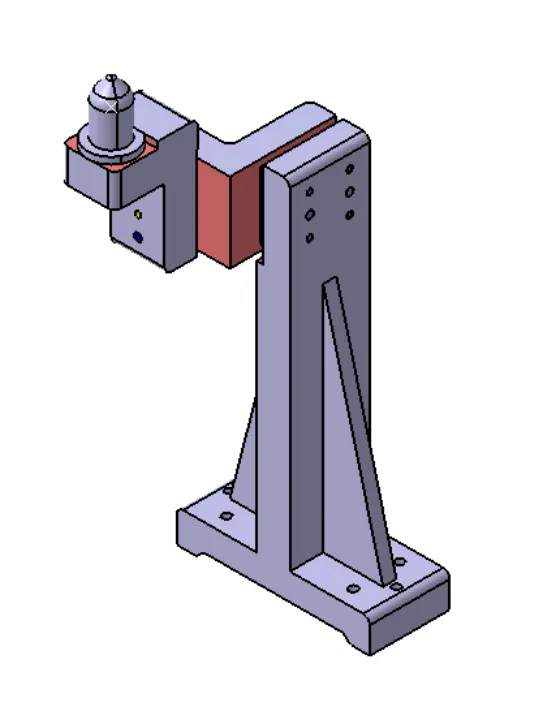

15. PIN UNIT
P00C_Z003_ST02_15_00_FIX_UNIT
16. PIN UNIT
P00C_Z003_ST02_16_00_FIX_UNIT
17. PIN UNIT
P00C_Z003_ST02_17_00_FIX_UNIT

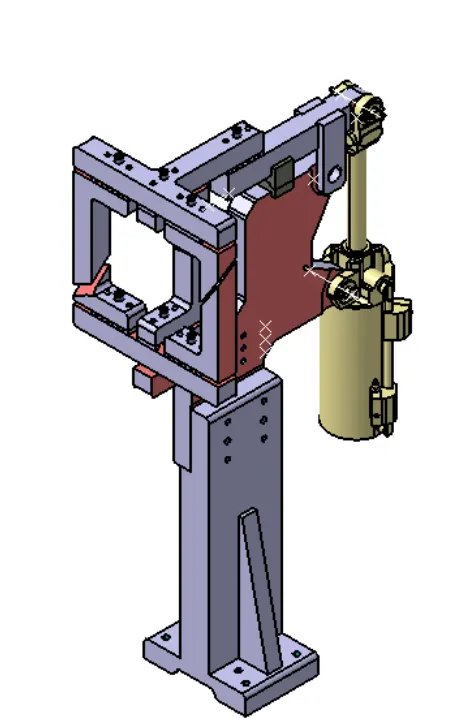

18. CLAMP UNIT
PO0C_Z003_ST02_18_00_CLAMP UNIT
19. CLAMP UNIT
PO0C_Z003_ST02_19_00_CLAMP UNIT
20. PIN UNIT
PO0C_Z003_ST02_20_00_PIN UNIT
21. PIN UNIT
PO0C_Z003_ST02_21_00_PIN UNIT

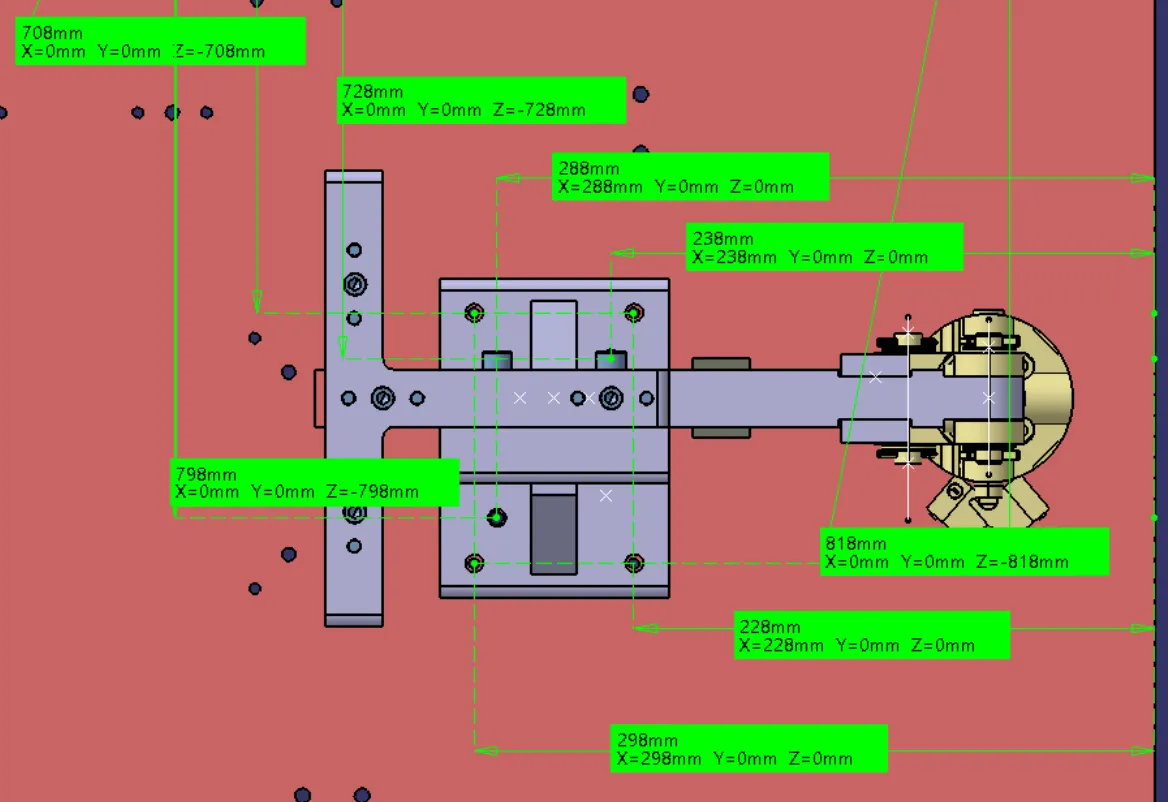

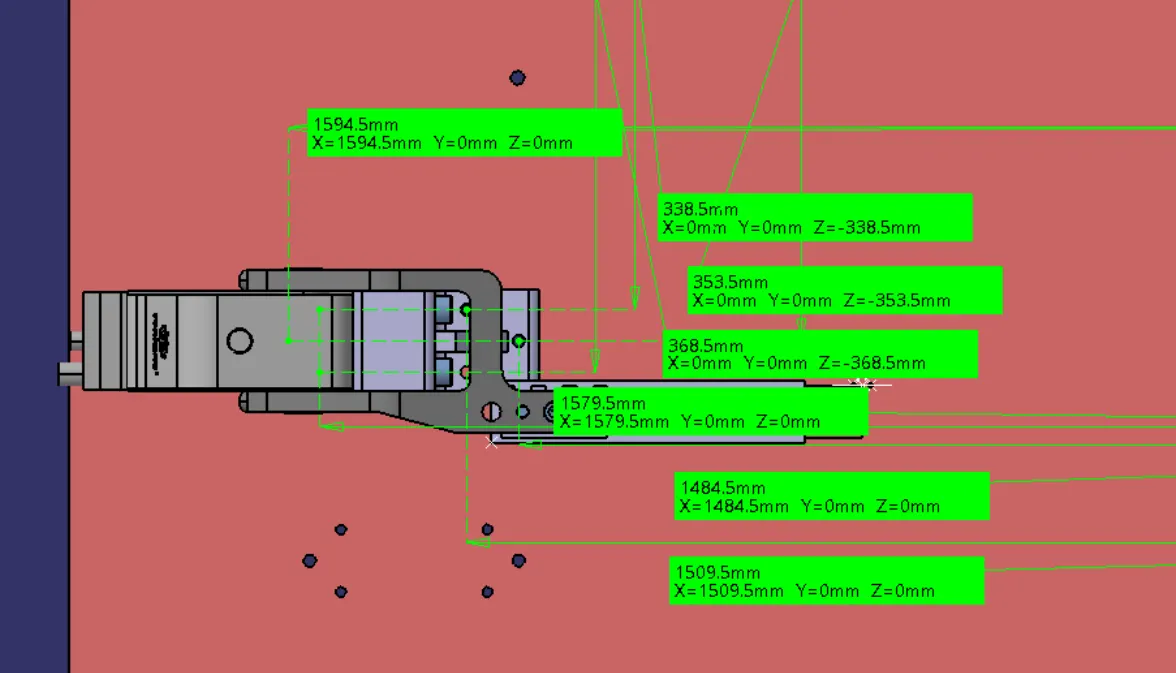

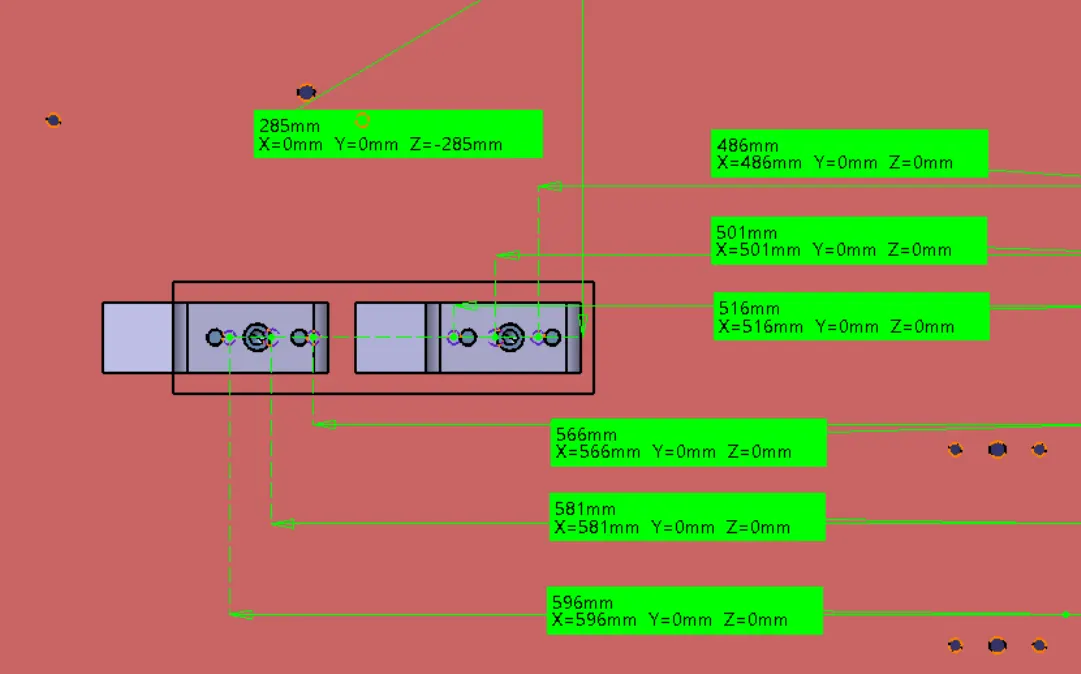

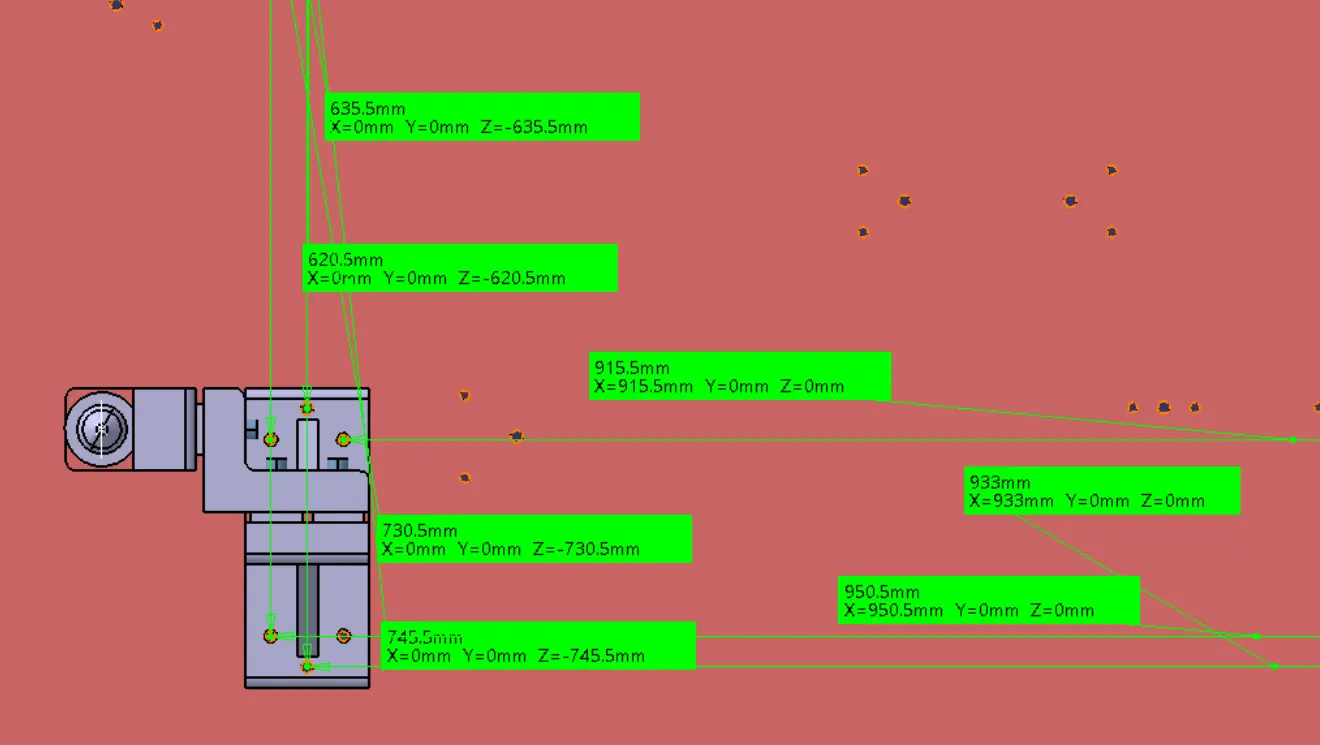

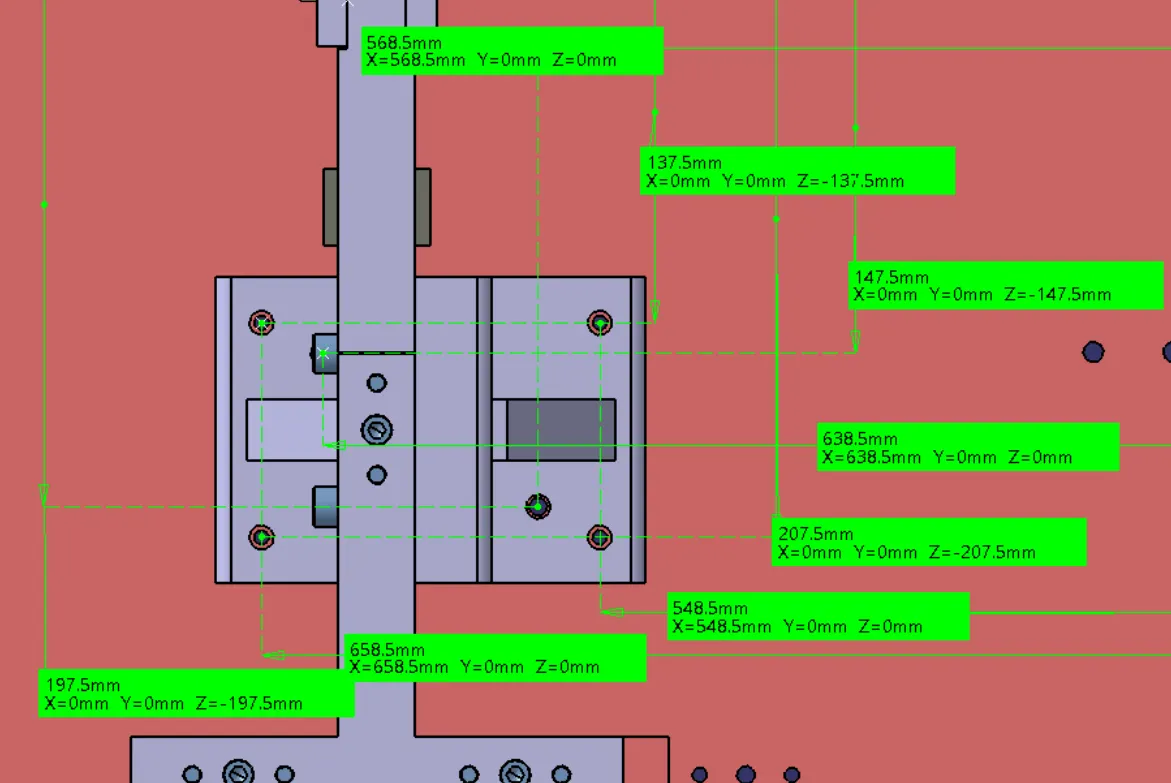

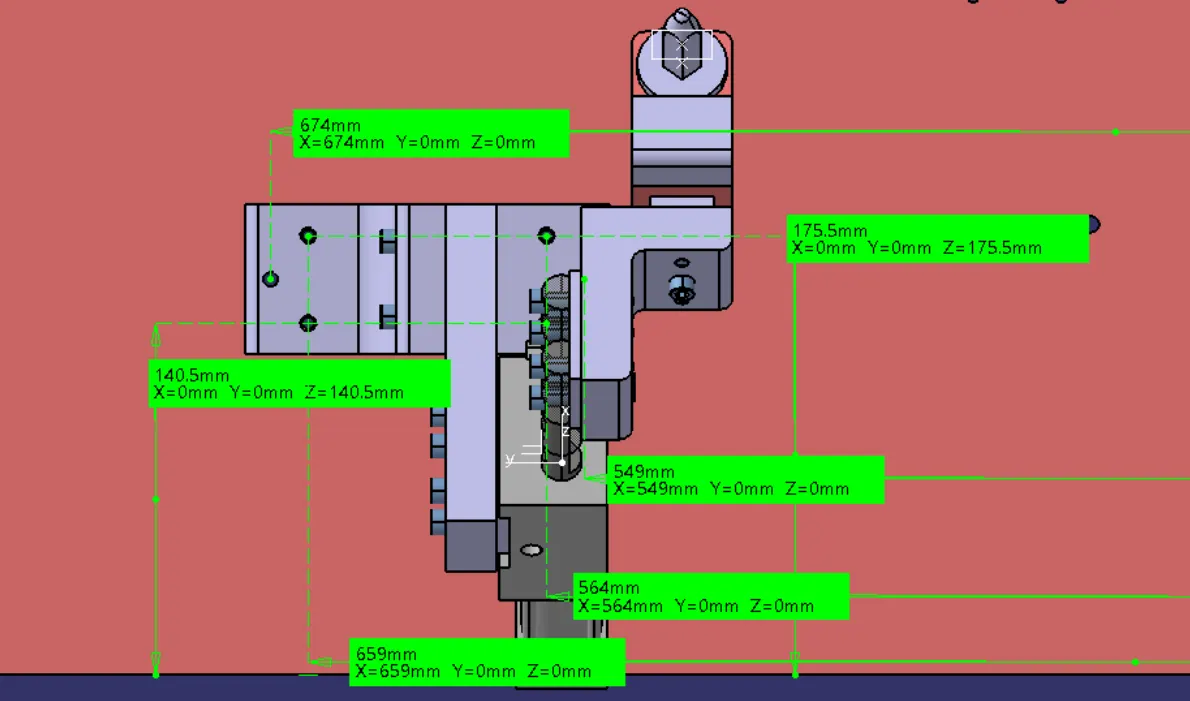

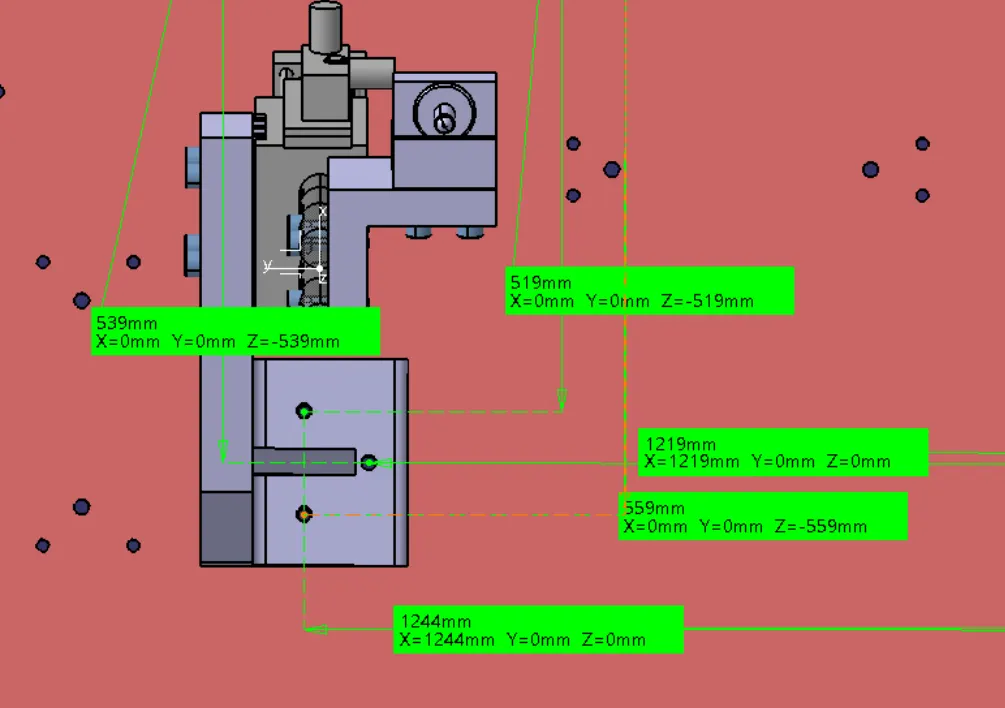

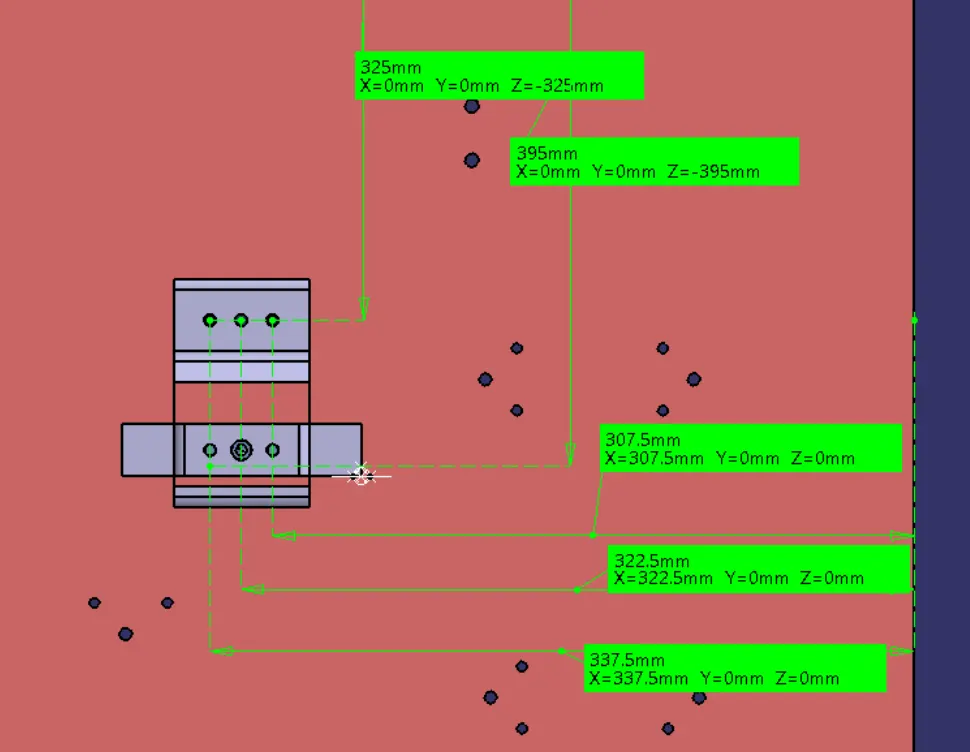

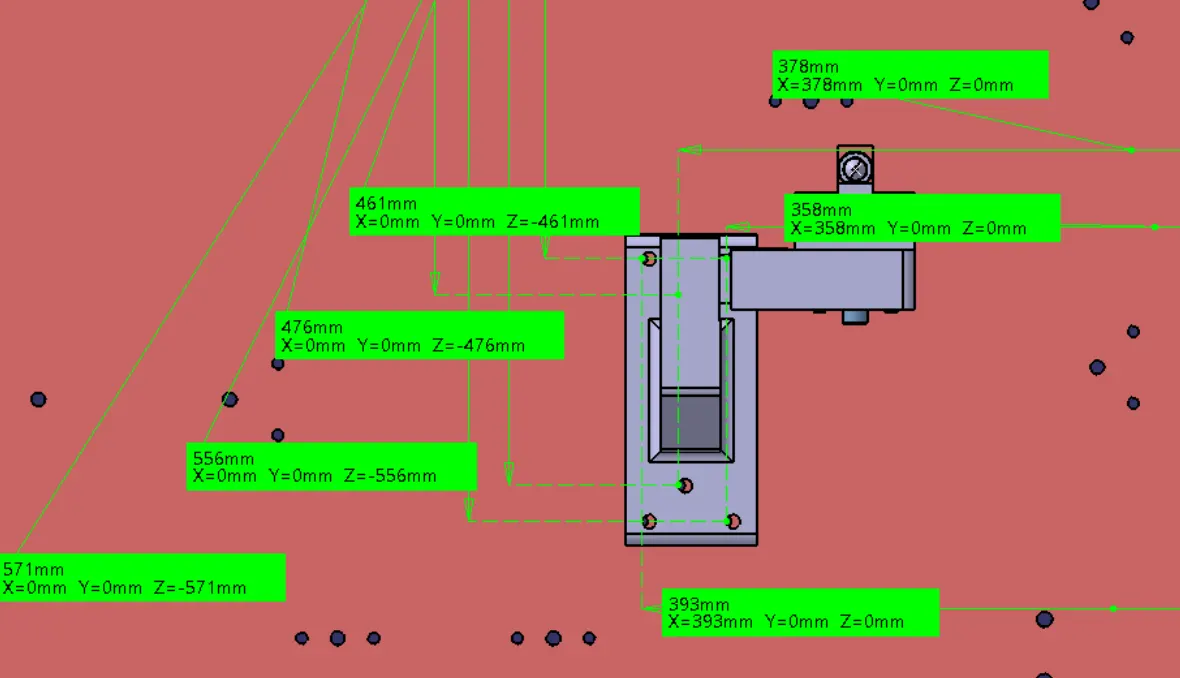

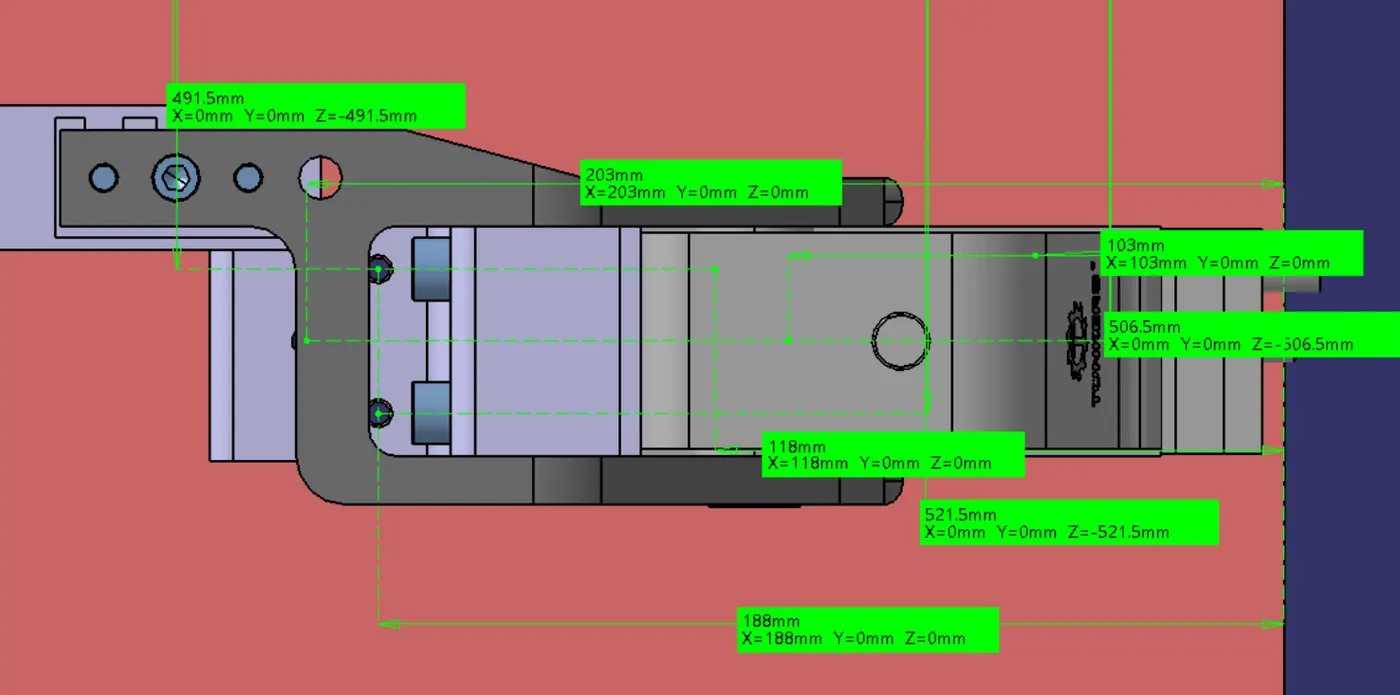

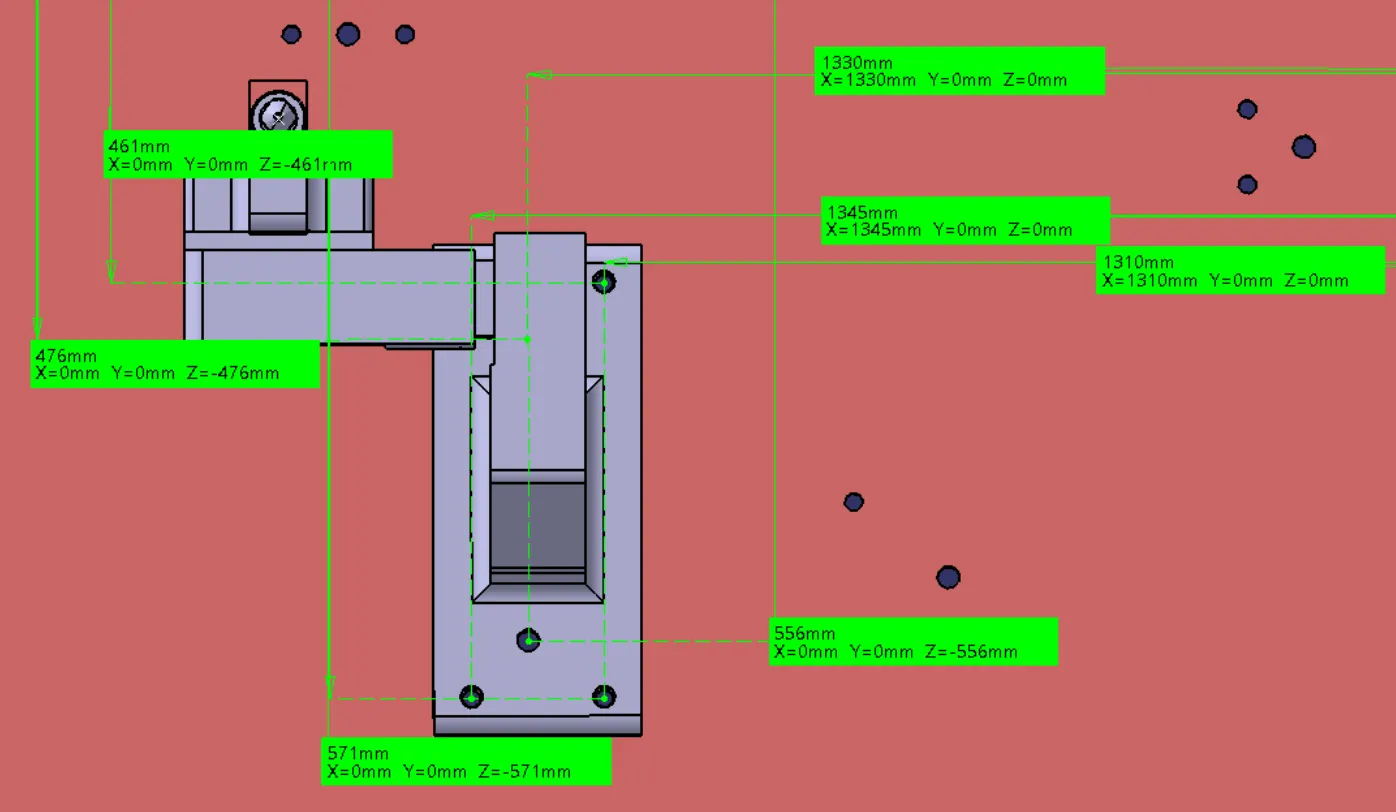

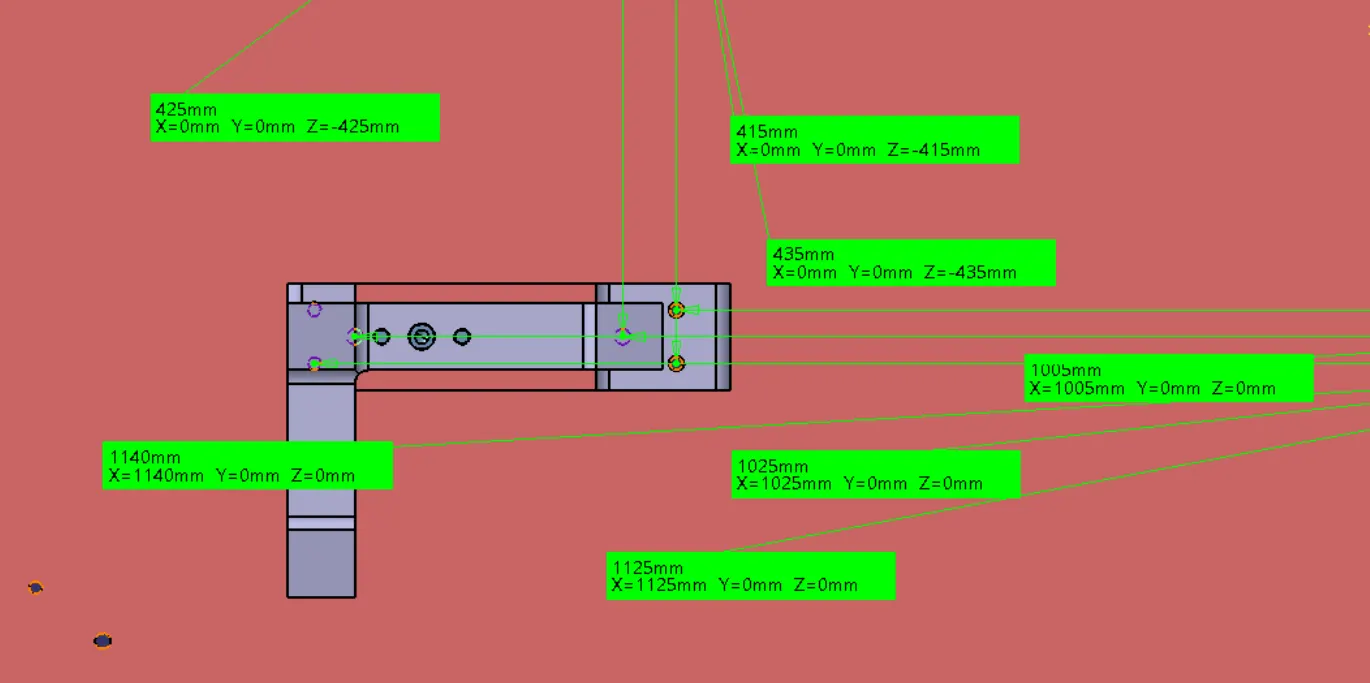

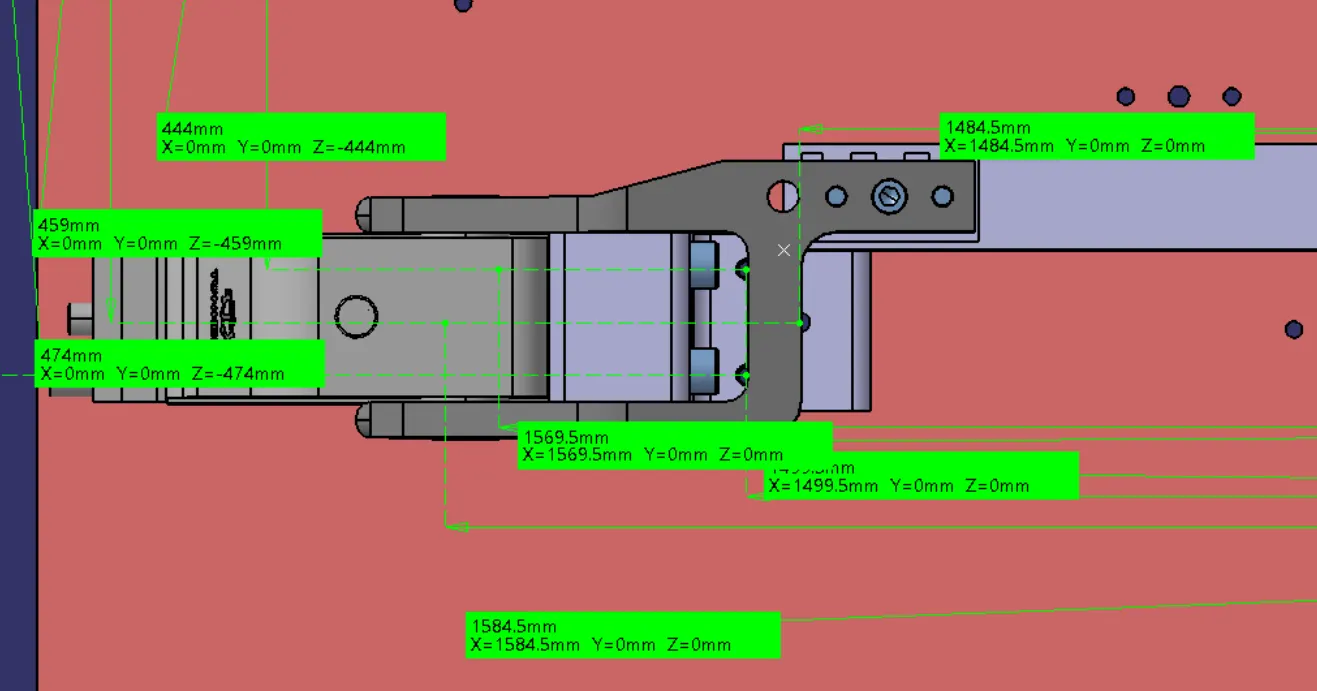

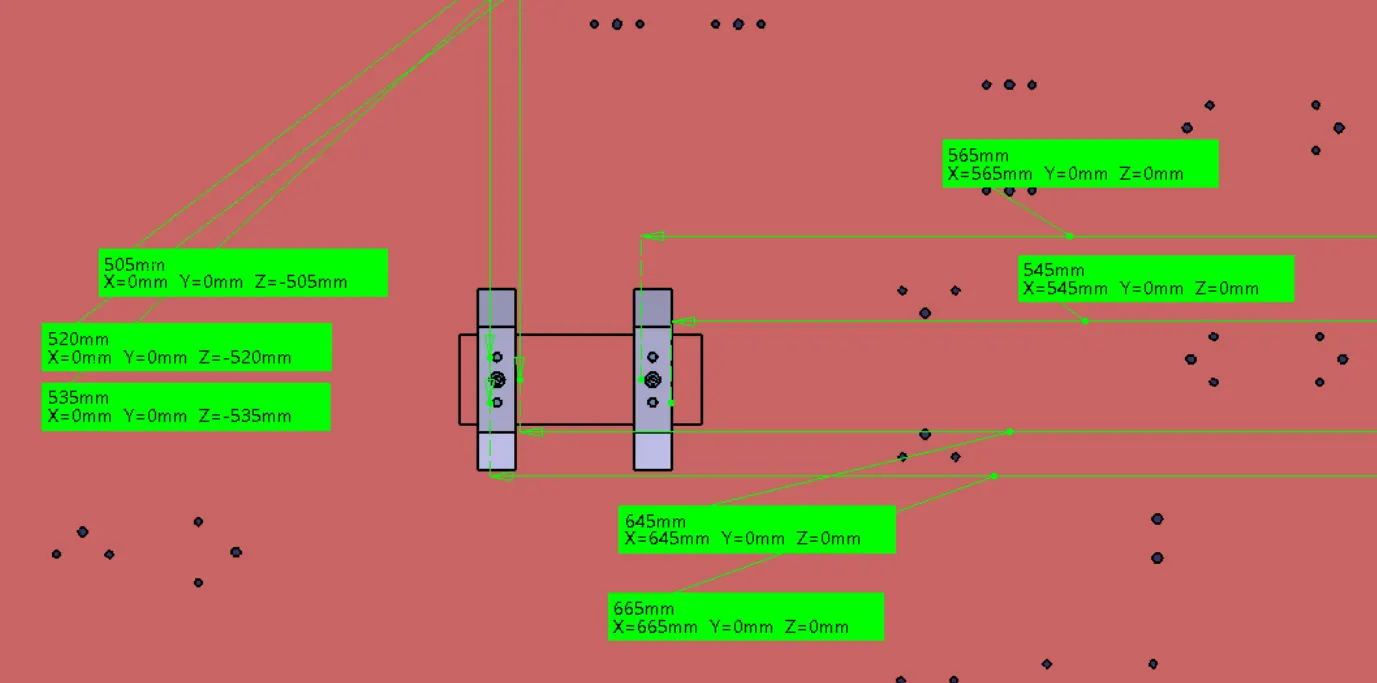

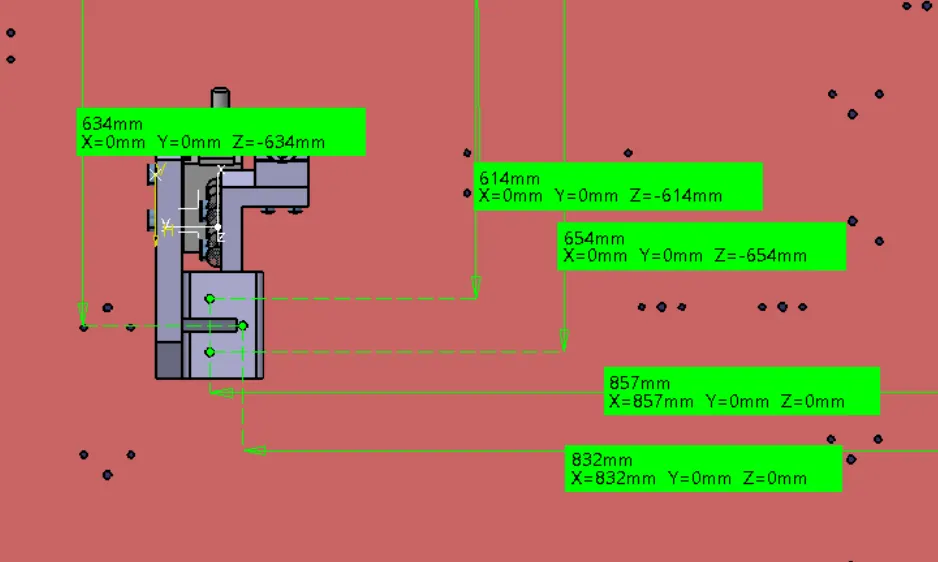

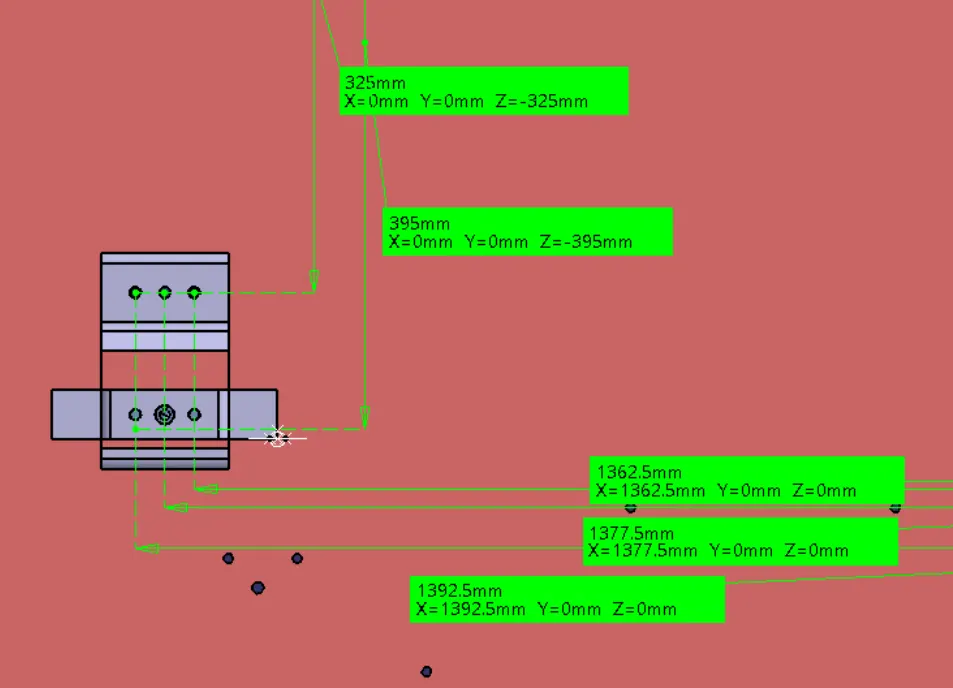

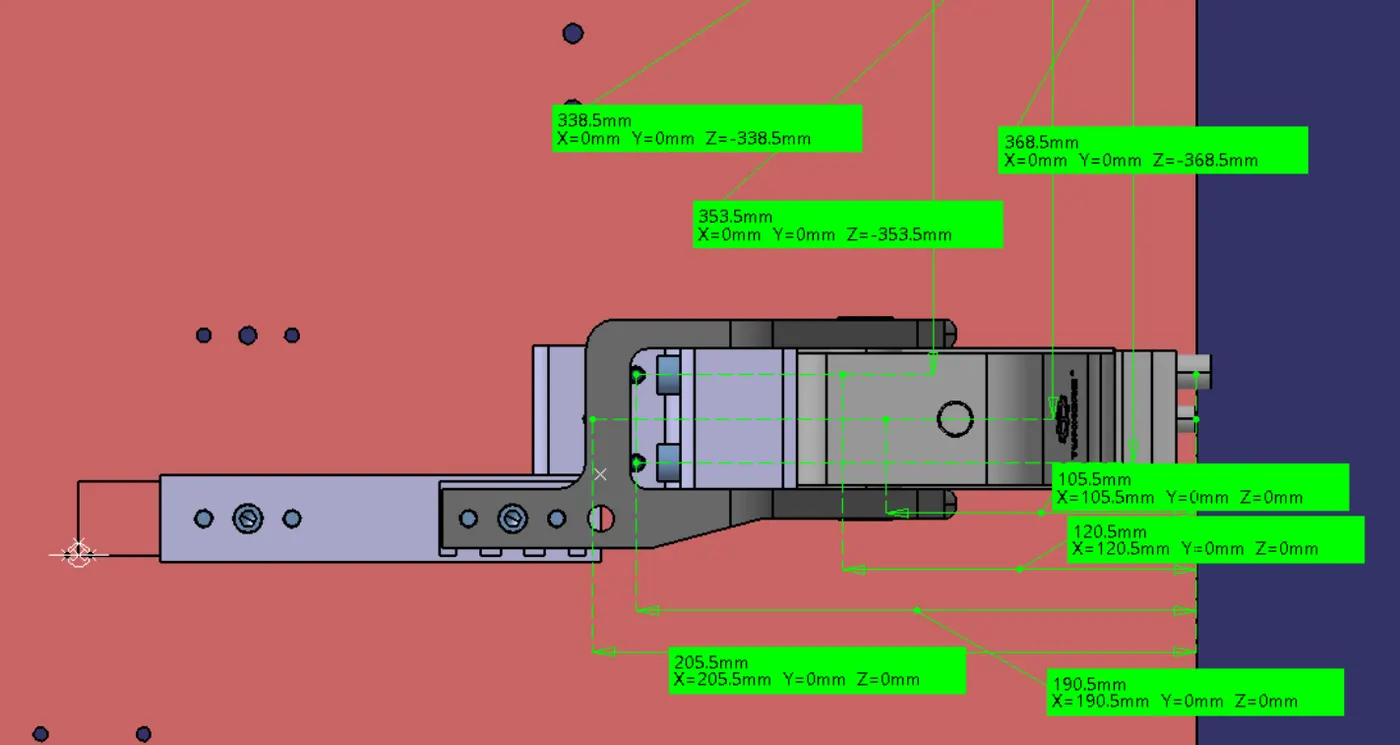

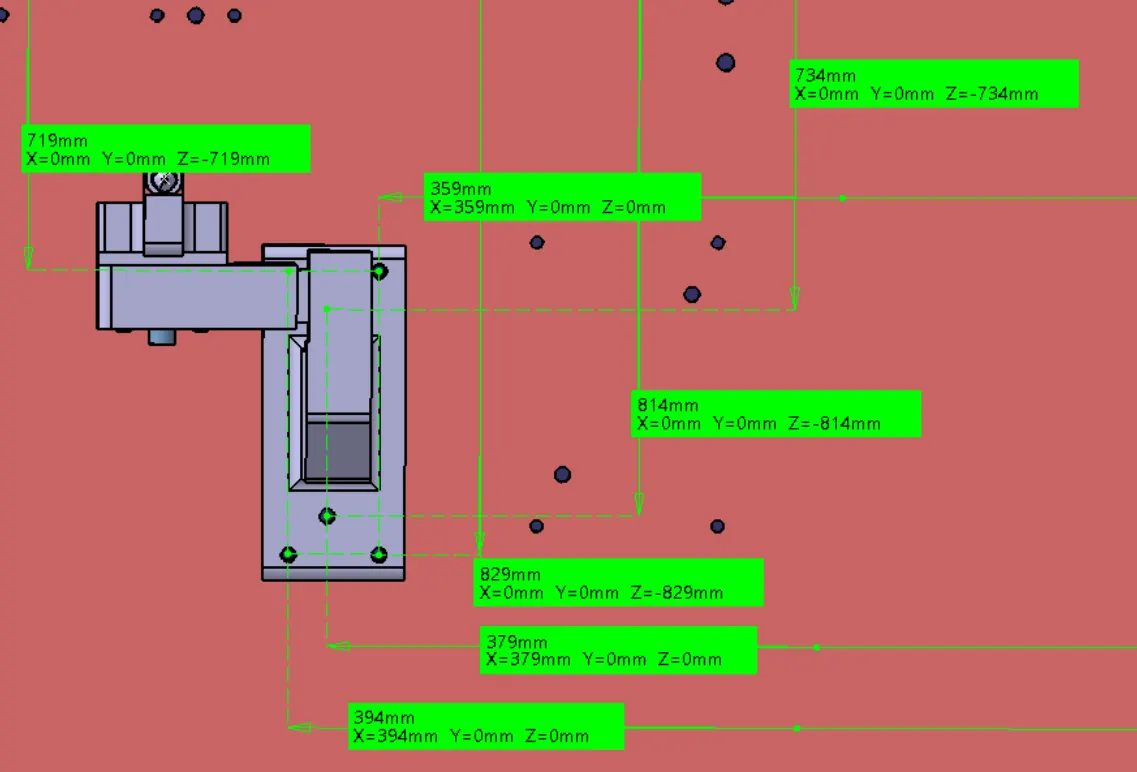

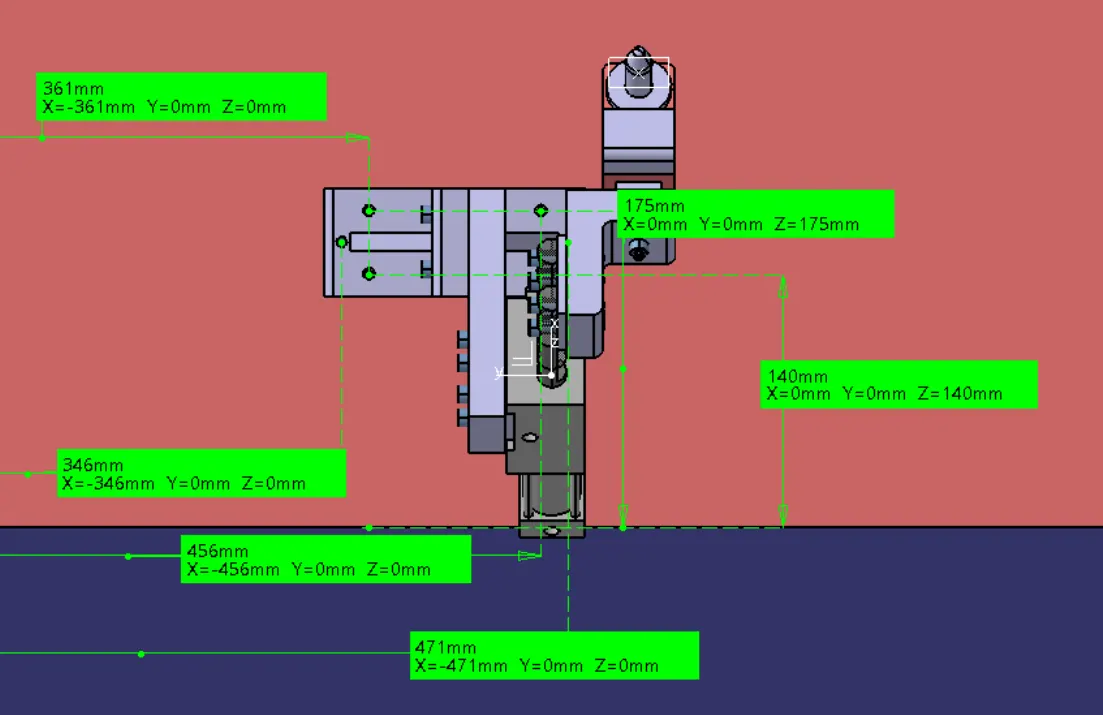

HOLE NOMINAL IN BASE PLATE
Measuring Dimensions from the Base Plate edeges
1. PO0C_Z003_ST02_02_00_PIN UNIT
2. PO0C_Z003_ST02_04_00_REST_UNIT
3. PO0C_Z003_ST02_05_00_REST_UNIT
4. PO0C_Z003_ST02_06_00_REST_UNIT
5. PO0C_Z003_ST02_07_00_CLAMP UNIT
6.PO0C_Z003_ST02_08_00_REST_UNIT
7. PO0C_Z003_ST02_09_00_CLAMP UNIT
8. PO0C_Z003_ST02_10_00_REST_UNIT
9. PO0C_Z003_ST02_11_00_PIN_UNIT
10. PO0C_Z003_ST02_12_00_CLAMP UNIT
11. PO0C_Z003_ST02_13_00_CLAMP UNIT
12. PO0C_Z003_ST02_14_00_PIN_UNIT
13. P00C_Z003_ST02_15_00_FIX_UNIT
14. P00C_Z003_ST02_16_00_FIX_UNIT
15. P00C_Z003_ST02_17_00_FIX_UNIT
16. PO0C_Z003_ST02_18_00_CLAMP UNIT
17. PO0C_Z003_ST02_19_00_CLAMP UNIT
18. PO0C_Z003_ST02_20_00_PIN UNIT
19. PO0C_Z003_ST02_21_00_PIN UNIT

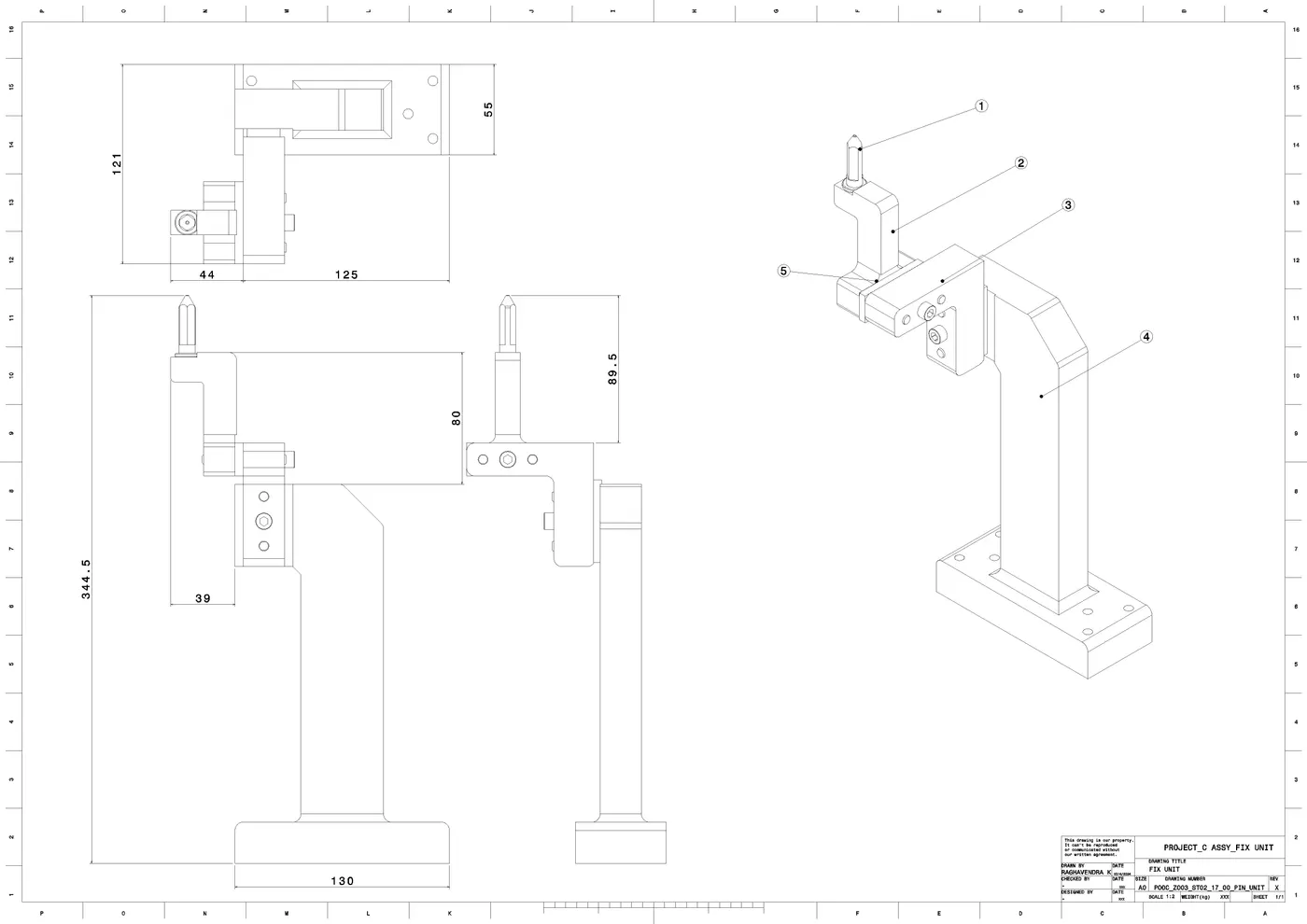

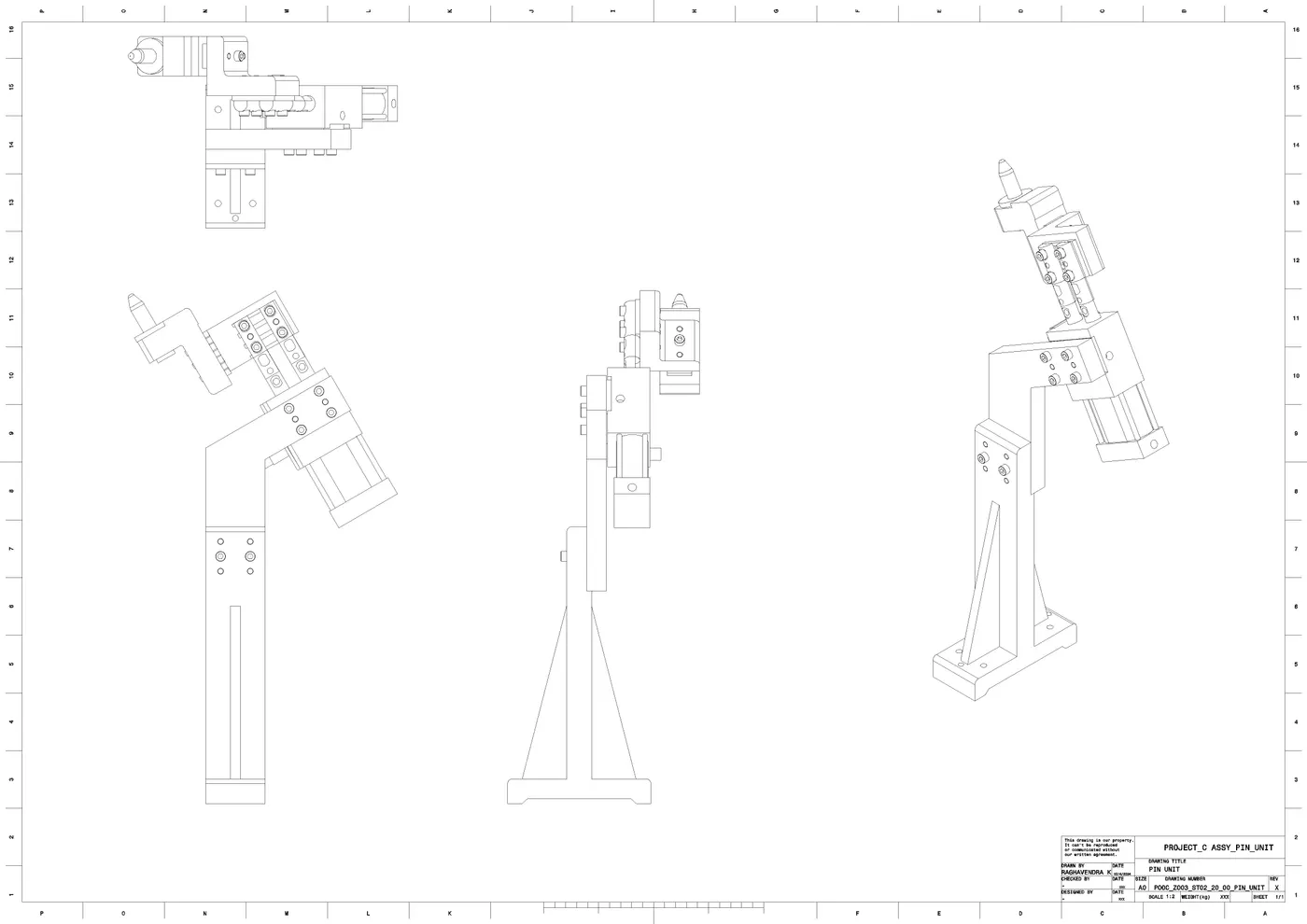

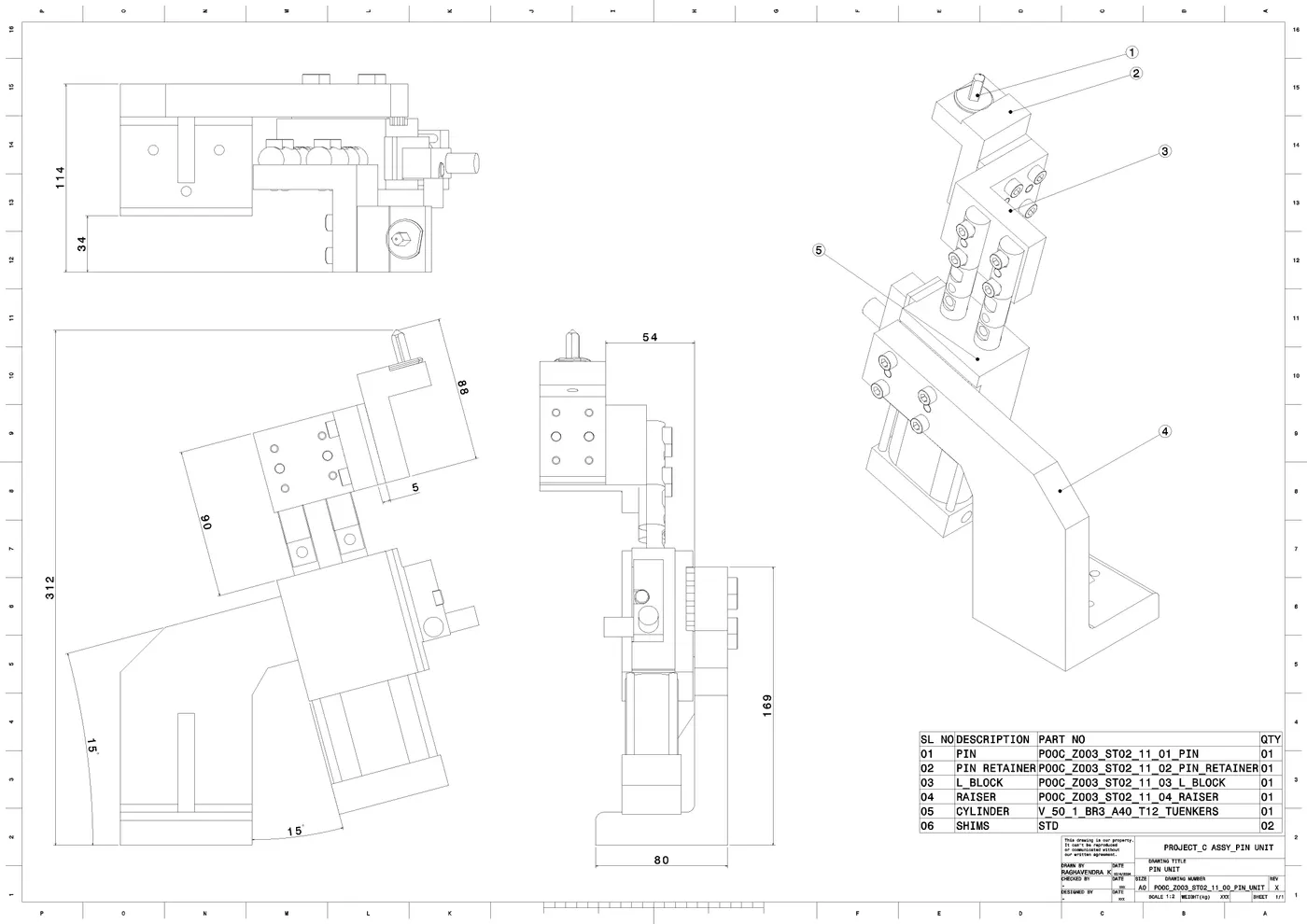

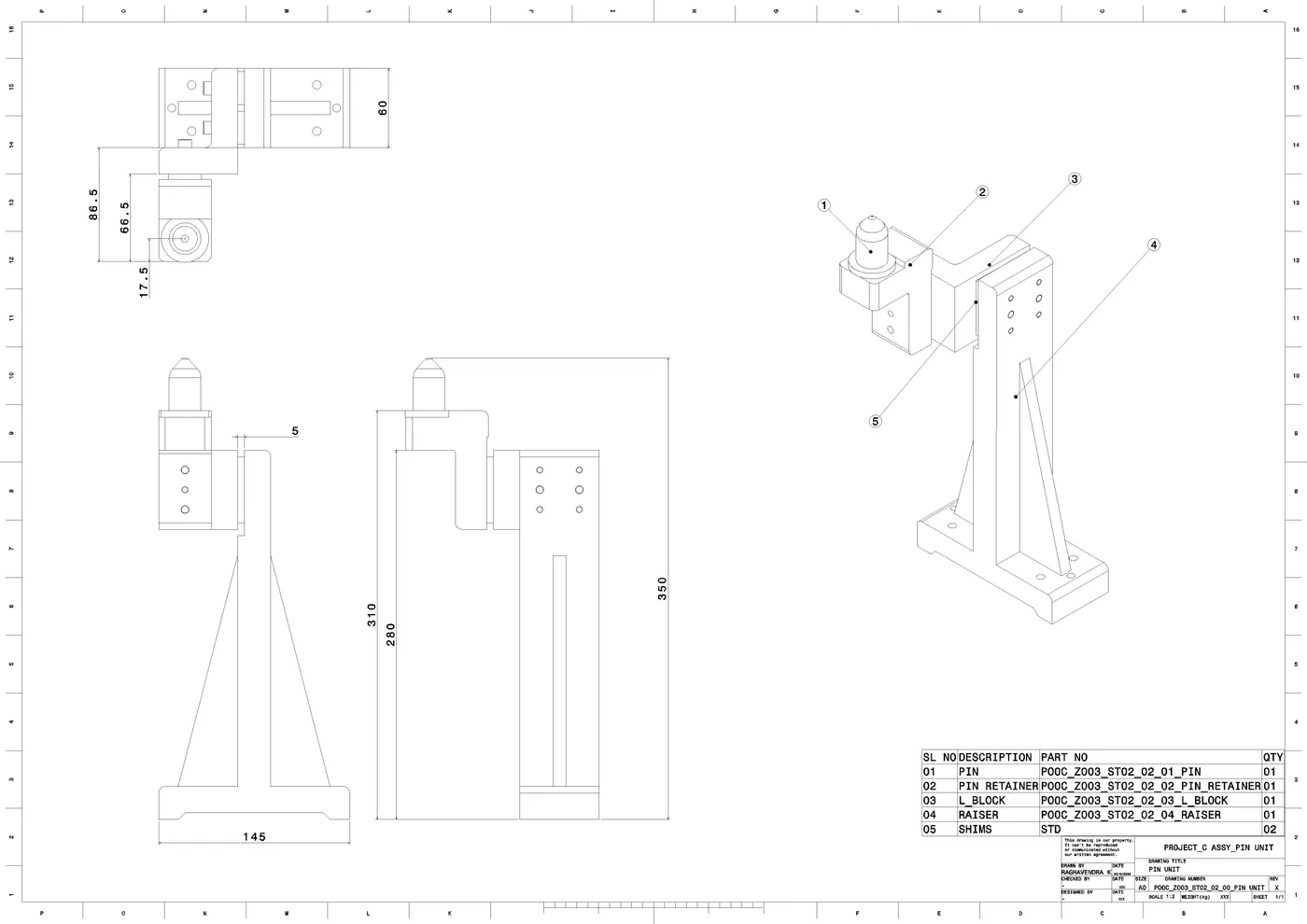

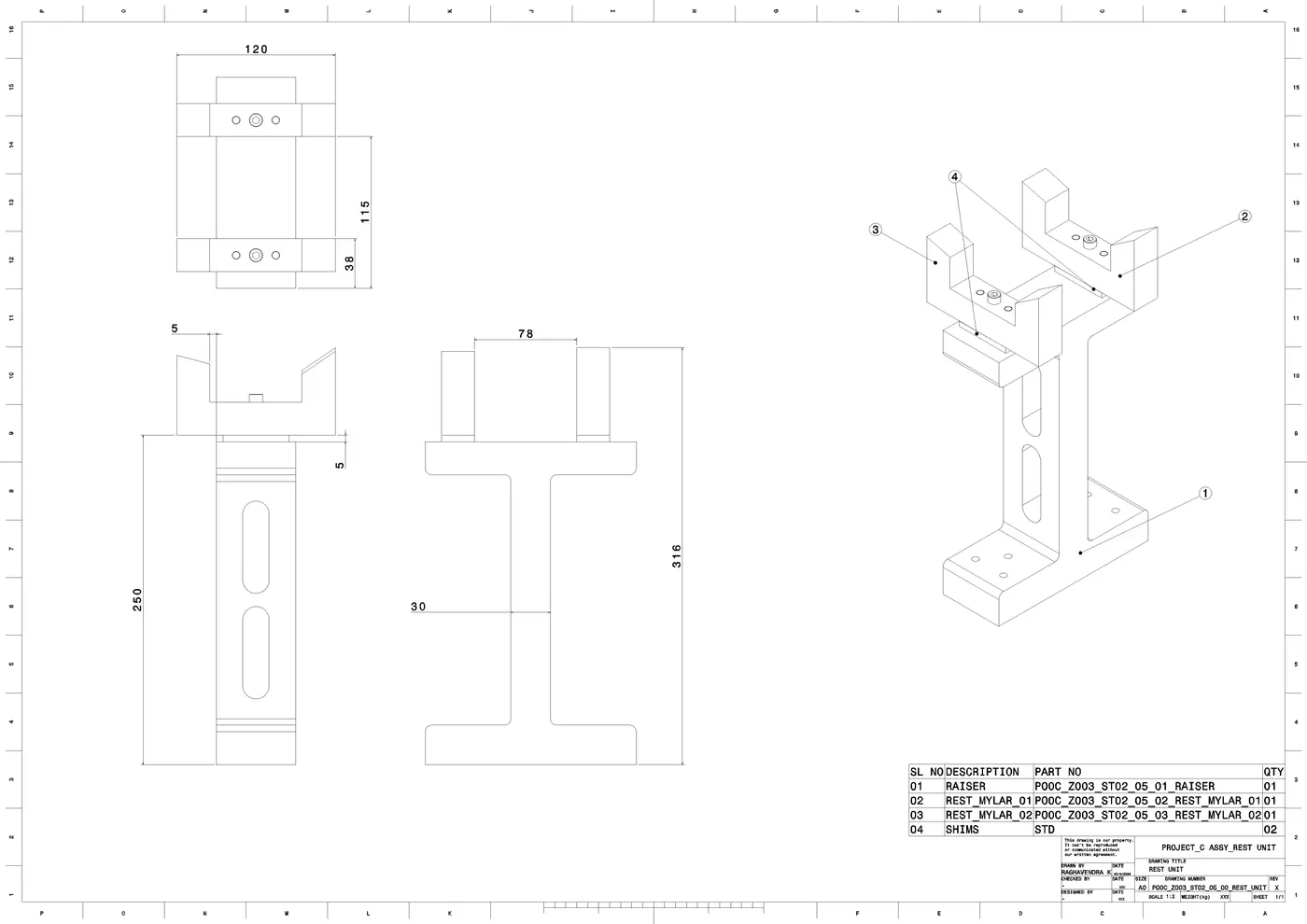

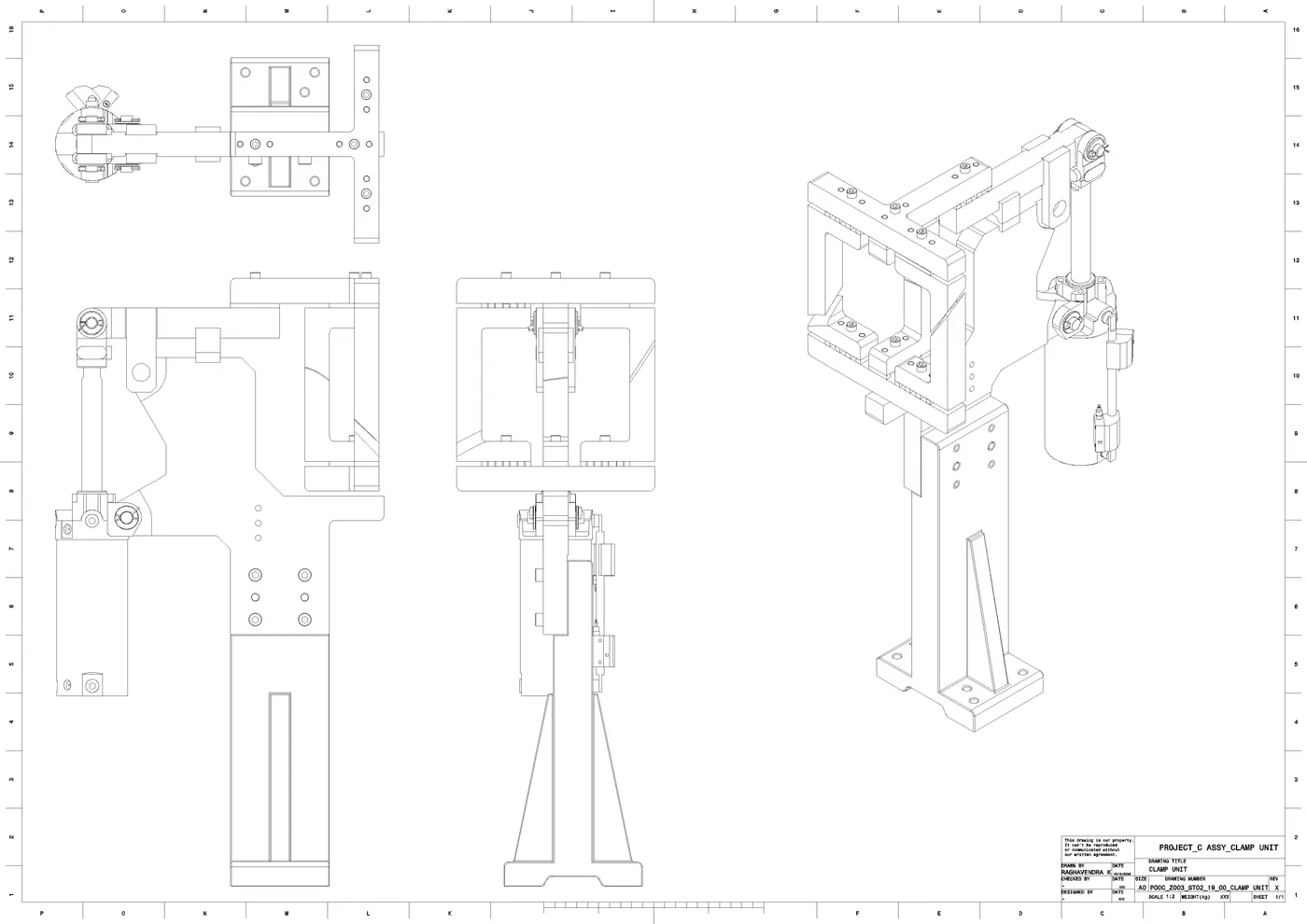

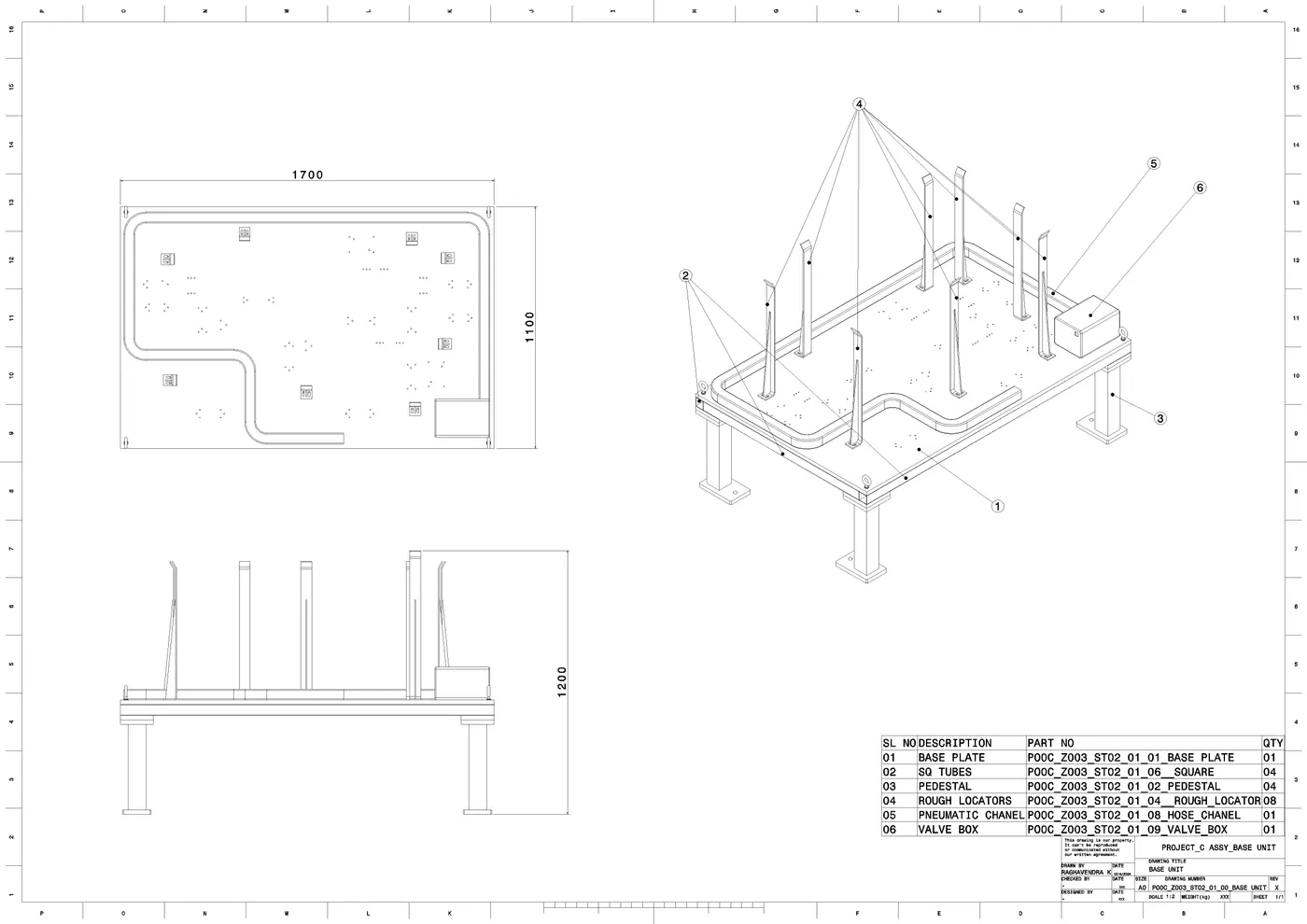

DRAFTING

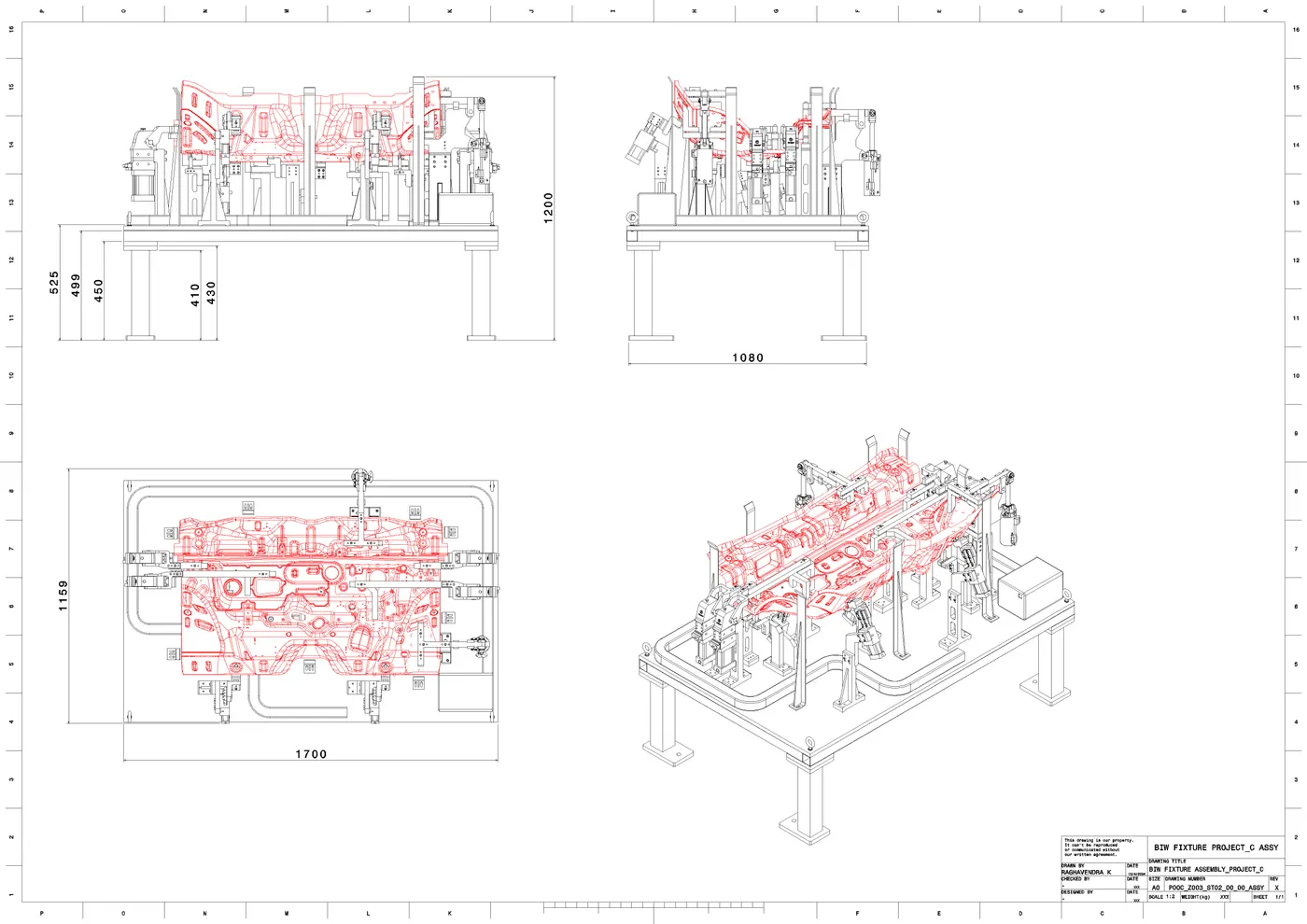

PROJECT_C_ASSY

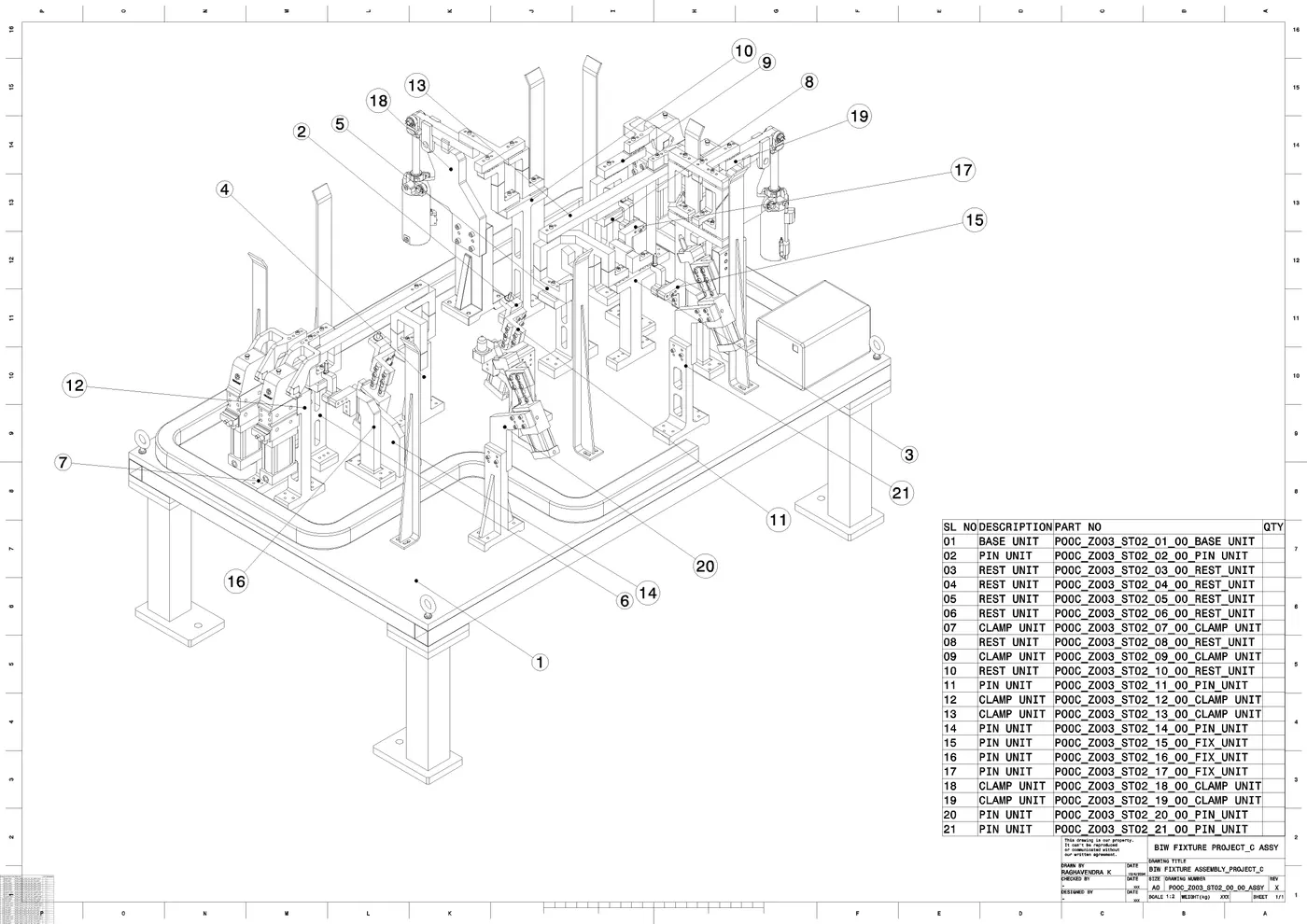

PROJECT_C_BALOON

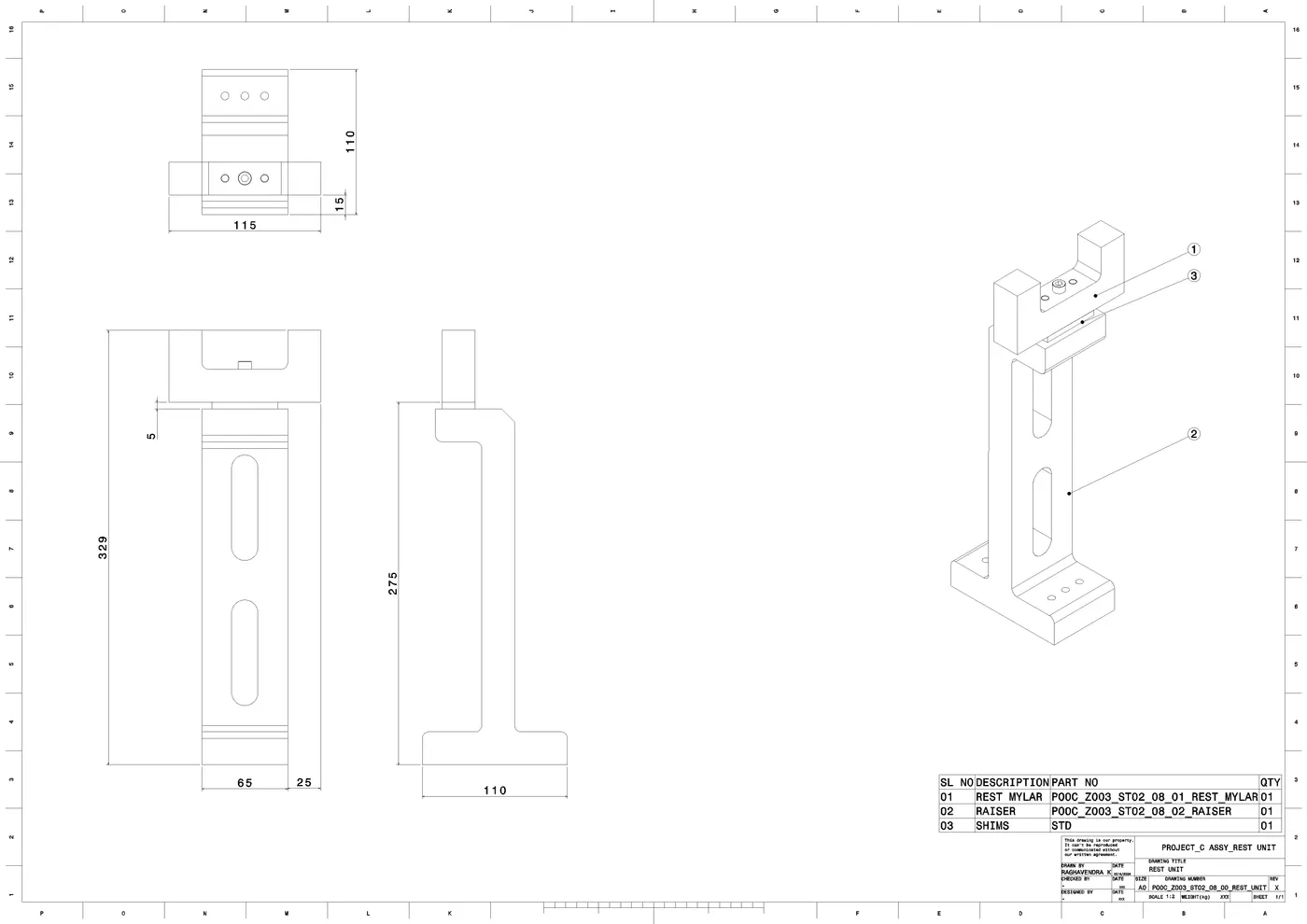

1_PO0C_Z003_ST02_01_00_BASE UNIT
2_PO0C_Z003_ST02_02_00_PIN UNIT

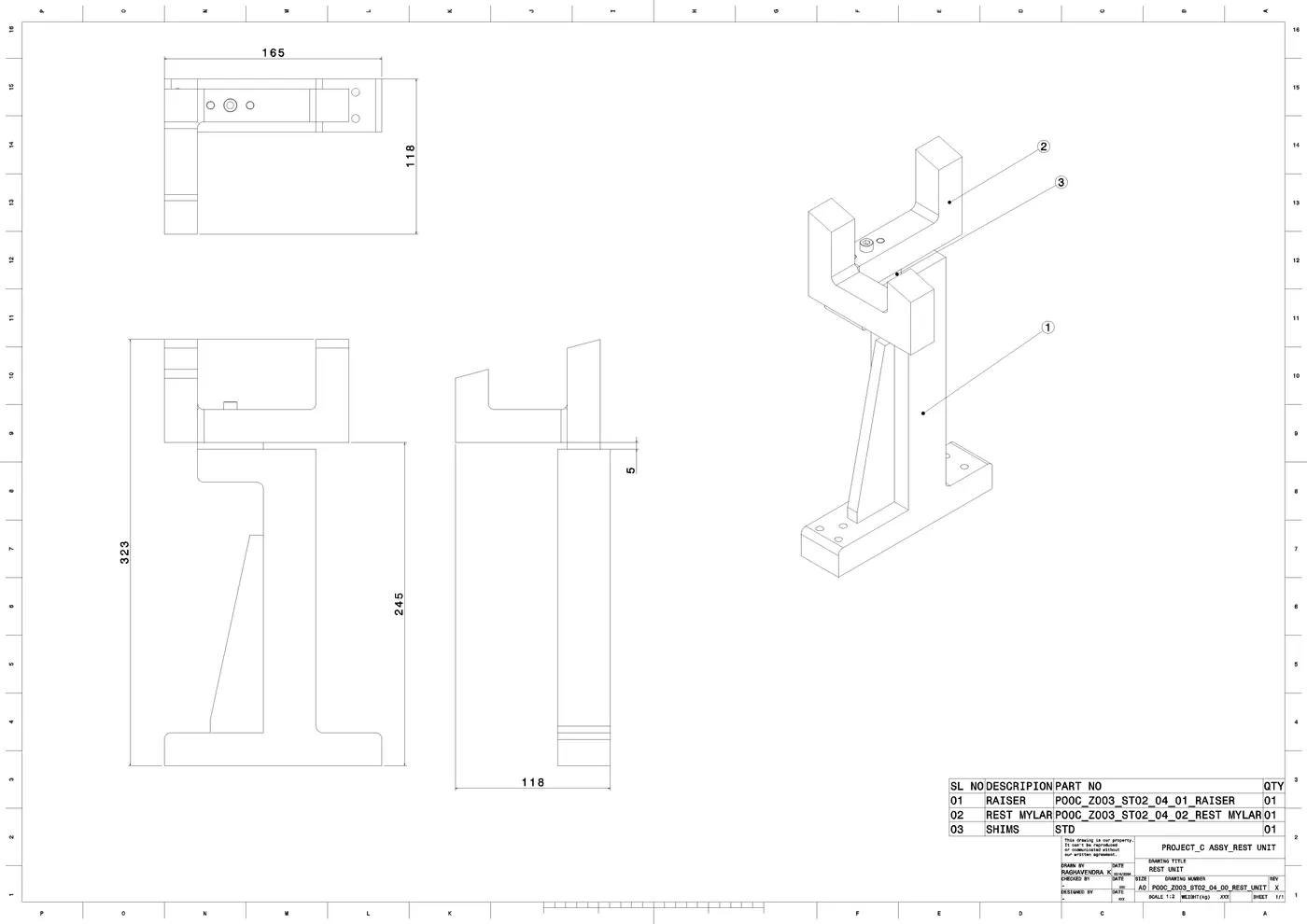

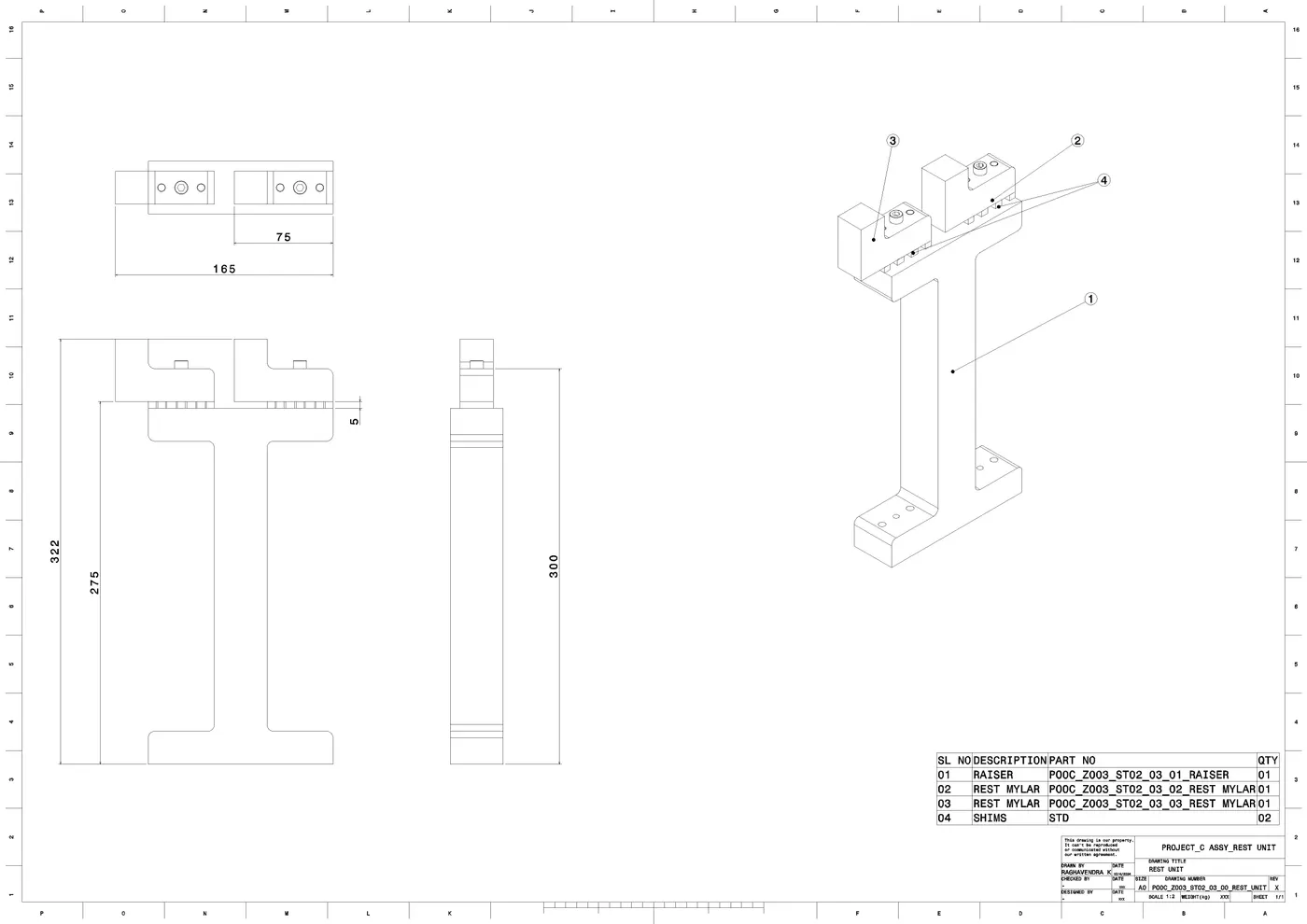

3_PO0C_Z003_ST02_03_00_REST_UNIT
4_PO0C_Z003_ST02_04_00_REST_UNIT
5_PO0C_Z003_ST02_05_00_REST_UNIT

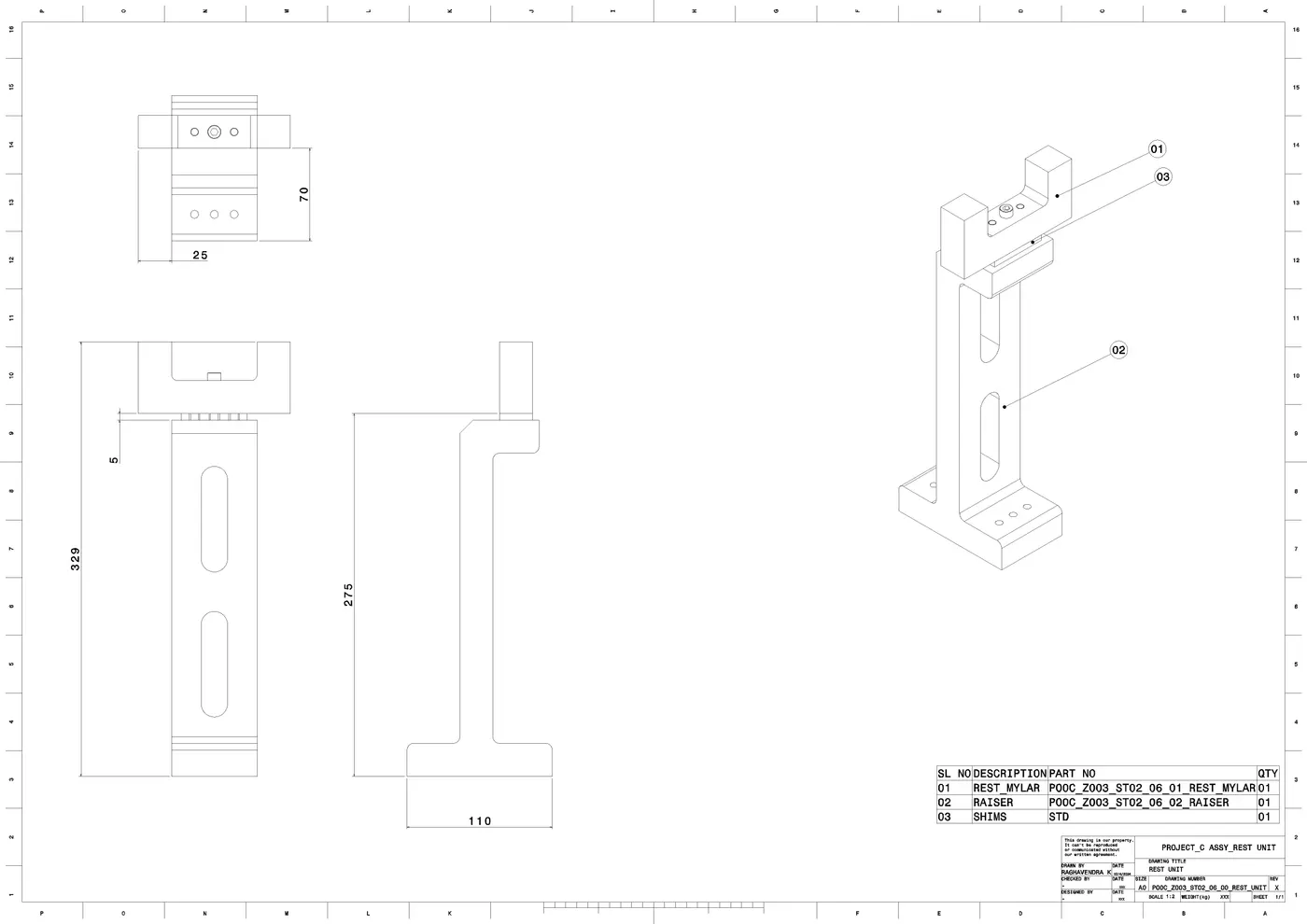

6_PO0C_Z003_ST02_06_00_REST_UNIT

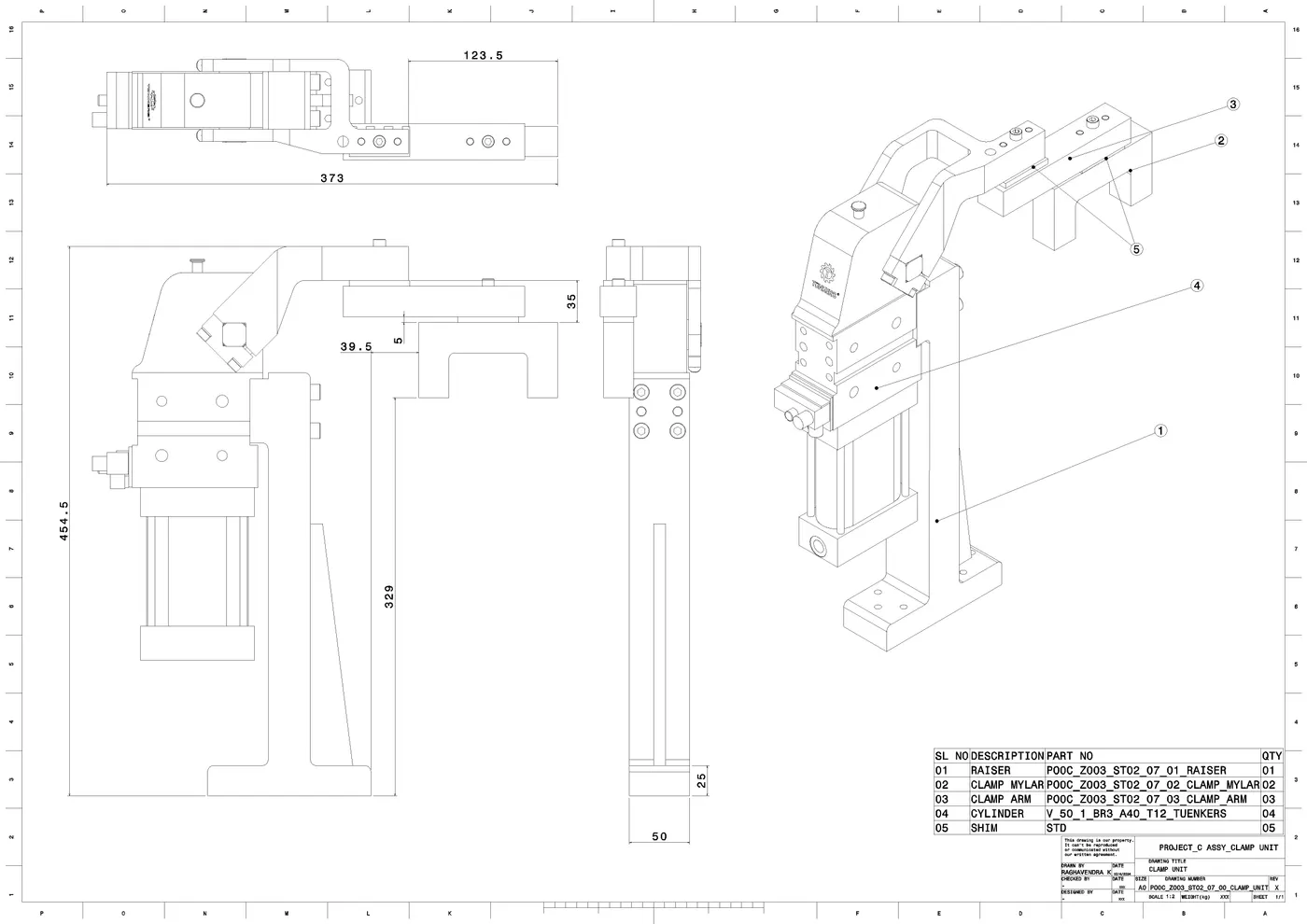

7_PO0C_Z003_ST02_07_00_CLAMP UNIT
8_PO0C_Z003_ST02_08_00_REST_UNIT
9_PO0C_Z003_ST02_09_00_CLAMP UNIT

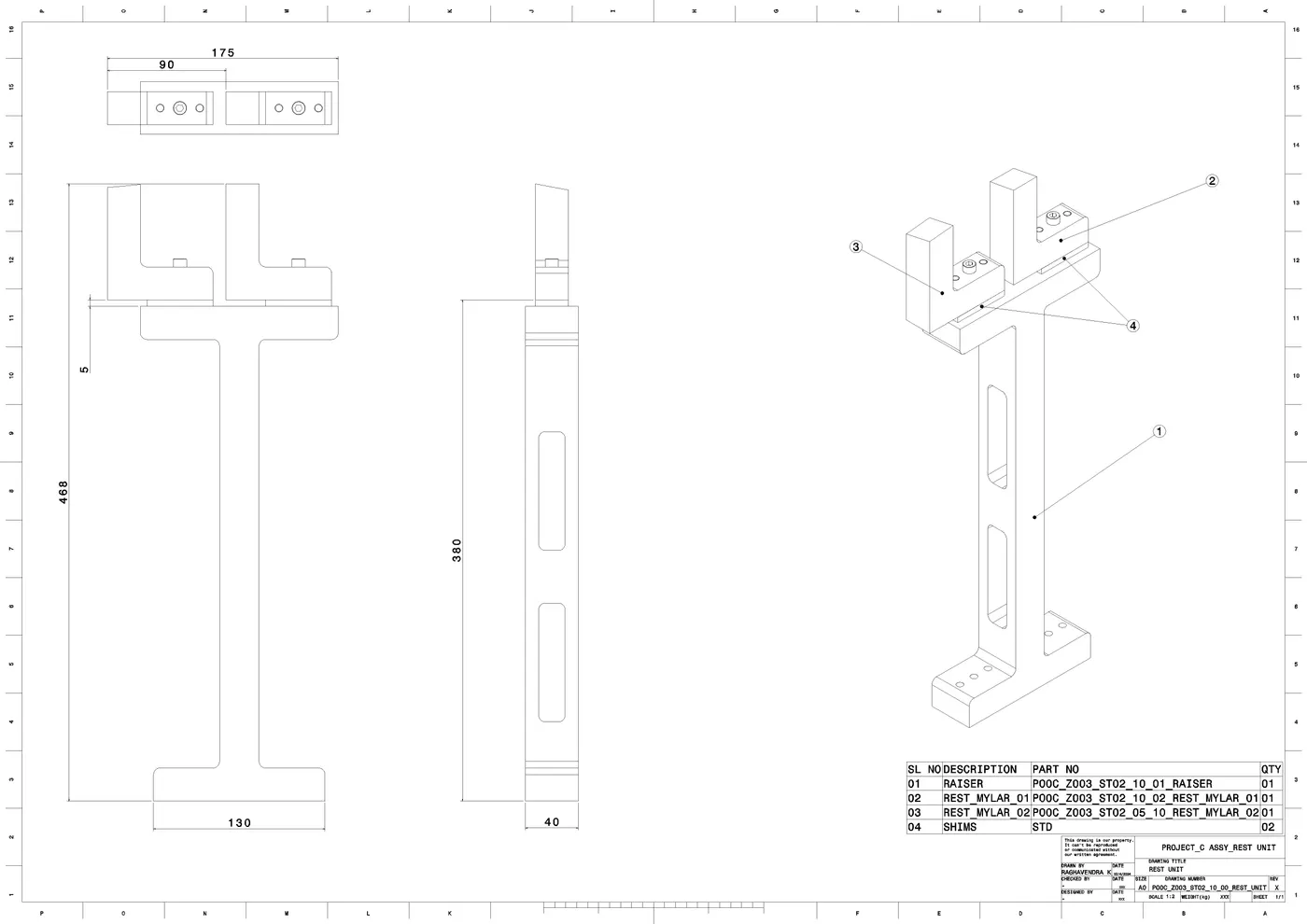

10_PO0C_Z003_ST02_10_00_REST_UNIT
11_PO0C_Z003_ST02_11_00_PIN_UNIT

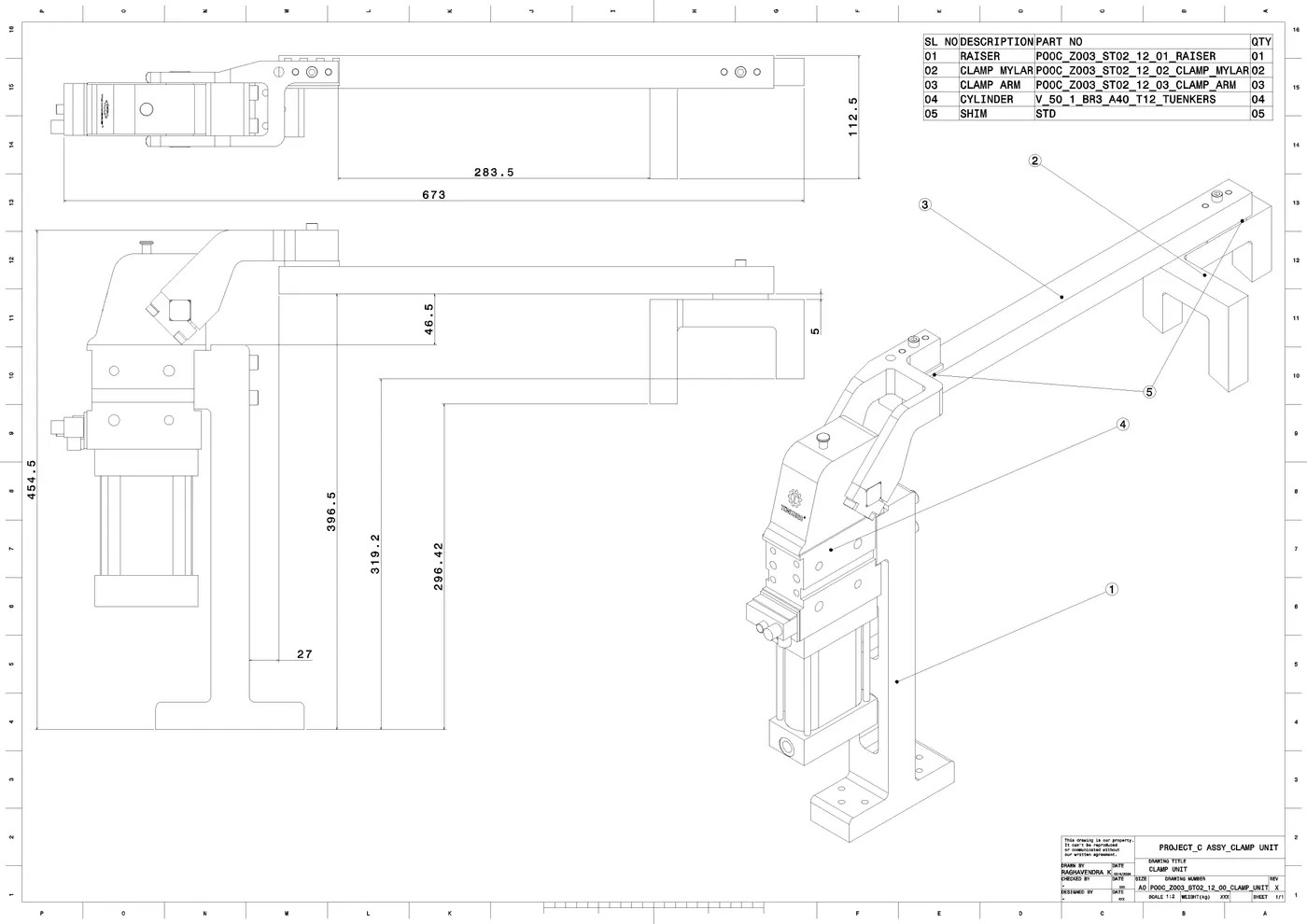

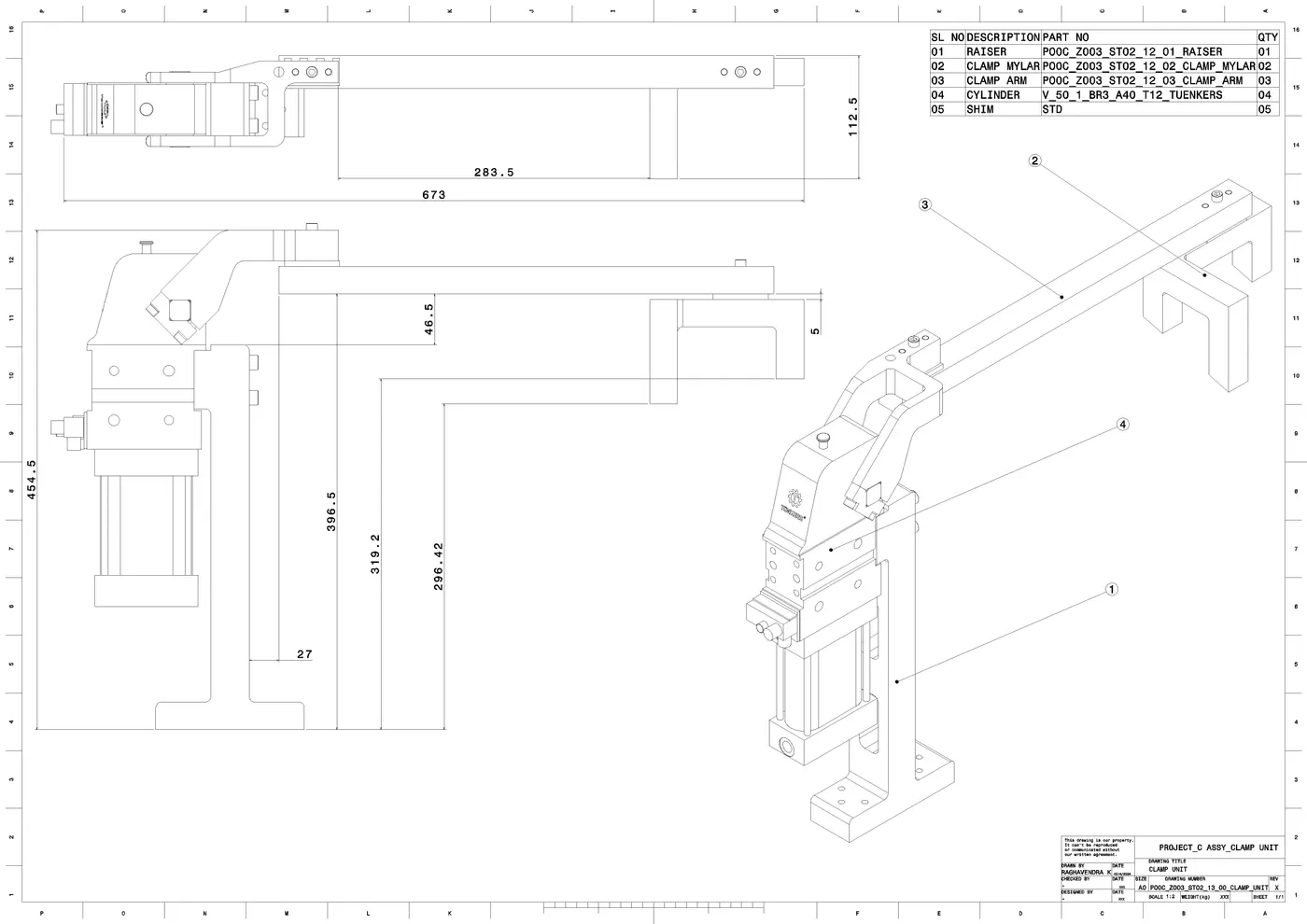

12_PO0C_Z003_ST02_12_00_CLAMP UNIT
13_PO0C_Z003_ST02_13_00_CLAMP UNIT
14_PO0C_Z003_ST02_14_00_PIN_UNIT
15_P00C_Z003_ST02_15_00_FIX_UNIT
16_P00C_Z003_ST02_16_00_FIX_UNIT
17_P00C_Z003_ST02_17_00_FIX_UNIT
18_PO0C_Z003_ST02_18_00_CLAMP UNIT
19_PO0C_Z003_ST02_19_00_CLAMP UNIT
20_PO0C_Z003_ST02_20_00_PIN_UNIT
21_PO0C_Z003_ST02_21_00_PIN_UNIT
DOCUMENTATION
| SL NO | PART NUMBER | DESCRIPTION | QTY | MATERIAL | MAKE |
| BIW FIXTURE ASSEMBLY -PROJECT_PO0C_Z003_ST02_00_00 | |||||
| 1 | BASE UNIT | PO0C_Z003_ST02_01_00_BASE UNIT | 1x | ASSEMBLY | MFG |
| 2 | PIN UNIT | PO0C_Z003_ST02_02_00_PIN UNIT | 1x | ASSEMBLY | MFG |
| 3 | REST UNIT | PO0C_Z003_ST02_03_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 4 | REST UNIT | PO0C_Z003_ST02_04_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 5 | REST UNIT | PO0C_Z003_ST02_05_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 6 | REST UNIT | PO0C_Z003_ST02_06_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 7 | CLAMP UNIT | PO0C_Z003_ST02_07_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 8 | REST UNIT | PO0C_Z003_ST02_08_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 9 | CLAMP UNIT | PO0C_Z003_ST02_09_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 10 | REST UNIT | PO0C_Z003_ST02_10_00_REST_UNIT | 1x | ASSEMBLY | MFG |
| 11 | PIN UNIT | PO0C_Z003_ST02_11_00_PIN_UNIT | 1x | ASSEMBLY | MFG |
| 12 | CLAMP UNIT | PO0C_Z003_ST02_12_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 13 | CLAMP UNIT | PO0C_Z003_ST02_13_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 14 | PIN UNIT | PO0C_Z003_ST02_14_00_PIN_UNIT | 1x | ASSEMBLY | MFG |
| 15 | PIN UNIT | P00C_Z003_ST02_15_00_FIX_UNIT | 1x | ASSEMBLY | MFG |
| 16 | PIN UNIT | P00C_Z003_ST02_16_00_FIX_UNIT | 1x | ASSEMBLY | MFG |
| 17 | PIN UNIT | P00C_Z003_ST02_17_00_FIX_UNIT | 1x | ASSEMBLY | MFG |
| 18 | CLAMP UNIT | PO0C_Z003_ST02_18_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 19 | CLAMP UNIT | PO0C_Z003_ST02_19_00_CLAMP UNIT | 1x | ASSEMBLY | MFG |
| 20 | PIN UNIT | PO0C_Z003_ST02_20_00_PIN_UNIT | 1x | ASSEMBLY | MFG |
| 21 | PIN UNIT | PO0C_Z003_ST02_21_00_PIN_UNIT | 1x | ASSEMBLY | MFG |
| 1 | BASE UNIT | PO0C_Z003_ST02_01_00_BASE UNIT | NOS | MATERIAL | |
| 1 | BASE PLATE | PO0C_Z003_ST02_01_01_BASE PLATE | 1x | MS | MFG |
| 2 | SQ TUBES | PO0C_Z003_ST02_01_06__SQUARE_TUBES | 4x | MS | MFG |
| 3 | PEDESTAL | PO0C_Z003_ST02_01_02_PEDESTAL | 4x | MS | MFG |
| 4 | ROUGH LOCATORS | PO0C_Z003_ST02_01_04__ROUGH_LOCATOR | 8x | C45 | MFG |
| 5 | PNEMATIC CHANEL | PO0C_Z003_ST02_01_08_HOSE_CHANEL | 1x | HOSE | MFG |
| 6 | VALVE BOX | PO0C_Z003_ST02_01_09_VALVE_BOX | 1x | - | MFG |
| 7 | M12 EYE BOLT | EYE BOLT | 4x | - | STANDARD |
| 8 | SCREW M6x45 | ISO 4762 SCREW M6x45 STEEL HEXAGON SOCKET HEAD CAP | 75x | - | STANDARD |
| 9 | PIN 6x45 | ISO 2338 PIN 6x45 STEEL PARALLEL UNHARDENED | 39x | - | STANDARD |
| 2 | PIN UNIT | PO0C_Z003_ST02_02_00_PIN UNIT | 1x | ||
| 1 | PIN | PO0C_Z003_ST02_02_01_PIN | 1x | C45 | MFG |
| 2 | PIN_RETAINER | PO0C_Z003_ST02_02_02_PIN_RETAINER | 1x | MS | MFG |
| 3 | L_BLOCK | PO0C_Z003_ST02_02_03_L_BLOCK | 1x | MS | MFG |
| 4 | RAISER | PO0C_Z003_ST02_02_04_RAISER | 1x | MS | MFG |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | SCREW M6x45 | ISO 4762 SCREW M6x45 STEEL HEXAGON SOCKET HEAD CAP | 5x | - | STANDARD |
| 7 | PIN 6x45 | ISO 2338 PIN 6x45 STEEL PARALLEL UNHARDENED | 5x | - | STANDARD |
| 3 | REST UNIT | PO0C_Z003_ST02_03_00_REST_UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_03_01_RAISER | 1x | MS | MFG |
| 2 | REST MYLAR | PO0C_Z003_ST02_03_02_REST MYLAR | 1x | MS | MFG |
| 3 | REST MYLAR | PO0C_Z003_ST02_03_03_REST MYLAR | 1x | MS | MFG |
| 4 | SHIMS | SHIMS | 2x | - | STANDARD |
| 5 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4X | - | STANDARD |
| 6 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 4 | REST UNIT | PO0C_Z003_ST02_04_00_REST_UNIT | 1 | ||
| 1 | RAISER | PO0C_Z003_ST02_04_01_RAISER | 1x | MS | MFG |
| 2 | REST MYLAR | PO0C_Z003_ST02_04_02_REST MYLAR | 1x | MS | MFG |
| 3 | SHIMS | SHIMS | 1x | - | STANDARD |
| 4 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 5 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 5 | REST UNIT | PO0C_Z003_ST02_05_00_REST_UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_05_01_RAISER | 1x | MS | MFG |
| 2 | REST_MYLAR_01 | PO0C_Z003_ST02_05_02_REST_MYLAR_01 | 1x | MS | MFG |
| 3 | REST_MYLAR_02 | PO0C_Z003_ST02_05_03_REST_MYLAR_02 | 1x | MS | MFG |
| 4 | SHIMS | SHIMS | 2x | - | STANDARD |
| 5 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 3X | - | STANDARD |
| 6 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 3X | - | STANDARD |
| 6 | REST UNIT | PO0C_Z003_ST02_06_00_REST_UNIT | |||
| 1 | REST_MYLAR | PO0C_Z003_ST02_06_01_REST_MYLAR | 1x | C45 | MFG |
| 2 | RAISER | PO0C_Z003_ST02_06_02_RAISER | 1x | MS | MFG |
| 3 | SHIMS | SHIMS | 1x | - | STANDARD |
| 4 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 5 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 7 | CLAMP UNIT | PO0C_Z003_ST02_07_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_07_01_RAISER | 1x | MS | MFG |
| 2 | CLAMP_MYLAR | PO0C_Z003_ST02_07_02_CLAMP_MYLAR | 1x | MS | MFG |
| 3 | CLAMP_ARM | PO0C_Z003_ST02_07_03_CLAMP_ARM | 1x | C45 | MFG |
| 4 | CYLINDER | 1_V_50_1_BR3_A40_T12_TUENKERS | 1x | - | STANDARD |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 8 | SCREW M8x55 | ISO 4762 SCREW M8x55 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 9 | PIN | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 2x | - | |
| 8 | REST_UNIT | PO0C_Z003_ST02_08_00_REST_UNIT | |||
| 1 | REST_MYLAR | PO0C_Z003_ST02_08_01_REST_MYLAR | 1x | C45 | MFG |
| 2 | RAISER | PO0C_Z003_ST02_08_02_RAISER | 1x | MS | MFG |
| 3 | SHIMS | SHIMS | 1x | - | STANDARD |
| 4 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 5 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |

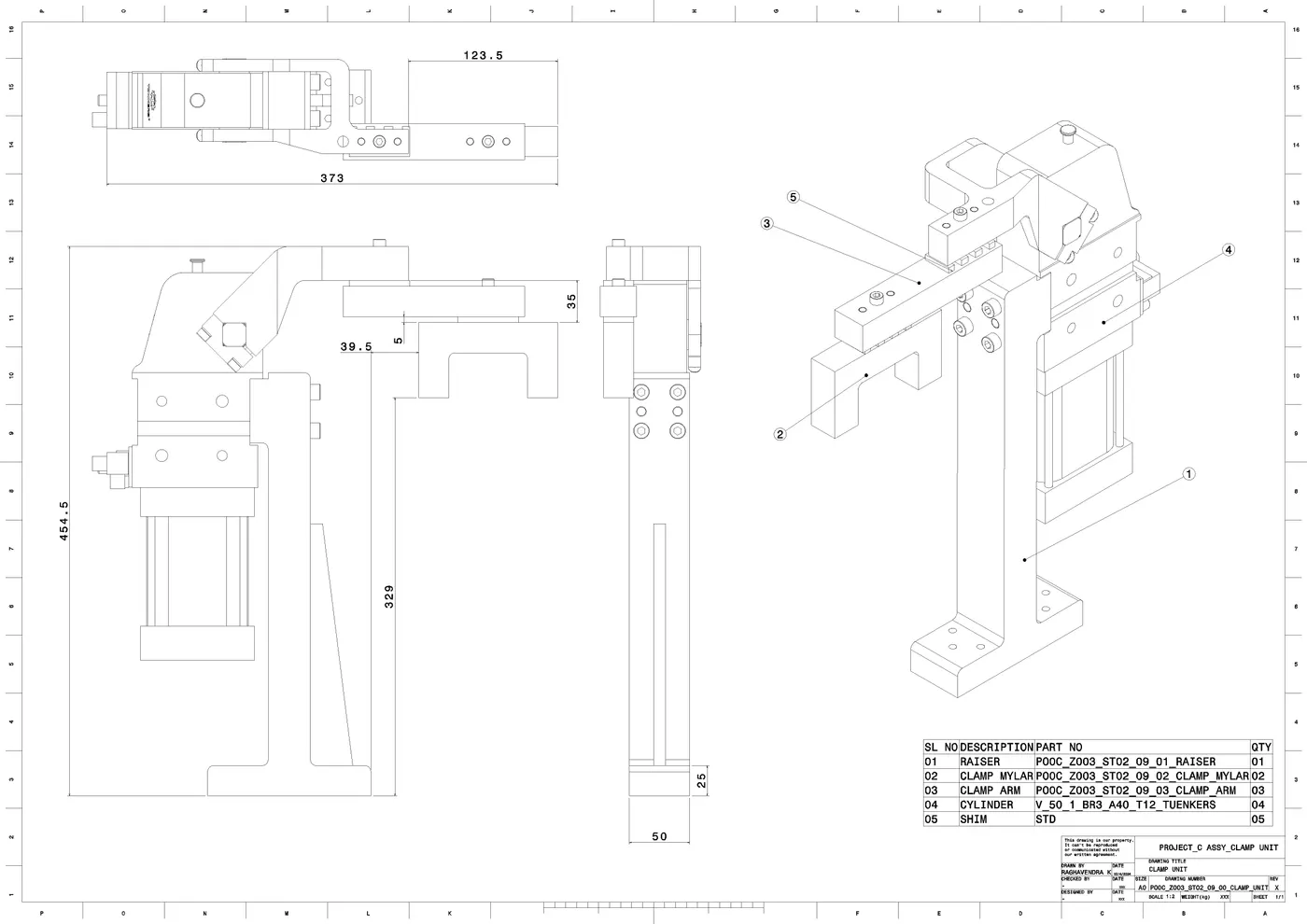

| 9 | CLAMP UNIT | PO0C_Z003_ST02_09_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_09_01_RAISER | 1x | MS | MFG |
| 2 | CLAMP_MYLAR | PO0C_Z003_ST02_09_02_CLAMP_MYLAR | 1x | C45 | MFG |
| 3 | CLAMP_ARM | PO0C_Z003_ST02_09_03_CLAMP_ARM | 1x | MS | MFG |
| 4 | CYLINDER | 1_V_50_1_BR3_A40_T12_TUENKERS | 1x | - | STANDARD |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 8 | SCREW M8x55 | ISO 4762 SCREW M8x55 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 9 | PIN | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 10 | REST_UNIT | PO0C_Z003_ST02_10_00_REST_UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_10_01_RAISER | 1x | MS | MFG |
| 2 | REST MYLAR | PO0C_Z003_ST02_10_02_REST MYLAR | 1x | C45 | MFG |
| 3 | REST MYLAR | PO0C_Z003_ST02_10_03_REST MYLAR | 1x | C45 | MFG |
| 4 | SHIMS | SHIMS | 2x | - | STANDARD |
| 5 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 6 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 11 | PIN_UNIT | PO0C_Z003_ST02_11_00_PIN_UNIT | |||
| 1 | PIN_ | PO0C_Z003_ST02_11_01_PIN_ | 1x | C45 | MFG |
| 2 | PIN_RETAINER | PO0C_Z003_ST02_11_02_PIN_RETAINER | 1x | MS | MFG |
| 3 | L_BLOCK | PO0C_Z003_ST02_11_03_L_BLOCK | 1x | MS | MFG |
| 4 | RAISER | PO0C_Z003_ST02_11_04_RAISER | 1x | MS | MFG |
| 5 | CYLINDER | SZKD_40_BR4_A13_T12_TUENKERS | 1x | - | STANDARD |
| 6 | SHIMS | SHIMS | 2x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x26 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 8 | PIN | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 9 | SCREW M6x25 | ISO 4762 SCREW M6x25 STEEL HEXAGON SOCKET HEAD CAP | 8x | - | STANDARD |
| 12 | CLAMP UNIT | PO0C_Z003_ST02_12_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_12_01_RAISER | 1x | MS | MFG |
| 2 | CLAMP MYLAR | PO0C_Z003_ST02_12_02_CLAMP_MYLAR | 1x | C45 | MFG |
| 3 | CLAMP ARM | PO0C_Z003_ST02_12_03_CLAMP_ARM | 1x | MS | MFG |
| 4 | CYLINDER | V_50_1_BR3_A40_T12_TUENKERS | 1x | - | STANDARD |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 8 | SCREW M8x55 | ISO 4762 SCREW M8x55 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 9 | PIN | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 13 | CLAMP UNIT | PO0C_Z003_ST02_13_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_13_01_RAISER | 1x | MS | MFG |
| 2 | CLAMP_MYLAR | PO0C_Z003_ST02_13_02_CLAMP_MYLAR | 1x | C45 | MFG |
| 3 | CLAMP_ARM | PO0C_Z003_ST02_13_03_CLAMP_ARM | 1x | MS | MFG |
| 4 | SHIMS | SHIMS | 2x | - | STANDARD |
| 5 | PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 6 | SCREW M6x55 | ISO 4762 SCREW M6x55 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 7 | SCREW M8x55 | ISO 4762 SCREW M8x55 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 8 | PIN | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 14 | PIN_UNIT | PO0C_Z003_ST02_14_00_PIN_UNIT | |||
| 1 | PIN_ | PO0C_Z003_ST02_14_01_PIN_ | 1x | C45 | MFG |
| 2 | PIN_RETAINER | PO0C_Z003_ST02_14_02_PIN_RETAINER | 1x | MS | MFG |
| 3 | L_BLOCK | PO0C_Z003_ST02_14_03_L_BLOCK | 1x | MS | MFG |
| 4 | RAISER | PO0C_Z003_ST02_14_04_RAISER | 1x | MS | MFG |
| 5 | CYLINDER | SZKD_40_BR4_A13_T12_TUENKERS | 1x | - | STANDARD |
| 6 | SHIMS | SHIMS | 2x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x26 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 8 | PIN | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 9 | SCREW M6x25 | ISO 4762 SCREW M6x25 STEEL HEXAGON SOCKET HEAD CAP | 8x | - | STANDARD |
| 15 | FIX_PIN_UNIT | P00C_Z003_ST02_15_00_FIX_UNIT | |||
| 1 | L_BLOCK | P00C_Z003_ST02_15_01_L_BLOCK | 1x | MS | MFG |
| 2 | PIN | P00C_Z003_ST02_15_02_PIN | 1x | C45 | MFG |
| 3 | PIN_RETAINER | P00C_Z003_ST02_15_03_PIN_RETAINER | 1x | MS | MFG |
| 4 | RAISER | P00C_Z003_ST02_15_04_RAISER | 1x | MS | MFG |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 16 | FIX_PIN_UNIT | P00C_Z003_ST02_16_00_FIX_UNIT | |||
| 1 | L_BLOCK | P00C_Z003_ST02_16_01_L_BLOCK | 1x | MS | MFG |
| 2 | PIN | P00C_Z003_ST02_16_02_PIN | 1x | C45 | MFG |
| 3 | PIN_RETAINER | P00C_Z003_ST02_16_03_PIN_RETAINER | 1x | MS | MFG |
| 4 | RAISER | P00C_Z003_ST02_16_04_RAISER | 1x | MS | MFG |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 15 | FIX_PIN_UNIT | P00C_Z003_ST02_17_00_FIX_UNIT | |||
| 1 | L_BLOCK | P00C_Z003_ST02_17_01_L_BLOCK | 1x | MS | MFG |
| 2 | PIN | P00C_Z003_ST02_17_02_PIN | 1x | C45 | MFG |
| 3 | PIN_RETAINER | P00C_Z003_ST02_17_03_PIN_RETAINER | 1x | MS | MFG |
| 4 | RAISER | P00C_Z003_ST02_17_04_RAISER | 1x | MS | MFG |
| 5 | SHIMS | SHIMS | 2x | - | STANDARD |
| 6 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |

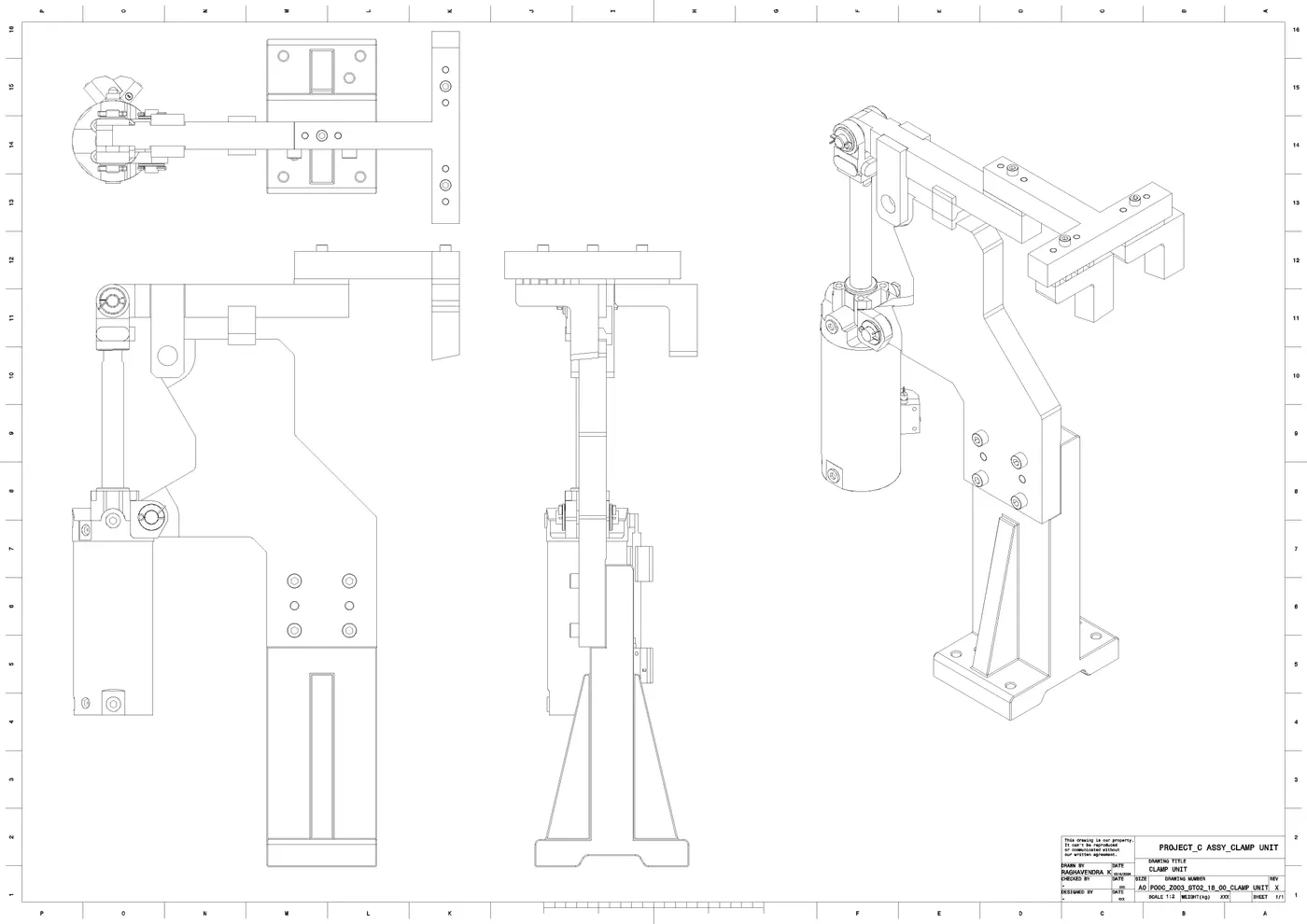

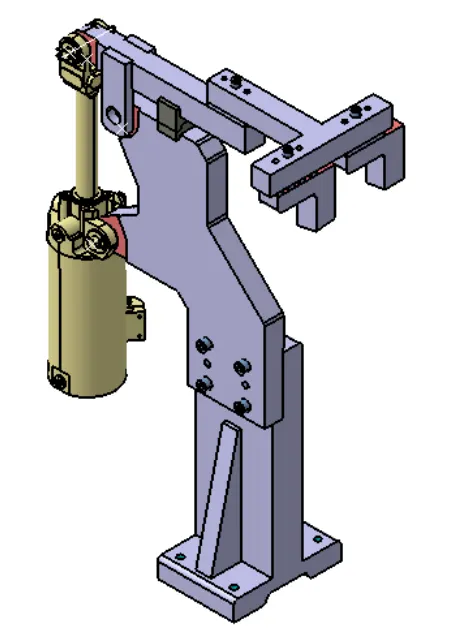

| 18 | CLAMP UNIT | PO0C_Z003_ST02_18_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_18_01_RAISER | 1x | MS | MFG |
| 2 | BLADE | PO0C_Z003_ST02_18_02_BLADE | 1x | MS | MFG |
| 3 | CLAMP ARM | PO0C_Z003_ST02_18_03_CLAMP_ARM | 1x | MS | MFG |
| 4 | CLAMP MYLAR | PO0C_Z003_ST02_18_04_CLAMP_MYLAR | 1x | C45 | MFG |
| 5 | NC BLOCK | PO0C_Z003_ST02_18_05_NC_BLOCK | 1x | C45 | MFG |
| 6 | NC BLOCK | PO0C_Z003_ST02_18_06_NC_BLOCK | 1x | C45 | MFG |
| 7 | PIVOT_ARM | PO0C_Z003_ST02_18_07_PIVOT_ARM | 1x | MFG | |
| 8 | CYLINDER | CKG_1B_63_100Y | 1x | - | STANDARD |
| 9 | STOPPER | STOPPER | 1x | - | STANDARD |
| 10 | SHIMS | SHIMS | 2x | - | STANDARD |
| 11 | PIN | ISO 2338 PIN 8x50 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 12 | SCREW M8x50 | ISO 4762 SCREW M8x50 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 13 | SCREW M6x60 | ISO 4762 SCREW M6x60 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 14 | PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 5x | - | STANDARD |
| 15 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 19 | CLAMP UNIT | PO0C_Z003_ST02_19_00_CLAMP UNIT | |||
| 1 | RAISER | PO0C_Z003_ST02_19_01_RAISER | 1x | MS | MFG |
| 2 | BLADE | PO0C_Z003_ST02_19_02_BLADE | 1x | MS | MFG |
| 3 | CLAMP ARM | PO0C_Z003_ST02_19_03_CLAMP_ARM | 1x | MS | MFG |
| 4 | CLAMP MYLAR | PO0C_Z003_ST02_19_04_CLAMP_MYLAR | 1x | C45 | MFG |
| 5 | NC MYLAR | PO0C_Z003_ST02_19_05_NC_MYLAR | 1x | C45 | MFG |
| 6 | NC MYLAR | PO0C_Z003_ST02_19_06_NC_MYLAR | 1x | C45 | MFG |
| 7 | NC_REST | PO0C_Z003_ST02_19_07_NC_REST | 1x | C45 | MFG |
| 8 | NC_REST | PO0C_Z003_ST02_19_08_NC_REST | 1x | C45 | MFG |
| 9 | NC_REST | PO0C_Z003_ST02_19_09_NC_REST | 1x | C45 | MFG |
| 10 | NC MYLAR | PO0C_Z003_ST02_19_10_NC_MYLAR | 1x | C45 | MFG |
| 11 | REST_CLAMP | PO0C_Z003_ST02_19_11_REST_CLAMP | 1x | C45 | MFG |
| 12 | PIVOT_ARM | PO0C_Z003_ST02_19_12_PIVOT_ARM | 1x | MS | MFG |
| 13 | CYLINDER | CKG_1B_63_100Y | 1x | - | STANDARD |
| 14 | STOPPER | STOPPER | 1x | - | STANDARD |
| 15 | SHIMS | SHIMS | 8X | - | STANDARD |
| 16 | PIN | ISO 2338 PIN 8x50 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 17 | SCREW M8x50 | ISO 4762 SCREW M8x50 STEEL HEXAGON SOCKET HEAD CAP | 4x | - | STANDARD |
| 18 | SCREW M6x60 | ISO 4762 SCREW M6x60 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 19 | PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 12x | - | STANDARD |
| 20 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 6x | - | STANDARD |
| 20 | PIN UNIT | PO0C_Z003_ST02_20_00_PIN UNIT | |||
| 1 | PIN | PO0C_Z003_ST02_20_01_PIN | 1x | C45 | MFG |
| 2 | PIN RETAINER | PO0C_Z003_ST02_20_02_PIN_RETAINER | 1x | MS | MFG |
| 3 | L BLOCK | PO0C_Z003_ST02_20_03_L_BLOCK | 1x | MS | MFG |
| 4 | RAISER | PO0C_Z003_ST02_20_04_RAISER | 1x | MS | MFG |
| 5 | CYLINDER | SZKD_40_BR4_A13_T12_TUENKERS | 1x | - | STANDARD |
| 6 | PIN | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 8 | PIN | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 9 | SCREW M6x35 | ISO 4762 SCREW M6x35 STEEL HEXAGON SOCKET HEAD CAP | 8x | - | STANDARD |
| 10 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 11 | SCREW M6x40 | ISO 4762 SCREW M6x40 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| 20 | PIN UNIT | PO0C_Z003_ST02_20_00_PIN UNIT | |||
| 1 | PIN | PO0C_Z003_ST02_20_01_PIN | 1x | C45 | MFG |
| 2 | PIN RETAINER | PO0C_Z003_ST02_20_02_PIN_RETAINER | 1x | MS | MFG |
| 3 | L BLOCK | PO0C_Z003_ST02_20_03_L_BLOCK | 1x | MS | MFG |
| 4 | RAISER | PO0C_Z003_ST02_20_04_RAISER | 1x | MS | MFG |
| 5 | CYLINDER | SZKD_40_BR4_A13_T12_TUENKERS | 1x | - | STANDARD |
| 6 | PIN | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | PIN | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 8 | PIN | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 2x | - | STANDARD |
| 9 | SCREW M6x35 | ISO 4762 SCREW M6x35 STEEL HEXAGON SOCKET HEAD CAP | 8x | - | STANDARD |
| 10 | SCREW M6x50 | ISO 4762 SCREW M6x50 STEEL HEXAGON SOCKET HEAD CAP | 1x | - | STANDARD |
| 11 | SCREW M6x40 | ISO 4762 SCREW M6x40 STEEL HEXAGON SOCKET HEAD CAP | 2x | - | STANDARD |
| SL NO | DESCRIPTION | PART NUMBER | QTY | MATERIAL | MAKE |
| 1 | DOWEL PIN | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 33x | - | STANDARD |
| 2 | DOWEL PIN | ISO 2338 PIN 6x26 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 3 | DOWEL PIN | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 16x | - | STANDARD |
| 4 | DOWEL PIN | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 12x | - | STANDARD |
| 5 | DOWEL PIN | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 29x | - | STANDARD |
| 6 | DOWEL PIN | ISO 2338 PIN 8x50 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 7 | DOWEL PIN | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 10x | - | STANDARD |
| 8 | DOWEL PIN | ISO 2338 PIN 6x45 STEEL PARALLEL UNHARDENED | 44x | - | STANDARD |
| 9 | SCREW | ISO 2338 PIN 6x55 STEEL PARALLEL UNHARDENED | 33x | - | STANDARD |
| 10 | SCREW | ISO 2338 PIN 6x26 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 11 | SCREW | ISO 2338 PIN 6x35 STEEL PARALLEL UNHARDENED | 16x | - | STANDARD |
| 12 | SCREW | ISO 2338 PIN 6x40 STEEL PARALLEL UNHARDENED | 12x | - | STANDARD |
| 13 | SCREW | ISO 2338 PIN 6x50 STEEL PARALLEL UNHARDENED | 29x | - | STANDARD |
| 14 | SCREW | ISO 2338 PIN 8x50 STEEL PARALLEL UNHARDENED | 4x | - | STANDARD |
| 15 | SCREW | ISO 2338 PIN 8x55 STEEL PARALLEL UNHARDENED | 10x | - | STANDARD |
| 16 | SCREW | ISO 2338 PIN 6x45 STEEL PARALLEL UNHARDENED | 44x | - | STANDARD |
| 17 | STOPPER | STOPPER | 2x | - | STANDARD |
| 18 | CYLINDER | CKG_1B_63_100Y | 2x | - | STANDARD |
| 19 | CYLINDER | SZKD_40_BR4_A13_T12_TUENKERS | 4x | MS | STANDARD |
| 20 | CYLINDER | V_50_1_BR3_A40_T12_TUENKERS | 3x | - | STANDARD |
| 21 | SHIMS | SHIMS | 39x | STANDARD | |
Conclusion
1. BIW Fixture is designed to given Panel,
2. 3D,2D finish and documentation is done..
