Project 2

Aim:

Based on the given data, need to do the pile foundation by considering the following aspects:

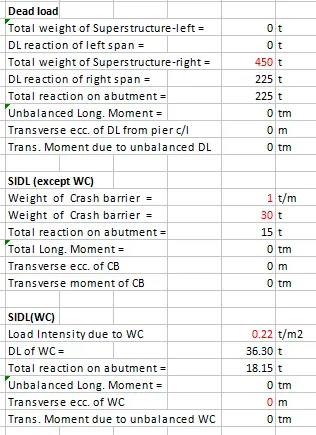

1. Dead load calcualtions to be done based on slab. Here data given as slab based bridge.

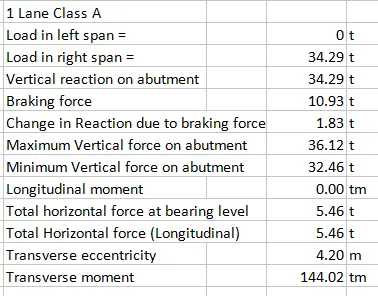

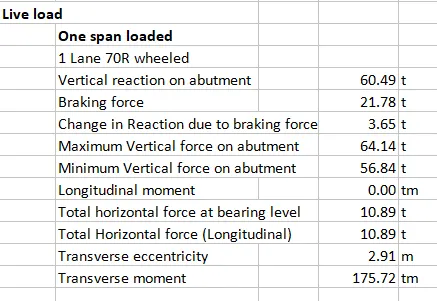

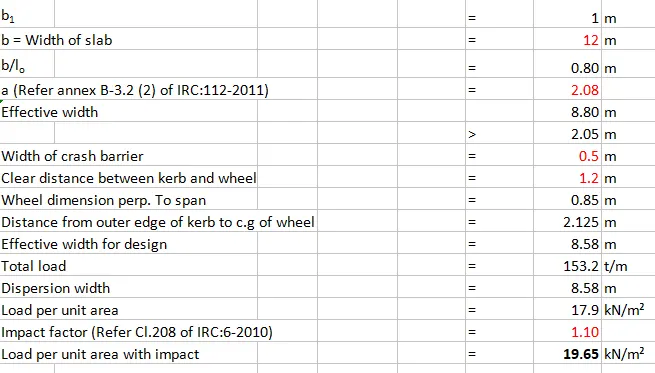

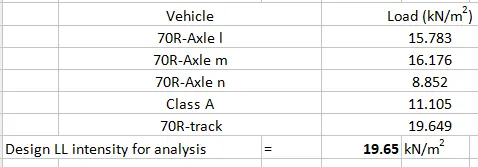

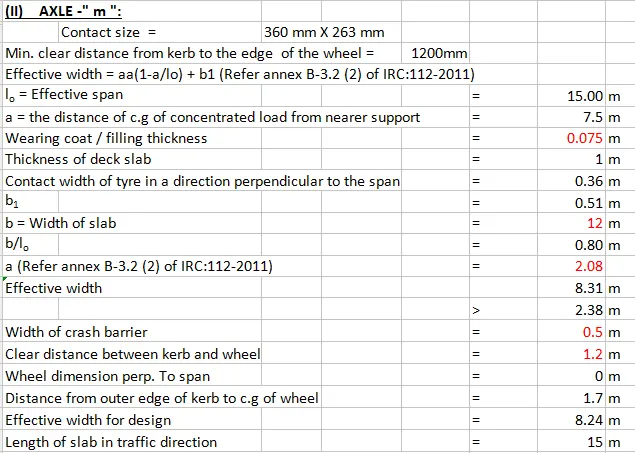

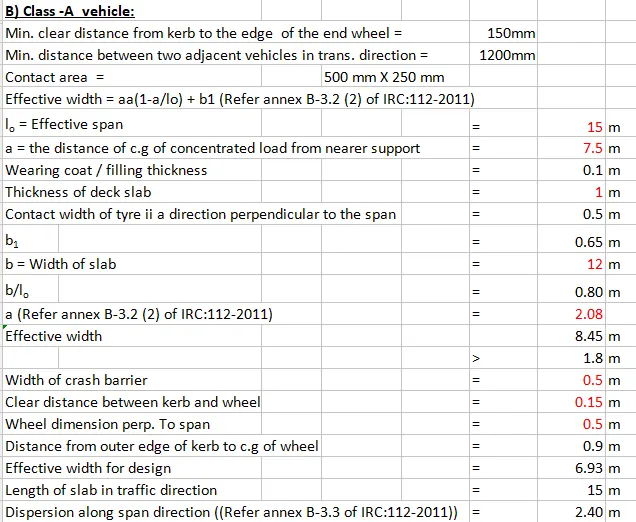

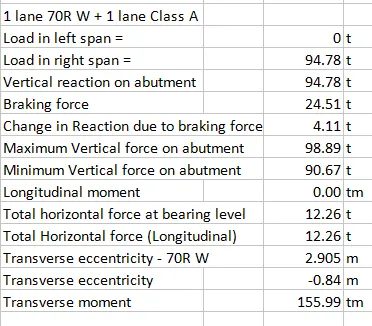

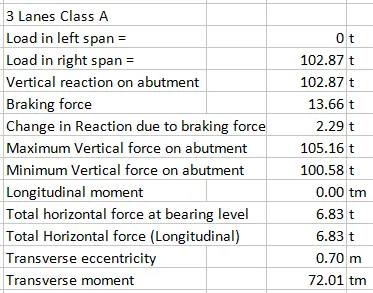

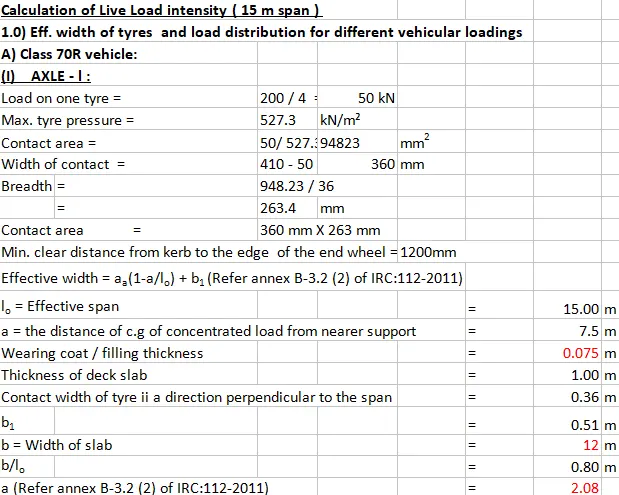

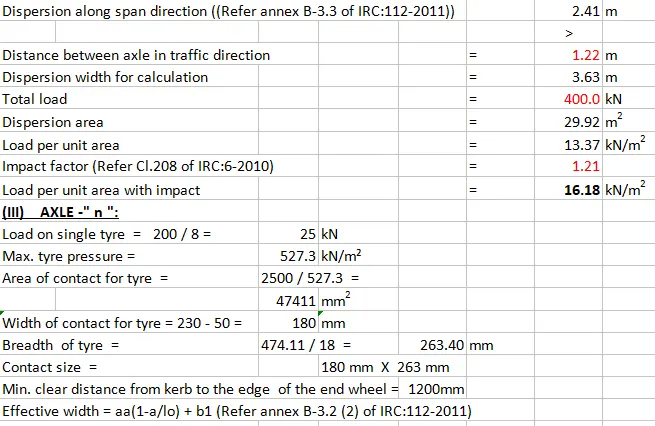

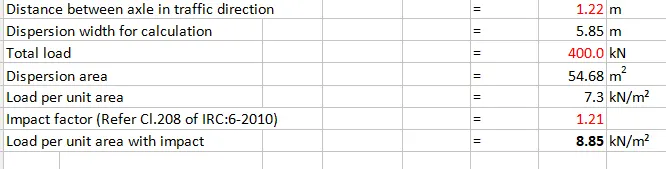

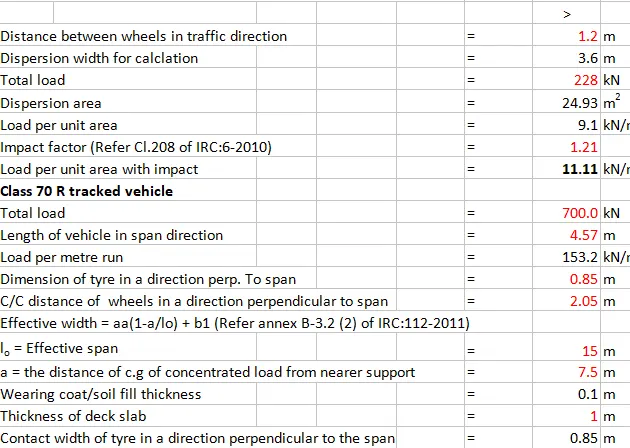

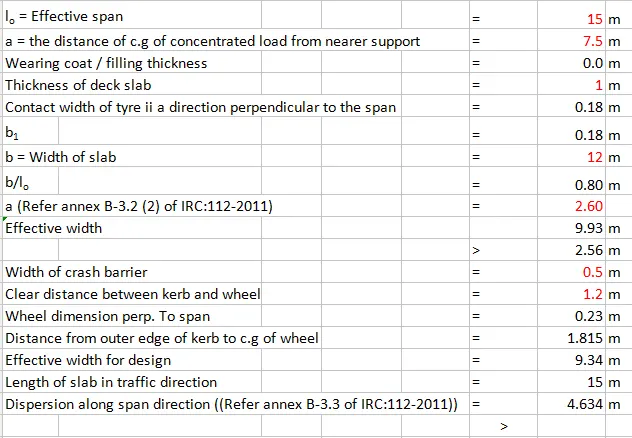

2. For live load calcualtions Class 70R & Class A type to be considered.

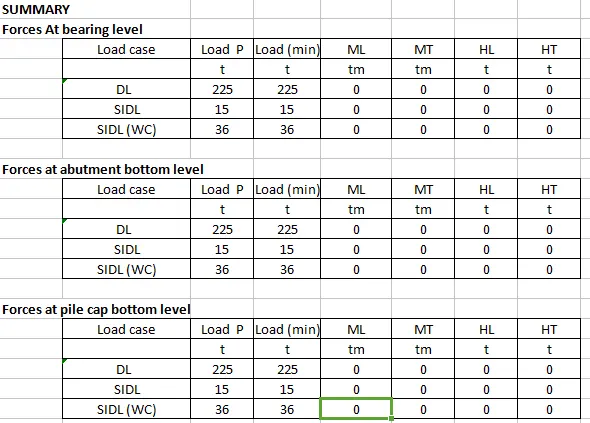

3. Reactions over Abutment to be taken.

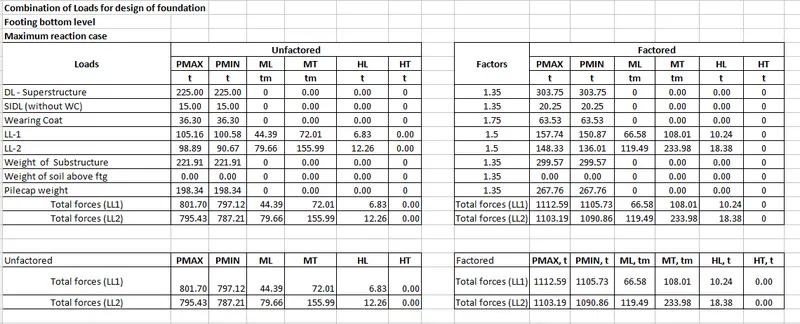

4. ULS, SLS & Quasi based combination & checks to be done.

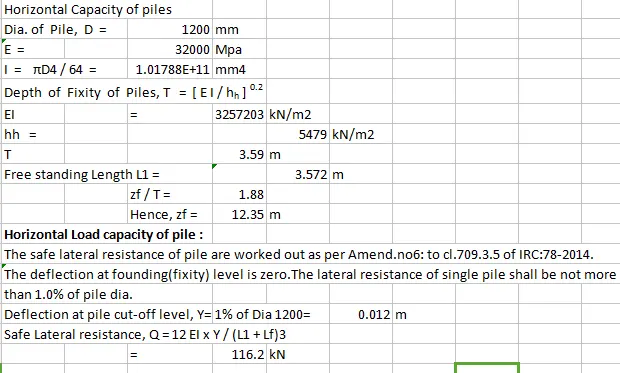

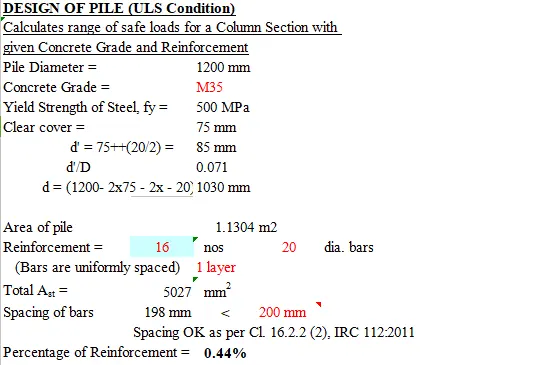

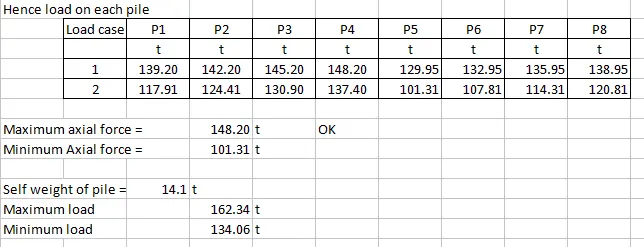

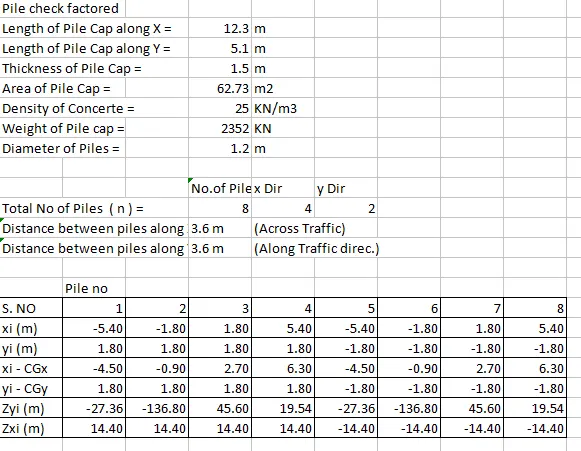

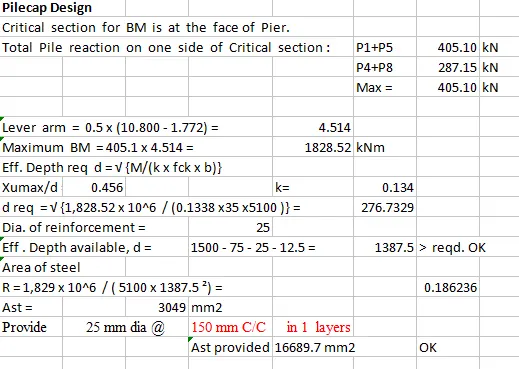

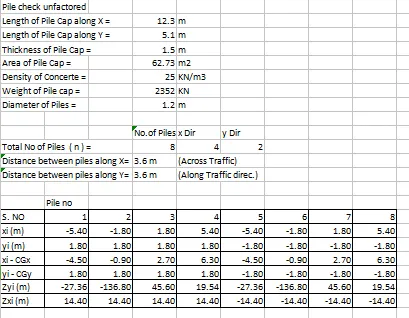

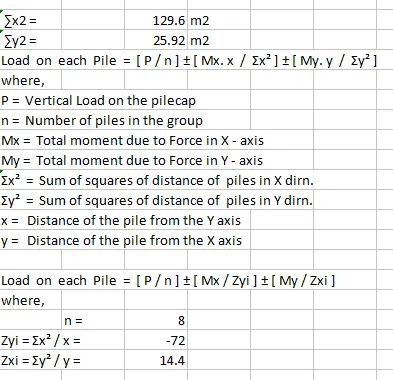

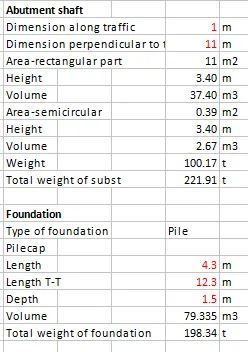

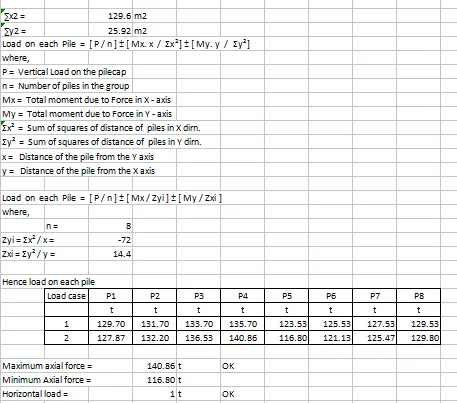

5. Based on the combination pile foundation to be done.

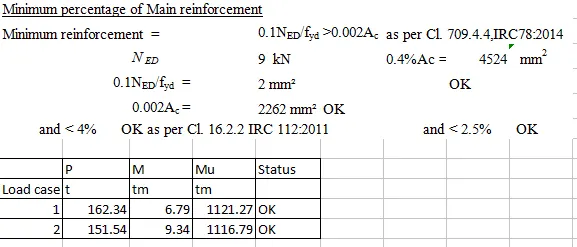

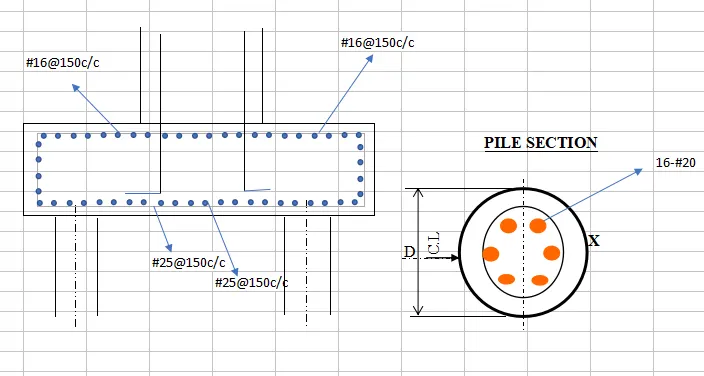

6. Rebar quantities to be estimated based on reinforcement details.

Introduction & Explanation:
