Project 2
Aim: 1. To Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition.
Given:
|
Width |
30m |
|
Length |
50m |
|
Eave Height |
9m |
|
Bay spacing |
6m |
|
Soil type |
Medium |
|
Safe Bearing Capacity |
200 kN/m2 |
|
Roof slope |
1 in 12 |
- Design Basis Report for the project:

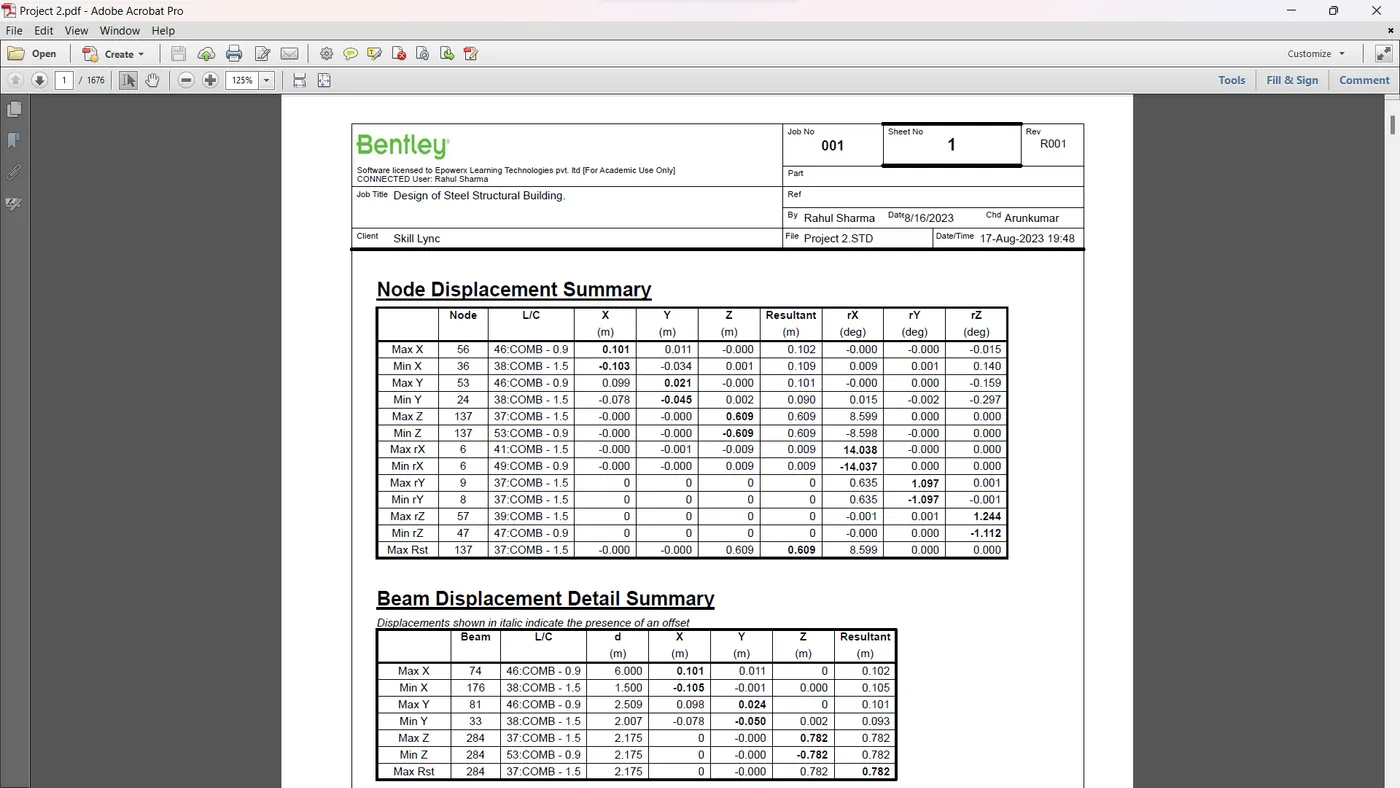

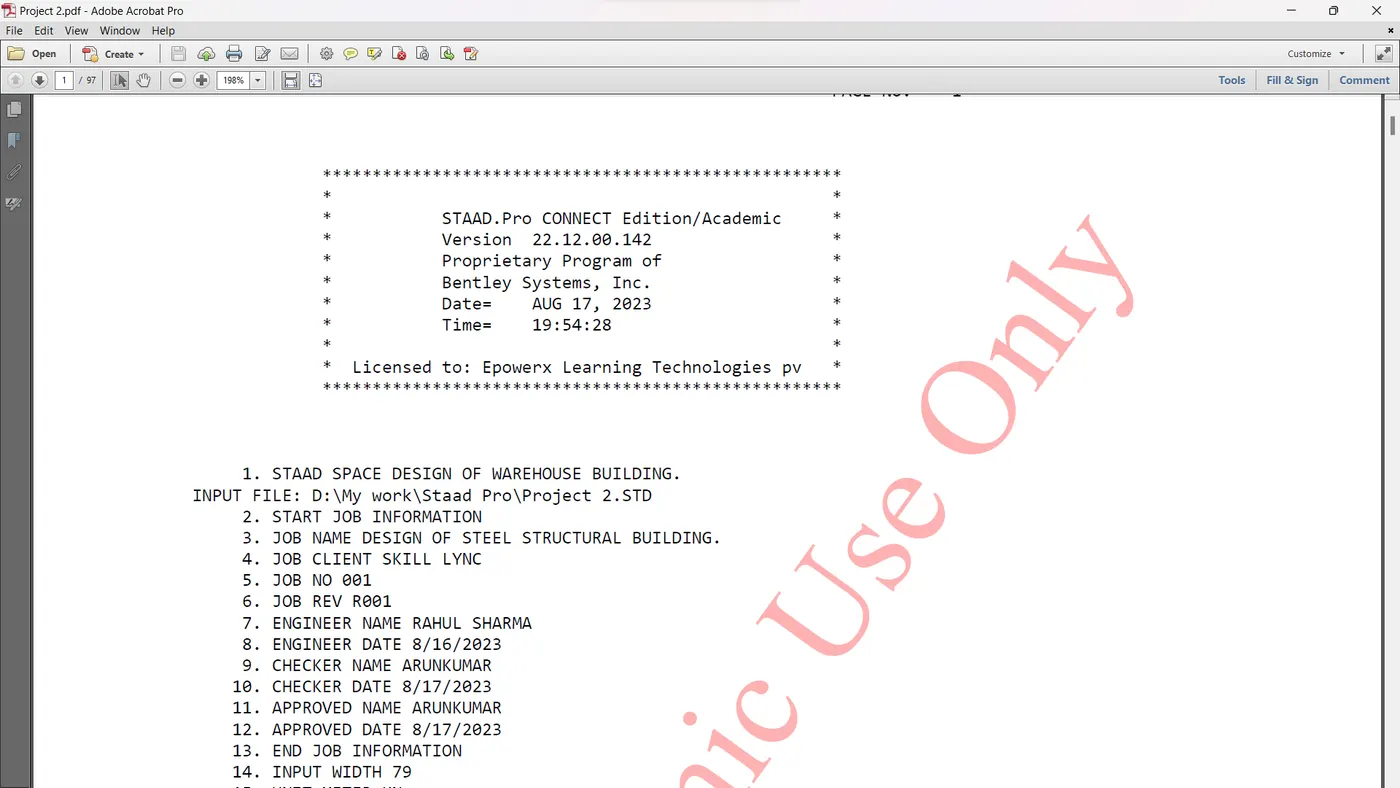

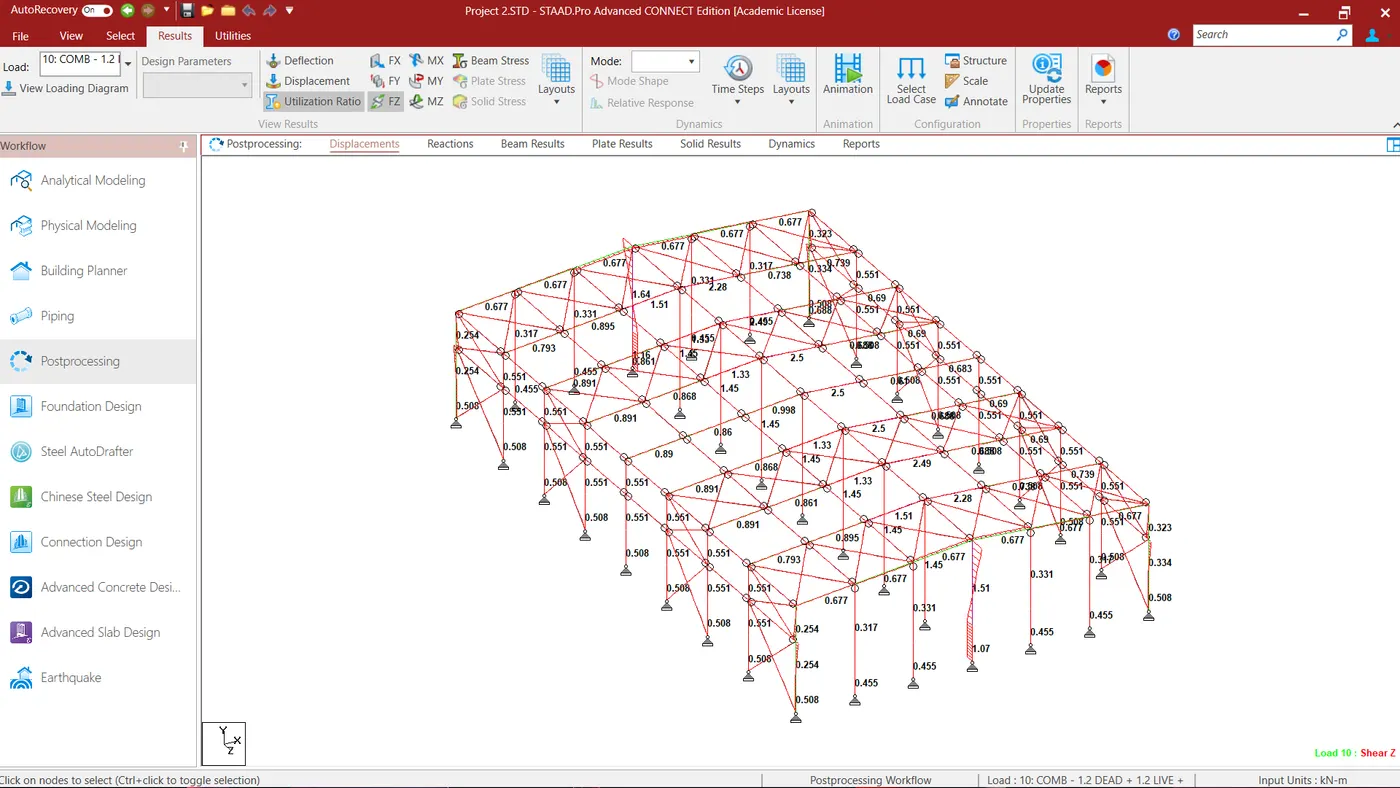

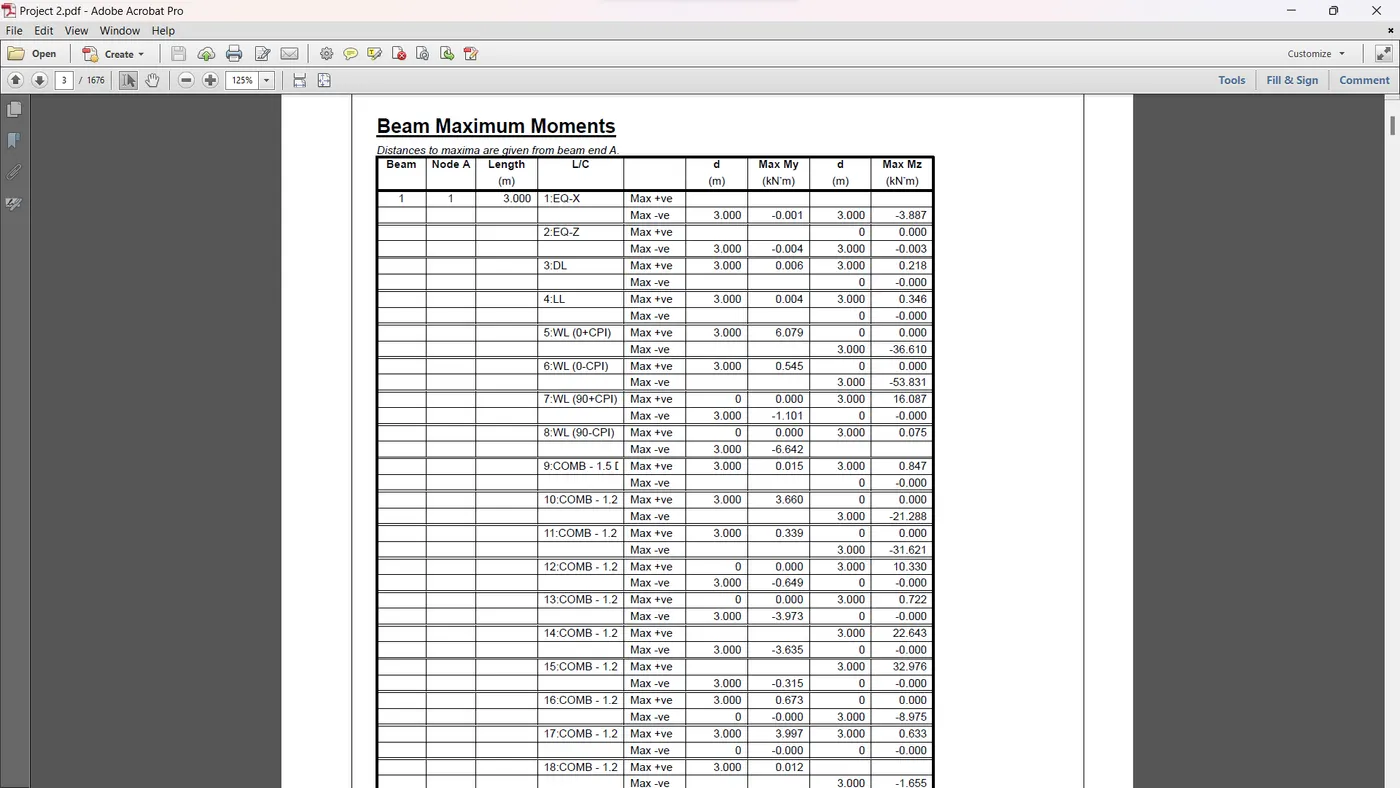

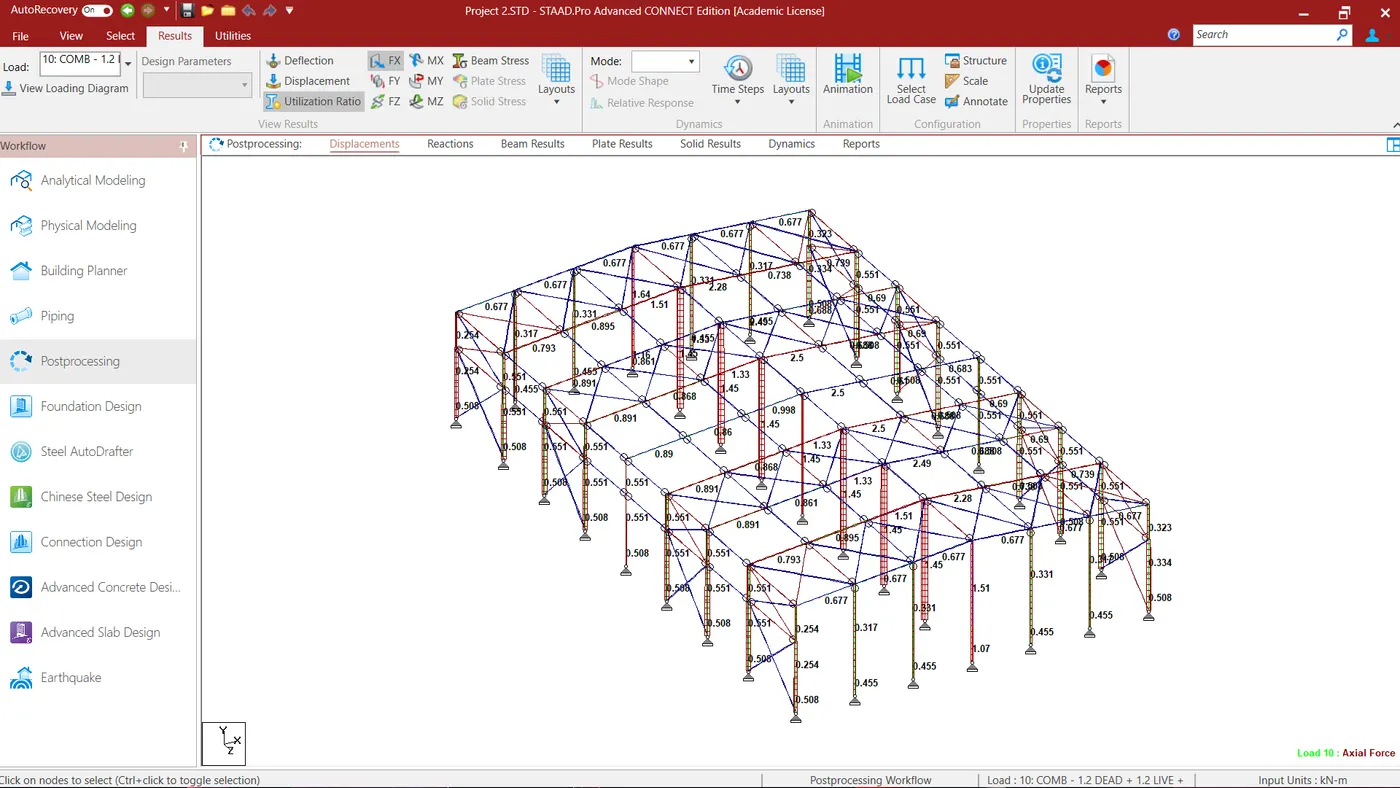

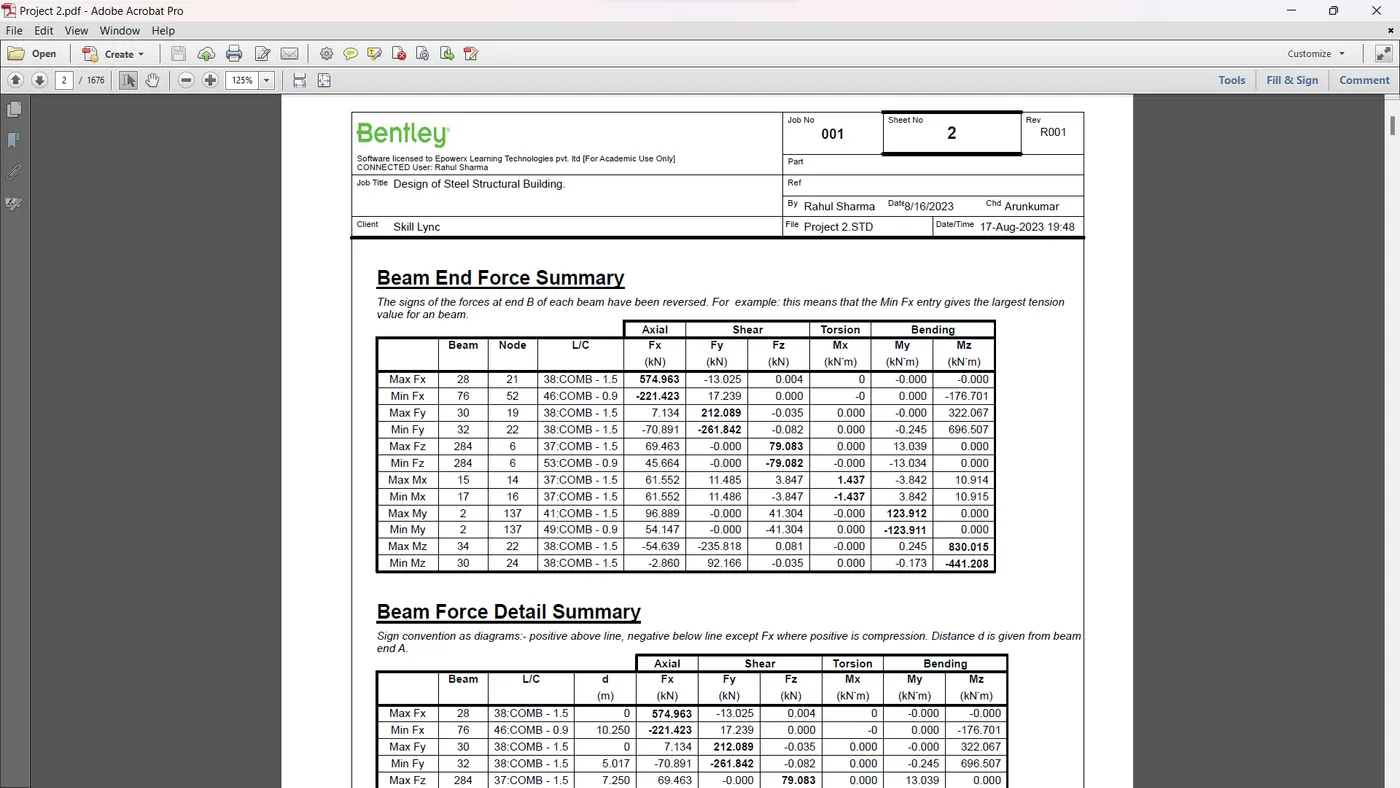

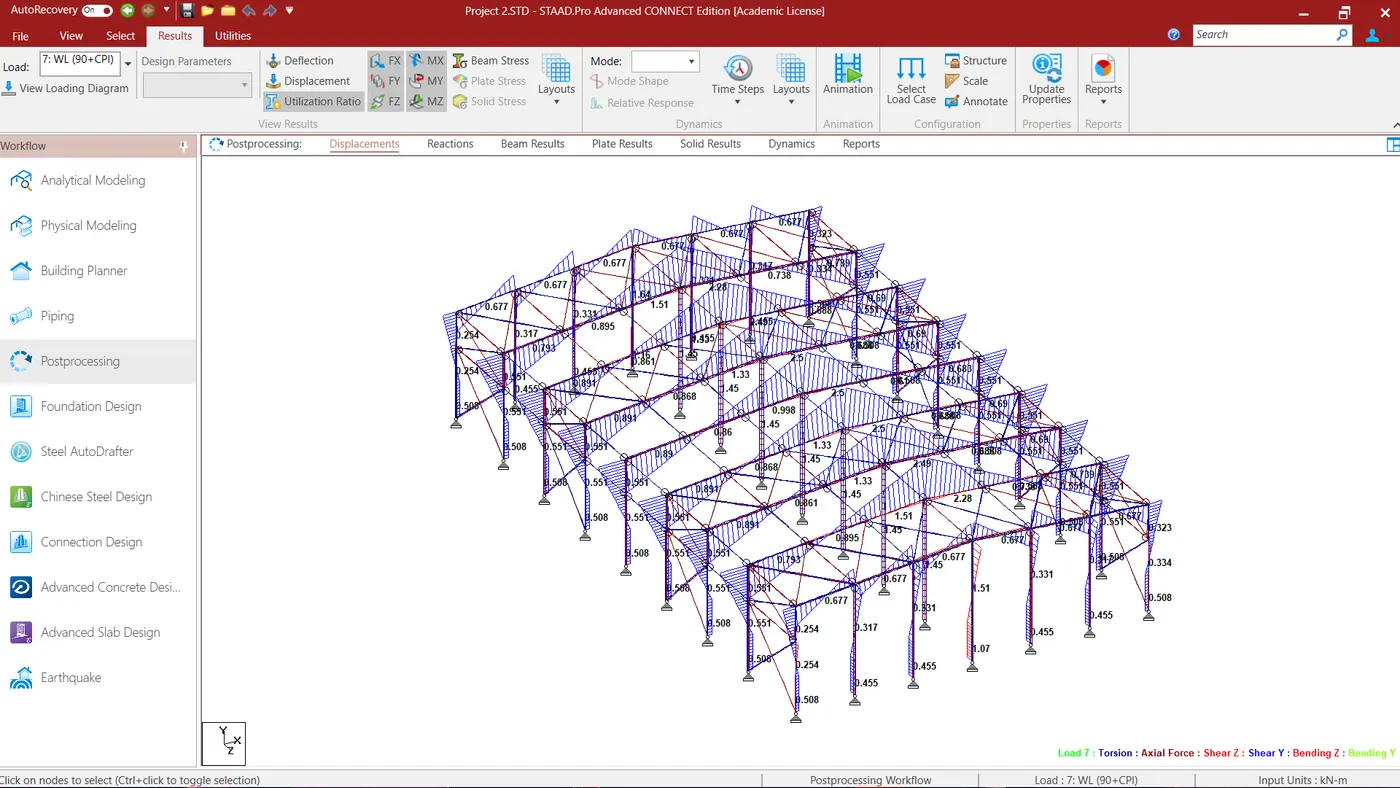

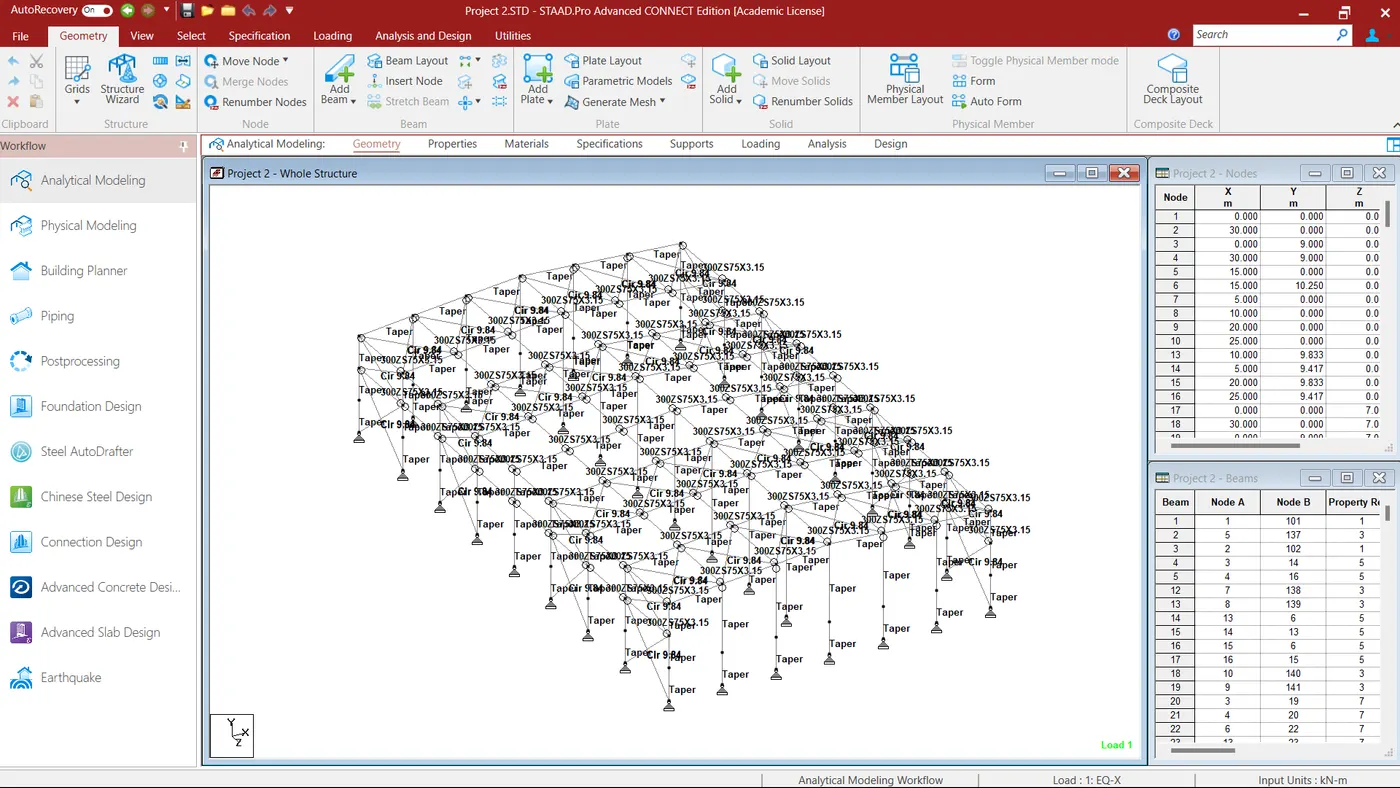

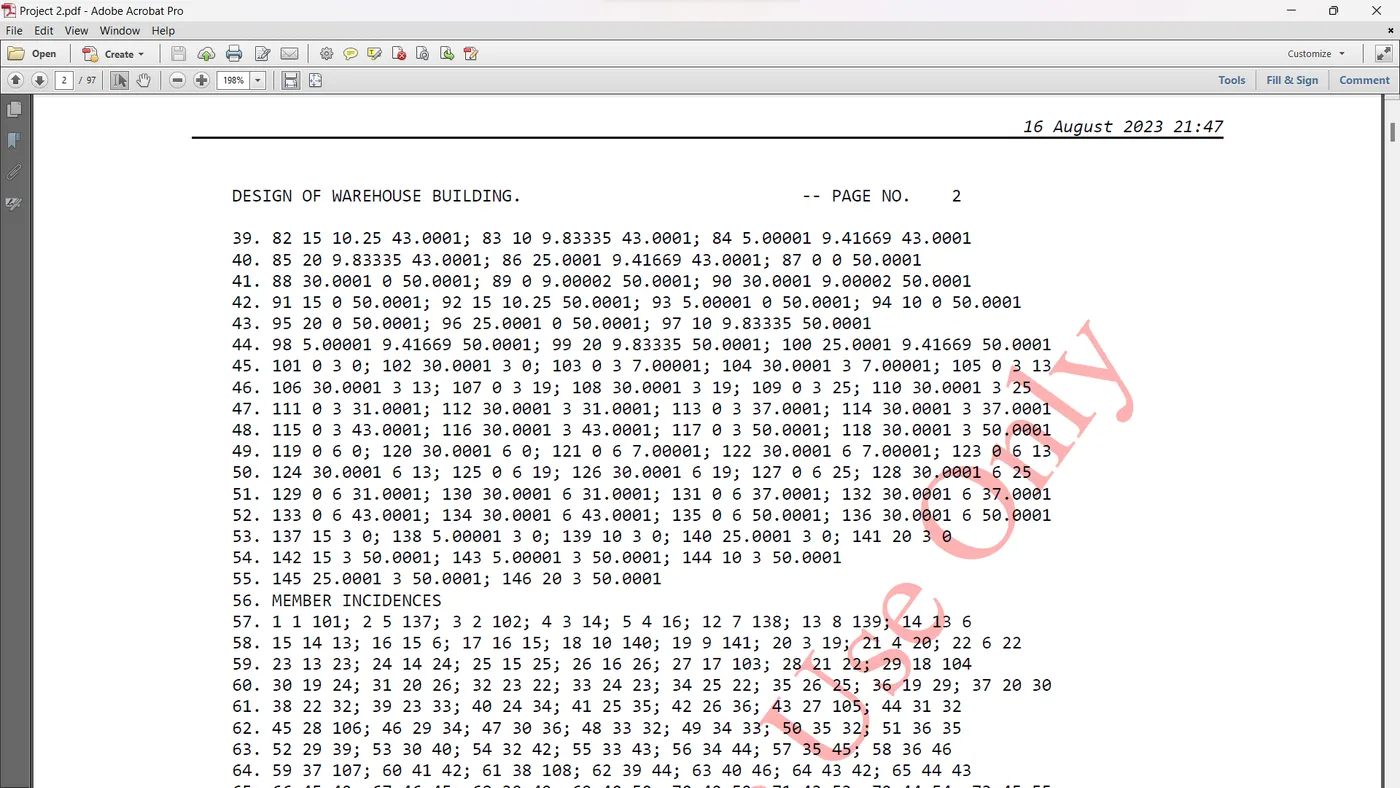

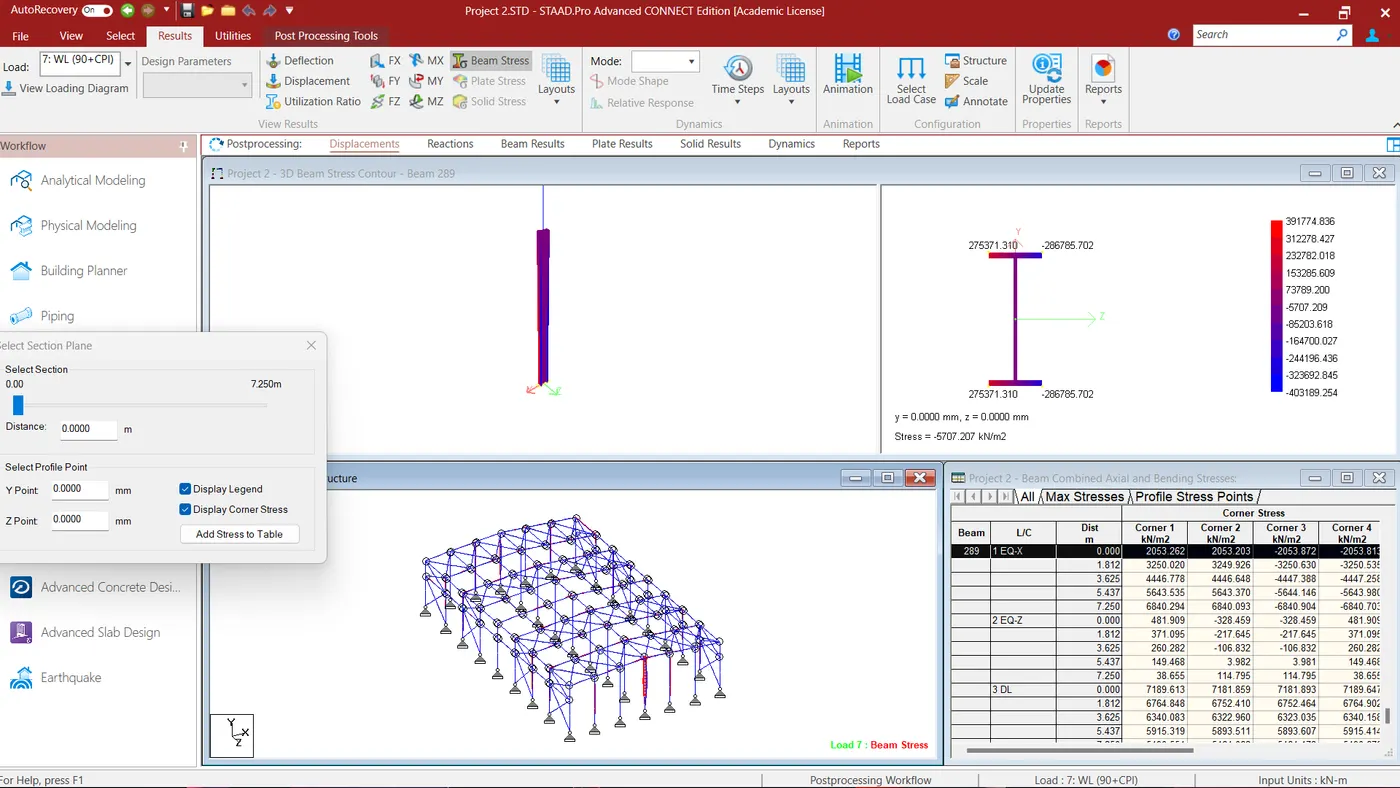

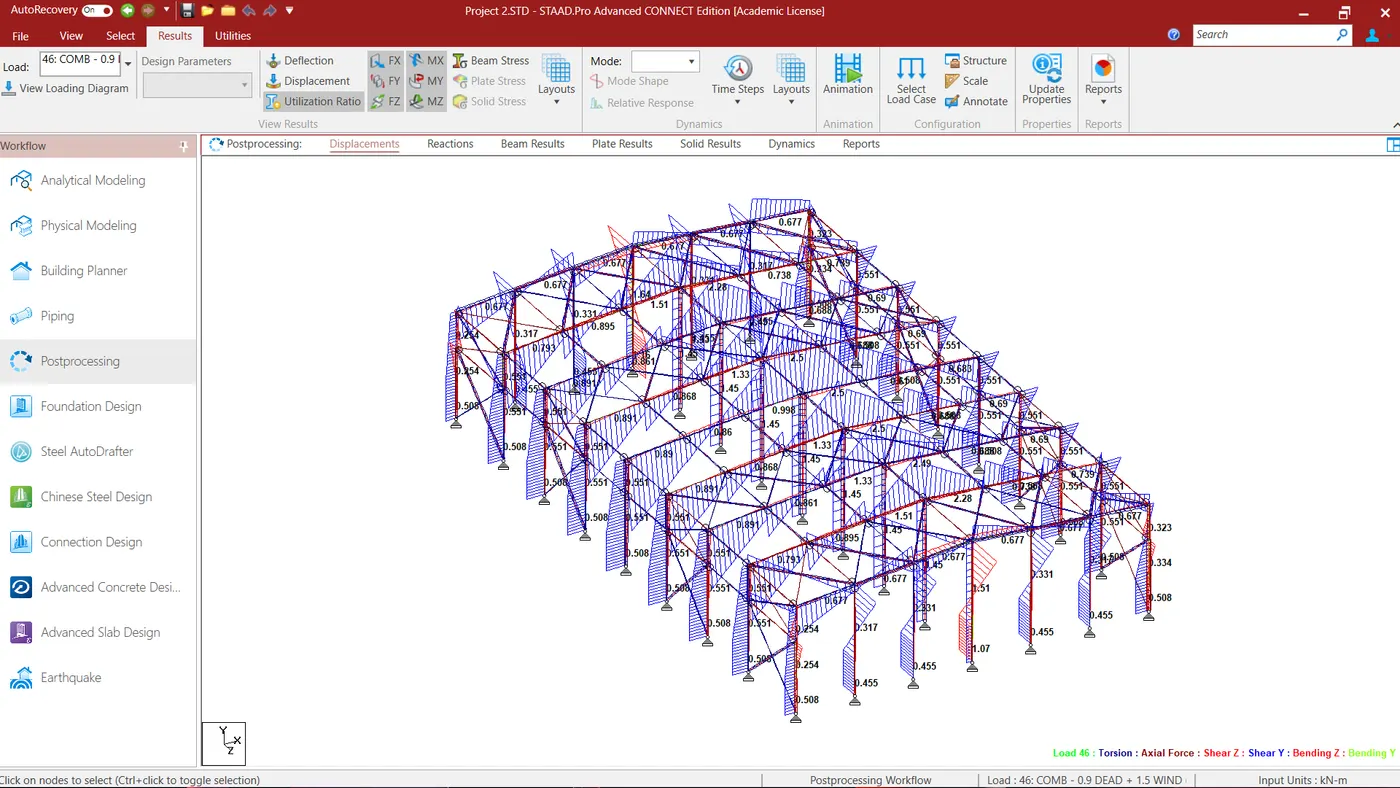

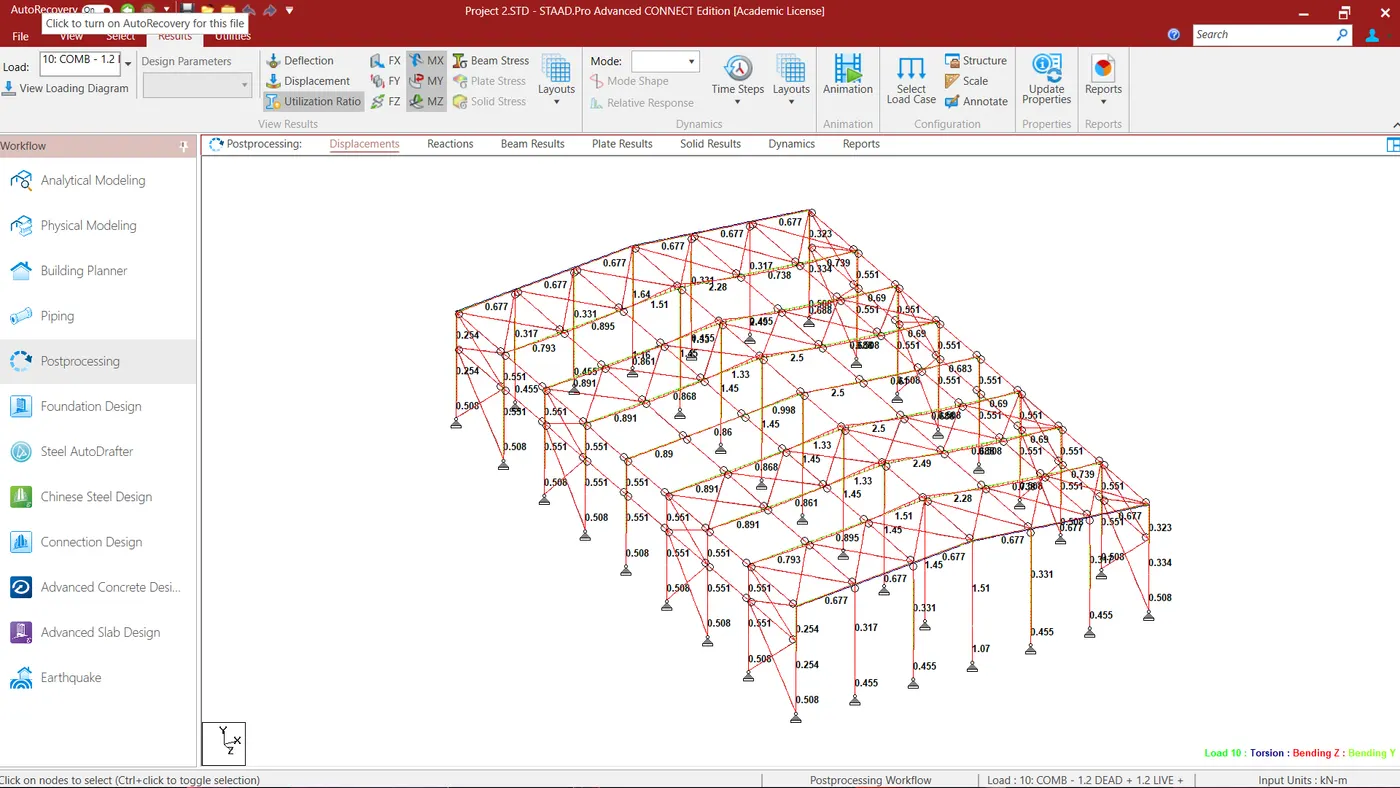

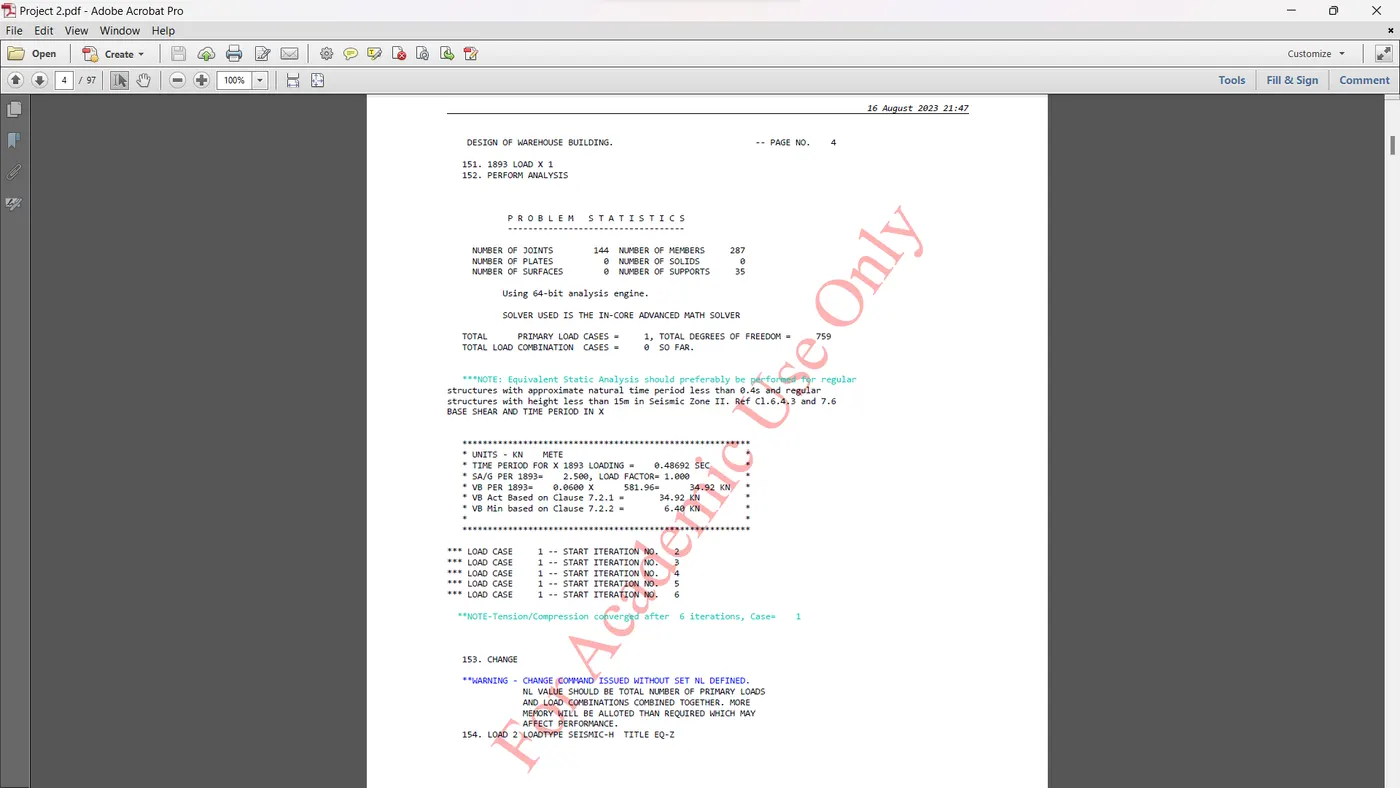

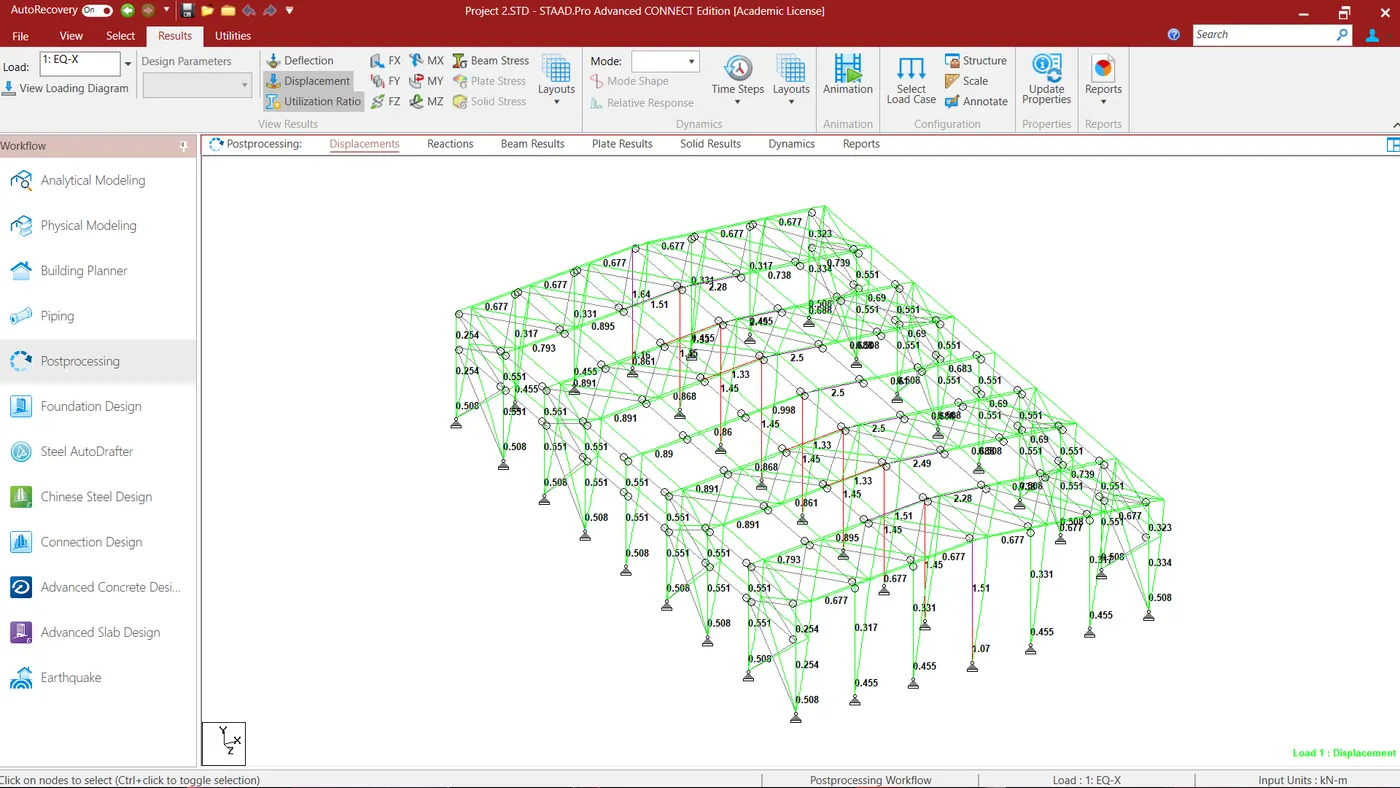

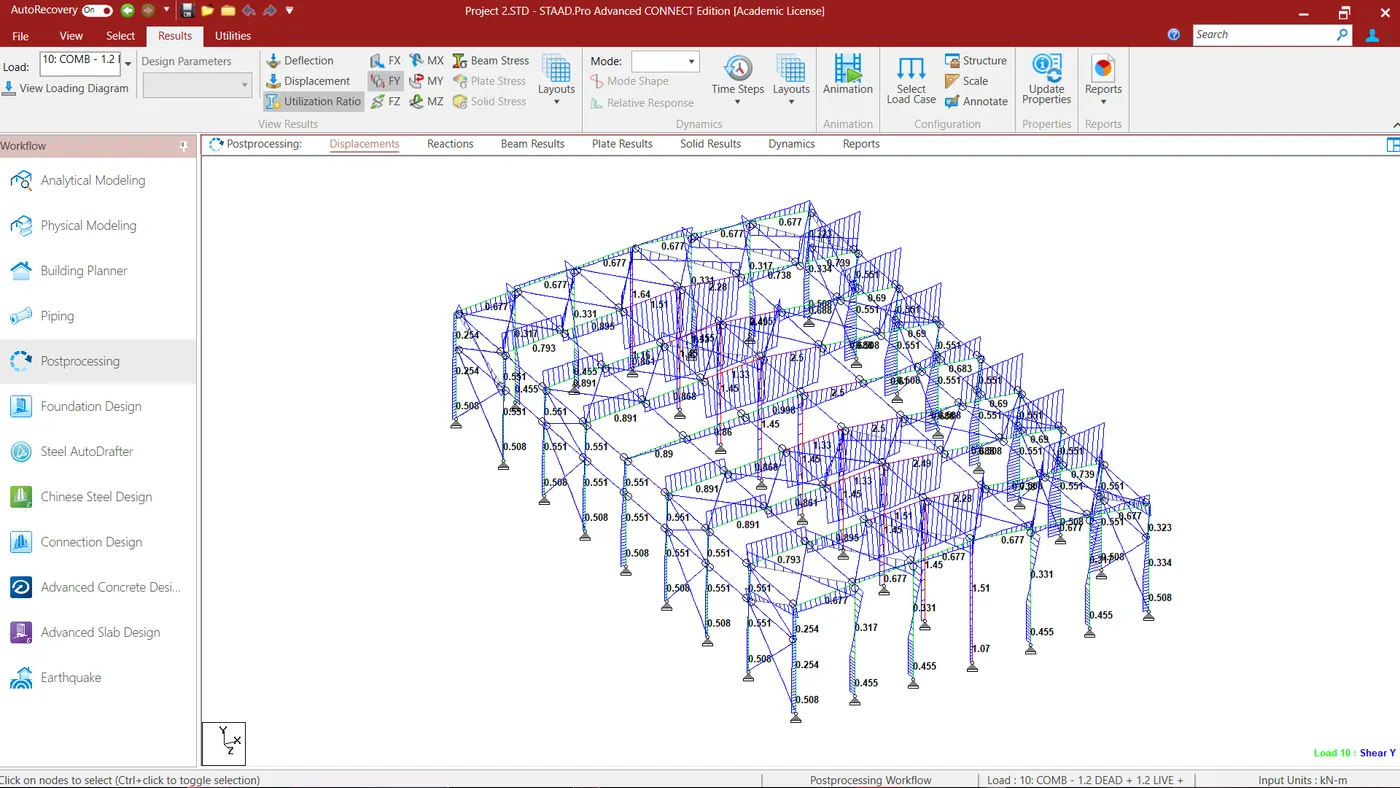

2. Structural Model using Staad Pro

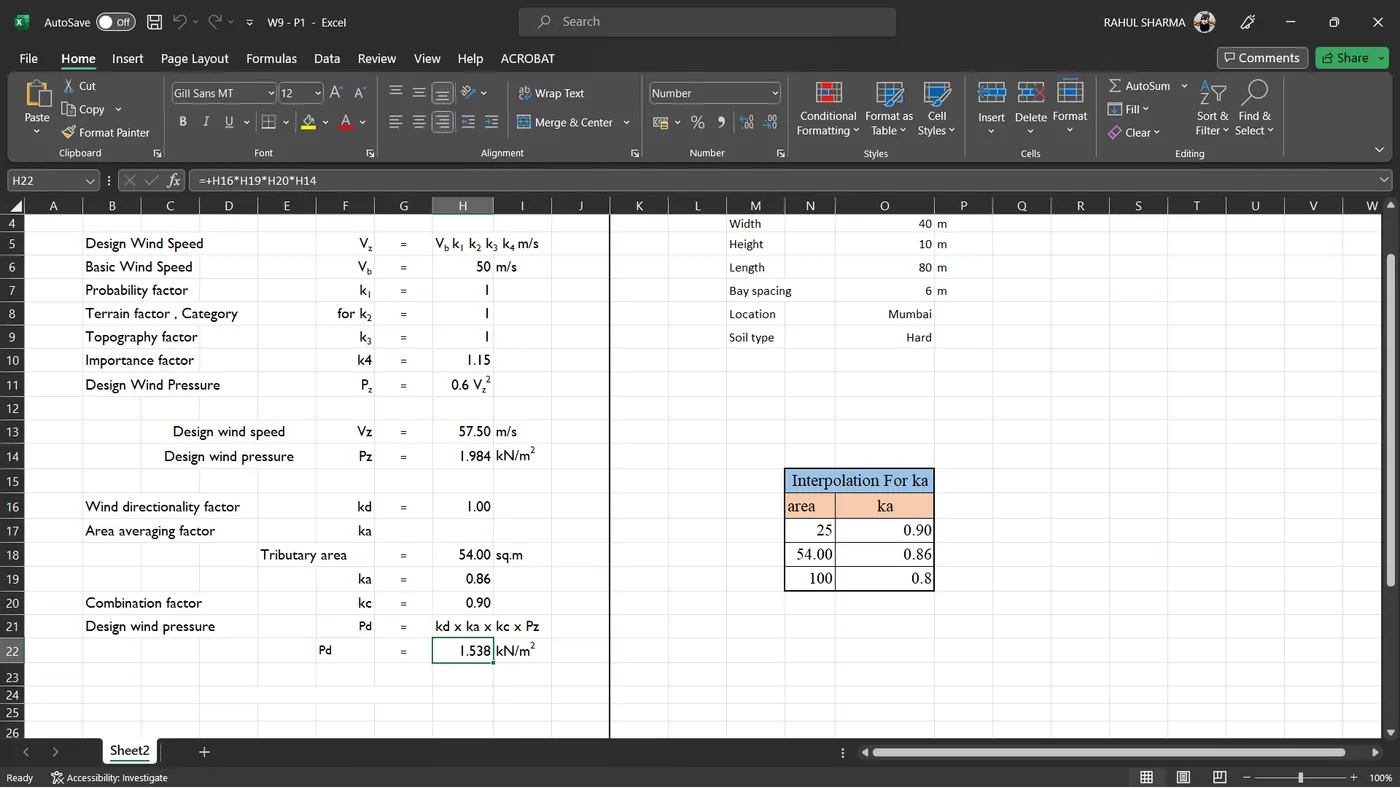

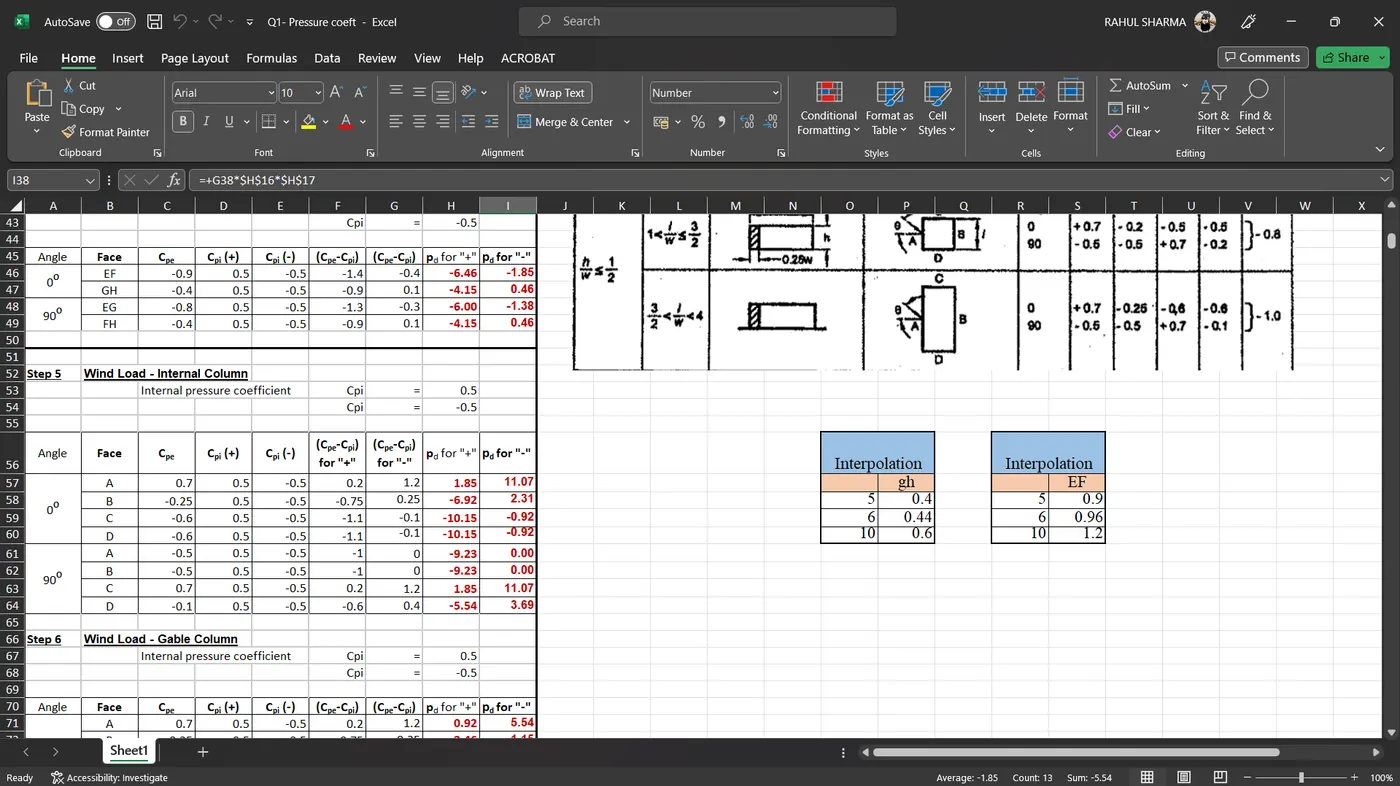

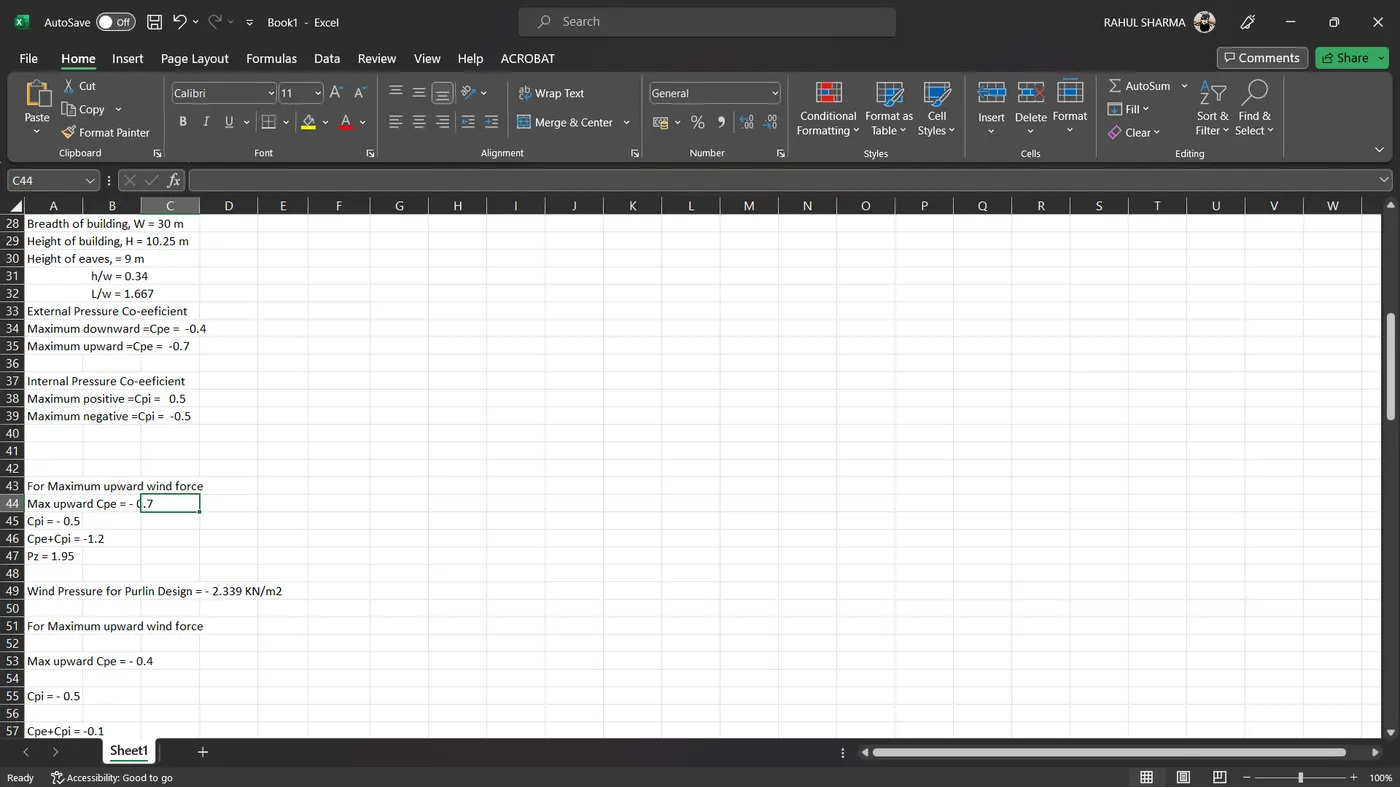

3. DL, LL, EQ, WL load calculations:

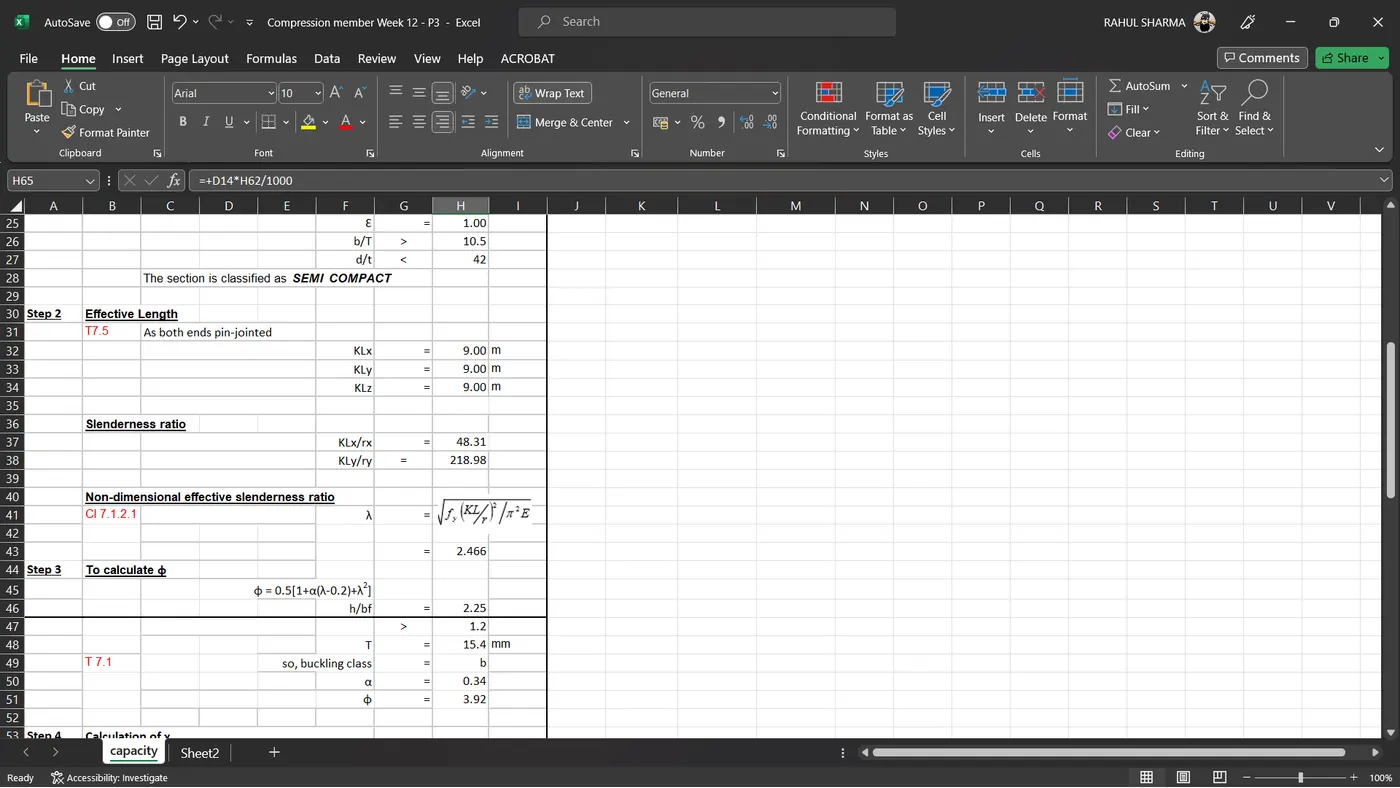

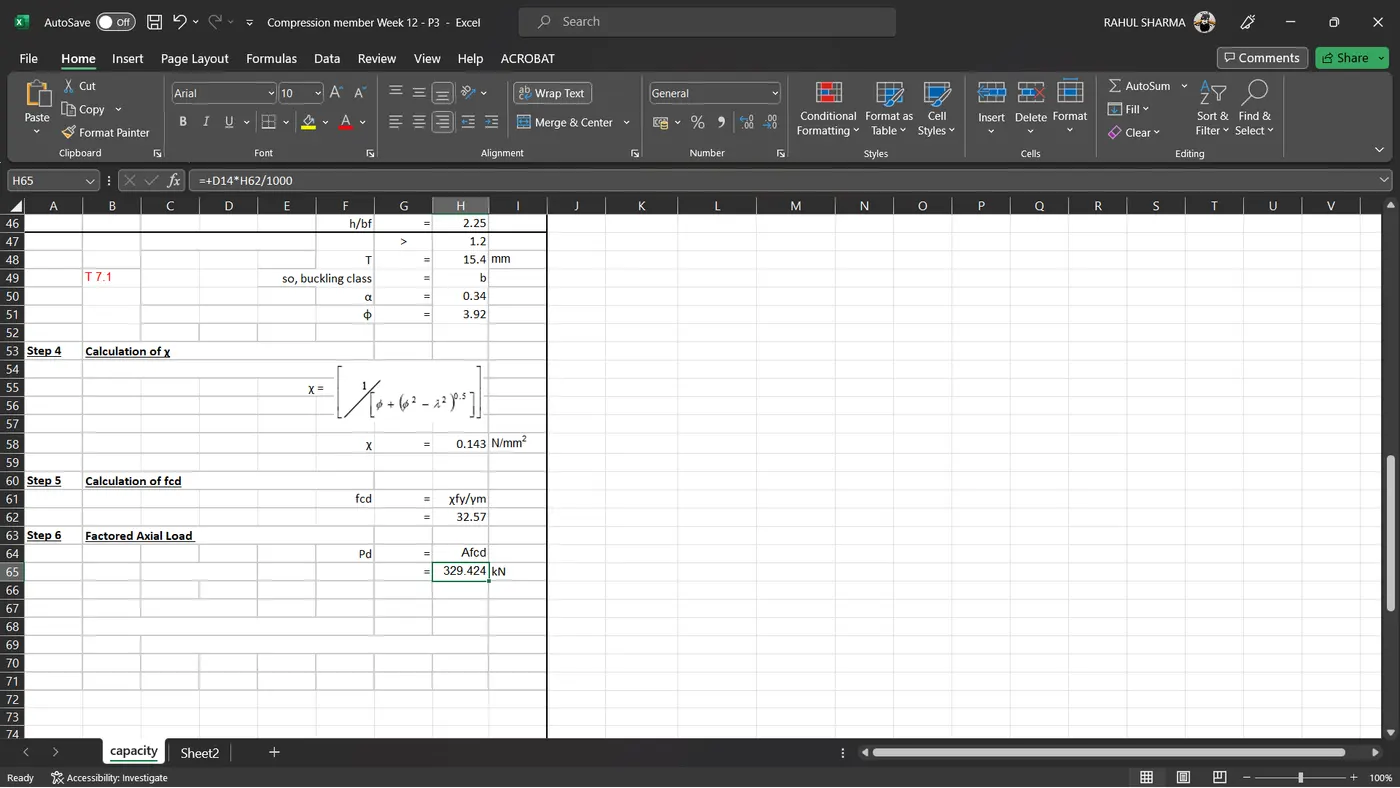

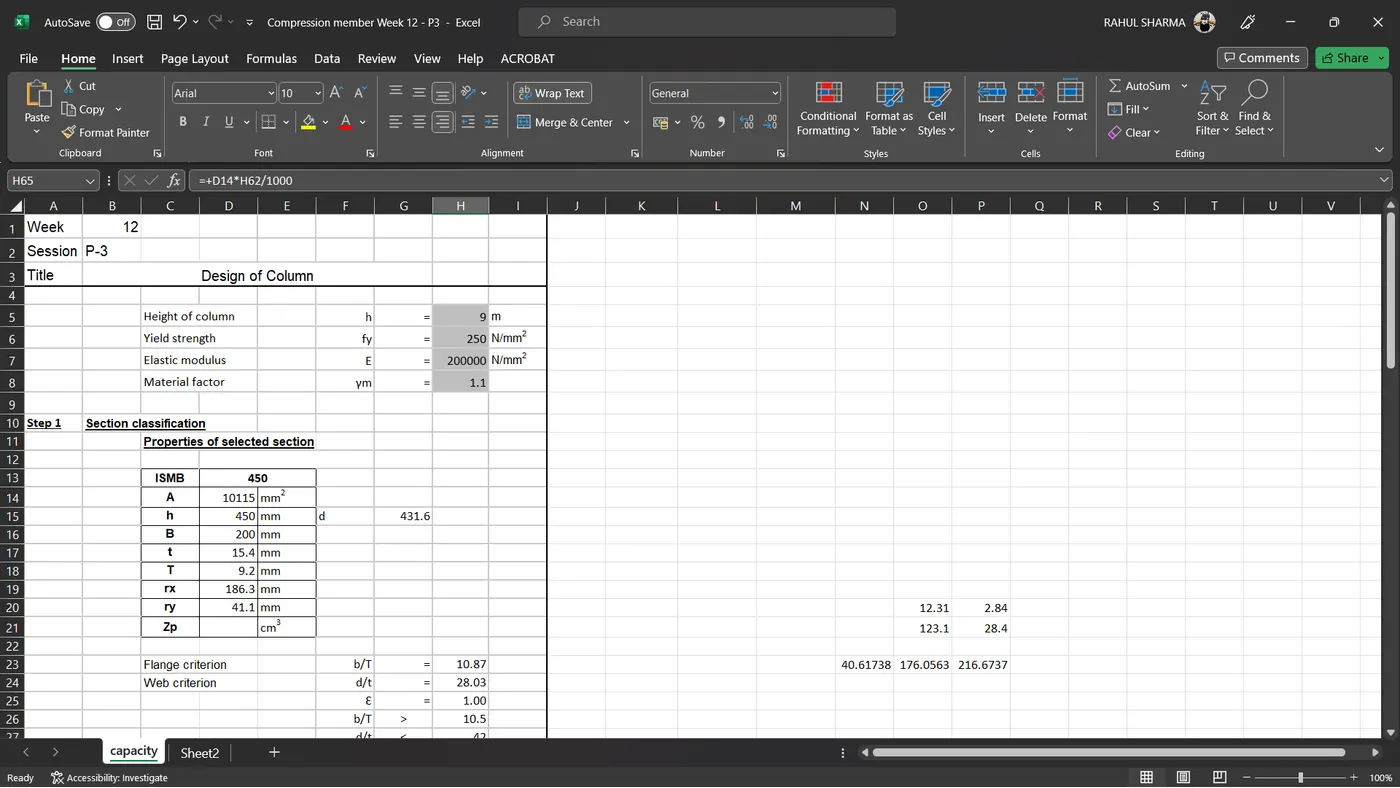

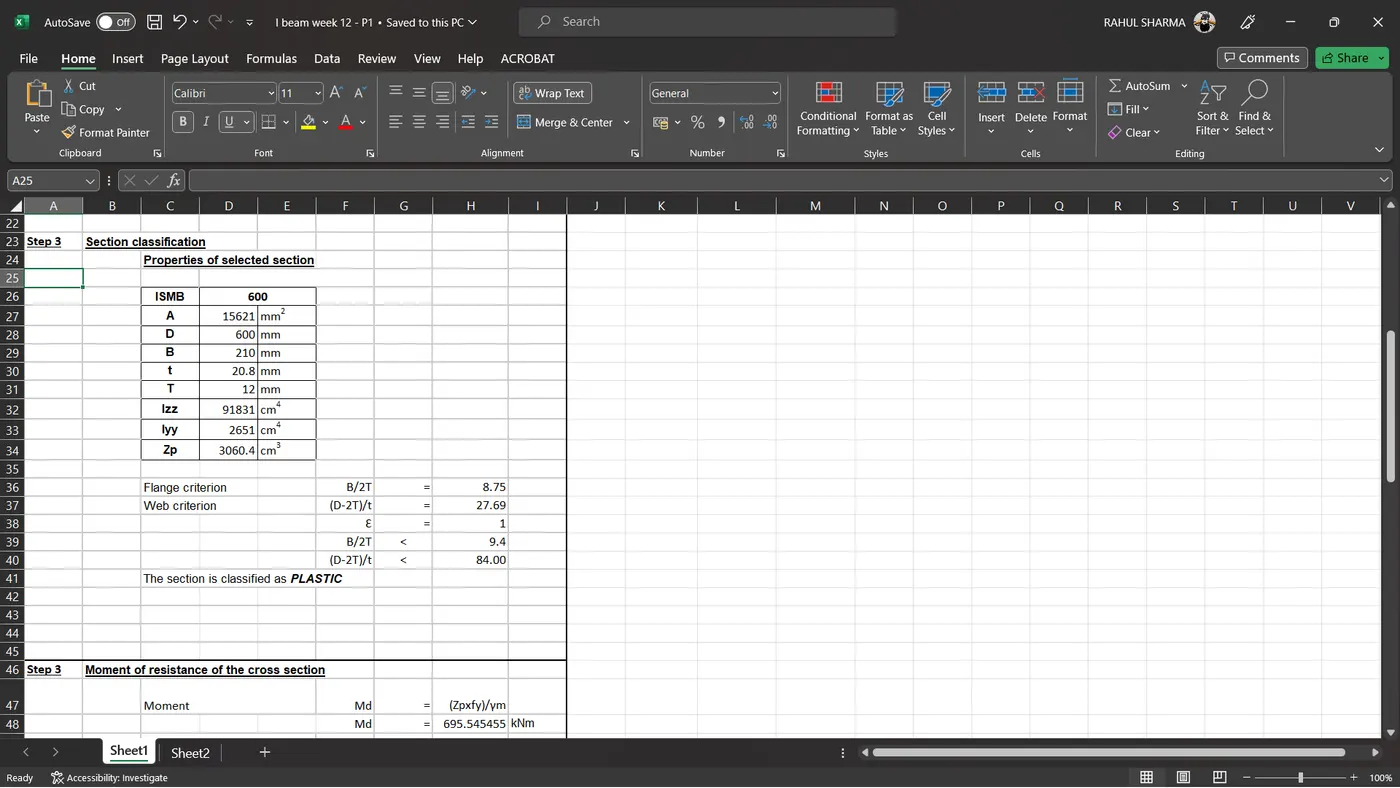

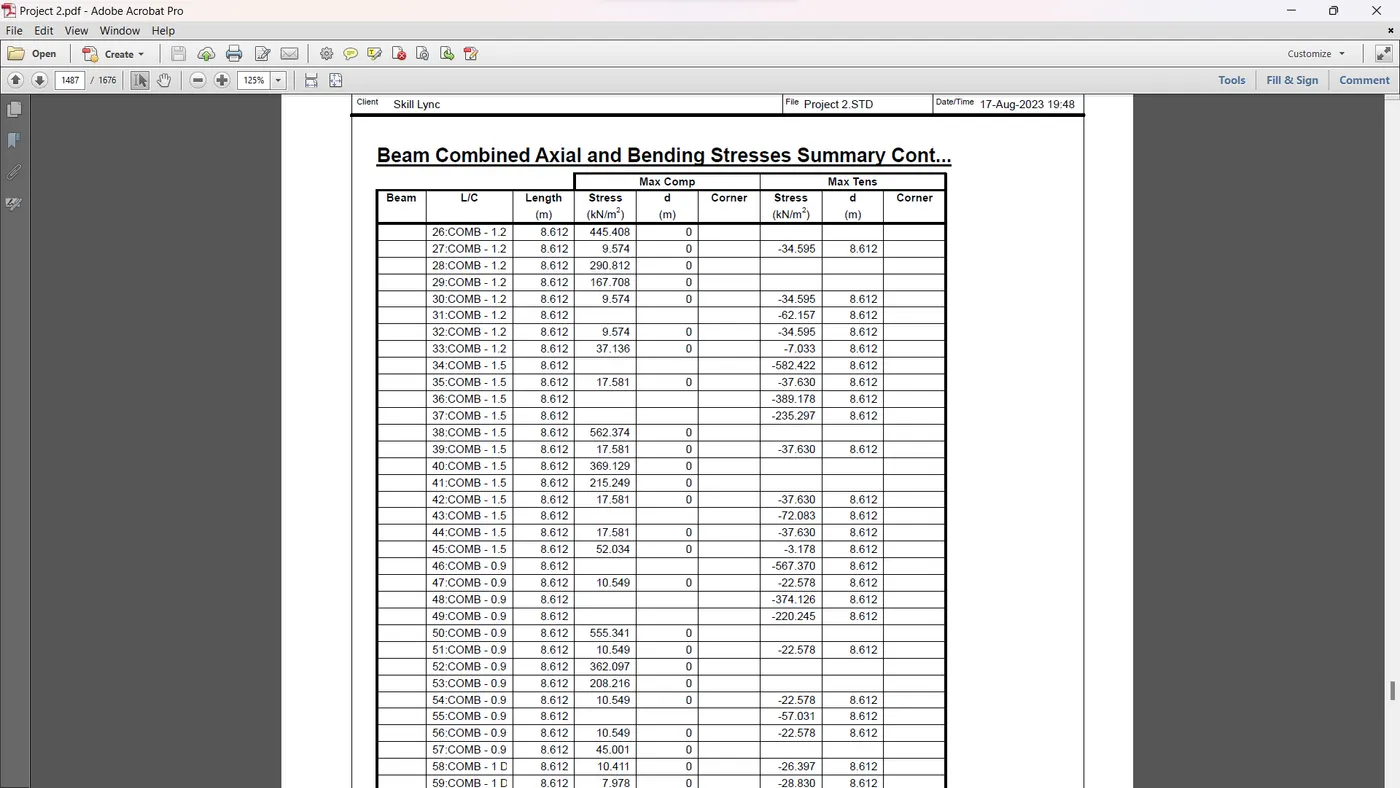

4.1: Design of Steel Column:

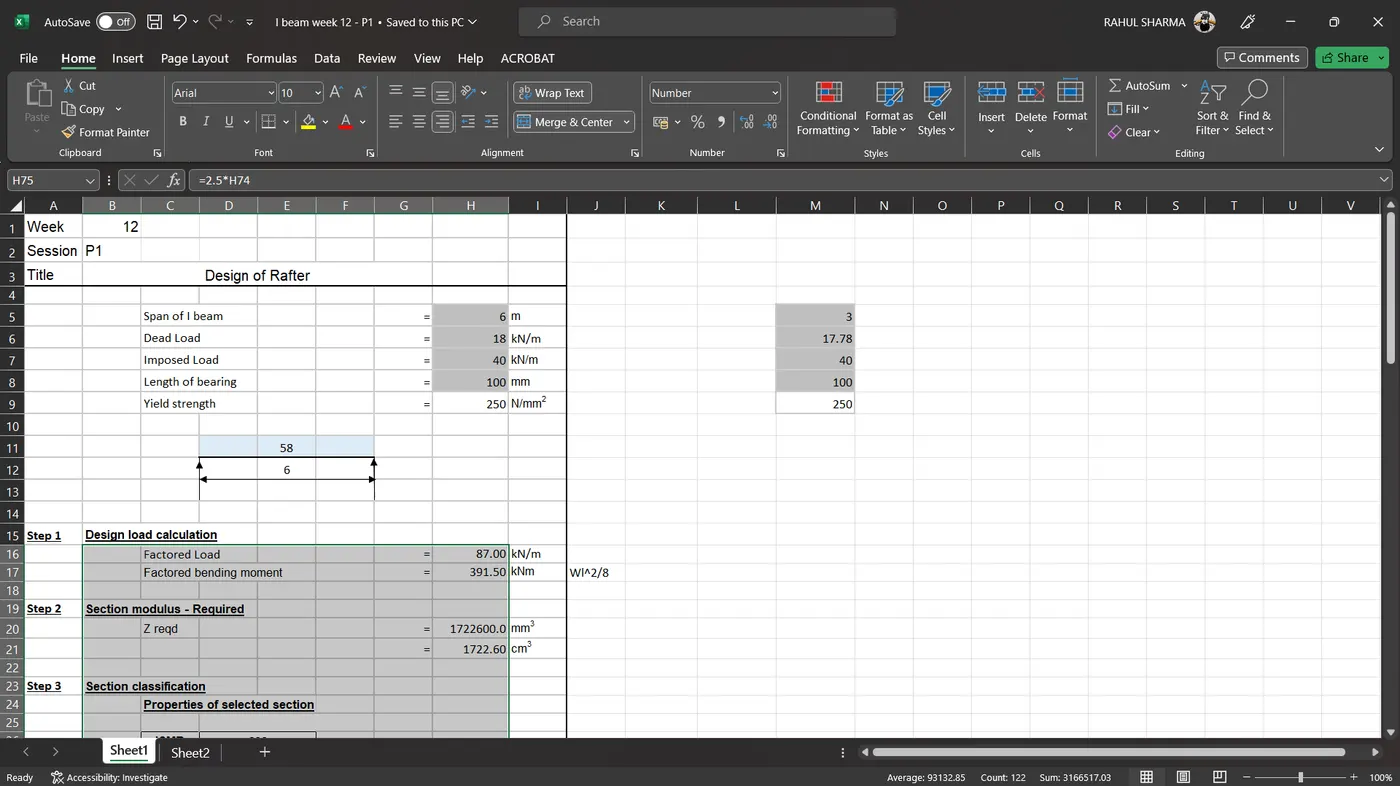

4.2. Design of Rafter:

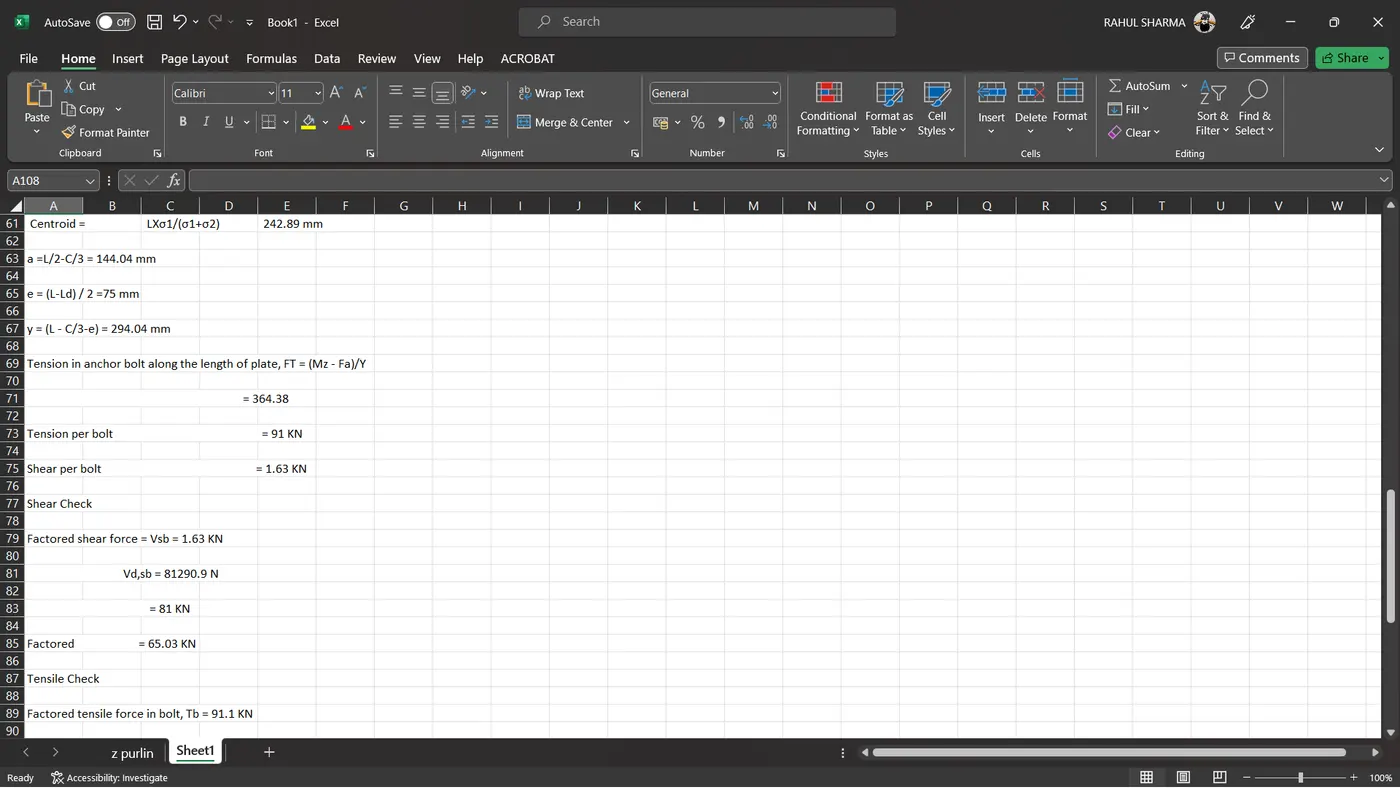

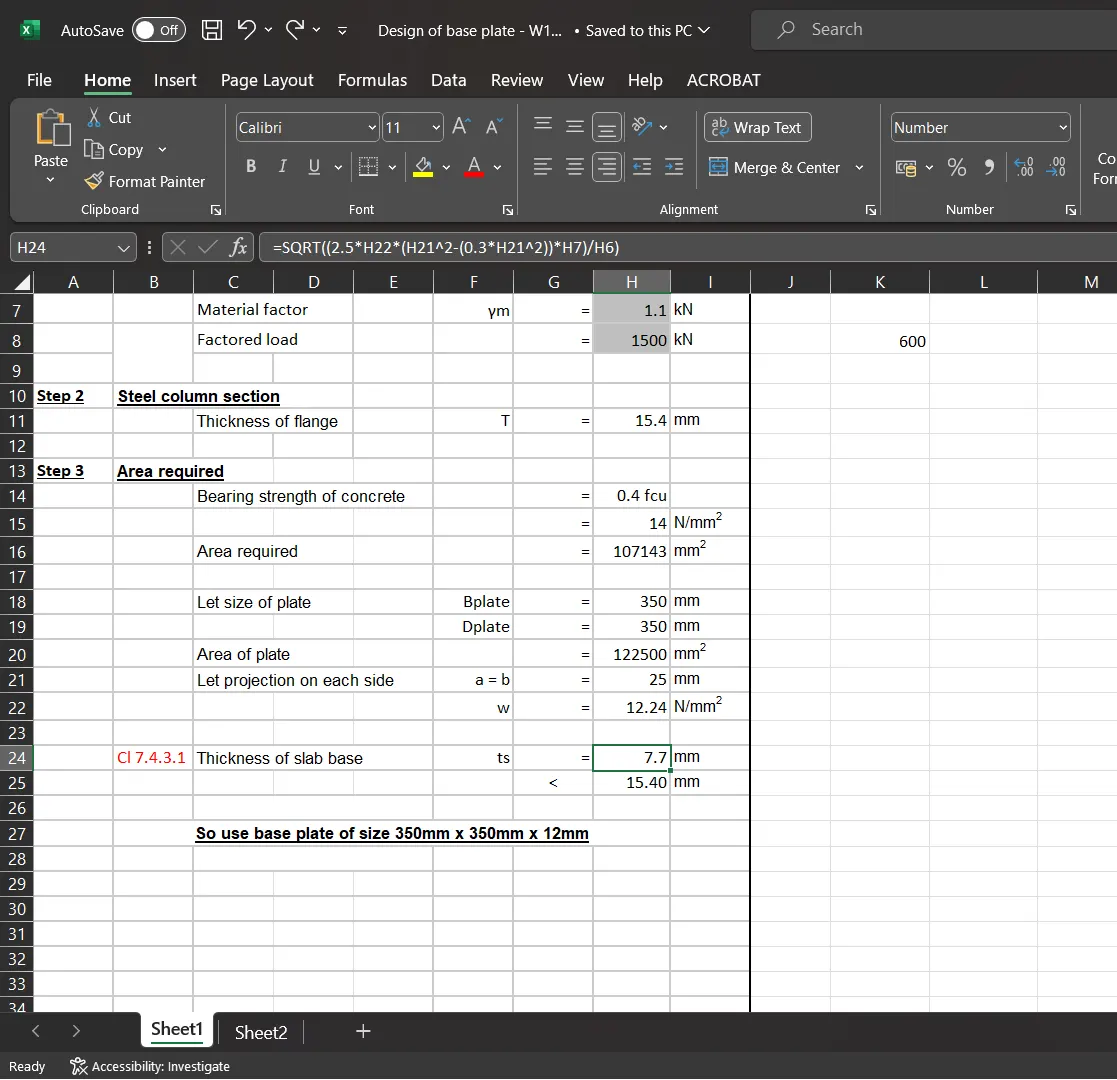

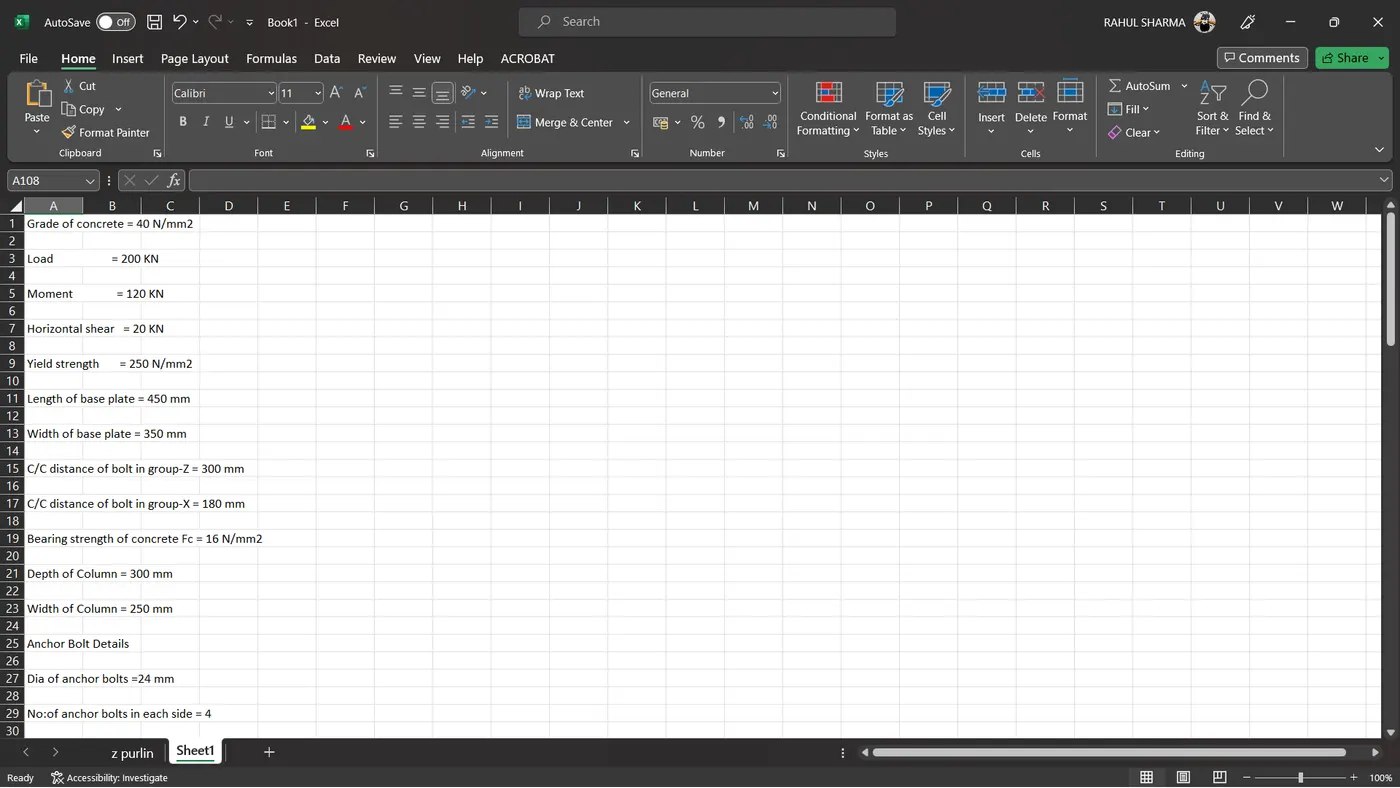

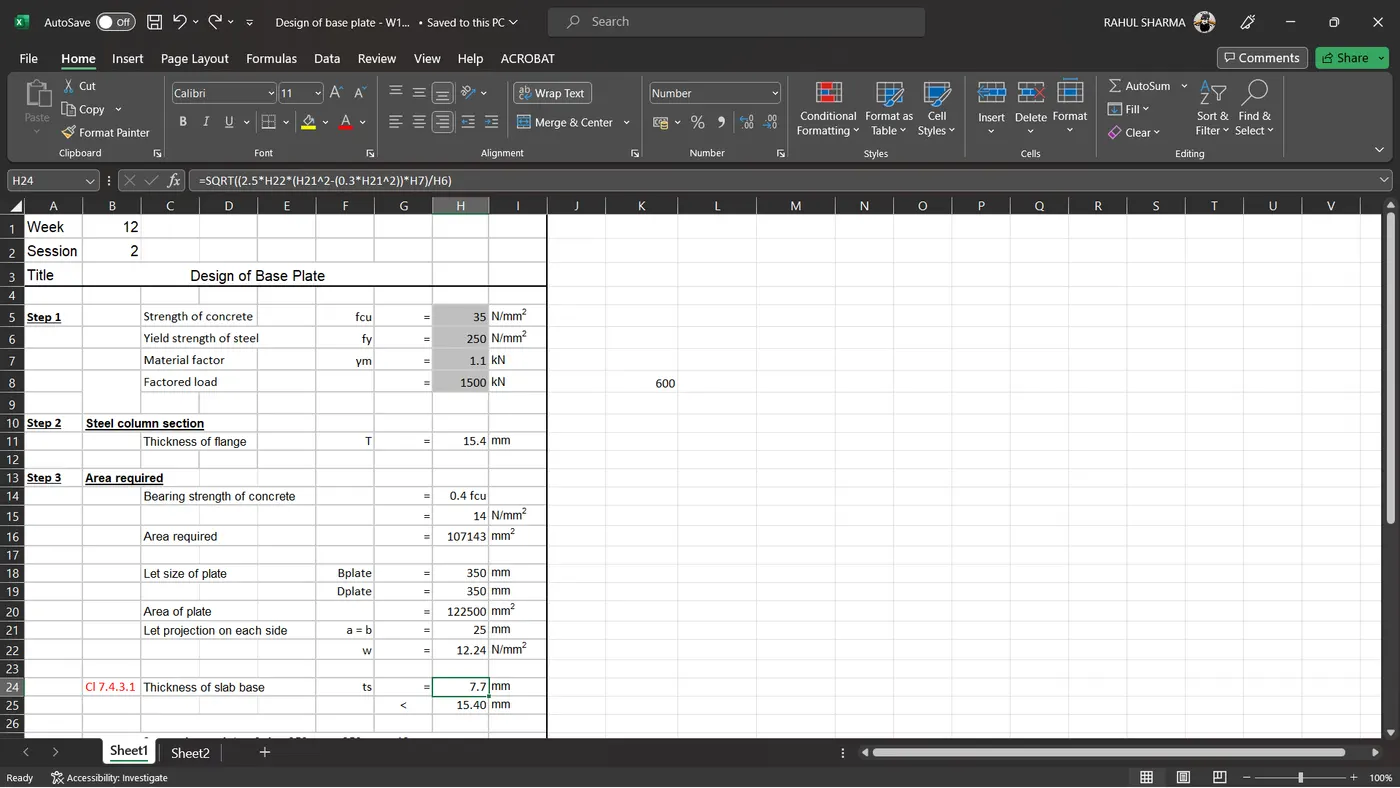

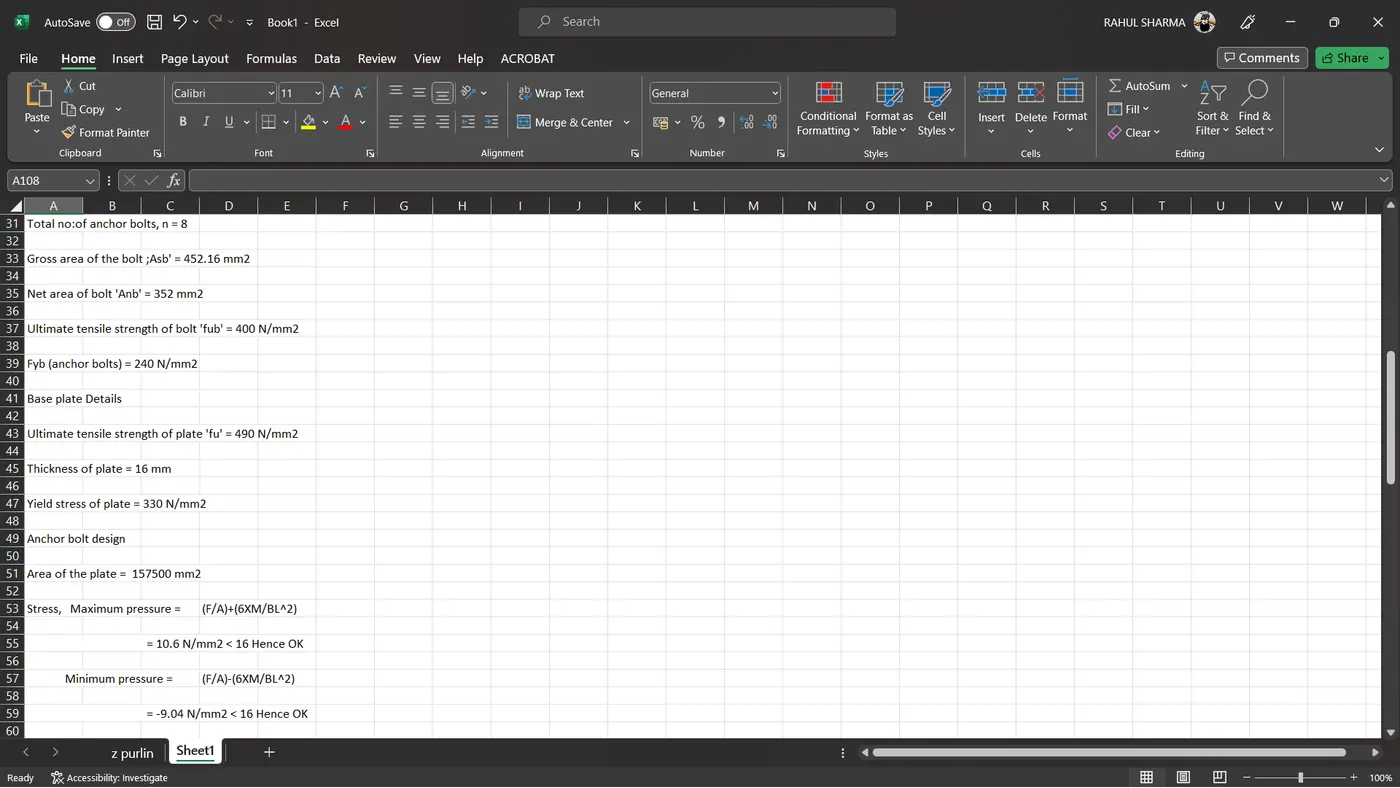

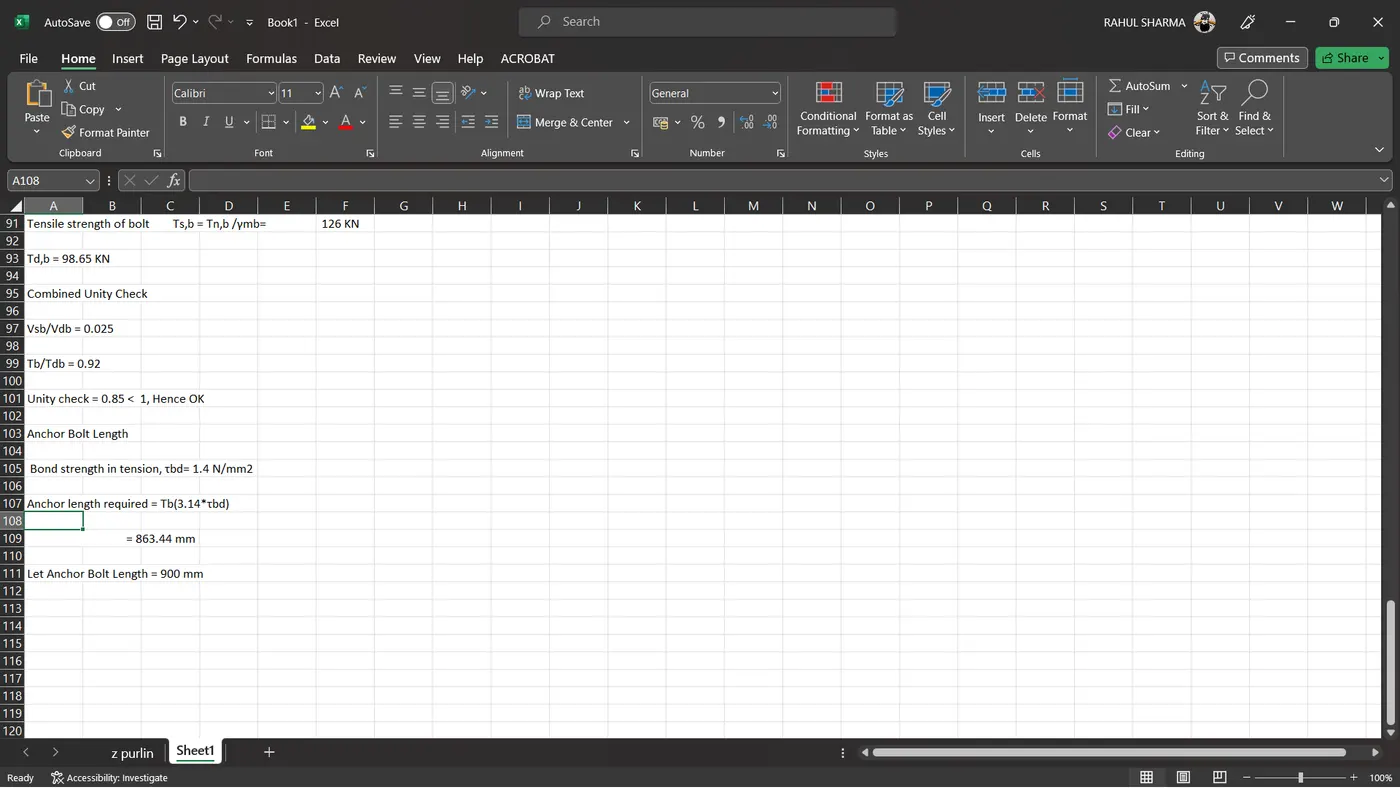

4.3. Design of Base Plate:
4.4. Design of Pedestal:

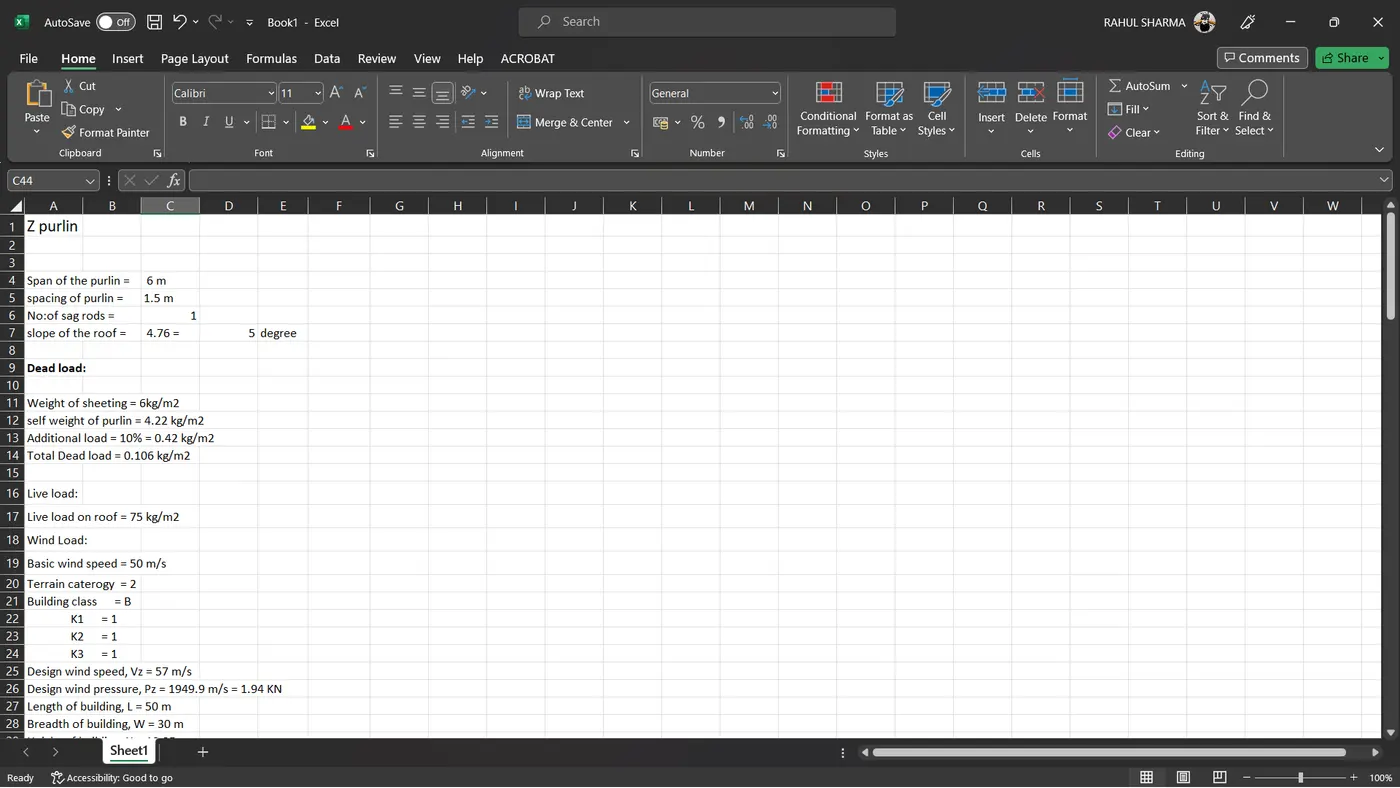

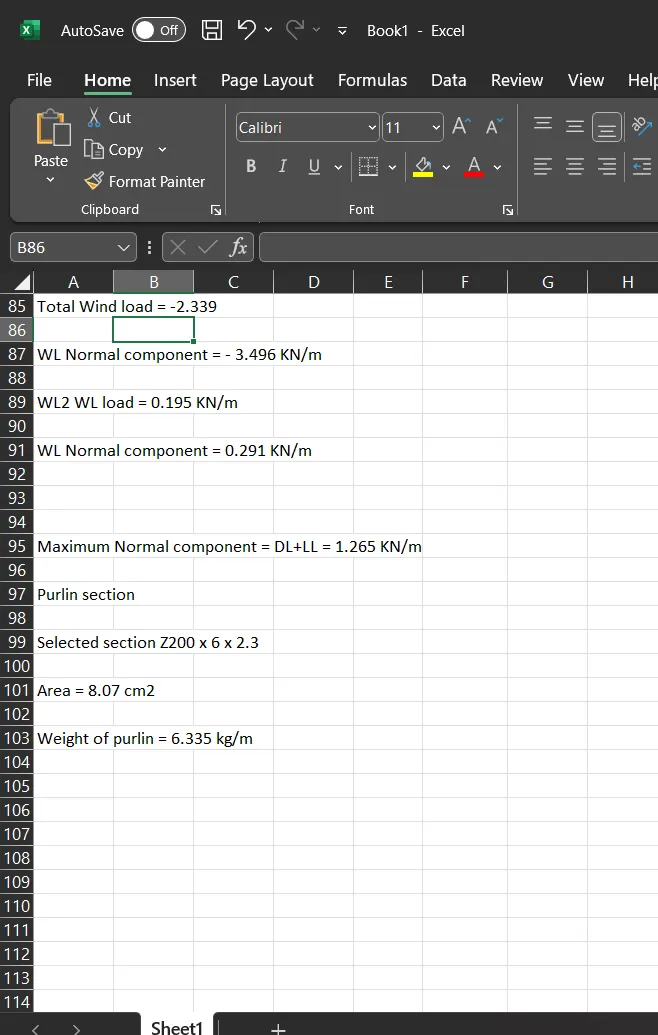

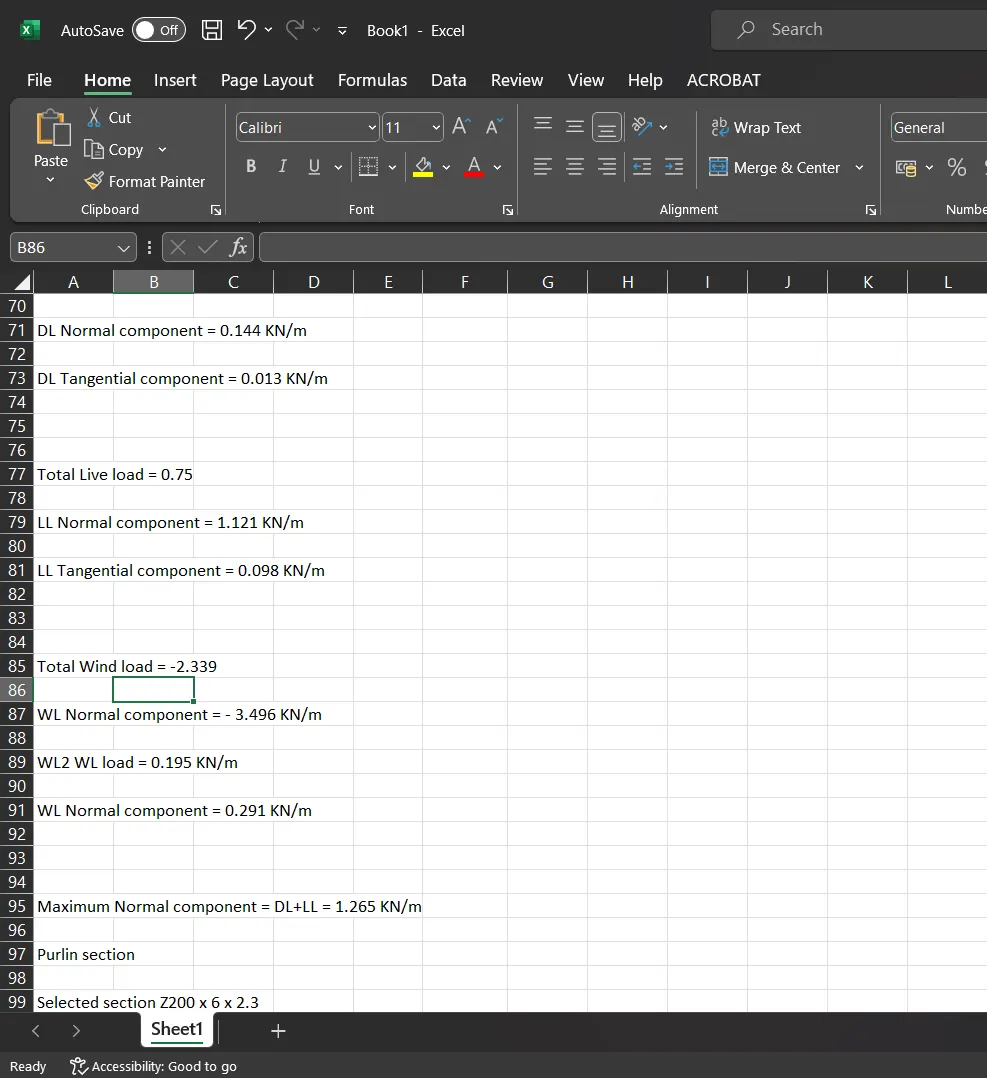

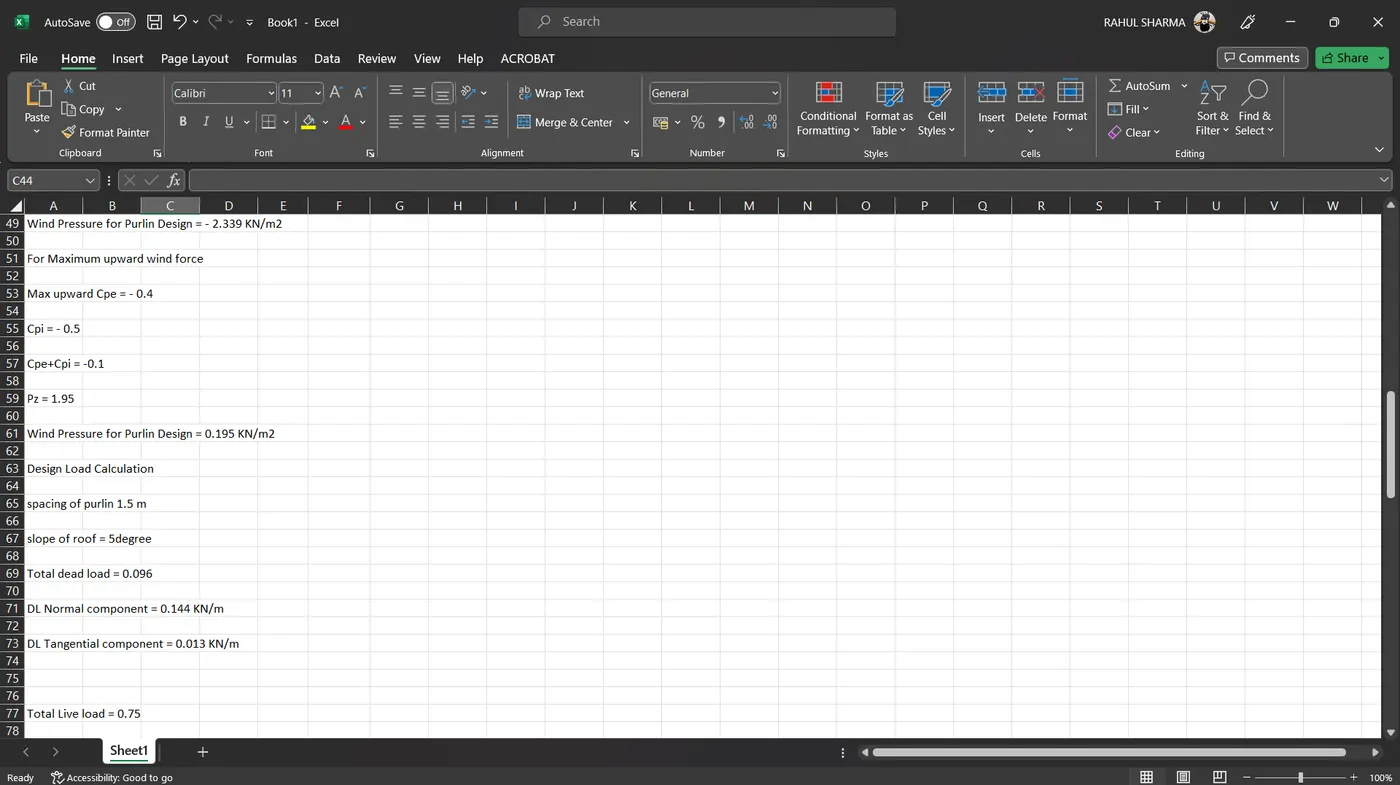

4.5. Design of Z Purlins:

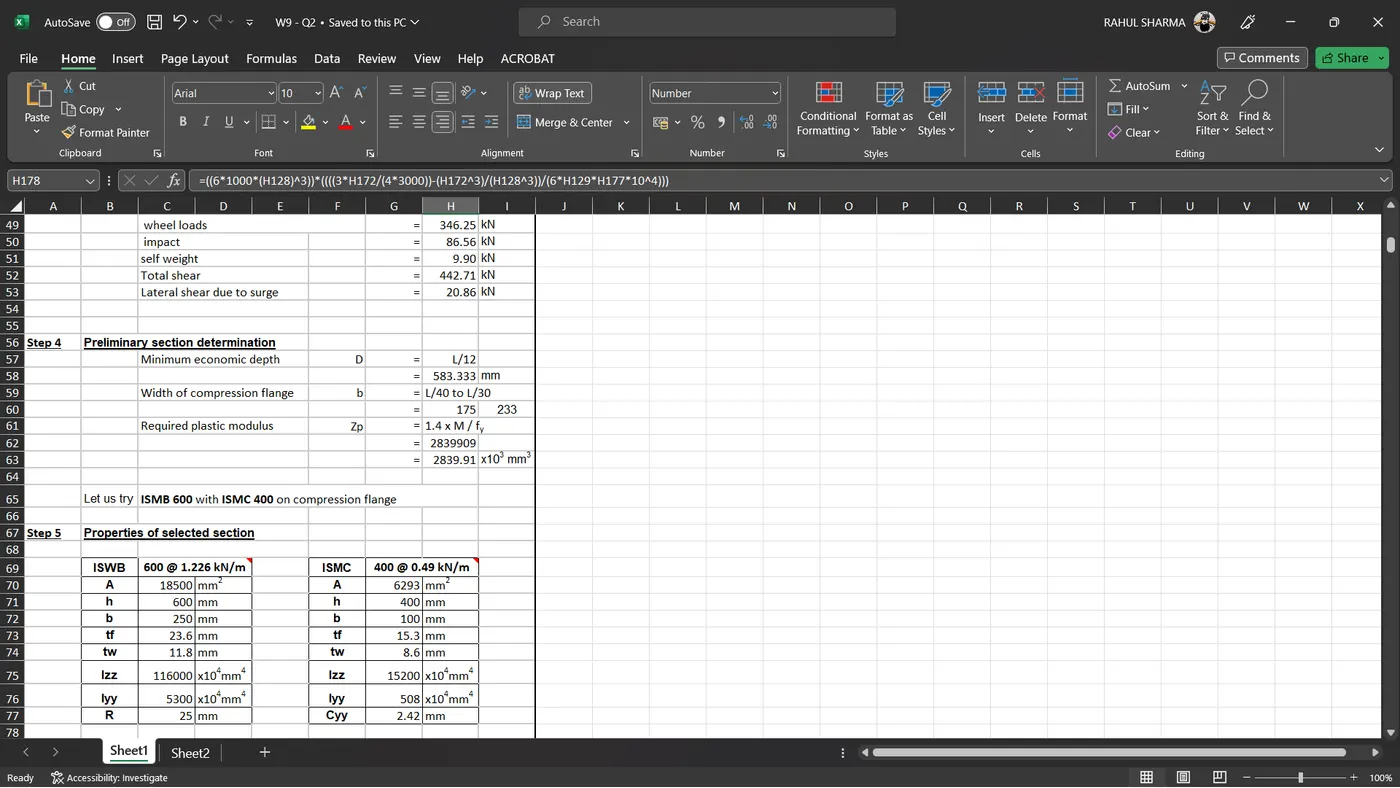

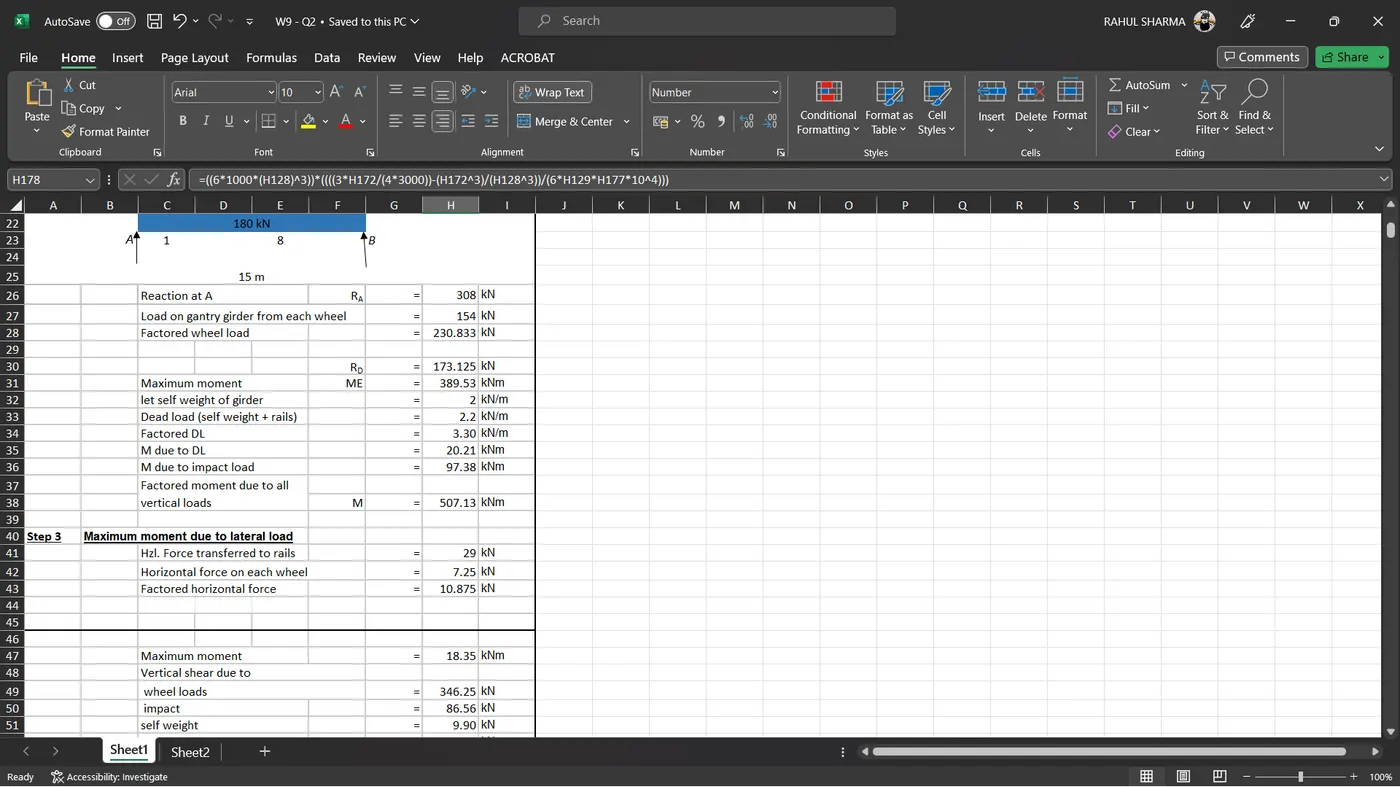

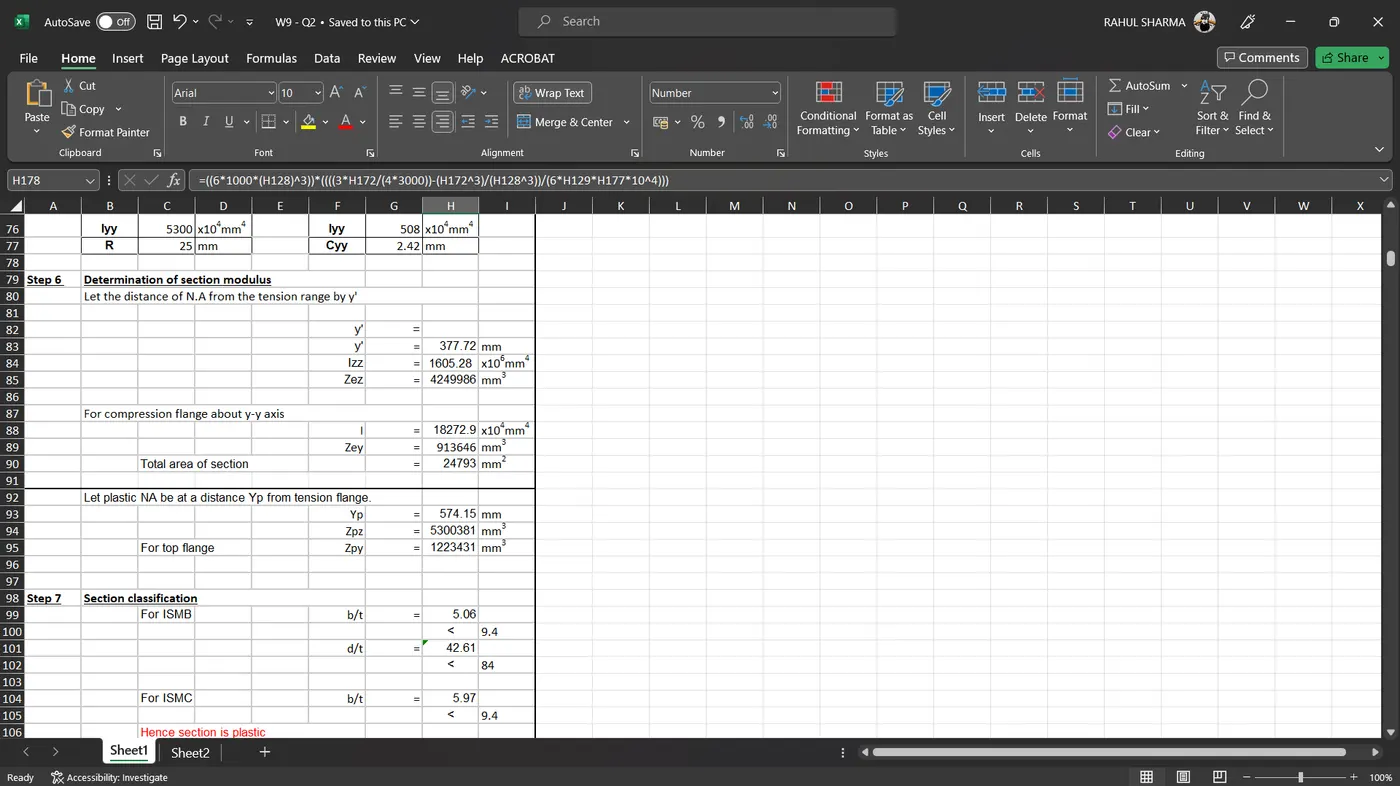

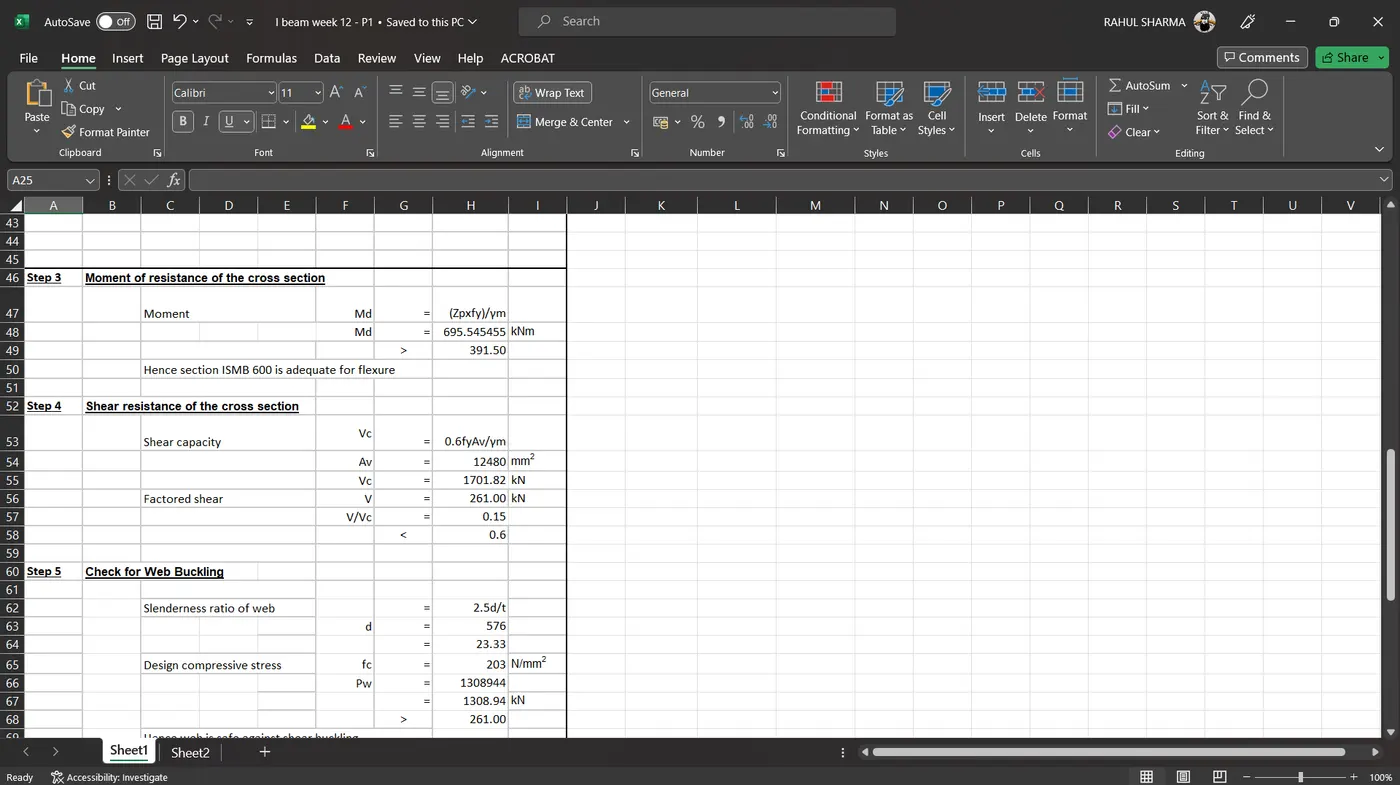

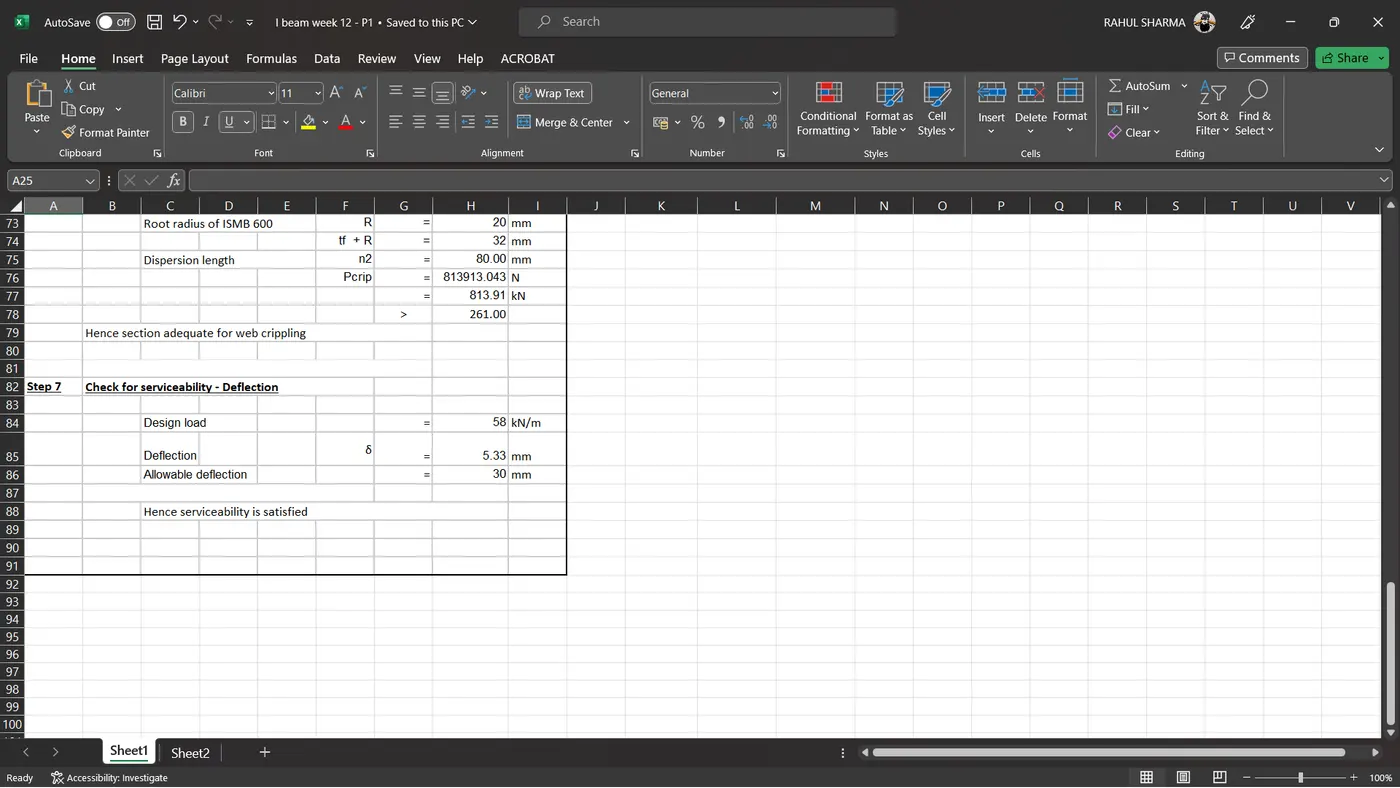

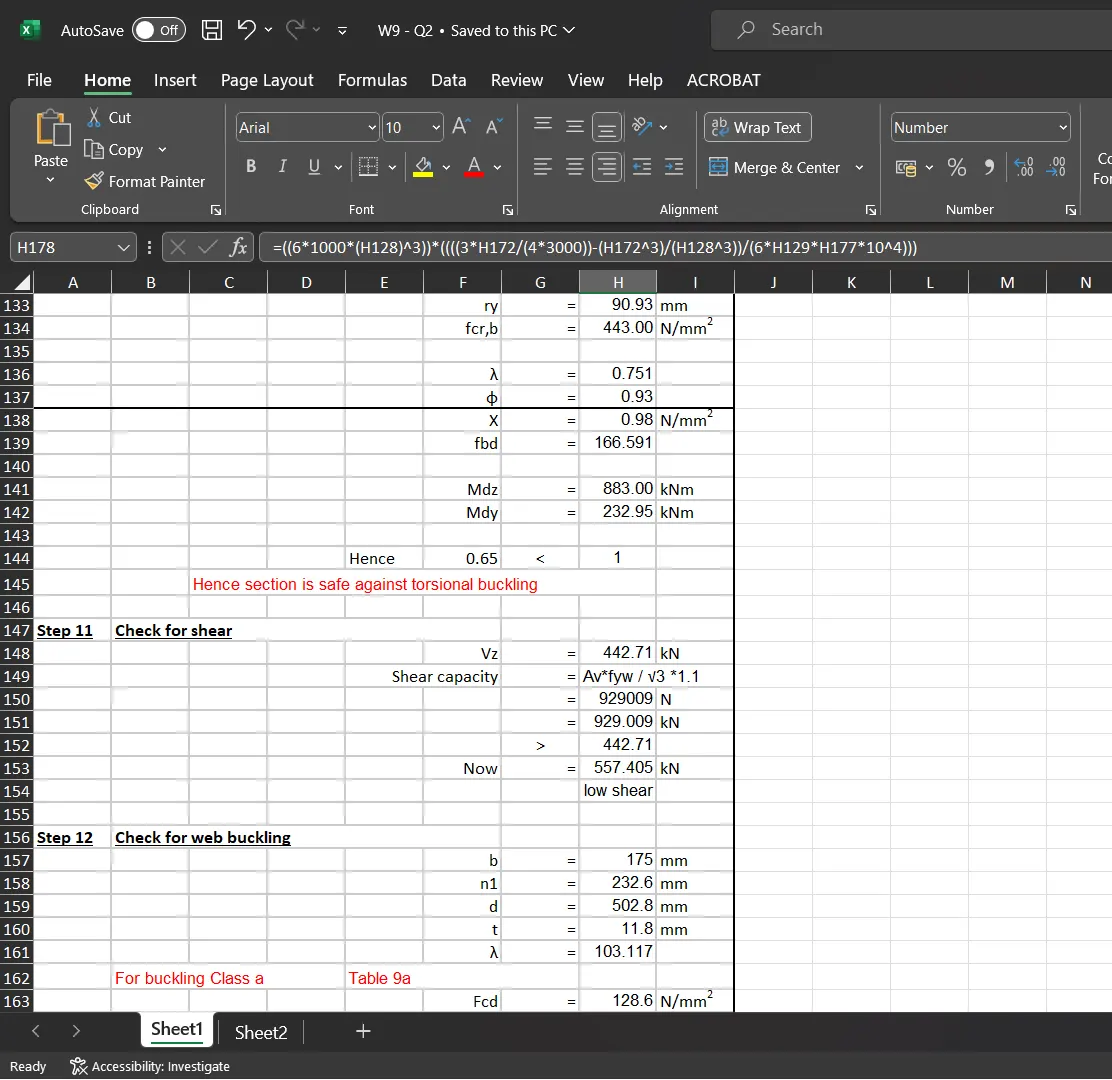

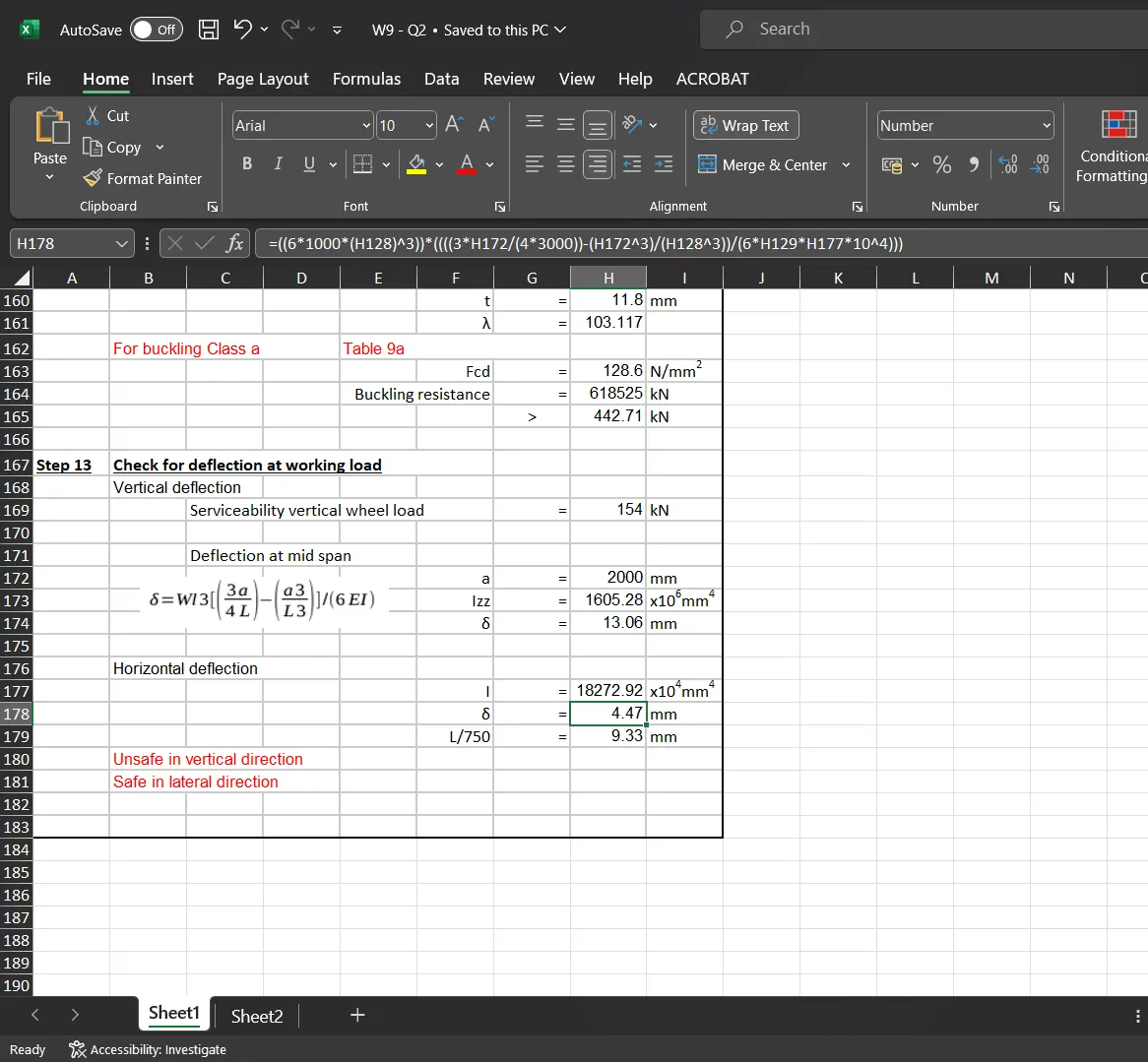

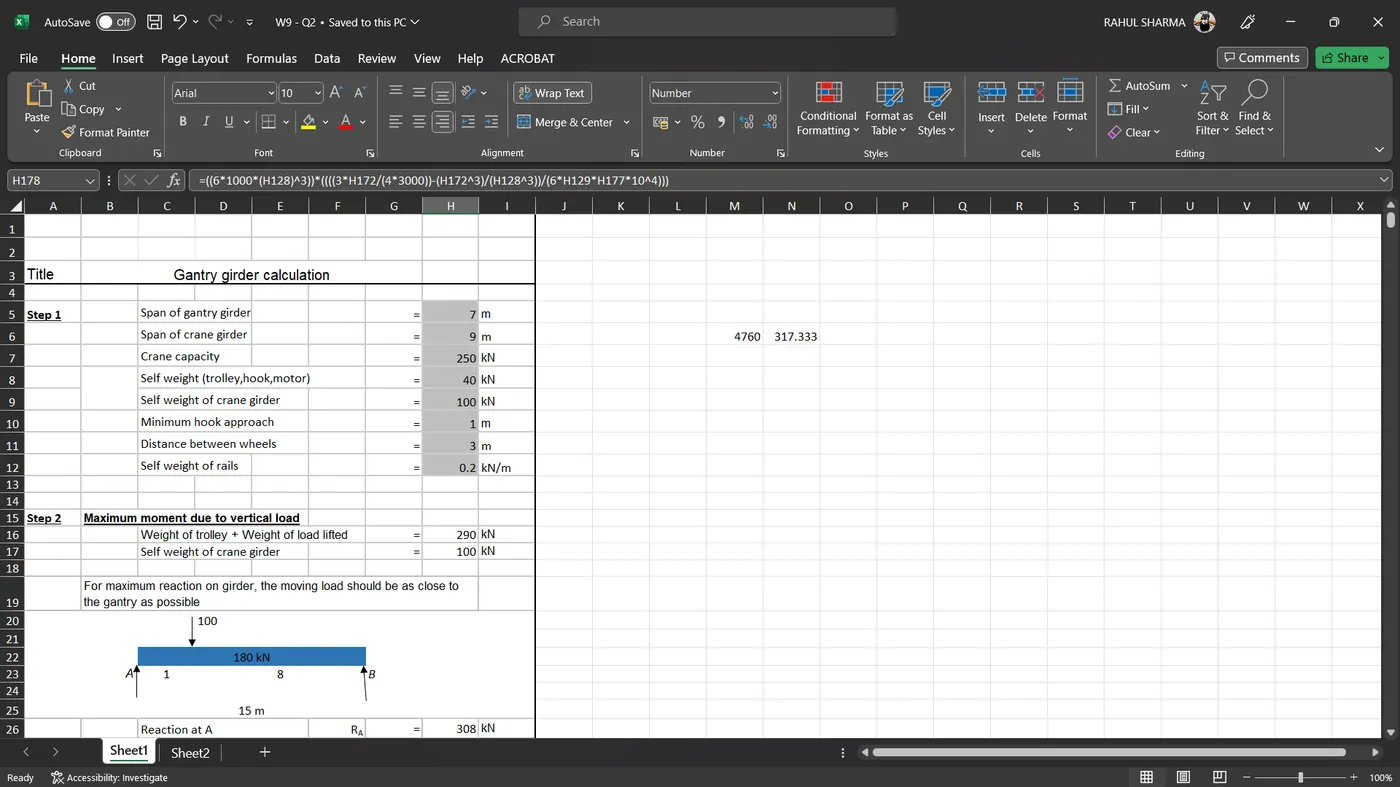

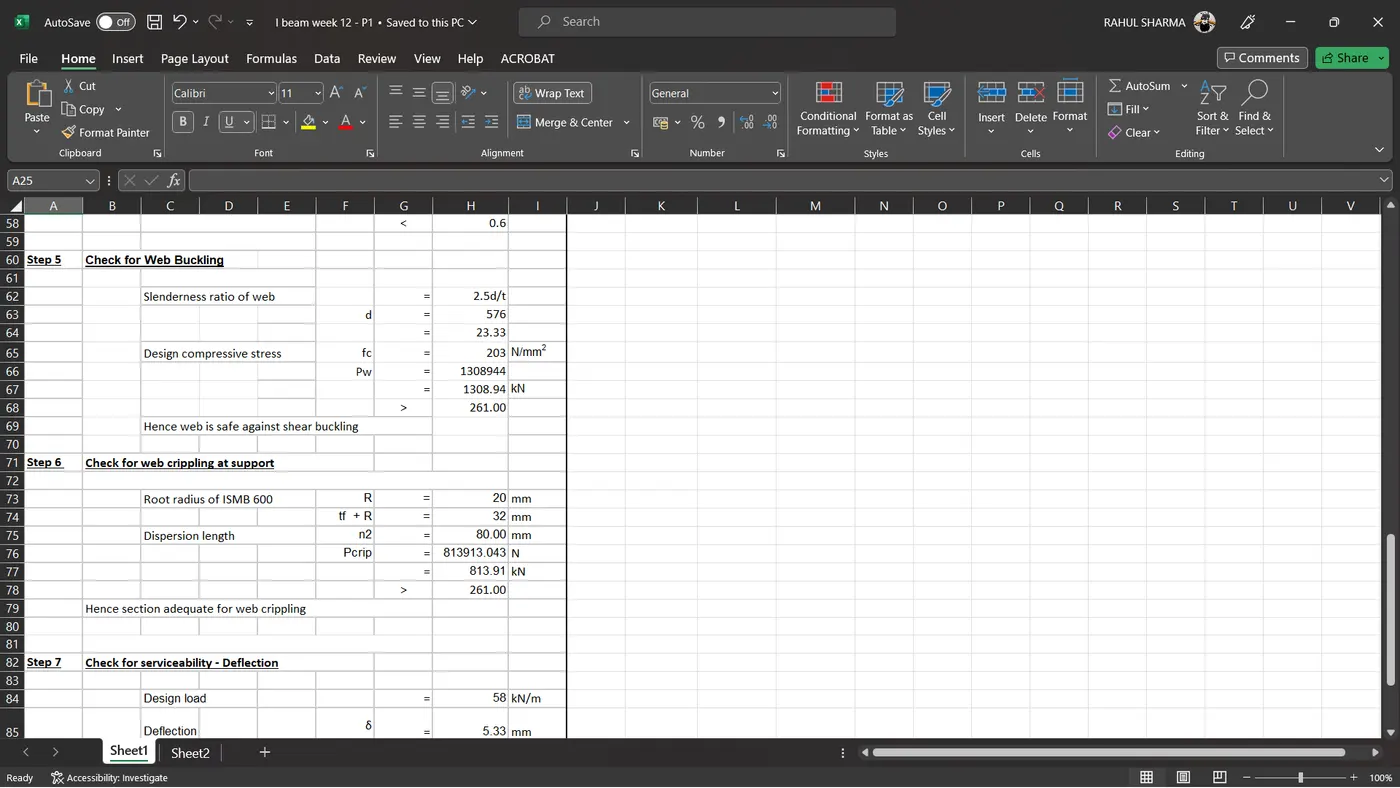

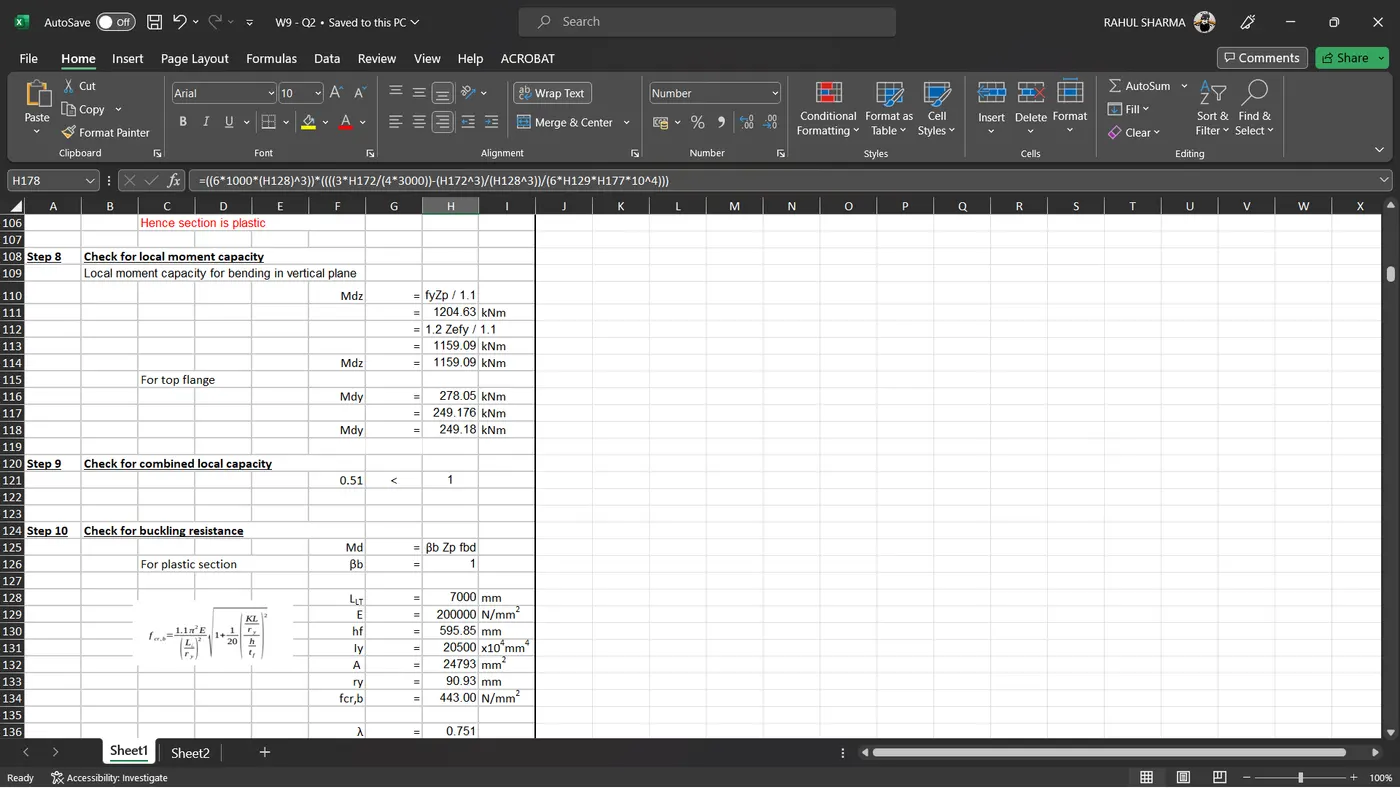

Aim: 2: Design a simply supported gantry girder to carry electric overhead travelling crane
Given:
Span of gantry girder = 7 m
Span of crane girder = 9 m
Crane capacity = 250 kN
Self-weight of trolley, hook, electric motor etc. = 40 kN
Self-weight of crane girder excluding trolley = 100 kN
Minimum hook approach = 1.0 m
Distance between wheels = 3 m
Self-weight of rails = 0.2 kN/m
The Designs are attached below.
