Project 2
Description:
As discussed in Lecture 11, Project 2 deals with the development of a forward energy-based fuel consumption model of a P1 hybrid vehicle. This model is based on the conventional vehicle model from Project 1.
The main goal of this project is to understand the functionality of a P1 hybrid and be able to model it.
Honda Insight motor and battery are considered for this project. Data is taken from ADVISOR data base developed by NREL, USA. Data provided in the project files.
“Project2_InitFile.m” is a Matlab script used to load all the variables required for running the Simulink model and for post-processing. The drive cycle selection is also done here. Before running the Simulink vehicle model, run this initialization script.
Task:
The task of this project is to quantify the improvement in fuel economy numbers for the hybrid vehicle (kmpl), compared to the conventional vehicle, on the urban cycle (UDDS) and highway cycle (HWFET). Also, to analyze and understand the vehicle operating points in terms of engine and motor speed, torque, transmission speeds, pedal positions, gear, distance traveled, battery voltage, current, SoC etc.
To do that, the following steps need to be followed:
1) Load the Project2 folder as the Current Folder in Matlab.
2) Run the “Project2_InitFile.m” Matlab script.
3) Copy the Conventional vehicle Simulink model created for Project 1 in this folder. Figure 1: P1 Hybrid ArchitectureHybrid Drives Development

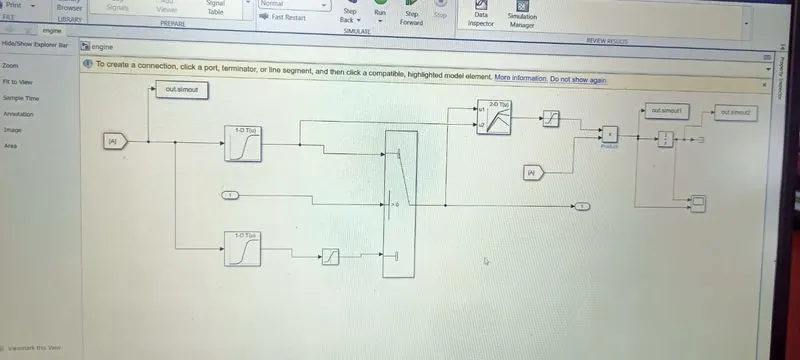

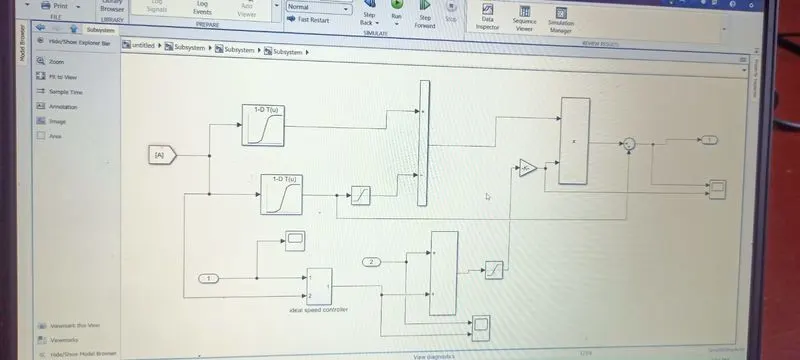

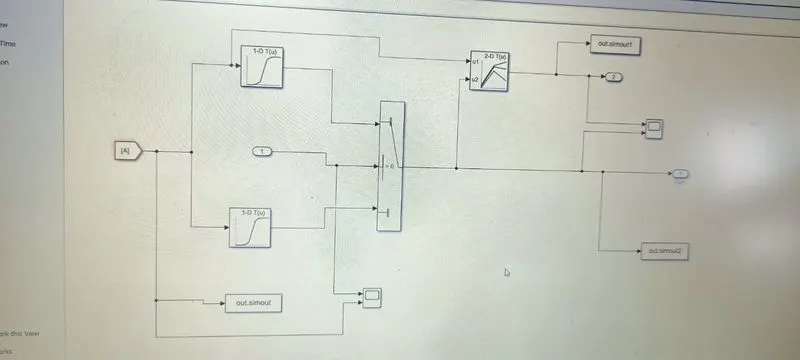

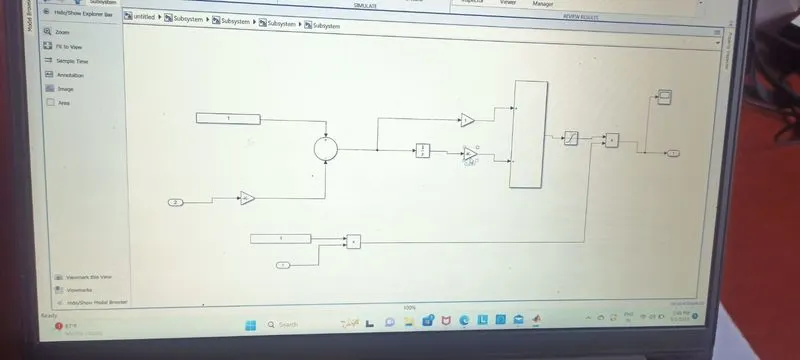

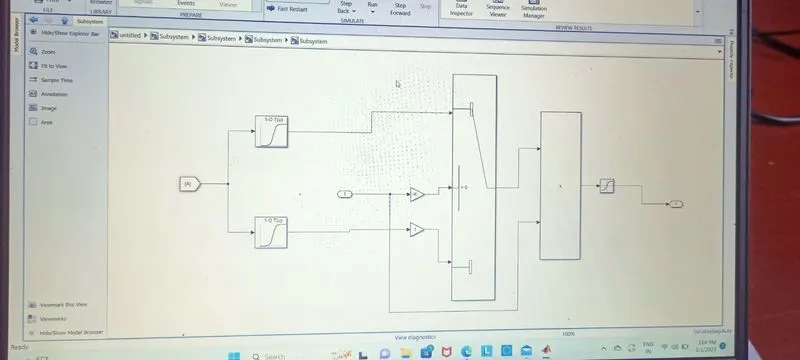

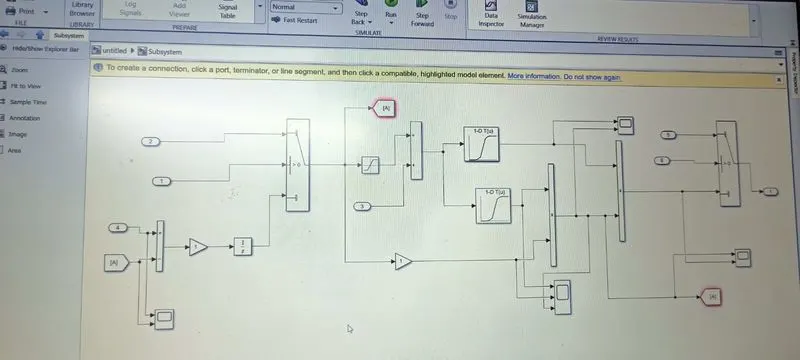

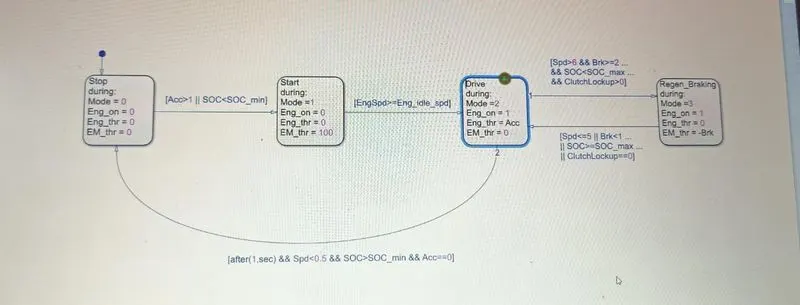

4) Modify this model into a hybrid vehicle model. The lecture presentations can be used as reference. Battery and Supervisory controller models developed in the assignments can be reused.
5) Add additional ‘To Workspace’ blocks for transferring the desired Simulink vehicle data into the Matlab workspace.
6) Simulate the hybrid model on the desired drive cycles.
7) Write a project report that contains the following:
a. Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle. Compare these numbers with the baseline numbers for conventional vehicle model from Project 1.
b. Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.
c. Plot engine torque, engine power, fuel rate and fuel consumption using subplots.
d. Plot accelerator and brake pedal, gear command, vehicle desired and actual speed, vehicle distance using subplots.
e. Plot the engine operating points on the engine fuel map.
f. Plot motor speed, torque, motor input power using subplots.
g. Plot pack voltage, current and SoC using subplots.
h. Plot the motor operating points on the motor input power map, with the motor max motoring and generating torque curves.
i. Write down appropriate brief comments on each of these plots, describing the vehicle behavior throughout the drive cycle.
j. Generate the plots for both drive cycles
ans
% Skill-Lync -> Hybrid Drives Development
% Project 2 - Hybrid Vehicle B1-Model
% By - Guruprasad Joshi
% Description:
%% Initialization File
% Initialization file for loading the variables for the Conventional vehicle simulation model
%% Vehicle Parameters
M = 1500; % Vehicle weight [kg]
Cr = 0.015; % Rolling resistance coefficient
Rw = 0.35; % Rolling radius [m]
Cd = 0.33; % Drag coefficient
Af = 2; % Frontal area [m2]
rhoa = 1.225; % Air density [kg/m3]
Vwind = 0; % Wind velocity [kmph]
g = 9.81; % Gravitational acceleration [m/s2]
theta = 0; % Slope [deg]
myu_road_tire = 1; % Coefficient of friction between tire - road interface
%% Powertrain Parameters
FDR = 3.73; % Final Drive Ratio / Diff Ratio
DiffEff = 0.99; % Differential efficiency (assumed independent of operating conditions)
NumGear = 4; % Number of gears in transmission
TransGear = [1:NumGear]; % Transmission Gears
TransRatio = [3.06, 1.62, 1, 0.7]; % Corresponding Transmission ratios
TransEff = 0.90; % Transmission efficiency (assumed independent of operating conditions)
TC_SR = [0, .5, .6, .7, .8, .87, .92, .94, .96, .97, 1]; % Torque Converter Speed Ratio (Matlab default) -> TurbSpd/PumpSpd
TC_TR = [2.232, 1.5462, 1.4058, 1.2746, 1.1528, 1.0732, 1.0192, 1, 1, 1, 1]; % Torque Converter Torque Ratio (Matlab default) -> TurbTrq/PumpTrq
TC_Cf = 1e-4 * [.72558, .66322, .63463, .59042, .51331, .4144, .29287, .22444, .12186, .04386, 0]; % Torque Converter Capacity Factor (Matlab default) -> PumpTrq/PumpSpd^2 [Nm/rpm^2]
load Vehicle_Data/Engine_data_1_9L_Saturn_95kW
load Vehicle_Data/Trans_Shift_map
load Vehicle_Data/EM_Honda_Insight_10kW
load Vehicle_Data/ESS_NiMH6
ESS_init_soc = 0.8;
ESS_soc_max = 0.9;
ESS_soc_min = 0.6;
%% Driver Parameters
Kp = 10; % P gain for driver PI model
Ki = 1; % I gain for driver PI model
Drive_Cycle_Select = 2; % Drive cycle selection
% Drive cycle values in m/s
if Drive_Cycle_Select == 1
load DriveCycles/UDDS;
elseif Drive_Cycle_Select == 2
load DriveCycles/HWFET;
elseif Drive_Cycle_Select == 3
load DriveCycles/FTP;
elseif Drive_Cycle_Select == 4
load DriveCycles/US06;
elseif Drive_Cycle_Select == 5
load DriveCycles/NEDC;
elseif Drive_Cycle_Select == 6
load DriveCycles/WLTP;
end
time_end = cyc_time(end);
vel_end = cyc_vel(end);
MATLAB scripts for plots:-
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%% Skill-Lync -> Hybrid Drives Development
% Project 1 - Conventional Vehicle Model
% By - Guruprasad Joshi
%% Post-Processing File
% File for post-processing the Conventional vehicle simulation model data
%% Renaming variables
Time=out.tout;
Acc_Pdl=out.Acc_Pdl; % Accelerator pedal [%]
Brk_Pdl=out.Brk_Pdl; % Brake pedal [%]
Gear_Cmd=out.Gear_Cmd; % Transmission gear
Trans_In_Spd=out.Trans_In_Spd*30/pi; % Transmission input speed [rpm]
Trans_Out_Spd=out.Trans_Out_Spd*30/pi;% Transmission output speed [rpm]
Eng_Trq=out.Eng_Trq; % Engine brake torque [Nm]
Eng_Spd=out.Eng_Spd*30/pi; % Engine speed [rpm]
Eng_Fuel_Consump=out.Eng_Fuel_Consumption; % Engine fuel consumption [g]
Veh_Dist=out.Veh_Dist/1000; % Distance traveled by vehicle [km]
Veh_Spd=out.Veh_Spd*18/5; % Vehicle speed [kmph]
Wheel_Speed=out.Wh_Speed; % Wheel speed [kmph]
Eng_Fuel_Rate=out.Eng_Fuel_Rate % Engine fuel rate [%]
ElecPwr=out.ElecPwr;
EM_Trq=out.EM_Trq;
EM_Spd=out.EM_Spd;
%% Data Analysis
Eng_Pwr=Eng_Spd*(pi/30).*(Eng_Trq/1000); % Engine brake power [kW]
rho_petrol=0.7197; % Density of petrol [kg/L]
%kmpl=Veh_Dist/(Eng_Fuel_Consump/1000/rho_petrol); % Fuel economy [kmpl]
%% Plotting vehicle characteristics time trace
figure(1)
subplot(411)
hold on
grid on
plot(Time,Acc_Pdl);
ylabel('Pedal [%]');
xlabel('Time [s]');
legend('Accel');
subplot(412)
plot(Time,Brk_Pdl);
ylabel('Brk Pedal [%]')
xlabel('Time [s]');
legend('Brake');
subplot(413)
hold on
grid on
plot(Time,Gear_Cmd);
xlabel('Time [s]');
ylabel('Gear');
legend('Gear');
subplot(414)
hold on
grid on
plot(Time,Veh_Dist);
xlabel('Time [s]');
ylabel('Veh_Dist[KM]');
legend('Veh_Dist');
figure(2)
subplot(311)
hold on
grid on
plot(Time,Trans_In_Spd);
ylabel('Speed [rpm]')
legend('Trans Input');
subplot(312)
plot(Time,Trans_Out_Spd);
ylabel('Speed [rpm]')
legend('Trans Output');
subplot(313)
plot(Time,Wheel_Speed);
ylabel('Speed [rpm]')
xlabel('Time [s]');
legend('Wheel_Speed');
figure(3)
subplot(411)
plot(Time,Eng_Fuel_Consump);
ylabel('Engine fuel[g]')
legend('Eng_Fuel_Consump')
subplot(412)
plot(Time,Eng_Fuel_Rate);
ylabel('Engine fuel rate [%]')
legend('Eng_Fuel_Rate');
subplot(413)
plot(Time,Eng_Trq)
ylabel('Engine brake torque [Nm]')
legend('Eng_Trq');
subplot(414)
plot(Time,Eng_Pwr);
ylabel('Eng_Pwr [KW]')
xlabel('Time [s]');
legend('Eng_Pwr');
%% Plotting engine operating points on engine fuel map
figure('Name','Engine Operating Points');
hold on
grid on
title('Engine Operating Points','fontsize',12);
p1=plot(Eng_map_spd*30/pi,Eng_max_trq,'linewidth',2,'color','r');
p2=line([Eng_map_spd(end)*30/pi Eng_map_spd(end)*30/pi],[0 Eng_max_trq(end)]);
set(p2,'linewidth',1,'linestyle','--','color','k');
p3=line([Eng_map_spd(1)*30/pi Eng_map_spd(1)*30/pi],[0 Eng_max_trq(1)]);
set(p3,'linewidth',1,'linestyle','--','color','k');
[c,h] = contour(Eng_map_spd'*30/pi,Eng_map_trq,Eng_fuel_map');
clabel(c,h);
xlabel('Engine Speed [rpm]');
ylabel('Engine Torque [Nm]');
title('Engine Fuel Consumption Map [g/s]');
p4 = plot(Eng_Spd,Eng_Trq,'.','color','k');
legend([p1 p4],{'Max Curve','Operating Points'});
axis([Eng_map_spd(1)*30/pi Eng_map_spd(end)*30/pi 0 Eng_map_trq(end)]);
