Project 2

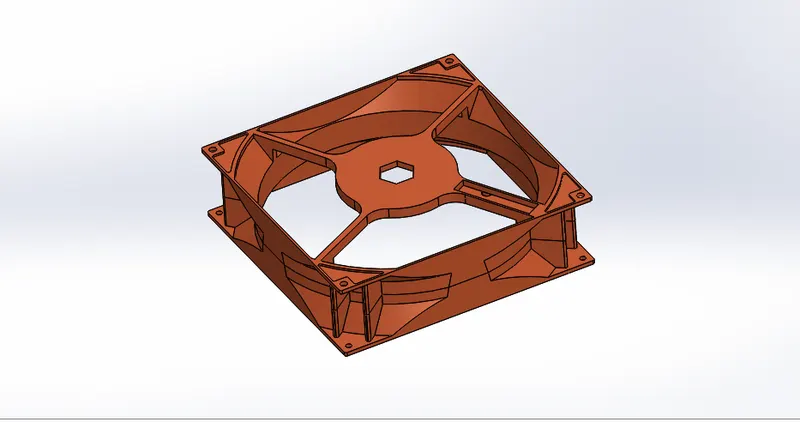

Step 1. Draft Analysis - was done to select the tool direction and to check for an adequate draft is provided or not.

Step 2. Skrinkage - was given as per the ABS matrial = 0.6% i.e - 1.006

Step 3. Parting line - was drawn in such a way that the minimum number of sliders to make and matchining draft was provided.

Step 4. Shut-off surface - was made manually using lofted surface.

Step 5. Parting surface - was made using rulled surface and lofted surface.

Step 6. Core and cavity surfaces - merging core and cavity surfaces with parting surfaces.

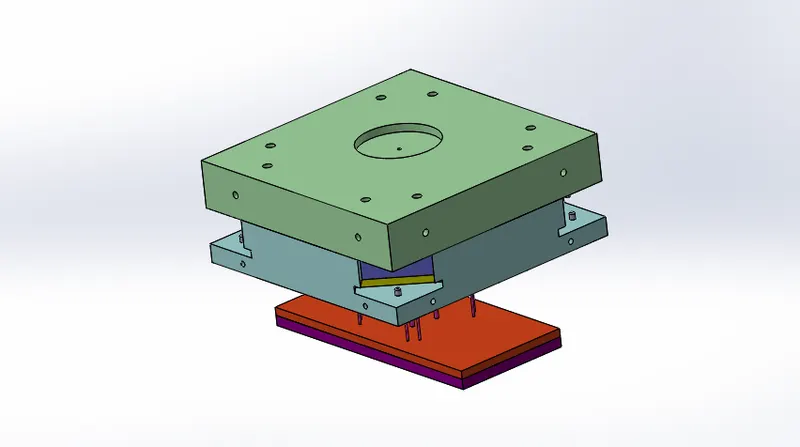

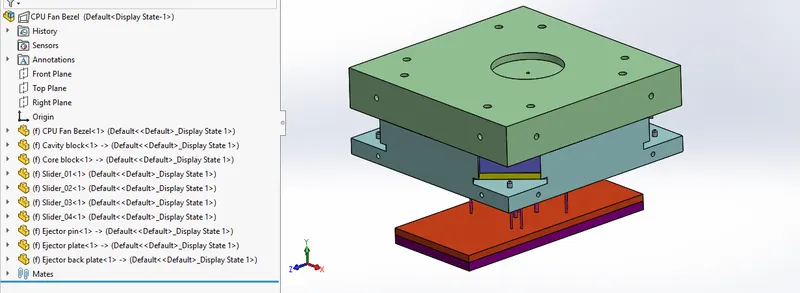

Step 7. Assembly - I started working in assembly where i created all new part file for each component.

Step 8. Sprue alignment - sprue location was aligned in the center of the part.

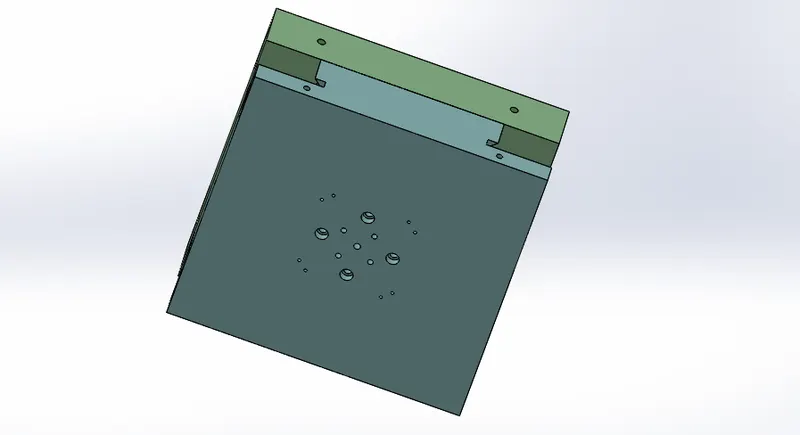

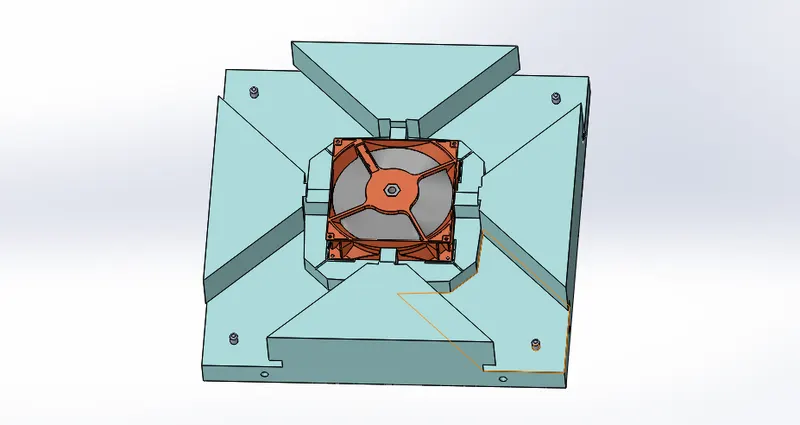

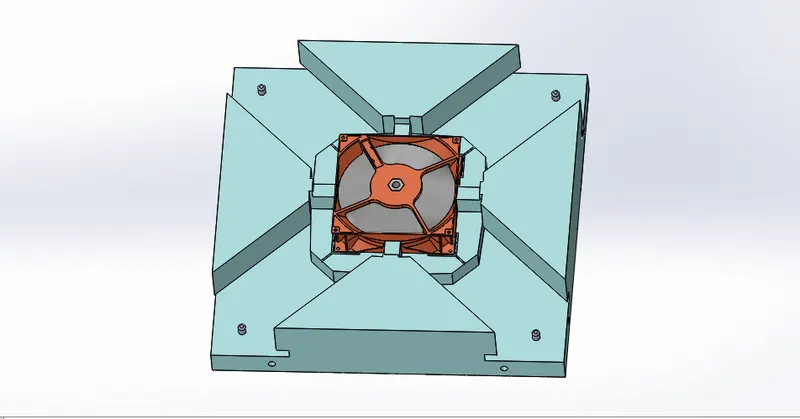

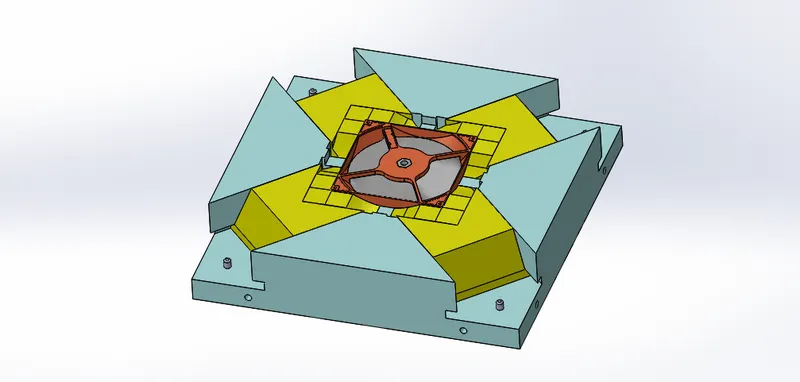

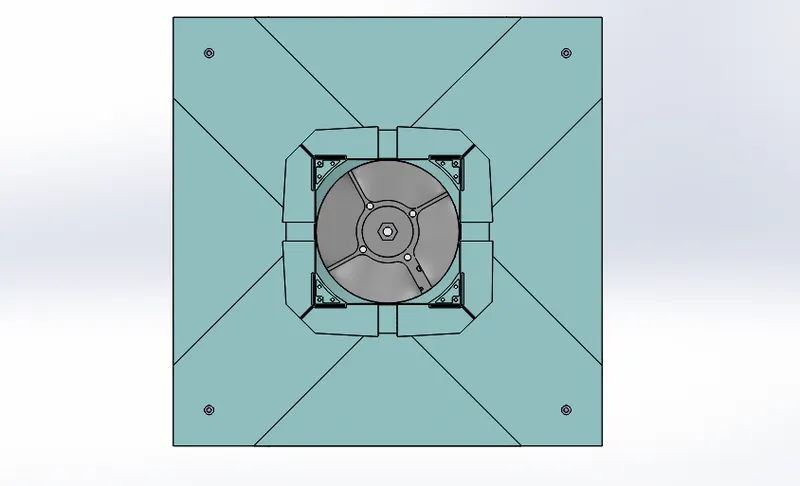

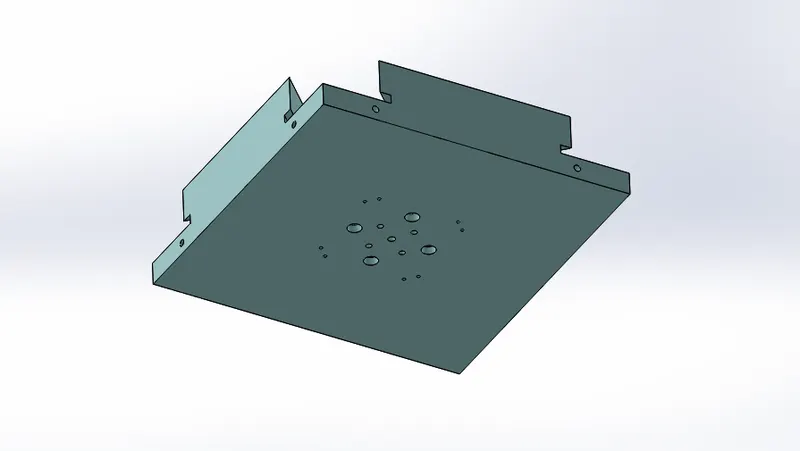

Step 9. Core block - Outer core block and inner core block was made as per the component and merged them.

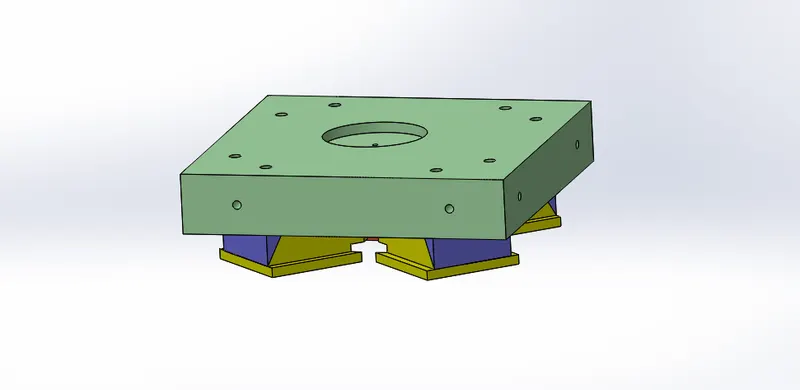

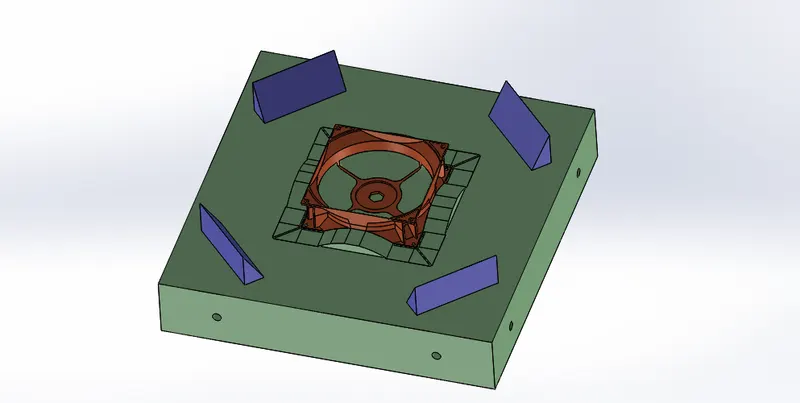

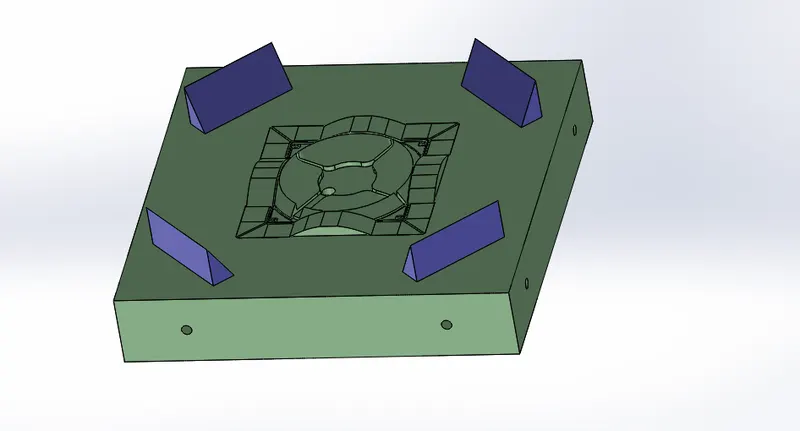

Step 10. Cavity block - as per the core block same procedure was followed to make the cavity block.

Step 11. Reliefs - added reliefs between the blocks wherever was necessary to avoid rubbing of the blocks.

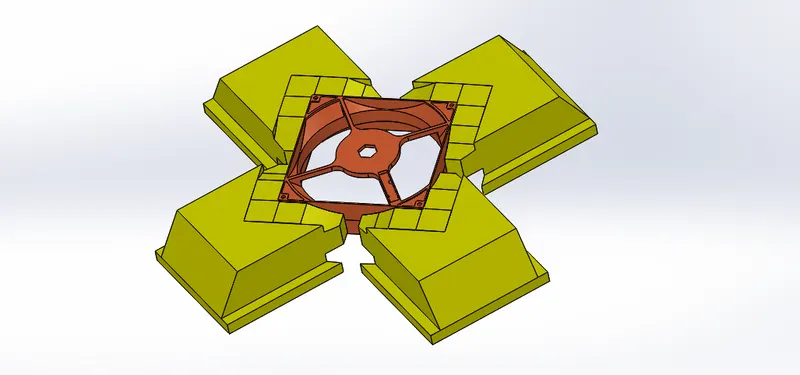

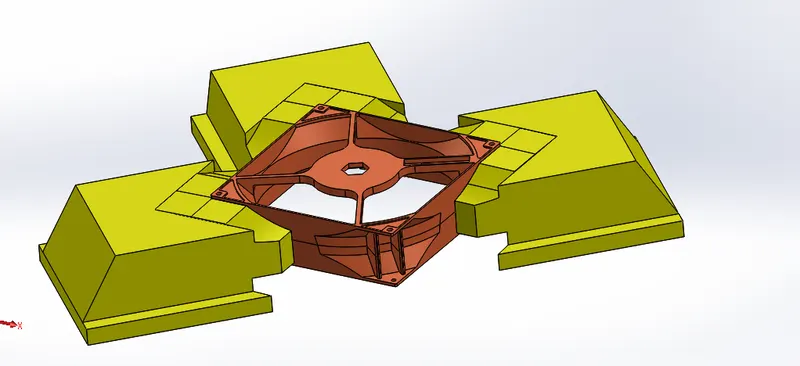

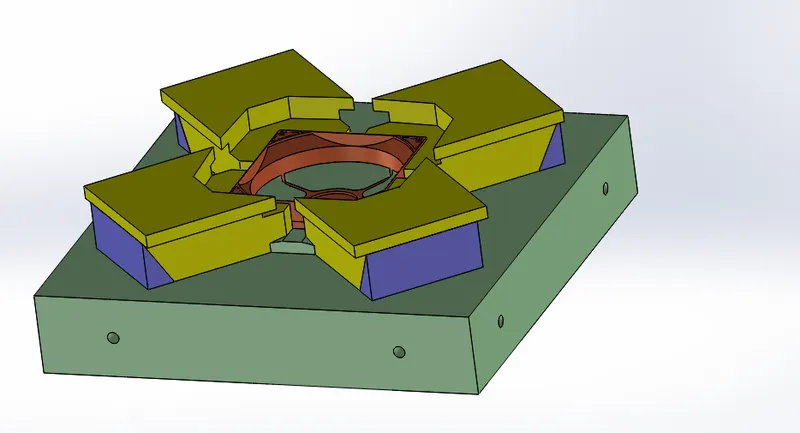

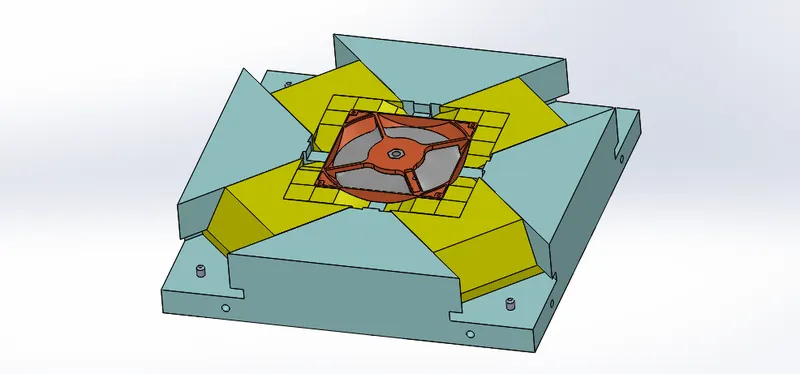

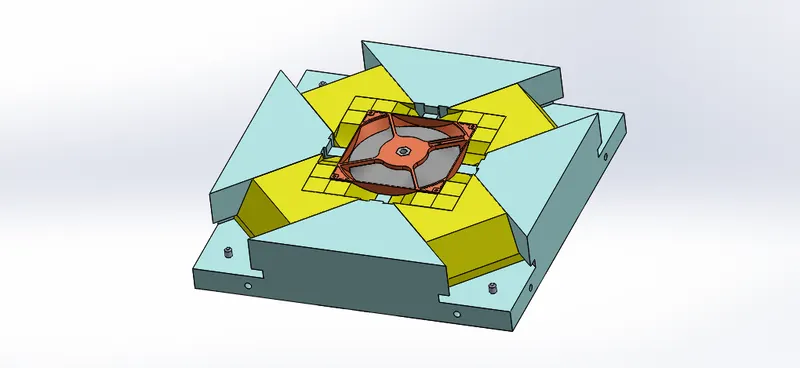

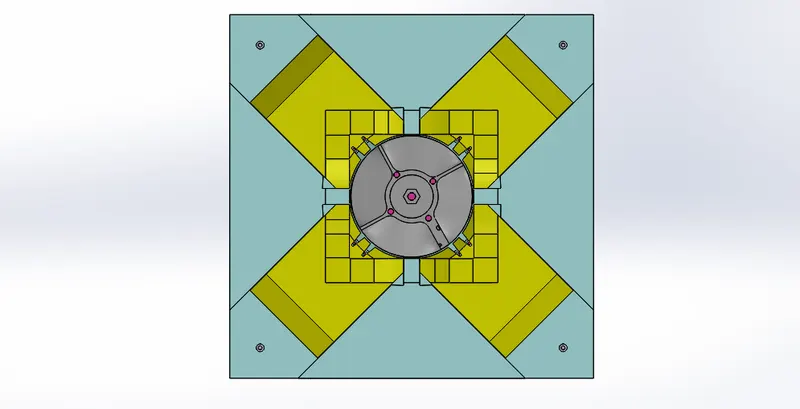

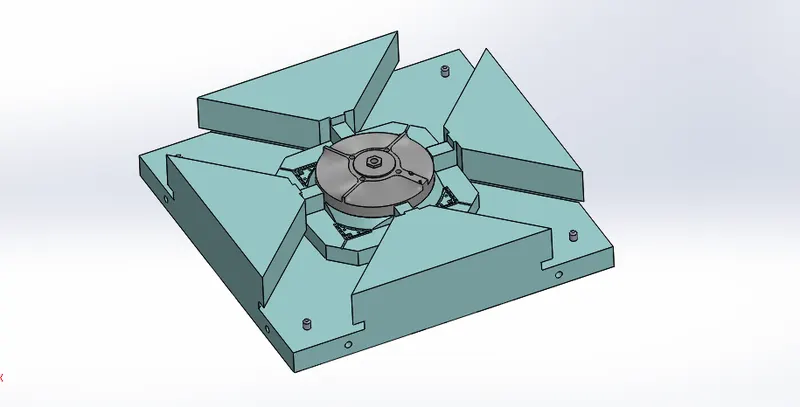

Step 12. Sliders - sliders was made as per the profile wherever is needed and mached according to the core and cavity block.

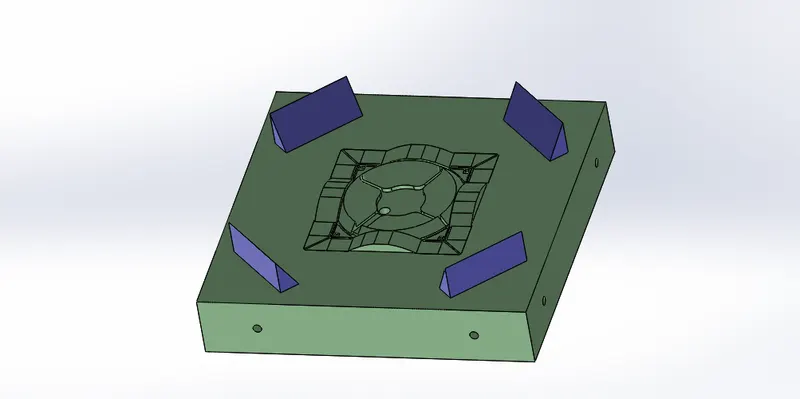

Step 13. Slider lock - was added as per calculation of movement to eject the part easily.

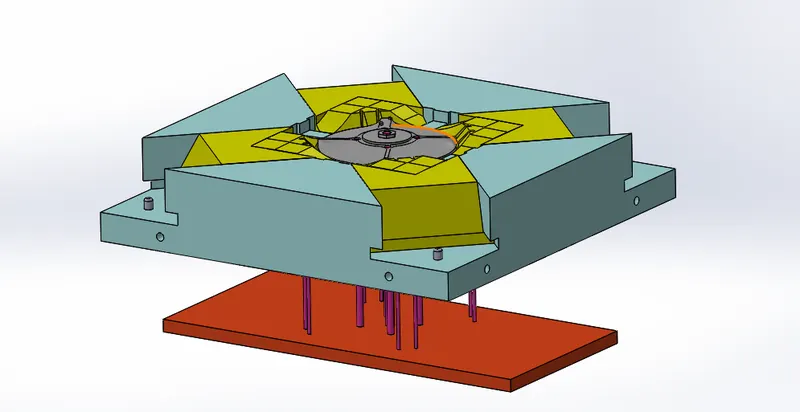

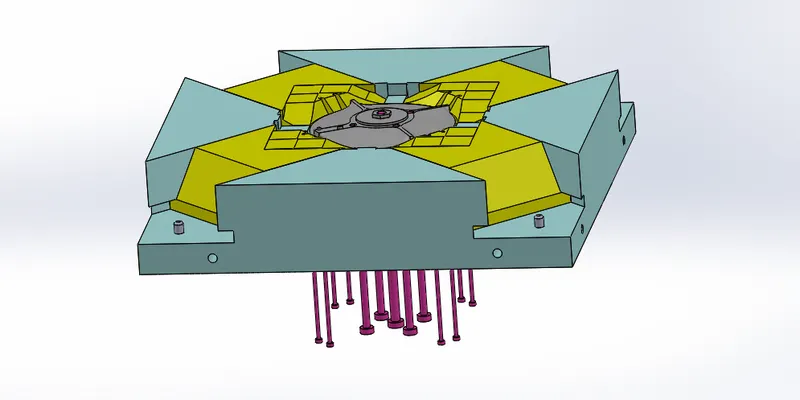

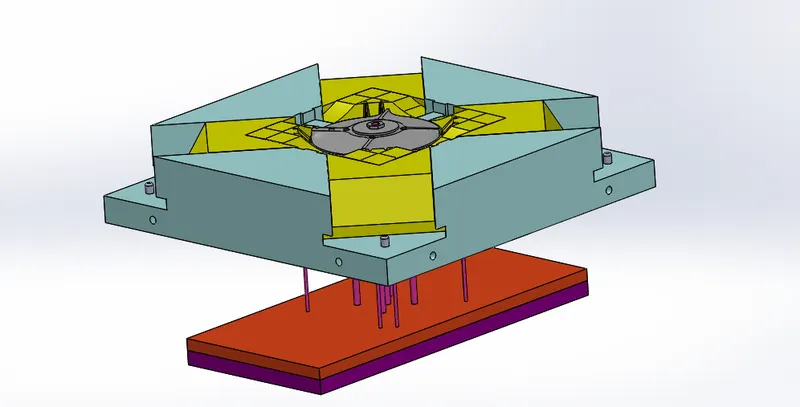

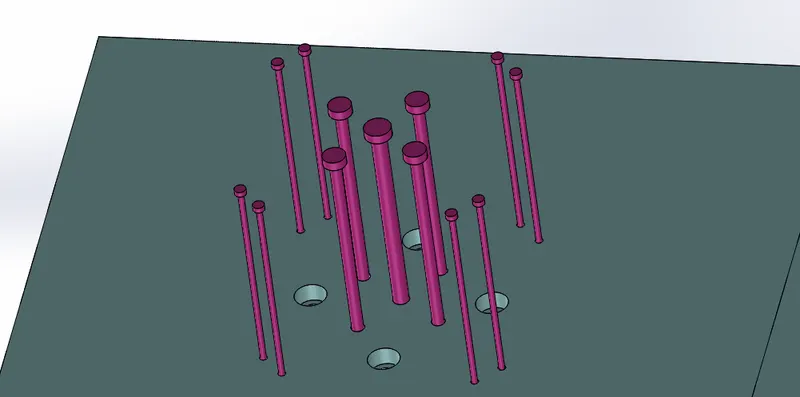

Step 14. Ejector pin - making ejector pin to eject the component and modifying core block as per pin.

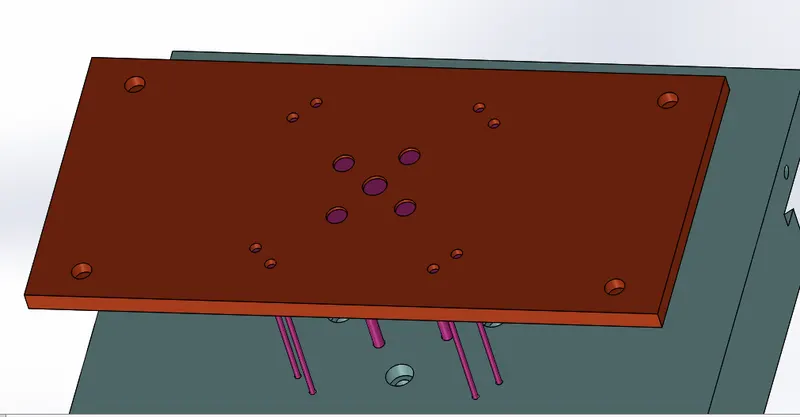

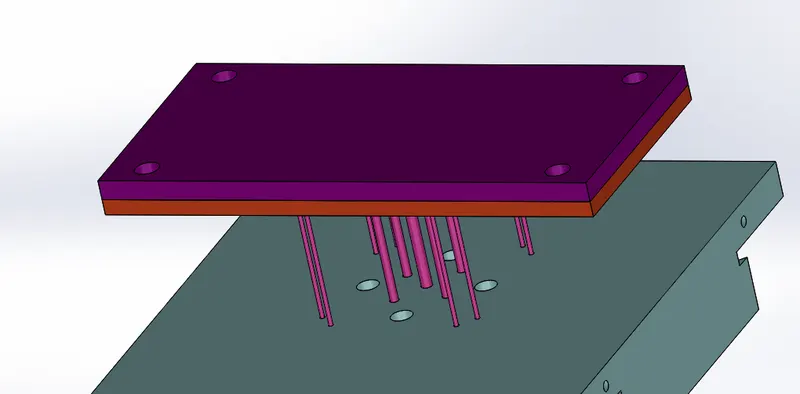

Step 15. Ejector plate - making ejector plate for the ejector pin movement.

Step 16. Ejector back plate - making ejector back plate for ejector plate fitting.

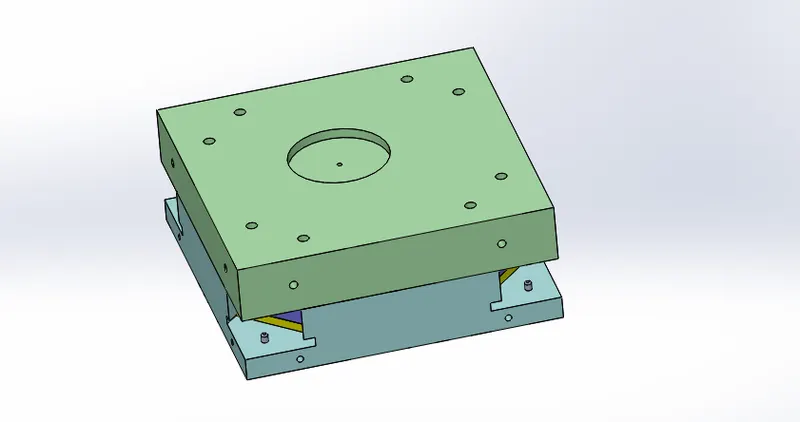

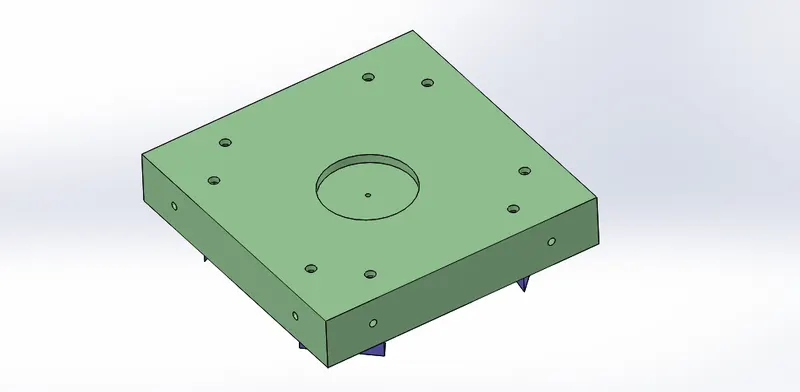

Step 17. Sprue - making sprue in cavity block.

Step 18. Air Vent - modifying core block so that air won't trap.

Step 19. Cooling channels - making cooling channels in core block.
