Project 2

AIM-:

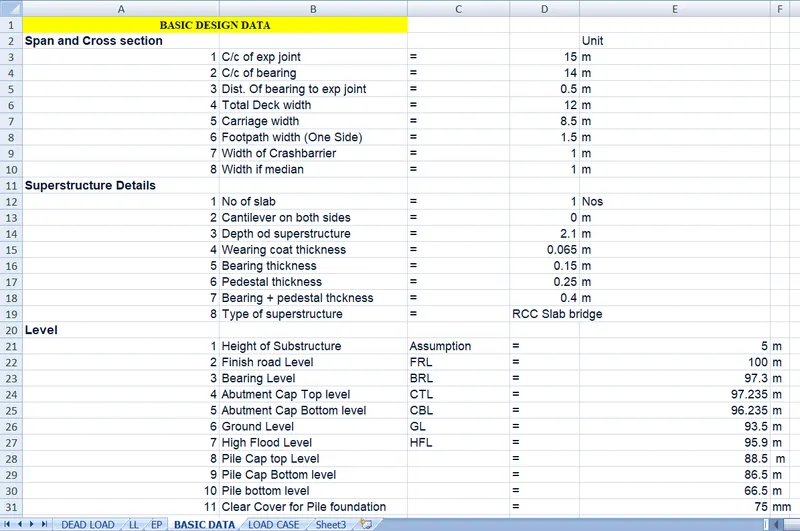

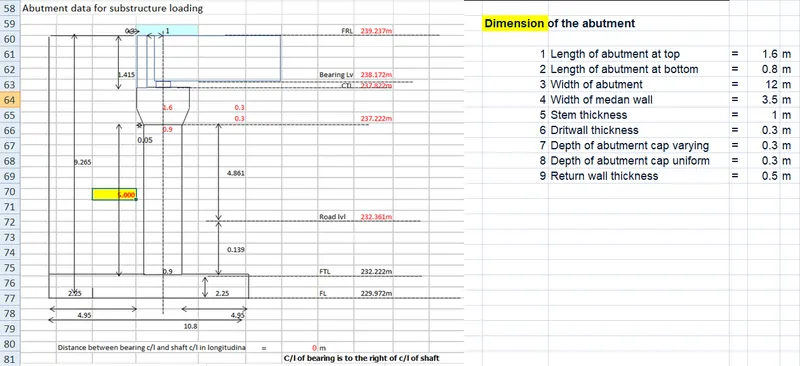

Design pile foundation of a RCC slab bridge having dimensions “15” m span and “5” m height at abutment and width = 12 meters.

And having vertical capacity as 300 tonnes and horizontal capacity as 40 tonnes per pile. Also Design the pile cap and its reinforcement

Size also to be fixed as per design.

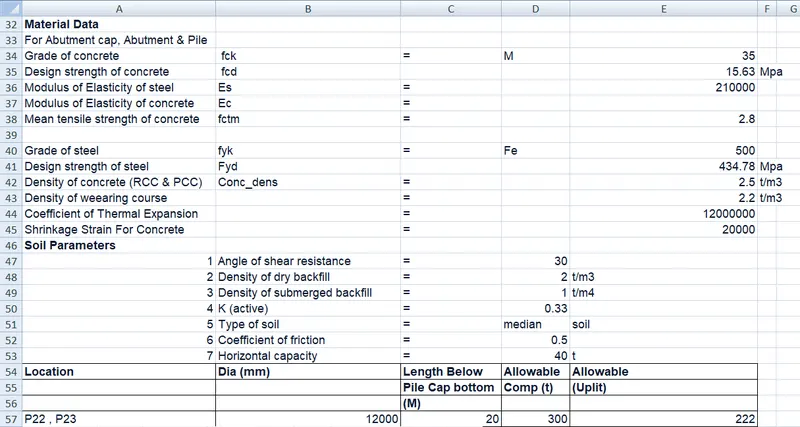

M35 concrete and Fe500 steel.
Scour at abutment 4 meters.

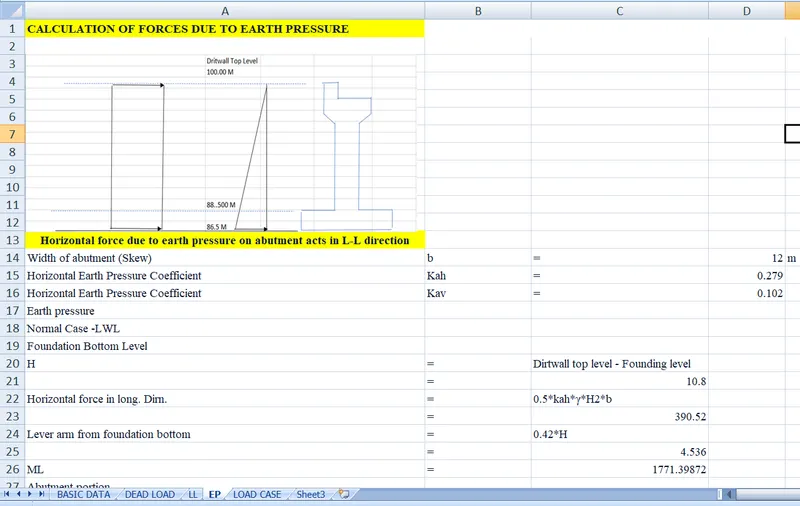

Soil density=20 kn/m3 k=0.33 (active)

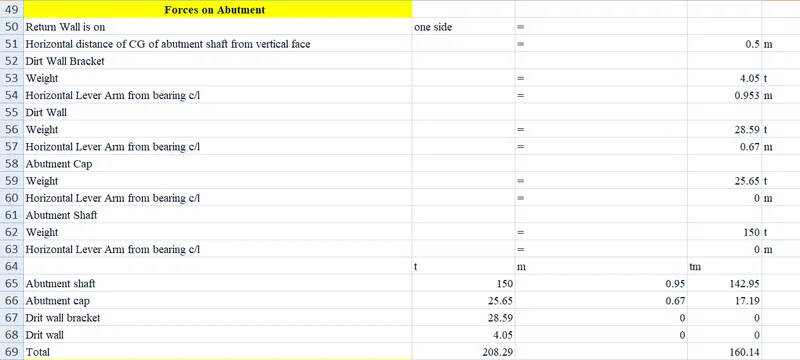

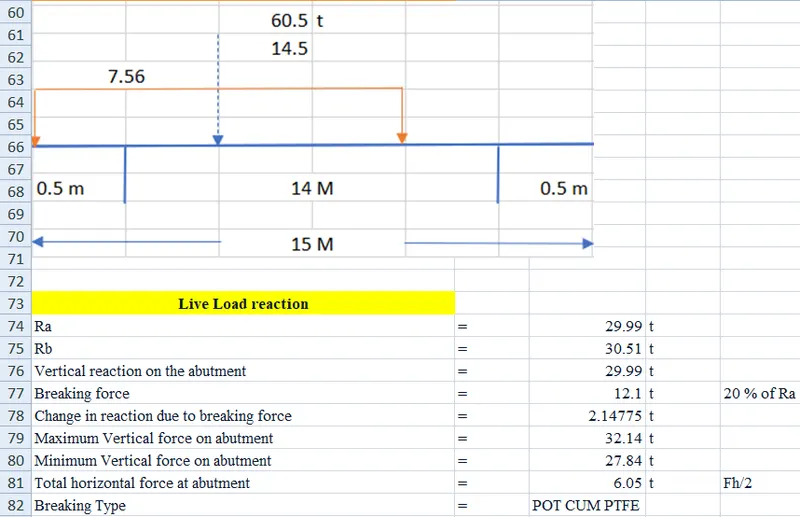

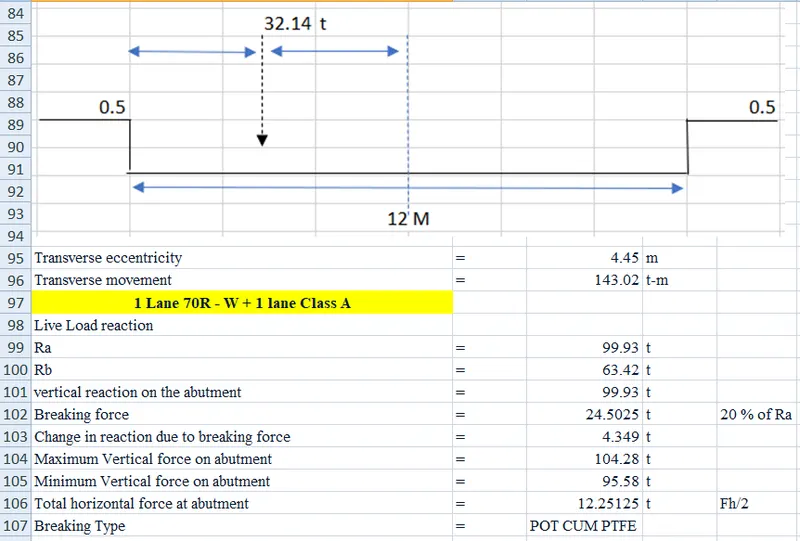

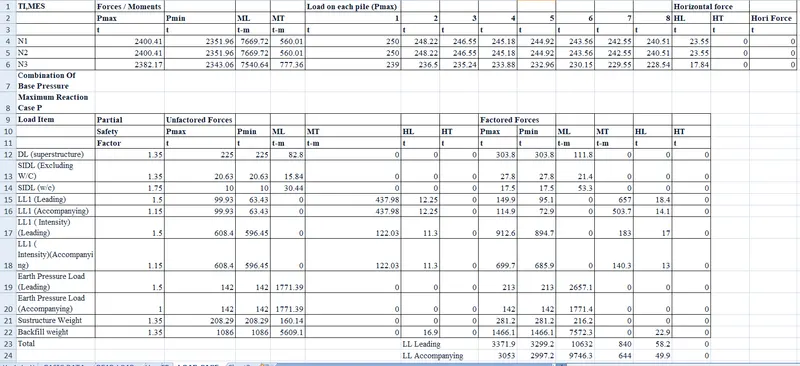

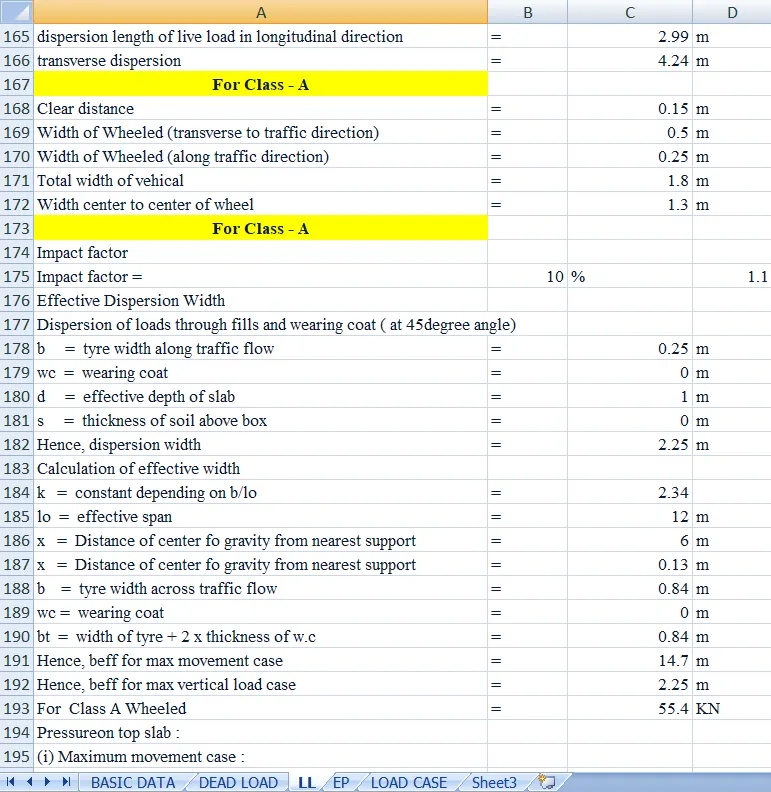

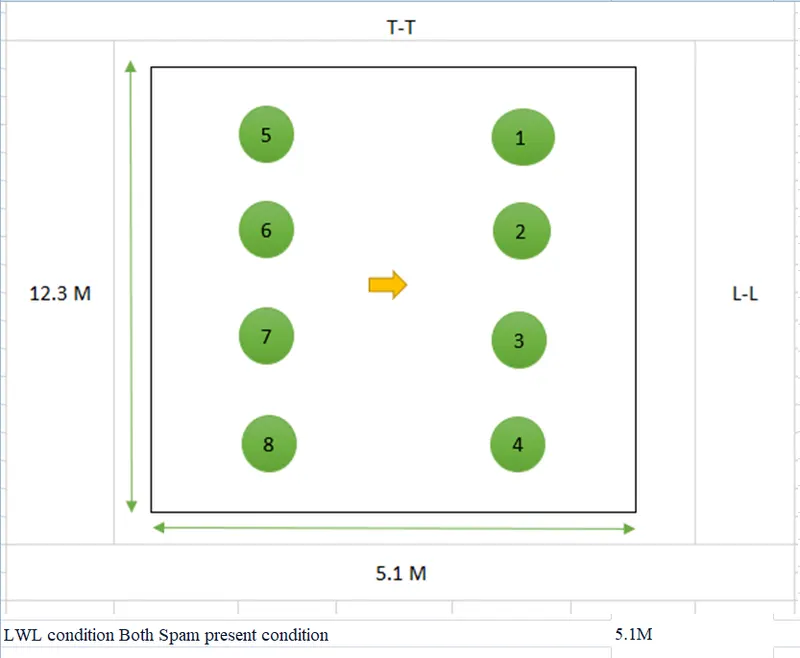

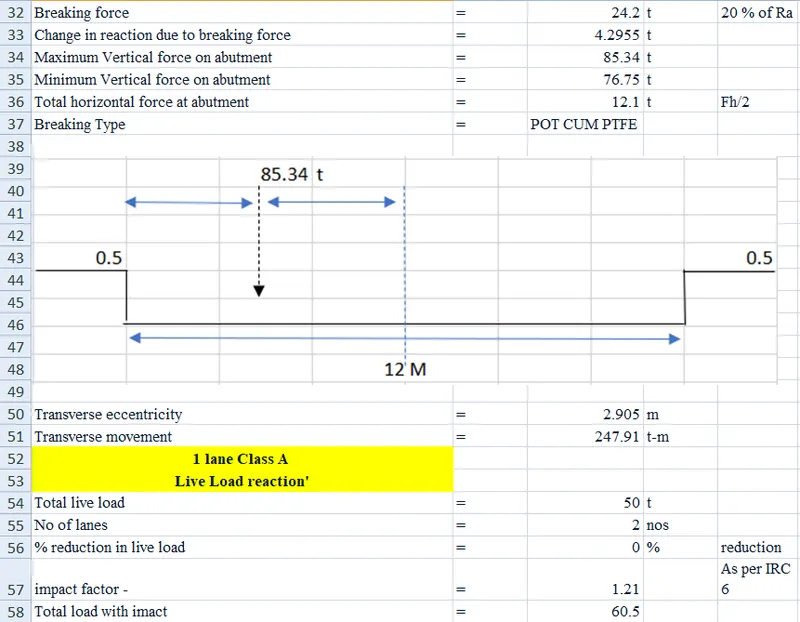

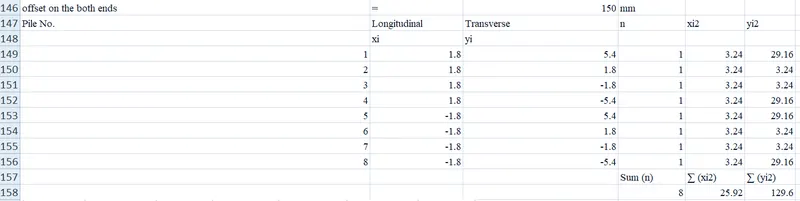

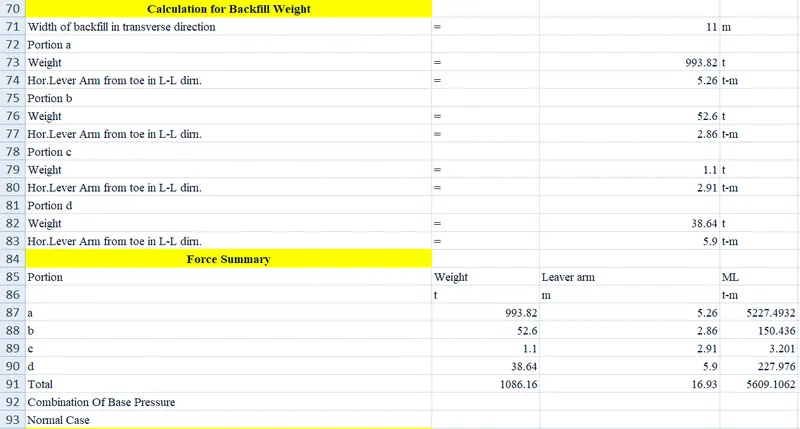

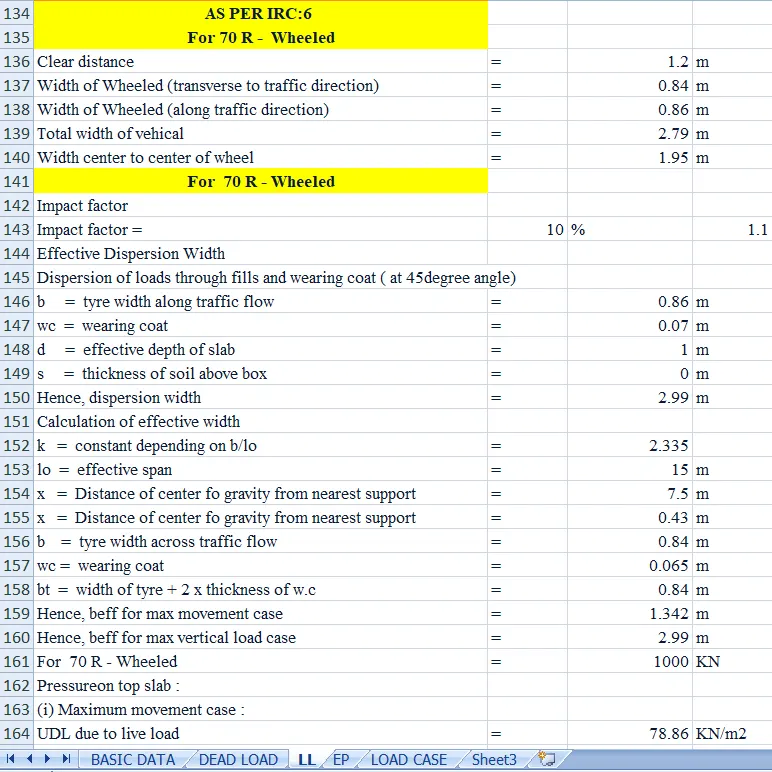

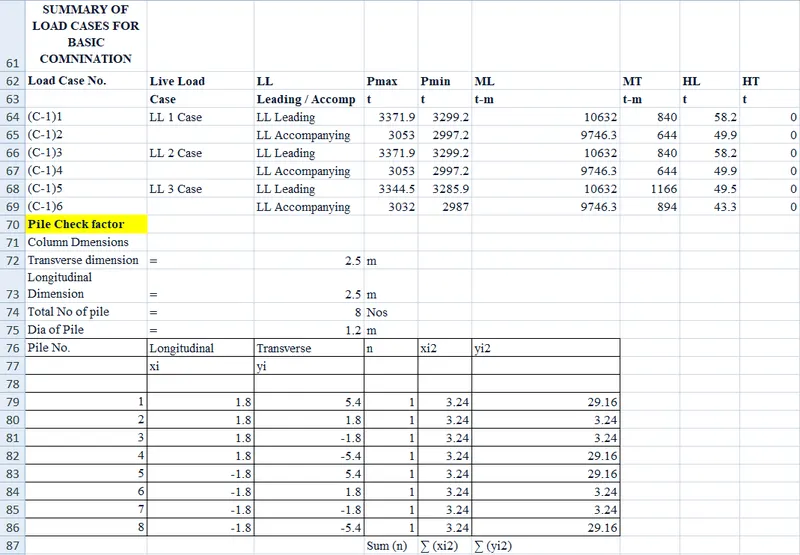

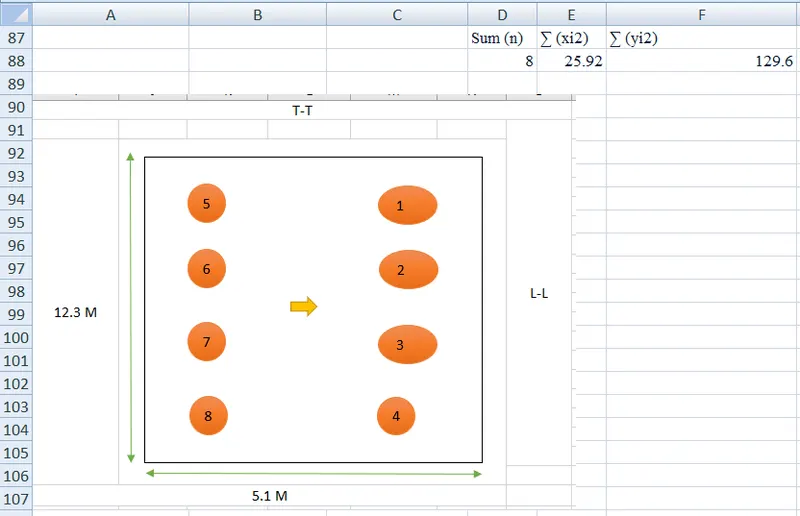

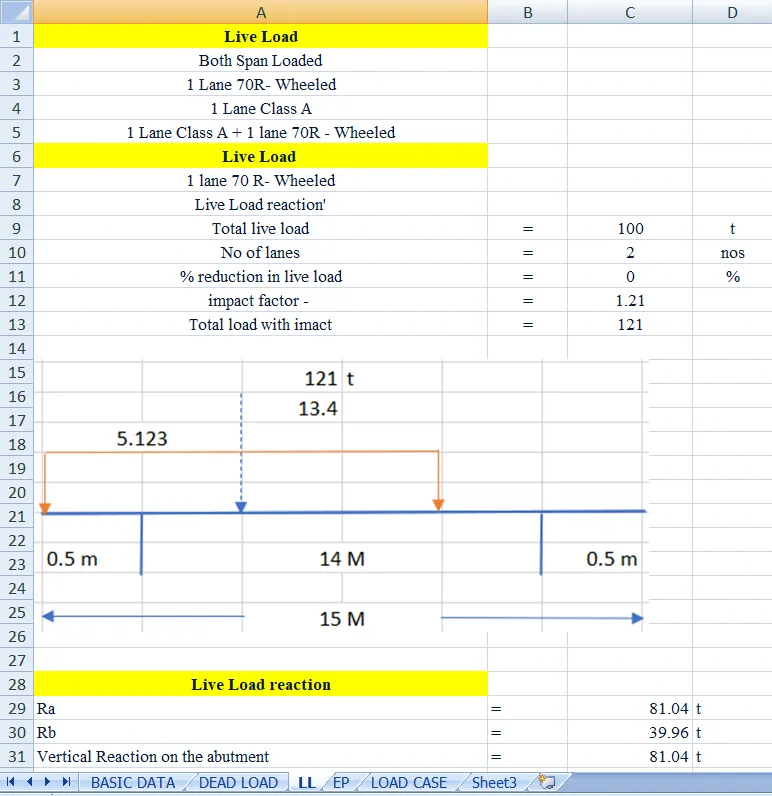

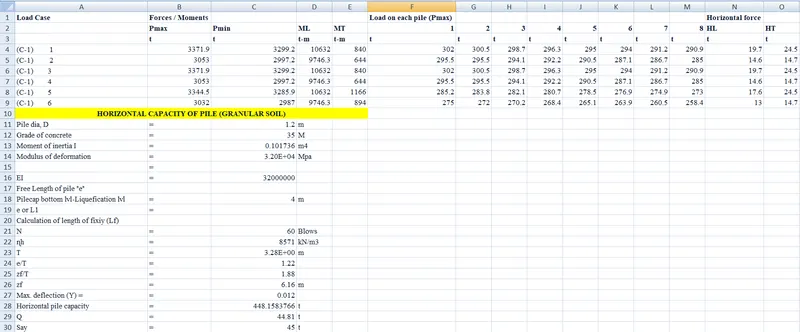

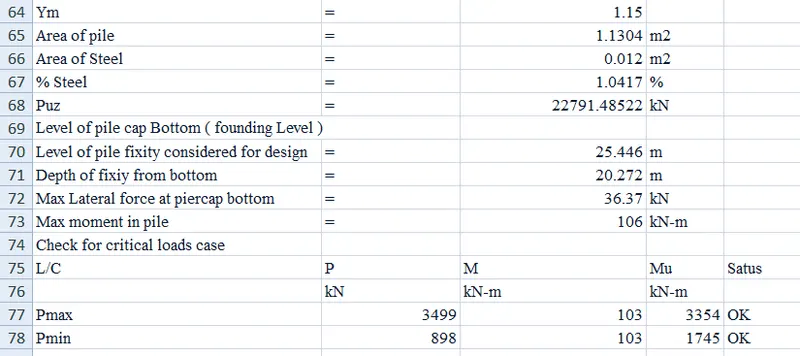

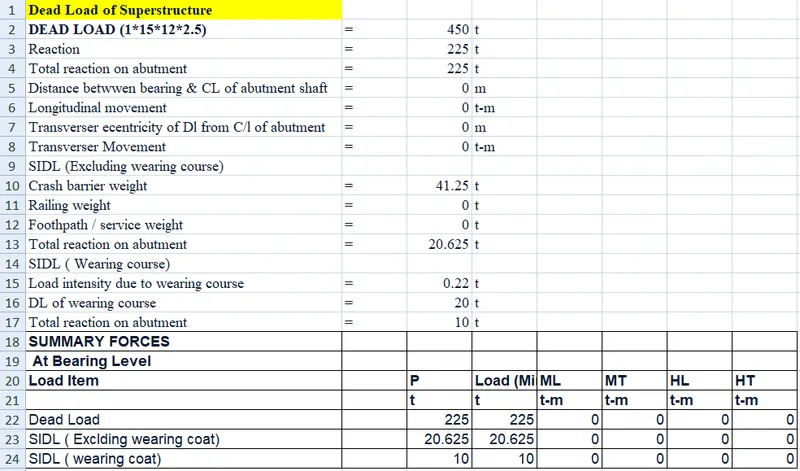

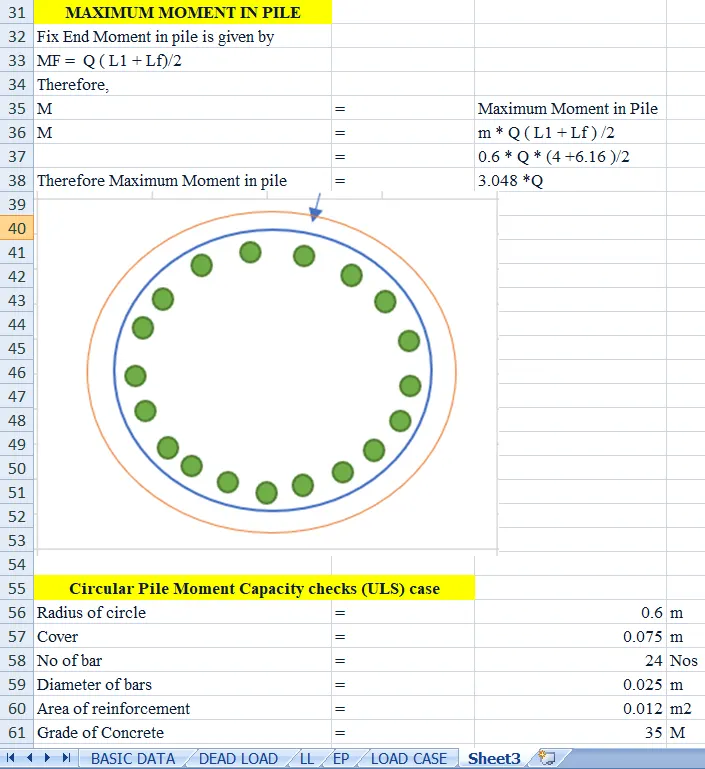

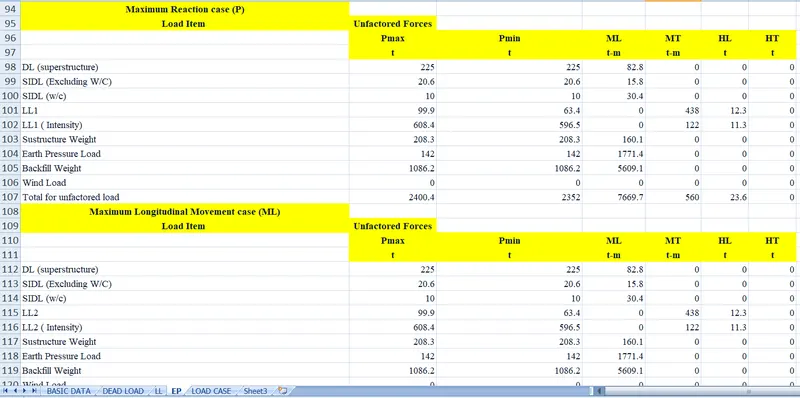

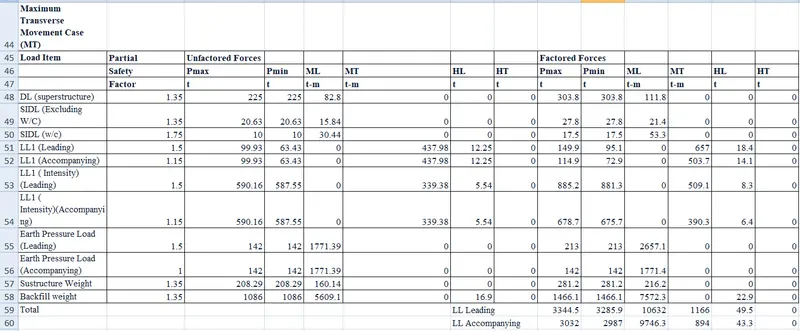

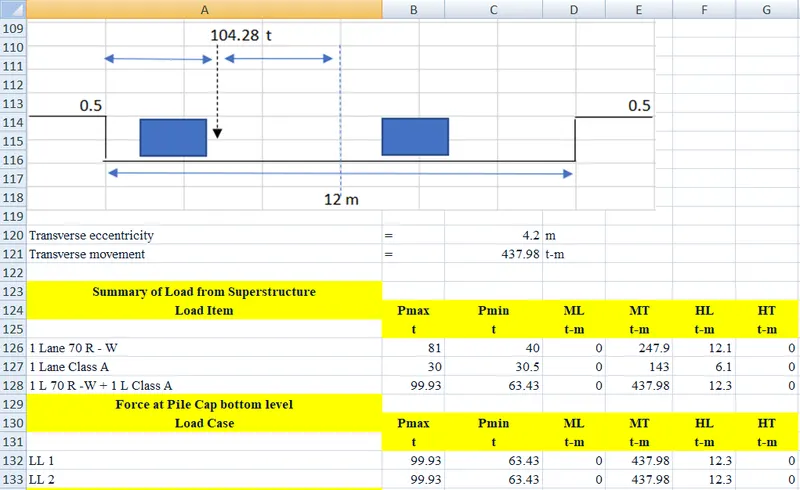

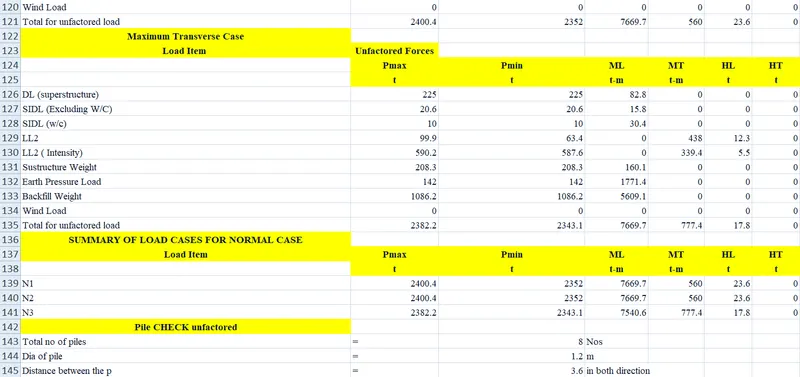

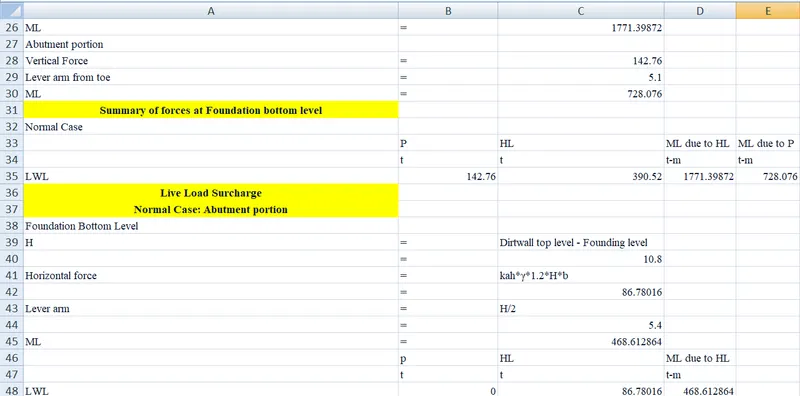

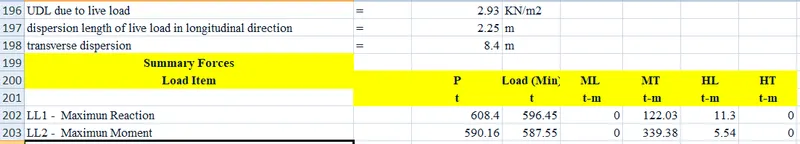

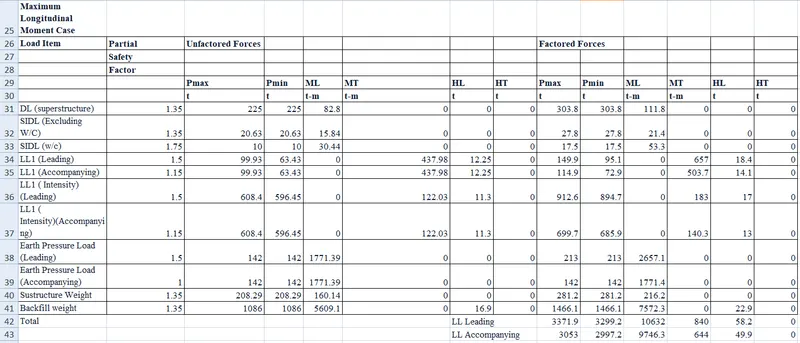

ANS-:
