Project 1 - Wiper control system and Vehicle speed calculation for ABS using Wheel Speed sensor

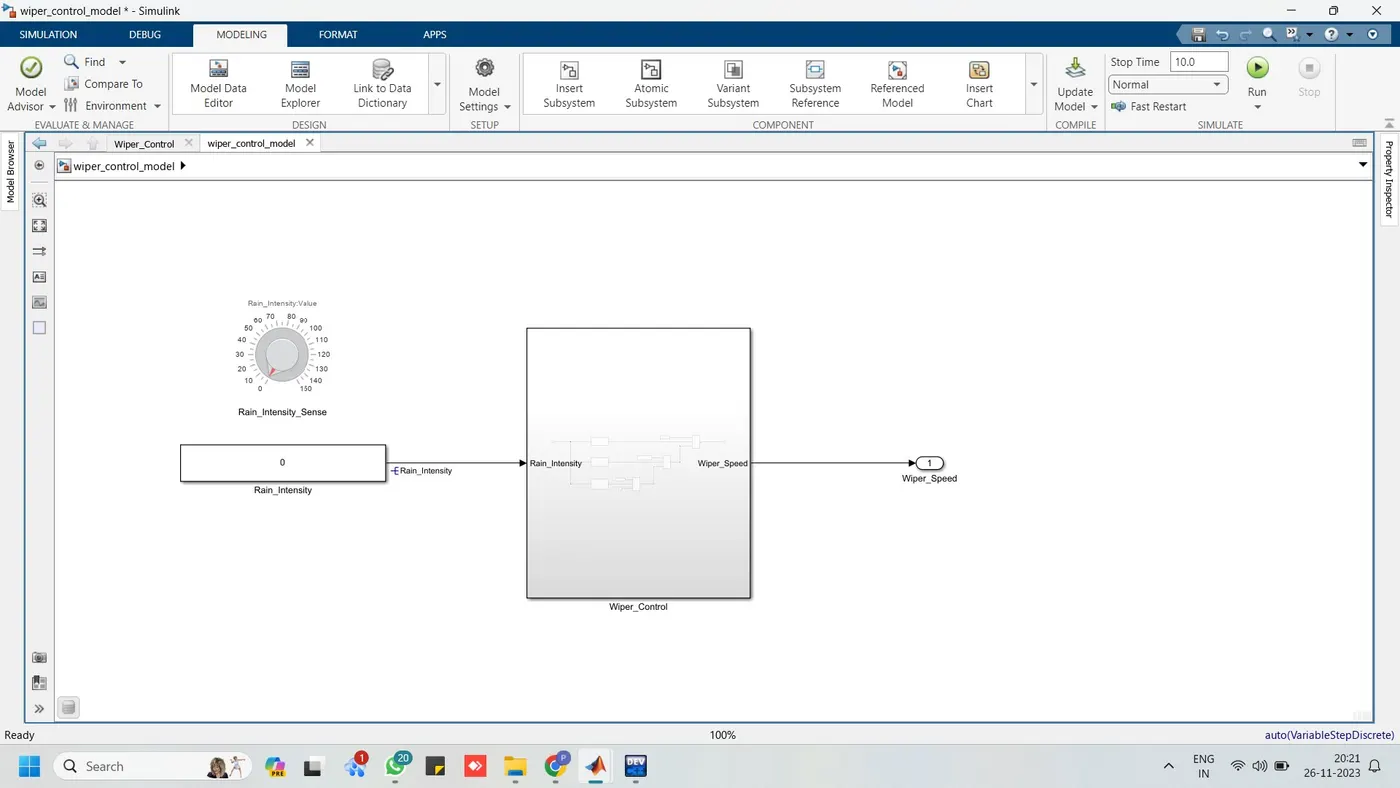

Hi,

         I have attached the answers below.

Thank you,

Steps which is followed this project:

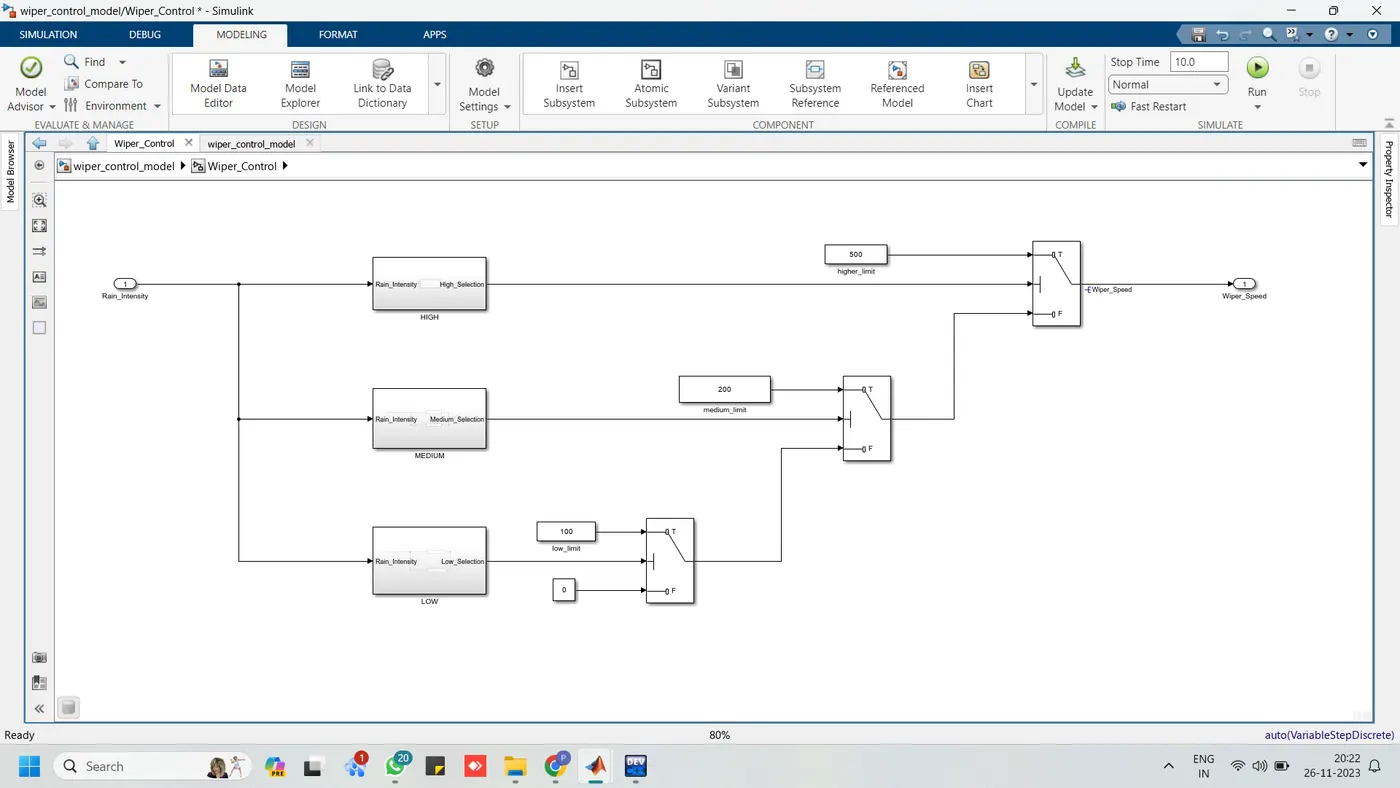

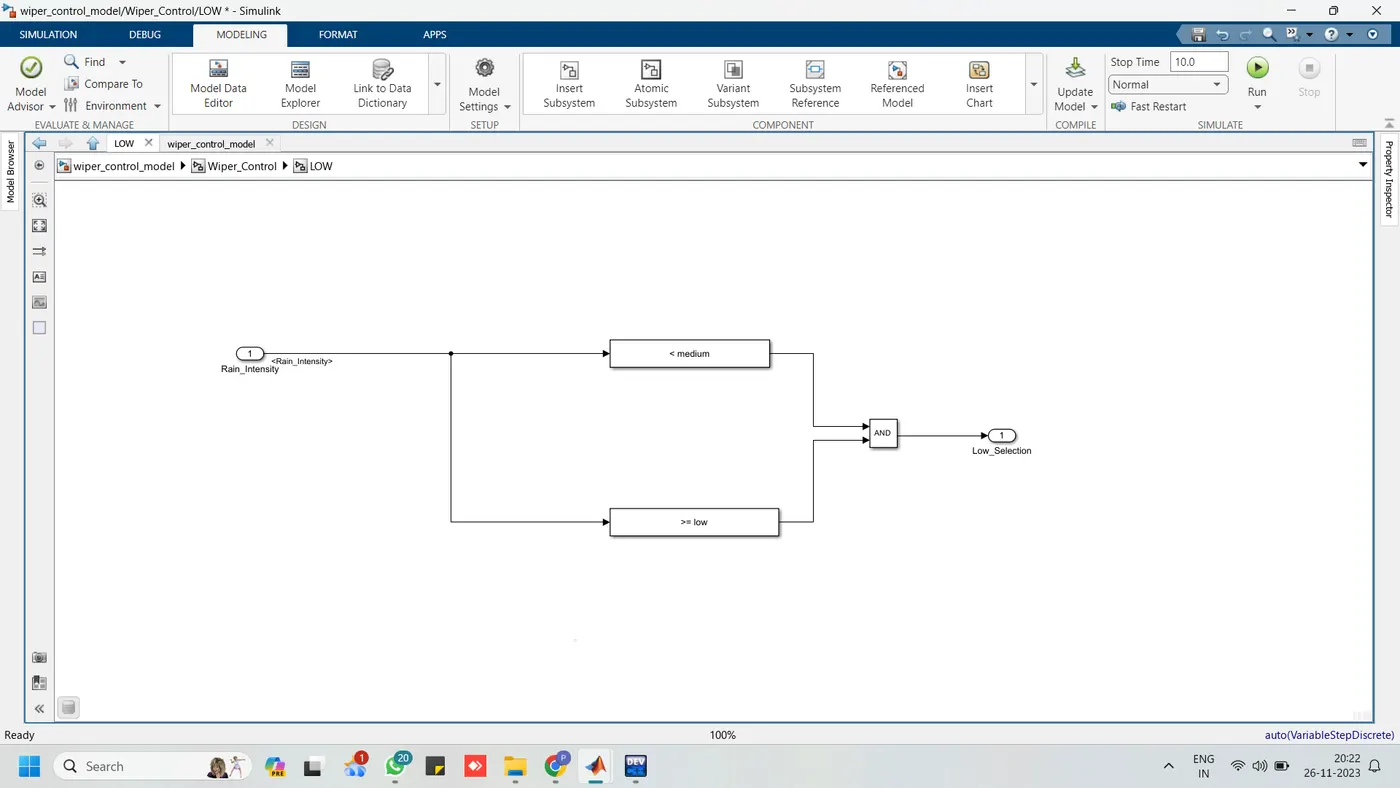

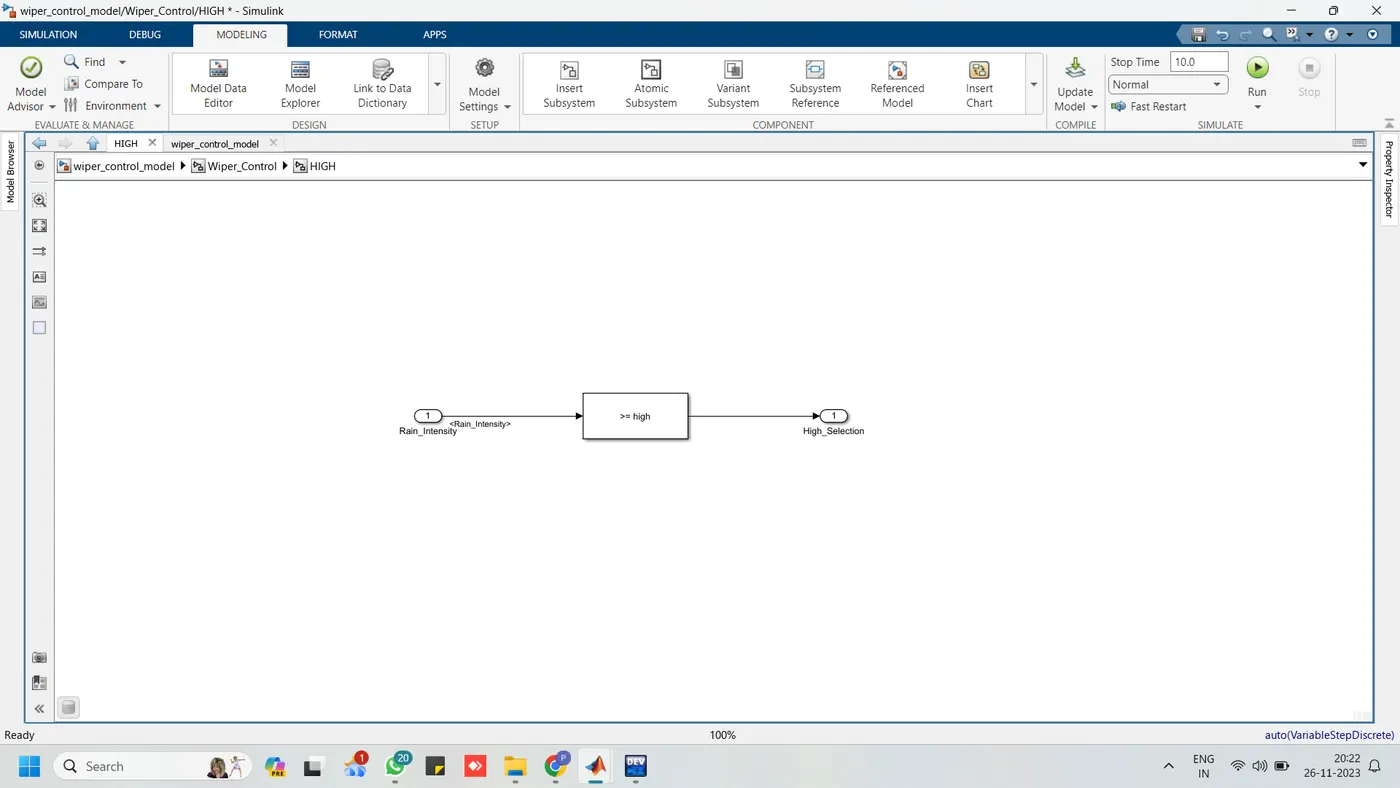

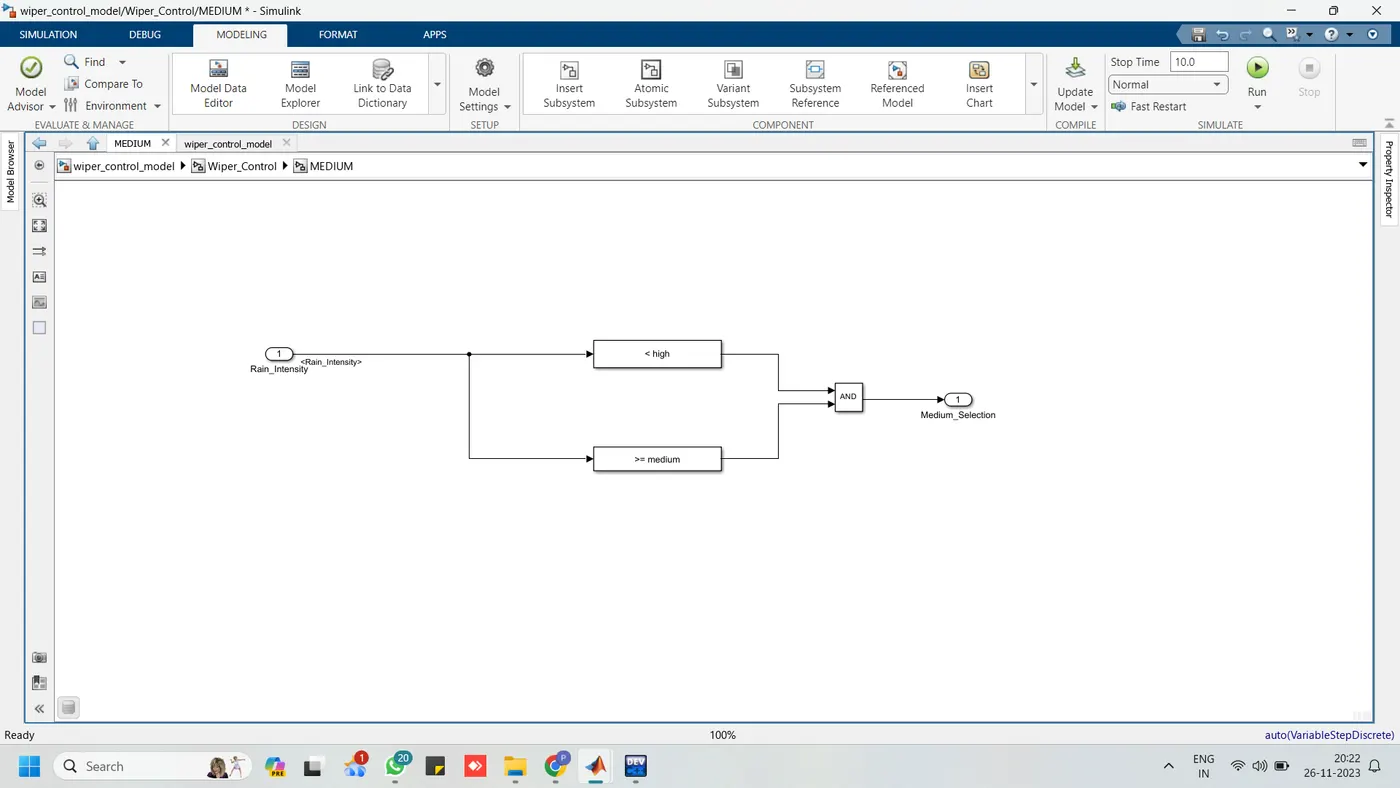

step 1:  Open matlab/simulink and create a model as per requirements which is given in question.

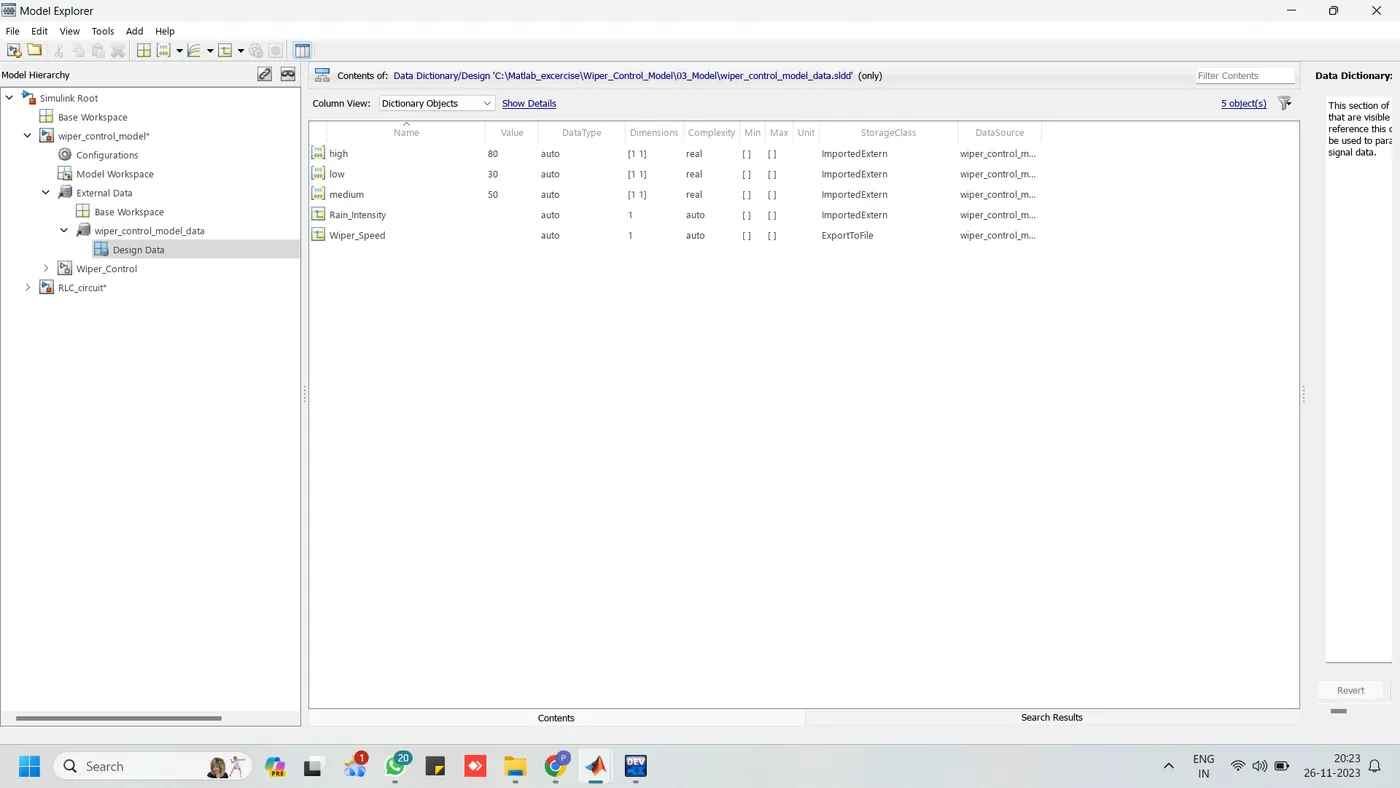

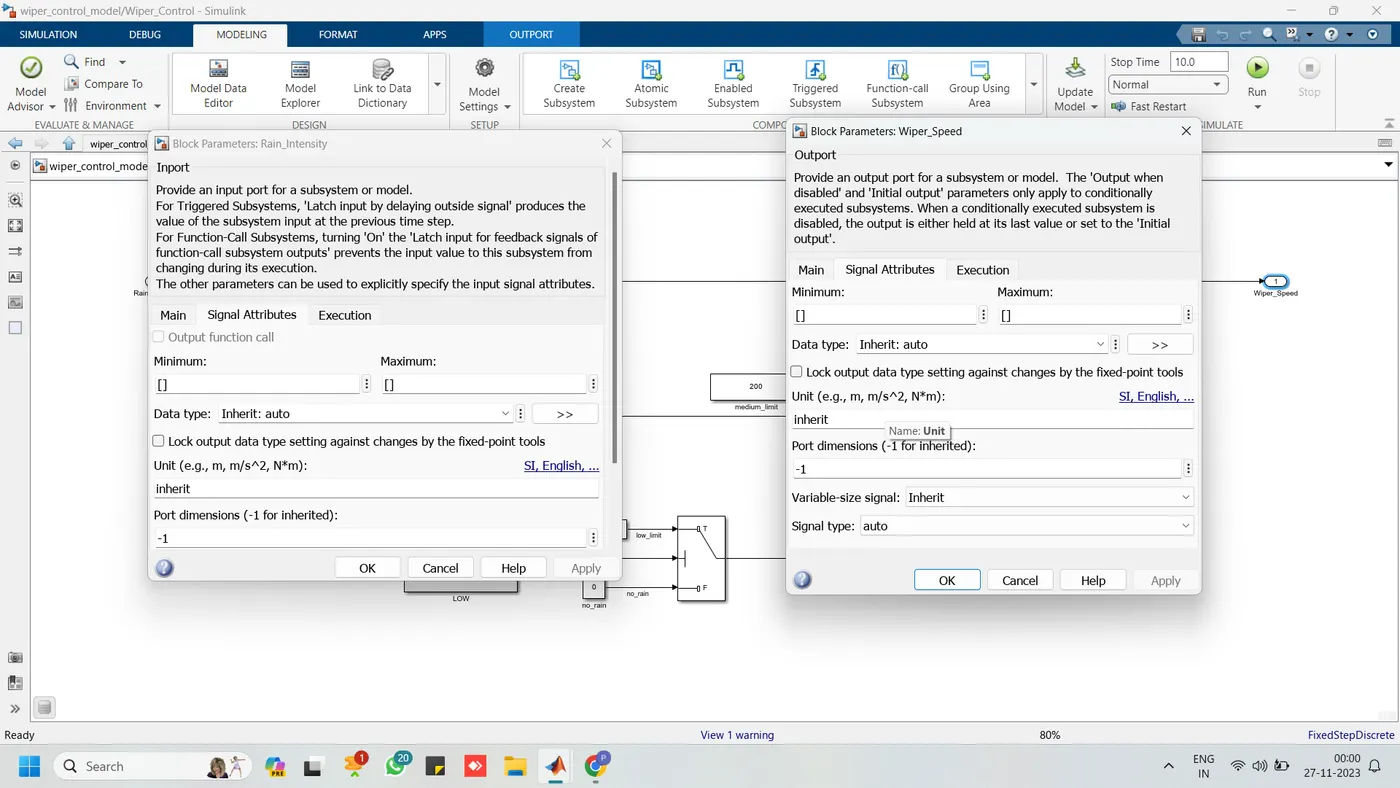

step 2: Create a data dictionary(.sldd) for the corresponding model.

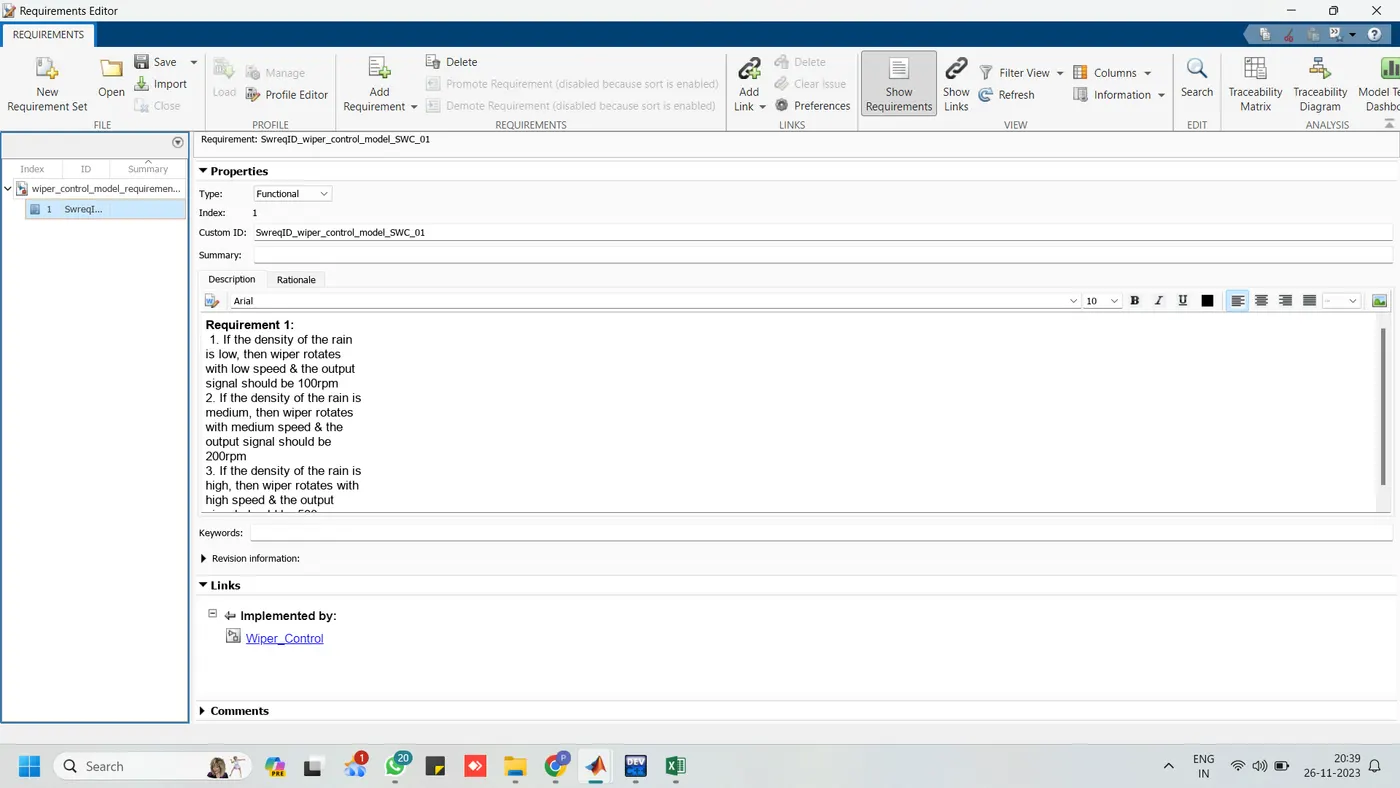

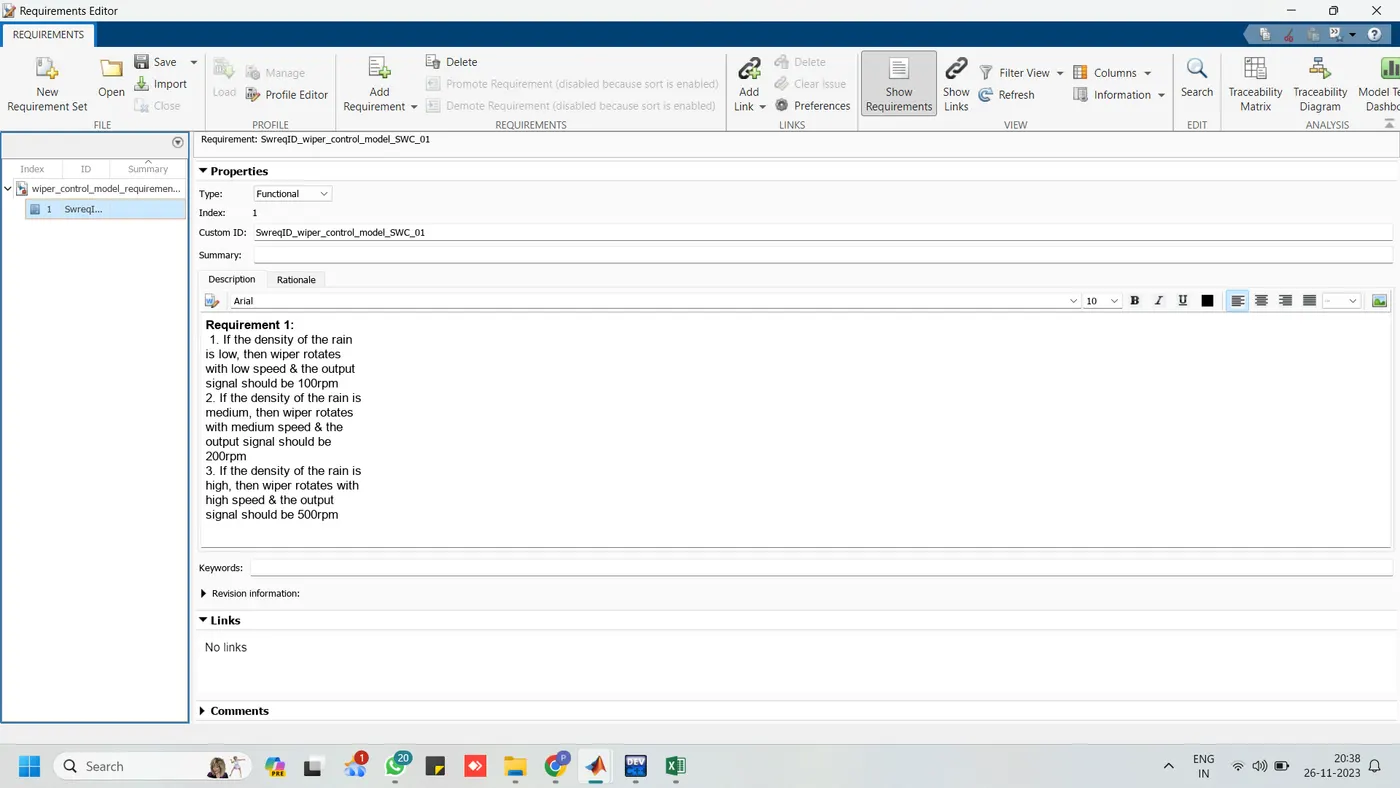

step 3: Create a requirement document in word and excel sheet. Then do mapping in the model via requirement editor option.

step 4: Link the requirement to the corresponding model. If any error or warning is coming, do rectify it.

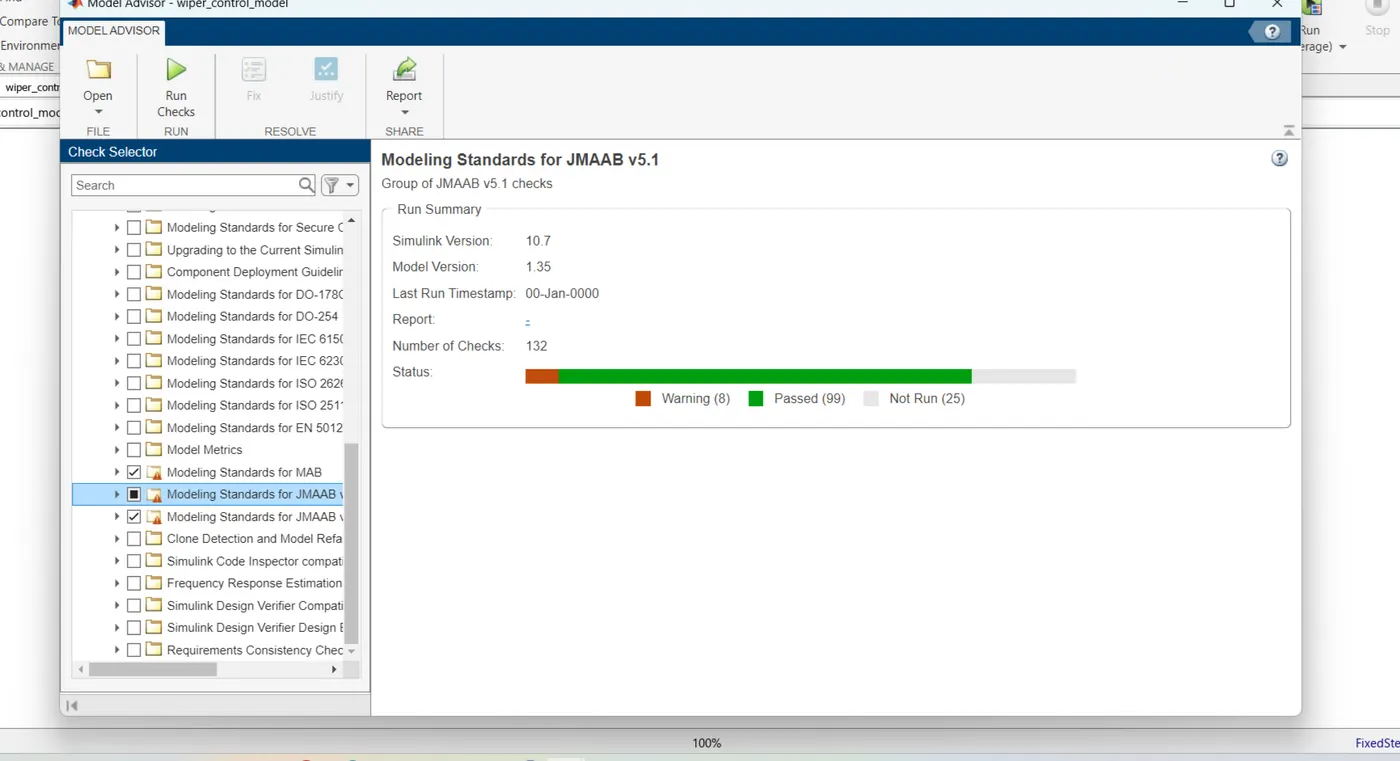

step 5: Go to modelling and open model advisor and run it. After execution report will be generated.

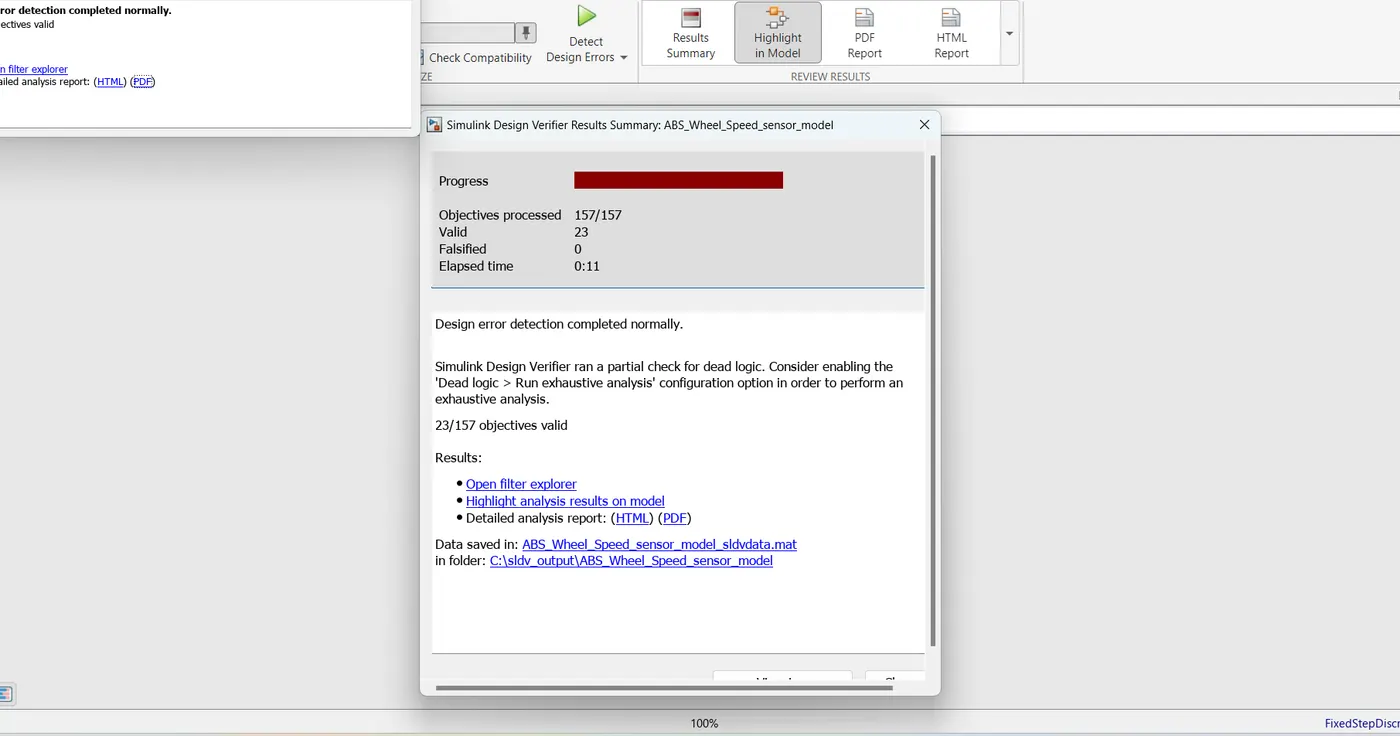

step 6: Go to design verifier and choose design error detection and run it. After execution report will be generated.

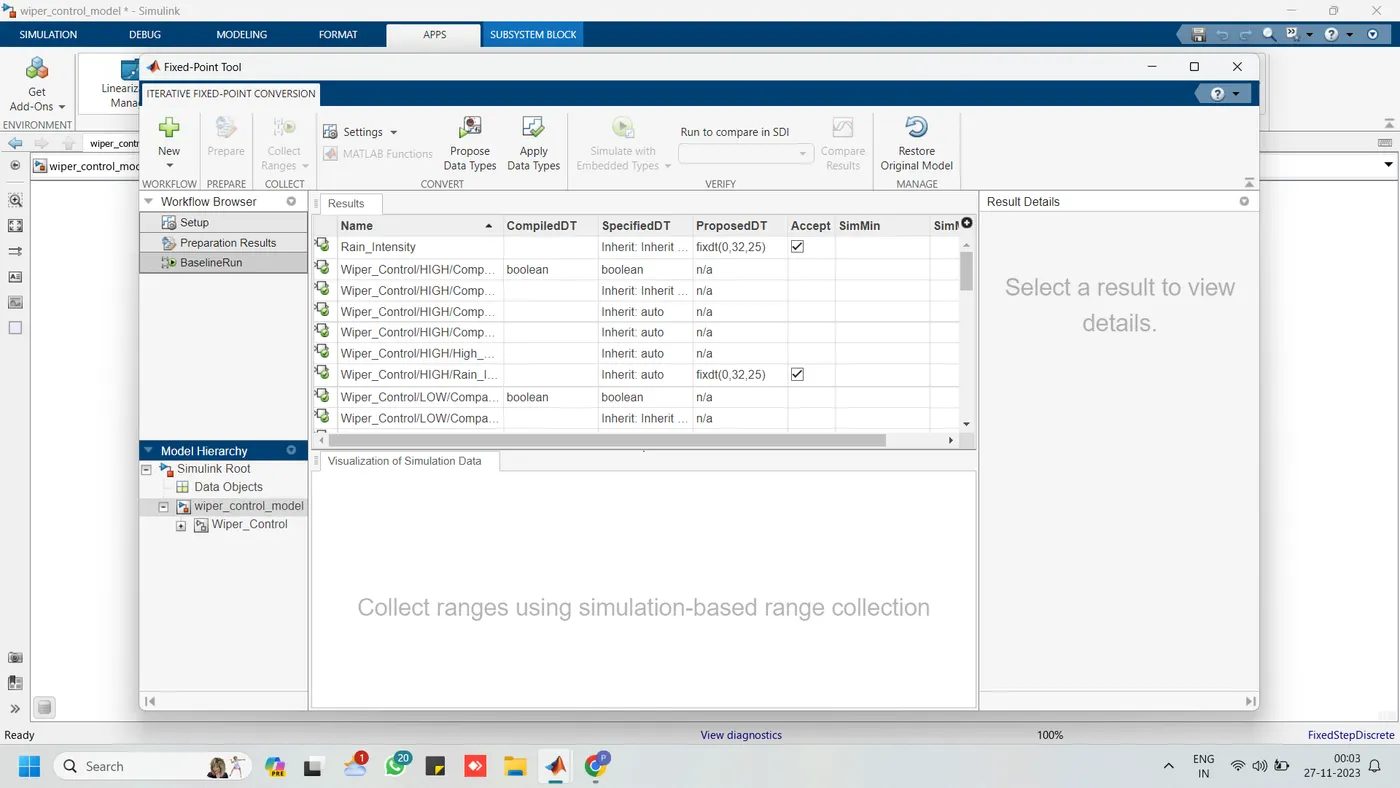

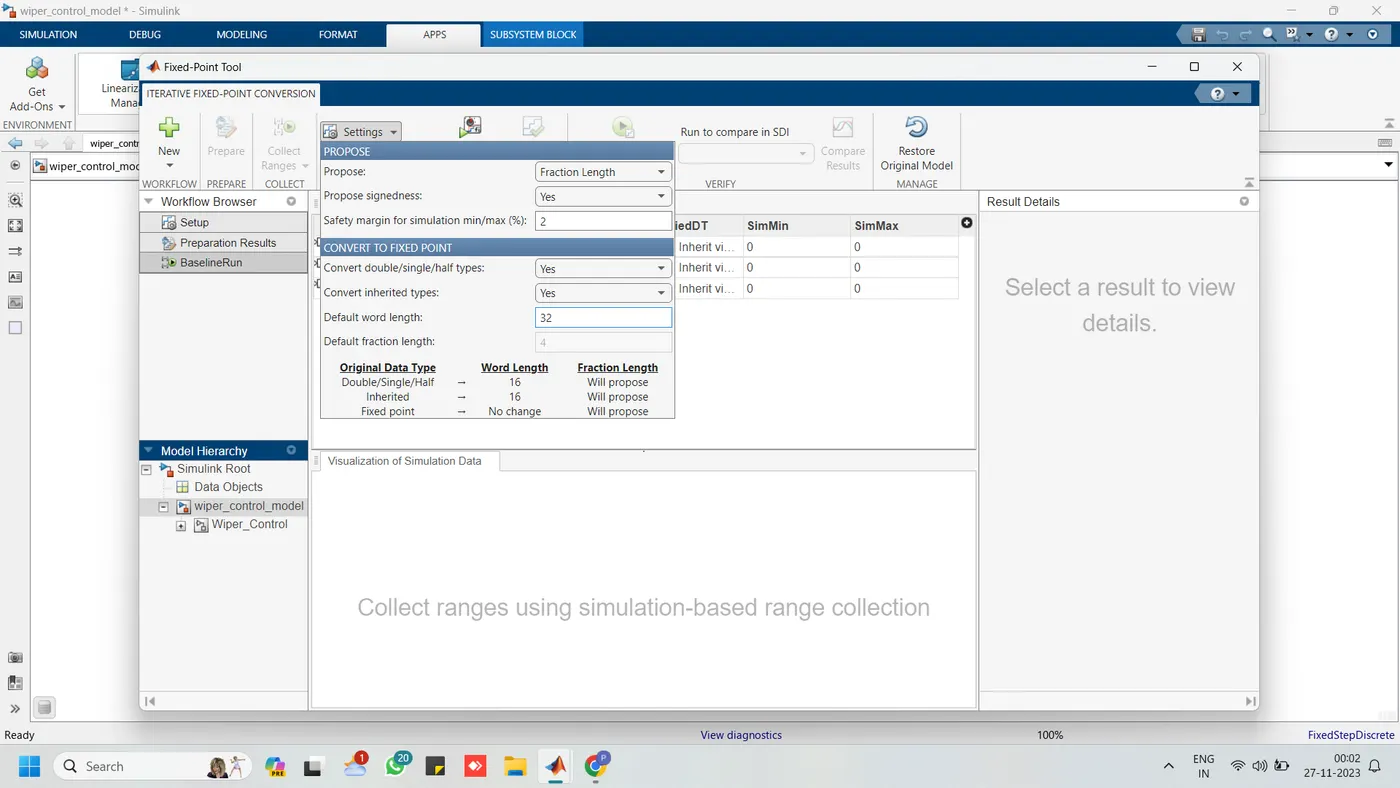

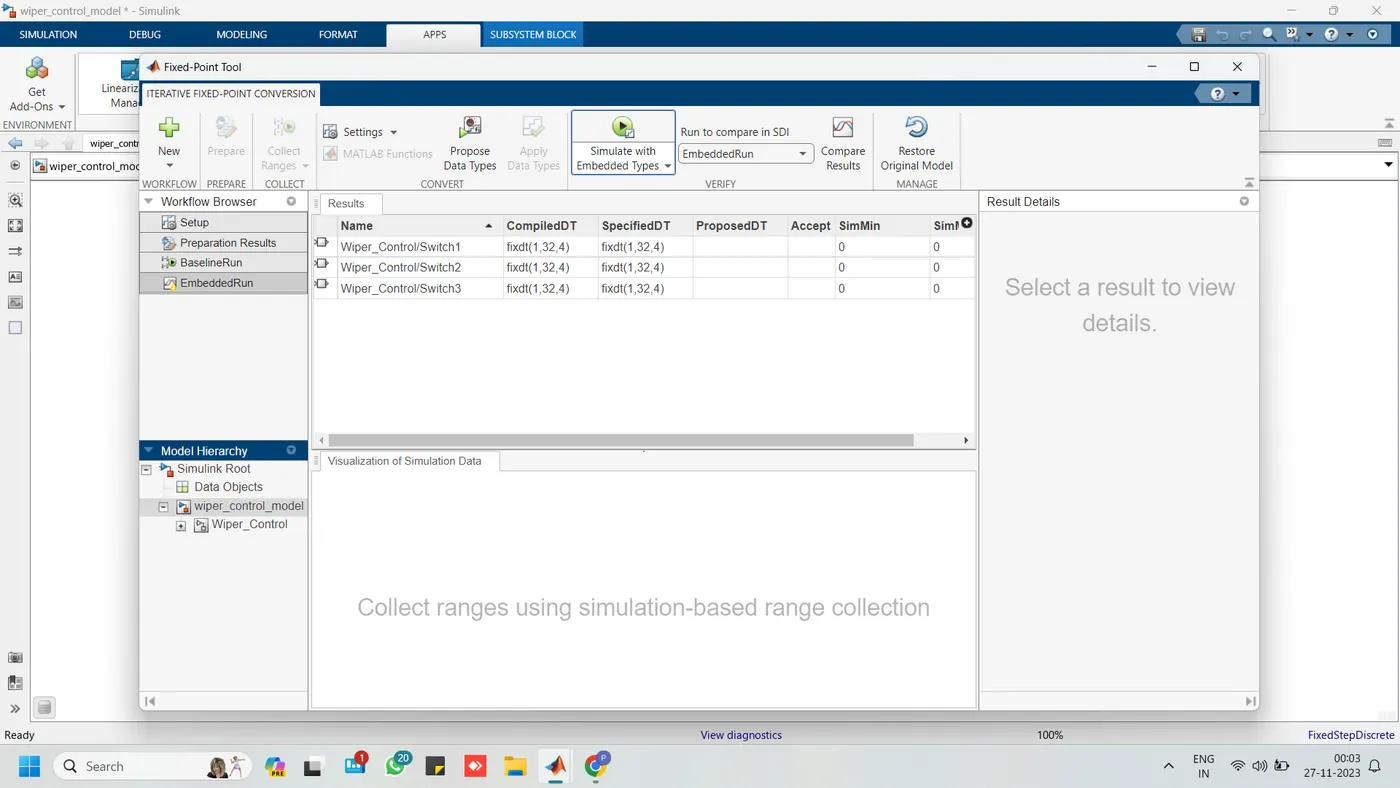

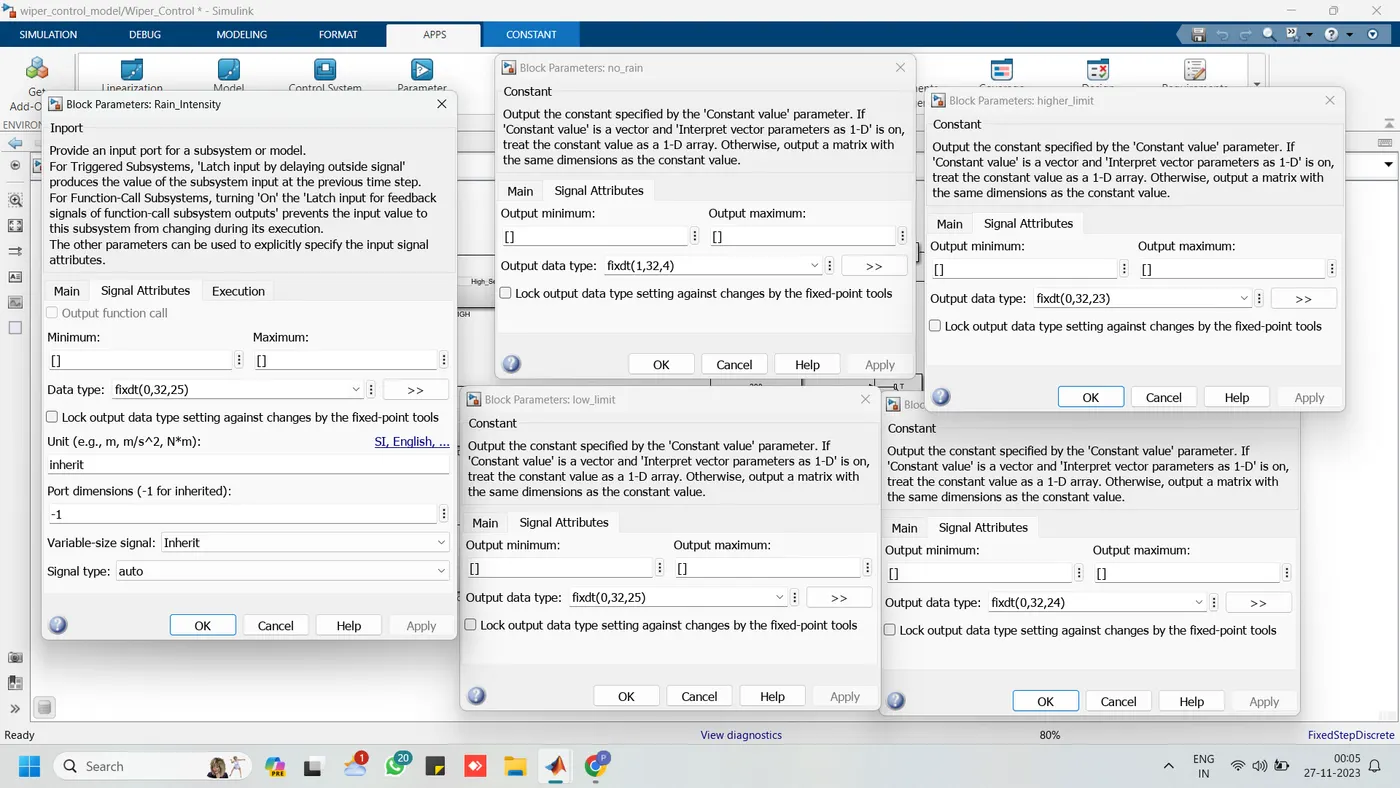

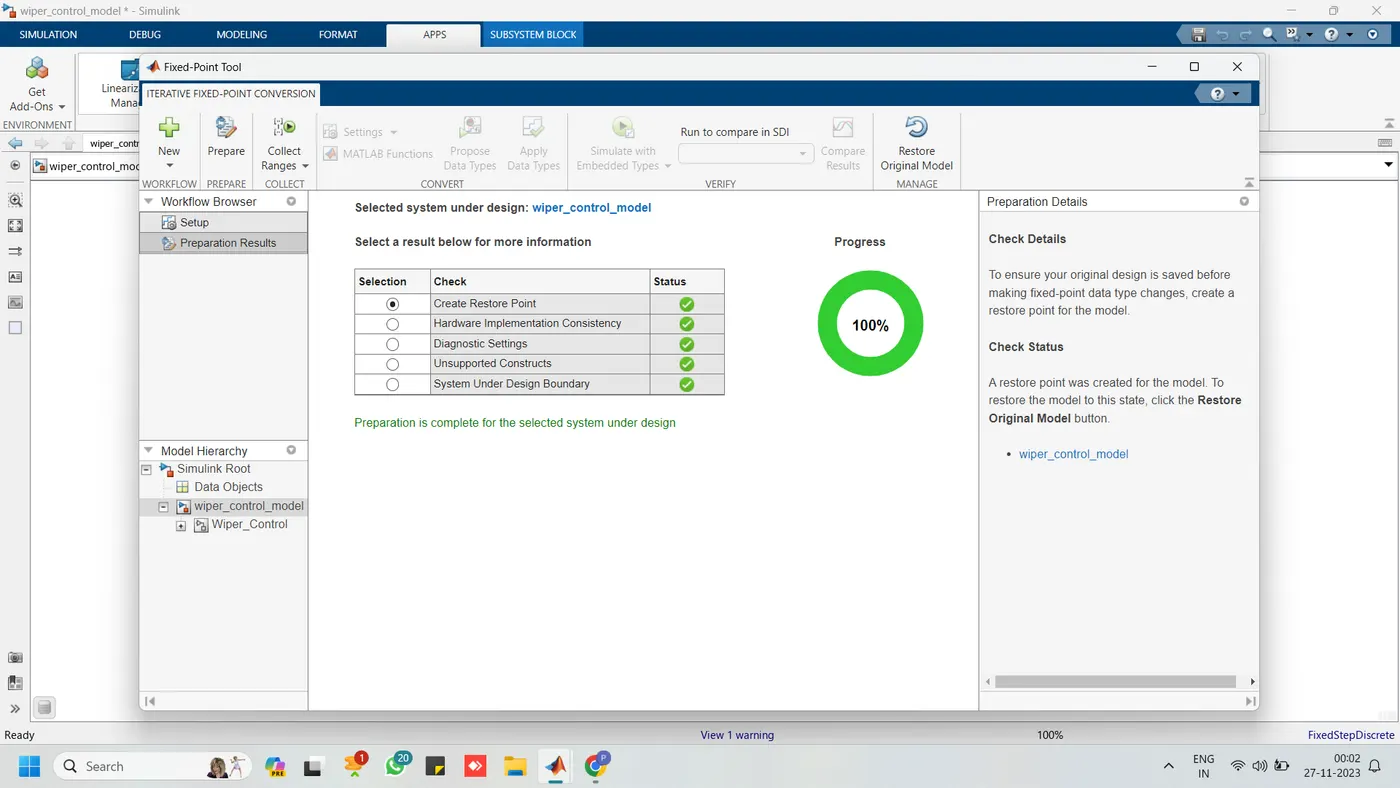

step 7: Go to fixed point tool and covert the datatype to fixed point datatype.

step 8: Create a test cases for functional testing for MIL as well as SIL.

For MIL, create a test harness and import the test cases in signal editor block and execute.

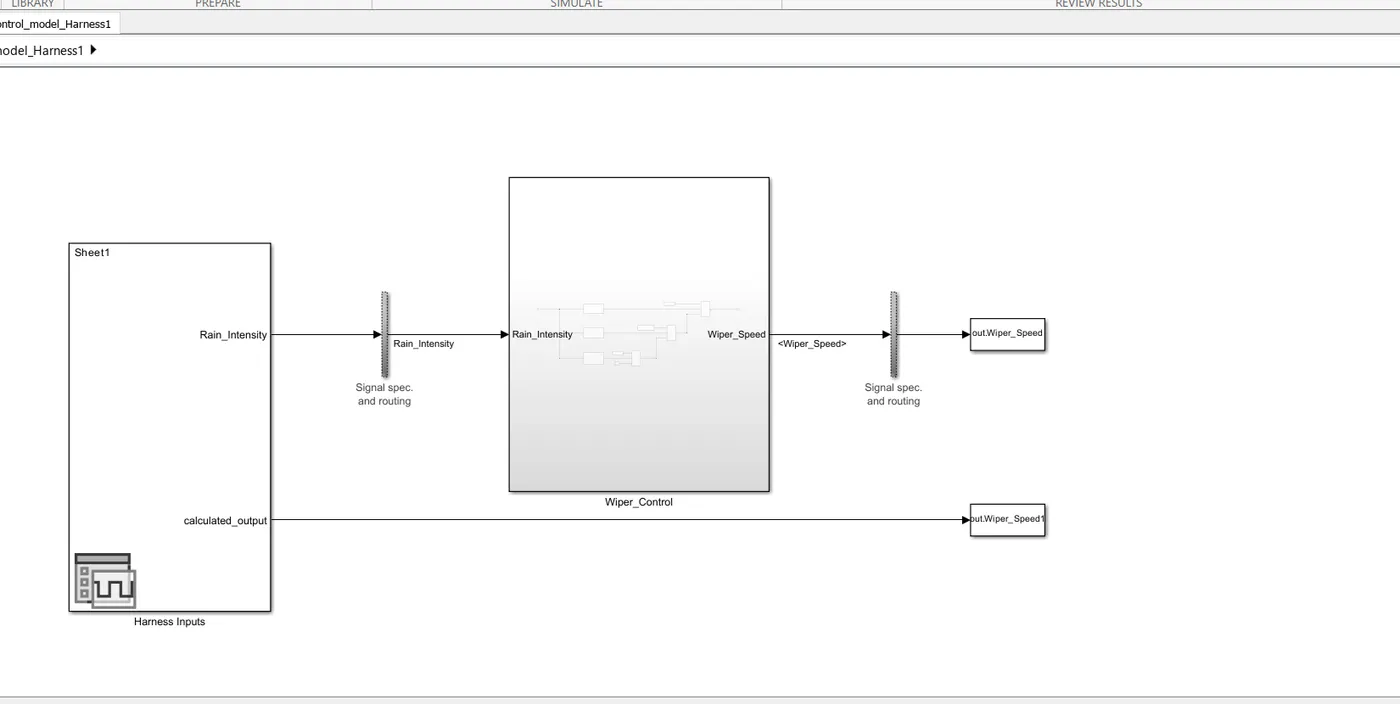

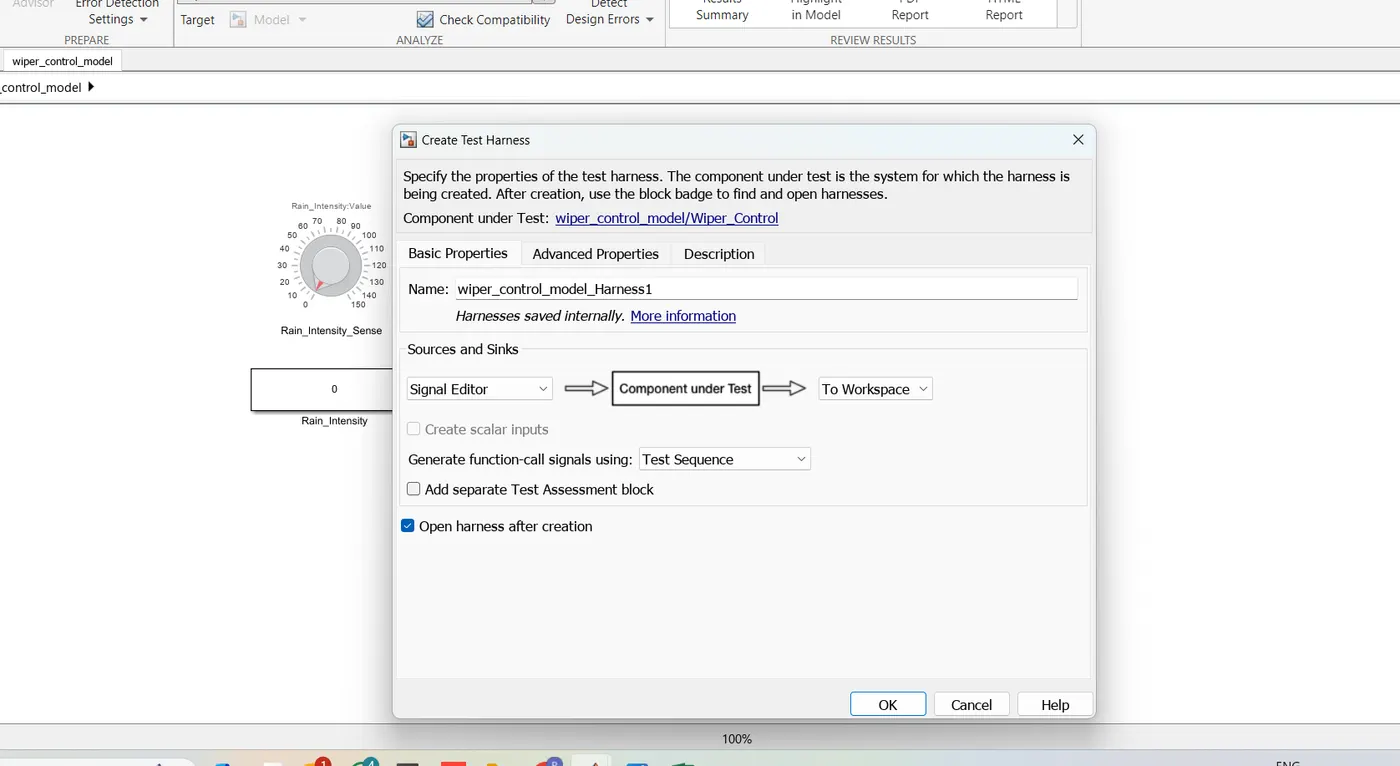

create a test harness for MIL

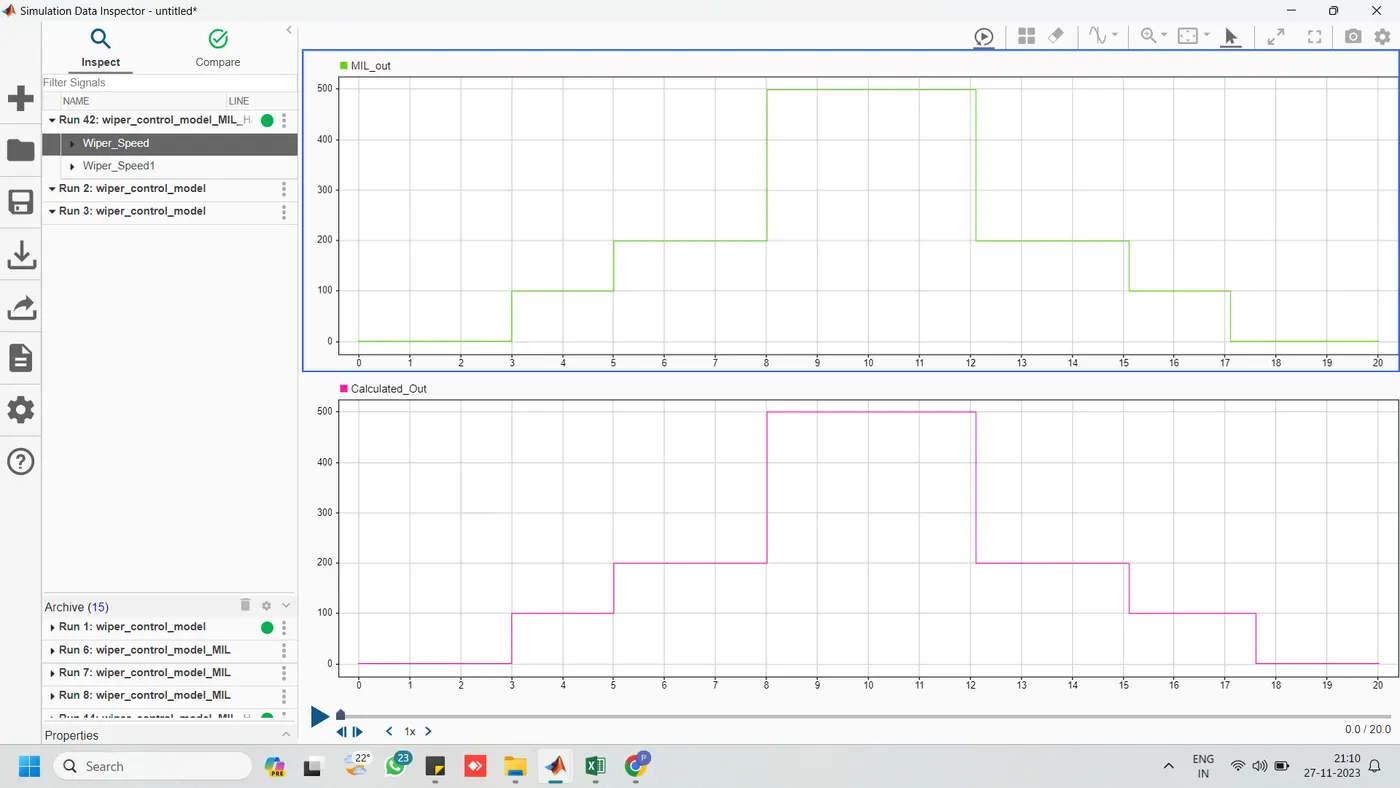

Run the model and open the data inspector to compare the MIL output with calculated output.

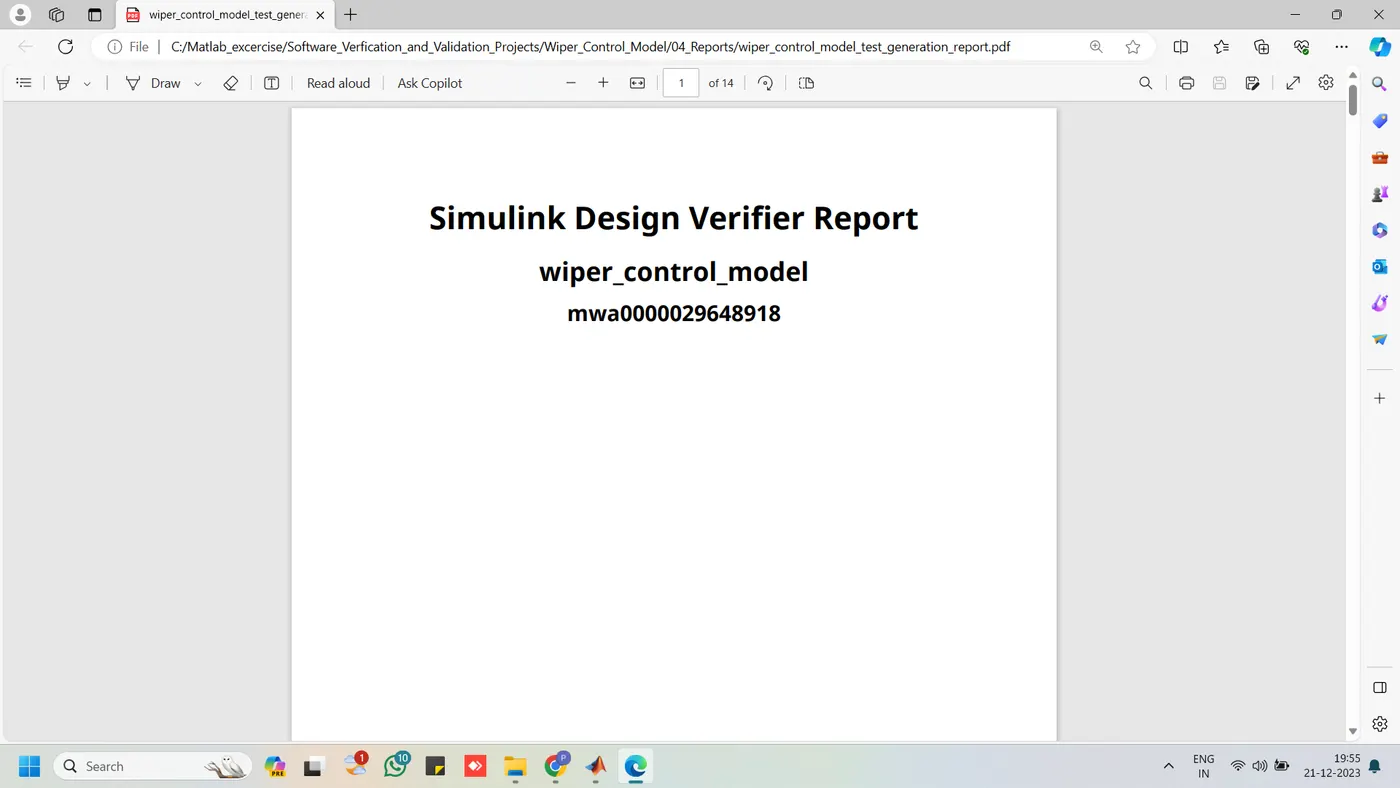

  step 9: After go to the simulink design verifier do error detection and test generation.

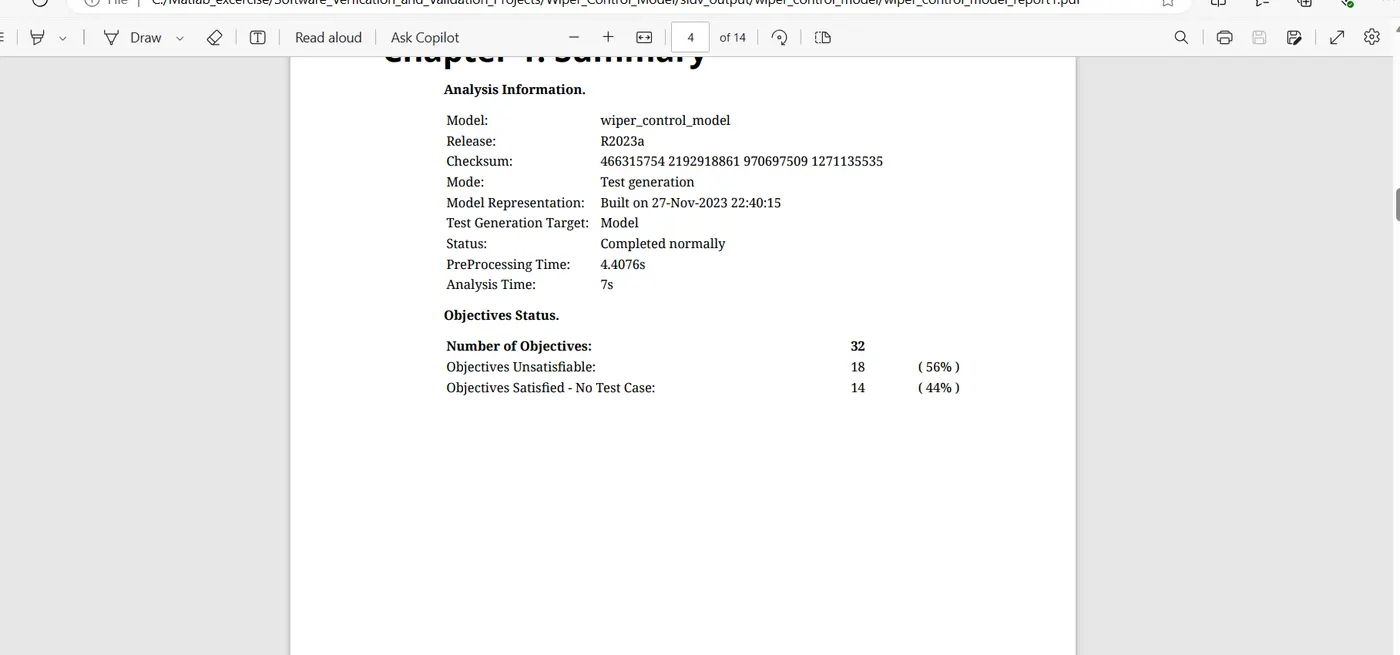

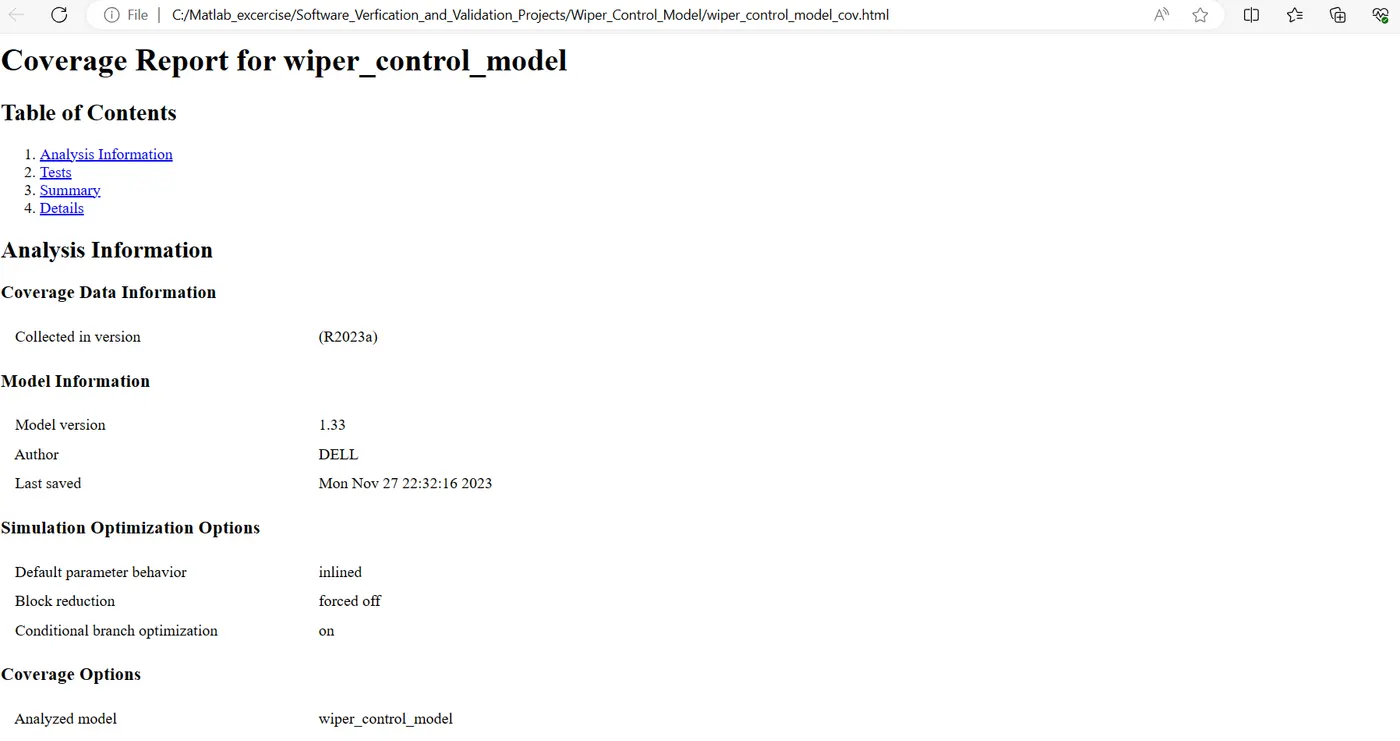

    After execution getting completed the report will be open like below.

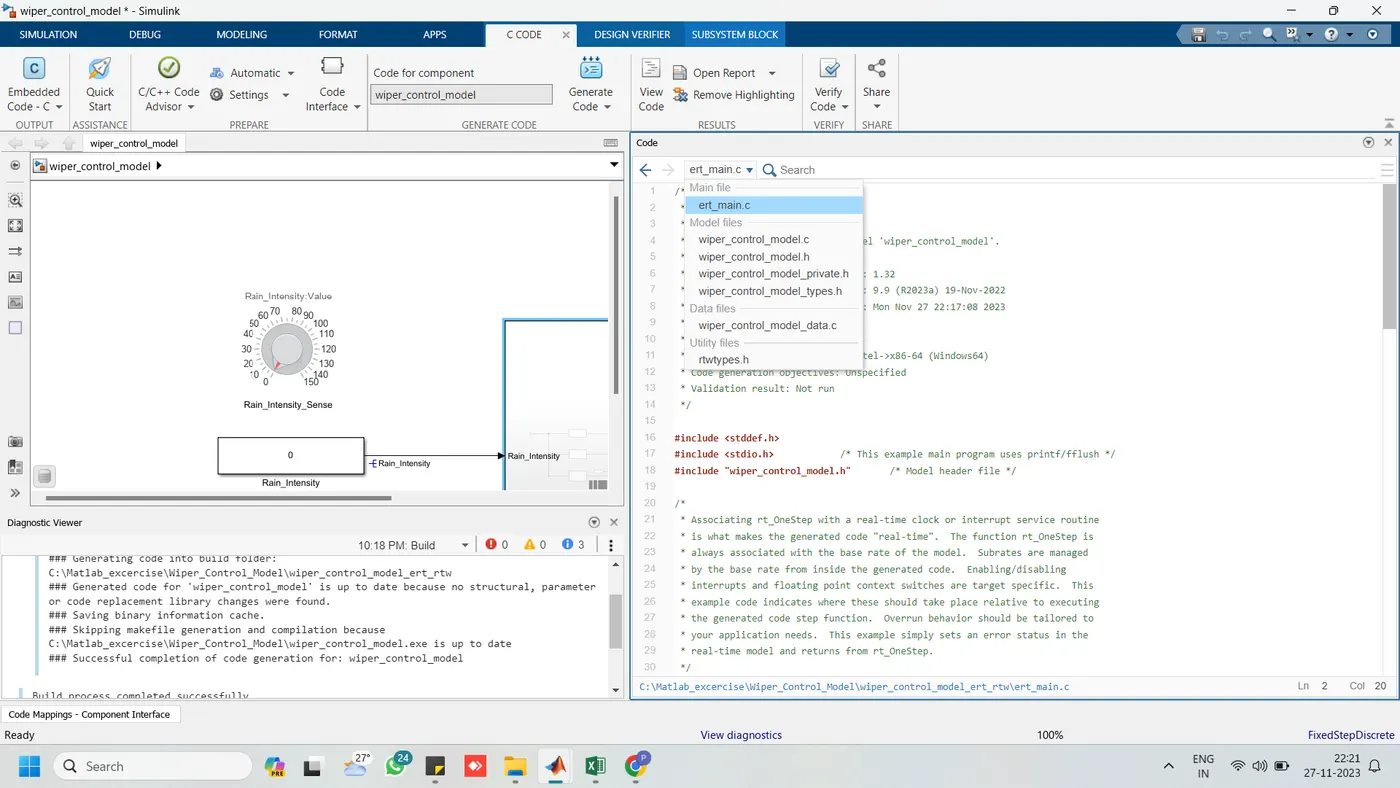

step 10: Then go to the apps and choose embedded coder. Do build, the model will be build and the code will be generated automatically like the image which is given below.

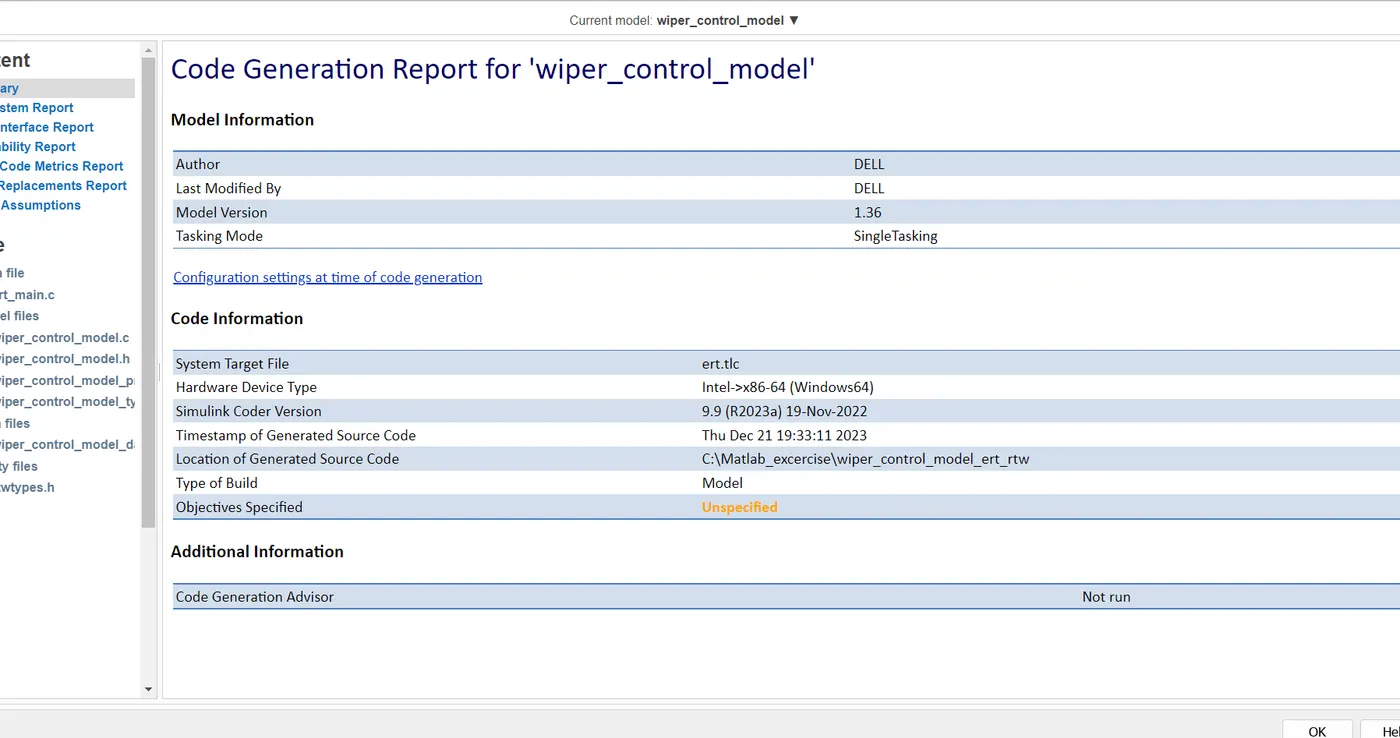

The report also will be generated.

And I don't have a polyspace bug finder tool. So I have attached the file which contains the steps should be followed for do polyspace bug finder tool and polyspace code prover.

Due to some installation problem I couldn't do base line and back to back testing. I have tried to many times. But I couldn't. And I don't have polyspace bug finder too. So that I have attached the document which covered the what are the steps should be followed for polysapce bug finder and coder prover.

I have followed the same steps for the ABS using wheel speed sensor project which have followed in Wiper control model project.
