Project 1- Traffic Jam Assistant Feature

AIM:- Model Development of a single feature of Traffic Jam Assist using MATLAB & Simulink as well as Code Generation using Embedded Coder.

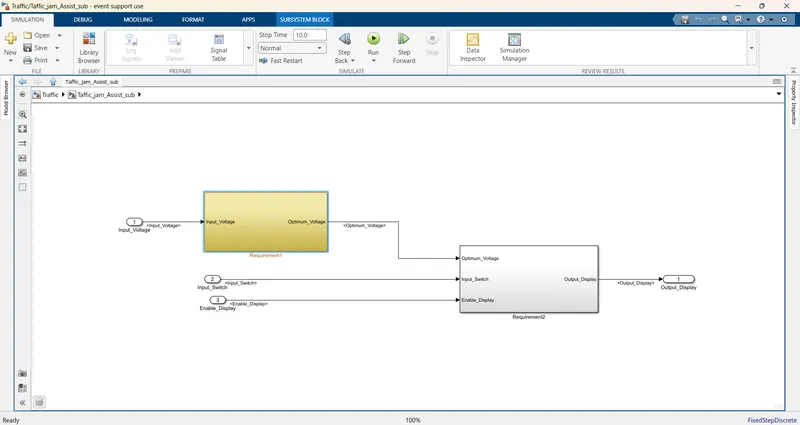

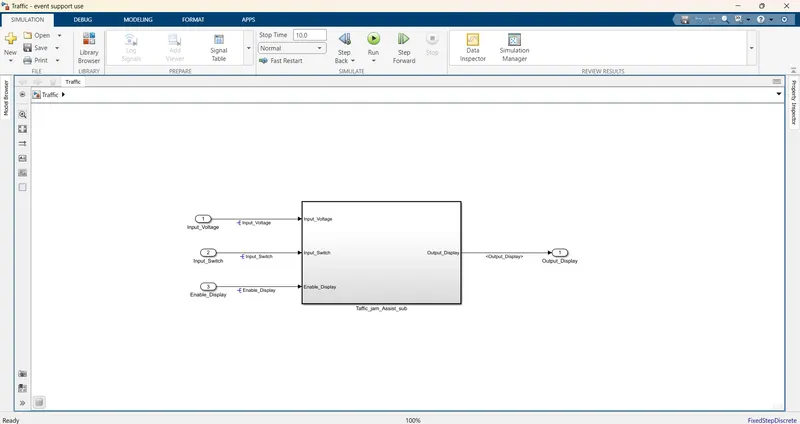

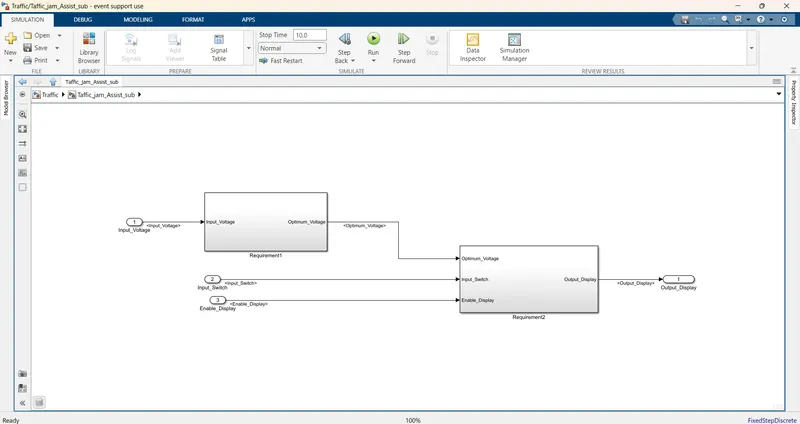

i) As per the objective of the project the model has benn developed :-

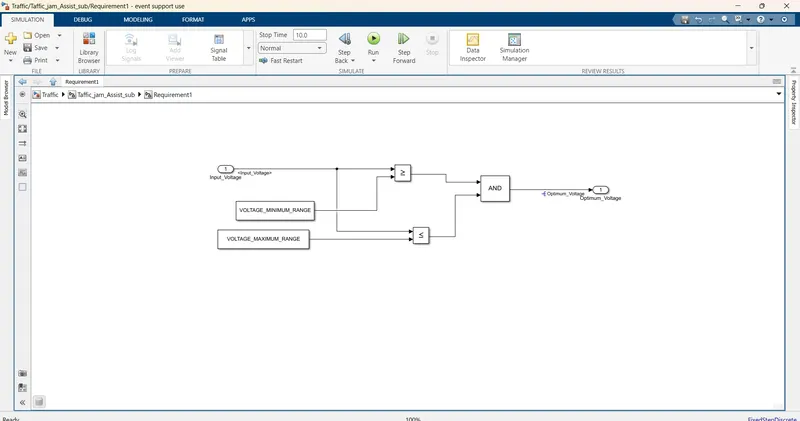

Requirement No 1:

• Input Signal “Input_Voltage” is compared against voltage values “VOLTAGE_MINIMUM_RANGE” & “VOLTAGE_MAXIMUM_RANGE”.
• Incoming input signal “Input_Voltage” must be greater than – equal to “VOLTAGE_MINIMUM_RANGE” and less than – equal to “VOLTAGE_MAXIMUM_RANGE”.
• Output signal from here is “Optimum_Voltage” which will be one of the inputs to the subsystem “DisplayUnit”.

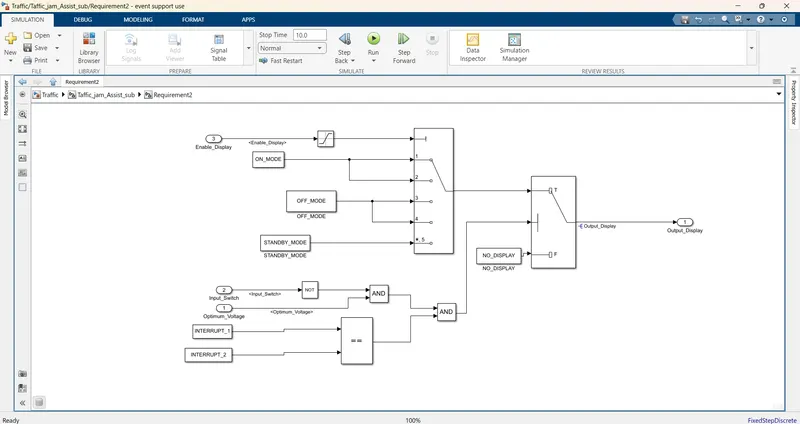

Requirement No 2 (DisplayUnit Subsystem):

• Input Signals are “Optimum_Voltage”, “Input_Switch”,“Enable_Display”. Signal “Enable_Display” must be saturated between the range 0 – 7. Output signal from the subsystem is “Output_Display”.
• Input Signal “Enable_Display” is compared against pre – defined set of values in a multiport switch. Total data ports in the multiport switch is 5.
• Multiport switch inputs 1 & 2 is connected to calibration signal “ON_MODE”, Multiport switch inputs 3 & 4 is connected to calibration signal “OFF_MODE” while Multiport switch input 5 is connected to calibration signal “STANDBY_MODE”.
• The output from Multiport switch is connected to the first input port of the Switch block. The third input port of the Switch block is connected to the calibration signal “NO_DISPLAY”.
• Meanwhile NOT value of input signal “Input_Switch” is compared in an AND gate against input signal “Optimum_Voltage” and the output from comparing if calibration signals “INTERRUPT_1” & “INTERRUPT_2” are equal. The output of the AND gate is the second input of the switch block.
• The output from the switch block is “Output_Display”.

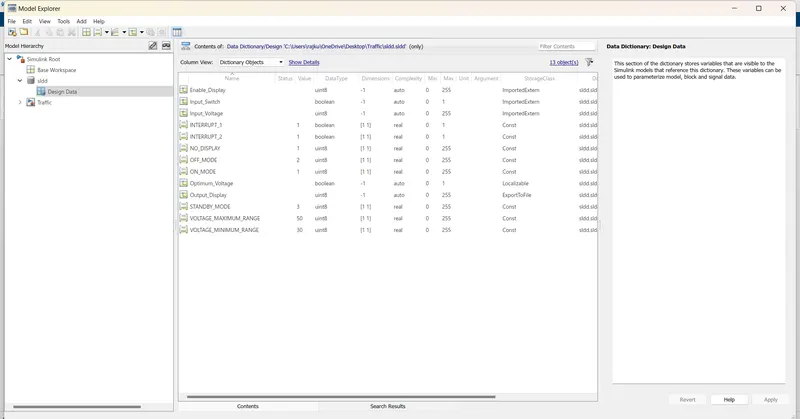

Signals & Calibration Data List:

Input Signals:

Name of the Signal	Data Type	Range
Input_Voltage	uint8	0 - 255
Input_Switch	boolean	0 – 1
Enable_Display	uint8	0 - 255

Output Signal:

Name of the Signal	Data Type	Range
Output_Display	uint8	0 - 255

Calibration Signals:

Name of the Signal	Data Type	Range	Initial Value
VOLTAGE_MINIMUM_RANGE	uint8	0 – 255	30
VOLTAGE_MAXIMUM_RANGE	uint8	0 – 255	50
OFF_MODE	uint8	0 – 255	2
ON_MODE	uint8	0 – 255	1
STANDBY_MODE	uint8	0 – 255	3
INTERRUPT_1	boolean	0 – 1	1
INTERRUPT_2	boolean	0 - 1	1
NO_DISPLAY	uint8	0 – 255	0

Local Signal:

Name of the Signal	Data Type	Range
Optimum_Voltage	boolean	0 - 1

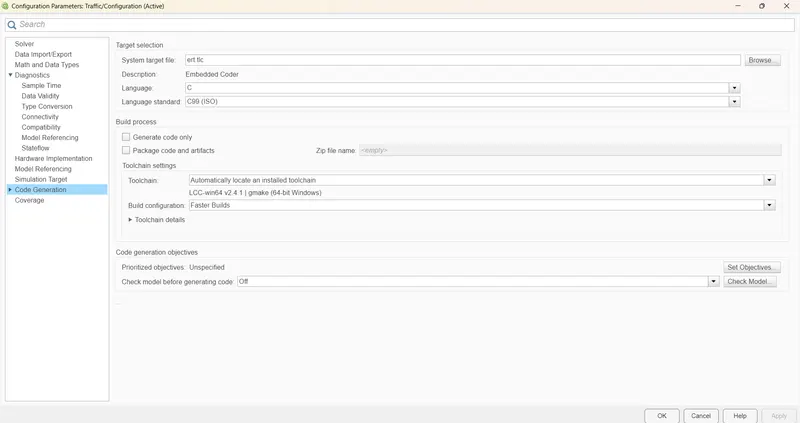

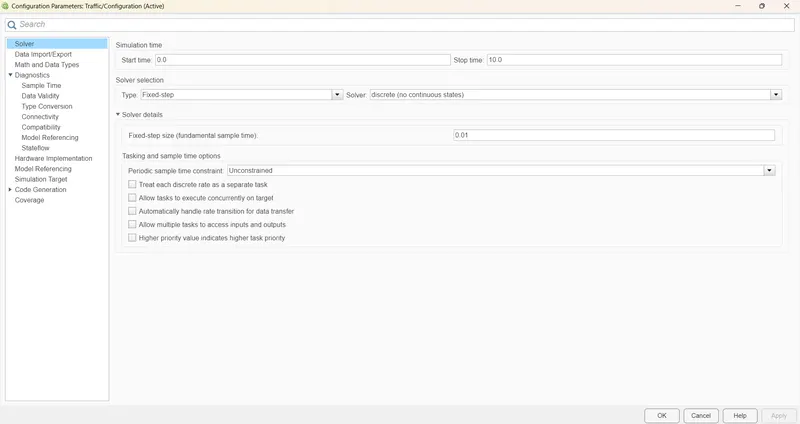

Configuration Parameter settings:-

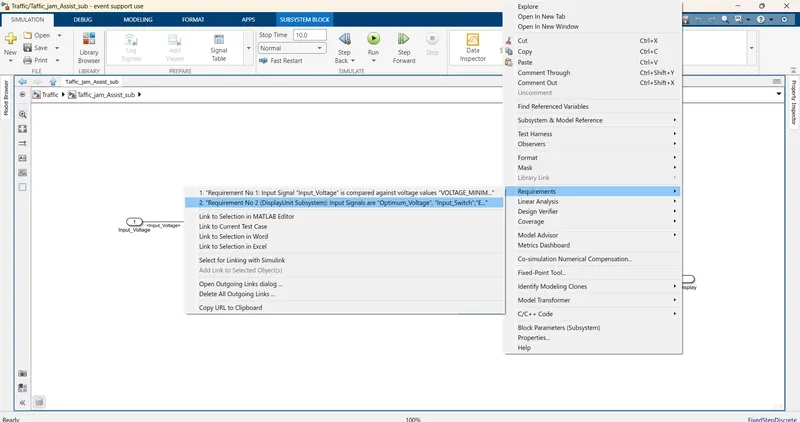

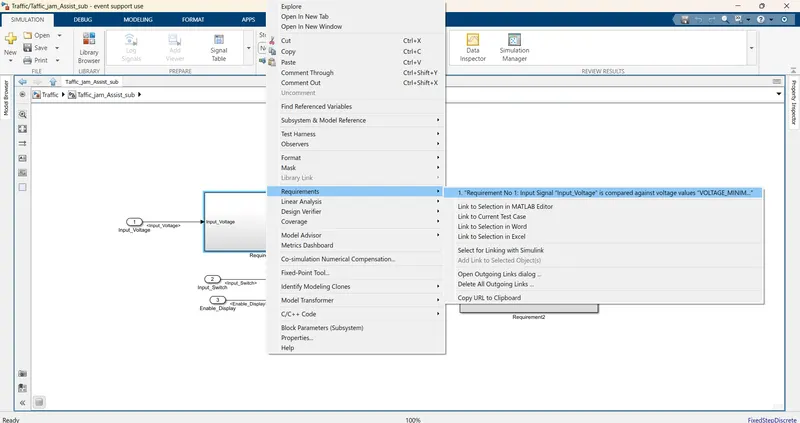

Requirement Tagging:-

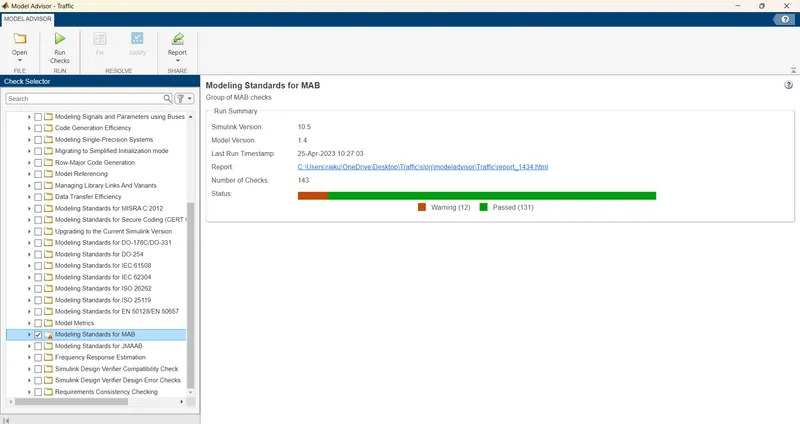

Model Advisor Report Generation:-

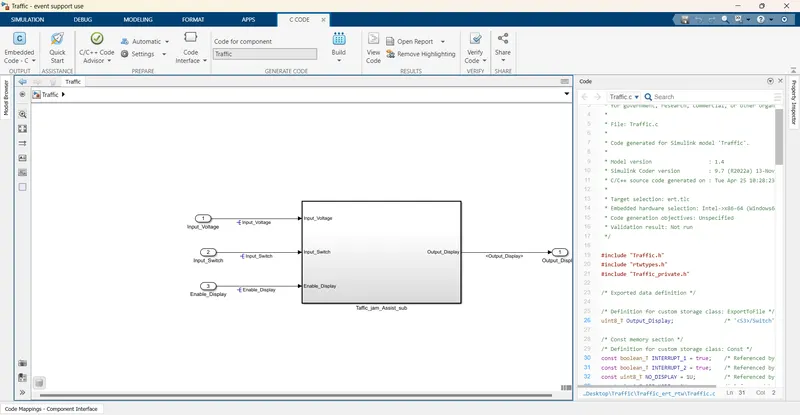

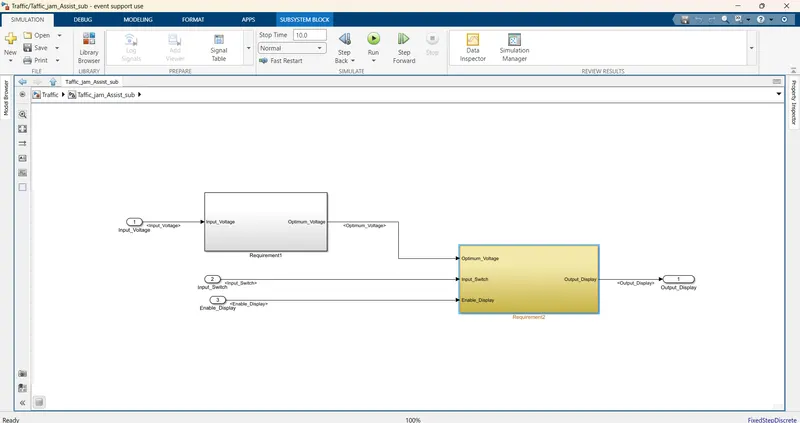

Code Generation:-

Result:-

• Developed a Model of a single feature of Traffic Jam Assist as per MAAB guidelines as well as created Simulink Data Dictionary using MATLAB & Simulink. Generated a code using Embedded Coder and generated a Model Advisor Report.
