Surface preparation and Boundary Flagging (PFI)
Aim- To perform surface cleaning and boundary flagging for PFI geometry for further simulation project.
Objective- The objective of this project is to detect errors in PFI geometry and clean them and run an N0-Hydro simulation.
Description- First the errors in PFI geometry are detected, then solve and clean them, then do boundary flagging and run No-Hydro simulation so that the motion of the valves can be checked whether its taking place properly.

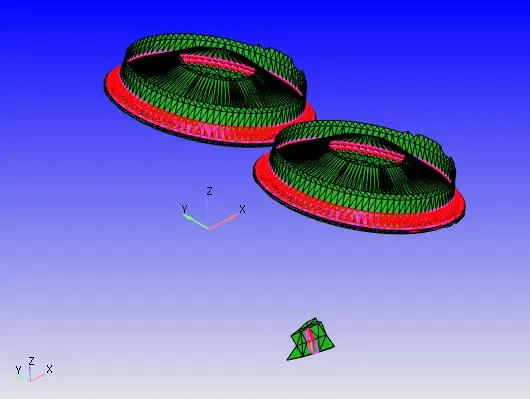

Geometry

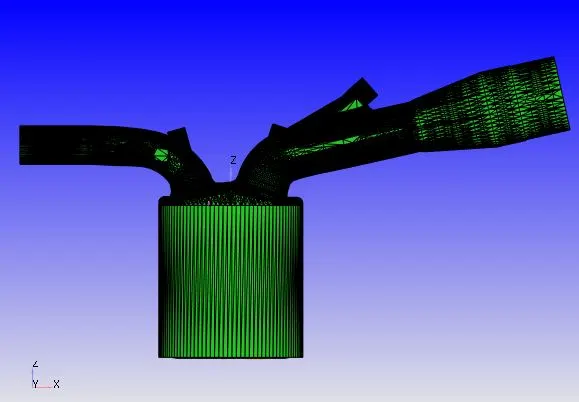

Errors in Geometry

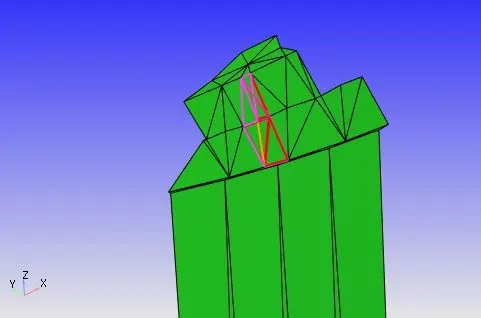

In this image, we can see the triangle intersection error.
In this image, we can see the non-manifold edge error.

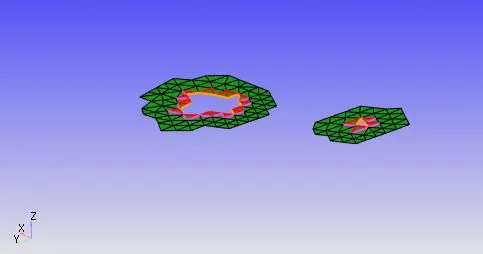

In this image, we can see the open edges error.
After solving these errors boundary flagging is done.

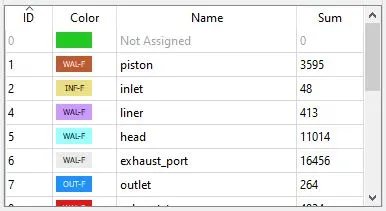

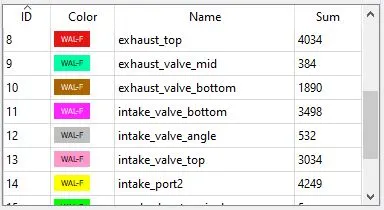

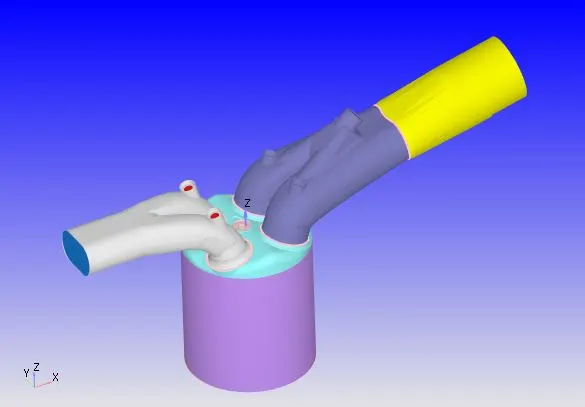

Geometry with boundary flagging colors.
The link to valve motion animation is attached below
