Project 1 - Parsing NASA thermodynamic data

Aim: To write a code in Matlab to parse the NASA thermodynamic data file and then calculate the thermodynamic properties of various gas species.

Objective:

1. To write a function that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the NASA thermodynamic data file "THERMO.dat".
2. The NASA polynomials have the form as shown above.
3. To calculate the molecular weight of each species and display it in the command window.
4. To plot the Cp, Enthalpy, and Entropy for the local temperature range (low temperature: high temperature) specific for each species.
5. To save the plots as images with appropriate names and dump them in separate folders for each species with suitable name automatically.

EQUATIONS:

NASA Thermodynamic File:

THERMO.dat file is a data file containing 14 coefficients for 53 different elements given by NASA. These coefficients are utilized to calculate the specific heat, enthalpy & entropy for a particular element.

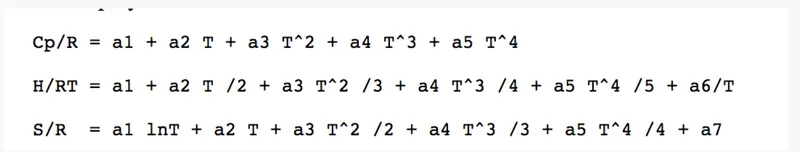

The equations that we are going to use in the Functions to calculate cp, H,S are:

Cp=a1+a2T+a3T2+a4T3+a5T4">Cp=a1+a2T+a3T2+a4T3+a5T4Cp=a1+a2T+a3T2+a4T3+a5T4

HRT=a1+a2T2+a3T23+a4T34+a5T45+a6T">HRT=a1+a2T2+a3T23+a4T34+a5T45+a6THRT=a1+a2T2+a3T23+a4T34+a5T45+a6T

SR=a1lnT+a2T+a3T22+a4T33+a5T44+a7">SR=a1lnT+a2T+a3T22+a4T33+a5T44+a7SR=a1lnT+a2T+a3T22+a4T33+a5T44+a7

Where,

R = Universal Gas constant

T = Temperature

Cp = Specific heat (KJ)

S = Entropy(KJ/mol-K)

H = Enthalpy(KJ/mol)

a(i) = Coefficients

Function Program:

1. Specific Heat:

The specific heat is the amount of heat per unit mass required to raise the temperature by one degree Celsius. The relationship between heat and temperature change is usually expressed in the form shown below where c is the specific heat.

Cp = (a1 + a2 T + a3 T^2 + a4 T^3 + a5 T^4)*R

Function for Specific heat:

% Specific heat calculation

function Cp = Specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,Temp,R,global_medium_temp)

% Comparing with global temperature

% If less than global temperature - minimum coefficients are taken

if  Temp <= global_medium_temp

Cp = R*(a8 + (a9*Temp) + (a10*(Temp).^2) + (a11*(Temp).^3) + (a12*(Temp).^4));
else

Cp = R*(a1 + (a2*Temp) + (a3*(Temp).^2) + (a4*(Temp).^3) + (a5*(Temp).^4));

% Else maximum coefficients are taken

end

2. Entropy:

Entropy, the measure of a system's thermal energy per unit temperature that is unavailable for doing useful work. Because work is obtained from ordered molecular motion, the amount of entropy is also a measure of the molecular disorder, or randomness, of a system.

S = (a1 lnT + a2 T + a3 T^2 /2 + a4 T^3 /3 + a5 T^4 /4 + a7)*R

Function for Entropy:

% Entropy Calculation

function S = Entropy_calc(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,Temp,R,global_medium_temp)

% Comparing with global temperature

% If less than global temperature - minimum coefficients are taken

    if Temp <= global_medium_temp
        S = R.*(a8.*log(Temp) + (a9.*Temp) + (a10*((Temp).^2)/2) + (a11*((Temp).^3)/3) + (a12*((Temp).^4)/4) + a14);
    else

% Else - maximum coefficients are taken

        S = R.*(a1.*log(Temp) + (a2.*Temp) + (a3*((Temp).^2)/2) + (a4*((Temp).^3)/3) + (a5*((Temp).^4)/4) + a7);

end

3. Enthalpy:

Enthalpy , a property of a thermodynamic system, is equal to the system's internal energy plus the product of its pressure and volume. In a system contained so as to prevent mass transfer, for processes at constant pressure, the heat absorbed or released equals the change in enthalpy.

H = (a1 + a2 T /2 + a3 T^2 /3 + a4 T^3 /4 + a5 T^4 /5 + a6/T)*R*T

Function for Enthalpy:

% Enthalpy Calculation

function H = Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,Temp,R,global_medium_temp)

% Comparing with global temperature

% If less than global temperature - minimum coefficients are taken

       if Temp <= global_medium_temp
        H = R*Temp.*(a8 + ((a9*Temp)/2) + ((a10*(Temp).^2)/3) + ((a11*(Temp).^3)/4) + ((a12*(Temp).^4)/5) +((a13./Temp)));
       else

% Else maximum coefficients are taken

        H = R*Temp.*(a1 + ((a2*Temp)/2) + ((a3*(Temp).^2)/3) + ((a4*(Temp).^3)/4) + ((a5*(Temp).^4)/5) +((a6./Temp)));

end

4. Molecular Weight:

The mass of a specific molecule is its molecular mass, which is expressed in daltons. Because they contain various isotopes of an element, different molecules of the same compound can have distinct molecular masses.

Function for Molecular Weight:

% Molecular Weight Calculation

function Molecularweight = Molecular_weight(Species_SP)

         % Standard - Atomic Name

         atomic_name = ['H','C','O','N','A'];

         % Hydrogen, Carbon, Oxygen, Nitrogen, Argon

         fprintf('Molecular Weight of ');
         fprintf(Species_SP);
         fprintf(' : ');

         % Standard Atomic Number
         Atomic_Weight = [1.008 12.011 15.999 14.007 39.948];

         % Starting Range of Molecule

         Molecularweight = 0;

         % Adding Atomic number to obtain particular value

        for i = 1:length(Species_SP)
            for j = 1:length(atomic_name)
                if strcmpi(Species_SP(i),atomic_name(j))
                        Molecularweight = Molecularweight +Atomic_Weight(j);
                    position = j;
                end
            end

            n = str2num(Species_SP(i));

            if n>1

                Molecularweight = Molecularweight + Atomic_Weight(position)*(n-1);

            end
        end
            fprintf('molecular weight %s :',Species_SP);

            fprintf('%d',Molecularweight);

            disp(' ');
end

Main code:

clear all
close all
clc

% Make directory

mkdir 'C:\Users\jayen\Desktop/THERMO'

%  Reading Data file - NASA Thermodynamic

% Open a file & 'r' Open the file for reading

f1 = fopen('THERMO.dat','r')
gt=fgetl(f1);

% Obtaing Temperatures - by Reading Header Information
global_temp=fgetl(f1);

% Spliting

t=strsplit(global_temp);

% Converting string cells to numbers using str2num,

global_low_temp=str2num(t{2});
global_medium_temp=str2num(t{3});
global_high_temp=str2num(t{4});

% Temperature range & Gas Constant

    % Temperature Range assumed

Temp=linspace(global_low_temp,global_high_temp,1000);

% Universal Gas Constant J/(mol-K)

    R = 8.314;

% skipping three comment lines in the file

for i = 1:3
    gt=fgetl(f1);
end

 for i = 1:53

gt=fgetl(f1);
A=strsplit(gt,' ');
Species_SP=(A{1})


line_1=fgetl(f1)  ;
a=strfind(line_1,'E');

% Extracting higher and lower temperature coefficients

% % Extracting FIRST 7 coefficients i.e HIGH-temperature coefficients

a1=line_1(1:a(1)+3);
a1=str2num(a1);               %1
a2=line_1(a(1)+4:a(2)+3);
a2=str2num(a2) ;             %2
a3=line_1(a(2)+4:a(3)+3);
a3=str2num(a3)  ;            %3
a4=line_1(a(3)+4:a(4)+3);
a4=str2num(a4);              %4
a5=line_1(a(4)+4:a(5)+3);
a5=str2num(a5)  ;            %5

line_2=fgetl(f1);
b=strfind(line_1,'E');;
a6=line_2(1:b(1)+3);
a6=str2num(a6)  ;            %6
a7=line_2(a(1)+4:b(2)+3);
a7=str2num(a7);              %7

 % Extracting SECOND 7 coefficients - LOW-temperature coefficients

a8=line_2(b(2)+4:b(3)+3);
a8=str2num(a8);              %8
a9=line_2(b(3)+4:b(4)+3);
a9=str2num(a9) ;             %9
a10=line_2(b(4)+4:b(5)+3);
a10=str2num(a10) ;           %10


line_3=fgetl(f1);
c=strfind(line_1,'E');

a11=line_3(1:c(1)+3);
a11=str2num(a11);               %11
a12=line_3(c(1)+4:c(2)+3);
a12=str2num(a12);               %12
a13=line_3(c(2)+4:c(3)+3);
a13=str2num(a13);               %13
a14=line_3(c(3)+4:c(4)+3);
a14 = str2num(a14);               %14

% Specific heat calculation

    Cp = Specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,Temp,R,global_medium_temp);

    % Enthalpy calculation

    H = Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,Temp,R,global_medium_temp);

    % Entropy calculation

    S = Entropy_calc(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,Temp,R,global_medium_temp);

    % Calculating molecular weight of species

    Molecularweight(i) = Molecular_weight(Species_SP);

    % Read & Write Molecular list

     Molecular_list = fopen('Molecular weight.txt','a+');
         fprintf( Molecular_list,'Molecular weight of %s is %d \n',Species_SP,Molecularweight);
         fclose(Molecular_list);

     % plotting(CP,H,S,Temp,Species_SP)

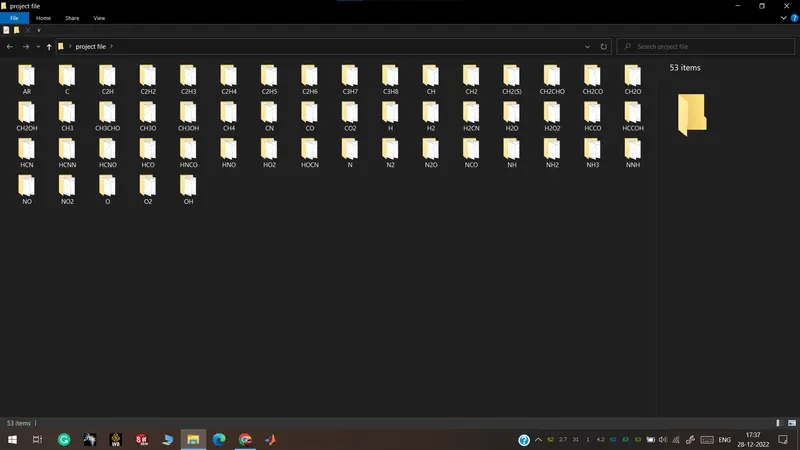

        % Saving as a folder

           cur_dir=pwd;
           mkdir(Species_SP);
           cd(Species_SP);

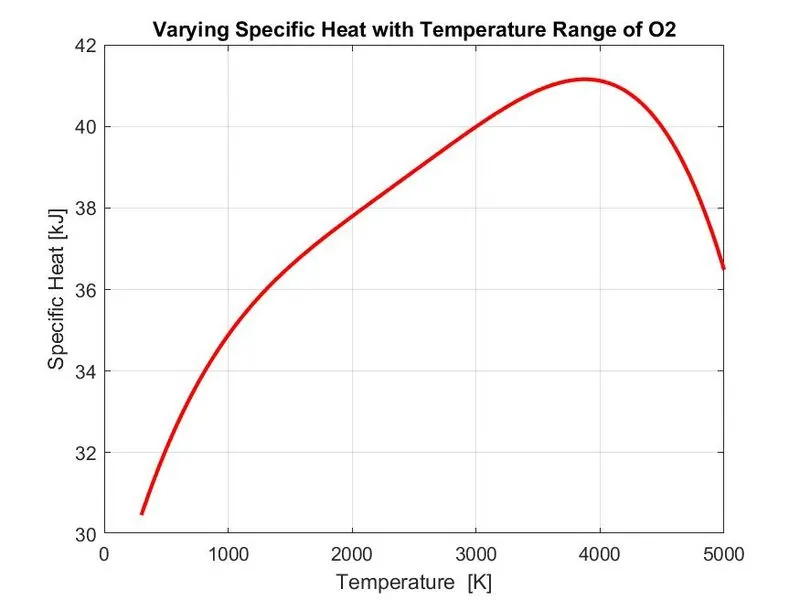

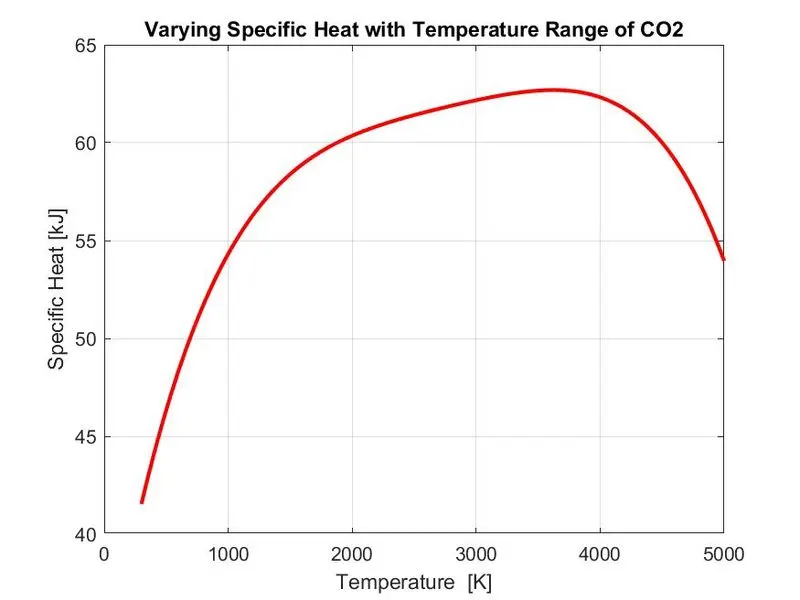

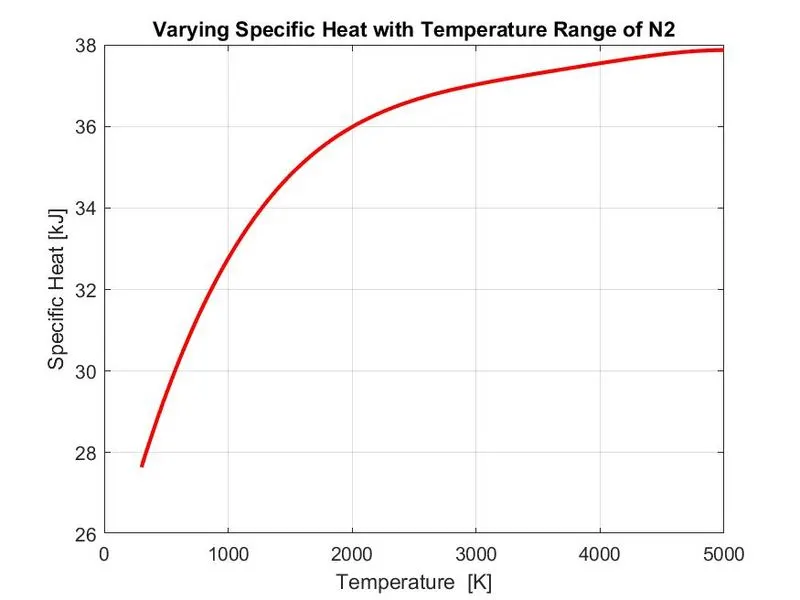

        % Plot 1, Specific heat (CP) vs Temperature Range (Temp)

        figure(1)
        plot(Temp,Cp,'linewidth',2,'color','r');
        xlabel('Temperature  [K]');
        ylabel('Specific Heat [kJ]');
        title(sprintf('Varying Specific Heat with Temperature Range of %s',Species_SP));
        grid on
        saveas(figure(1),'Specific Heat.jpg');

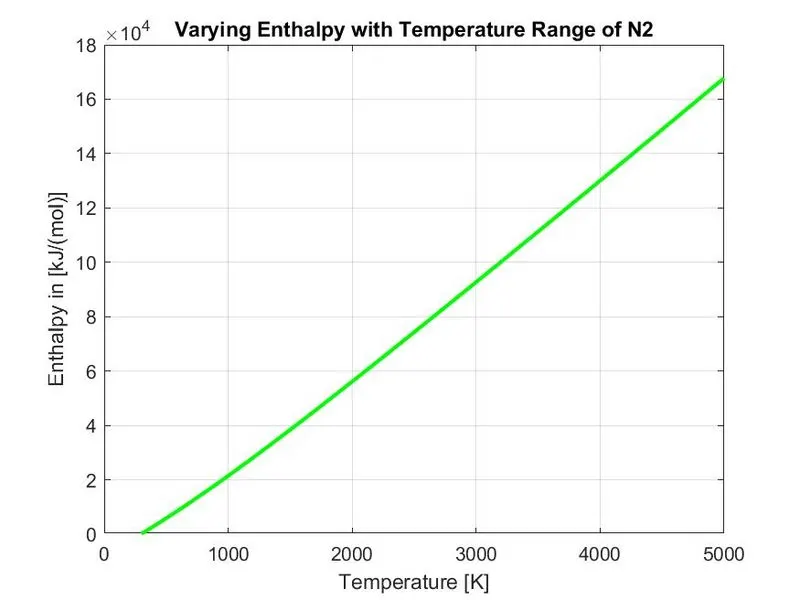

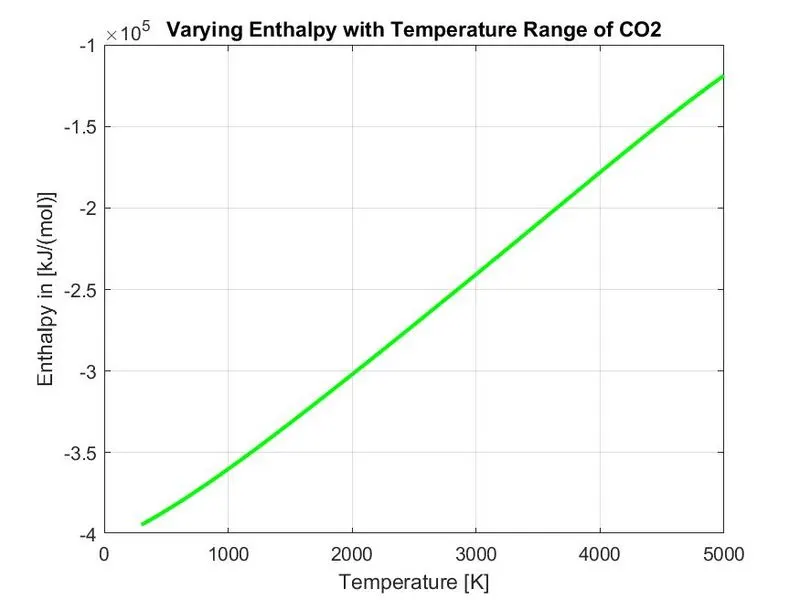

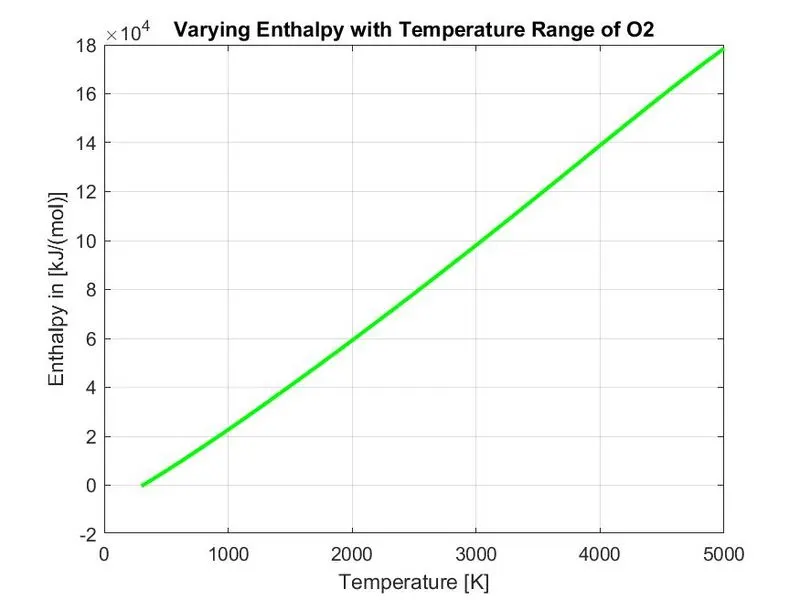

        % Plot 2, Enthalpy (H) vs Temperature Range (Temp)

        figure(2)
        plot(Temp,H,'linewidth',2,'color','g');
        xlabel('Temperature [K]');
        ylabel('Enthalpy in [kJ/(mol)]');
        title(sprintf('Varying Enthalpy with Temperature Range of %s',Species_SP));
        grid on
        saveas(figure(2),'Ethalpy.jpg');

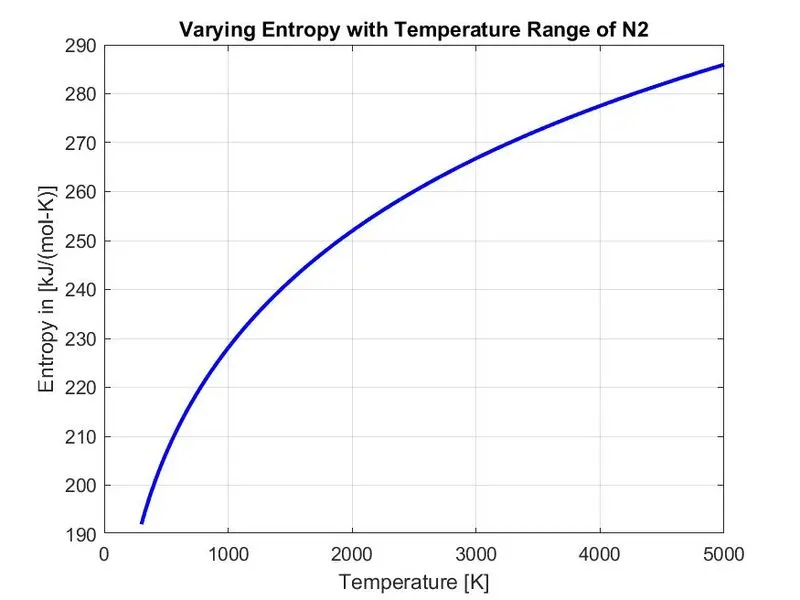

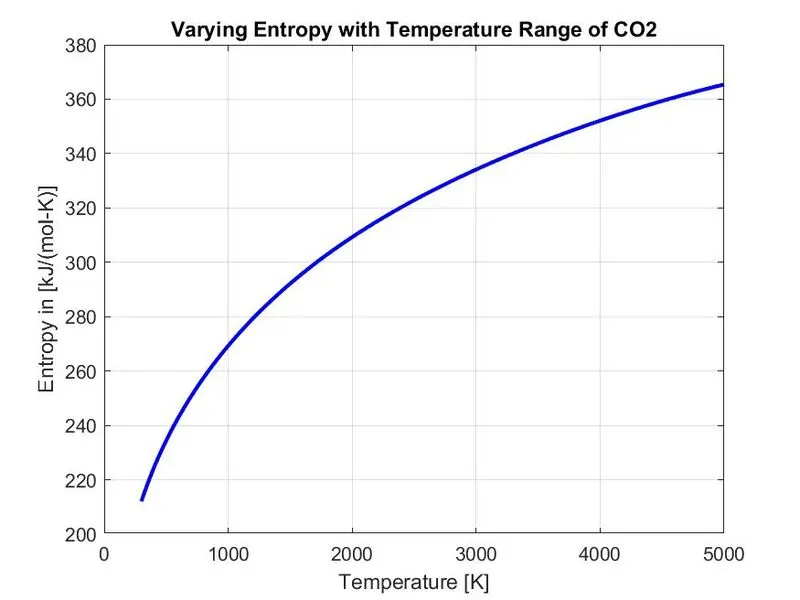

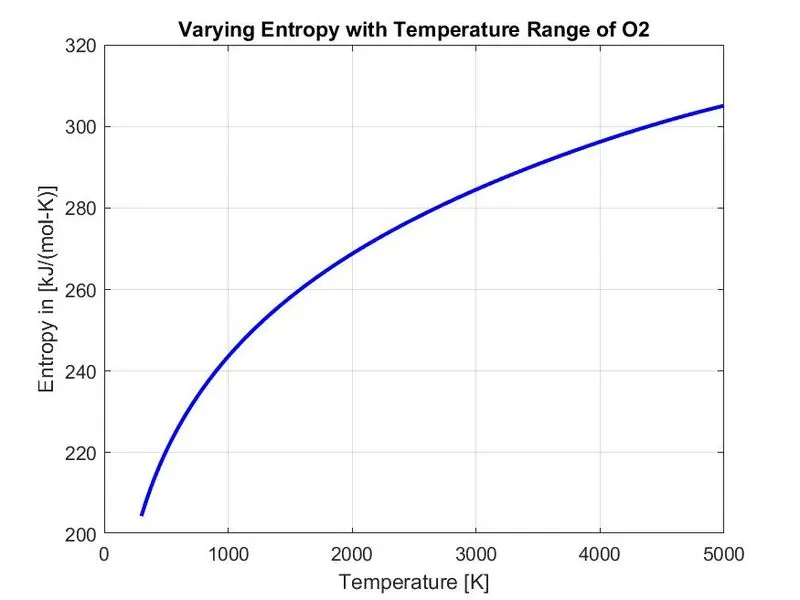

        % Plot 3, Entropy (S) vs Temperature Range (Temp)

        figure(3)
        plot(Temp,S,'linewidth',2,'color','b');
        xlabel('Temperature [K]');
        ylabel('Entropy in [kJ/(mol-K)]');
        title(sprintf('Varying Entropy with Temperature Range of %s',Species_SP));
        grid on
        saveas(figure(3),'Entropy.jpg');

        cd(cur_dir);

        % Molecular weight

        M = Molecular_weight(Species_SP)
        f2 = fopen('molecular mass','w');
        fprintf('%s n %s n %f n','species','Molecular mass',M)
        fclose(f2)
 end

Output :

Warning: Directory already exists.
> In Untitled2 (line 7)

f1 =

5

Species_SP =

'O'

Molecular Weight of O : molecular weight O :1.599900e+01
Molecular Weight of O : molecular weight O :1.599900e+01

M =

15.9990

species n Molecular mass n 15.999000 n
ans =

0

Species_SP =

'O2'

Molecular Weight of O2 : molecular weight O2 :3.199800e+01
Molecular Weight of O2 : molecular weight O2 :3.199800e+01

M =

31.9980

species n Molecular mass n 31.998000 n
ans =

0

Species_SP =

'H'

Molecular Weight of H : molecular weight H :1.008000e+00
Molecular Weight of H : molecular weight H :1.008000e+00

M =

1.0080

species n Molecular mass n 1.008000 n
ans =

0

Species_SP =

'H2'

Molecular Weight of H2 : molecular weight H2 :2.016000e+00
Molecular Weight of H2 : molecular weight H2 :2.016000e+00

M =

2.0160

species n Molecular mass n 2.016000 n
ans =

0

Species_SP =

'OH'

Molecular Weight of OH : molecular weight OH :1.700700e+01
Molecular Weight of OH : molecular weight OH :1.700700e+01

M =

17.0070

species n Molecular mass n 17.007000 n
ans =

0

Species_SP =

'H2O'

Molecular Weight of H2O : molecular weight H2O :1.801500e+01
Molecular Weight of H2O : molecular weight H2O :1.801500e+01

M =

18.0150

species n Molecular mass n 18.015000 n
ans =

0

Species_SP =

'HO2'

Molecular Weight of HO2 : molecular weight HO2 :3.300600e+01
Molecular Weight of HO2 : molecular weight HO2 :3.300600e+01

M =

33.0060

species n Molecular mass n 33.006000 n
ans =

0

Species_SP =

'H2O2'

Molecular Weight of H2O2 : molecular weight H2O2 :3.401400e+01
Molecular Weight of H2O2 : molecular weight H2O2 :3.401400e+01

M =

34.0140

species n Molecular mass n 34.014000 n
ans =

0

Species_SP =

'C'

Molecular Weight of C : molecular weight C :1.201100e+01
Molecular Weight of C : molecular weight C :1.201100e+01

M =

12.0110

species n Molecular mass n 12.011000 n
ans =

0

Species_SP =

'CH'

Molecular Weight of CH : molecular weight CH :1.301900e+01
Molecular Weight of CH : molecular weight CH :1.301900e+01

M =

13.0190

species n Molecular mass n 13.019000 n
ans =

0

Species_SP =

'CH2'

Molecular Weight of CH2 : molecular weight CH2 :1.402700e+01
Molecular Weight of CH2 : molecular weight CH2 :1.402700e+01

M =

14.0270

species n Molecular mass n 14.027000 n
ans =

0

Species_SP =

'CH2(S)'

Molecular Weight of CH2(S) : molecular weight CH2(S) :1.402700e+01
Molecular Weight of CH2(S) : molecular weight CH2(S) :1.402700e+01

M =

14.0270

species n Molecular mass n 14.027000 n
ans =

0

Species_SP =

'CH3'

Molecular Weight of CH3 : molecular weight CH3 :1.503500e+01
Molecular Weight of CH3 : molecular weight CH3 :1.503500e+01

M =

15.0350

species n Molecular mass n 15.035000 n
ans =

0

Species_SP =

'CH4'

Molecular Weight of CH4 : molecular weight CH4 :1.604300e+01
Molecular Weight of CH4 : molecular weight CH4 :1.604300e+01

M =

16.0430

species n Molecular mass n 16.043000 n
ans =

0

Species_SP =

'CO'

Molecular Weight of CO : molecular weight CO :2.801000e+01
Molecular Weight of CO : molecular weight CO :2.801000e+01

M =

28.0100

species n Molecular mass n 28.010000 n
ans =

0

Species_SP =

'CO2'

Molecular Weight of CO2 : molecular weight CO2 :4.400900e+01
Molecular Weight of CO2 : molecular weight CO2 :4.400900e+01

M =

44.0090

species n Molecular mass n 44.009000 n
ans =

0

Species_SP =

'HCO'

Molecular Weight of HCO : molecular weight HCO :2.901800e+01
Molecular Weight of HCO : molecular weight HCO :2.901800e+01

M =

29.0180

species n Molecular mass n 29.018000 n
ans =

0

Species_SP =

'CH2O'

Molecular Weight of CH2O : molecular weight CH2O :3.002600e+01
Molecular Weight of CH2O : molecular weight CH2O :3.002600e+01

M =

30.0260

species n Molecular mass n 30.026000 n
ans =

0

Species_SP =

'CH2OH'

Molecular Weight of CH2OH : molecular weight CH2OH :3.103400e+01
Molecular Weight of CH2OH : molecular weight CH2OH :3.103400e+01

M =

31.0340

species n Molecular mass n 31.034000 n
ans =

0

Species_SP =

'CH3O'

Molecular Weight of CH3O : molecular weight CH3O :3.103400e+01
Molecular Weight of CH3O : molecular weight CH3O :3.103400e+01

M =

31.0340

species n Molecular mass n 31.034000 n
ans =

0

Species_SP =

'CH3OH'

Molecular Weight of CH3OH : molecular weight CH3OH :3.204200e+01
Molecular Weight of CH3OH : molecular weight CH3OH :3.204200e+01

M =

32.0420

species n Molecular mass n 32.042000 n
ans =

0

Species_SP =

'C2H'

Molecular Weight of C2H : molecular weight C2H :2.503000e+01
Molecular Weight of C2H : molecular weight C2H :2.503000e+01

M =

25.0300

species n Molecular mass n 25.030000 n
ans =

0

Species_SP =

'C2H2'

Molecular Weight of C2H2 : molecular weight C2H2 :2.603800e+01
Molecular Weight of C2H2 : molecular weight C2H2 :2.603800e+01

M =

26.0380

species n Molecular mass n 26.038000 n
ans =

0

Species_SP =

'C2H3'

Molecular Weight of C2H3 : molecular weight C2H3 :2.704600e+01
Molecular Weight of C2H3 : molecular weight C2H3 :2.704600e+01

M =

27.0460

species n Molecular mass n 27.046000 n
ans =

0

Species_SP =

'C2H4'

Molecular Weight of C2H4 : molecular weight C2H4 :2.805400e+01
Molecular Weight of C2H4 : molecular weight C2H4 :2.805400e+01

M =

28.0540

species n Molecular mass n 28.054000 n
ans =

0

Species_SP =

'C2H5'

Molecular Weight of C2H5 : molecular weight C2H5 :2.906200e+01
Molecular Weight of C2H5 : molecular weight C2H5 :2.906200e+01

M =

29.0620

species n Molecular mass n 29.062000 n
ans =

0

Species_SP =

'C2H6'

Molecular Weight of C2H6 : molecular weight C2H6 :3.007000e+01
Molecular Weight of C2H6 : molecular weight C2H6 :3.007000e+01

M =

30.0700

species n Molecular mass n 30.070000 n
ans =

0

Species_SP =

'CH2CO'

Molecular Weight of CH2CO : molecular weight CH2CO :4.203700e+01
Molecular Weight of CH2CO : molecular weight CH2CO :4.203700e+01

M =

42.0370

species n Molecular mass n 42.037000 n
ans =

0

Species_SP =

'HCCO'

Molecular Weight of HCCO : molecular weight HCCO :4.102900e+01
Molecular Weight of HCCO : molecular weight HCCO :4.102900e+01

M =

41.0290

species n Molecular mass n 41.029000 n
ans =

0

Species_SP =

'HCCOH'

Molecular Weight of HCCOH : molecular weight HCCOH :4.203700e+01
Molecular Weight of HCCOH : molecular weight HCCOH :4.203700e+01

M =

42.0370

species n Molecular mass n 42.037000 n
ans =

0

Species_SP =

'H2CN'

Molecular Weight of H2CN : molecular weight H2CN :2.803400e+01
Molecular Weight of H2CN : molecular weight H2CN :2.803400e+01

M =

28.0340

species n Molecular mass n 28.034000 n
ans =

0

Species_SP =

'HCN'

Molecular Weight of HCN : molecular weight HCN :2.702600e+01
Molecular Weight of HCN : molecular weight HCN :2.702600e+01

M =

27.0260

species n Molecular mass n 27.026000 n
ans =

0

Species_SP =

'HNO'

Molecular Weight of HNO : molecular weight HNO :3.101400e+01
Molecular Weight of HNO : molecular weight HNO :3.101400e+01

M =

31.0140

species n Molecular mass n 31.014000 n
ans =

0

Species_SP =

'N'

Molecular Weight of N : molecular weight N :1.400700e+01
Molecular Weight of N : molecular weight N :1.400700e+01

M =

14.0070

species n Molecular mass n 14.007000 n
ans =

0

Species_SP =

'NNH'

Molecular Weight of NNH : molecular weight NNH :2.902200e+01
Molecular Weight of NNH : molecular weight NNH :2.902200e+01

M =

29.0220

species n Molecular mass n 29.022000 n
ans =

0

Species_SP =

'N2O'

Molecular Weight of N2O : molecular weight N2O :4.401300e+01
Molecular Weight of N2O : molecular weight N2O :4.401300e+01

M =

44.0130

species n Molecular mass n 44.013000 n
ans =

0

Species_SP =

'NH'

Molecular Weight of NH : molecular weight NH :1.501500e+01
Molecular Weight of NH : molecular weight NH :1.501500e+01

M =

15.0150

species n Molecular mass n 15.015000 n
ans =

0

Species_SP =

'NH2'

Molecular Weight of NH2 : molecular weight NH2 :1.602300e+01
Molecular Weight of NH2 : molecular weight NH2 :1.602300e+01

M =

16.0230

species n Molecular mass n 16.023000 n
ans =

0

Species_SP =

'NH3'

Molecular Weight of NH3 : molecular weight NH3 :1.703100e+01
Molecular Weight of NH3 : molecular weight NH3 :1.703100e+01

M =

17.0310

species n Molecular mass n 17.031000 n
ans =

0

Species_SP =

'NO'

Molecular Weight of NO : molecular weight NO :3.000600e+01
Molecular Weight of NO : molecular weight NO :3.000600e+01

M =

30.0060

species n Molecular mass n 30.006000 n
ans =

0

Species_SP =

'NO2'

Molecular Weight of NO2 : molecular weight NO2 :4.600500e+01
Molecular Weight of NO2 : molecular weight NO2 :4.600500e+01

M =

46.0050

species n Molecular mass n 46.005000 n
ans =

0

Species_SP =

'HCNO'

Molecular Weight of HCNO : molecular weight HCNO :4.302500e+01
Molecular Weight of HCNO : molecular weight HCNO :4.302500e+01

M =

43.0250

species n Molecular mass n 43.025000 n
ans =

0

Species_SP =

'HOCN'

Molecular Weight of HOCN : molecular weight HOCN :4.302500e+01
Molecular Weight of HOCN : molecular weight HOCN :4.302500e+01

M =

43.0250

species n Molecular mass n 43.025000 n
ans =

0

Species_SP =

'HNCO'

Molecular Weight of HNCO : molecular weight HNCO :4.302500e+01
Molecular Weight of HNCO : molecular weight HNCO :4.302500e+01

M =

43.0250

species n Molecular mass n 43.025000 n
ans =

0

Species_SP =

'NCO'

Molecular Weight of NCO : molecular weight NCO :4.201700e+01
Molecular Weight of NCO : molecular weight NCO :4.201700e+01

M =

42.0170

species n Molecular mass n 42.017000 n
ans =

0

Species_SP =

'CN'

Molecular Weight of CN : molecular weight CN :2.601800e+01
Molecular Weight of CN : molecular weight CN :2.601800e+01

M =

26.0180

species n Molecular mass n 26.018000 n
ans =

0

Species_SP =

'HCNN'

Molecular Weight of HCNN : molecular weight HCNN :4.103300e+01
Molecular Weight of HCNN : molecular weight HCNN :4.103300e+01

M =

41.0330

species n Molecular mass n 41.033000 n
ans =

0

Species_SP =

'N2'

Molecular Weight of N2 : molecular weight N2 :2.801400e+01
Molecular Weight of N2 : molecular weight N2 :2.801400e+01

M =

28.0140

species n Molecular mass n 28.014000 n
ans =

0

Species_SP =

'AR'

Molecular Weight of AR : molecular weight AR :3.994800e+01
Molecular Weight of AR : molecular weight AR :3.994800e+01

M =

39.9480

species n Molecular mass n 39.948000 n
ans =

0

Species_SP =

'C3H8'

Molecular Weight of C3H8 : molecular weight C3H8 :4.409700e+01
Molecular Weight of C3H8 : molecular weight C3H8 :4.409700e+01

M =

44.0970

species n Molecular mass n 44.097000 n
ans =

0

Species_SP =

'C3H7'

Molecular Weight of C3H7 : molecular weight C3H7 :4.308900e+01
Molecular Weight of C3H7 : molecular weight C3H7 :4.308900e+01

M =

43.0890

species n Molecular mass n 43.089000 n
ans =

0

Species_SP =

'CH3CHO'

Molecular Weight of CH3CHO : molecular weight CH3CHO :4.405300e+01
Molecular Weight of CH3CHO : molecular weight CH3CHO :4.405300e+01

M =

44.0530

species n Molecular mass n 44.053000 n
ans =

0

Species_SP =

'CH2CHO'

Molecular Weight of CH2CHO : molecular weight CH2CHO :4.304500e+01
Molecular Weight of CH2CHO : molecular weight CH2CHO :4.304500e+01

M =

43.0450

species n Molecular mass n 43.045000 n
ans =

0

Results:

Specific Heat, Entropy and Enthalpy Plots for O2, N2 and Co2 species :

plots of O2

plots of N2

plots for co2:

Conclusion :

The coefficients required to evaluate various thermodynamic parameters for various species are extracted from the NASA thermodynamic data file using MATLAB code. For each species, the specific heat, enthalpy, and entropy are calculated and plotted against the temperature range in the area. For each species, the molecular weight is calculated.

Google Drive Link :

https://drive.google.com/drive/folders/1oORHvJEzwiiHyzs9gfH7t1ZXNbE-mRvV?usp=sharing
