Week 2 Challenge : Surface meshing on a Pressure valve

Aim: To Perform mesh for pressure valve for different mesh elements using tria shape element.

Procedure:

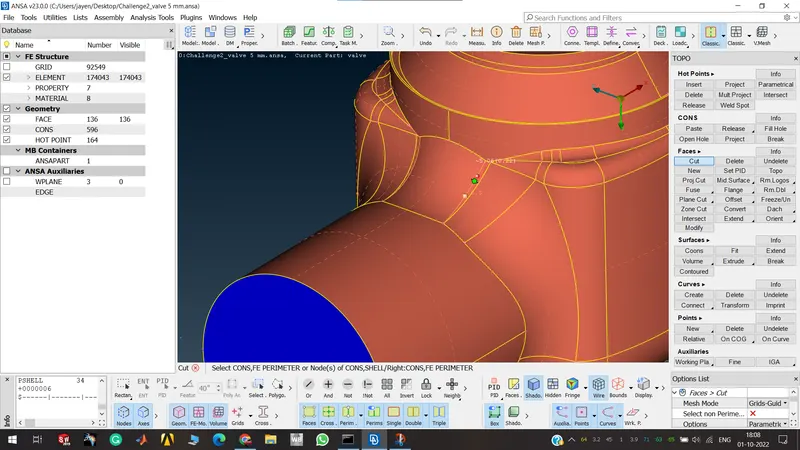

Step 1: Topo cleanup using fill hole and new shape option.

Step 2: given names for the boundary conditions using pid mode

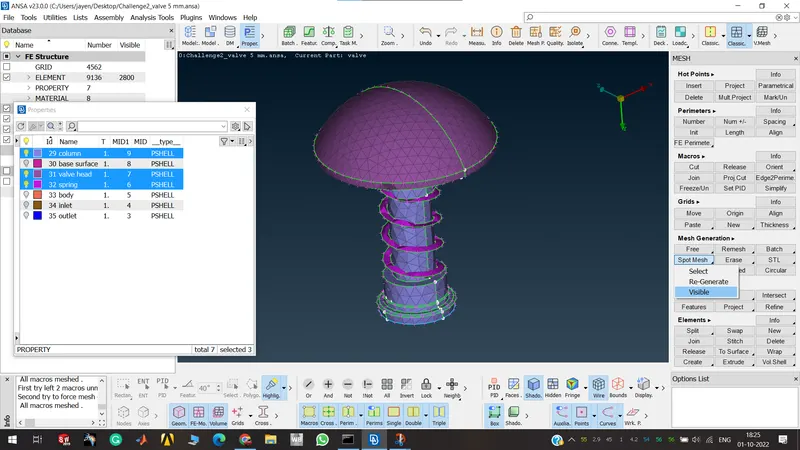

Step 3: finally performed mesh using spot mesh option . and i was able to get to know in different elements size how the element should be.

Learning Outcomes: learned how to clean the surface and how to mesh complex geometry

Result: Done with the mesh in three different cases.

Conclusion: Performed the mesh in 1mm,3mm,5mm cases using the spot mesh option.
