Project 1 - Parsing NASA thermodynamic data
AIM:
Parsing NASA thermodynamic data file and to evaluate thermodynamic properties such as Cp, H and S.
OBJECTIVE:
Write a function that extracts the 14 co-efficients and calculates the enthalpy, entropy and specific heats for all the species in the data file.
The formulae are
Here R is the universal gas constant, T is the temeprature
File parsing:
f1=fopen('THERMO.dat','r')
open command is used to read the THERMO.dat file.
global_temp=fgetl(f1);
read the line of global temp -"300.000 1000.000 5000.000"
t=strsplit(global_temp);
splitting the line into- {"300.000"}, {"1000.000"},{" 5000.000"}
% global temps
global_low_temp=str2num(t{2}); -300
global_medium_temp=str2num(t{3});-1000
global_high_temp=str2num(t{4});-5000
R=8.314; Ideal Gas constant
% for skipping comments
for i=1:3
gt=fgetl(f1);
end
comment line are:
! GRI-Mech Version 3.0 Thermodynamics released 7/30/99
! NASA Polynomial format for CHEMKIN-II
! see README file for disclaimer
! NASA Polynomial format for CHEMKIN-II
! see README file for disclaimer
for i=1:53
gt=fgetl(f1);
A=strsplit(gt,' ');
species_sp=A{1};
total parsing lines=218
3+2 =5 upto comment lines
1 is end line
remaining lines are=218-6=212
each species have 4 lines
then readable species_sp lines are=(212/4)=53
fgetl(f1)-it read the species lines one by one
strsplit(gt,' ')-it speparates line by space are in the form of cell array. so, we using {} braces for finding position.
for finding local temperatures:
local_low_temp=str2num(A{end-3})
local_medium_temp=str2num(A{end-1})
local_high_temp=str2num(A{end-2})
temp = linspace(local_low_temp,local_high_temp,500);
% for getting line 1
line_1=fgetl(f1);
a=strfind(line_1,'E');
a1=line_1(1:a(1)+3);
a1=str2num(a1);
a2=line_1(a(1)+4:a(2)+3);
a2=str2num(a2);
a3=line_1(a(2)+4:a(3)+3);
a3=str2num(a3);
a4=line_1(a(3)+4:a(4)+3);
a4=str2num(a4);
a5=line_1(a(4)+4:a(5)+3);
a5=str2num(a5);
% for getting line 2
% for getting line 2
line_2=fgetl(f1);
b=strfind(line_2,'E');
a6=line_2(1:b(1)+3);
a6=str2num(a6);
a7=line_2(b(1)+4:b(2)+3);
a7=str2num(a7);
a8=line_2(b(2)+4:b(3)+3);
a8=str2num(a8);
a9=line_2(b(3)+4:b(4)+3);
a9=str2num(a9);
a10=line_2(b(4)+4:b(5)+3);
a10=str2num(a10);
% for getting line 3
line_3=fgetl(f1);
c=strfind(line_2,'E');
a11=line_3(1:c(1)+3);
a11=str2num(a11);
a12=line_3(c(1)+4:c(2)+3);
a12=str2num(a12);
a13=line_3(c(2)+4:a(3)+3);
a13=str2num(a13);
a14=line_3(c(3)+4:c(4)+3);
a14=str2num(a14);
% calling functions of cp,H,s
cp=specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,R,local_medium_temp);
H=enthalpy_fun(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,temp,R,local_medium_temp);
s=entropy_fun(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,temp,R,local_medium_temp);
creating directory for plots
mkdir(species_sp)
cd(species_sp)
%ploting (temp,cp)
figure(1)
plot(temp,cp,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('specific heat in k')
title(sprintf('varying cp and temp of %s',species_sp))
saveas(figure(1),'specific heat vs tem.jpg')
grid on

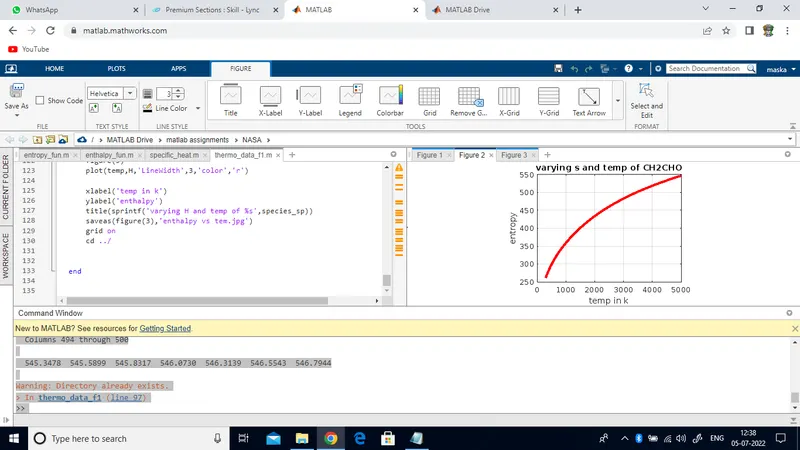

%ploting (temp,s)
figure(2)
plot(temp,s,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('entropy')
title(sprintf('varying s and temp of %s',species_sp))
saveas(figure(2),'entropy vs tem.jpg')
grid on

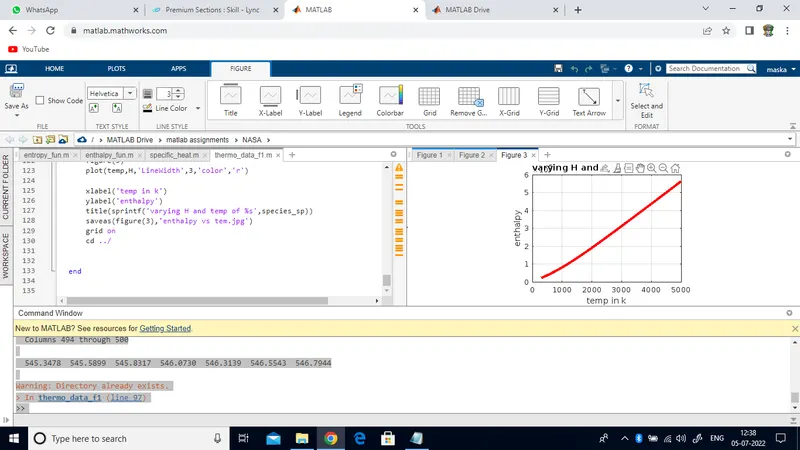

%ploting (temp,H)
figure(3)
plot(temp,H,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('enthalpy')
title(sprintf('varying H and temp of %s',species_sp))
saveas(figure(3),'enthalpy vs tem.jpg')
grid on
cd ../
FUNCTIONS:
specific heat:
function cp=specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,R,local_medium_temp)-suppling the values to the function.
if temp<=local_medium_temp
if the temp value is temp<=local_medium_temp it allows the values into if command otherwise into else command.
function cp=specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,R,local_medium_temp)
if temp<=local_medium_temp
cp=(a8+(a9*temp)+(a10*(temp).^2)+(a11*(temp.^3))+(a12*(temp.^4)))*R;
else
cp=(a1+(a2*temp)+(a3*(temp).^2)+(a4*(temp.^3))+(a5*(temp.^4)))*R;
end
end
entropy:
function s=entropy_fun(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,temp,R,local_medium_temp)
if temp<local_medium_temp
s=R.*((a8.*log(temp))+(a9.*temp)+(a10*((temp).^2)/2)+(a11*((temp).^3)/3)+(a12*
((temp).^4)/4)+a14);
else
s=R.*((a1.*log(temp))+(a2.*temp)+(a3*((temp).^2)/2)+(a4*((temp).^3)/3)+(a5*
((temp).^4)/4)+a7);
end
end
enthalpy:
function H=enthalpy_fun(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,temp,R,local_medium_temp)
if temp<local_medium_temp
H=R*temp.*(a8+((a9*temp)/2)+((a10*(temp).^2)/3)+((a11*(temp).^3)/4)+((a12*
(temp).^4)/5)+((a13./temp)))
else
H=R*temp.*(a1+((a2*temp)/2)+((a3*(temp).^2)/3)+((a4*(temp).^3)/4)+((a5*
(temp).^4)/5)+((a6./temp)))
end
end
list of elemrnts:
O O2 H H2 OH H2O HO2 H2O2 C CH CH2 CH2(S) CH3 CH4 ....CH2CHO ect.....
are located in the parsing file.
MAIN CODE:
clear all
close all
clc
f1=fopen('THERMO.dat','r')
gt=fgetl(f1);
global_temp=fgetl(f1);
t=strsplit(global_temp);
% global temps
global_low_temp=str2num(t{2});
global_medium_temp=str2num(t{3});
global_high_temp=str2num(t{4});
% temp arnge and Gas constant
R=8.314;
% for skipping comments
for i=1:3
gt=fgetl(f1);
end
for i=1:53
gt=fgetl(f1);
A=strsplit(gt,' ');
species_sp=A{1};
% for local high,medium and low temps
local_low_temp=str2num(A{end-3})
local_medium_temp=str2num(A{end-1})
local_high_temp=str2num(A{end-2})
temp = linspace(local_low_temp,local_high_temp,500);
% for getting line 1
line_1=fgetl(f1);
a=strfind(line_1,'E');
a1=line_1(1:a(1)+3);
a1=str2num(a1);
a2=line_1(a(1)+4:a(2)+3);
a2=str2num(a2);
a3=line_1(a(2)+4:a(3)+3);
a3=str2num(a3);
a4=line_1(a(3)+4:a(4)+3);
a4=str2num(a4);
a5=line_1(a(4)+4:a(5)+3);
a5=str2num(a5);
% for getting line 2
line_2=fgetl(f1);
b=strfind(line_2,'E');
a6=line_2(1:b(1)+3);
a6=str2num(a6);
a7=line_2(b(1)+4:b(2)+3);
a7=str2num(a7);
a8=line_2(b(2)+4:b(3)+3);
a8=str2num(a8);
a9=line_2(b(3)+4:b(4)+3);
a9=str2num(a9);
a10=line_2(b(4)+4:b(5)+3);
a10=str2num(a10);
line_3=fgetl(f1);
c=strfind(line_2,'E');
a11=line_3(1:c(1)+3);
a11=str2num(a11);
a12=line_3(c(1)+4:c(2)+3);
a12=str2num(a12);
a13=line_3(c(2)+4:a(3)+3);
a13=str2num(a13);
a14=line_3(c(3)+4:c(4)+3);
a14=str2num(a14);
cp=specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,temp,R,local_medium_temp);
H=enthalpy_fun(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,temp,R,local_medium_temp);
s=entropy_fun(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,temp,R,local_medium_temp);
mkdir(species_sp)
cd(species_sp)
%ploting (temp,cp)
figure(1)
plot(temp,cp,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('specific heat in k')
title(sprintf('varying cp and temp of %s',species_sp))
saveas(figure(1),'specific heat vs tem.jpg')
grid on
%ploting (temp,s)
figure(2)
plot(temp,s,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('entropy')
title(sprintf('varying s and temp of %s',species_sp))
saveas(figure(2),'entropy vs tem.jpg')
grid on
%ploting (temp,H)
figure(3)
plot(temp,H,'LineWidth',3,'color','r')
xlabel('temp in k')
ylabel('enthalpy')
title(sprintf('varying H and temp of %s',species_sp))
saveas(figure(3),'enthalpy vs tem.jpg')
grid on
cd ../
end
OUTPUT:
Columns 86 through 102
245.5406 245.8736 246.2038 246.5313 246.8562 247.1785 247.4982 247.8155 248.1303 248.4426 248.7527 249.0604 249.3658 249.6690 249.9700 250.2689 250.5656
Columns 103 through 119
250.8603 251.1529 251.4435 251.7321 252.0188 252.3036 252.5865 252.8676 253.1468 253.4243 253.7000 253.9740 254.2462 254.5168 254.7858 255.0531 255.3188
Columns 120 through 136
255.5830 255.8455 256.1066 256.3662 256.6242 256.8808 257.1360 257.3898 257.6421 257.8931 258.1427 258.3909 258.6379 258.8835 259.1279 259.3709 259.6128
Columns 137 through 153
259.8533 260.0927 260.3309 260.5678 260.8036 261.0383 261.2717 261.5041 261.7354 261.9655 262.1946 262.4225 262.6495 262.8753 263.1002 263.3240 263.5468
Columns 154 through 170
263.7686 263.9894 264.2092 264.4281 264.6460 264.8630 265.0790 265.2942 265.5084 265.7217 265.9341 266.1456 266.3562 266.5660 266.7750 266.9830 267.1903
Columns 171 through 187
267.3967 267.6023 267.8071 268.0111 268.2143 268.4167 268.6183 268.8191 269.0192 269.2185 269.4171 269.6150 269.8121 270.0084 270.2041 270.3990 270.5932
Columns 188 through 204
270.7868 270.9796 271.1717 271.3632 271.5540 271.7441 271.9335 272.1223 272.3104 272.4979 272.6848 272.8710 273.0565 273.2415 273.4258 273.6095 273.7926
Columns 205 through 221
273.9751 274.1570 274.3383 274.5190 274.6991 274.8787 275.0576 275.2360 275.4138 275.5911 275.7678 275.9439 276.1195 276.2945 276.4690 276.6429 276.8164
Columns 222 through 238
276.9892 277.1616 277.3334 277.5047 277.6755 277.8458 278.0156 278.1848 278.3536 278.5219 278.6896 278.8569 279.0237 279.1900 279.3558 279.5211 279.6860
Columns 239 through 255
279.8504 280.0143 280.1777 280.3407 280.5032 280.6652 280.8268 280.9880 281.1487 281.3089 281.4687 281.6281 281.7870 281.9455 282.1035 282.2611 282.4183
Columns 256 through 272
282.5750 282.7313 282.8872 283.0427 283.1978 283.3524 283.5066 283.6605 283.8139 283.9669 284.1195 284.2717 284.4234 284.5748 284.7258 284.8764 285.0266
Columns 273 through 289
285.1764 285.3259 285.4749 285.6236 285.7718 285.9197 286.0672 286.2144 286.3611 286.5075 286.6535 286.7991 286.9444 287.0893 287.2338 287.3780 287.5218
Columns 290 through 306
287.6653 287.8084 287.9511 288.0935 288.2355 288.3772 288.5185 288.6594 288.8001 288.9403 289.0803 289.2199 289.3591 289.4980 289.6366 289.7748 289.9127
Columns 307 through 323
290.0502 290.1874 290.3243 290.4609 290.5971 290.7330 290.8686 291.0038 291.1387 291.2733 291.4076 291.5415 291.6752 291.8085 291.9415 292.0742 292.2065
Columns 324 through 340
292.3386 292.4703 292.6017 292.7328 292.8636 292.9941 293.1243 293.2542 293.3838 293.5131 293.6420 293.7707 293.8991 294.0272 294.1549 294.2824 294.4096
Columns 341 through 357
294.5365 294.6631 294.7894 294.9154 295.0411 295.1665 295.2916 295.4165 295.5410 295.6653 295.7893 295.9130 296.0364 296.1595 296.2824 296.4049 296.5272
Columns 358 through 374
296.6492 296.7710 296.8924 297.0136 297.1345 297.2551 297.3755 297.4956 297.6154 297.7349 297.8542 297.9732 298.0919 298.2104 298.3286 298.4465 298.5642
Columns 375 through 391
298.6816 298.7987 298.9156 299.0322 299.1486 299.2647 299.3805 299.4961 299.6114 299.7264 299.8412 299.9558 300.0701 300.1841 300.2979 300.4114 300.5247
Columns 392 through 408
300.6377 300.7505 300.8630 300.9753 301.0873 301.1991 301.3107 301.4220 301.5330 301.6438 301.7544 301.8647 301.9748 302.0846 302.1942 302.3035 302.4127
Columns 409 through 425
302.5215 302.6302 302.7386 302.8467 302.9547 303.0624 303.1698 303.2771 303.3841 303.4908 303.5973 303.7037 303.8097 303.9156 304.0212 304.1266 304.2317
Columns 426 through 442
304.3367 304.4414 304.5459 304.6501 304.7542 304.8580 304.9616 305.0650 305.1681 305.2710 305.3738 305.4763 305.5785 305.6806 305.7824 305.8841 305.9855
Columns 443 through 459
306.0867 306.1877 306.2884 306.3890 306.4893 306.5895 306.6894 306.7891 306.8886 306.9879 307.0870 307.1859 307.2846 307.3831 307.4814 307.5794 307.6773
Columns 460 through 476
307.7750 307.8724 307.9697 308.0668 308.1636 308.2603 308.3567 308.4530 308.5491 308.6450 308.7406 308.8361 308.9314 309.0265 309.1214 309.2161 309.3107
Columns 477 through 493
309.4050 309.4991 309.5931 309.6868 309.7804 309.8738 309.9670 310.0600 310.1529 310.2455 310.3380 310.4303 310.5224 310.6143 310.7060 310.7976 310.8890
Columns 494 through 500
310.9802 311.0712 311.1620 311.2527 311.3432 311.4335 311.5237
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
5.8946
a2 =
0.0040
a4 =
2.9249e-10
a5 =
-2.0095e-14
a6 =
5.3453e+04
a7 =
-5.1031
a8 =
2.5243
a9 =
0.0160
a10 =
-1.8816e-05
a11 =
1.2126e-08
a12 =
-3.2357e-12
a13 =
5.4262e+04
a14 =
11.6759
cp =
Columns 1 through 17
57.8273 58.0696 58.3100 58.5484 58.7849 59.0194 59.2520 59.4826 59.7114 59.9383 60.1632 60.3863 60.6076 60.8270 61.0445 61.2602 61.4741
Columns 18 through 34
61.6862 61.8965 62.1050 62.3117 62.5166 62.7198 62.9213 63.1210 63.3190 63.5152 63.7098 63.9026 64.0938 64.2833 64.4712 64.6574 64.8419
Columns 35 through 51
65.0248 65.2061 65.3858 65.5638 65.7403 65.9152 66.0885 66.2603 66.4305 66.5992 66.7663 66.9319 67.0960 67.2586 67.4197 67.5793 67.7374
Columns 52 through 68
67.8941 68.0493 68.2031 68.3554 68.5063 68.6558 68.8039 68.9505 69.0958 69.2397 69.3823 69.5235 69.6633 69.8018 69.9389 70.0747 70.2092
Columns 69 through 85
70.3424 70.4743 70.6049 70.7343 70.8623 70.9891 71.1147 71.2390 71.3620 71.4839 71.6045 71.7239 71.8421 71.9592 72.0750 72.1897 72.3032
Columns 86 through 102
72.4155 72.5267 72.6368 72.7457 72.8535 72.9602 73.0658 73.1703 73.2737 73.3760 73.4772 73.5774 73.6765 73.7746 73.8716 73.9676 74.0626
Columns 103 through 119
74.1565 74.2495 74.3414 74.4324 74.5223 74.6113 74.6993 74.7864 74.8725 74.9577 75.0419 75.1252 75.2076 75.2890 75.3696 75.4492 75.5280
Columns 120 through 136
75.6059 75.6828 75.7590 75.8342 75.9086 75.9822 76.0549 76.1268 76.1979 76.2681 76.3375 76.4061 76.4740 76.5410 76.6072 76.6727 76.7374
Columns 137 through 153
76.8014 76.8645 76.9270 76.9887 77.0496 77.1099 77.1694 77.2282 77.2863 77.3436 77.4003 77.4563 77.5116 77.5663 77.6203 77.6736 77.7262
Columns 154 through 170
77.7782 77.8296 77.8803 77.9304 77.9799 78.0288 78.0770 78.1246 78.1717 78.2181 78.2640 78.3092 78.3540 78.3981 78.4417 78.4847 78.5271
Columns 171 through 187
78.5690 78.6104 78.6513 78.6916 78.7314 78.7706 78.8094 78.8477 78.8854 78.9227 78.9595 78.9958 79.0316 79.0669 79.1018 79.1362 79.1702
Columns 188 through 204
79.2037 79.2368 79.2694 79.3016 79.3333 79.3647 79.3956 79.4261 79.4562 79.4859 79.5152 79.5441 79.5726 79.6007 79.6285 79.6558 79.6828
Columns 205 through 221
79.7095 79.7357 79.7617 79.7872 79.8125 79.8374 79.8619 79.8861 79.9100 79.9336 79.9568 79.9798 80.0024 80.0247 80.0467 80.0685 80.0899
Columns 222 through 238
80.1110 80.1319 80.1525 80.1728 80.1928 80.2126 80.2321 80.2513 80.2703 80.2891 80.3075 80.3258 80.3438 80.3616 80.3791 80.3964 80.4135
Columns 239 through 255
80.4304 80.4470 80.4635 80.4797 80.4957 80.5116 80.5272 80.5426 80.5579 80.5729 80.5878 80.6025 80.6170 80.6313 80.6455 80.6594 80.6733
Columns 256 through 272
80.6869 80.7004 80.7138 80.7270 80.7400 80.7529 80.7657 80.7783 80.7908 80.8031 80.8154 80.8274 80.8394 80.8512 80.8629 80.8745 80.8860
Columns 273 through 289
80.8974 80.9087 80.9198 80.9309 80.9418 80.9526 80.9634 80.9741 80.9846 80.9951 81.0055 81.0158 81.0260 81.0361 81.0462 81.0562 81.0661
Columns 290 through 306
81.0759 81.0856 81.0953 81.1050 81.1145 81.1240 81.1335 81.1429 81.1522 81.1615 81.1707 81.1798 81.1890 81.1980 81.2071 81.2160 81.2250
Columns 307 through 323
81.2339 81.2427 81.2516 81.2603 81.2691 81.2778 81.2865 81.2951 81.3038 81.3123 81.3209 81.3295 81.3380 81.3465 81.3549 81.3634 81.3718
Columns 324 through 340
81.3802 81.3886 81.3970 81.4053 81.4137 81.4220 81.4303 81.4386 81.4469 81.4552 81.4634 81.4717 81.4800 81.4882 81.4964 81.5046 81.5129
Columns 341 through 357
81.5211 81.5293 81.5375 81.5457 81.5539 81.5621 81.5702 81.5784 81.5866 81.5948 81.6029 81.6111 81.6193 81.6274 81.6356 81.6437 81.6519
Columns 358 through 374
81.6601 81.6682 81.6763 81.6845 81.6926 81.7008 81.7089 81.7170 81.7252 81.7333 81.7414 81.7495 81.7576 81.7657 81.7738 81.7819 81.7900
Columns 375 through 391
81.7981 81.8061 81.8142 81.8222 81.8303 81.8383 81.8463 81.8543 81.8623 81.8703 81.8782 81.8862 81.8941 81.9020 81.9099 81.9177 81.9256
Columns 392 through 408
81.9334 81.9412 81.9490 81.9567 81.9644 81.9721 81.9798 81.9874 81.9950 82.0026 82.0101 82.0176 82.0251 82.0325 82.0399 82.0472 82.0545
Columns 409 through 425
82.0617 82.0689 82.0761 82.0832 82.0902 82.0972 82.1041 82.1110 82.1178 82.1245 82.1312 82.1378 82.1444 82.1509 82.1573 82.1636 82.1699
Columns 426 through 442
82.1761 82.1821 82.1882 82.1941 82.1999 82.2057 82.2113 82.2169 82.2224 82.2277 82.2330 82.2382 82.2432 82.2482 82.2530 82.2577 82.2623
Columns 443 through 459
82.2668 82.2711 82.2754 82.2795 82.2834 82.2873 82.2910 82.2945 82.2979 82.3012 82.3043 82.3073 82.3101 82.3127 82.3152 82.3175 82.3197
Columns 460 through 476
82.3217 82.3235 82.3251 82.3265 82.3278 82.3289 82.3298 82.3304 82.3309 82.3312 82.3313 82.3312 82.3308 82.3303 82.3295 82.3285 82.3273
Columns 477 through 493
82.3258 82.3241 82.3222 82.3200 82.3176 82.3149 82.3119 82.3088 82.3053 82.3016 82.2976 82.2933 82.2888 82.2839 82.2788 82.2734 82.2677
Columns 494 through 500
82.2617 82.2554 82.2487 82.2418 82.2346 82.2270 82.2191
H =
1.0e+05 *
Columns 1 through 17
4.6049 4.6103 4.6158 4.6213 4.6268 4.6324 4.6380 4.6436 4.6492 4.6548 4.6605 4.6661 4.6718 4.6776 4.6833 4.6891 4.6948
Columns 18 through 34
4.7006 4.7065 4.7123 4.7182 4.7240 4.7299 4.7358 4.7418 4.7477 4.7537 4.7597 4.7657 4.7717 4.7778 4.7839 4.7899 4.7960
Columns 35 through 51
4.8021 4.8083 4.8144 4.8206 4.8268 4.8330 4.8392 4.8454 4.8517 4.8579 4.8642 4.8705 4.8768 4.8832 4.8895 4.8959 4.9022
Columns 52 through 68
4.9086 4.9150 4.9214 4.9279 4.9343 4.9408 4.9472 4.9537 4.9602 4.9668 4.9733 4.9798 4.9864 4.9929 4.9995 5.0061 5.0127
Columns 69 through 85
5.0193 5.0260 5.0326 5.0393 5.0459 5.0526 5.0593 5.0660 5.0727 5.0795 5.0862 5.0930 5.0997 5.1065 5.1133 5.1201 5.1269
Columns 86 through 102
5.1337 5.1405 5.1473 5.1542 5.1611 5.1679 5.1748 5.1817 5.1886 5.1955 5.2024 5.2093 5.2163 5.2232 5.2302 5.2371 5.2441
Columns 103 through 119
5.2511 5.2581 5.2651 5.2721 5.2791 5.2861 5.2931 5.3002 5.3072 5.3143 5.3213 5.3284 5.3355 5.3426 5.3497 5.3568 5.3639
Columns 120 through 136
5.3710 5.3781 5.3853 5.3924 5.3996 5.4067 5.4139 5.4210 5.4282 5.4354 5.4426 5.4498 5.4570 5.4642 5.4714 5.4786 5.4858
Columns 137 through 153
5.4931 5.5003 5.5075 5.5148 5.5220 5.5293 5.5366 5.5438 5.5511 5.5584 5.5657 5.5730 5.5803 5.5876 5.5949 5.6022 5.6095
Columns 154 through 170
5.6168 5.6242 5.6315 5.6388 5.6462 5.6535 5.6609 5.6682 5.6756 5.6830 5.6903 5.6977 5.7051 5.7125 5.7199 5.7272 5.7346
Columns 171 through 187
5.7420 5.7494 5.7568 5.7643 5.7717 5.7791 5.7865 5.7939 5.8014 5.8088 5.8162 5.8237 5.8311 5.8386 5.8460 5.8535 5.8609
Columns 188 through 204
5.8684 5.8758 5.8833 5.8908 5.8982 5.9057 5.9132 5.9207 5.9281 5.9356 5.9431 5.9506 5.9581 5.9656 5.9731 5.9806 5.9881
Columns 205 through 221
5.9956 6.0031 6.0106 6.0181 6.0257 6.0332 6.0407 6.0482 6.0557 6.0633 6.0708 6.0783 6.0859 6.0934 6.1009 6.1085 6.1160
Columns 222 through 238
6.1236 6.1311 6.1387 6.1462 6.1538 6.1613 6.1689 6.1764 6.1840 6.1916 6.1991 6.2067 6.2143 6.2218 6.2294 6.2370 6.2445
Columns 239 through 255
6.2521 6.2597 6.2673 6.2748 6.2824 6.2900 6.2976 6.3052 6.3128 6.3204 6.3279 6.3355 6.3431 6.3507 6.3583 6.3659 6.3735
Columns 256 through 272
6.3811 6.3887 6.3963 6.4039 6.4115 6.4191 6.4267 6.4343 6.4419 6.4496 6.4572 6.4648 6.4724 6.4800 6.4876 6.4952 6.5029
Columns 273 through 289
6.5105 6.5181 6.5257 6.5333 6.5410 6.5486 6.5562 6.5638 6.5715 6.5791 6.5867 6.5944 6.6020 6.6096 6.6173 6.6249 6.6325
Columns 290 through 306
6.6402 6.6478 6.6554 6.6631 6.6707 6.6784 6.6860 6.6936 6.7013 6.7089 6.7166 6.7242 6.7319 6.7395 6.7472 6.7548 6.7625
Columns 307 through 323
6.7701 6.7778 6.7854 6.7931 6.8007 6.8084 6.8160 6.8237 6.8313 6.8390 6.8467 6.8543 6.8620 6.8696 6.8773 6.8850 6.8926
Columns 324 through 340
6.9003 6.9080 6.9156 6.9233 6.9310 6.9386 6.9463 6.9540 6.9616 6.9693 6.9770 6.9847 6.9923 7.0000 7.0077 7.0154 7.0230
Columns 341 through 357
7.0307 7.0384 7.0461 7.0538 7.0614 7.0691 7.0768 7.0845 7.0922 7.0999 7.1075 7.1152 7.1229 7.1306 7.1383 7.1460 7.1537
Columns 358 through 374
7.1614 7.1691 7.1767 7.1844 7.1921 7.1998 7.2075 7.2152 7.2229 7.2306 7.2383 7.2460 7.2537 7.2614 7.2691 7.2768 7.2845
Columns 375 through 391
7.2922 7.2999 7.3076 7.3153 7.3231 7.3308 7.3385 7.3462 7.3539 7.3616 7.3693 7.3770 7.3847 7.3924 7.4002 7.4079 7.4156
Columns 392 through 408
7.4233 7.4310 7.4387 7.4465 7.4542 7.4619 7.4696 7.4773 7.4851 7.4928 7.5005 7.5082 7.5160 7.5237 7.5314 7.5391 7.5469
Columns 409 through 425
7.5546 7.5623 7.5701 7.5778 7.5855 7.5933 7.6010 7.6087 7.6165 7.6242 7.6319 7.6397 7.6474 7.6551 7.6629 7.6706 7.6784
Columns 426 through 442
7.6861 7.6938 7.7016 7.7093 7.7171 7.7248 7.7325 7.7403 7.7480 7.7558 7.7635 7.7713 7.7790 7.7868 7.7945 7.8023 7.8100
Columns 443 through 459
7.8178 7.8255 7.8333 7.8410 7.8488 7.8565 7.8643 7.8720 7.8798 7.8875 7.8953 7.9030 7.9108 7.9185 7.9263 7.9340 7.9418
Columns 460 through 476
7.9495 7.9573 7.9650 7.9728 7.9805 7.9883 7.9961 8.0038 8.0116 8.0193 8.0271 8.0348 8.0426 8.0503 8.0581 8.0658 8.0736
Columns 477 through 493
8.0814 8.0891 8.0969 8.1046 8.1124 8.1201 8.1279 8.1356 8.1434 8.1511 8.1589 8.1666 8.1744 8.1821 8.1899 8.1976 8.2054
Columns 494 through 500
8.2131 8.2209 8.2286 8.2364 8.2441 8.2519 8.2596
H =
1.0e+05 *
Columns 1 through 17
4.6049 4.6103 4.6158 4.6213 4.6268 4.6324 4.6380 4.6436 4.6492 4.6548 4.6605 4.6661 4.6718 4.6776 4.6833 4.6891 4.6948
Columns 18 through 34
4.7006 4.7065 4.7123 4.7182 4.7240 4.7299 4.7358 4.7418 4.7477 4.7537 4.7597 4.7657 4.7717 4.7778 4.7839 4.7899 4.7960
Columns 35 through 51
4.8021 4.8083 4.8144 4.8206 4.8268 4.8330 4.8392 4.8454 4.8517 4.8579 4.8642 4.8705 4.8768 4.8832 4.8895 4.8959 4.9022
Columns 52 through 68
4.9086 4.9150 4.9214 4.9279 4.9343 4.9408 4.9472 4.9537 4.9602 4.9668 4.9733 4.9798 4.9864 4.9929 4.9995 5.0061 5.0127
Columns 69 through 85
5.0193 5.0260 5.0326 5.0393 5.0459 5.0526 5.0593 5.0660 5.0727 5.0795 5.0862 5.0930 5.0997 5.1065 5.1133 5.1201 5.1269
Columns 86 through 102
5.1337 5.1405 5.1473 5.1542 5.1611 5.1679 5.1748 5.1817 5.1886 5.1955 5.2024 5.2093 5.2163 5.2232 5.2302 5.2371 5.2441
Columns 103 through 119
5.2511 5.2581 5.2651 5.2721 5.2791 5.2861 5.2931 5.3002 5.3072 5.3143 5.3213 5.3284 5.3355 5.3426 5.3497 5.3568 5.3639
Columns 120 through 136
5.3710 5.3781 5.3853 5.3924 5.3996 5.4067 5.4139 5.4210 5.4282 5.4354 5.4426 5.4498 5.4570 5.4642 5.4714 5.4786 5.4858
Columns 137 through 153
5.4931 5.5003 5.5075 5.5148 5.5220 5.5293 5.5366 5.5438 5.5511 5.5584 5.5657 5.5730 5.5803 5.5876 5.5949 5.6022 5.6095
Columns 154 through 170
5.6168 5.6242 5.6315 5.6388 5.6462 5.6535 5.6609 5.6682 5.6756 5.6830 5.6903 5.6977 5.7051 5.7125 5.7199 5.7272 5.7346
Columns 171 through 187
5.7420 5.7494 5.7568 5.7643 5.7717 5.7791 5.7865 5.7939 5.8014 5.8088 5.8162 5.8237 5.8311 5.8386 5.8460 5.8535 5.8609
Columns 188 through 204
5.8684 5.8758 5.8833 5.8908 5.8982 5.9057 5.9132 5.9207 5.9281 5.9356 5.9431 5.9506 5.9581 5.9656 5.9731 5.9806 5.9881
Columns 205 through 221
5.9956 6.0031 6.0106 6.0181 6.0257 6.0332 6.0407 6.0482 6.0557 6.0633 6.0708 6.0783 6.0859 6.0934 6.1009 6.1085 6.1160
Columns 222 through 238
6.1236 6.1311 6.1387 6.1462 6.1538 6.1613 6.1689 6.1764 6.1840 6.1916 6.1991 6.2067 6.2143 6.2218 6.2294 6.2370 6.2445
Columns 239 through 255
6.2521 6.2597 6.2673 6.2748 6.2824 6.2900 6.2976 6.3052 6.3128 6.3204 6.3279 6.3355 6.3431 6.3507 6.3583 6.3659 6.3735
Columns 256 through 272
6.3811 6.3887 6.3963 6.4039 6.4115 6.4191 6.4267 6.4343 6.4419 6.4496 6.4572 6.4648 6.4724 6.4800 6.4876 6.4952 6.5029
Columns 273 through 289
6.5105 6.5181 6.5257 6.5333 6.5410 6.5486 6.5562 6.5638 6.5715 6.5791 6.5867 6.5944 6.6020 6.6096 6.6173 6.6249 6.6325
Columns 290 through 306
6.6402 6.6478 6.6554 6.6631 6.6707 6.6784 6.6860 6.6936 6.7013 6.7089 6.7166 6.7242 6.7319 6.7395 6.7472 6.7548 6.7625
Columns 307 through 323
6.7701 6.7778 6.7854 6.7931 6.8007 6.8084 6.8160 6.8237 6.8313 6.8390 6.8467 6.8543 6.8620 6.8696 6.8773 6.8850 6.8926
Columns 324 through 340
6.9003 6.9080 6.9156 6.9233 6.9310 6.9386 6.9463 6.9540 6.9616 6.9693 6.9770 6.9847 6.9923 7.0000 7.0077 7.0154 7.0230
Columns 341 through 357
7.0307 7.0384 7.0461 7.0538 7.0614 7.0691 7.0768 7.0845 7.0922 7.0999 7.1075 7.1152 7.1229 7.1306 7.1383 7.1460 7.1537
Columns 358 through 374
7.1614 7.1691 7.1767 7.1844 7.1921 7.1998 7.2075 7.2152 7.2229 7.2306 7.2383 7.2460 7.2537 7.2614 7.2691 7.2768 7.2845
Columns 375 through 391
7.2922 7.2999 7.3076 7.3153 7.3231 7.3308 7.3385 7.3462 7.3539 7.3616 7.3693 7.3770 7.3847 7.3924 7.4002 7.4079 7.4156
Columns 392 through 408
7.4233 7.4310 7.4387 7.4465 7.4542 7.4619 7.4696 7.4773 7.4851 7.4928 7.5005 7.5082 7.5160 7.5237 7.5314 7.5391 7.5469
Columns 409 through 425
7.5546 7.5623 7.5701 7.5778 7.5855 7.5933 7.6010 7.6087 7.6165 7.6242 7.6319 7.6397 7.6474 7.6551 7.6629 7.6706 7.6784
Columns 426 through 442
7.6861 7.6938 7.7016 7.7093 7.7171 7.7248 7.7325 7.7403 7.7480 7.7558 7.7635 7.7713 7.7790 7.7868 7.7945 7.8023 7.8100
Columns 443 through 459
7.8178 7.8255 7.8333 7.8410 7.8488 7.8565 7.8643 7.8720 7.8798 7.8875 7.8953 7.9030 7.9108 7.9185 7.9263 7.9340 7.9418
Columns 460 through 476
7.9495 7.9573 7.9650 7.9728 7.9805 7.9883 7.9961 8.0038 8.0116 8.0193 8.0271 8.0348 8.0426 8.0503 8.0581 8.0658 8.0736
Columns 477 through 493
8.0814 8.0891 8.0969 8.1046 8.1124 8.1201 8.1279 8.1356 8.1434 8.1511 8.1589 8.1666 8.1744 8.1821 8.1899 8.1976 8.2054
Columns 494 through 500
8.2131 8.2209 8.2286 8.2364 8.2441 8.2519 8.2596
s =
Columns 1 through 17
246.4787 248.2701 250.0149 251.7160 253.3756 254.9961 256.5794 258.1275 259.6421 261.1247 262.5770 264.0003 265.3959 266.7649 268.1086 269.4280 270.7241
Columns 18 through 34
271.9977 273.2498 274.4812 275.6927 276.8849 278.0587 279.2145 280.3531 281.4751 282.5809 283.6710 284.7461 285.8066 286.8529 287.8854 288.9045 289.9108
Columns 35 through 51
290.9044 291.8858 292.8553 293.8132 294.7599 295.6956 296.6207 297.5353 298.4398 299.3344 300.2194 301.0950 301.9613 302.8187 303.6674 304.5074 305.3391
Columns 52 through 68
306.1626 306.9781 307.7858 308.5858 309.3783 310.1634 310.9413 311.7122 312.4761 313.2333 313.9838 314.7278 315.4654 316.1968 316.9219 317.6411 318.3542
Columns 69 through 85
319.0616 319.7632 320.4592 321.1497 321.8347 322.5144 323.1889 323.8581 324.5223 325.1815 325.8358 326.4852 327.1298 327.7698 328.4052 329.0360 329.6623
Columns 86 through 102
330.2842 330.9018 331.5150 332.1241 332.7290 333.3298 333.9265 334.5193 335.1081 335.6931 336.2742 336.8516 337.4252 337.9952 338.5615 339.1243 339.6836
Columns 103 through 119
340.2393 340.7916 341.3405 341.8861 342.4283 342.9673 343.5030 344.0356 344.5650 345.0912 345.6144 346.1346 346.6517 347.1659 347.6771 348.1854 348.6909
Columns 120 through 136
349.1935 349.6933 350.1903 350.6846 351.1761 351.6650 352.1512 352.6348 353.1157 353.5941 354.0700 354.5433 355.0141 355.4825 355.9484 356.4119 356.8730
Columns 137 through 153
357.3318 357.7882 358.2422 358.6940 359.1435 359.5907 360.0357 360.4785 360.9191 361.3575 361.7937 362.2279 362.6599 363.0898 363.5177 363.9435 364.3673
Columns 154 through 170
364.7890 365.2088 365.6266 366.0424 366.4563 366.8683 367.2783 367.6865 368.0927 368.4972 368.8997 369.3005 369.6994 370.0966 370.4919 370.8855 371.2774
Columns 171 through 187
371.6675 372.0559 372.4425 372.8275 373.2108 373.5925 373.9724 374.3508 374.7275 375.1026 375.4761 375.8480 376.2184 376.5872 376.9544 377.3201 377.6843
Columns 188 through 204
378.0469 378.4081 378.7678 379.1260 379.4827 379.8379 380.1918 380.5442 380.8951 381.2447 381.5928 381.9396 382.2850 382.6290 382.9716 383.3129 383.6529
Columns 205 through 221
383.9915 384.3288 384.6648 384.9995 385.3329 385.6650 385.9959 386.3254 386.6538 386.9808 387.3067 387.6313 387.9547 388.2769 388.5978 388.9176 389.2362
Columns 222 through 238
389.5536 389.8699 390.1850 390.4989 390.8117 391.1233 391.4339 391.7433 392.0515 392.3587 392.6648 392.9698 393.2737 393.5765 393.8782 394.1789 394.4785
Columns 239 through 255
394.7771 395.0746 395.3711 395.6666 395.9611 396.2545 396.5469 396.8383 397.1288 397.4182 397.7067 397.9941 398.2806 398.5662 398.8508 399.1344 399.4171
Columns 256 through 272
399.6989 399.9797 400.2596 400.5385 400.8166 401.0937 401.3700 401.6453 401.9198 402.1933 402.4660 402.7378 403.0088 403.2788 403.5480 403.8164 404.0839
Columns 273 through 289
404.3506 404.6164 404.8814 405.1455 405.4089 405.6714 405.9331 406.1940 406.4541 406.7134 406.9719 407.2296 407.4865 407.7426 407.9980 408.2526 408.5064
Columns 290 through 306
408.7595 409.0118 409.2634 409.5142 409.7642 410.0136 410.2622 410.5100 410.7572 411.0036 411.2493 411.4943 411.7385 411.9821 412.2250 412.4671 412.7086
Columns 307 through 323
412.9494 413.1895 413.4289 413.6677 413.9057 414.1431 414.3799 414.6159 414.8513 415.0861 415.3202 415.5537 415.7865 416.0186 416.2502 416.4811 416.7114
Columns 324 through 340
416.9410 417.1700 417.3984 417.6262 417.8534 418.0800 418.3059 418.5313 418.7561 418.9802 419.2038 419.4268 419.6492 419.8710 420.0922 420.3129 420.5330
Columns 341 through 357
420.7525 420.9714 421.1898 421.4077 421.6249 421.8416 422.0578 422.2734 422.4884 422.7030 422.9169 423.1304 423.3433 423.5556 423.7675 423.9788 424.1896
Columns 358 through 374
424.3998 424.6096 424.8188 425.0275 425.2357 425.4434 425.6506 425.8573 426.0635 426.2691 426.4743 426.6790 426.8832 427.0870 427.2902 427.4929 427.6952
Columns 375 through 391
427.8970 428.0983 428.2991 428.4995 428.6994 428.8988 429.0978 429.2963 429.4943 429.6919 429.8890 430.0857 430.2819 430.4776 430.6730 430.8678 431.0623
Columns 392 through 408
431.2562 431.4498 431.6429 431.8356 432.0278 432.2196 432.4110 432.6019 432.7924 432.9825 433.1722 433.3615 433.5503 433.7387 433.9267 434.1143 434.3015
Columns 409 through 425
434.4883 434.6746 434.8606 435.0462 435.2313 435.4161 435.6004 435.7844 435.9679 436.1511 436.3338 436.5162 436.6982 436.8798 437.0610 437.2419 437.4223
Columns 426 through 442
437.6024 437.7821 437.9614 438.1403 438.3189 438.4970 438.6748 438.8523 439.0293 439.2060 439.3824 439.5583 439.7339 439.9091 440.0840 440.2585 440.4327
Columns 443 through 459
440.6065 440.7799 440.9530 441.1257 441.2981 441.4701 441.6418 441.8131 441.9841 442.1547 442.3249 442.4949 442.6645 442.8337 443.0026 443.1712 443.3394
Columns 460 through 476
443.5073 443.6748 443.8420 444.0089 444.1754 444.3416 444.5075 444.6730 444.8382 445.0031 445.1677 445.3319 445.4958 445.6593 445.8226 445.9855 446.1481
Columns 477 through 493
446.3104 446.4723 446.6339 446.7952 446.9562 447.1169 447.2772 447.4372 447.5970 447.7563 447.9154 448.0742 448.2326 448.3908 448.5486 448.7061 448.8633
Columns 494 through 500
449.0202 449.1768 449.3330 449.4890 449.6447 449.8000 449.9550
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
2.9266
a2 =
0.0015
a4 =
1.0097e-10
a5 =
-6.7534e-15
a6 =
-922.7977
a7 =
5.9805
a8 =
3.2987
a9 =
0.0014
a10 =
-3.9632e-06
a11 =
5.6415e-09
a12 =
-2.4449e-12
a13 =
-1.0209e+03
a14 =
3.9504
cp =
Columns 1 through 17
27.6402 27.7318 27.8226 27.9127 28.0022 28.0909 28.1789 28.2663 28.3530 28.4390 28.5243 28.6089 28.6929 28.7762 28.8589 28.9409 29.0222
Columns 18 through 34
29.1029 29.1829 29.2624 29.3411 29.4193 29.4968 29.5736 29.6499 29.7255 29.8005 29.8749 29.9487 30.0219 30.0945 30.1665 30.2379 30.3087
Columns 35 through 51
30.3789 30.4485 30.5176 30.5860 30.6539 30.7213 30.7880 30.8542 30.9198 30.9849 31.0494 31.1134 31.1769 31.2397 31.3021 31.3639 31.4252
Columns 52 through 68
31.4859 31.5461 31.6058 31.6650 31.7237 31.7818 31.8395 31.8966 31.9532 32.0093 32.0650 32.1201 32.1748 32.2289 32.2826 32.3358 32.3885
Columns 69 through 85
32.4408 32.4925 32.5438 32.5947 32.6451 32.6950 32.7444 32.7935 32.8420 32.8901 32.9378 32.9850 33.0318 33.0782 33.1241 33.1696 33.2147
Columns 86 through 102
33.2594 33.3036 33.3474 33.3908 33.4338 33.4764 33.5186 33.5604 33.6017 33.6427 33.6833 33.7235 33.7634 33.8028 33.8418 33.8805 33.9188
Columns 103 through 119
33.9567 33.9943 34.0315 34.0683 34.1048 34.1409 34.1766 34.2120 34.2470 34.2817 34.3161 34.3501 34.3837 34.4171 34.4500 34.4827 34.5150
Columns 120 through 136
34.5470 34.5787 34.6101 34.6411 34.6718 34.7022 34.7323 34.7621 34.7916 34.8207 34.8496 34.8782 34.9065 34.9345 34.9622 34.9896 35.0167
Columns 137 through 153
35.0435 35.0701 35.0963 35.1223 35.1480 35.1735 35.1987 35.2236 35.2482 35.2726 35.2968 35.3206 35.3442 35.3676 35.3907 35.4136 35.4362
Columns 154 through 170
35.4585 35.4807 35.5026 35.5242 35.5456 35.5668 35.5878 35.6085 35.6290 35.6493 35.6693 35.6891 35.7088 35.7282 35.7473 35.7663 35.7851
Columns 171 through 187
35.8036 35.8220 35.8401 35.8581 35.8758 35.8934 35.9107 35.9279 35.9449 35.9617 35.9783 35.9947 36.0109 36.0269 36.0428 36.0585 36.0740
Columns 188 through 204
36.0894 36.1045 36.1195 36.1344 36.1490 36.1635 36.1779 36.1921 36.2061 36.2200 36.2337 36.2472 36.2606 36.2739 36.2870 36.3000 36.3128
Columns 205 through 221
36.3255 36.3380 36.3504 36.3627 36.3748 36.3868 36.3986 36.4104 36.4219 36.4334 36.4448 36.4560 36.4671 36.4781 36.4889 36.4996 36.5103
Columns 222 through 238
36.5208 36.5312 36.5414 36.5516 36.5617 36.5716 36.5815 36.5912 36.6009 36.6104 36.6198 36.6292 36.6384 36.6476 36.6566 36.6656 36.6744
Columns 239 through 255
36.6832 36.6919 36.7005 36.7090 36.7174 36.7258 36.7340 36.7422 36.7503 36.7584 36.7663 36.7742 36.7820 36.7897 36.7973 36.8049 36.8124
Columns 256 through 272
36.8199 36.8272 36.8345 36.8418 36.8489 36.8561 36.8631 36.8701 36.8770 36.8839 36.8907 36.8975 36.9042 36.9108 36.9174 36.9240 36.9304
Columns 273 through 289
36.9369 36.9433 36.9496 36.9559 36.9622 36.9684 36.9745 36.9806 36.9867 36.9927 36.9987 37.0047 37.0106 37.0164 37.0223 37.0281 37.0338
Columns 290 through 306
37.0396 37.0453 37.0509 37.0565 37.0621 37.0677 37.0732 37.0787 37.0842 37.0897 37.0951 37.1005 37.1058 37.1112 37.1165 37.1218 37.1271
Columns 307 through 323
37.1323 37.1376 37.1428 37.1479 37.1531 37.1582 37.1634 37.1685 37.1736 37.1786 37.1837 37.1887 37.1938 37.1988 37.2038 37.2087 37.2137
Columns 324 through 340
37.2187 37.2236 37.2285 37.2334 37.2383 37.2432 37.2481 37.2530 37.2579 37.2627 37.2676 37.2724 37.2772 37.2820 37.2868 37.2916 37.2964
Columns 341 through 357
37.3012 37.3060 37.3108 37.3155 37.3203 37.3251 37.3298 37.3345 37.3393 37.3440 37.3488 37.3535 37.3582 37.3629 37.3676 37.3723 37.3770
Columns 358 through 374
37.3817 37.3864 37.3911 37.3958 37.4005 37.4052 37.4099 37.4145 37.4192 37.4239 37.4285 37.4332 37.4378 37.4425 37.4471 37.4518 37.4564
Columns 375 through 391
37.4611 37.4657 37.4703 37.4750 37.4796 37.4842 37.4888 37.4934 37.4980 37.5026 37.5072 37.5118 37.5164 37.5210 37.5255 37.5301 37.5346
Columns 392 through 408
37.5392 37.5437 37.5483 37.5528 37.5573 37.5618 37.5663 37.5708 37.5753 37.5798 37.5843 37.5887 37.5932 37.5976 37.6020 37.6064 37.6108
Columns 409 through 425
37.6152 37.6196 37.6239 37.6283 37.6326 37.6369 37.6412 37.6455 37.6498 37.6540 37.6582 37.6624 37.6666 37.6708 37.6750 37.6791 37.6832
Columns 426 through 442
37.6873 37.6914 37.6954 37.6994 37.7034 37.7074 37.7113 37.7152 37.7191 37.7230 37.7268 37.7306 37.7344 37.7381 37.7418 37.7455 37.7492
Columns 443 through 459
37.7528 37.7564 37.7599 37.7634 37.7669 37.7703 37.7737 37.7770 37.7803 37.7836 37.7868 37.7900 37.7931 37.7962 37.7993 37.8023 37.8052
Columns 460 through 476
37.8081 37.8109 37.8137 37.8165 37.8192 37.8218 37.8244 37.8269 37.8294 37.8318 37.8341 37.8364 37.8386 37.8408 37.8429 37.8449 37.8469
Columns 477 through 493
37.8488 37.8506 37.8524 37.8541 37.8557 37.8572 37.8587 37.8601 37.8614 37.8626 37.8638 37.8648 37.8658 37.8667 37.8676 37.8683 37.8689
Columns 494 through 500
37.8695 37.8700 37.8703 37.8706 37.8708 37.8709 37.8709
H =
1.0e+05 *
Columns 1 through 17
0.0014 0.0040 0.0067 0.0093 0.0119 0.0146 0.0172 0.0199 0.0225 0.0252 0.0279 0.0306 0.0333 0.0360 0.0387 0.0414 0.0442
Columns 18 through 34
0.0469 0.0496 0.0524 0.0551 0.0579 0.0607 0.0635 0.0663 0.0691 0.0719 0.0747 0.0775 0.0803 0.0831 0.0860 0.0888 0.0917
Columns 35 through 51
0.0945 0.0974 0.1003 0.1031 0.1060 0.1089 0.1118 0.1147 0.1176 0.1205 0.1235 0.1264 0.1293 0.1323 0.1352 0.1382 0.1411
Columns 52 through 68
0.1441 0.1471 0.1500 0.1530 0.1560 0.1590 0.1620 0.1650 0.1680 0.1710 0.1740 0.1770 0.1801 0.1831 0.1861 0.1892 0.1922
Columns 69 through 85
0.1953 0.1983 0.2014 0.2045 0.2075 0.2106 0.2137 0.2168 0.2199 0.2230 0.2261 0.2292 0.2323 0.2354 0.2385 0.2416 0.2448
Columns 86 through 102
0.2479 0.2510 0.2542 0.2573 0.2605 0.2636 0.2668 0.2699 0.2731 0.2763 0.2794 0.2826 0.2858 0.2890 0.2921 0.2953 0.2985
Columns 103 through 119
0.3017 0.3049 0.3081 0.3113 0.3145 0.3178 0.3210 0.3242 0.3274 0.3307 0.3339 0.3371 0.3404 0.3436 0.3468 0.3501 0.3533
Columns 120 through 136
0.3566 0.3598 0.3631 0.3664 0.3696 0.3729 0.3762 0.3794 0.3827 0.3860 0.3893 0.3926 0.3958 0.3991 0.4024 0.4057 0.4090
Columns 137 through 153
0.4123 0.4156 0.4189 0.4222 0.4255 0.4288 0.4322 0.4355 0.4388 0.4421 0.4454 0.4488 0.4521 0.4554 0.4588 0.4621 0.4654
Columns 154 through 170
0.4688 0.4721 0.4754 0.4788 0.4821 0.4855 0.4888 0.4922 0.4955 0.4989 0.5023 0.5056 0.5090 0.5124 0.5157 0.5191 0.5225
Columns 171 through 187
0.5258 0.5292 0.5326 0.5360 0.5393 0.5427 0.5461 0.5495 0.5529 0.5562 0.5596 0.5630 0.5664 0.5698 0.5732 0.5766 0.5800
Columns 188 through 204
0.5834 0.5868 0.5902 0.5936 0.5970 0.6004 0.6038 0.6072 0.6106 0.6140 0.6175 0.6209 0.6243 0.6277 0.6311 0.6345 0.6380
Columns 205 through 221
0.6414 0.6448 0.6482 0.6516 0.6551 0.6585 0.6619 0.6654 0.6688 0.6722 0.6756 0.6791 0.6825 0.6859 0.6894 0.6928 0.6963
Columns 222 through 238
0.6997 0.7031 0.7066 0.7100 0.7135 0.7169 0.7204 0.7238 0.7272 0.7307 0.7341 0.7376 0.7410 0.7445 0.7479 0.7514 0.7549
Columns 239 through 255
0.7583 0.7618 0.7652 0.7687 0.7721 0.7756 0.7791 0.7825 0.7860 0.7894 0.7929 0.7964 0.7998 0.8033 0.8068 0.8102 0.8137
Columns 256 through 272
0.8172 0.8206 0.8241 0.8276 0.8310 0.8345 0.8380 0.8415 0.8449 0.8484 0.8519 0.8553 0.8588 0.8623 0.8658 0.8693 0.8727
Columns 273 through 289
0.8762 0.8797 0.8832 0.8867 0.8901 0.8936 0.8971 0.9006 0.9041 0.9075 0.9110 0.9145 0.9180 0.9215 0.9250 0.9285 0.9319
Columns 290 through 306
0.9354 0.9389 0.9424 0.9459 0.9494 0.9529 0.9564 0.9599 0.9634 0.9669 0.9704 0.9738 0.9773 0.9808 0.9843 0.9878 0.9913
Columns 307 through 323
0.9948 0.9983 1.0018 1.0053 1.0088 1.0123 1.0158 1.0193 1.0228 1.0263 1.0298 1.0333 1.0368 1.0403 1.0438 1.0473 1.0508
Columns 324 through 340
1.0543 1.0579 1.0614 1.0649 1.0684 1.0719 1.0754 1.0789 1.0824 1.0859 1.0894 1.0929 1.0964 1.1000 1.1035 1.1070 1.1105
Columns 341 through 357
1.1140 1.1175 1.1210 1.1246 1.1281 1.1316 1.1351 1.1386 1.1421 1.1456 1.1492 1.1527 1.1562 1.1597 1.1632 1.1668 1.1703
Columns 358 through 374
1.1738 1.1773 1.1808 1.1844 1.1879 1.1914 1.1949 1.1985 1.2020 1.2055 1.2090 1.2126 1.2161 1.2196 1.2231 1.2267 1.2302
Columns 375 through 391
1.2337 1.2372 1.2408 1.2443 1.2478 1.2514 1.2549 1.2584 1.2620 1.2655 1.2690 1.2726 1.2761 1.2796 1.2832 1.2867 1.2902
Columns 392 through 408
1.2938 1.2973 1.3008 1.3044 1.3079 1.3114 1.3150 1.3185 1.3221 1.3256 1.3291 1.3327 1.3362 1.3398 1.3433 1.3468 1.3504
Columns 409 through 425
1.3539 1.3575 1.3610 1.3646 1.3681 1.3717 1.3752 1.3787 1.3823 1.3858 1.3894 1.3929 1.3965 1.4000 1.4036 1.4071 1.4107
Columns 426 through 442
1.4142 1.4178 1.4213 1.4249 1.4284 1.4320 1.4355 1.4391 1.4426 1.4462 1.4497 1.4533 1.4568 1.4604 1.4640 1.4675 1.4711
Columns 443 through 459
1.4746 1.4782 1.4817 1.4853 1.4888 1.4924 1.4960 1.4995 1.5031 1.5066 1.5102 1.5138 1.5173 1.5209 1.5244 1.5280 1.5316
Columns 460 through 476
1.5351 1.5387 1.5422 1.5458 1.5494 1.5529 1.5565 1.5601 1.5636 1.5672 1.5707 1.5743 1.5779 1.5814 1.5850 1.5886 1.5921
Columns 477 through 493
1.5957 1.5993 1.6028 1.6064 1.6100 1.6135 1.6171 1.6206 1.6242 1.6278 1.6313 1.6349 1.6385 1.6420 1.6456 1.6492 1.6527
Columns 494 through 500
1.6563 1.6599 1.6634 1.6670 1.6706 1.6741 1.6777
H =
1.0e+05 *
Columns 1 through 17
0.0014 0.0040 0.0067 0.0093 0.0119 0.0146 0.0172 0.0199 0.0225 0.0252 0.0279 0.0306 0.0333 0.0360 0.0387 0.0414 0.0442
Columns 18 through 34
0.0469 0.0496 0.0524 0.0551 0.0579 0.0607 0.0635 0.0663 0.0691 0.0719 0.0747 0.0775 0.0803 0.0831 0.0860 0.0888 0.0917
Columns 35 through 51
0.0945 0.0974 0.1003 0.1031 0.1060 0.1089 0.1118 0.1147 0.1176 0.1205 0.1235 0.1264 0.1293 0.1323 0.1352 0.1382 0.1411
Columns 52 through 68
0.1441 0.1471 0.1500 0.1530 0.1560 0.1590 0.1620 0.1650 0.1680 0.1710 0.1740 0.1770 0.1801 0.1831 0.1861 0.1892 0.1922
Columns 69 through 85
0.1953 0.1983 0.2014 0.2045 0.2075 0.2106 0.2137 0.2168 0.2199 0.2230 0.2261 0.2292 0.2323 0.2354 0.2385 0.2416 0.2448
Columns 86 through 102
0.2479 0.2510 0.2542 0.2573 0.2605 0.2636 0.2668 0.2699 0.2731 0.2763 0.2794 0.2826 0.2858 0.2890 0.2921 0.2953 0.2985
Columns 103 through 119
0.3017 0.3049 0.3081 0.3113 0.3145 0.3178 0.3210 0.3242 0.3274 0.3307 0.3339 0.3371 0.3404 0.3436 0.3468 0.3501 0.3533
Columns 120 through 136
0.3566 0.3598 0.3631 0.3664 0.3696 0.3729 0.3762 0.3794 0.3827 0.3860 0.3893 0.3926 0.3958 0.3991 0.4024 0.4057 0.4090
Columns 137 through 153
0.4123 0.4156 0.4189 0.4222 0.4255 0.4288 0.4322 0.4355 0.4388 0.4421 0.4454 0.4488 0.4521 0.4554 0.4588 0.4621 0.4654
Columns 154 through 170
0.4688 0.4721 0.4754 0.4788 0.4821 0.4855 0.4888 0.4922 0.4955 0.4989 0.5023 0.5056 0.5090 0.5124 0.5157 0.5191 0.5225
Columns 171 through 187
0.5258 0.5292 0.5326 0.5360 0.5393 0.5427 0.5461 0.5495 0.5529 0.5562 0.5596 0.5630 0.5664 0.5698 0.5732 0.5766 0.5800
Columns 188 through 204
0.5834 0.5868 0.5902 0.5936 0.5970 0.6004 0.6038 0.6072 0.6106 0.6140 0.6175 0.6209 0.6243 0.6277 0.6311 0.6345 0.6380
Columns 205 through 221
0.6414 0.6448 0.6482 0.6516 0.6551 0.6585 0.6619 0.6654 0.6688 0.6722 0.6756 0.6791 0.6825 0.6859 0.6894 0.6928 0.6963
Columns 222 through 238
0.6997 0.7031 0.7066 0.7100 0.7135 0.7169 0.7204 0.7238 0.7272 0.7307 0.7341 0.7376 0.7410 0.7445 0.7479 0.7514 0.7549
Columns 239 through 255
0.7583 0.7618 0.7652 0.7687 0.7721 0.7756 0.7791 0.7825 0.7860 0.7894 0.7929 0.7964 0.7998 0.8033 0.8068 0.8102 0.8137
Columns 256 through 272
0.8172 0.8206 0.8241 0.8276 0.8310 0.8345 0.8380 0.8415 0.8449 0.8484 0.8519 0.8553 0.8588 0.8623 0.8658 0.8693 0.8727
Columns 273 through 289
0.8762 0.8797 0.8832 0.8867 0.8901 0.8936 0.8971 0.9006 0.9041 0.9075 0.9110 0.9145 0.9180 0.9215 0.9250 0.9285 0.9319
Columns 290 through 306
0.9354 0.9389 0.9424 0.9459 0.9494 0.9529 0.9564 0.9599 0.9634 0.9669 0.9704 0.9738 0.9773 0.9808 0.9843 0.9878 0.9913
Columns 307 through 323
0.9948 0.9983 1.0018 1.0053 1.0088 1.0123 1.0158 1.0193 1.0228 1.0263 1.0298 1.0333 1.0368 1.0403 1.0438 1.0473 1.0508
Columns 324 through 340
1.0543 1.0579 1.0614 1.0649 1.0684 1.0719 1.0754 1.0789 1.0824 1.0859 1.0894 1.0929 1.0964 1.1000 1.1035 1.1070 1.1105
Columns 341 through 357
1.1140 1.1175 1.1210 1.1246 1.1281 1.1316 1.1351 1.1386 1.1421 1.1456 1.1492 1.1527 1.1562 1.1597 1.1632 1.1668 1.1703
Columns 358 through 374
1.1738 1.1773 1.1808 1.1844 1.1879 1.1914 1.1949 1.1985 1.2020 1.2055 1.2090 1.2126 1.2161 1.2196 1.2231 1.2267 1.2302
Columns 375 through 391
1.2337 1.2372 1.2408 1.2443 1.2478 1.2514 1.2549 1.2584 1.2620 1.2655 1.2690 1.2726 1.2761 1.2796 1.2832 1.2867 1.2902
Columns 392 through 408
1.2938 1.2973 1.3008 1.3044 1.3079 1.3114 1.3150 1.3185 1.3221 1.3256 1.3291 1.3327 1.3362 1.3398 1.3433 1.3468 1.3504
Columns 409 through 425
1.3539 1.3575 1.3610 1.3646 1.3681 1.3717 1.3752 1.3787 1.3823 1.3858 1.3894 1.3929 1.3965 1.4000 1.4036 1.4071 1.4107
Columns 426 through 442
1.4142 1.4178 1.4213 1.4249 1.4284 1.4320 1.4355 1.4391 1.4426 1.4462 1.4497 1.4533 1.4568 1.4604 1.4640 1.4675 1.4711
Columns 443 through 459
1.4746 1.4782 1.4817 1.4853 1.4888 1.4924 1.4960 1.4995 1.5031 1.5066 1.5102 1.5138 1.5173 1.5209 1.5244 1.5280 1.5316
Columns 460 through 476
1.5351 1.5387 1.5422 1.5458 1.5494 1.5529 1.5565 1.5601 1.5636 1.5672 1.5707 1.5743 1.5779 1.5814 1.5850 1.5886 1.5921
Columns 477 through 493
1.5957 1.5993 1.6028 1.6064 1.6100 1.6135 1.6171 1.6206 1.6242 1.6278 1.6313 1.6349 1.6385 1.6420 1.6456 1.6492 1.6527
Columns 494 through 500
1.6563 1.6599 1.6634 1.6670 1.6706 1.6741 1.6777
s =
Columns 1 through 17
192.0131 192.8690 193.7019 194.5132 195.3041 196.0757 196.8290 197.5649 198.2844 198.9881 199.6769 200.3515 201.0124 201.6603 202.2958 202.9193 203.5314
Columns 18 through 34
204.1325 204.7230 205.3034 205.8741 206.4353 206.9875 207.5309 208.0659 208.5927 209.1117 209.6231 210.1270 210.6239 211.1139 211.5971 212.0739 212.5443
Columns 35 through 51
213.0086 213.4670 213.9196 214.3666 214.8081 215.2444 215.6754 216.1014 216.5225 216.9388 217.3504 217.7575 218.1602 218.5585 218.9526 219.3425 219.7285
Columns 52 through 68
220.1104 220.4886 220.8629 221.2335 221.6006 221.9641 222.3242 222.6808 223.0342 223.3843 223.7312 224.0750 224.4157 224.7534 225.0882 225.4201 225.7491
Columns 69 through 85
226.0754 226.3989 226.7198 227.0380 227.3536 227.6667 227.9773 228.2854 228.5911 228.8944 229.1954 229.4941 229.7906 230.0848 230.3768 230.6667 230.9544
Columns 86 through 102
231.2401 231.5237 231.8053 232.0849 232.3625 232.6382 232.9120 233.1839 233.4539 233.7221 233.9886 234.2532 234.5161 234.7773 235.0368 235.2946 235.5507
Columns 103 through 119
235.8052 236.0581 236.3094 236.5591 236.8073 237.0539 237.2990 237.5427 237.7848 238.0255 238.2648 238.5027 238.7391 238.9742 239.2078 239.4402 239.6712
Columns 120 through 136
239.9008 240.1292 240.3563 240.5821 240.8066 241.0299 241.2519 241.4727 241.6924 241.9108 242.1280 242.3441 242.5590 242.7728 242.9855 243.1970 243.4074
Columns 137 through 153
243.6167 243.8250 244.0321 244.2382 244.4433 244.6473 244.8503 245.0522 245.2532 245.4531 245.6521 245.8500 246.0470 246.2431 246.4382 246.6323 246.8255
Columns 154 through 170
247.0178 247.2092 247.3996 247.5892 247.7778 247.9656 248.1525 248.3385 248.5237 248.7080 248.8915 249.0742 249.2560 249.4370 249.6171 249.7965 249.9751
Columns 171 through 187
250.1529 250.3298 250.5060 250.6815 250.8561 251.0300 251.2032 251.3756 251.5472 251.7182 251.8883 252.0578 252.2266 252.3946 252.5619 252.7286 252.8945
Columns 188 through 204
253.0597 253.2243 253.3882 253.5514 253.7139 253.8758 254.0370 254.1976 254.3575 254.5168 254.6755 254.8335 254.9909 255.1476 255.3038 255.4593 255.6142
Columns 205 through 221
255.7686 255.9223 256.0754 256.2279 256.3799 256.5312 256.6820 256.8322 256.9819 257.1310 257.2795 257.4275 257.5749 257.7217 257.8680 258.0138 258.1590
Columns 222 through 238
258.3037 258.4479 258.5916 258.7347 258.8773 259.0194 259.1610 259.3020 259.4426 259.5827 259.7222 259.8613 259.9999 260.1380 260.2756 260.4127 260.5493
Columns 239 through 255
260.6855 260.8212 260.9565 261.0912 261.2255 261.3594 261.4928 261.6257 261.7582 261.8903 262.0219 262.1530 262.2837 262.4140 262.5439 262.6733 262.8023
Columns 256 through 272
262.9309 263.0590 263.1867 263.3140 263.4409 263.5674 263.6935 263.8192 263.9445 264.0693 264.1938 264.3179 264.4416 264.5648 264.6878 264.8103 264.9324
Columns 273 through 289
265.0542 265.1755 265.2965 265.4171 265.5374 265.6573 265.7768 265.8959 266.0147 266.1331 266.2512 266.3689 266.4863 266.6033 266.7199 266.8362 266.9522
Columns 290 through 306
267.0678 267.1831 267.2980 267.4126 267.5269 267.6408 267.7544 267.8676 267.9806 268.0932 268.2054 268.3174 268.4290 268.5404 268.6514 268.7621 268.8724
Columns 307 through 323
268.9825 269.0922 269.2017 269.3108 269.4197 269.5282 269.6364 269.7444 269.8520 269.9593 270.0664 270.1731 270.2796 270.3857 270.4916 270.5972 270.7025
Columns 324 through 340
270.8076 270.9123 271.0168 271.1209 271.2249 271.3285 271.4318 271.5349 271.6378 271.7403 271.8426 271.9446 272.0463 272.1478 272.2490 272.3500 272.4507
Columns 341 through 357
272.5511 272.6513 272.7512 272.8509 272.9503 273.0495 273.1484 273.2471 273.3455 273.4437 273.5416 273.6393 273.7368 273.8340 273.9309 274.0277 274.1242
Columns 358 through 374
274.2204 274.3164 274.4122 274.5078 274.6031 274.6982 274.7930 274.8876 274.9820 275.0762 275.1702 275.2639 275.3574 275.4507 275.5438 275.6366 275.7292
Columns 375 through 391
275.8216 275.9138 276.0058 276.0976 276.1891 276.2805 276.3716 276.4625 276.5532 276.6438 276.7340 276.8241 276.9140 277.0037 277.0932 277.1825 277.2715
Columns 392 through 408
277.3604 277.4491 277.5376 277.6259 277.7139 277.8018 277.8895 277.9770 278.0643 278.1514 278.2384 278.3251 278.4117 278.4980 278.5842 278.6702 278.7560
Columns 409 through 425
278.8416 278.9270 279.0122 279.0973 279.1822 279.2669 279.3514 279.4357 279.5199 279.6039 279.6877 279.7713 279.8547 279.9380 280.0211 280.1040 280.1868
Columns 426 through 442
280.2694 280.3518 280.4340 280.5161 280.5980 280.6797 280.7613 280.8426 280.9239 281.0049 281.0858 281.1666 281.2471 281.3275 281.4078 281.4878 281.5677
Columns 443 through 459
281.6475 281.7271 281.8065 281.8858 281.9649 282.0439 282.1227 282.2013 282.2798 282.3581 282.4363 282.5143 282.5922 282.6699 282.7474 282.8248 282.9021
Columns 460 through 476
282.9792 283.0562 283.1329 283.2096 283.2861 283.3625 283.4387 283.5147 283.5906 283.6664 283.7420 283.8175 283.8928 283.9679 284.0430 284.1179 284.1926
Columns 477 through 493
284.2672 284.3417 284.4160 284.4901 284.5642 284.6381 284.7118 284.7854 284.8589 284.9322 285.0054 285.0784 285.1514 285.2241 285.2968 285.3693 285.4416
Columns 494 through 500
285.5138 285.5859 285.6579 285.7297 285.8014 285.8729 285.9443
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
2.5000
a2 =
0
a4 =
0
a5 =
0
a6 =
-745.3750
a7 =
4.3660
a8 =
2.5000
a9 =
0
a10 =
0
a11 =
0
a12 =
0
a13 =
-745.3750
a14 =
4.3660
cp =
Columns 1 through 17
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 18 through 34
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 35 through 51
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 52 through 68
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 69 through 85
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 86 through 102
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 103 through 119
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 120 through 136
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 137 through 153
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 154 through 170
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 171 through 187
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 188 through 204
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 205 through 221
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 222 through 238
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 239 through 255
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 256 through 272
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 273 through 289
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 290 through 306
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 307 through 323
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 324 through 340
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 341 through 357
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 358 through 374
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 375 through 391
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 392 through 408
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 409 through 425
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 426 through 442
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 443 through 459
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 460 through 476
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 477 through 493
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
Columns 494 through 500
20.7850 20.7850 20.7850 20.7850 20.7850 20.7850 20.7850
H =
1.0e+04 *
Columns 1 through 17
0.0038 0.0234 0.0430 0.0626 0.0822 0.1017 0.1213 0.1409 0.1605 0.1800 0.1996 0.2192 0.2388 0.2583 0.2779 0.2975 0.3171
Columns 18 through 34
0.3367 0.3562 0.3758 0.3954 0.4150 0.4345 0.4541 0.4737 0.4933 0.5128 0.5324 0.5520 0.5716 0.5912 0.6107 0.6303 0.6499
Columns 35 through 51
0.6695 0.6890 0.7086 0.7282 0.7478 0.7674 0.7869 0.8065 0.8261 0.8457 0.8652 0.8848 0.9044 0.9240 0.9435 0.9631 0.9827
Columns 52 through 68
1.0023 1.0219 1.0414 1.0610 1.0806 1.1002 1.1197 1.1393 1.1589 1.1785 1.1980 1.2176 1.2372 1.2568 1.2764 1.2959 1.3155
Columns 69 through 85
1.3351 1.3547 1.3742 1.3938 1.4134 1.4330 1.4525 1.4721 1.4917 1.5113 1.5309 1.5504 1.5700 1.5896 1.6092 1.6287 1.6483
Columns 86 through 102
1.6679 1.6875 1.7070 1.7266 1.7462 1.7658 1.7854 1.8049 1.8245 1.8441 1.8637 1.8832 1.9028 1.9224 1.9420 1.9616 1.9811
Columns 103 through 119
2.0007 2.0203 2.0399 2.0594 2.0790 2.0986 2.1182 2.1377 2.1573 2.1769 2.1965 2.2161 2.2356 2.2552 2.2748 2.2944 2.3139
Columns 120 through 136
2.3335 2.3531 2.3727 2.3922 2.4118 2.4314 2.4510 2.4706 2.4901 2.5097 2.5293 2.5489 2.5684 2.5880 2.6076 2.6272 2.6467
Columns 137 through 153
2.6663 2.6859 2.7055 2.7251 2.7446 2.7642 2.7838 2.8034 2.8229 2.8425 2.8621 2.8817 2.9012 2.9208 2.9404 2.9600 2.9796
Columns 154 through 170
2.9991 3.0187 3.0383 3.0579 3.0774 3.0970 3.1166 3.1362 3.1558 3.1753 3.1949 3.2145 3.2341 3.2536 3.2732 3.2928 3.3124
Columns 171 through 187
3.3319 3.3515 3.3711 3.3907 3.4103 3.4298 3.4494 3.4690 3.4886 3.5081 3.5277 3.5473 3.5669 3.5864 3.6060 3.6256 3.6452
Columns 188 through 204
3.6648 3.6843 3.7039 3.7235 3.7431 3.7626 3.7822 3.8018 3.8214 3.8409 3.8605 3.8801 3.8997 3.9193 3.9388 3.9584 3.9780
Columns 205 through 221
3.9976 4.0171 4.0367 4.0563 4.0759 4.0954 4.1150 4.1346 4.1542 4.1738 4.1933 4.2129 4.2325 4.2521 4.2716 4.2912 4.3108
Columns 222 through 238
4.3304 4.3500 4.3695 4.3891 4.4087 4.4283 4.4478 4.4674 4.4870 4.5066 4.5261 4.5457 4.5653 4.5849 4.6045 4.6240 4.6436
Columns 239 through 255
4.6632 4.6828 4.7023 4.7219 4.7415 4.7611 4.7806 4.8002 4.8198 4.8394 4.8590 4.8785 4.8981 4.9177 4.9373 4.9568 4.9764
Columns 256 through 272
4.9960 5.0156 5.0351 5.0547 5.0743 5.0939 5.1135 5.1330 5.1526 5.1722 5.1918 5.2113 5.2309 5.2505 5.2701 5.2896 5.3092
Columns 273 through 289
5.3288 5.3484 5.3680 5.3875 5.4071 5.4267 5.4463 5.4658 5.4854 5.5050 5.5246 5.5442 5.5637 5.5833 5.6029 5.6225 5.6420
Columns 290 through 306
5.6616 5.6812 5.7008 5.7203 5.7399 5.7595 5.7791 5.7987 5.8182 5.8378 5.8574 5.8770 5.8965 5.9161 5.9357 5.9553 5.9748
Columns 307 through 323
5.9944 6.0140 6.0336 6.0532 6.0727 6.0923 6.1119 6.1315 6.1510 6.1706 6.1902 6.2098 6.2293 6.2489 6.2685 6.2881 6.3077
Columns 324 through 340
6.3272 6.3468 6.3664 6.3860 6.4055 6.4251 6.4447 6.4643 6.4839 6.5034 6.5230 6.5426 6.5622 6.5817 6.6013 6.6209 6.6405
Columns 341 through 357
6.6600 6.6796 6.6992 6.7188 6.7384 6.7579 6.7775 6.7971 6.8167 6.8362 6.8558 6.8754 6.8950 6.9145 6.9341 6.9537 6.9733
Columns 358 through 374
6.9929 7.0124 7.0320 7.0516 7.0712 7.0907 7.1103 7.1299 7.1495 7.1690 7.1886 7.2082 7.2278 7.2474 7.2669 7.2865 7.3061
Columns 375 through 391
7.3257 7.3452 7.3648 7.3844 7.4040 7.4235 7.4431 7.4627 7.4823 7.5019 7.5214 7.5410 7.5606 7.5802 7.5997 7.6193 7.6389
Columns 392 through 408
7.6585 7.6781 7.6976 7.7172 7.7368 7.7564 7.7759 7.7955 7.8151 7.8347 7.8542 7.8738 7.8934 7.9130 7.9326 7.9521 7.9717
Columns 409 through 425
7.9913 8.0109 8.0304 8.0500 8.0696 8.0892 8.1087 8.1283 8.1479 8.1675 8.1871 8.2066 8.2262 8.2458 8.2654 8.2849 8.3045
Columns 426 through 442
8.3241 8.3437 8.3632 8.3828 8.4024 8.4220 8.4416 8.4611 8.4807 8.5003 8.5199 8.5394 8.5590 8.5786 8.5982 8.6177 8.6373
Columns 443 through 459
8.6569 8.6765 8.6961 8.7156 8.7352 8.7548 8.7744 8.7939 8.8135 8.8331 8.8527 8.8723 8.8918 8.9114 8.9310 8.9506 8.9701
Columns 460 through 476
8.9897 9.0093 9.0289 9.0484 9.0680 9.0876 9.1072 9.1268 9.1463 9.1659 9.1855 9.2051 9.2246 9.2442 9.2638 9.2834 9.3029
Columns 477 through 493
9.3225 9.3421 9.3617 9.3813 9.4008 9.4204 9.4400 9.4596 9.4791 9.4987 9.5183 9.5379 9.5574 9.5770 9.5966 9.6162 9.6358
Columns 494 through 500
9.6553 9.6749 9.6945 9.7141 9.7336 9.7532 9.7728
H =
1.0e+04 *
Columns 1 through 17
0.0038 0.0234 0.0430 0.0626 0.0822 0.1017 0.1213 0.1409 0.1605 0.1800 0.1996 0.2192 0.2388 0.2583 0.2779 0.2975 0.3171
Columns 18 through 34
0.3367 0.3562 0.3758 0.3954 0.4150 0.4345 0.4541 0.4737 0.4933 0.5128 0.5324 0.5520 0.5716 0.5912 0.6107 0.6303 0.6499
Columns 35 through 51
0.6695 0.6890 0.7086 0.7282 0.7478 0.7674 0.7869 0.8065 0.8261 0.8457 0.8652 0.8848 0.9044 0.9240 0.9435 0.9631 0.9827
Columns 52 through 68
1.0023 1.0219 1.0414 1.0610 1.0806 1.1002 1.1197 1.1393 1.1589 1.1785 1.1980 1.2176 1.2372 1.2568 1.2764 1.2959 1.3155
Columns 69 through 85
1.3351 1.3547 1.3742 1.3938 1.4134 1.4330 1.4525 1.4721 1.4917 1.5113 1.5309 1.5504 1.5700 1.5896 1.6092 1.6287 1.6483
Columns 86 through 102
1.6679 1.6875 1.7070 1.7266 1.7462 1.7658 1.7854 1.8049 1.8245 1.8441 1.8637 1.8832 1.9028 1.9224 1.9420 1.9616 1.9811
Columns 103 through 119
2.0007 2.0203 2.0399 2.0594 2.0790 2.0986 2.1182 2.1377 2.1573 2.1769 2.1965 2.2161 2.2356 2.2552 2.2748 2.2944 2.3139
Columns 120 through 136
2.3335 2.3531 2.3727 2.3922 2.4118 2.4314 2.4510 2.4706 2.4901 2.5097 2.5293 2.5489 2.5684 2.5880 2.6076 2.6272 2.6467
Columns 137 through 153
2.6663 2.6859 2.7055 2.7251 2.7446 2.7642 2.7838 2.8034 2.8229 2.8425 2.8621 2.8817 2.9012 2.9208 2.9404 2.9600 2.9796
Columns 154 through 170
2.9991 3.0187 3.0383 3.0579 3.0774 3.0970 3.1166 3.1362 3.1558 3.1753 3.1949 3.2145 3.2341 3.2536 3.2732 3.2928 3.3124
Columns 171 through 187
3.3319 3.3515 3.3711 3.3907 3.4103 3.4298 3.4494 3.4690 3.4886 3.5081 3.5277 3.5473 3.5669 3.5864 3.6060 3.6256 3.6452
Columns 188 through 204
3.6648 3.6843 3.7039 3.7235 3.7431 3.7626 3.7822 3.8018 3.8214 3.8409 3.8605 3.8801 3.8997 3.9193 3.9388 3.9584 3.9780
Columns 205 through 221
3.9976 4.0171 4.0367 4.0563 4.0759 4.0954 4.1150 4.1346 4.1542 4.1738 4.1933 4.2129 4.2325 4.2521 4.2716 4.2912 4.3108
Columns 222 through 238
4.3304 4.3500 4.3695 4.3891 4.4087 4.4283 4.4478 4.4674 4.4870 4.5066 4.5261 4.5457 4.5653 4.5849 4.6045 4.6240 4.6436
Columns 239 through 255
4.6632 4.6828 4.7023 4.7219 4.7415 4.7611 4.7806 4.8002 4.8198 4.8394 4.8590 4.8785 4.8981 4.9177 4.9373 4.9568 4.9764
Columns 256 through 272
4.9960 5.0156 5.0351 5.0547 5.0743 5.0939 5.1135 5.1330 5.1526 5.1722 5.1918 5.2113 5.2309 5.2505 5.2701 5.2896 5.3092
Columns 273 through 289
5.3288 5.3484 5.3680 5.3875 5.4071 5.4267 5.4463 5.4658 5.4854 5.5050 5.5246 5.5442 5.5637 5.5833 5.6029 5.6225 5.6420
Columns 290 through 306
5.6616 5.6812 5.7008 5.7203 5.7399 5.7595 5.7791 5.7987 5.8182 5.8378 5.8574 5.8770 5.8965 5.9161 5.9357 5.9553 5.9748
Columns 307 through 323
5.9944 6.0140 6.0336 6.0532 6.0727 6.0923 6.1119 6.1315 6.1510 6.1706 6.1902 6.2098 6.2293 6.2489 6.2685 6.2881 6.3077
Columns 324 through 340
6.3272 6.3468 6.3664 6.3860 6.4055 6.4251 6.4447 6.4643 6.4839 6.5034 6.5230 6.5426 6.5622 6.5817 6.6013 6.6209 6.6405
Columns 341 through 357
6.6600 6.6796 6.6992 6.7188 6.7384 6.7579 6.7775 6.7971 6.8167 6.8362 6.8558 6.8754 6.8950 6.9145 6.9341 6.9537 6.9733
Columns 358 through 374
6.9929 7.0124 7.0320 7.0516 7.0712 7.0907 7.1103 7.1299 7.1495 7.1690 7.1886 7.2082 7.2278 7.2474 7.2669 7.2865 7.3061
Columns 375 through 391
7.3257 7.3452 7.3648 7.3844 7.4040 7.4235 7.4431 7.4627 7.4823 7.5019 7.5214 7.5410 7.5606 7.5802 7.5997 7.6193 7.6389
Columns 392 through 408
7.6585 7.6781 7.6976 7.7172 7.7368 7.7564 7.7759 7.7955 7.8151 7.8347 7.8542 7.8738 7.8934 7.9130 7.9326 7.9521 7.9717
Columns 409 through 425
7.9913 8.0109 8.0304 8.0500 8.0696 8.0892 8.1087 8.1283 8.1479 8.1675 8.1871 8.2066 8.2262 8.2458 8.2654 8.2849 8.3045
Columns 426 through 442
8.3241 8.3437 8.3632 8.3828 8.4024 8.4220 8.4416 8.4611 8.4807 8.5003 8.5199 8.5394 8.5590 8.5786 8.5982 8.6177 8.6373
Columns 443 through 459
8.6569 8.6765 8.6961 8.7156 8.7352 8.7548 8.7744 8.7939 8.8135 8.8331 8.8527 8.8723 8.8918 8.9114 8.9310 8.9506 8.9701
Columns 460 through 476
8.9897 9.0093 9.0289 9.0484 9.0680 9.0876 9.1072 9.1268 9.1463 9.1659 9.1855 9.2051 9.2246 9.2442 9.2638 9.2834 9.3029
Columns 477 through 493
9.3225 9.3421 9.3617 9.3813 9.4008 9.4204 9.4400 9.4596 9.4791 9.4987 9.5183 9.5379 9.5574 9.5770 9.5966 9.6162 9.6358
Columns 494 through 500
9.6553 9.6749 9.6945 9.7141 9.7336 9.7532 9.7728
s =
Columns 1 through 17
154.8520 155.4946 156.1178 156.7230 157.3110 157.8828 158.4393 158.9813 159.5095 160.0246 160.5273 161.0181 161.4976 161.9663 162.4246 162.8730 163.3120
Columns 18 through 34
163.7419 164.1631 164.5759 164.9807 165.3777 165.7673 166.1497 166.5253 166.8941 167.2566 167.6128 167.9630 168.3074 168.6462 168.9795 169.3076 169.6306
Columns 35 through 51
169.9487 170.2620 170.5706 170.8747 171.1744 171.4698 171.7612 172.0484 172.3318 172.6114 172.8872 173.1594 173.4282 173.6934 173.9554 174.2141 174.4696
Columns 52 through 68
174.7220 174.9713 175.2177 175.4613 175.7020 175.9399 176.1752 176.4078 176.6379 176.8654 177.0905 177.3131 177.5334 177.7514 177.9671 178.1806 178.3920
Columns 69 through 85
178.6012 178.8083 179.0134 179.2165 179.4176 179.6167 179.8140 180.0095 180.2031 180.3949 180.5850 180.7734 180.9600 181.1450 181.3284 181.5102 181.6904
Columns 86 through 102
181.8690 182.0461 182.2217 182.3959 182.5686 182.7399 182.9098 183.0783 183.2454 183.4112 183.5757 183.7389 183.9009 184.0616 184.2210 184.3793 184.5363
Columns 103 through 119
184.6922 184.8469 185.0004 185.1529 185.3042 185.4544 185.6036 185.7517 185.8987 186.0448 186.1897 186.3337 186.4767 186.6188 186.7598 186.8999 187.0391
Columns 120 through 136
187.1773 187.3147 187.4511 187.5866 187.7213 187.8551 187.9880 188.1201 188.2514 188.3818 188.5114 188.6403 188.7683 188.8955 189.0220 189.1477 189.2726
Columns 137 through 153
189.3968 189.5203 189.6430 189.7651 189.8864 190.0070 190.1269 190.2461 190.3646 190.4825 190.5997 190.7162 190.8321 190.9473 191.0619 191.1759 191.2893
Columns 154 through 170
191.4020 191.5142 191.6257 191.7367 191.8470 191.9568 192.0660 192.1746 192.2827 192.3902 192.4971 192.6035 192.7094 192.8147 192.9195 193.0237 193.1275
Columns 171 through 187
193.2307 193.3334 193.4356 193.5373 193.6386 193.7393 193.8395 193.9393 194.0386 194.1374 194.2357 194.3336 194.4310 194.5280 194.6245 194.7206 194.8162
Columns 188 through 204
194.9114 195.0062 195.1005 195.1944 195.2879 195.3809 195.4736 195.5658 195.6576 195.7491 195.8401 195.9307 196.0209 196.1108 196.2002 196.2893 196.3780
Columns 205 through 221
196.4663 196.5543 196.6418 196.7290 196.8159 196.9023 196.9885 197.0742 197.1596 197.2447 197.3294 197.4138 197.4978 197.5815 197.6649 197.7479 197.8306
Columns 222 through 238
197.9129 197.9950 198.0767 198.1581 198.2392 198.3199 198.4004 198.4805 198.5604 198.6399 198.7191 198.7981 198.8767 198.9550 199.0331 199.1108 199.1883
Columns 239 through 255
199.2654 199.3423 199.4189 199.4952 199.5713 199.6470 199.7225 199.7977 199.8727 199.9473 200.0217 200.0959 200.1697 200.2434 200.3167 200.3898 200.4626
Columns 256 through 272
200.5352 200.6076 200.6797 200.7515 200.8231 200.8944 200.9655 201.0364 201.1070 201.1773 201.2475 201.3174 201.3871 201.4565 201.5257 201.5947 201.6634
Columns 273 through 289
201.7319 201.8002 201.8683 201.9361 202.0038 202.0712 202.1384 202.2053 202.2721 202.3386 202.4050 202.4711 202.5370 202.6027 202.6682 202.7335 202.7986
Columns 290 through 306
202.8634 202.9281 202.9926 203.0569 203.1210 203.1849 203.2485 203.3120 203.3753 203.4384 203.5014 203.5641 203.6266 203.6890 203.7511 203.8131 203.8749
Columns 307 through 323
203.9365 203.9980 204.0592 204.1203 204.1812 204.2419 204.3024 204.3628 204.4230 204.4830 204.5428 204.6025 204.6620 204.7213 204.7805 204.8395 204.8983
Columns 324 through 340
204.9569 205.0154 205.0738 205.1319 205.1899 205.2478 205.3054 205.3630 205.4203 205.4775 205.5346 205.5915 205.6482 205.7048 205.7612 205.8175 205.8736
Columns 341 through 357
205.9296 205.9854 206.0411 206.0966 206.1520 206.2072 206.2623 206.3172 206.3720 206.4266 206.4811 206.5355 206.5897 206.6438 206.6977 206.7515 206.8052
Columns 358 through 374
206.8587 206.9121 206.9654 207.0185 207.0714 207.1243 207.1770 207.2296 207.2820 207.3343 207.3865 207.4385 207.4905 207.5422 207.5939 207.6454 207.6968
Columns 375 through 391
207.7481 207.7993 207.8503 207.9012 207.9520 208.0026 208.0531 208.1035 208.1538 208.2040 208.2540 208.3040 208.3538 208.4034 208.4530 208.5025 208.5518
Columns 392 through 408
208.6010 208.6501 208.6991 208.7479 208.7967 208.8453 208.8939 208.9423 208.9906 209.0387 209.0868 209.1348 209.1826 209.2304 209.2780 209.3255 209.3730
Columns 409 through 425
209.4203 209.4675 209.5146 209.5615 209.6084 209.6552 209.7019 209.7484 209.7949 209.8413 209.8875 209.9337 209.9797 210.0257 210.0715 210.1173 210.1629
Columns 426 through 442
210.2085 210.2539 210.2992 210.3445 210.3896 210.4347 210.4797 210.5245 210.5693 210.6139 210.6585 210.7030 210.7474 210.7916 210.8358 210.8799 210.9239
Columns 443 through 459
210.9678 211.0117 211.0554 211.0990 211.1426 211.1860 211.2294 211.2727 211.3158 211.3589 211.4019 211.4448 211.4877 211.5304 211.5730 211.6156 211.6581
Columns 460 through 476
211.7005 211.7428 211.7850 211.8271 211.8692 211.9111 211.9530 211.9948 212.0365 212.0781 212.1197 212.1611 212.2025 212.2438 212.2850 212.3261 212.3672
Columns 477 through 493
212.4081 212.4490 212.4898 212.5306 212.5712 212.6118 212.6523 212.6927 212.7330 212.7733 212.8134 212.8535 212.8936 212.9335 212.9734 213.0132 213.0529
Columns 494 through 500
213.0925 213.1321 213.1716 213.2110 213.2503 213.2896 213.3288
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
7.5341
a2 =
0.0189
a4 =
9.1476e-10
a5 =
-4.7838e-14
a6 =
-1.6468e+04
a7 =
-17.8923
a8 =
0.9336
a9 =
0.0264
a10 =
6.1060e-06
a11 =
-2.1977e-08
a12 =
9.5149e-12
a13 =
-1.3959e+04
a14 =
19.2017
cp =
Columns 1 through 17
105.2191 106.4172 107.6072 108.7892 109.9633 111.1294 112.2877 113.4380 114.5806 115.7153 116.8423 117.9616 119.0732 120.1771 121.2734 122.3621 123.4433
Columns 18 through 34
124.5170 125.5832 126.6419 127.6932 128.7372 129.7738 130.8031 131.8252 132.8400 133.8476 134.8480 135.8413 136.8274 137.8065 138.7786 139.7437 140.7018
Columns 35 through 51
141.6529 142.5972 143.5346 144.4651 145.3889 146.3058 147.2161 148.1196 149.0164 149.9066 150.7902 151.6673 152.5378 153.4017 154.2592 155.1103 155.9549
Columns 52 through 68
156.7931 157.6250 158.4506 159.2699 160.0829 160.8898 161.6904 162.4848 163.2732 164.0554 164.8316 165.6017 166.3658 167.1240 167.8762 168.6225 169.3629
Columns 69 through 85
170.0975 170.8262 171.5492 172.2664 172.9779 173.6837 174.3838 175.0782 175.7671 176.4504 177.1281 177.8004 178.4671 179.1284 179.7843 180.4347 181.0798
Columns 86 through 102
181.7196 182.3540 182.9832 183.6071 184.2258 184.8393 185.4476 186.0508 186.6489 187.2419 187.8299 188.4128 188.9908 189.5638 190.1319 190.6950 191.2533
Columns 103 through 119
191.8067 192.3553 192.8992 193.4382 193.9725 194.5021 195.0270 195.5473 196.0630 196.5740 197.0805 197.5824 198.0798 198.5727 199.0612 199.5452 200.0248
Columns 120 through 136
200.5000 200.9709 201.4375 201.8997 202.3577 202.8114 203.2609 203.7062 204.1474 204.5844 205.0172 205.4460 205.8707 206.2914 206.7081 207.1208 207.5295
Columns 137 through 153
207.9343 208.3352 208.7322 209.1253 209.5146 209.9001 210.2818 210.6597 211.0340 211.4045 211.7713 212.1345 212.4940 212.8499 213.2022 213.5510 213.8963
Columns 154 through 170
214.2380 214.5762 214.9110 215.2424 215.5703 215.8948 216.2160 216.5338 216.8483 217.1595 217.4675 217.7722 218.0736 218.3719 218.6670 218.9589 219.2477
Columns 171 through 187
219.5334 219.8160 220.0955 220.3720 220.6455 220.9160 221.1835 221.4481 221.7097 221.9684 222.2243 222.4773 222.7274 222.9748 223.2193 223.4611 223.7001
Columns 188 through 204
223.9364 224.1700 224.4009 224.6292 224.8548 225.0777 225.2981 225.5159 225.7312 225.9439 226.1541 226.3618 226.5670 226.7698 226.9701 227.1681 227.3636
Columns 205 through 221
227.5568 227.7476 227.9362 228.1224 228.3063 228.4879 228.6673 228.8445 229.0194 229.1922 229.3628 229.5313 229.6976 229.8618 230.0239 230.1840 230.3420
Columns 222 through 238
230.4980 230.6519 230.8039 230.9539 231.1019 231.2480 231.3922 231.5345 231.6749 231.8135 231.9502 232.0851 232.2181 232.3494 232.4789 232.6067 232.7327
Columns 239 through 255
232.8570 232.9796 233.1006 233.2199 233.3375 233.4535 233.5679 233.6807 233.7919 233.9016 234.0097 234.1163 234.2214 234.3250 234.4271 234.5278 234.6270
Columns 256 through 272
234.7249 234.8213 234.9163 235.0100 235.1023 235.1932 235.2828 235.3712 235.4582 235.5440 235.6285 235.7117 235.7938 235.8746 235.9542 236.0327 236.1099
Columns 273 through 289
236.1861 236.2611 236.3349 236.4077 236.4794 236.5500 236.6195 236.6881 236.7555 236.8220 236.8875 236.9519 237.0154 237.0780 237.1396 237.2003 237.2601
Columns 290 through 306
237.3189 237.3769 237.4340 237.4903 237.5457 237.6003 237.6541 237.7070 237.7592 237.8106 237.8613 237.9112 237.9603 238.0088 238.0565 238.1035 238.1499
Columns 307 through 323
238.1955 238.2406 238.2849 238.3287 238.3718 238.4143 238.4563 238.4976 238.5384 238.5786 238.6183 238.6574 238.6960 238.7341 238.7717 238.8088 238.8455
Columns 324 through 340
238.8817 238.9174 238.9527 238.9875 239.0220 239.0560 239.0897 239.1229 239.1558 239.1883 239.2205 239.2523 239.2838 239.3150 239.3459 239.3765 239.4067
Columns 341 through 357
239.4368 239.4665 239.4960 239.5252 239.5542 239.5830 239.6115 239.6399 239.6680 239.6960 239.7238 239.7514 239.7789 239.8062 239.8333 239.8604 239.8873
Columns 358 through 374
239.9141 239.9408 239.9673 239.9939 240.0203 240.0466 240.0729 240.0992 240.1254 240.1515 240.1777 240.2038 240.2299 240.2560 240.2821 240.3082 240.3344
Columns 375 through 391
240.3605 240.3867 240.4130 240.4393 240.4656 240.4921 240.5186 240.5451 240.5718 240.5985 240.6254 240.6524 240.6795 240.7067 240.7340 240.7615 240.7891
Columns 392 through 408
240.8168 240.8447 240.8728 240.9011 240.9295 240.9581 240.9869 241.0158 241.0450 241.0744 241.1040 241.1338 241.1638 241.1940 241.2245 241.2552 241.2862
Columns 409 through 425
241.3174 241.3488 241.3805 241.4125 241.4447 241.4772 241.5100 241.5431 241.5764 241.6101 241.6440 241.6783 241.7128 241.7477 241.7828 241.8183 241.8541
Columns 426 through 442
241.8902 241.9267 241.9635 242.0006 242.0380 242.0758 242.1140 242.1525 242.1913 242.2305 242.2701 242.3100 242.3503 242.3909 242.4320 242.4734 242.5151
Columns 443 through 459
242.5573 242.5998 242.6428 242.6861 242.7298 242.7738 242.8183 242.8632 242.9085 242.9542 243.0002 243.0467 243.0936 243.1409 243.1886 243.2367 243.2852
Columns 460 through 476
243.3341 243.3835 243.4332 243.4834 243.5340 243.5850 243.6365 243.6883 243.7406 243.7933 243.8464 243.8999 243.9539 244.0083 244.0631 244.1183 244.1740
Columns 477 through 493
244.2300 244.2865 244.3435 244.4008 244.4586 244.5168 244.5754 244.6345 244.6939 244.7538 244.8141 244.8749 244.9360 244.9976 245.0596 245.1220 245.1848
Columns 494 through 500
245.2480 245.3117 245.3757 245.4402 245.5051 245.5704 245.6361
H =
1.0e+05 *
Columns 1 through 17
-1.1151 -1.1052 -1.0951 -1.0849 -1.0746 -1.0642 -1.0537 -1.0430 -1.0323 -1.0214 -1.0105 -0.9994 -0.9883 -0.9770 -0.9656 -0.9542 -0.9426
Columns 18 through 34
-0.9309 -0.9191 -0.9072 -0.8953 -0.8832 -0.8710 -0.8587 -0.8464 -0.8339 -0.8214 -0.8087 -0.7959 -0.7831 -0.7702 -0.7571 -0.7440 -0.7308
Columns 35 through 51
-0.7175 -0.7041 -0.6907 -0.6771 -0.6635 -0.6497 -0.6359 -0.6220 -0.6080 -0.5939 -0.5798 -0.5655 -0.5512 -0.5368 -0.5223 -0.5077 -0.4931
Columns 52 through 68
-0.4783 -0.4635 -0.4486 -0.4337 -0.4186 -0.4035 -0.3883 -0.3731 -0.3577 -0.3423 -0.3268 -0.3113 -0.2956 -0.2799 -0.2641 -0.2483 -0.2324
Columns 69 through 85
-0.2164 -0.2003 -0.1842 -0.1680 -0.1518 -0.1354 -0.1190 -0.1026 -0.0861 -0.0695 -0.0528 -0.0361 -0.0193 -0.0025 0.0144 0.0314 0.0484
Columns 86 through 102
0.0655 0.0826 0.0998 0.1171 0.1344 0.1518 0.1692 0.1867 0.2043 0.2219 0.2396 0.2573 0.2751 0.2929 0.3108 0.3287 0.3467
Columns 103 through 119
0.3647 0.3828 0.4010 0.4192 0.4374 0.4557 0.4740 0.4924 0.5109 0.5294 0.5479 0.5665 0.5851 0.6038 0.6225 0.6413 0.6601
Columns 120 through 136
0.6790 0.6979 0.7168 0.7358 0.7549 0.7740 0.7931 0.8122 0.8315 0.8507 0.8700 0.8893 0.9087 0.9281 0.9476 0.9670 0.9866
Columns 137 through 153
1.0061 1.0257 1.0454 1.0651 1.0848 1.1045 1.1243 1.1441 1.1640 1.1839 1.2038 1.2238 1.2438 1.2638 1.2839 1.3040 1.3241
Columns 154 through 170
1.3443 1.3645 1.3847 1.4050 1.4252 1.4456 1.4659 1.4863 1.5067 1.5271 1.5476 1.5681 1.5886 1.6092 1.6298 1.6504 1.6710
Columns 171 through 187
1.6917 1.7124 1.7331 1.7538 1.7746 1.7954 1.8162 1.8371 1.8579 1.8788 1.8997 1.9207 1.9417 1.9626 1.9837 2.0047 2.0258
Columns 188 through 204
2.0468 2.0679 2.0891 2.1102 2.1314 2.1526 2.1738 2.1950 2.2163 2.2375 2.2588 2.2801 2.3015 2.3228 2.3442 2.3656 2.3870
Columns 205 through 221
2.4084 2.4298 2.4513 2.4728 2.4943 2.5158 2.5373 2.5589 2.5804 2.6020 2.6236 2.6452 2.6668 2.6885 2.7101 2.7318 2.7535
Columns 222 through 238
2.7752 2.7969 2.8186 2.8404 2.8622 2.8839 2.9057 2.9275 2.9493 2.9712 2.9930 3.0149 3.0367 3.0586 3.0805 3.1024 3.1243
Columns 239 through 255
3.1462 3.1682 3.1901 3.2121 3.2341 3.2560 3.2780 3.3000 3.3221 3.3441 3.3661 3.3882 3.4102 3.4323 3.4544 3.4764 3.4985
Columns 256 through 272
3.5206 3.5428 3.5649 3.5870 3.6091 3.6313 3.6534 3.6756 3.6978 3.7200 3.7422 3.7644 3.7866 3.8088 3.8310 3.8532 3.8755
Columns 273 through 289
3.8977 3.9199 3.9422 3.9645 3.9867 4.0090 4.0313 4.0536 4.0759 4.0982 4.1205 4.1428 4.1651 4.1875 4.2098 4.2321 4.2545
Columns 290 through 306
4.2768 4.2992 4.3215 4.3439 4.3663 4.3887 4.4110 4.4334 4.4558 4.4782 4.5006 4.5230 4.5454 4.5678 4.5903 4.6127 4.6351
Columns 307 through 323
4.6576 4.6800 4.7024 4.7249 4.7473 4.7698 4.7922 4.8147 4.8372 4.8596 4.8821 4.9046 4.9271 4.9496 4.9720 4.9945 5.0170
Columns 324 through 340
5.0395 5.0620 5.0845 5.1070 5.1296 5.1521 5.1746 5.1971 5.2196 5.2422 5.2647 5.2872 5.3098 5.3323 5.3548 5.3774 5.3999
Columns 341 through 357
5.4225 5.4450 5.4676 5.4901 5.5127 5.5353 5.5578 5.5804 5.6030 5.6256 5.6481 5.6707 5.6933 5.7159 5.7385 5.7611 5.7837
Columns 358 through 374
5.8063 5.8289 5.8515 5.8741 5.8967 5.9193 5.9419 5.9645 5.9871 6.0097 6.0324 6.0550 6.0776 6.1002 6.1229 6.1455 6.1681
Columns 375 through 391
6.1908 6.2134 6.2360 6.2587 6.2813 6.3040 6.3266 6.3493 6.3720 6.3946 6.4173 6.4399 6.4626 6.4853 6.5080 6.5306 6.5533
Columns 392 through 408
6.5760 6.5987 6.6214 6.6441 6.6667 6.6894 6.7121 6.7348 6.7575 6.7802 6.8029 6.8257 6.8484 6.8711 6.8938 6.9165 6.9393
Columns 409 through 425
6.9620 6.9847 7.0074 7.0302 7.0529 7.0757 7.0984 7.1212 7.1439 7.1667 7.1894 7.2122 7.2350 7.2577 7.2805 7.3033 7.3260
Columns 426 through 442
7.3488 7.3716 7.3944 7.4172 7.4400 7.4628 7.4856 7.5084 7.5312 7.5540 7.5768 7.5997 7.6225 7.6453 7.6681 7.6910 7.7138
Columns 443 through 459
7.7367 7.7595 7.7824 7.8052 7.8281 7.8509 7.8738 7.8967 7.9196 7.9424 7.9653 7.9882 8.0111 8.0340 8.0569 8.0798 8.1027
Columns 460 through 476
8.1257 8.1486 8.1715 8.1944 8.2174 8.2403 8.2633 8.2862 8.3092 8.3321 8.3551 8.3781 8.4010 8.4240 8.4470 8.4700 8.4930
Columns 477 through 493
8.5160 8.5390 8.5620 8.5850 8.6080 8.6311 8.6541 8.6771 8.7002 8.7232 8.7463 8.7694 8.7924 8.8155 8.8386 8.8617 8.8847
Columns 494 through 500
8.9078 8.9309 8.9541 8.9772 9.0003 9.0234 9.0465
H =
1.0e+05 *
Columns 1 through 17
-1.1151 -1.1052 -1.0951 -1.0849 -1.0746 -1.0642 -1.0537 -1.0430 -1.0323 -1.0214 -1.0105 -0.9994 -0.9883 -0.9770 -0.9656 -0.9542 -0.9426
Columns 18 through 34
-0.9309 -0.9191 -0.9072 -0.8953 -0.8832 -0.8710 -0.8587 -0.8464 -0.8339 -0.8214 -0.8087 -0.7959 -0.7831 -0.7702 -0.7571 -0.7440 -0.7308
Columns 35 through 51
-0.7175 -0.7041 -0.6907 -0.6771 -0.6635 -0.6497 -0.6359 -0.6220 -0.6080 -0.5939 -0.5798 -0.5655 -0.5512 -0.5368 -0.5223 -0.5077 -0.4931
Columns 52 through 68
-0.4783 -0.4635 -0.4486 -0.4337 -0.4186 -0.4035 -0.3883 -0.3731 -0.3577 -0.3423 -0.3268 -0.3113 -0.2956 -0.2799 -0.2641 -0.2483 -0.2324
Columns 69 through 85
-0.2164 -0.2003 -0.1842 -0.1680 -0.1518 -0.1354 -0.1190 -0.1026 -0.0861 -0.0695 -0.0528 -0.0361 -0.0193 -0.0025 0.0144 0.0314 0.0484
Columns 86 through 102
0.0655 0.0826 0.0998 0.1171 0.1344 0.1518 0.1692 0.1867 0.2043 0.2219 0.2396 0.2573 0.2751 0.2929 0.3108 0.3287 0.3467
Columns 103 through 119
0.3647 0.3828 0.4010 0.4192 0.4374 0.4557 0.4740 0.4924 0.5109 0.5294 0.5479 0.5665 0.5851 0.6038 0.6225 0.6413 0.6601
Columns 120 through 136
0.6790 0.6979 0.7168 0.7358 0.7549 0.7740 0.7931 0.8122 0.8315 0.8507 0.8700 0.8893 0.9087 0.9281 0.9476 0.9670 0.9866
Columns 137 through 153
1.0061 1.0257 1.0454 1.0651 1.0848 1.1045 1.1243 1.1441 1.1640 1.1839 1.2038 1.2238 1.2438 1.2638 1.2839 1.3040 1.3241
Columns 154 through 170
1.3443 1.3645 1.3847 1.4050 1.4252 1.4456 1.4659 1.4863 1.5067 1.5271 1.5476 1.5681 1.5886 1.6092 1.6298 1.6504 1.6710
Columns 171 through 187
1.6917 1.7124 1.7331 1.7538 1.7746 1.7954 1.8162 1.8371 1.8579 1.8788 1.8997 1.9207 1.9417 1.9626 1.9837 2.0047 2.0258
Columns 188 through 204
2.0468 2.0679 2.0891 2.1102 2.1314 2.1526 2.1738 2.1950 2.2163 2.2375 2.2588 2.2801 2.3015 2.3228 2.3442 2.3656 2.3870
Columns 205 through 221
2.4084 2.4298 2.4513 2.4728 2.4943 2.5158 2.5373 2.5589 2.5804 2.6020 2.6236 2.6452 2.6668 2.6885 2.7101 2.7318 2.7535
Columns 222 through 238
2.7752 2.7969 2.8186 2.8404 2.8622 2.8839 2.9057 2.9275 2.9493 2.9712 2.9930 3.0149 3.0367 3.0586 3.0805 3.1024 3.1243
Columns 239 through 255
3.1462 3.1682 3.1901 3.2121 3.2341 3.2560 3.2780 3.3000 3.3221 3.3441 3.3661 3.3882 3.4102 3.4323 3.4544 3.4764 3.4985
Columns 256 through 272
3.5206 3.5428 3.5649 3.5870 3.6091 3.6313 3.6534 3.6756 3.6978 3.7200 3.7422 3.7644 3.7866 3.8088 3.8310 3.8532 3.8755
Columns 273 through 289
3.8977 3.9199 3.9422 3.9645 3.9867 4.0090 4.0313 4.0536 4.0759 4.0982 4.1205 4.1428 4.1651 4.1875 4.2098 4.2321 4.2545
Columns 290 through 306
4.2768 4.2992 4.3215 4.3439 4.3663 4.3887 4.4110 4.4334 4.4558 4.4782 4.5006 4.5230 4.5454 4.5678 4.5903 4.6127 4.6351
Columns 307 through 323
4.6576 4.6800 4.7024 4.7249 4.7473 4.7698 4.7922 4.8147 4.8372 4.8596 4.8821 4.9046 4.9271 4.9496 4.9720 4.9945 5.0170
Columns 324 through 340
5.0395 5.0620 5.0845 5.1070 5.1296 5.1521 5.1746 5.1971 5.2196 5.2422 5.2647 5.2872 5.3098 5.3323 5.3548 5.3774 5.3999
Columns 341 through 357
5.4225 5.4450 5.4676 5.4901 5.5127 5.5353 5.5578 5.5804 5.6030 5.6256 5.6481 5.6707 5.6933 5.7159 5.7385 5.7611 5.7837
Columns 358 through 374
5.8063 5.8289 5.8515 5.8741 5.8967 5.9193 5.9419 5.9645 5.9871 6.0097 6.0324 6.0550 6.0776 6.1002 6.1229 6.1455 6.1681
Columns 375 through 391
6.1908 6.2134 6.2360 6.2587 6.2813 6.3040 6.3266 6.3493 6.3720 6.3946 6.4173 6.4399 6.4626 6.4853 6.5080 6.5306 6.5533
Columns 392 through 408
6.5760 6.5987 6.6214 6.6441 6.6667 6.6894 6.7121 6.7348 6.7575 6.7802 6.8029 6.8257 6.8484 6.8711 6.8938 6.9165 6.9393
Columns 409 through 425
6.9620 6.9847 7.0074 7.0302 7.0529 7.0757 7.0984 7.1212 7.1439 7.1667 7.1894 7.2122 7.2350 7.2577 7.2805 7.3033 7.3260
Columns 426 through 442
7.3488 7.3716 7.3944 7.4172 7.4400 7.4628 7.4856 7.5084 7.5312 7.5540 7.5768 7.5997 7.6225 7.6453 7.6681 7.6910 7.7138
Columns 443 through 459
7.7367 7.7595 7.7824 7.8052 7.8281 7.8509 7.8738 7.8967 7.9196 7.9424 7.9653 7.9882 8.0111 8.0340 8.0569 8.0798 8.1027
Columns 460 through 476
8.1257 8.1486 8.1715 8.1944 8.2174 8.2403 8.2633 8.2862 8.3092 8.3321 8.3551 8.3781 8.4010 8.4240 8.4470 8.4700 8.4930
Columns 477 through 493
8.5160 8.5390 8.5620 8.5850 8.6080 8.6311 8.6541 8.6771 8.7002 8.7232 8.7463 8.7694 8.7924 8.8155 8.8386 8.8617 8.8847
Columns 494 through 500
8.9078 8.9309 8.9541 8.9772 9.0003 9.0234 9.0465
s =
Columns 1 through 17
253.3135 256.5846 259.7934 262.9434 266.0375 269.0787 272.0696 275.0126 277.9100 280.7637 283.5758 286.3480 289.0820 291.7793 294.4414 297.0696 299.6653
Columns 18 through 34
302.2295 304.7635 307.2682 309.7447 312.1939 314.6167 317.0139 319.3863 321.7347 324.0598 326.3622 328.6427 330.9018 333.1400 335.3580 337.5563 339.7354
Columns 35 through 51
341.8957 344.0377 346.1619 348.2687 350.3585 352.4317 354.4886 356.5296 358.5551 360.5653 362.5606 364.5414 366.5078 368.4602 370.3988 372.3239 374.2358
Columns 52 through 68
376.1347 378.0208 379.8944 381.7557 383.6049 385.4421 387.2677 389.0818 390.8845 392.6762 394.4568 396.2267 397.9859 399.7346 401.4731 403.2014 404.9197
Columns 69 through 85
406.6281 408.3267 410.0158 411.6954 413.3657 415.0267 416.6787 418.3216 419.9558 421.5811 423.1978 424.8060 426.4058 427.9972 429.5804 431.1555 432.7225
Columns 86 through 102
434.2816 435.8328 437.3763 438.9121 440.4402 441.9609 443.4741 444.9800 446.4786 447.9699 449.4542 450.9314 452.4016 453.8649 455.3213 456.7710 458.2139
Columns 103 through 119
459.6502 461.0799 462.5031 463.9198 465.3301 466.7341 468.1317 469.5232 470.9084 472.2875 473.6606 475.0276 476.3887 477.7438 479.0931 480.4366 481.7742
Columns 120 through 136
483.1062 484.4325 485.7532 487.0683 488.3778 489.6819 490.9805 492.2736 493.5615 494.8440 496.1212 497.3931 498.6599 499.9215 501.1779 502.4293 503.6756
Columns 137 through 153
504.9169 506.1532 507.3846 508.6111 509.8327 511.0494 512.2613 513.4685 514.6709 515.8687 517.0617 518.2501 519.4339 520.6131 521.7878 522.9579 524.1236
Columns 154 through 170
525.2848 526.4416 527.5939 528.7419 529.8856 531.0249 532.1599 533.2907 534.4173 535.5396 536.6577 537.7717 538.8816 539.9874 541.0891 542.1867 543.2803
Columns 171 through 187
544.3699 545.4555 546.5371 547.6149 548.6887 549.7586 550.8247 551.8869 552.9453 553.9999 555.0508 556.0979 557.1412 558.1809 559.2169 560.2492 561.2778
Columns 188 through 204
562.3029 563.3243 564.3422 565.3565 566.3672 567.3745 568.3782 569.3785 570.3752 571.3686 572.3585 573.3450 574.3282 575.3079 576.2843 577.2574 578.2272
Columns 205 through 221
579.1936 580.1568 581.1168 582.0735 583.0270 583.9772 584.9243 585.8682 586.8090 587.7466 588.6811 589.6124 590.5407 591.4660 592.3881 593.3072 594.2234
Columns 222 through 238
595.1364 596.0465 596.9537 597.8578 598.7591 599.6573 600.5527 601.4452 602.3348 603.2215 604.1054 604.9864 605.8646 606.7400 607.6125 608.4824 609.3494
Columns 239 through 255
610.2137 611.0752 611.9340 612.7901 613.6435 614.4943 615.3423 616.1877 617.0304 617.8706 618.7081 619.5429 620.3752 621.2050 622.0321 622.8567 623.6788
Columns 256 through 272
624.4983 625.3154 626.1299 626.9419 627.7515 628.5586 629.3632 630.1654 630.9652 631.7626 632.5575 633.3501 634.1403 634.9281 635.7136 636.4967 637.2775
Columns 273 through 289
638.0559 638.8321 639.6059 640.3775 641.1468 641.9138 642.6786 643.4412 644.2015 644.9596 645.7154 646.4691 647.2206 647.9699 648.7171 649.4621 650.2049
Columns 290 through 306
650.9456 651.6842 652.4207 653.1551 653.8874 654.6176 655.3457 656.0718 656.7958 657.5178 658.2377 658.9557 659.6716 660.3855 661.0974 661.8074 662.5153
Columns 307 through 323
663.2214 663.9254 664.6275 665.3277 666.0260 666.7223 667.4167 668.1093 668.7999 669.4887 670.1756 670.8607 671.5439 672.2252 672.9048 673.5825 674.2584
Columns 324 through 340
674.9324 675.6047 676.2752 676.9440 677.6109 678.2761 678.9396 679.6013 680.2612 680.9195 681.5760 682.2308 682.8839 683.5353 684.1851 684.8331 685.4795
Columns 341 through 357
686.1243 686.7673 687.4088 688.0486 688.6868 689.3233 689.9583 690.5916 691.2234 691.8535 692.4821 693.1091 693.7345 694.3584 694.9808 695.6016 696.2208
Columns 358 through 374
696.8386 697.4548 698.0695 698.6827 699.2945 699.9047 700.5134 701.1207 701.7265 702.3309 702.9338 703.5352 704.1352 704.7338 705.3310 705.9267 706.5211
Columns 375 through 391
707.1140 707.7055 708.2957 708.8845 709.4719 710.0579 710.6426 711.2259 711.8079 712.3885 712.9678 713.5458 714.1224 714.6977 715.2718 715.8445 716.4159
Columns 392 through 408
716.9861 717.5550 718.1226 718.6889 719.2539 719.8178 720.3803 720.9416 721.5017 722.0606 722.6182 723.1746 723.7298 724.2838 724.8366 725.3881 725.9386
Columns 409 through 425
726.4878 727.0358 727.5827 728.1284 728.6730 729.2164 729.7586 730.2997 730.8397 731.3786 731.9163 732.4529 732.9884 733.5228 734.0561 734.5882 735.1193
Columns 426 through 442
735.6494 736.1783 736.7062 737.2329 737.7587 738.2833 738.8070 739.3295 739.8511 740.3715 740.8910 741.4094 741.9269 742.4432 742.9586 743.4730 743.9864
Columns 443 through 459
744.4988 745.0102 745.5206 746.0300 746.5384 747.0459 747.5524 748.0580 748.5626 749.0662 749.5689 750.0706 750.5715 751.0713 751.5703 752.0683 752.5654
Columns 460 through 476
753.0616 753.5569 754.0513 754.5448 755.0373 755.5290 756.0198 756.5098 756.9988 757.4870 757.9743 758.4607 758.9463 759.4310 759.9148 760.3979 760.8800
Columns 477 through 493
761.3614 761.8418 762.3215 762.8003 763.2783 763.7555 764.2319 764.7075 765.1822 765.6562 766.1293 766.6017 767.0732 767.5440 768.0140 768.4832 768.9516
Columns 494 through 500
769.4193 769.8862 770.3523 770.8177 771.2823 771.7461 772.2092
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
7.7027
a2 =
0.0160
a4 =
7.6299e-10
a5 =
-3.9392e-14
a6 =
8.2984e+03
a7 =
-15.4802
a8 =
1.0516
a9 =
0.0260
a10 =
2.3801e-06
a11 =
-1.9610e-08
a12 =
9.3732e-12
a13 =
1.0632e+04
a14 =
21.1226
cp =
Columns 1 through 17
100.2730 101.2936 102.3073 103.3144 104.3147 105.3083 106.2952 107.2755 108.2492 109.2163 110.1769 111.1310 112.0785 113.0197 113.9543 114.8826 115.8045
Columns 18 through 34
116.7201 117.6294 118.5323 119.4291 120.3196 121.2038 122.0820 122.9539 123.8198 124.6796 125.5333 126.3810 127.2227 128.0584 128.8882 129.7120 130.5300
Columns 35 through 51
131.3421 132.1484 132.9488 133.7435 134.5324 135.3157 136.0932 136.8650 137.6312 138.3918 139.1468 139.8963 140.6402 141.3786 142.1115 142.8390 143.5611
Columns 52 through 68
144.2777 144.9890 145.6950 146.3956 147.0909 147.7810 148.4658 149.1454 149.8199 150.4892 151.1533 151.8123 152.4663 153.1152 153.7590 154.3979 155.0318
Columns 69 through 85
155.6607 156.2847 156.9038 157.5181 158.1274 158.7320 159.3318 159.9267 160.5170 161.1025 161.6833 162.2594 162.8309 163.3978 163.9601 164.5178 165.0709
Columns 86 through 102
165.6195 166.1636 166.7033 167.2385 167.7693 168.2956 168.8176 169.3352 169.8486 170.3576 170.8623 171.3627 171.8590 172.3510 172.8388 173.3225 173.8020
Columns 103 through 119
174.2775 174.7488 175.2160 175.6793 176.1385 176.5937 177.0449 177.4922 177.9355 178.3750 178.8105 179.2422 179.6701 180.0941 180.5144 180.9309 181.3437
Columns 120 through 136
181.7527 182.1580 182.5597 182.9577 183.3520 183.7428 184.1299 184.5135 184.8936 185.2701 185.6431 186.0127 186.3788 186.7414 187.1007 187.4566 187.8090
Columns 137 through 153
188.1582 188.5040 188.8465 189.1857 189.5217 189.8544 190.1839 190.5102 190.8333 191.1533 191.4701 191.7838 192.0944 192.4019 192.7064 193.0079 193.3063
Columns 154 through 170
193.6018 193.8942 194.1838 194.4703 194.7540 195.0348 195.3127 195.5878 195.8600 196.1295 196.3961 196.6600 196.9211 197.1795 197.4351 197.6881 197.9384
Columns 171 through 187
198.1861 198.4311 198.6735 198.9133 199.1505 199.3852 199.6173 199.8469 200.0741 200.2987 200.5209 200.7406 200.9579 201.1728 201.3853 201.5954 201.8032
Columns 188 through 204
202.0086 202.2118 202.4126 202.6112 202.8074 203.0015 203.1933 203.3830 203.5704 203.7556 203.9388 204.1197 204.2986 204.4753 204.6500 204.8226 204.9932
Columns 205 through 221
205.1617 205.3282 205.4928 205.6553 205.8159 205.9745 206.1312 206.2860 206.4389 206.5899 206.7391 206.8864 207.0319 207.1756 207.3175 207.4576 207.5959
Columns 222 through 238
207.7325 207.8674 208.0005 208.1320 208.2617 208.3899 208.5163 208.6411 208.7643 208.8859 209.0060 209.1244 209.2413 209.3567 209.4705 209.5828 209.6936
Columns 239 through 255
209.8030 209.9108 210.0173 210.1223 210.2258 210.3280 210.4288 210.5282 210.6263 210.7230 210.8183 210.9124 211.0051 211.0966 211.1868 211.2757 211.3634
Columns 256 through 272
211.4499 211.5352 211.6192 211.7021 211.7837 211.8643 211.9436 212.0219 212.0990 212.1750 212.2500 212.3238 212.3966 212.4683 212.5390 212.6087 212.6773
Columns 273 through 289
212.7450 212.8117 212.8774 212.9421 213.0059 213.0688 213.1307 213.1917 213.2519 213.3111 213.3695 213.4270 213.4837 213.5395 213.5945 213.6487 213.7021
Columns 290 through 306
213.7547 213.8066 213.8577 213.9080 213.9576 214.0065 214.0546 214.1021 214.1488 214.1949 214.2403 214.2851 214.3292 214.3726 214.4155 214.4577 214.4994
Columns 307 through 323
214.5404 214.5809 214.6208 214.6601 214.6989 214.7371 214.7749 214.8121 214.8488 214.8850 214.9207 214.9560 214.9908 215.0251 215.0590 215.0925 215.1255
Columns 324 through 340
215.1582 215.1904 215.2222 215.2537 215.2847 215.3155 215.3458 215.3758 215.4055 215.4348 215.4639 215.4926 215.5210 215.5492 215.5770 215.6046 215.6319
Columns 341 through 357
215.6590 215.6858 215.7124 215.7388 215.7649 215.7909 215.8166 215.8421 215.8675 215.8927 215.9177 215.9425 215.9672 215.9918 216.0162 216.0405 216.0647
Columns 358 through 374
216.0887 216.1127 216.1366 216.1603 216.1840 216.2076 216.2312 216.2547 216.2781 216.3015 216.3249 216.3482 216.3716 216.3948 216.4181 216.4414 216.4647
Columns 375 through 391
216.4880 216.5113 216.5347 216.5581 216.5815 216.6050 216.6285 216.6520 216.6757 216.6994 216.7232 216.7470 216.7710 216.7951 216.8192 216.8435 216.8678
Columns 392 through 408
216.8923 216.9169 216.9417 216.9666 216.9916 217.0167 217.0421 217.0675 217.0932 217.1190 217.1449 217.1711 217.1974 217.2239 217.2507 217.2776 217.3047
Columns 409 through 425
217.3320 217.3595 217.3873 217.4152 217.4434 217.4718 217.5005 217.5293 217.5585 217.5878 217.6175 217.6473 217.6775 217.7079 217.7385 217.7695 217.8007
Columns 426 through 442
217.8321 217.8639 217.8959 217.9283 217.9609 217.9938 218.0270 218.0605 218.0943 218.1284 218.1629 218.1976 218.2327 218.2680 218.3037 218.3397 218.3761
Columns 443 through 459
218.4128 218.4498 218.4871 218.5248 218.5628 218.6011 218.6398 218.6789 218.7183 218.7580 218.7981 218.8385 218.8793 218.9205 218.9620 219.0039 219.0461
Columns 460 through 476
219.0887 219.1316 219.1750 219.2187 219.2627 219.3072 219.3520 219.3971 219.4427 219.4886 219.5349 219.5816 219.6286 219.6761 219.7239 219.7720 219.8206
Columns 477 through 493
219.8696 219.9189 219.9686 220.0187 220.0691 220.1200 220.1712 220.2228 220.2748 220.3272 220.3799 220.4331 220.4866 220.5405 220.5947 220.6494 220.7044
Columns 494 through 500
220.7598 220.8156 220.8718 220.9283 220.9853 221.0426 221.1002
H =
1.0e+06 *
Columns 1 through 17
0.0938 0.0948 0.0957 0.0967 0.0977 0.0987 0.0997 0.1007 0.1017 0.1027 0.1037 0.1048 0.1058 0.1069 0.1080 0.1090 0.1101
Columns 18 through 34
0.1112 0.1123 0.1134 0.1146 0.1157 0.1168 0.1180 0.1191 0.1203 0.1215 0.1226 0.1238 0.1250 0.1262 0.1274 0.1286 0.1299
Columns 35 through 51
0.1311 0.1323 0.1336 0.1349 0.1361 0.1374 0.1387 0.1399 0.1412 0.1425 0.1438 0.1452 0.1465 0.1478 0.1491 0.1505 0.1518
Columns 52 through 68
0.1532 0.1546 0.1559 0.1573 0.1587 0.1601 0.1615 0.1629 0.1643 0.1657 0.1671 0.1685 0.1700 0.1714 0.1729 0.1743 0.1758
Columns 69 through 85
0.1772 0.1787 0.1802 0.1817 0.1831 0.1846 0.1861 0.1876 0.1891 0.1907 0.1922 0.1937 0.1952 0.1968 0.1983 0.1999 0.2014
Columns 86 through 102
0.2030 0.2045 0.2061 0.2077 0.2092 0.2108 0.2124 0.2140 0.2156 0.2172 0.2188 0.2204 0.2220 0.2237 0.2253 0.2269 0.2286
Columns 103 through 119
0.2302 0.2318 0.2335 0.2351 0.2368 0.2385 0.2401 0.2418 0.2435 0.2451 0.2468 0.2485 0.2502 0.2519 0.2536 0.2553 0.2570
Columns 120 through 136
0.2587 0.2604 0.2621 0.2639 0.2656 0.2673 0.2691 0.2708 0.2725 0.2743 0.2760 0.2778 0.2795 0.2813 0.2830 0.2848 0.2866
Columns 137 through 153
0.2883 0.2901 0.2919 0.2937 0.2955 0.2972 0.2990 0.3008 0.3026 0.3044 0.3062 0.3080 0.3098 0.3116 0.3135 0.3153 0.3171
Columns 154 through 170
0.3189 0.3207 0.3226 0.3244 0.3262 0.3281 0.3299 0.3317 0.3336 0.3354 0.3373 0.3391 0.3410 0.3428 0.3447 0.3466 0.3484
Columns 171 through 187
0.3503 0.3522 0.3540 0.3559 0.3578 0.3597 0.3615 0.3634 0.3653 0.3672 0.3691 0.3710 0.3729 0.3748 0.3766 0.3785 0.3804
Columns 188 through 204
0.3823 0.3842 0.3862 0.3881 0.3900 0.3919 0.3938 0.3957 0.3976 0.3995 0.4015 0.4034 0.4053 0.4072 0.4092 0.4111 0.4130
Columns 205 through 221
0.4150 0.4169 0.4188 0.4208 0.4227 0.4246 0.4266 0.4285 0.4305 0.4324 0.4344 0.4363 0.4382 0.4402 0.4422 0.4441 0.4461
Columns 222 through 238
0.4480 0.4500 0.4519 0.4539 0.4559 0.4578 0.4598 0.4617 0.4637 0.4657 0.4676 0.4696 0.4716 0.4736 0.4755 0.4775 0.4795
Columns 239 through 255
0.4814 0.4834 0.4854 0.4874 0.4894 0.4913 0.4933 0.4953 0.4973 0.4993 0.5013 0.5032 0.5052 0.5072 0.5092 0.5112 0.5132
Columns 256 through 272
0.5152 0.5172 0.5192 0.5212 0.5232 0.5251 0.5271 0.5291 0.5311 0.5331 0.5351 0.5371 0.5391 0.5411 0.5431 0.5451 0.5471
Columns 273 through 289
0.5491 0.5511 0.5532 0.5552 0.5572 0.5592 0.5612 0.5632 0.5652 0.5672 0.5692 0.5712 0.5732 0.5752 0.5773 0.5793 0.5813
Columns 290 through 306
0.5833 0.5853 0.5873 0.5893 0.5914 0.5934 0.5954 0.5974 0.5994 0.6014 0.6035 0.6055 0.6075 0.6095 0.6115 0.6135 0.6156
Columns 307 through 323
0.6176 0.6196 0.6216 0.6237 0.6257 0.6277 0.6297 0.6317 0.6338 0.6358 0.6378 0.6398 0.6419 0.6439 0.6459 0.6479 0.6500
Columns 324 through 340
0.6520 0.6540 0.6560 0.6581 0.6601 0.6621 0.6642 0.6662 0.6682 0.6702 0.6723 0.6743 0.6763 0.6784 0.6804 0.6824 0.6845
Columns 341 through 357
0.6865 0.6885 0.6905 0.6926 0.6946 0.6966 0.6987 0.7007 0.7027 0.7048 0.7068 0.7088 0.7109 0.7129 0.7149 0.7170 0.7190
Columns 358 through 374
0.7210 0.7231 0.7251 0.7272 0.7292 0.7312 0.7333 0.7353 0.7373 0.7394 0.7414 0.7435 0.7455 0.7475 0.7496 0.7516 0.7536
Columns 375 through 391
0.7557 0.7577 0.7598 0.7618 0.7638 0.7659 0.7679 0.7700 0.7720 0.7740 0.7761 0.7781 0.7802 0.7822 0.7843 0.7863 0.7883
Columns 392 through 408
0.7904 0.7924 0.7945 0.7965 0.7986 0.8006 0.8026 0.8047 0.8067 0.8088 0.8108 0.8129 0.8149 0.8170 0.8190 0.8210 0.8231
Columns 409 through 425
0.8251 0.8272 0.8292 0.8313 0.8333 0.8354 0.8374 0.8395 0.8415 0.8436 0.8456 0.8477 0.8497 0.8518 0.8538 0.8559 0.8579
Columns 426 through 442
0.8600 0.8620 0.8641 0.8661 0.8682 0.8702 0.8723 0.8743 0.8764 0.8785 0.8805 0.8826 0.8846 0.8867 0.8887 0.8908 0.8928
Columns 443 through 459
0.8949 0.8970 0.8990 0.9011 0.9031 0.9052 0.9073 0.9093 0.9114 0.9134 0.9155 0.9176 0.9196 0.9217 0.9237 0.9258 0.9279
Columns 460 through 476
0.9299 0.9320 0.9341 0.9361 0.9382 0.9403 0.9423 0.9444 0.9465 0.9485 0.9506 0.9527 0.9547 0.9568 0.9589 0.9609 0.9630
Columns 477 through 493
0.9651 0.9671 0.9692 0.9713 0.9734 0.9754 0.9775 0.9796 0.9817 0.9837 0.9858 0.9879 0.9900 0.9920 0.9941 0.9962 0.9983
Columns 494 through 500
1.0003 1.0024 1.0045 1.0066 1.0087 1.0107 1.0128
H =
1.0e+06 *
Columns 1 through 17
0.0938 0.0948 0.0957 0.0967 0.0977 0.0987 0.0997 0.1007 0.1017 0.1027 0.1037 0.1048 0.1058 0.1069 0.1080 0.1090 0.1101
Columns 18 through 34
0.1112 0.1123 0.1134 0.1146 0.1157 0.1168 0.1180 0.1191 0.1203 0.1215 0.1226 0.1238 0.1250 0.1262 0.1274 0.1286 0.1299
Columns 35 through 51
0.1311 0.1323 0.1336 0.1349 0.1361 0.1374 0.1387 0.1399 0.1412 0.1425 0.1438 0.1452 0.1465 0.1478 0.1491 0.1505 0.1518
Columns 52 through 68
0.1532 0.1546 0.1559 0.1573 0.1587 0.1601 0.1615 0.1629 0.1643 0.1657 0.1671 0.1685 0.1700 0.1714 0.1729 0.1743 0.1758
Columns 69 through 85
0.1772 0.1787 0.1802 0.1817 0.1831 0.1846 0.1861 0.1876 0.1891 0.1907 0.1922 0.1937 0.1952 0.1968 0.1983 0.1999 0.2014
Columns 86 through 102
0.2030 0.2045 0.2061 0.2077 0.2092 0.2108 0.2124 0.2140 0.2156 0.2172 0.2188 0.2204 0.2220 0.2237 0.2253 0.2269 0.2286
Columns 103 through 119
0.2302 0.2318 0.2335 0.2351 0.2368 0.2385 0.2401 0.2418 0.2435 0.2451 0.2468 0.2485 0.2502 0.2519 0.2536 0.2553 0.2570
Columns 120 through 136
0.2587 0.2604 0.2621 0.2639 0.2656 0.2673 0.2691 0.2708 0.2725 0.2743 0.2760 0.2778 0.2795 0.2813 0.2830 0.2848 0.2866
Columns 137 through 153
0.2883 0.2901 0.2919 0.2937 0.2955 0.2972 0.2990 0.3008 0.3026 0.3044 0.3062 0.3080 0.3098 0.3116 0.3135 0.3153 0.3171
Columns 154 through 170
0.3189 0.3207 0.3226 0.3244 0.3262 0.3281 0.3299 0.3317 0.3336 0.3354 0.3373 0.3391 0.3410 0.3428 0.3447 0.3466 0.3484
Columns 171 through 187
0.3503 0.3522 0.3540 0.3559 0.3578 0.3597 0.3615 0.3634 0.3653 0.3672 0.3691 0.3710 0.3729 0.3748 0.3766 0.3785 0.3804
Columns 188 through 204
0.3823 0.3842 0.3862 0.3881 0.3900 0.3919 0.3938 0.3957 0.3976 0.3995 0.4015 0.4034 0.4053 0.4072 0.4092 0.4111 0.4130
Columns 205 through 221
0.4150 0.4169 0.4188 0.4208 0.4227 0.4246 0.4266 0.4285 0.4305 0.4324 0.4344 0.4363 0.4382 0.4402 0.4422 0.4441 0.4461
Columns 222 through 238
0.4480 0.4500 0.4519 0.4539 0.4559 0.4578 0.4598 0.4617 0.4637 0.4657 0.4676 0.4696 0.4716 0.4736 0.4755 0.4775 0.4795
Columns 239 through 255
0.4814 0.4834 0.4854 0.4874 0.4894 0.4913 0.4933 0.4953 0.4973 0.4993 0.5013 0.5032 0.5052 0.5072 0.5092 0.5112 0.5132
Columns 256 through 272
0.5152 0.5172 0.5192 0.5212 0.5232 0.5251 0.5271 0.5291 0.5311 0.5331 0.5351 0.5371 0.5391 0.5411 0.5431 0.5451 0.5471
Columns 273 through 289
0.5491 0.5511 0.5532 0.5552 0.5572 0.5592 0.5612 0.5632 0.5652 0.5672 0.5692 0.5712 0.5732 0.5752 0.5773 0.5793 0.5813
Columns 290 through 306
0.5833 0.5853 0.5873 0.5893 0.5914 0.5934 0.5954 0.5974 0.5994 0.6014 0.6035 0.6055 0.6075 0.6095 0.6115 0.6135 0.6156
Columns 307 through 323
0.6176 0.6196 0.6216 0.6237 0.6257 0.6277 0.6297 0.6317 0.6338 0.6358 0.6378 0.6398 0.6419 0.6439 0.6459 0.6479 0.6500
Columns 324 through 340
0.6520 0.6540 0.6560 0.6581 0.6601 0.6621 0.6642 0.6662 0.6682 0.6702 0.6723 0.6743 0.6763 0.6784 0.6804 0.6824 0.6845
Columns 341 through 357
0.6865 0.6885 0.6905 0.6926 0.6946 0.6966 0.6987 0.7007 0.7027 0.7048 0.7068 0.7088 0.7109 0.7129 0.7149 0.7170 0.7190
Columns 358 through 374
0.7210 0.7231 0.7251 0.7272 0.7292 0.7312 0.7333 0.7353 0.7373 0.7394 0.7414 0.7435 0.7455 0.7475 0.7496 0.7516 0.7536
Columns 375 through 391
0.7557 0.7577 0.7598 0.7618 0.7638 0.7659 0.7679 0.7700 0.7720 0.7740 0.7761 0.7781 0.7802 0.7822 0.7843 0.7863 0.7883
Columns 392 through 408
0.7904 0.7924 0.7945 0.7965 0.7986 0.8006 0.8026 0.8047 0.8067 0.8088 0.8108 0.8129 0.8149 0.8170 0.8190 0.8210 0.8231
Columns 409 through 425
0.8251 0.8272 0.8292 0.8313 0.8333 0.8354 0.8374 0.8395 0.8415 0.8436 0.8456 0.8477 0.8497 0.8518 0.8538 0.8559 0.8579
Columns 426 through 442
0.8600 0.8620 0.8641 0.8661 0.8682 0.8702 0.8723 0.8743 0.8764 0.8785 0.8805 0.8826 0.8846 0.8867 0.8887 0.8908 0.8928
Columns 443 through 459
0.8949 0.8970 0.8990 0.9011 0.9031 0.9052 0.9073 0.9093 0.9114 0.9134 0.9155 0.9176 0.9196 0.9217 0.9237 0.9258 0.9279
Columns 460 through 476
0.9299 0.9320 0.9341 0.9361 0.9382 0.9403 0.9423 0.9444 0.9465 0.9485 0.9506 0.9527 0.9547 0.9568 0.9589 0.9609 0.9630
Columns 477 through 493
0.9651 0.9671 0.9692 0.9713 0.9734 0.9754 0.9775 0.9796 0.9817 0.9837 0.9858 0.9879 0.9900 0.9920 0.9941 0.9962 0.9983
Columns 494 through 500
1.0003 1.0024 1.0045 1.0066 1.0087 1.0107 1.0128
s =
Columns 1 through 17
274.6666 277.7821 280.8346 283.8277 286.7646 289.6480 292.4808 295.2653 298.0039 300.6987 303.3516 305.9644 308.5390 311.0767 313.5792 316.0478 318.4838
Columns 18 through 34
320.8884 323.2628 325.6080 327.9250 330.2149 332.4785 334.7166 336.9302 339.1198 341.2863 343.4304 345.5527 347.6538 349.7343 351.7948 353.8359 355.8579
Columns 35 through 51
357.8616 359.8472 361.8152 363.7662 365.7004 367.6183 369.5202 371.4066 373.2777 375.1340 376.9756 378.8030 380.6164 382.4162 384.2025 385.9757 387.7359
Columns 52 through 68
389.4836 391.2188 392.9419 394.6531 396.3524 398.0403 399.7169 401.3823 403.0368 404.6805 406.3136 407.9364 409.5489 411.1513 412.7438 414.3265 415.8996
Columns 69 through 85
417.4632 419.0175 420.5626 422.0986 423.6257 425.1439 426.6535 428.1544 429.6469 431.1311 432.6070 434.0748 435.5346 436.9864 438.4304 439.8667 441.2954
Columns 86 through 102
442.7165 444.1301 445.5364 446.9354 448.3272 449.7119 451.0895 452.4602 453.8240 455.1811 456.5314 457.8750 459.2120 460.5426 461.8667 463.1844 464.4957
Columns 103 through 119
465.8009 467.0998 468.3926 469.6794 470.9601 472.2349 473.5038 474.7668 476.0241 477.2756 478.5214 479.7616 480.9963 482.2254 483.4491 484.6673 485.8801
Columns 120 through 136
487.0876 488.2898 489.4868 490.6786 491.8652 493.0467 494.2231 495.3945 496.5609 497.7224 498.8790 500.0307 501.1776 502.3197 503.4570 504.5896 505.7175
Columns 137 through 153
506.8408 507.9595 509.0736 510.1832 511.2883 512.3889 513.4850 514.5768 515.6641 516.7472 517.8259 518.9003 519.9705 521.0365 522.0983 523.1559 524.2094
Columns 154 through 170
525.2588 526.3041 527.3453 528.3826 529.4158 530.4451 531.4704 532.4918 533.5094 534.5231 535.5329 536.5389 537.5412 538.5396 539.5344 540.5254 541.5128
Columns 171 through 187
542.4964 543.4764 544.4529 545.4257 546.3949 547.3606 548.3227 549.2813 550.2365 551.1882 552.1364 553.0812 554.0226 554.9606 555.8953 556.8266 557.7546
Columns 188 through 204
558.6793 559.6007 560.5188 561.4337 562.3454 563.2538 564.1591 565.0612 565.9602 566.8560 567.7487 568.6383 569.5248 570.4082 571.2886 572.1660 573.0404
Columns 205 through 221
573.9117 574.7801 575.6456 576.5080 577.3676 578.2242 579.0780 579.9289 580.7769 581.6220 582.4643 583.3039 584.1406 584.9745 585.8056 586.6340 587.4597
Columns 222 through 238
588.2826 589.1028 589.9203 590.7351 591.5473 592.3568 593.1636 593.9679 594.7695 595.5685 596.3650 597.1588 597.9501 598.7389 599.5251 600.3088 601.0900
Columns 239 through 255
601.8688 602.6450 603.4188 604.1901 604.9590 605.7254 606.4895 607.2511 608.0104 608.7672 609.5217 610.2739 611.0237 611.7712 612.5163 613.2592 613.9997
Columns 256 through 272
614.7380 615.4740 616.2078 616.9393 617.6685 618.3956 619.1204 619.8430 620.5635 621.2817 621.9978 622.7117 623.4235 624.1332 624.8407 625.5461 626.2494
Columns 273 through 289
626.9506 627.6497 628.3468 629.0417 629.7347 630.4256 631.1144 631.8013 632.4861 633.1689 633.8498 634.5286 635.2055 635.8804 636.5534 637.2244 637.8935
Columns 290 through 306
638.5607 639.2259 639.8893 640.5507 641.2103 641.8680 642.5238 643.1778 643.8299 644.4802 645.1287 645.7753 646.4201 647.0632 647.7044 648.3438 648.9815
Columns 307 through 323
649.6174 650.2515 650.8839 651.5146 652.1435 652.7706 653.3961 654.0199 654.6419 655.2623 655.8810 656.4980 657.1134 657.7271 658.3391 658.9495 659.5583
Columns 324 through 340
660.1654 660.7710 661.3749 661.9772 662.5779 663.1771 663.7746 664.3706 664.9650 665.5579 666.1492 666.7390 667.3273 667.9140 668.4992 669.0829 669.6651
Columns 341 through 357
670.2458 670.8250 671.4028 671.9790 672.5538 673.1272 673.6991 674.2695 674.8385 675.4061 675.9723 676.5370 677.1003 677.6623 678.2228 678.7820 679.3397
Columns 358 through 374
679.8961 680.4512 681.0048 681.5571 682.1081 682.6577 683.2060 683.7530 684.2986 684.8430 685.3860 685.9277 686.4681 687.0073 687.5451 688.0817 688.6170
Columns 375 through 391
689.1511 689.6838 690.2154 690.7457 691.2747 691.8026 692.3292 692.8545 693.3787 693.9017 694.4234 694.9440 695.4633 695.9815 696.4985 697.0144 697.5290
Columns 392 through 408
698.0425 698.5549 699.0661 699.5762 700.0851 700.5929 701.0995 701.6051 702.1095 702.6128 703.1150 703.6161 704.1162 704.6151 705.1129 705.6097 706.1054
Columns 409 through 425
706.6000 707.0936 707.5861 708.0776 708.5680 709.0574 709.5458 710.0331 710.5194 711.0046 711.4889 711.9722 712.4544 712.9357 713.4159 713.8952 714.3734
Columns 426 through 442
714.8507 715.3271 715.8024 716.2768 716.7503 717.2227 717.6943 718.1648 718.6345 719.1032 719.5709 720.0378 720.5037 720.9687 721.4328 721.8960 722.3583
Columns 443 through 459
722.8197 723.2801 723.7397 724.1984 724.6563 725.1132 725.5693 726.0245 726.4788 726.9323 727.3850 727.8367 728.2877 728.7377 729.1870 729.6354 730.0830
Columns 460 through 476
730.5297 730.9757 731.4208 731.8651 732.3086 732.7513 733.1932 733.6342 734.0745 734.5140 734.9528 735.3907 735.8278 736.2642 736.6998 737.1347 737.5688
Columns 477 through 493
738.0021 738.4346 738.8664 739.2975 739.7278 740.1574 740.5862 741.0144 741.4417 741.8684 742.2943 742.7195 743.1440 743.5678 743.9909 744.4132 744.8349
Columns 494 through 500
745.2558 745.6761 746.0957 746.5146 746.9328 747.3503 747.7671
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
200
local_medium_temp =
1000
local_high_temp =
6000
temp =
1.0e+03 *
Columns 1 through 17
0.2000 0.2116 0.2232 0.2349 0.2465 0.2581 0.2697 0.2814 0.2930 0.3046 0.3162 0.3279 0.3395 0.3511 0.3627 0.3743 0.3860
Columns 18 through 34
0.3976 0.4092 0.4208 0.4325 0.4441 0.4557 0.4673 0.4790 0.4906 0.5022 0.5138 0.5255 0.5371 0.5487 0.5603 0.5719 0.5836
Columns 35 through 51
0.5952 0.6068 0.6184 0.6301 0.6417 0.6533 0.6649 0.6766 0.6882 0.6998 0.7114 0.7230 0.7347 0.7463 0.7579 0.7695 0.7812
Columns 52 through 68
0.7928 0.8044 0.8160 0.8277 0.8393 0.8509 0.8625 0.8741 0.8858 0.8974 0.9090 0.9206 0.9323 0.9439 0.9555 0.9671 0.9788
Columns 69 through 85
0.9904 1.0020 1.0136 1.0253 1.0369 1.0485 1.0601 1.0717 1.0834 1.0950 1.1066 1.1182 1.1299 1.1415 1.1531 1.1647 1.1764
Columns 86 through 102
1.1880 1.1996 1.2112 1.2228 1.2345 1.2461 1.2577 1.2693 1.2810 1.2926 1.3042 1.3158 1.3275 1.3391 1.3507 1.3623 1.3739
Columns 103 through 119
1.3856 1.3972 1.4088 1.4204 1.4321 1.4437 1.4553 1.4669 1.4786 1.4902 1.5018 1.5134 1.5251 1.5367 1.5483 1.5599 1.5715
Columns 120 through 136
1.5832 1.5948 1.6064 1.6180 1.6297 1.6413 1.6529 1.6645 1.6762 1.6878 1.6994 1.7110 1.7226 1.7343 1.7459 1.7575 1.7691
Columns 137 through 153
1.7808 1.7924 1.8040 1.8156 1.8273 1.8389 1.8505 1.8621 1.8737 1.8854 1.8970 1.9086 1.9202 1.9319 1.9435 1.9551 1.9667
Columns 154 through 170
1.9784 1.9900 2.0016 2.0132 2.0248 2.0365 2.0481 2.0597 2.0713 2.0830 2.0946 2.1062 2.1178 2.1295 2.1411 2.1527 2.1643
Columns 171 through 187
2.1760 2.1876 2.1992 2.2108 2.2224 2.2341 2.2457 2.2573 2.2689 2.2806 2.2922 2.3038 2.3154 2.3271 2.3387 2.3503 2.3619
Columns 188 through 204
2.3735 2.3852 2.3968 2.4084 2.4200 2.4317 2.4433 2.4549 2.4665 2.4782 2.4898 2.5014 2.5130 2.5246 2.5363 2.5479 2.5595
Columns 205 through 221
2.5711 2.5828 2.5944 2.6060 2.6176 2.6293 2.6409 2.6525 2.6641 2.6758 2.6874 2.6990 2.7106 2.7222 2.7339 2.7455 2.7571
Columns 222 through 238
2.7687 2.7804 2.7920 2.8036 2.8152 2.8269 2.8385 2.8501 2.8617 2.8733 2.8850 2.8966 2.9082 2.9198 2.9315 2.9431 2.9547
Columns 239 through 255
2.9663 2.9780 2.9896 3.0012 3.0128 3.0244 3.0361 3.0477 3.0593 3.0709 3.0826 3.0942 3.1058 3.1174 3.1291 3.1407 3.1523
Columns 256 through 272
3.1639 3.1756 3.1872 3.1988 3.2104 3.2220 3.2337 3.2453 3.2569 3.2685 3.2802 3.2918 3.3034 3.3150 3.3267 3.3383 3.3499
Columns 273 through 289
3.3615 3.3731 3.3848 3.3964 3.4080 3.4196 3.4313 3.4429 3.4545 3.4661 3.4778 3.4894 3.5010 3.5126 3.5242 3.5359 3.5475
Columns 290 through 306
3.5591 3.5707 3.5824 3.5940 3.6056 3.6172 3.6289 3.6405 3.6521 3.6637 3.6754 3.6870 3.6986 3.7102 3.7218 3.7335 3.7451
Columns 307 through 323
3.7567 3.7683 3.7800 3.7916 3.8032 3.8148 3.8265 3.8381 3.8497 3.8613 3.8729 3.8846 3.8962 3.9078 3.9194 3.9311 3.9427
Columns 324 through 340
3.9543 3.9659 3.9776 3.9892 4.0008 4.0124 4.0240 4.0357 4.0473 4.0589 4.0705 4.0822 4.0938 4.1054 4.1170 4.1287 4.1403
Columns 341 through 357
4.1519 4.1635 4.1752 4.1868 4.1984 4.2100 4.2216 4.2333 4.2449 4.2565 4.2681 4.2798 4.2914 4.3030 4.3146 4.3263 4.3379
Columns 358 through 374
4.3495 4.3611 4.3727 4.3844 4.3960 4.4076 4.4192 4.4309 4.4425 4.4541 4.4657 4.4774 4.4890 4.5006 4.5122 4.5238 4.5355
Columns 375 through 391
4.5471 4.5587 4.5703 4.5820 4.5936 4.6052 4.6168 4.6285 4.6401 4.6517 4.6633 4.6749 4.6866 4.6982 4.7098 4.7214 4.7331
Columns 392 through 408
4.7447 4.7563 4.7679 4.7796 4.7912 4.8028 4.8144 4.8261 4.8377 4.8493 4.8609 4.8725 4.8842 4.8958 4.9074 4.9190 4.9307
Columns 409 through 425
4.9423 4.9539 4.9655 4.9772 4.9888 5.0004 5.0120 5.0236 5.0353 5.0469 5.0585 5.0701 5.0818 5.0934 5.1050 5.1166 5.1283
Columns 426 through 442
5.1399 5.1515 5.1631 5.1747 5.1864 5.1980 5.2096 5.2212 5.2329 5.2445 5.2561 5.2677 5.2794 5.2910 5.3026 5.3142 5.3259
Columns 443 through 459
5.3375 5.3491 5.3607 5.3723 5.3840 5.3956 5.4072 5.4188 5.4305 5.4421 5.4537 5.4653 5.4770 5.4886 5.5002 5.5118 5.5234
Columns 460 through 476
5.5351 5.5467 5.5583 5.5699 5.5816 5.5932 5.6048 5.6164 5.6281 5.6397 5.6513 5.6629 5.6745 5.6862 5.6978 5.7094 5.7210
Columns 477 through 493
5.7327 5.7443 5.7559 5.7675 5.7792 5.7908 5.8024 5.8140 5.8257 5.8373 5.8489 5.8605 5.8721 5.8838 5.8954 5.9070 5.9186
Columns 494 through 500
5.9303 5.9419 5.9535 5.9651 5.9768 5.9884 6.0000
a1 =
5.4041
a2 =
0.0117
a4 =
6.8372e-10
a5 =
-4.0985e-14
a6 =
-2.2593e+04
a7 =
-3.4808
a8 =
4.7295
a9 =
-0.0032
a10 =
4.7535e-05
a11 =
-5.7459e-08
a12 =
2.1931e-11
a13 =
-2.1573e+04
a14 =
4.1030
cp =
Columns 1 through 17
63.0623 64.0353 64.9998 65.9558 66.9033 67.8424 68.7732 69.6958 70.6100 71.5161 72.4140 73.3039 74.1857 75.0595 75.9253 76.7833 77.6334
Columns 18 through 34
78.4758 79.3103 80.1372 80.9564 81.7680 82.5721 83.3686 84.1577 84.9394 85.7137 86.4807 87.2404 87.9929 88.7382 89.4764 90.2075 90.9315
Columns 35 through 51
91.6486 92.3587 93.0619 93.7582 94.4478 95.1306 95.8066 96.4760 97.1388 97.7949 98.4446 99.0877 99.7244 100.3547 100.9786 101.5962 102.2075
Columns 52 through 68
102.8126 103.4115 104.0042 104.5909 105.1715 105.7460 106.3146 106.8773 107.4341 107.9850 108.5302 109.0695 109.6032 110.1312 110.6535 111.1702 111.6814
Columns 69 through 85
112.1871 112.6873 113.1821 113.6715 114.1555 114.6342 115.1076 115.5759 116.0389 116.4968 116.9495 117.3972 117.8399 118.2775 118.7103 119.1381 119.5610
Columns 86 through 102
119.9791 120.3923 120.8009 121.2047 121.6038 121.9982 122.3881 122.7734 123.1541 123.5304 123.9022 124.2695 124.6325 124.9911 125.3454 125.6955 126.0412
Columns 103 through 119
126.3828 126.7202 127.0535 127.3827 127.7078 128.0289 128.3460 128.6591 128.9683 129.2737 129.5751 129.8728 130.1667 130.4568 130.7432 131.0259 131.3049
Columns 120 through 136
131.5804 131.8522 132.1205 132.3853 132.6466 132.9045 133.1589 133.4100 133.6577 133.9020 134.1431 134.3809 134.6155 134.8469 135.0751 135.3002 135.5222
Columns 137 through 153
135.7412 135.9570 136.1699 136.3798 136.5868 136.7908 136.9919 137.1902 137.3856 137.5783 137.7682 137.9553 138.1397 138.3215 138.5006 138.6770 138.8509
Columns 154 through 170
139.0222 139.1910 139.3572 139.5210 139.6823 139.8412 139.9976 140.1517 140.3035 140.4529 140.6001 140.7449 140.8876 141.0280 141.1662 141.3023 141.4362
Columns 171 through 187
141.5681 141.6978 141.8255 141.9512 142.0748 142.1965 142.3162 142.4340 142.5498 142.6638 142.7759 142.8862 142.9947 143.1014 143.2063 143.3095 143.4110
Columns 188 through 204
143.5108 143.6089 143.7054 143.8002 143.8935 143.9851 144.0753 144.1638 144.2509 144.3365 144.4206 144.5032 144.5845 144.6643 144.7428 144.8199 144.8956
Columns 205 through 221
144.9700 145.0432 145.1150 145.1856 145.2550 145.3231 145.3901 145.4558 145.5204 145.5839 145.6463 145.7075 145.7677 145.8268 145.8848 145.9419 145.9979
Columns 222 through 238
146.0529 146.1070 146.1601 146.2123 146.2635 146.3139 146.3634 146.4120 146.4597 146.5067 146.5528 146.5981 146.6426 146.6864 146.7294 146.7717 146.8133
Columns 239 through 255
146.8541 146.8943 146.9338 146.9727 147.0109 147.0485 147.0854 147.1218 147.1576 147.1928 147.2275 147.2616 147.2952 147.3283 147.3609 147.3930 147.4247
Columns 256 through 272
147.4559 147.4866 147.5169 147.5468 147.5763 147.6054 147.6341 147.6624 147.6904 147.7180 147.7453 147.7723 147.7989 147.8253 147.8513 147.8771 147.9026
Columns 273 through 289
147.9279 147.9529 147.9777 148.0022 148.0266 148.0507 148.0746 148.0984 148.1219 148.1453 148.1686 148.1916 148.2146 148.2374 148.2601 148.2826 148.3051
Columns 290 through 306
148.3275 148.3497 148.3719 148.3940 148.4161 148.4381 148.4600 148.4818 148.5037 148.5255 148.5473 148.5690 148.5907 148.6125 148.6342 148.6559 148.6777
Columns 307 through 323
148.6994 148.7212 148.7430 148.7648 148.7867 148.8086 148.8305 148.8525 148.8746 148.8967 148.9189 148.9411 148.9634 148.9858 149.0082 149.0308 149.0534
Columns 324 through 340
149.0761 149.0989 149.1218 149.1447 149.1678 149.1910 149.2143 149.2376 149.2611 149.2847 149.3084 149.3322 149.3561 149.3801 149.4043 149.4285 149.4529
Columns 341 through 357
149.4774 149.5020 149.5267 149.5515 149.5764 149.6015 149.6266 149.6519 149.6773 149.7028 149.7284 149.7541 149.7799 149.8059 149.8319 149.8581 149.8843
Columns 358 through 374
149.9106 149.9371 149.9636 149.9902 150.0169 150.0437 150.0706 150.0976 150.1246 150.1518 150.1789 150.2062 150.2335 150.2609 150.2883 150.3158 150.3433
Columns 375 through 391
150.3709 150.3985 150.4261 150.4538 150.4814 150.5091 150.5368 150.5645 150.5922 150.6200 150.6476 150.6753 150.7029 150.7306 150.7581 150.7856 150.8131
Columns 392 through 408
150.8405 150.8679 150.8951 150.9223 150.9494 150.9764 151.0033 151.0301 151.0567 151.0833 151.1096 151.1359 151.1620 151.1879 151.2136 151.2391 151.2645
Columns 409 through 425
151.2896 151.3146 151.3393 151.3638 151.3880 151.4120 151.4357 151.4591 151.4822 151.5051 151.5276 151.5498 151.5717 151.5933 151.6144 151.6353 151.6557
Columns 426 through 442
151.6757 151.6954 151.7146 151.7334 151.7517 151.7696 151.7871 151.8040 151.8205 151.8364 151.8518 151.8667 151.8810 151.8948 151.9080 151.9206 151.9326
Columns 443 through 459
151.9439 151.9546 151.9647 151.9741 151.9828 151.9909 151.9982 152.0047 152.0106 152.0156 152.0199 152.0234 152.0261 152.0280 152.0290 152.0291 152.0284
Columns 460 through 476
152.0268 152.0242 152.0208 152.0163 152.0109 152.0046 151.9972 151.9888 151.9794 151.9689 151.9573 151.9446 151.9308 151.9159 151.8998 151.8826 151.8641
Columns 477 through 493
151.8445 151.8236 151.8014 151.7780 151.7533 151.7273 151.6999 151.6712 151.6411 151.6096 151.5767 151.5423 151.5065 151.4692 151.4304 151.3900 151.3481
Columns 494 through 500
151.3047 151.2596 151.2129 151.1646 151.1146 151.0629 151.0095
H =
1.0e+05 *
Columns 1 through 17
-1.7700 -1.7626 -1.7551 -1.7475 -1.7397 -1.7319 -1.7240 -1.7159 -1.7078 -1.6995 -1.6911 -1.6827 -1.6741 -1.6654 -1.6567 -1.6478 -1.6388
Columns 18 through 34
-1.6297 -1.6206 -1.6113 -1.6019 -1.5925 -1.5829 -1.5733 -1.5635 -1.5537 -1.5438 -1.5338 -1.5237 -1.5135 -1.5032 -1.4929 -1.4824 -1.4719
Columns 35 through 51
-1.4613 -1.4506 -1.4398 -1.4290 -1.4180 -1.4070 -1.3959 -1.3847 -1.3735 -1.3622 -1.3508 -1.3393 -1.3277 -1.3161 -1.3044 -1.2926 -1.2808
Columns 52 through 68
-1.2689 -1.2569 -1.2448 -1.2327 -1.2205 -1.2083 -1.1959 -1.1835 -1.1711 -1.1586 -1.1460 -1.1333 -1.1206 -1.1079 -1.0950 -1.0821 -1.0692
Columns 69 through 85
-1.0562 -1.0431 -1.0300 -1.0168 -1.0036 -0.9903 -0.9769 -0.9635 -0.9500 -0.9365 -0.9230 -0.9093 -0.8957 -0.8819 -0.8682 -0.8543 -0.8405
Columns 86 through 102
-0.8266 -0.8126 -0.7986 -0.7845 -0.7704 -0.7562 -0.7420 -0.7278 -0.7135 -0.6992 -0.6848 -0.6704 -0.6559 -0.6414 -0.6268 -0.6122 -0.5976
Columns 103 through 119
-0.5829 -0.5682 -0.5535 -0.5387 -0.5239 -0.5090 -0.4941 -0.4792 -0.4642 -0.4492 -0.4342 -0.4191 -0.4040 -0.3888 -0.3736 -0.3584 -0.3432
Columns 120 through 136
-0.3279 -0.3126 -0.2972 -0.2819 -0.2665 -0.2510 -0.2356 -0.2201 -0.2046 -0.1890 -0.1734 -0.1578 -0.1422 -0.1265 -0.1108 -0.0951 -0.0794
Columns 137 through 153
-0.0636 -0.0478 -0.0320 -0.0162 -0.0003 0.0156 0.0315 0.0474 0.0634 0.0793 0.0953 0.1114 0.1274 0.1435 0.1596 0.1757 0.1918
Columns 154 through 170
0.2080 0.2241 0.2403 0.2565 0.2728 0.2890 0.3053 0.3215 0.3378 0.3542 0.3705 0.3868 0.4032 0.4196 0.4360 0.4524 0.4688
Columns 171 through 187
0.4853 0.5017 0.5182 0.5347 0.5512 0.5677 0.5843 0.6008 0.6174 0.6340 0.6506 0.6672 0.6838 0.7004 0.7170 0.7337 0.7504
Columns 188 through 204
0.7670 0.7837 0.8004 0.8171 0.8338 0.8506 0.8673 0.8841 0.9008 0.9176 0.9344 0.9512 0.9680 0.9848 1.0016 1.0184 1.0353
Columns 205 through 221
1.0521 1.0690 1.0858 1.1027 1.1196 1.1365 1.1534 1.1703 1.1872 1.2041 1.2210 1.2379 1.2549 1.2718 1.2888 1.3057 1.3227
Columns 222 through 238
1.3397 1.3567 1.3737 1.3906 1.4076 1.4246 1.4417 1.4587 1.4757 1.4927 1.5097 1.5268 1.5438 1.5609 1.5779 1.5950 1.6120
Columns 239 through 255
1.6291 1.6462 1.6633 1.6803 1.6974 1.7145 1.7316 1.7487 1.7658 1.7829 1.8000 1.8171 1.8343 1.8514 1.8685 1.8856 1.9028
Columns 256 through 272
1.9199 1.9371 1.9542 1.9713 1.9885 2.0056 2.0228 2.0400 2.0571 2.0743 2.0915 2.1086 2.1258 2.1430 2.1602 2.1774 2.1946
Columns 273 through 289
2.2118 2.2290 2.2462 2.2634 2.2806 2.2978 2.3150 2.3322 2.3494 2.3666 2.3838 2.4011 2.4183 2.4355 2.4527 2.4700 2.4872
Columns 290 through 306
2.5045 2.5217 2.5389 2.5562 2.5734 2.5907 2.6079 2.6252 2.6425 2.6597 2.6770 2.6943 2.7115 2.7288 2.7461 2.7634 2.7806
Columns 307 through 323
2.7979 2.8152 2.8325 2.8498 2.8671 2.8844 2.9017 2.9190 2.9363 2.9536 2.9709 2.9882 3.0055 3.0228 3.0401 3.0575 3.0748
Columns 324 through 340
3.0921 3.1094 3.1268 3.1441 3.1614 3.1788 3.1961 3.2135 3.2308 3.2482 3.2655 3.2829 3.3002 3.3176 3.3350 3.3523 3.3697
Columns 341 through 357
3.3871 3.4044 3.4218 3.4392 3.4566 3.4740 3.4914 3.5088 3.5262 3.5436 3.5610 3.5784 3.5958 3.6132 3.6306 3.6480 3.6654
Columns 358 through 374
3.6828 3.7003 3.7177 3.7351 3.7526 3.7700 3.7875 3.8049 3.8223 3.8398 3.8572 3.8747 3.8922 3.9096 3.9271 3.9446 3.9620
Columns 375 through 391
3.9795 3.9970 4.0145 4.0320 4.0495 4.0669 4.0844 4.1019 4.1194 4.1369 4.1545 4.1720 4.1895 4.2070 4.2245 4.2420 4.2596
Columns 392 through 408
4.2771 4.2946 4.3122 4.3297 4.3473 4.3648 4.3824 4.3999 4.4175 4.4350 4.4526 4.4702 4.4877 4.5053 4.5229 4.5404 4.5580
Columns 409 through 425
4.5756 4.5932 4.6108 4.6284 4.6460 4.6636 4.6812 4.6988 4.7164 4.7340 4.7516 4.7692 4.7868 4.8044 4.8221 4.8397 4.8573
Columns 426 through 442
4.8749 4.8926 4.9102 4.9278 4.9455 4.9631 4.9808 4.9984 5.0161 5.0337 5.0514 5.0690 5.0867 5.1043 5.1220 5.1396 5.1573
Columns 443 through 459
5.1749 5.1926 5.2103 5.2279 5.2456 5.2633 5.2809 5.2986 5.3163 5.3339 5.3516 5.3693 5.3869 5.4046 5.4223 5.4400 5.4576
Columns 460 through 476
5.4753 5.4930 5.5106 5.5283 5.5460 5.5636 5.5813 5.5990 5.6166 5.6343 5.6520 5.6696 5.6873 5.7049 5.7226 5.7403 5.7579
Columns 477 through 493
5.7756 5.7932 5.8109 5.8285 5.8461 5.8638 5.8814 5.8990 5.9167 5.9343 5.9519 5.9695 5.9871 6.0047 6.0224 6.0400 6.0575
Columns 494 through 500
6.0751 6.0927 6.1103 6.1279 6.1454 6.1630 6.1806
H =
1.0e+05 *
Columns 1 through 17
-1.7700 -1.7626 -1.7551 -1.7475 -1.7397 -1.7319 -1.7240 -1.7159 -1.7078 -1.6995 -1.6911 -1.6827 -1.6741 -1.6654 -1.6567 -1.6478 -1.6388
Columns 18 through 34
-1.6297 -1.6206 -1.6113 -1.6019 -1.5925 -1.5829 -1.5733 -1.5635 -1.5537 -1.5438 -1.5338 -1.5237 -1.5135 -1.5032 -1.4929 -1.4824 -1.4719
Columns 35 through 51
-1.4613 -1.4506 -1.4398 -1.4290 -1.4180 -1.4070 -1.3959 -1.3847 -1.3735 -1.3622 -1.3508 -1.3393 -1.3277 -1.3161 -1.3044 -1.2926 -1.2808
Columns 52 through 68
-1.2689 -1.2569 -1.2448 -1.2327 -1.2205 -1.2083 -1.1959 -1.1835 -1.1711 -1.1586 -1.1460 -1.1333 -1.1206 -1.1079 -1.0950 -1.0821 -1.0692
Columns 69 through 85
-1.0562 -1.0431 -1.0300 -1.0168 -1.0036 -0.9903 -0.9769 -0.9635 -0.9500 -0.9365 -0.9230 -0.9093 -0.8957 -0.8819 -0.8682 -0.8543 -0.8405
Columns 86 through 102
-0.8266 -0.8126 -0.7986 -0.7845 -0.7704 -0.7562 -0.7420 -0.7278 -0.7135 -0.6992 -0.6848 -0.6704 -0.6559 -0.6414 -0.6268 -0.6122 -0.5976
Columns 103 through 119
-0.5829 -0.5682 -0.5535 -0.5387 -0.5239 -0.5090 -0.4941 -0.4792 -0.4642 -0.4492 -0.4342 -0.4191 -0.4040 -0.3888 -0.3736 -0.3584 -0.3432
Columns 120 through 136
-0.3279 -0.3126 -0.2972 -0.2819 -0.2665 -0.2510 -0.2356 -0.2201 -0.2046 -0.1890 -0.1734 -0.1578 -0.1422 -0.1265 -0.1108 -0.0951 -0.0794
Columns 137 through 153
-0.0636 -0.0478 -0.0320 -0.0162 -0.0003 0.0156 0.0315 0.0474 0.0634 0.0793 0.0953 0.1114 0.1274 0.1435 0.1596 0.1757 0.1918
Columns 154 through 170
0.2080 0.2241 0.2403 0.2565 0.2728 0.2890 0.3053 0.3215 0.3378 0.3542 0.3705 0.3868 0.4032 0.4196 0.4360 0.4524 0.4688
Columns 171 through 187
0.4853 0.5017 0.5182 0.5347 0.5512 0.5677 0.5843 0.6008 0.6174 0.6340 0.6506 0.6672 0.6838 0.7004 0.7170 0.7337 0.7504
Columns 188 through 204
0.7670 0.7837 0.8004 0.8171 0.8338 0.8506 0.8673 0.8841 0.9008 0.9176 0.9344 0.9512 0.9680 0.9848 1.0016 1.0184 1.0353
Columns 205 through 221
1.0521 1.0690 1.0858 1.1027 1.1196 1.1365 1.1534 1.1703 1.1872 1.2041 1.2210 1.2379 1.2549 1.2718 1.2888 1.3057 1.3227
Columns 222 through 238
1.3397 1.3567 1.3737 1.3906 1.4076 1.4246 1.4417 1.4587 1.4757 1.4927 1.5097 1.5268 1.5438 1.5609 1.5779 1.5950 1.6120
Columns 239 through 255
1.6291 1.6462 1.6633 1.6803 1.6974 1.7145 1.7316 1.7487 1.7658 1.7829 1.8000 1.8171 1.8343 1.8514 1.8685 1.8856 1.9028
Columns 256 through 272
1.9199 1.9371 1.9542 1.9713 1.9885 2.0056 2.0228 2.0400 2.0571 2.0743 2.0915 2.1086 2.1258 2.1430 2.1602 2.1774 2.1946
Columns 273 through 289
2.2118 2.2290 2.2462 2.2634 2.2806 2.2978 2.3150 2.3322 2.3494 2.3666 2.3838 2.4011 2.4183 2.4355 2.4527 2.4700 2.4872
Columns 290 through 306
2.5045 2.5217 2.5389 2.5562 2.5734 2.5907 2.6079 2.6252 2.6425 2.6597 2.6770 2.6943 2.7115 2.7288 2.7461 2.7634 2.7806
Columns 307 through 323
2.7979 2.8152 2.8325 2.8498 2.8671 2.8844 2.9017 2.9190 2.9363 2.9536 2.9709 2.9882 3.0055 3.0228 3.0401 3.0575 3.0748
Columns 324 through 340
3.0921 3.1094 3.1268 3.1441 3.1614 3.1788 3.1961 3.2135 3.2308 3.2482 3.2655 3.2829 3.3002 3.3176 3.3350 3.3523 3.3697
Columns 341 through 357
3.3871 3.4044 3.4218 3.4392 3.4566 3.4740 3.4914 3.5088 3.5262 3.5436 3.5610 3.5784 3.5958 3.6132 3.6306 3.6480 3.6654
Columns 358 through 374
3.6828 3.7003 3.7177 3.7351 3.7526 3.7700 3.7875 3.8049 3.8223 3.8398 3.8572 3.8747 3.8922 3.9096 3.9271 3.9446 3.9620
Columns 375 through 391
3.9795 3.9970 4.0145 4.0320 4.0495 4.0669 4.0844 4.1019 4.1194 4.1369 4.1545 4.1720 4.1895 4.2070 4.2245 4.2420 4.2596
Columns 392 through 408
4.2771 4.2946 4.3122 4.3297 4.3473 4.3648 4.3824 4.3999 4.4175 4.4350 4.4526 4.4702 4.4877 4.5053 4.5229 4.5404 4.5580
Columns 409 through 425
4.5756 4.5932 4.6108 4.6284 4.6460 4.6636 4.6812 4.6988 4.7164 4.7340 4.7516 4.7692 4.7868 4.8044 4.8221 4.8397 4.8573
Columns 426 through 442
4.8749 4.8926 4.9102 4.9278 4.9455 4.9631 4.9808 4.9984 5.0161 5.0337 5.0514 5.0690 5.0867 5.1043 5.1220 5.1396 5.1573
Columns 443 through 459
5.1749 5.1926 5.2103 5.2279 5.2456 5.2633 5.2809 5.2986 5.3163 5.3339 5.3516 5.3693 5.3869 5.4046 5.4223 5.4400 5.4576
Columns 460 through 476
5.4753 5.4930 5.5106 5.5283 5.5460 5.5636 5.5813 5.5990 5.6166 5.6343 5.6520 5.6696 5.6873 5.7049 5.7226 5.7403 5.7579
Columns 477 through 493
5.7756 5.7932 5.8109 5.8285 5.8461 5.8638 5.8814 5.8990 5.9167 5.9343 5.9519 5.9695 5.9871 6.0047 6.0224 6.0400 6.0575
Columns 494 through 500
6.0751 6.0927 6.1103 6.1279 6.1454 6.1630 6.1806
s =
Columns 1 through 17
227.9183 231.5080 234.9575 238.2806 241.4891 244.5933 247.6019 250.5227 253.3624 256.1270 258.8219 261.4517 264.0208 266.5329 268.9916 271.3998 273.7606
Columns 18 through 34
276.0764 278.3496 280.5825 282.7769 284.9348 287.0577 289.1474 291.2052 293.2325 295.2305 297.2004 299.1434 301.0604 302.9523 304.8202 306.6648 308.4869
Columns 35 through 51
310.2873 312.0667 313.8257 315.5650 317.2852 318.9868 320.6704 322.3364 323.9854 325.6179 327.2342 328.8348 330.4201 331.9904 333.5462 335.0877 336.6153
Columns 52 through 68
338.1294 339.6302 341.1180 342.5931 344.0557 345.5062 346.9448 348.3716 349.7871 351.1912 352.5844 353.9668 355.3385 356.6999 358.0509 359.3920 360.7231
Columns 69 through 85
362.0446 363.3565 364.6590 365.9522 367.2364 368.5116 369.7780 371.0358 372.2850 373.5257 374.7582 375.9825 377.1988 378.4071 379.6076 380.8003 381.9854
Columns 86 through 102
383.1630 384.3332 385.4961 386.6517 387.8003 388.9417 390.0762 391.2039 392.3247 393.4388 394.5464 395.6473 396.7418 397.8299 398.9117 399.9872 401.0566
Columns 103 through 119
402.1198 403.1770 404.2282 405.2735 406.3129 407.3466 408.3745 409.3967 410.4134 411.4244 412.4300 413.4302 414.4249 415.4143 416.3985 417.3774 418.3511
Columns 120 through 136
419.3196 420.2831 421.2416 422.1951 423.1436 424.0873 425.0260 425.9600 426.8892 427.8137 428.7335 429.6487 430.5593 431.4653 432.3668 433.2639 434.1564
Columns 137 through 153
435.0446 435.9285 436.8080 437.6832 438.5541 439.4208 440.2834 441.1418 441.9961 442.8463 443.6924 444.5345 445.3727 446.2069 447.0371 447.8635 448.6860
Columns 154 through 170
449.5047 450.3196 451.1307 451.9381 452.7418 453.5417 454.3381 455.1308 455.9199 456.7054 457.4874 458.2658 459.0408 459.8123 460.5804 461.3450 462.1062
Columns 171 through 187
462.8641 463.6187 464.3699 465.1178 465.8625 466.6039 467.3421 468.0771 468.8090 469.5377 470.2632 470.9856 471.7050 472.4213 473.1345 473.8448 474.5520
Columns 188 through 204
475.2563 475.9576 476.6559 477.3514 478.0439 478.7336 479.4204 480.1044 480.7855 481.4639 482.1395 482.8123 483.4824 484.1498 484.8145 485.4765 486.1358
Columns 205 through 221
486.7925 487.4465 488.0980 488.7468 489.3931 490.0368 490.6779 491.3166 491.9527 492.5864 493.2175 493.8463 494.4725 495.0964 495.7178 496.3369 496.9535
Columns 222 through 238
497.5678 498.1798 498.7894 499.3968 500.0018 500.6045 501.2050 501.8032 502.3992 502.9929 503.5845 504.1738 504.7610 505.3460 505.9289 506.5096 507.0882
Columns 239 through 255
507.6647 508.2390 508.8114 509.3816 509.9498 510.5159 511.0800 511.6421 512.2022 512.7603 513.3164 513.8706 514.4228 514.9731 515.5214 516.0679 516.6124
Columns 256 through 272
517.1550 517.6958 518.2347 518.7718 519.3070 519.8404 520.3719 520.9017 521.4297 521.9558 522.4803 523.0029 523.5238 524.0430 524.5604 525.0762 525.5902
Columns 273 through 289
526.1026 526.6132 527.1222 527.6295 528.1352 528.6392 529.1416 529.6424 530.1416 530.6392 531.1352 531.6296 532.1224 532.6137 533.1035 533.5917 534.0784
Columns 290 through 306
534.5635 535.0472 535.5293 536.0100 536.4892 536.9669 537.4431 537.9179 538.3913 538.8632 539.3337 539.8027 540.2704 540.7367 541.2015 541.6650 542.1272
Columns 307 through 323
542.5879 543.0473 543.5054 543.9621 544.4174 544.8715 545.3242 545.7757 546.2258 546.6747 547.1222 547.5685 548.0135 548.4573 548.8998 549.3411 549.7811
Columns 324 through 340
550.2199 550.6575 551.0939 551.5290 551.9630 552.3958 552.8274 553.2578 553.6870 554.1151 554.5420 554.9678 555.3924 555.8159 556.2383 556.6595 557.0796
Columns 341 through 357
557.4986 557.9165 558.3334 558.7491 559.1637 559.5773 559.9898 560.4012 560.8116 561.2209 561.6292 562.0364 562.4426 562.8478 563.2519 563.6550 564.0572
Columns 358 through 374
564.4583 564.8584 565.2575 565.6556 566.0528 566.4489 566.8441 567.2383 567.6316 568.0239 568.4153 568.8057 569.1951 569.5837 569.9713 570.3579 570.7437
Columns 375 through 391
571.1285 571.5124 571.8955 572.2776 572.6588 573.0391 573.4185 573.7971 574.1747 574.5515 574.9275 575.3025 575.6767 576.0500 576.4225 576.7941 577.1649
Columns 392 through 408
577.5349 577.9040 578.2722 578.6397 579.0063 579.3721 579.7370 580.1012 580.4645 580.8271 581.1888 581.5497 581.9098 582.2692 582.6277 582.9855 583.3425
Columns 409 through 425
583.6987 584.0541 584.4087 584.7626 585.1157 585.4680 585.8196 586.1704 586.5204 586.8697 587.2183 587.5661 587.9131 588.2595 588.6050 588.9499 589.2940
Columns 426 through 442
589.6373 589.9799 590.3219 590.6630 591.0035 591.3432 591.6822 592.0205 592.3581 592.6950 593.0311 593.3666 593.7013 594.0354 594.3687 594.7013 595.0332
Columns 443 through 459
595.3645 595.6950 596.0249 596.3540 596.6825 597.0102 597.3373 597.6637 597.9894 598.3144 598.6387 598.9624 599.2854 599.6077 599.9293 600.2502 600.5705
Columns 460 through 476
600.8900 601.2090 601.5272 601.8447 602.1616 602.4779 602.7934 603.1083 603.4225 603.7360 604.0489 604.3611 604.6726 604.9835 605.2937 605.6032 605.9121
Columns 477 through 493
606.2203 606.5279 606.8347 607.1409 607.4465 607.7514 608.0556 608.3591 608.6620 608.9642 609.2658 609.5667 609.8669 610.1664 610.4653 610.7636 611.0611
Columns 494 through 500
611.3580 611.6542 611.9498 612.2447 612.5389 612.8324 613.1253
Warning: Directory already exists.
> In thermo_data_f1 (line 97)
local_low_temp =
300
local_medium_temp =
1000
local_high_temp =
5000
temp =
1.0e+03 *
Columns 1 through 17
0.3000 0.3094 0.3188 0.3283 0.3377 0.3471 0.3565 0.3659 0.3754 0.3848 0.3942 0.4036 0.4130 0.4224 0.4319 0.4413 0.4507
Columns 18 through 34
0.4601 0.4695 0.4790 0.4884 0.4978 0.5072 0.5166 0.5261 0.5355 0.5449 0.5543 0.5637 0.5731 0.5826 0.5920 0.6014 0.6108
Columns 35 through 51
0.6202 0.6297 0.6391 0.6485 0.6579 0.6673 0.6768 0.6862 0.6956 0.7050 0.7144 0.7238 0.7333 0.7427 0.7521 0.7615 0.7709
Columns 52 through 68
0.7804 0.7898 0.7992 0.8086 0.8180 0.8275 0.8369 0.8463 0.8557 0.8651 0.8745 0.8840 0.8934 0.9028 0.9122 0.9216 0.9311
Columns 69 through 85
0.9405 0.9499 0.9593 0.9687 0.9782 0.9876 0.9970 1.0064 1.0158 1.0253 1.0347 1.0441 1.0535 1.0629 1.0723 1.0818 1.0912
Columns 86 through 102
1.1006 1.1100 1.1194 1.1289 1.1383 1.1477 1.1571 1.1665 1.1760 1.1854 1.1948 1.2042 1.2136 1.2230 1.2325 1.2419 1.2513
Columns 103 through 119
1.2607 1.2701 1.2796 1.2890 1.2984 1.3078 1.3172 1.3267 1.3361 1.3455 1.3549 1.3643 1.3737 1.3832 1.3926 1.4020 1.4114
Columns 120 through 136
1.4208 1.4303 1.4397 1.4491 1.4585 1.4679 1.4774 1.4868 1.4962 1.5056 1.5150 1.5244 1.5339 1.5433 1.5527 1.5621 1.5715
Columns 137 through 153
1.5810 1.5904 1.5998 1.6092 1.6186 1.6281 1.6375 1.6469 1.6563 1.6657 1.6752 1.6846 1.6940 1.7034 1.7128 1.7222 1.7317
Columns 154 through 170
1.7411 1.7505 1.7599 1.7693 1.7788 1.7882 1.7976 1.8070 1.8164 1.8259 1.8353 1.8447 1.8541 1.8635 1.8729 1.8824 1.8918
Columns 171 through 187
1.9012 1.9106 1.9200 1.9295 1.9389 1.9483 1.9577 1.9671 1.9766 1.9860 1.9954 2.0048 2.0142 2.0236 2.0331 2.0425 2.0519
Columns 188 through 204
2.0613 2.0707 2.0802 2.0896 2.0990 2.1084 2.1178 2.1273 2.1367 2.1461 2.1555 2.1649 2.1743 2.1838 2.1932 2.2026 2.2120
Columns 205 through 221
2.2214 2.2309 2.2403 2.2497 2.2591 2.2685 2.2780 2.2874 2.2968 2.3062 2.3156 2.3251 2.3345 2.3439 2.3533 2.3627 2.3721
Columns 222 through 238
2.3816 2.3910 2.4004 2.4098 2.4192 2.4287 2.4381 2.4475 2.4569 2.4663 2.4758 2.4852 2.4946 2.5040 2.5134 2.5228 2.5323
Columns 239 through 255
2.5417 2.5511 2.5605 2.5699 2.5794 2.5888 2.5982 2.6076 2.6170 2.6265 2.6359 2.6453 2.6547 2.6641 2.6735 2.6830 2.6924
Columns 256 through 272
2.7018 2.7112 2.7206 2.7301 2.7395 2.7489 2.7583 2.7677 2.7772 2.7866 2.7960 2.8054 2.8148 2.8242 2.8337 2.8431 2.8525
Columns 273 through 289
2.8619 2.8713 2.8808 2.8902 2.8996 2.9090 2.9184 2.9279 2.9373 2.9467 2.9561 2.9655 2.9749 2.9844 2.9938 3.0032 3.0126
Columns 290 through 306
3.0220 3.0315 3.0409 3.0503 3.0597 3.0691 3.0786 3.0880 3.0974 3.1068 3.1162 3.1257 3.1351 3.1445 3.1539 3.1633 3.1727
Columns 307 through 323
3.1822 3.1916 3.2010 3.2104 3.2198 3.2293 3.2387 3.2481 3.2575 3.2669 3.2764 3.2858 3.2952 3.3046 3.3140 3.3234 3.3329
Columns 324 through 340
3.3423 3.3517 3.3611 3.3705 3.3800 3.3894 3.3988 3.4082 3.4176 3.4271 3.4365 3.4459 3.4553 3.4647 3.4741 3.4836 3.4930
Columns 341 through 357
3.5024 3.5118 3.5212 3.5307 3.5401 3.5495 3.5589 3.5683 3.5778 3.5872 3.5966 3.6060 3.6154 3.6248 3.6343 3.6437 3.6531
Columns 358 through 374
3.6625 3.6719 3.6814 3.6908 3.7002 3.7096 3.7190 3.7285 3.7379 3.7473 3.7567 3.7661 3.7756 3.7850 3.7944 3.8038 3.8132
Columns 375 through 391
3.8226 3.8321 3.8415 3.8509 3.8603 3.8697 3.8792 3.8886 3.8980 3.9074 3.9168 3.9263 3.9357 3.9451 3.9545 3.9639 3.9733
Columns 392 through 408
3.9828 3.9922 4.0016 4.0110 4.0204 4.0299 4.0393 4.0487 4.0581 4.0675 4.0770 4.0864 4.0958 4.1052 4.1146 4.1240 4.1335
Columns 409 through 425
4.1429 4.1523 4.1617 4.1711 4.1806 4.1900 4.1994 4.2088 4.2182 4.2277 4.2371 4.2465 4.2559 4.2653 4.2747 4.2842 4.2936
Columns 426 through 442
4.3030 4.3124 4.3218 4.3313 4.3407 4.3501 4.3595 4.3689 4.3784 4.3878 4.3972 4.4066 4.4160 4.4255 4.4349 4.4443 4.4537
Columns 443 through 459
4.4631 4.4725 4.4820 4.4914 4.5008 4.5102 4.5196 4.5291 4.5385 4.5479 4.5573 4.5667 4.5762 4.5856 4.5950 4.6044 4.6138
Columns 460 through 476
4.6232 4.6327 4.6421 4.6515 4.6609 4.6703 4.6798 4.6892 4.6986 4.7080 4.7174 4.7269 4.7363 4.7457 4.7551 4.7645 4.7739
Columns 477 through 493
4.7834 4.7928 4.8022 4.8116 4.8210 4.8305 4.8399 4.8493 4.8587 4.8681 4.8776 4.8870 4.8964 4.9058 4.9152 4.9246 4.9341
Columns 494 through 500
4.9435 4.9529 4.9623 4.9717 4.9812 4.9906 5.0000
a1 =
5.9757
a2 =
0.0081
a4 =
4.0703e-10
a5 =
-2.1760e-14
a6 =
490.3218
a7 =
-5.0453
a8 =
3.4091
a9 =
0.0107
a10 =
1.8915e-06
a11 =
-7.1586e-09
a12 =
2.8674e-12
a13 =
1.5215e+03
a14 =
9.5583
cp =
Columns 1 through 17
67.9980 68.5124 69.0234 69.5308 70.0348 70.5353 71.0324 71.5260 72.0162 72.5030 72.9865 73.4665 73.9433 74.4166 74.8867 75.3535 75.8169
Columns 18 through 34
76.2771 76.7341 77.1877 77.6382 78.0855 78.5295 78.9704 79.4081 79.8426 80.2740 80.7023 81.1275 81.5496 81.9686 82.3845 82.7974 83.2073
Columns 35 through 51
83.6141 84.0179 84.4188 84.8166 85.2116 85.6035 85.9926 86.3787 86.7619 87.1422 87.5197 87.8943 88.2660 88.6350 89.0011 89.3644 89.7249
Columns 52 through 68
90.0826 90.4376 90.7899 91.1394 91.4862 91.8303 92.1717 92.5104 92.8465 93.1799 93.5107 93.8389 94.1644 94.4874 94.8078 95.1256 95.4409
Columns 69 through 85
95.7536 96.0639 96.3716 96.6768 96.9795 97.2798 97.5776 97.8729 98.1659 98.4564 98.7445 99.0302 99.3136 99.5945 99.8732 100.1495 100.4234
Columns 86 through 102
100.6951 100.9645 101.2315 101.4963 101.7589 102.0192 102.2773 102.5331 102.7867 103.0382 103.2874 103.5345 103.7795 104.0222 104.2629 104.5014 104.7379
Columns 103 through 119
104.9722 105.2044 105.4346 105.6627 105.8888 106.1129 106.3349 106.5549 106.7729 106.9889 107.2030 107.4151 107.6253 107.8335 108.0398 108.2441 108.4466
Columns 120 through 136
108.6472 108.8459 109.0428 109.2378 109.4309 109.6223 109.8118 109.9995 110.1854 110.3695 110.5518 110.7324 110.9113 111.0884 111.2637 111.4374 111.6094
Columns 137 through 153
111.7796 111.9482 112.1151 112.2804 112.4440 112.6060 112.7663 112.9251 113.0822 113.2377 113.3917 113.5441 113.6949 113.8442 113.9919 114.1382 114.2829
Columns 154 through 170
114.4261 114.5677 114.7080 114.8467 114.9840 115.1198 115.2542 115.3871 115.5187 115.6488 115.7775 115.9048 116.0308 116.1554 116.2786 116.4005 116.5210
Columns 171 through 187
116.6402 116.7581 116.8747 116.9899 117.1039 117.2166 117.3281 117.4383 117.5472 117.6549 117.7614 117.8666 117.9706 118.0735 118.1751 118.2756 118.3749
Columns 188 through 204
118.4730 118.5700 118.6658 118.7605 118.8541 118.9465 119.0379 119.1281 119.2173 119.3054 119.3924 119.4784 119.5633 119.6472 119.7300 119.8118 119.8926
Columns 205 through 221
119.9724 120.0513 120.1291 120.2059 120.2818 120.3567 120.4306 120.5036 120.5757 120.6469 120.7171 120.7864 120.8549 120.9224 120.9890 121.0548 121.1197
Columns 222 through 238
121.1838 121.2470 121.3093 121.3708 121.4315 121.4914 121.5505 121.6088 121.6663 121.7230 121.7789 121.8340 121.8884 121.9421 121.9950 122.0471 122.0986
Columns 239 through 255
122.1493 122.1993 122.2486 122.2971 122.3450 122.3923 122.4388 122.4847 122.5299 122.5745 122.6184 122.6617 122.7043 122.7464 122.7878 122.8286 122.8688
Columns 256 through 272
122.9084 122.9475 122.9859 123.0238 123.0611 123.0978 123.1340 123.1697 123.2048 123.2394 123.2735 123.3070 123.3401 123.3726 123.4047 123.4362 123.4673
Columns 273 through 289
123.4979 123.5280 123.5577 123.5869 123.6156 123.6439 123.6718 123.6992 123.7263 123.7529 123.7791 123.8048 123.8302 123.8552 123.8798 123.9040 123.9279
Columns 290 through 306
123.9514 123.9745 123.9973 124.0197 124.0417 124.0635 124.0849 124.1059 124.1267 124.1471 124.1672 124.1870 124.2065 124.2258 124.2447 124.2634 124.2817
Columns 307 through 323
124.2998 124.3177 124.3353 124.3526 124.3697 124.3865 124.4031 124.4195 124.4356 124.4515 124.4672 124.4827 124.4979 124.5130 124.5279 124.5426 124.5570
Columns 324 through 340
124.5713 124.5855 124.5994 124.6132 124.6268 124.6403 124.6536 124.6668 124.6798 124.6926 124.7054 124.7180 124.7304 124.7428 124.7550 124.7672 124.7792
Columns 341 through 357
124.7911 124.8029 124.8146 124.8262 124.8377 124.8492 124.8605 124.8718 124.8830 124.8942 124.9053 124.9163 124.9273 124.9382 124.9490 124.9599 124.9706
Columns 358 through 374
124.9814 124.9921 125.0028 125.0134 125.0241 125.0347 125.0453 125.0559 125.0664 125.0770 125.0876 125.0982 125.1087 125.1193 125.1299 125.1405 125.1511
Columns 375 through 391
125.1618 125.1725 125.1832 125.1939 125.2047 125.2155 125.2263 125.2372 125.2481 125.2591 125.2701 125.2812 125.2923 125.3035 125.3148 125.3261 125.3375
Columns 392 through 408
125.3489 125.3604 125.3720 125.3837 125.3955 125.4073 125.4192 125.4312 125.4433 125.4555 125.4678 125.4802 125.4927 125.5052 125.5179 125.5307 125.5436
Columns 409 through 425
125.5566 125.5697 125.5829 125.5962 125.6096 125.6232 125.6369 125.6507 125.6646 125.6786 125.6928 125.7071 125.7215 125.7361 125.7508 125.7656 125.7806
Columns 426 through 442
125.7957 125.8109 125.8263 125.8418 125.8574 125.8732 125.8892 125.9052 125.9215 125.9378 125.9544 125.9710 125.9879 126.0048 126.0220 126.0393 126.0567
Columns 443 through 459
126.0743 126.0920 126.1099 126.1280 126.1462 126.1646 126.1831 126.2018 126.2207 126.2397 126.2589 126.2782 126.2977 126.3174 126.3372 126.3572 126.3774
Columns 460 through 476
126.3977 126.4182 126.4388 126.4596 126.4806 126.5017 126.5230 126.5445 126.5661 126.5879 126.6099 126.6320 126.6543 126.6767 126.6994 126.7221 126.7451
Columns 477 through 493
126.7682 126.7915 126.8149 126.8385 126.8622 126.8861 126.9102 126.9344 126.9588 126.9834 127.0081 127.0329 127.0580 127.0831 127.1085 127.1339 127.1596
Columns 494 through 500
127.1854 127.2113 127.2374 127.2636 127.2900 127.3165 127.3432
H =
1.0e+05 *
Columns 1 through 17
0.2182 0.2247 0.2312 0.2377 0.2442 0.2509 0.2575 0.2642 0.2710 0.2778 0.2847 0.2916 0.2985 0.3055 0.3125 0.3196 0.3267
Columns 18 through 34
0.3339 0.3411 0.3483 0.3556 0.3630 0.3703 0.3778 0.3852 0.3927 0.4003 0.4078 0.4155 0.4231 0.4308 0.4386 0.4463 0.4542
Columns 35 through 51
0.4620 0.4699 0.4778 0.4858 0.4938 0.5019 0.5099 0.5181 0.5262 0.5344 0.5426 0.5509 0.5592 0.5675 0.5759 0.5843 0.5927
Columns 52 through 68
0.6012 0.6097 0.6182 0.6268 0.6354 0.6440 0.6527 0.6614 0.6701 0.6789 0.6877 0.6965 0.7053 0.7142 0.7231 0.7321 0.7411
Columns 69 through 85
0.7501 0.7591 0.7682 0.7773 0.7864 0.7955 0.8047 0.8139 0.8231 0.8324 0.8417 0.8510 0.8603 0.8697 0.8791 0.8885 0.8980
Columns 86 through 102
0.9074 0.9169 0.9265 0.9360 0.9456 0.9552 0.9648 0.9744 0.9841 0.9938 1.0035 1.0133 1.0230 1.0328 1.0426 1.0524 1.0623
Columns 103 through 119
1.0722 1.0821 1.0920 1.1019 1.1119 1.1219 1.1319 1.1419 1.1520 1.1620 1.1721 1.1822 1.1924 1.2025 1.2127 1.2229 1.2331
Columns 120 through 136
1.2433 1.2535 1.2638 1.2741 1.2844 1.2947 1.3050 1.3154 1.3257 1.3361 1.3465 1.3569 1.3674 1.3778 1.3883 1.3988 1.4093
Columns 137 through 153
1.4198 1.4304 1.4409 1.4515 1.4621 1.4727 1.4833 1.4939 1.5045 1.5152 1.5259 1.5366 1.5473 1.5580 1.5687 1.5795 1.5902
Columns 154 through 170
1.6010 1.6118 1.6226 1.6334 1.6442 1.6550 1.6659 1.6767 1.6876 1.6985 1.7094 1.7203 1.7312 1.7422 1.7531 1.7641 1.7750
Columns 171 through 187
1.7860 1.7970 1.8080 1.8190 1.8301 1.8411 1.8521 1.8632 1.8743 1.8853 1.8964 1.9075 1.9186 1.9297 1.9409 1.9520 1.9632
Columns 188 through 204
1.9743 1.9855 1.9966 2.0078 2.0190 2.0302 2.0414 2.0526 2.0639 2.0751 2.0863 2.0976 2.1088 2.1201 2.1314 2.1427 2.1540
Columns 205 through 221
2.1653 2.1766 2.1879 2.1992 2.2105 2.2218 2.2332 2.2445 2.2559 2.2672 2.2786 2.2900 2.3014 2.3127 2.3241 2.3355 2.3469
Columns 222 through 238
2.3584 2.3698 2.3812 2.3926 2.4041 2.4155 2.4269 2.4384 2.4499 2.4613 2.4728 2.4843 2.4957 2.5072 2.5187 2.5302 2.5417
Columns 239 through 255
2.5532 2.5647 2.5762 2.5877 2.5993 2.6108 2.6223 2.6338 2.6454 2.6569 2.6685 2.6800 2.6916 2.7031 2.7147 2.7263 2.7378
Columns 256 through 272
2.7494 2.7610 2.7726 2.7842 2.7958 2.8073 2.8189 2.8305 2.8421 2.8537 2.8654 2.8770 2.8886 2.9002 2.9118 2.9235 2.9351
Columns 273 through 289
2.9467 2.9583 2.9700 2.9816 2.9933 3.0049 3.0166 3.0282 3.0399 3.0515 3.0632 3.0748 3.0865 3.0982 3.1098 3.1215 3.1332
Columns 290 through 306
3.1448 3.1565 3.1682 3.1799 3.1916 3.2032 3.2149 3.2266 3.2383 3.2500 3.2617 3.2734 3.2851 3.2968 3.3085 3.3202 3.3319
Columns 307 through 323
3.3436 3.3553 3.3670 3.3787 3.3904 3.4022 3.4139 3.4256 3.4373 3.4490 3.4608 3.4725 3.4842 3.4959 3.5077 3.5194 3.5311
Columns 324 through 340
3.5429 3.5546 3.5663 3.5781 3.5898 3.6015 3.6133 3.6250 3.6368 3.6485 3.6602 3.6720 3.6837 3.6955 3.7072 3.7190 3.7307
Columns 341 through 357
3.7425 3.7543 3.7660 3.7778 3.7895 3.8013 3.8130 3.8248 3.8366 3.8483 3.8601 3.8719 3.8836 3.8954 3.9072 3.9189 3.9307
Columns 358 through 374
3.9425 3.9542 3.9660 3.9778 3.9896 4.0013 4.0131 4.0249 4.0367 4.0485 4.0602 4.0720 4.0838 4.0956 4.1074 4.1192 4.1309
Columns 375 through 391
4.1427 4.1545 4.1663 4.1781 4.1899 4.2017 4.2135 4.2253 4.2371 4.2489 4.2607 4.2725 4.2843 4.2961 4.3079 4.3197 4.3315
Columns 392 through 408
4.3433 4.3551 4.3669 4.3787 4.3905 4.4023 4.4141 4.4260 4.4378 4.4496 4.4614 4.4732 4.4850 4.4969 4.5087 4.5205 4.5323
Columns 409 through 425
4.5442 4.5560 4.5678 4.5796 4.5915 4.6033 4.6151 4.6270 4.6388 4.6506 4.6625 4.6743 4.6862 4.6980 4.7099 4.7217 4.7335
Columns 426 through 442
4.7454 4.7572 4.7691 4.7809 4.7928 4.8047 4.8165 4.8284 4.8402 4.8521 4.8639 4.8758 4.8877 4.8995 4.9114 4.9233 4.9352
Columns 443 through 459
4.9470 4.9589 4.9708 4.9827 4.9945 5.0064 5.0183 5.0302 5.0421 5.0540 5.0659 5.0778 5.0897 5.1015 5.1134 5.1253 5.1373
Columns 460 through 476
5.1492 5.1611 5.1730 5.1849 5.1968 5.2087 5.2206 5.2325 5.2445 5.2564 5.2683 5.2802 5.2922 5.3041 5.3160 5.3280 5.3399
Columns 477 through 493
5.3518 5.3638 5.3757 5.3877 5.3996 5.4116 5.4235 5.4355 5.4474 5.4594 5.4713 5.4833 5.4953 5.5072 5.5192 5.5312 5.5432
Columns 494 through 500
5.5551 5.5671 5.5791 5.5911 5.6031 5.6151 5.6271
H =
1.0e+05 *
Columns 1 through 17
0.2182 0.2247 0.2312 0.2377 0.2442 0.2509 0.2575 0.2642 0.2710 0.2778 0.2847 0.2916 0.2985 0.3055 0.3125 0.3196 0.3267
Columns 18 through 34
0.3339 0.3411 0.3483 0.3556 0.3630 0.3703 0.3778 0.3852 0.3927 0.4003 0.4078 0.4155 0.4231 0.4308 0.4386 0.4463 0.4542
Columns 35 through 51
0.4620 0.4699 0.4778 0.4858 0.4938 0.5019 0.5099 0.5181 0.5262 0.5344 0.5426 0.5509 0.5592 0.5675 0.5759 0.5843 0.5927
Columns 52 through 68
0.6012 0.6097 0.6182 0.6268 0.6354 0.6440 0.6527 0.6614 0.6701 0.6789 0.6877 0.6965 0.7053 0.7142 0.7231 0.7321 0.7411
Columns 69 through 85
0.7501 0.7591 0.7682 0.7773 0.7864 0.7955 0.8047 0.8139 0.8231 0.8324 0.8417 0.8510 0.8603 0.8697 0.8791 0.8885 0.8980
Columns 86 through 102
0.9074 0.9169 0.9265 0.9360 0.9456 0.9552 0.9648 0.9744 0.9841 0.9938 1.0035 1.0133 1.0230 1.0328 1.0426 1.0524 1.0623
Columns 103 through 119
1.0722 1.0821 1.0920 1.1019 1.1119 1.1219 1.1319 1.1419 1.1520 1.1620 1.1721 1.1822 1.1924 1.2025 1.2127 1.2229 1.2331
Columns 120 through 136
1.2433 1.2535 1.2638 1.2741 1.2844 1.2947 1.3050 1.3154 1.3257 1.3361 1.3465 1.3569 1.3674 1.3778 1.3883 1.3988 1.4093
Columns 137 through 153
1.4198 1.4304 1.4409 1.4515 1.4621 1.4727 1.4833 1.4939 1.5045 1.5152 1.5259 1.5366 1.5473 1.5580 1.5687 1.5795 1.5902
Columns 154 through 170
1.6010 1.6118 1.6226 1.6334 1.6442 1.6550 1.6659 1.6767 1.6876 1.6985 1.7094 1.7203 1.7312 1.7422 1.7531 1.7641 1.7750
Columns 171 through 187
1.7860 1.7970 1.8080 1.8190 1.8301 1.8411 1.8521 1.8632 1.8743 1.8853 1.8964 1.9075 1.9186 1.9297 1.9409 1.9520 1.9632
Columns 188 through 204
1.9743 1.9855 1.9966 2.0078 2.0190 2.0302 2.0414 2.0526 2.0639 2.0751 2.0863 2.0976 2.1088 2.1201 2.1314 2.1427 2.1540
Columns 205 through 221
2.1653 2.1766 2.1879 2.1992 2.2105 2.2218 2.2332 2.2445 2.2559 2.2672 2.2786 2.2900 2.3014 2.3127 2.3241 2.3355 2.3469
Columns 222 through 238
2.3584 2.3698 2.3812 2.3926 2.4041 2.4155 2.4269 2.4384 2.4499 2.4613 2.4728 2.4843 2.4957 2.5072 2.5187 2.5302 2.5417
Columns 239 through 255
2.5532 2.5647 2.5762 2.5877 2.5993 2.6108 2.6223 2.6338 2.6454 2.6569 2.6685 2.6800 2.6916 2.7031 2.7147 2.7263 2.7378
Columns 256 through 272
2.7494 2.7610 2.7726 2.7842 2.7958 2.8073 2.8189 2.8305 2.8421 2.8537 2.8654 2.8770 2.8886 2.9002 2.9118 2.9235 2.9351
Columns 273 through 289
2.9467 2.9583 2.9700 2.9816 2.9933 3.0049 3.0166 3.0282 3.0399 3.0515 3.0632 3.0748 3.0865 3.0982 3.1098 3.1215 3.1332
Columns 290 through 306
3.1448 3.1565 3.1682 3.1799 3.1916 3.2032 3.2149 3.2266 3.2383 3.2500 3.2617 3.2734 3.2851 3.2968 3.3085 3.3202 3.3319
Columns 307 through 323
3.3436 3.3553 3.3670 3.3787 3.3904 3.4022 3.4139 3.4256 3.4373 3.4490 3.4608 3.4725 3.4842 3.4959 3.5077 3.5194 3.5311
Columns 324 through 340
3.5429 3.5546 3.5663 3.5781 3.5898 3.6015 3.6133 3.6250 3.6368 3.6485 3.6602 3.6720 3.6837 3.6955 3.7072 3.7190 3.7307
Columns 341 through 357
3.7425 3.7543 3.7660 3.7778 3.7895 3.8013 3.8130 3.8248 3.8366 3.8483 3.8601 3.8719 3.8836 3.8954 3.9072 3.9189 3.9307
Columns 358 through 374
3.9425 3.9542 3.9660 3.9778 3.9896 4.0013 4.0131 4.0249 4.0367 4.0485 4.0602 4.0720 4.0838 4.0956 4.1074 4.1192 4.1309
Columns 375 through 391
4.1427 4.1545 4.1663 4.1781 4.1899 4.2017 4.2135 4.2253 4.2371 4.2489 4.2607 4.2725 4.2843 4.2961 4.3079 4.3197 4.3315
Columns 392 through 408
4.3433 4.3551 4.3669 4.3787 4.3905 4.4023 4.4141 4.4260 4.4378 4.4496 4.4614 4.4732 4.4850 4.4969 4.5087 4.5205 4.5323
Columns 409 through 425
4.5442 4.5560 4.5678 4.5796 4.5915 4.6033 4.6151 4.6270 4.6388 4.6506 4.6625 4.6743 4.6862 4.6980 4.7099 4.7217 4.7335
Columns 426 through 442
4.7454 4.7572 4.7691 4.7809 4.7928 4.8047 4.8165 4.8284 4.8402 4.8521 4.8639 4.8758 4.8877 4.8995 4.9114 4.9233 4.9352
Columns 443 through 459
4.9470 4.9589 4.9708 4.9827 4.9945 5.0064 5.0183 5.0302 5.0421 5.0540 5.0659 5.0778 5.0897 5.1015 5.1134 5.1253 5.1373
Columns 460 through 476
5.1492 5.1611 5.1730 5.1849 5.1968 5.2087 5.2206 5.2325 5.2445 5.2564 5.2683 5.2802 5.2922 5.3041 5.3160 5.3280 5.3399
Columns 477 through 493
5.3518 5.3638 5.3757 5.3877 5.3996 5.4116 5.4235 5.4355 5.4474 5.4594 5.4713 5.4833 5.4953 5.5072 5.5192 5.5312 5.5432
Columns 494 through 500
5.5551 5.5671 5.5791 5.5911 5.6031 5.6151 5.6271
s =
Columns 1 through 17
260.7104 262.8204 264.8825 266.8993 268.8734 270.8070 272.7022 274.5609 276.3849 278.1757 279.9350 281.6641 283.3643 285.0369 286.6831 288.3038 289.9001
Columns 18 through 34
291.4730 293.0233 294.5518 296.0593 297.5467 299.0145 300.4634 301.8941 303.3072 304.7032 306.0826 307.4459 308.7937 310.1264 311.4444 312.7481 314.0379
Columns 35 through 51
315.3143 316.5775 317.8280 319.0660 320.2919 321.5059 322.7084 323.8996 325.0799 326.2494 327.4084 328.5571 329.6958 330.8248 331.9441 333.0540 334.1547
Columns 52 through 68
335.2465 336.3294 337.4036 338.4694 339.5269 340.5762 341.6175 342.6510 343.6767 344.6949 345.7057 346.7092 347.7055 348.6948 349.6771 350.6526 351.6214
Columns 69 through 85
352.5836 353.5394 354.4887 355.4318 356.3687 357.2995 358.2243 359.1432 360.0563 360.9636 361.8653 362.7615 363.6521 364.5373 365.4172 366.2918 367.1612
Columns 86 through 102
368.0255 368.8847 369.7389 370.5882 371.4326 372.2723 373.1072 373.9374 374.7629 375.5839 376.4004 377.2124 378.0200 378.8233 379.6222 380.4169 381.2074
Columns 103 through 119
381.9937 382.7759 383.5540 384.3281 385.0982 385.8644 386.6267 387.3851 388.1397 388.8905 389.6376 390.3810 391.1208 391.8569 392.5894 393.3183 394.0438
Columns 120 through 136
394.7658 395.4843 396.1993 396.9111 397.6194 398.3244 399.0262 399.7246 400.4199 401.1119 401.8008 402.4865 403.1691 403.8487 404.5251 405.1985 405.8690
Columns 137 through 153
406.5364 407.2009 407.8624 408.5210 409.1768 409.8296 410.4797 411.1269 411.7714 412.4131 413.0520 413.6882 414.3217 414.9525 415.5807 416.2062 416.8291
Columns 154 through 170
417.4494 418.0672 418.6823 419.2950 419.9051 420.5127 421.1178 421.7205 422.3207 422.9185 423.5139 424.1069 424.6975 425.2858 425.8717 426.4553 427.0366
Columns 171 through 187
427.6155 428.1923 428.7667 429.3389 429.9089 430.4767 431.0423 431.6057 432.1669 432.7260 433.2829 433.8377 434.3904 434.9410 435.4895 436.0360 436.5804
Columns 188 through 204
437.1227 437.6631 438.2014 438.7377 439.2720 439.8044 440.3347 440.8632 441.3897 441.9142 442.4369 442.9577 443.4765 443.9935 444.5086 445.0219 445.5333
Columns 205 through 221
446.0429 446.5507 447.0566 447.5608 448.0632 448.5638 449.0626 449.5597 450.0550 450.5486 451.0405 451.5307 452.0191 452.5059 452.9910 453.4744 453.9561
Columns 222 through 238
454.4362 454.9147 455.3915 455.8667 456.3402 456.8122 457.2826 457.7514 458.2186 458.6842 459.1483 459.6108 460.0718 460.5313 460.9892 461.4456 461.9005
Columns 239 through 255
462.3539 462.8058 463.2562 463.7052 464.1527 464.5987 465.0433 465.4864 465.9281 466.3684 466.8073 467.2447 467.6808 468.1154 468.5487 468.9806 469.4111
Columns 256 through 272
469.8403 470.2681 470.6945 471.1196 471.5434 471.9658 472.3869 472.8068 473.2253 473.6425 474.0584 474.4730 474.8864 475.2984 475.7093 476.1188 476.5271
Columns 273 through 289
476.9342 477.3400 477.7446 478.1480 478.5501 478.9511 479.3508 479.7493 480.1467 480.5428 480.9378 481.3316 481.7242 482.1157 482.5060 482.8952 483.2832
Columns 290 through 306
483.6701 484.0559 484.4405 484.8240 485.2064 485.5877 485.9679 486.3470 486.7250 487.1019 487.4777 487.8525 488.2262 488.5988 488.9704 489.3409 489.7104
Columns 307 through 323
490.0788 490.4462 490.8126 491.1779 491.5422 491.9055 492.2678 492.6291 492.9894 493.3487 493.7070 494.0643 494.4207 494.7761 495.1305 495.4839 495.8364
Columns 324 through 340
496.1879 496.5385 496.8881 497.2368 497.5846 497.9314 498.2773 498.6223 498.9664 499.3095 499.6518 499.9931 500.3336 500.6731 501.0118 501.3496 501.6865
Columns 341 through 357
502.0225 502.3577 502.6920 503.0254 503.3580 503.6897 504.0206 504.3506 504.6798 505.0081 505.3357 505.6623 505.9882 506.3133 506.6375 506.9609 507.2835
Columns 358 through 374
507.6053 507.9264 508.2466 508.5660 508.8846 509.2025 509.5196 509.8359 510.1514 510.4662 510.7802 511.0934 511.4059 511.7176 512.0286 512.3389 512.6484
Columns 375 through 391
512.9571 513.2651 513.5724 513.8790 514.1849 514.4900 514.7944 515.0981 515.4011 515.7034 516.0050 516.3059 516.6061 516.9056 517.2044 517.5025 517.8000
Columns 392 through 408
518.0967 518.3928 518.6883 518.9830 519.2771 519.5706 519.8634 520.1555 520.4470 520.7378 521.0280 521.3175 521.6064 521.8947 522.1823 522.4693 522.7557
Columns 409 through 425
523.0415 523.3266 523.6112 523.8951 524.1784 524.4611 524.7432 525.0247 525.3056 525.5859 525.8656 526.1447 526.4232 526.7011 526.9785 527.2553 527.5315
Columns 426 through 442
527.8071 528.0822 528.3567 528.6307 528.9040 529.1769 529.4491 529.7208 529.9920 530.2626 530.5327 530.8022 531.0712 531.3396 531.6075 531.8749 532.1418
Columns 443 through 459
532.4081 532.6739 532.9392 533.2039 533.4682 533.7319 533.9951 534.2578 534.5200 534.7817 535.0429 535.3036 535.5638 535.8235 536.0828 536.3415 536.5997
Columns 460 through 476
536.8575 537.1147 537.3715 537.6278 537.8836 538.1390 538.3939 538.6483 538.9022 539.1557 539.4088 539.6613 539.9134 540.1651 540.4162 540.6670 540.9173
Columns 477 through 493
541.1671 541.4165 541.6655 541.9140 542.1620 542.4097 542.6569 542.9036 543.1500 543.3959 543.6413 543.8864 544.1310 544.3752 544.6190 544.8623 545.1053
Columns 494 through 500
545.3478 545.5899 545.8317 546.0730 546.3139 546.5543 546.7944
OUPU AND PROGRAM LINKS:
