Project-1: Modelling an electric Car with Li-ion battery

Objective:

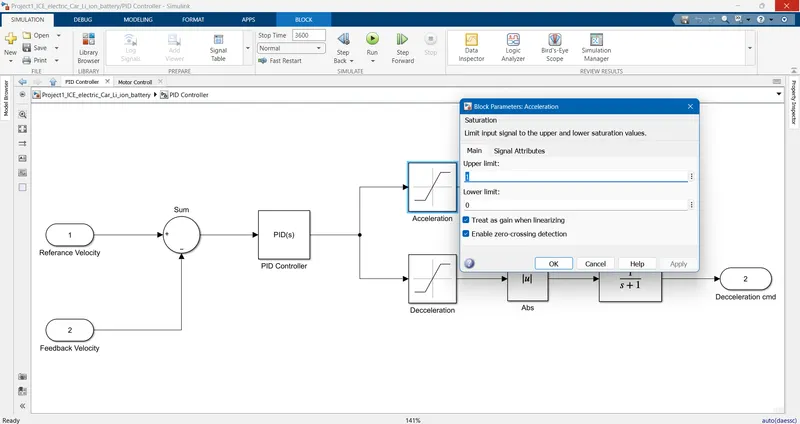

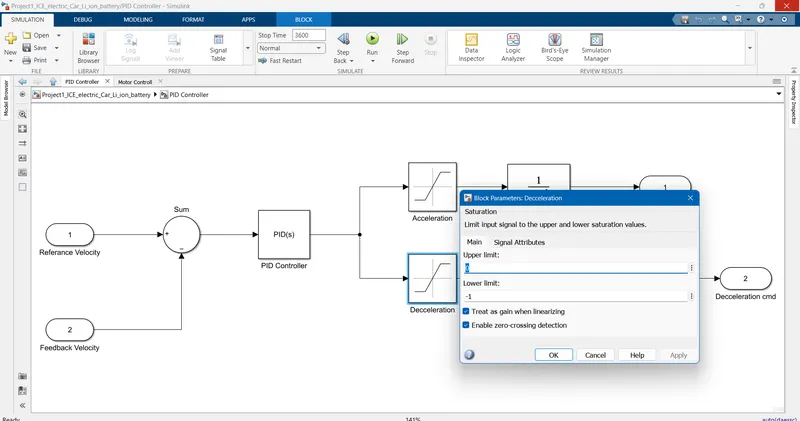

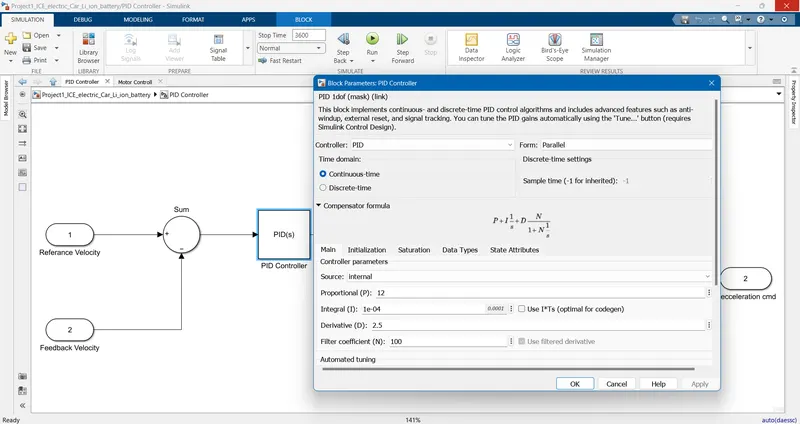

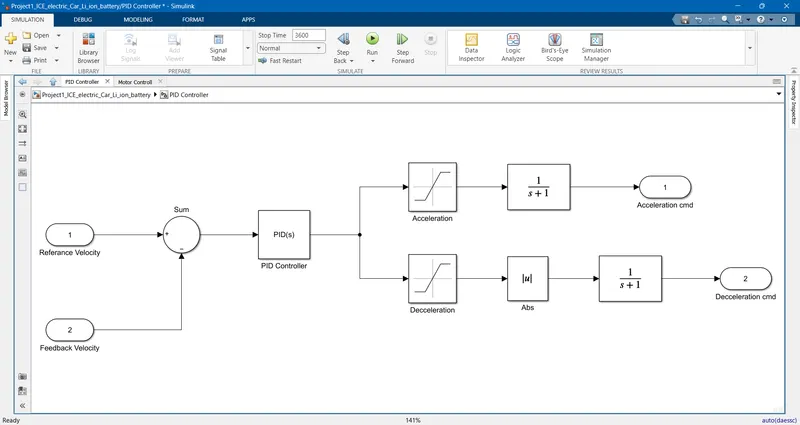

Create a MATLAB model of electric car which uses lithium ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control using PI controller and generate brake and accelerator commands. Avoid using readymade driver block for speed control.

Prepare a report about your model including following:

Objectives, System level configurations, Model parameters, Results, Conclusion.

Results Plots:

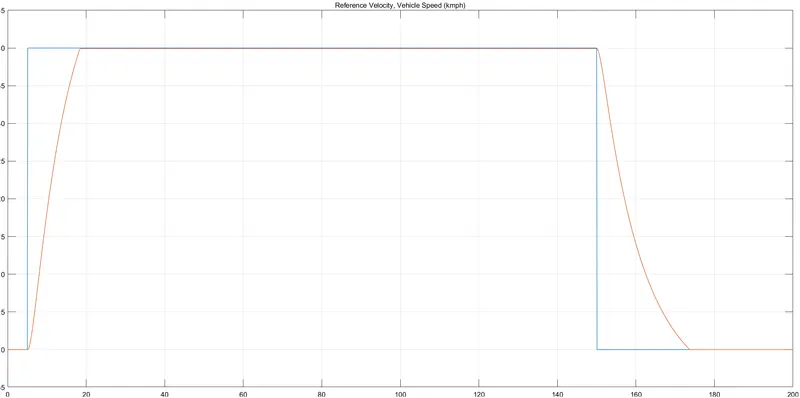

Reference Velocity vs Vehicle Velocity:

As per above plot, we can see 0 - 40kmph is achieved in 14sec.

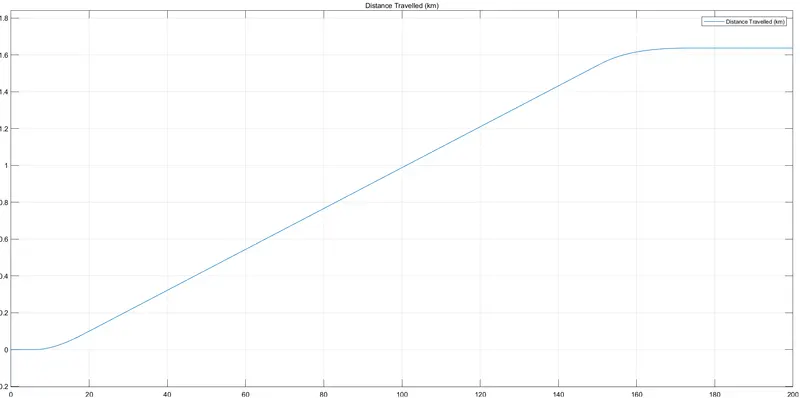

Distance Travelled (km):

Distance Travelled is 1.64km

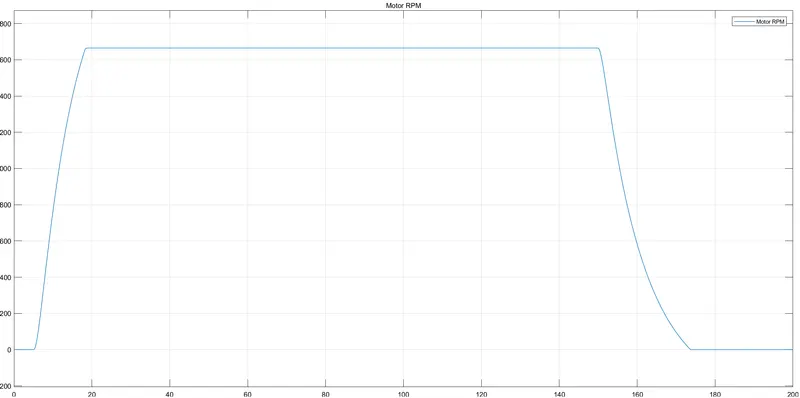

Motor RPM:

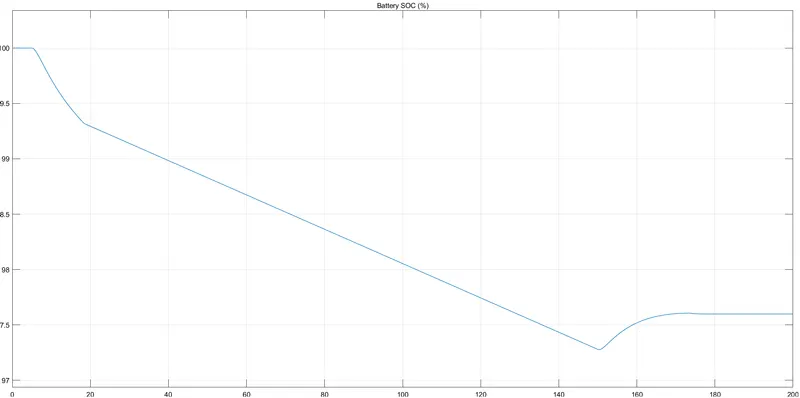

SOC (%):

Battery SOC dropped to 97.25%

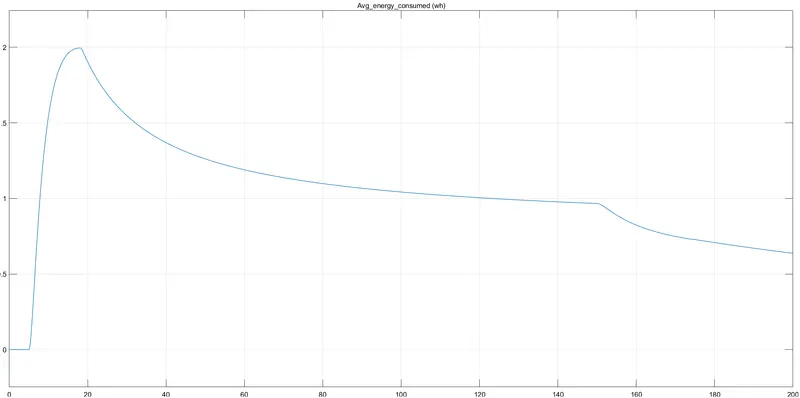

Average Energy Consumed (wH):

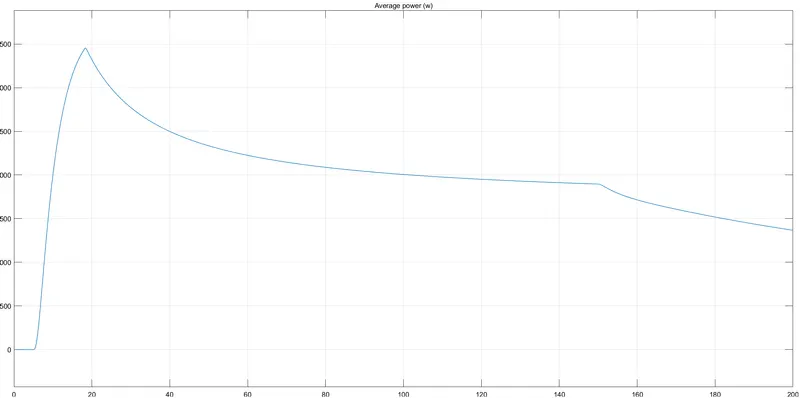

Average Power Consumed (kW):

Conclusion:

MATLAB model of electric car which uses lithium-ion battery and suitable motor is created.
