Project 1 (Mini Project on Vehicle Direction Detection

AIM:

To create a Simulink model for vehicle direction determination

DESCRIPTION:

1. Development of MATLAB Simulink model as per requirement.
2. Tag the requirements to the Simulink model; tagging requirement 1 & requirement 2 to their corresponding subsystems is fine.
3. MBD compliant changes, Data Dictionary creation & code generation is added advantage, and that is not the scope of this project.
4. If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
5. simulate the model and run the model advisor and check for the warning and clear it then generate the code

BLOCKS REQUIRED:

1.Constants

2.switch

3.relational operator(AND,OR)

4.compare to constant

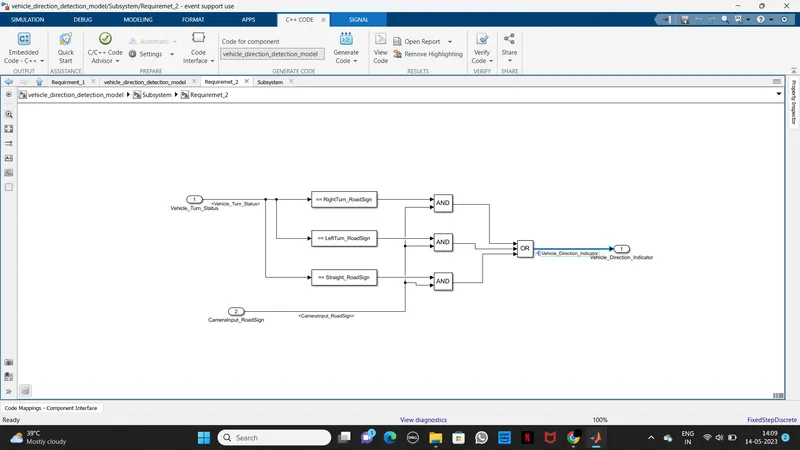

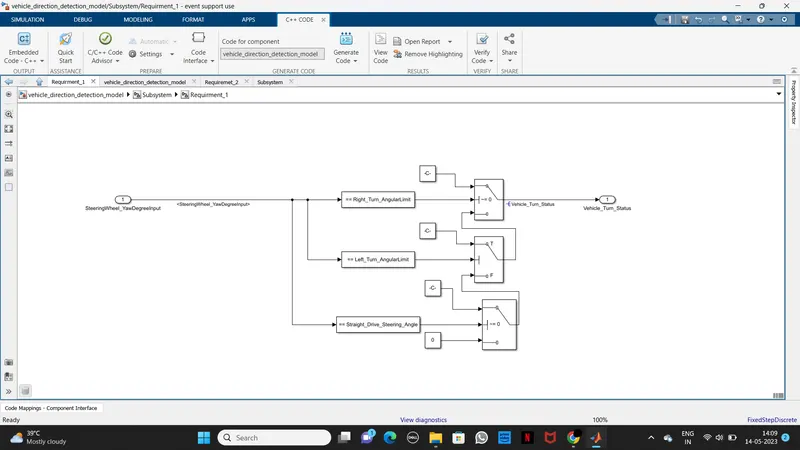

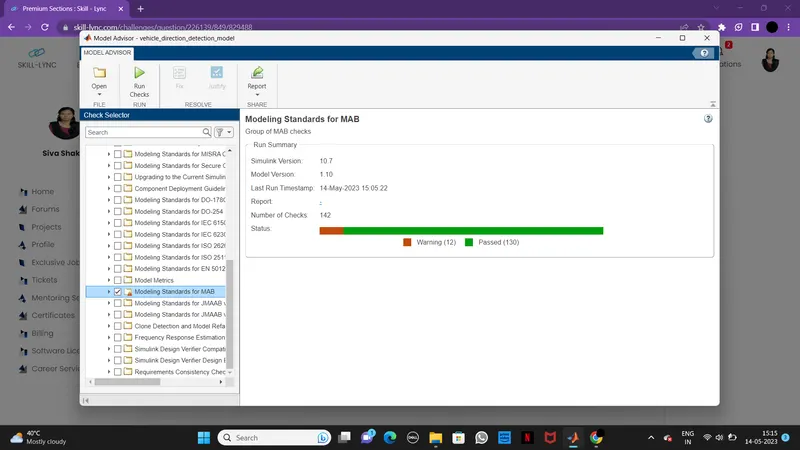

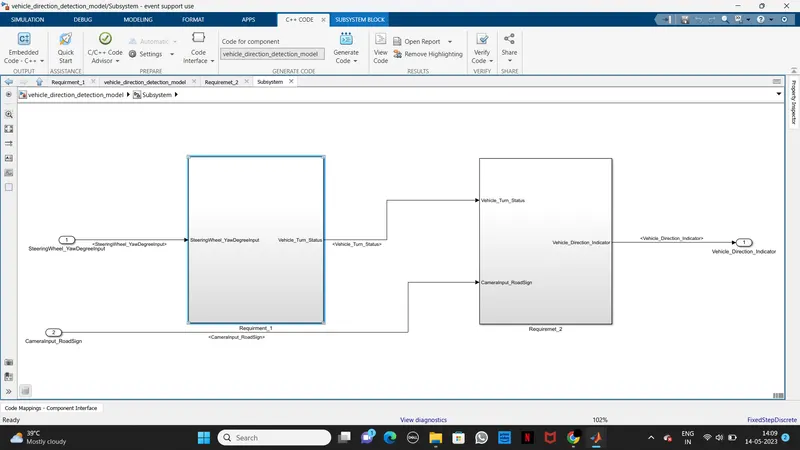

SCREENSHOTS:

1.

2.

3.

4.

RESULT:

The model is simulated successfully for the given requirement and the code is generated and the model ,sldd file, the code generated and the requirement file is attached below
