Project 1 (Mini Project on Vehicle Direction Detection

Mini Project - Vehicle Direction Detection

Aim :

To create the vechicle direction detection using Matlab and Simulink model in to using the Required document.

Procedure :

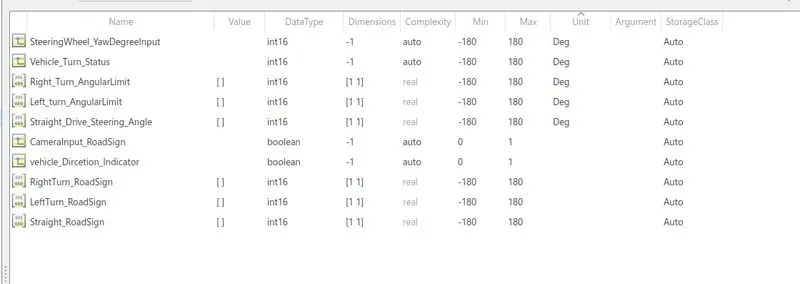

• To create the Data dictionary into the required Data

The signals and calibrations are added as per the requirement.

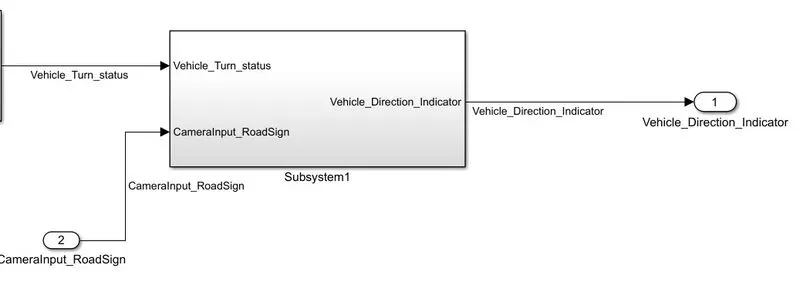

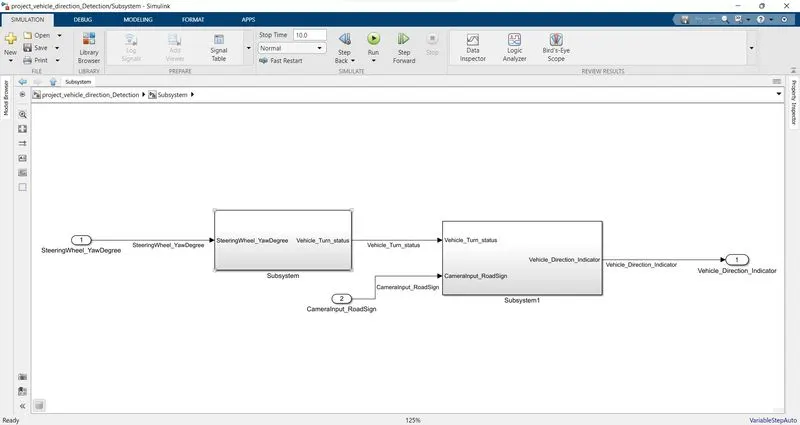

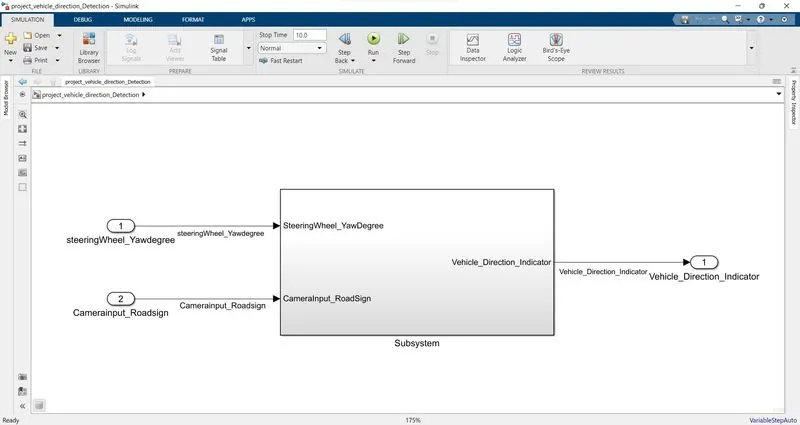

• To Modelling the main subsystem,

Is To added the input of SteeringWheel_Yawdegree,Camerainput_Roadsign and the output of vehicle_direction_indicator is created as per the requirment.

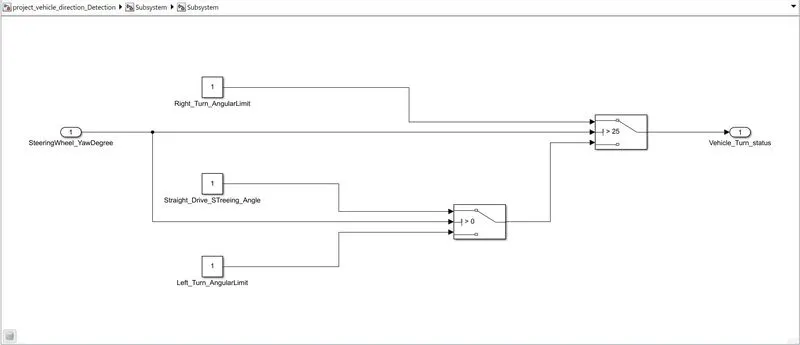

• To create two subsytem one is steeringWheel_yawdegree input block using switch block

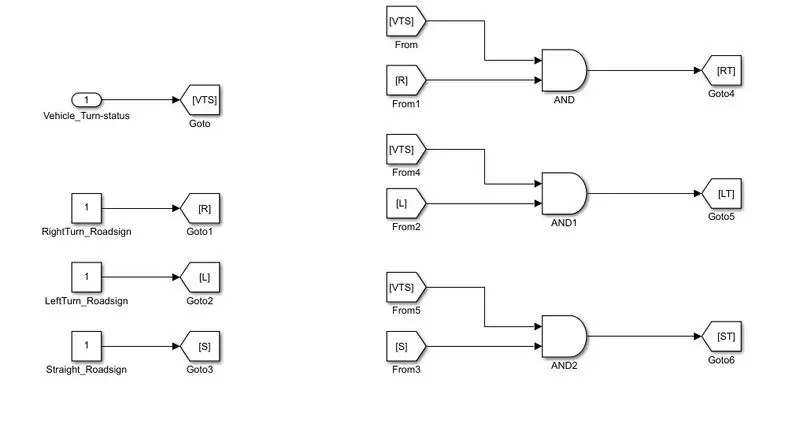

• The another one is camerainput_Roadsign to using vehicle_turn_Status and includes the Right turn,left turn, and straight roadsign with the help of Goto block

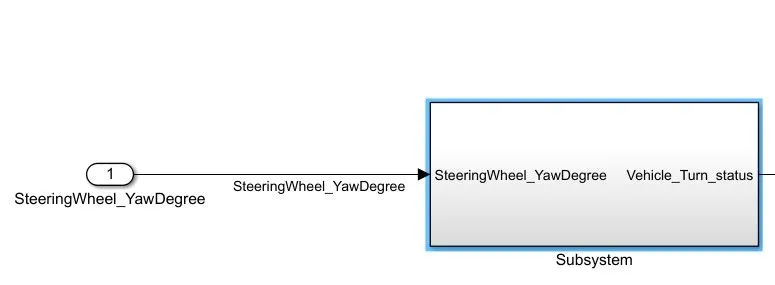

It's inside of the StreeringWheel_Yawdegree input and its added to the switch blocks is below,

And the second input of the subsystem is,

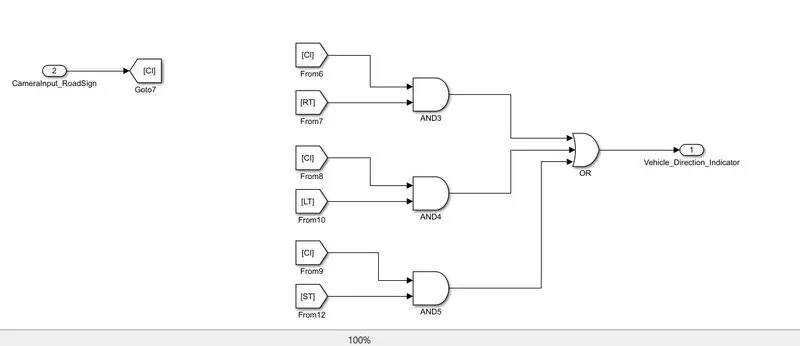

It's inside of the Camerainput-Roadsign input is added and the ouput of vechicle_direction_indicator is appear to added some logics is below,

Use of conditional block to get the result. comparing every road sign, we get the vehicle turning direction. left, righe or straight.

Conclusion :

Created Data dictionary file and simulink model for vehicle Direction Detection System.

Result :

To the given requirement using matlab and simulink model is sucessfully created, to the valid input is given exact output will be appear.
