Project 1-Meshing of Rear Wheel Holder challenge

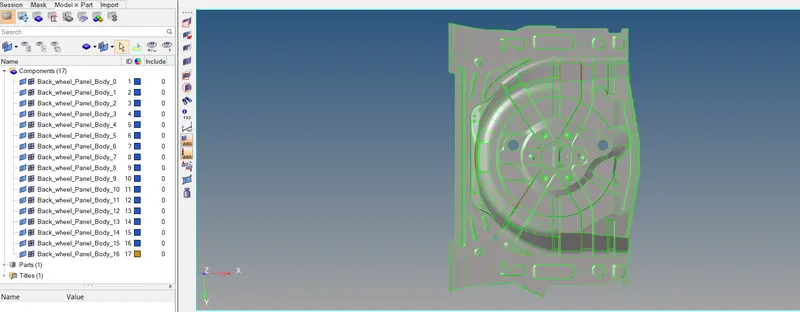

Import the given geometry file into hypermesh.

The button surfaces are deleted from the geometry

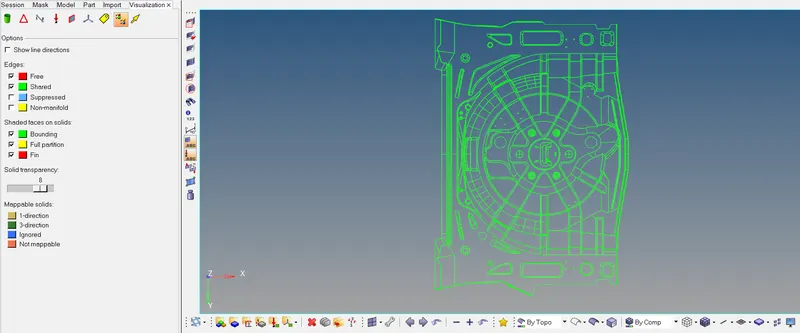

Topology Cleanup-Free edges are cleared in the geometry by using quick edit and surface edit options

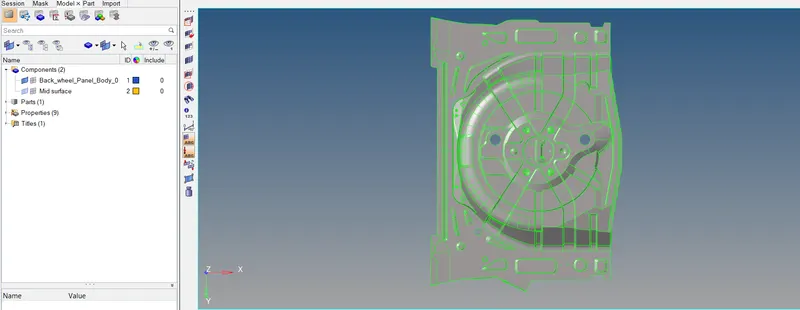

The mid surface for the component is generated.

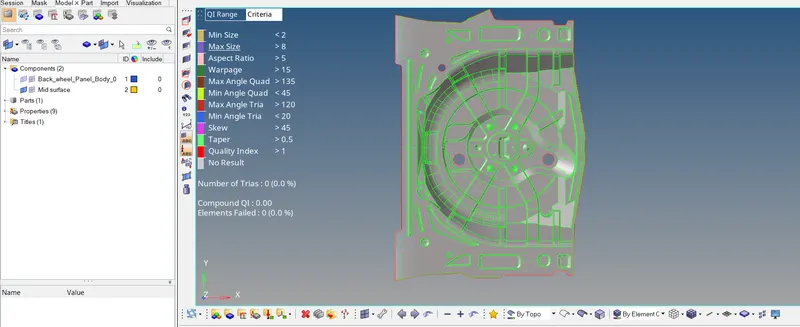

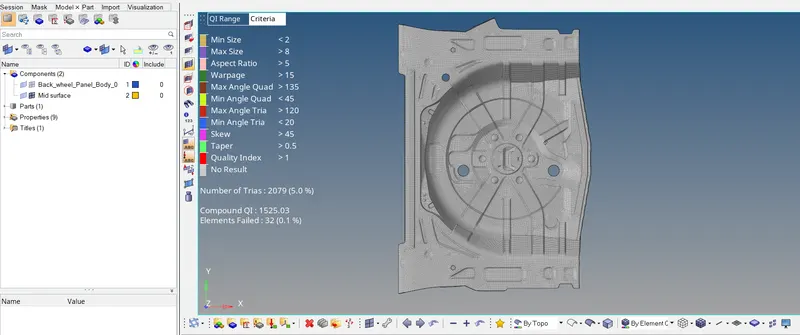

Mesh is generated according to given criteria.

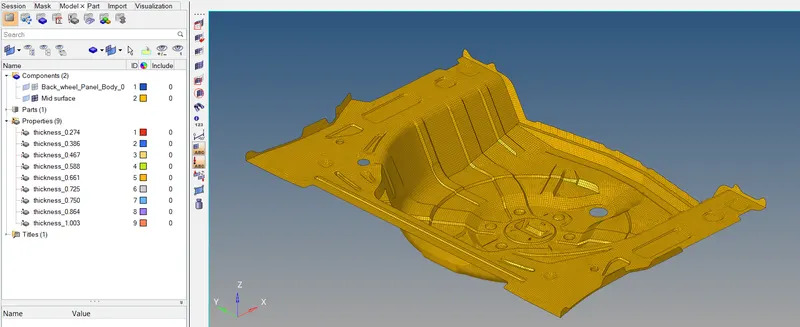

material is assigned using mesh-Assign-MIdmesh thickness.

Conclusion: 2D mesh was generated on the rear wheel holder component with an element length of 5 units.
