Project 1-Meshing of Rear Wheel Holder challenge

                                                 REPORT

     AIM

To mesh the given component satisfying the quality criteria.

     PROCEDURE

 First i generated midsurface for the component using geom-midsurface.

 but there was issues in the midsurface,i rectified it using F11-toggle edge, 2D-spline,ruled and by deleting and creating surface using offset.

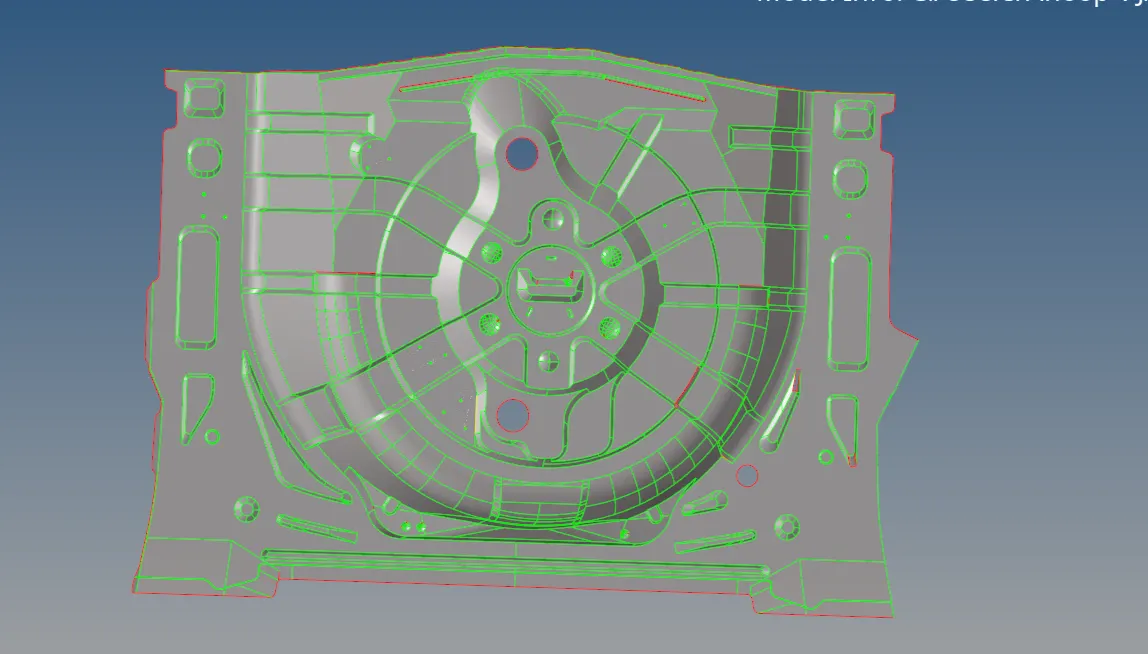

Before started meshing, meshing surface should be cleaned up. For that F11- toggle edge, replace point and created cut. Small buttons are removed.

To satisfy minimum length criteria some cuts should be removed.



Some tria elements are removed by remeshing.

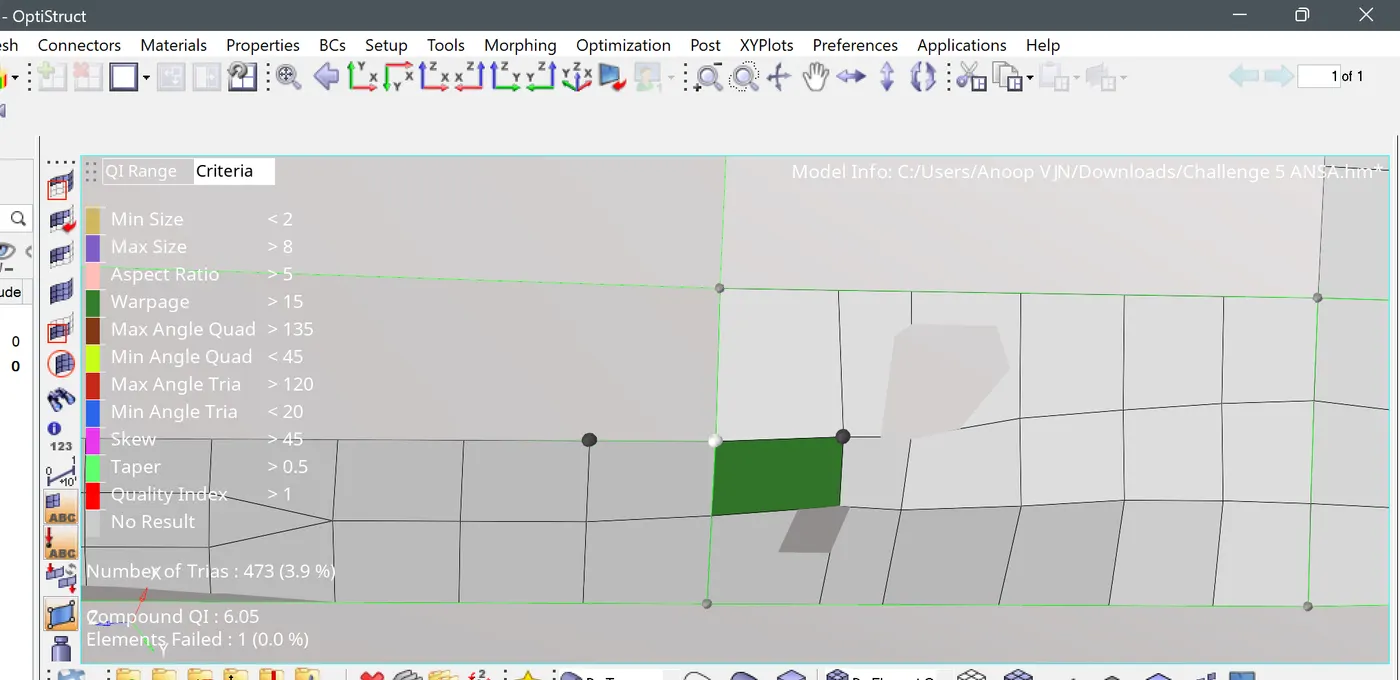

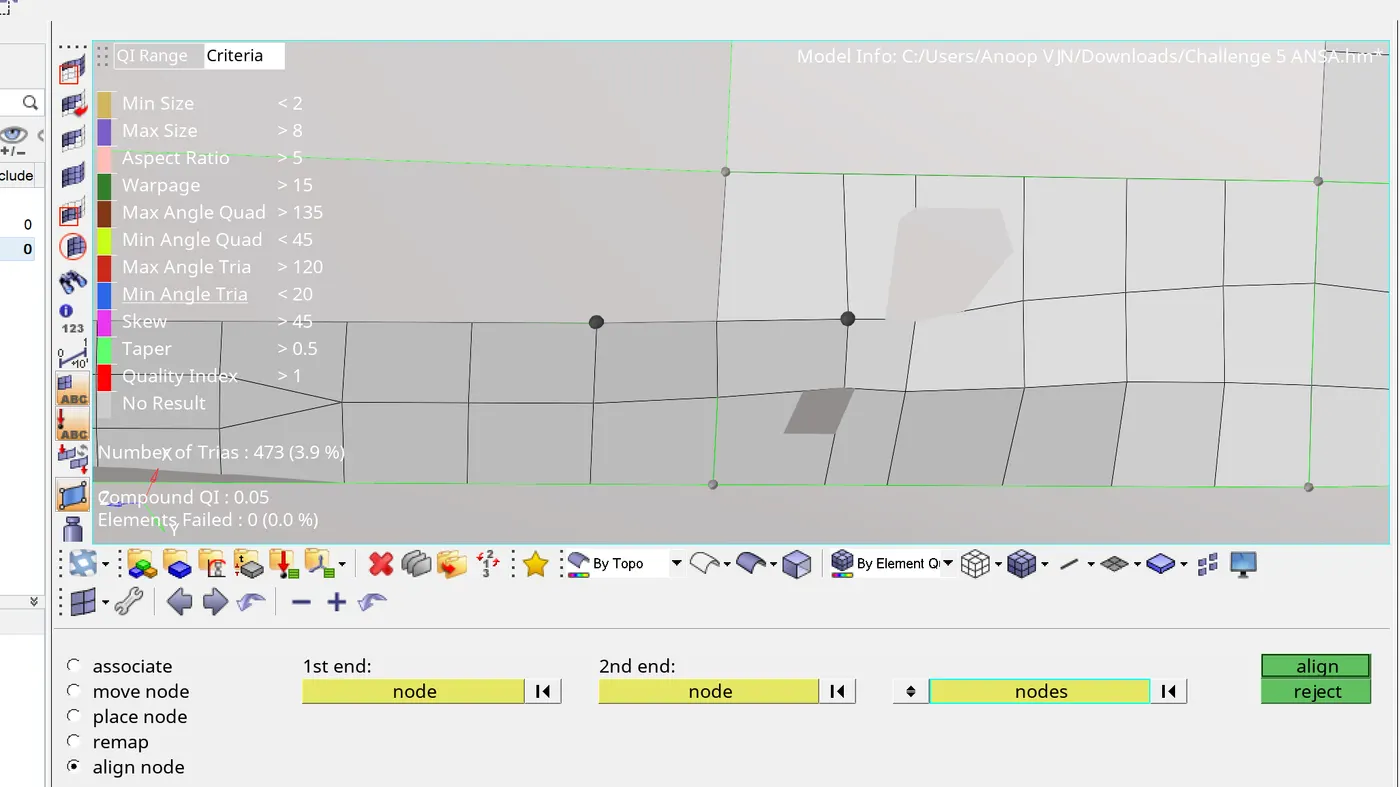

Using nodeedit-allign node this failed element is rectified.

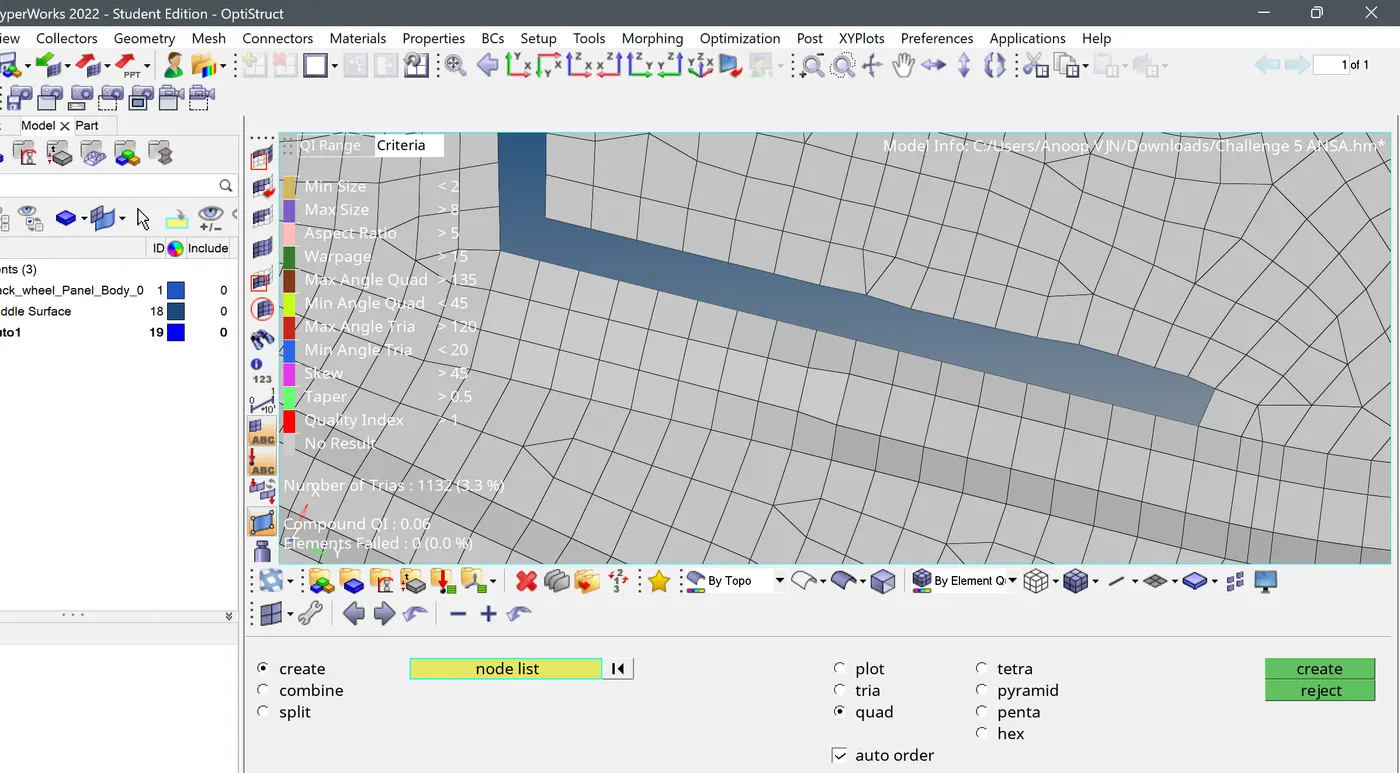

Elements is created using F6-create.

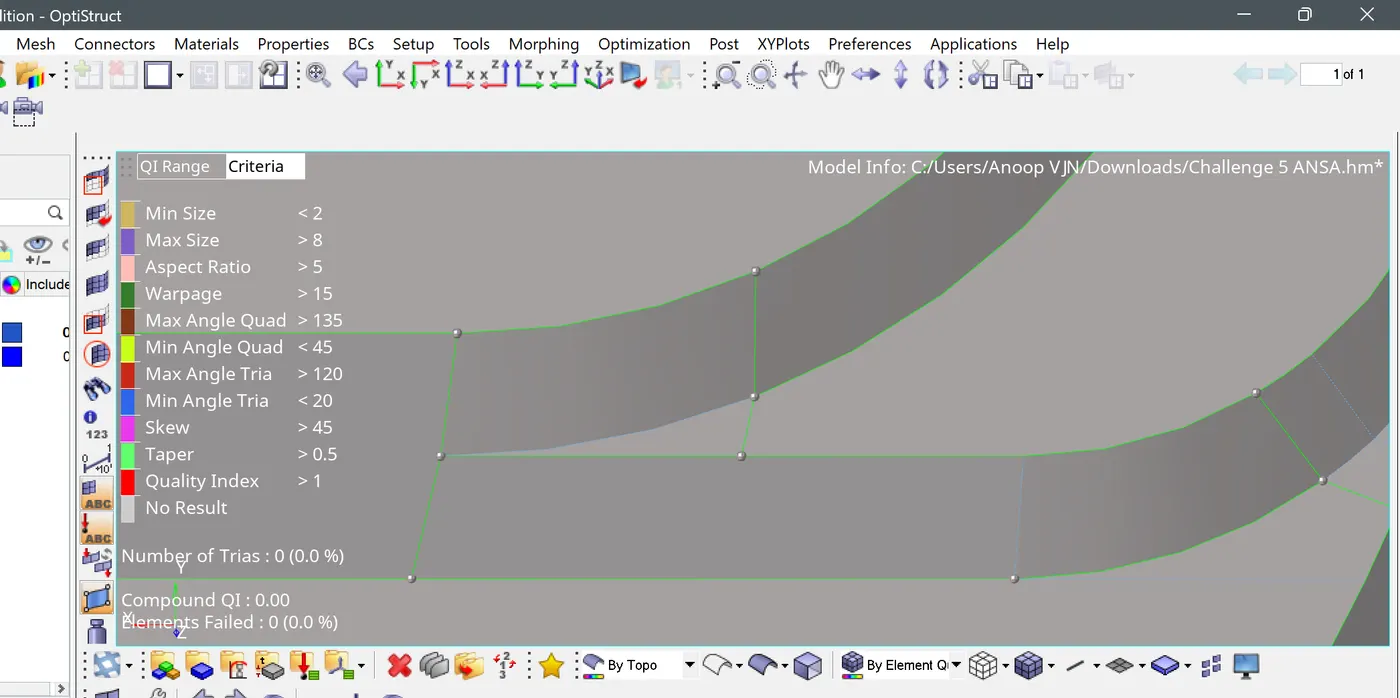

Feature line was removed using toggle edge for meshing



Only some portions are symmetric in this model so i reflected that part and create elements that are not symmetric. And used  F3 to connect the nodes.

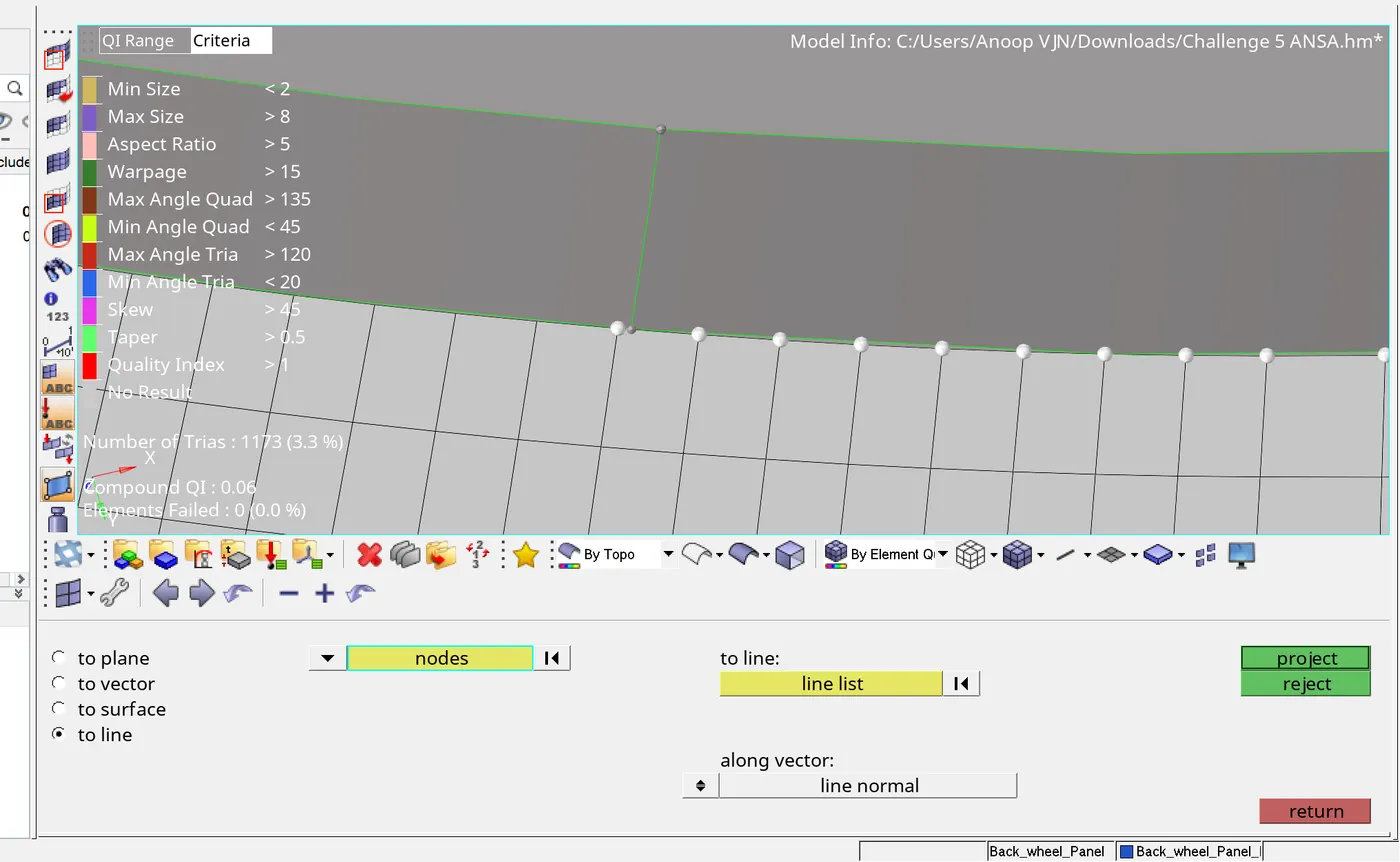

Used project-to line to allign nodes to feature line.

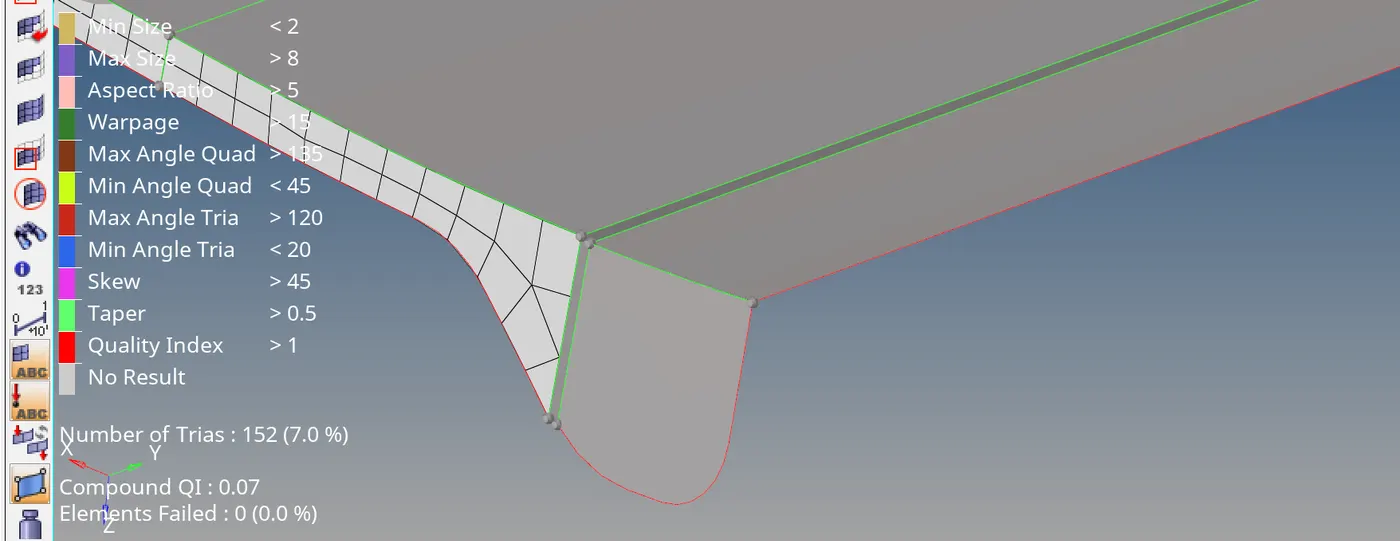

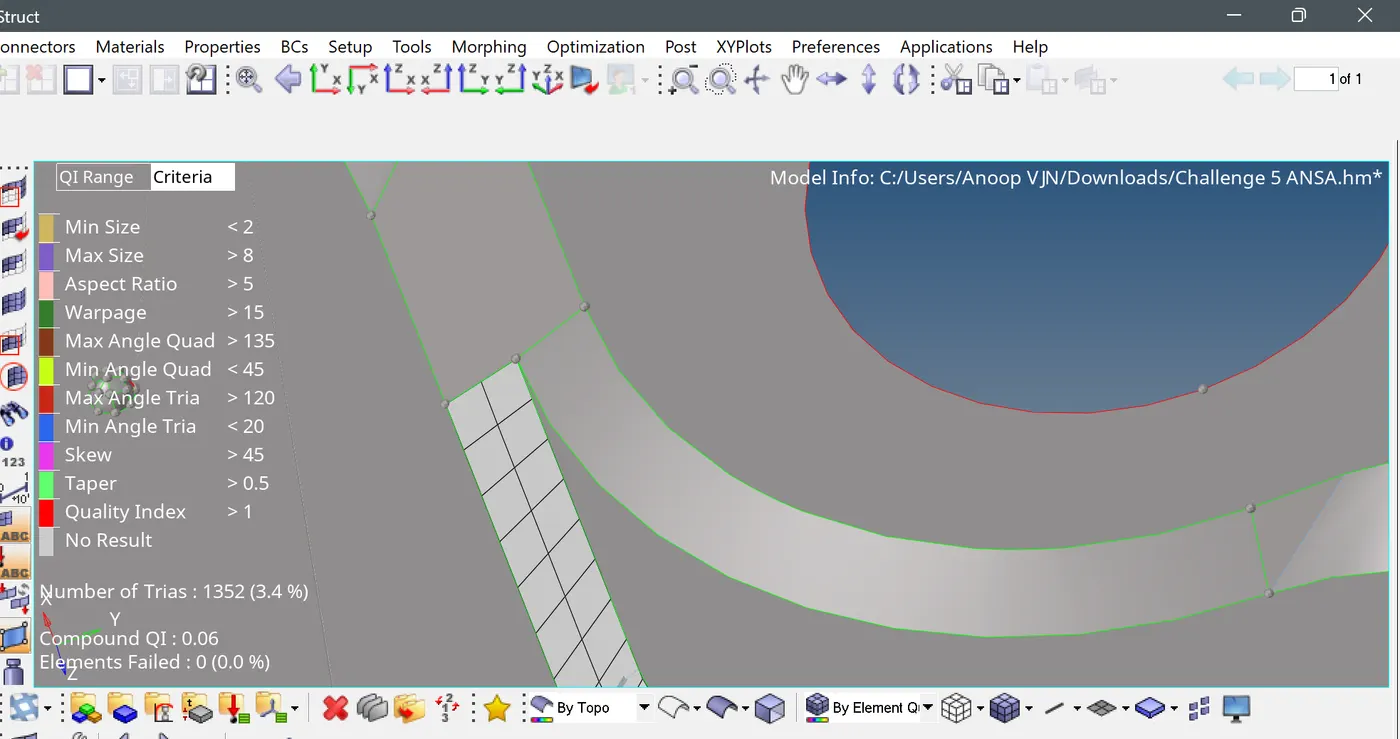

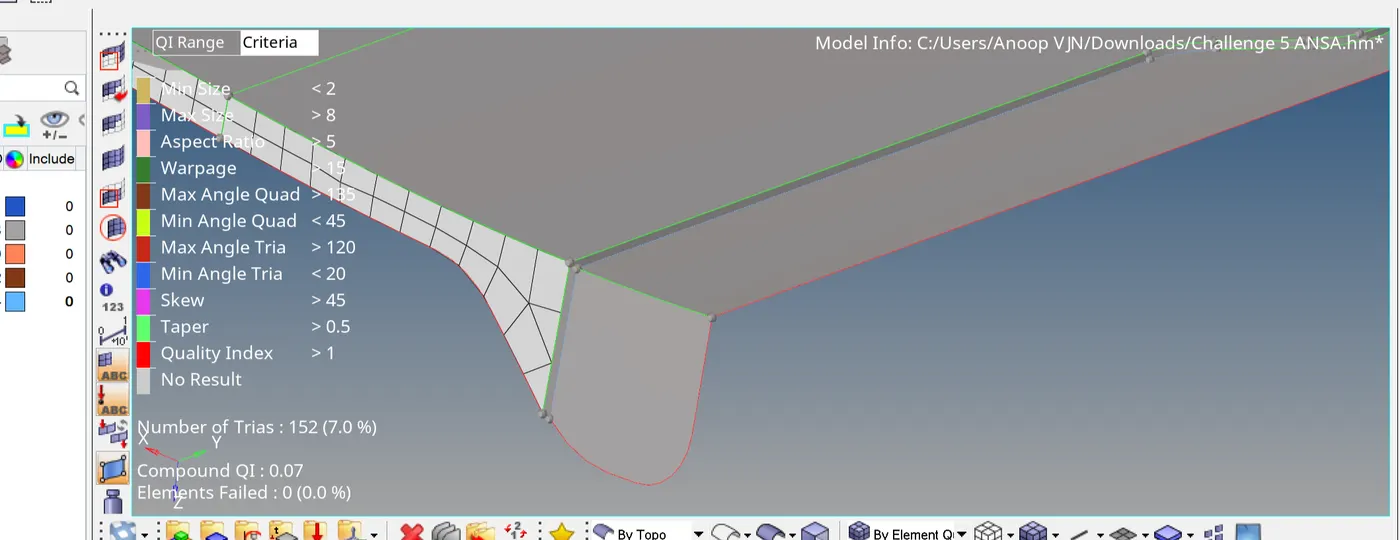

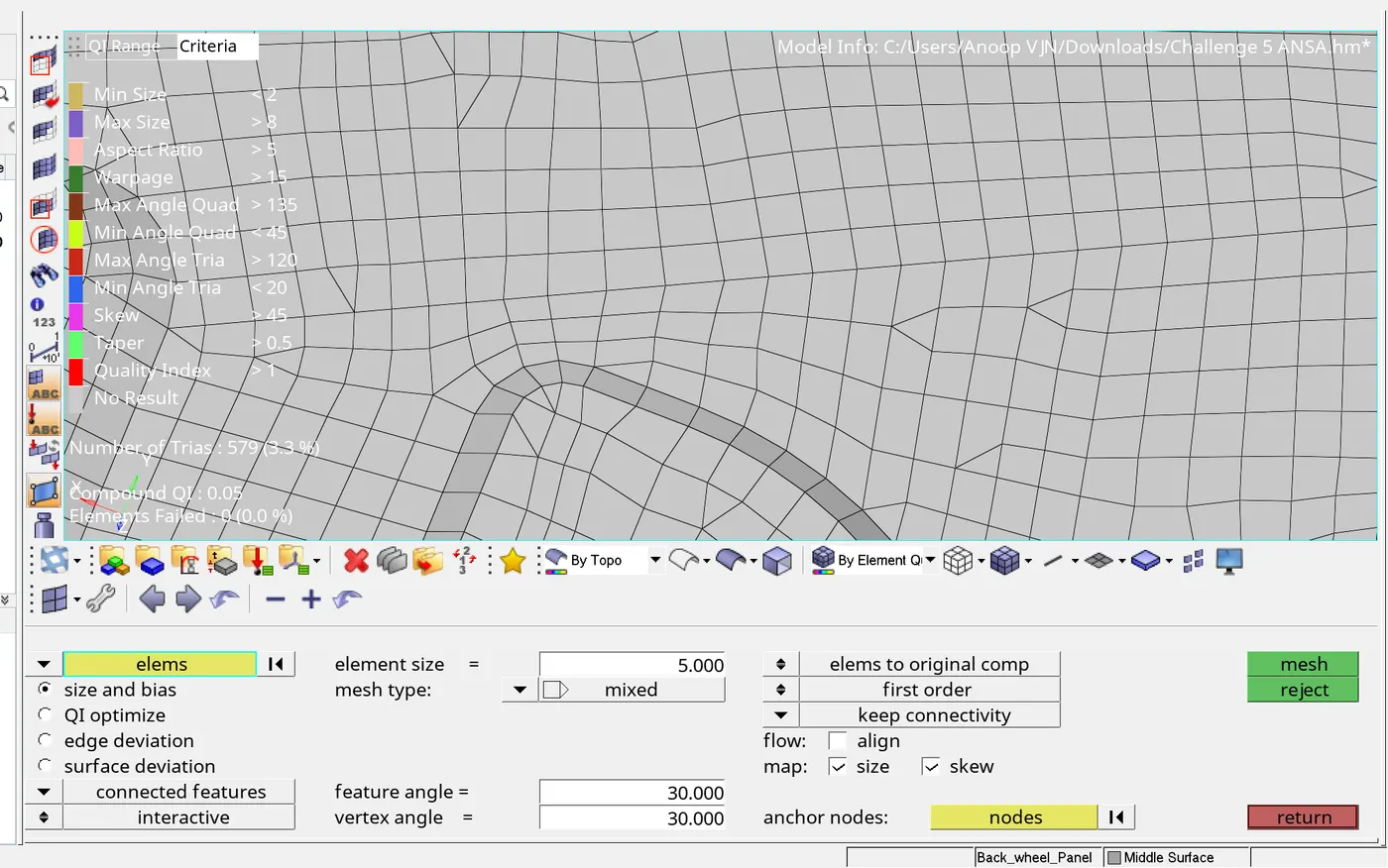

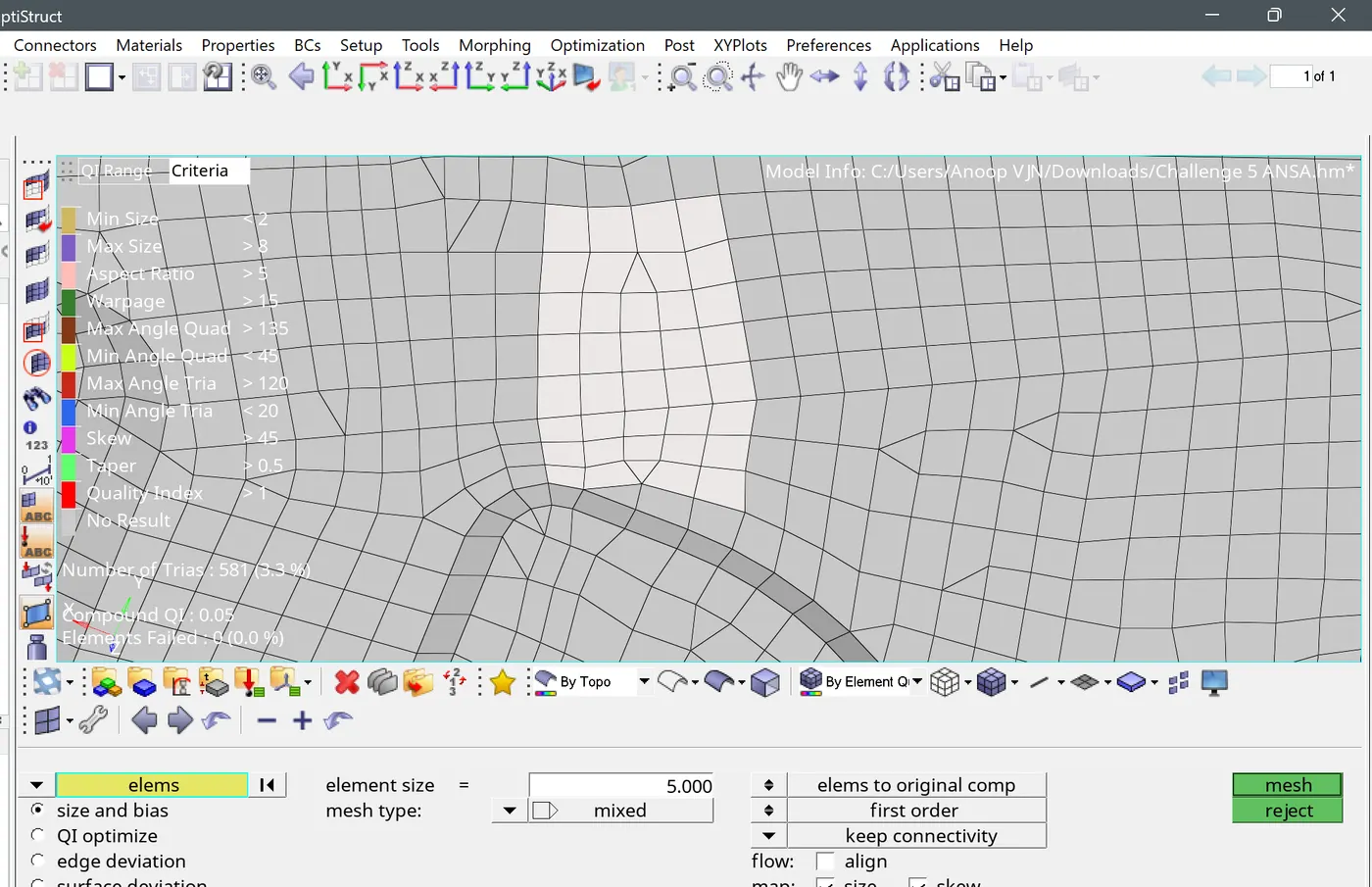

To attain good mesh flow, i used F6-split, quality intex.

After completing meshing , checked for tool-normals and adjusted it into one direction then cheked for tool-edges, equivalence. Then i assigned thickness and reordering and renumbering are properly done.

     RESULT

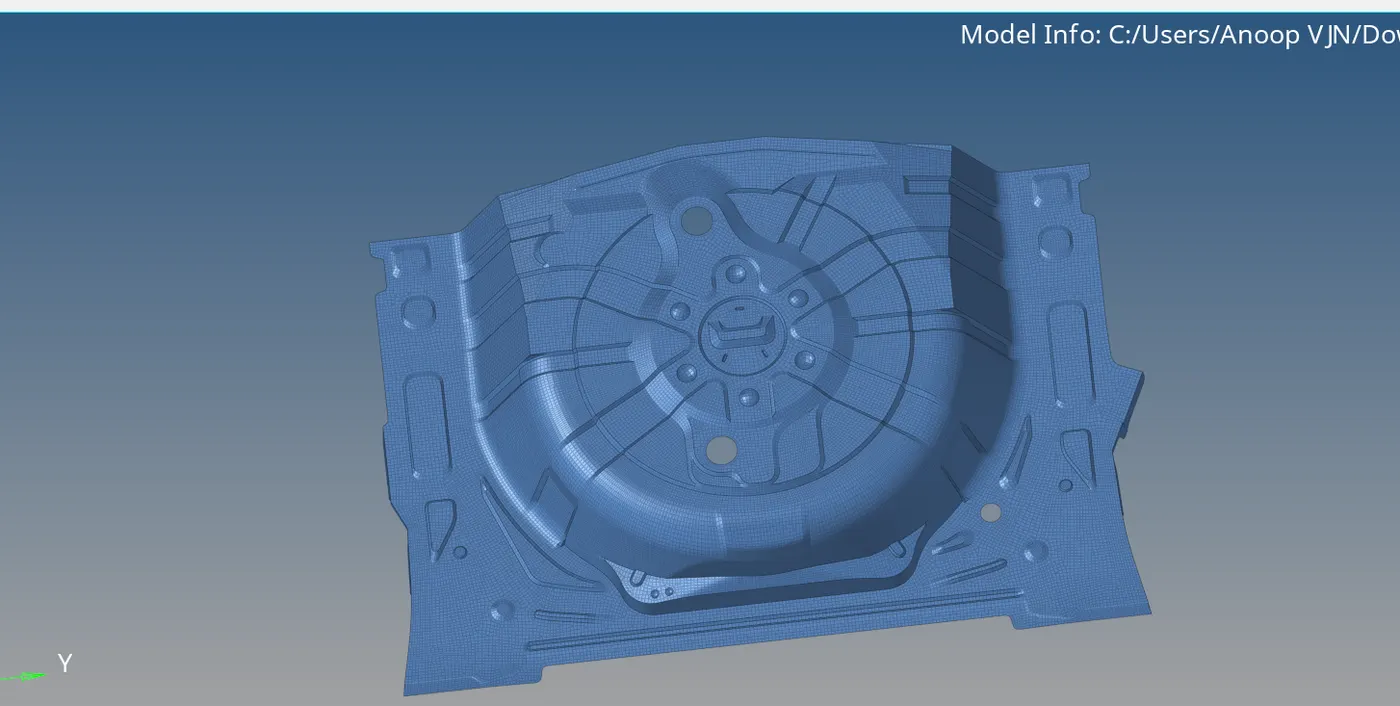

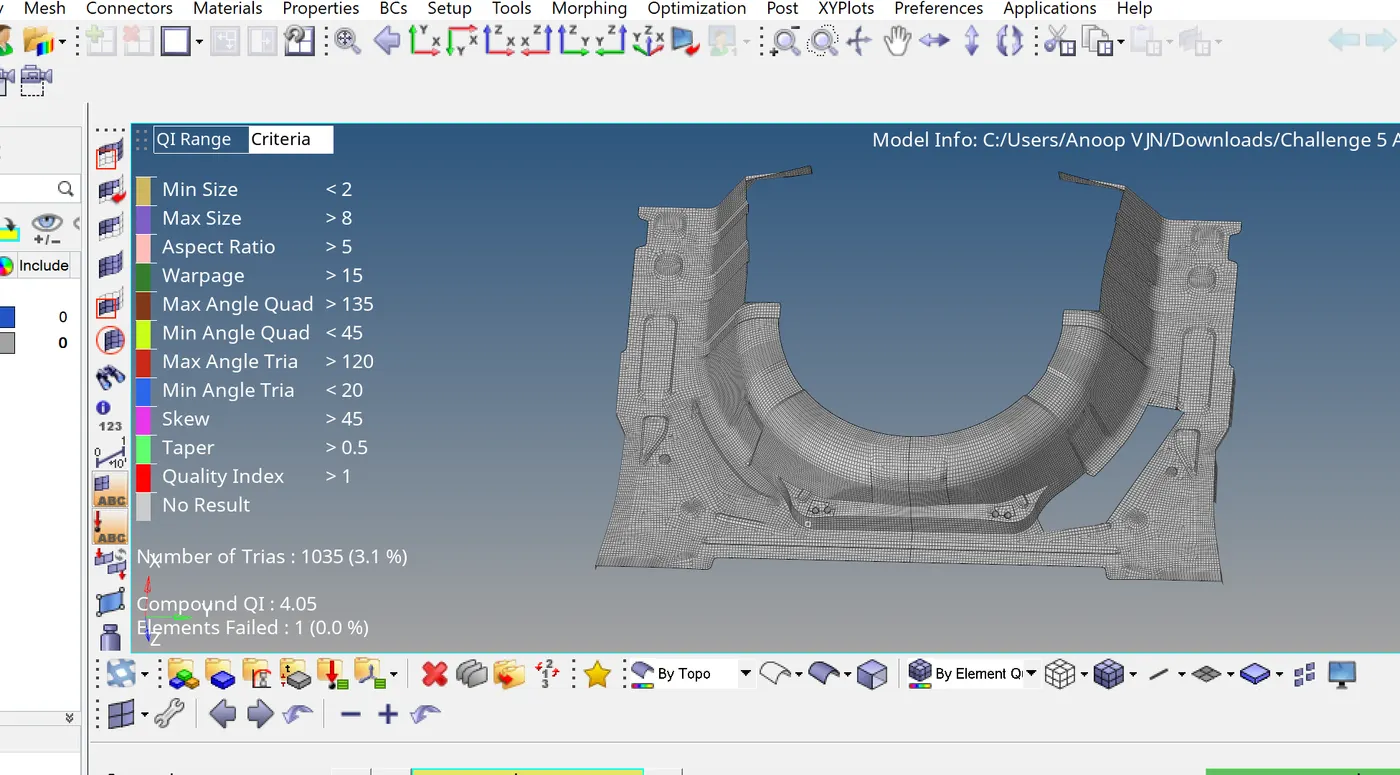

Meshing of the given model is done without failing any quality criteria.

The extracted mesh is submitted in the file option below and due to the large size of the model, the drive link of the model is submitted here  https://drive.google.com/file/d/1D4lM_Vok8U1Q49a03b9JvNchxbSqULNw/view?usp=sharing .
