Project 1 - Meshing of Floor Panel

REPORT ON PROJECT-1 MESHING OF FLOOR PANEL

OBJECTIVE :

To Mesh the component (Floor Panel) with the given Quality Criteria and assign thickness.

CAD MODEL IMAGE :

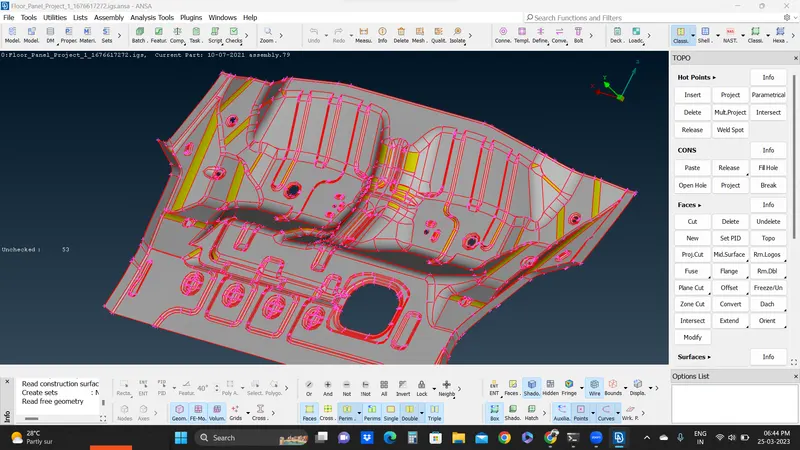

• The below is the provided component which is to be meshed (Fig.01).

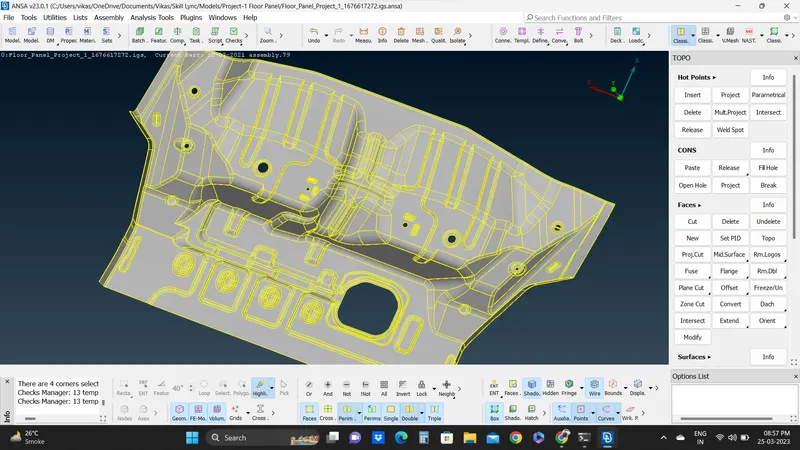

                                                                              Fig. 01

PROCEDURE :

• I have gone through the geometry of CAD model for any irregularities and applied TOPO.
• I applied perimeter length for refining and smoothing the Cons and edges (Fig.02).

                                                                               Fig. 02

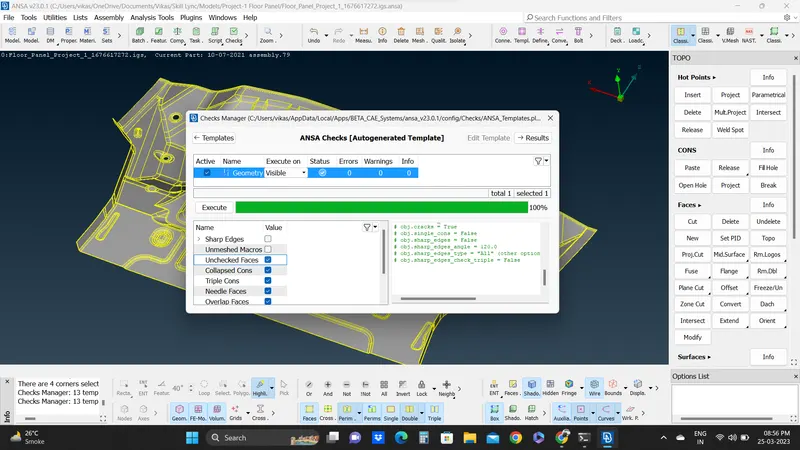

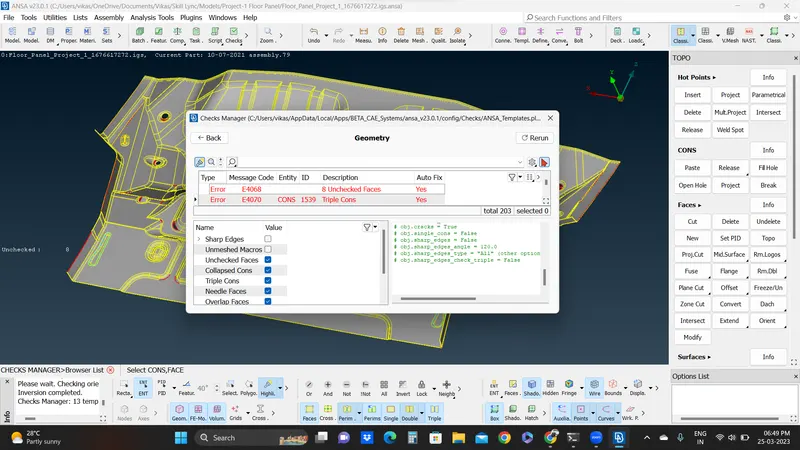

• Applied check geometry to check the CAD geometry for any errors before proceeding for mid Surfacing. Then some errors are poped out (Fig.03).

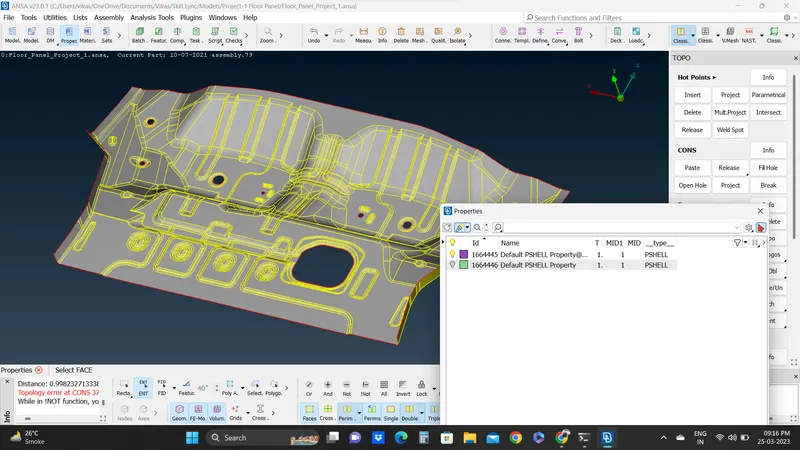

                                                                               Fig. 03

• I auto fixed some errors by selecting fix option and for remaining errors, I opened each error and resolved manually one by one.

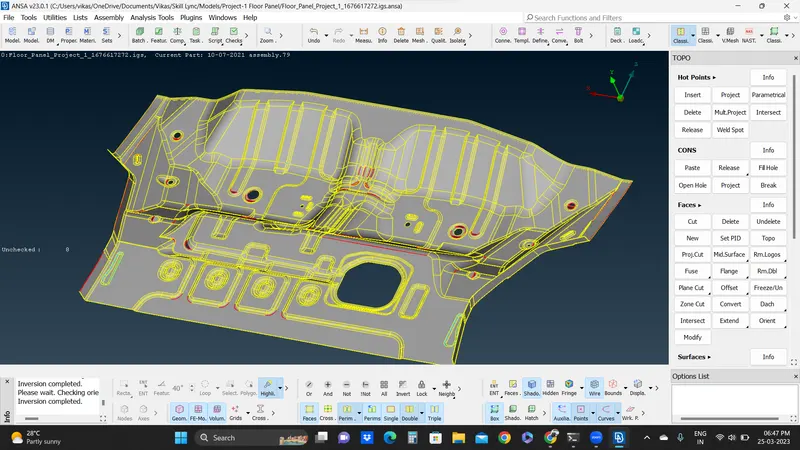

• After that I rechecked the check geometry option and it has passed (Fig.04 & 05).

                                                                                 Fig. 04

                                                                                 Fig. 05

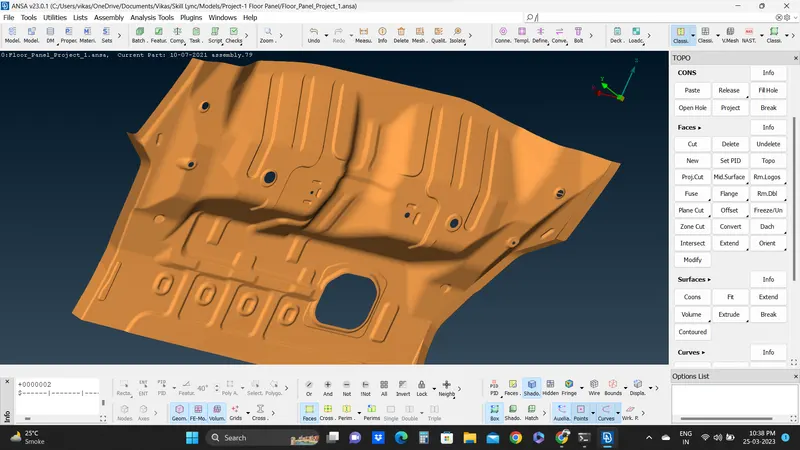

• I applied Mid Surface Skin option to the geometry and generated Mid Surface (Fig.06).

                                                                                 Fig. 06

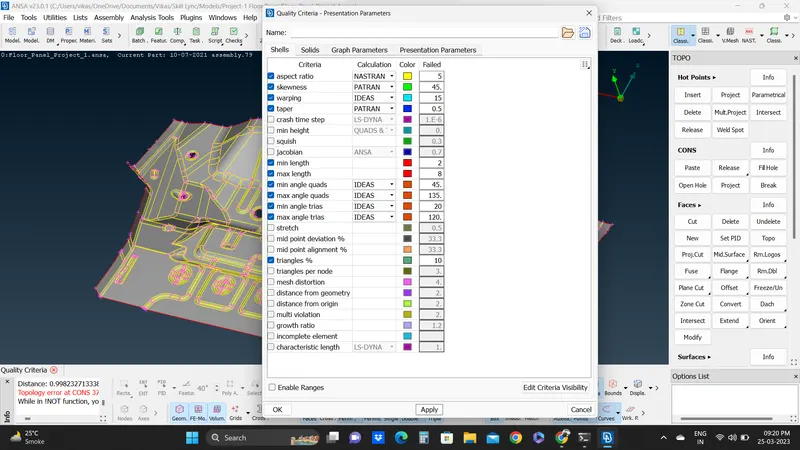

• To procced with Meshing, I entered Mesh parameter and Quality Criteria as mentioned in the question (Fig.07).

                                                                                 Fig. 07

• For Meshing, I used Batch Meshing to get smooth mesh pattern with low off elements.

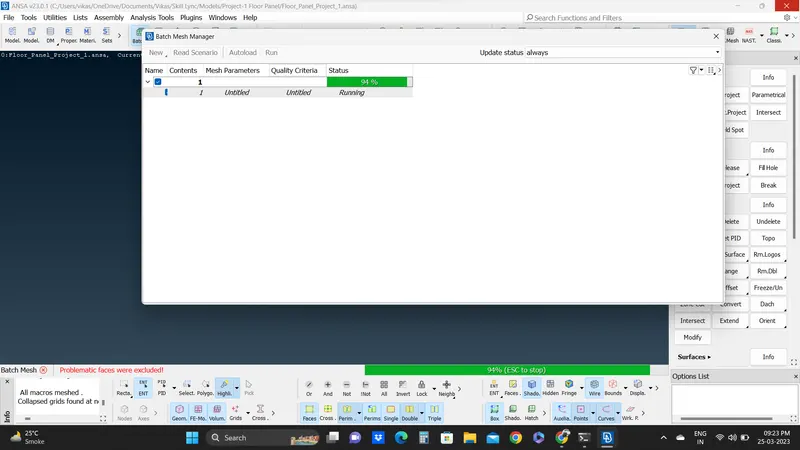

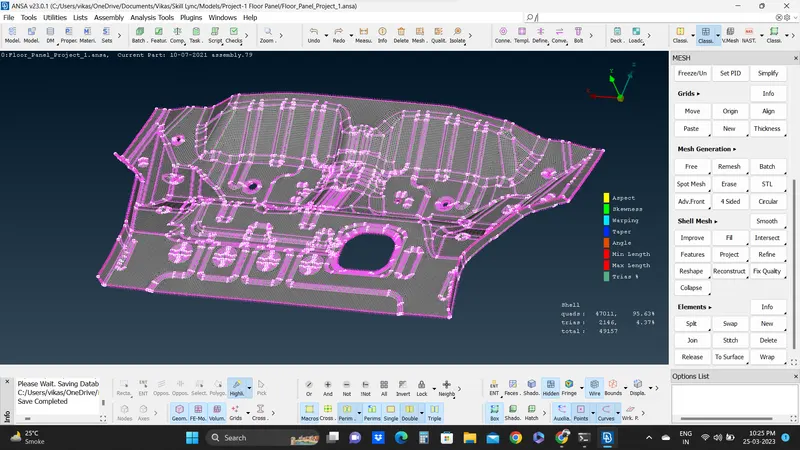

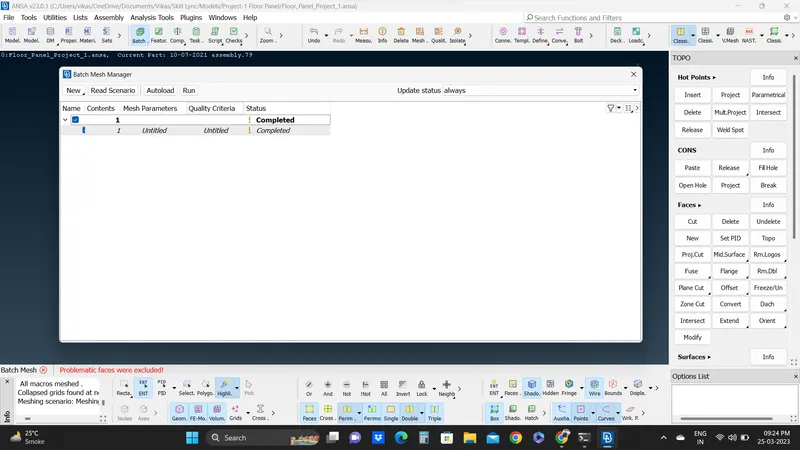

• Path Batch Meshing - New - Selected Part to be Meshed - OK and generated the Meshing with mentioned Mesh Parameter and Quality Criteria (Fig.08 & 09).

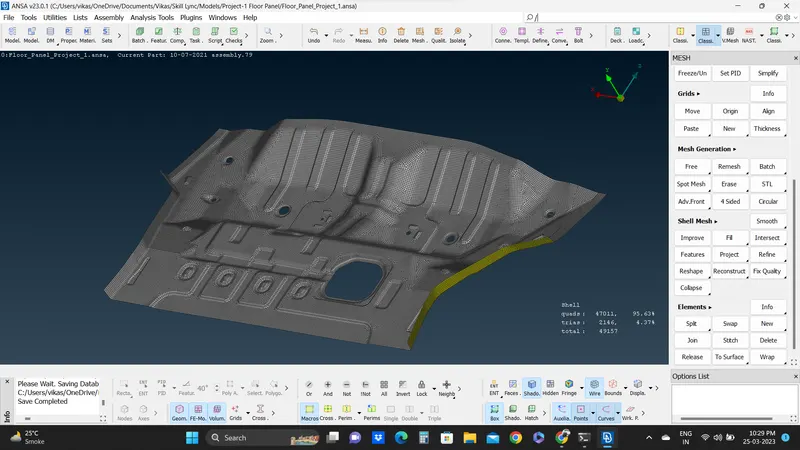

                                                                                 Fig. 08

                                                                                 Fig. 09

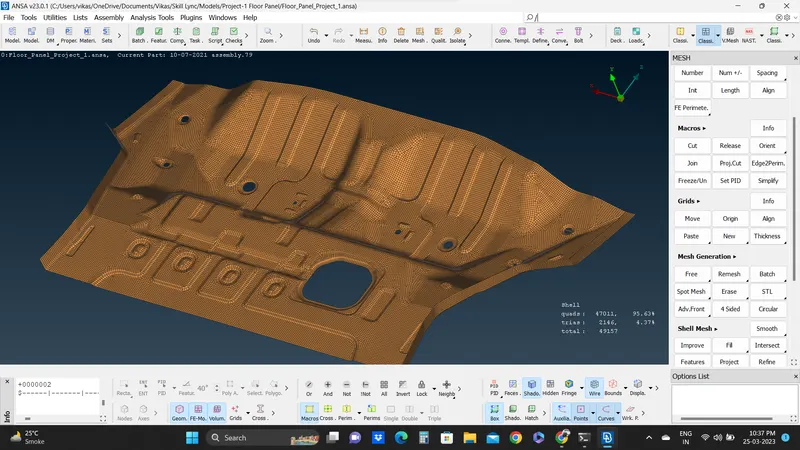

• Checked and cleared off elements and applied thickness. (Fig.10).

                                                                                 Fig. 10

CONCLUSION :

Cleared the CAD geometry and generated the Meshing of Floor Panel successfully.

FINAL MODEL IMAGE :
