Project 1 - Meshing of Floor Panel

AIM: Project 1 - Meshing of Floor Panel

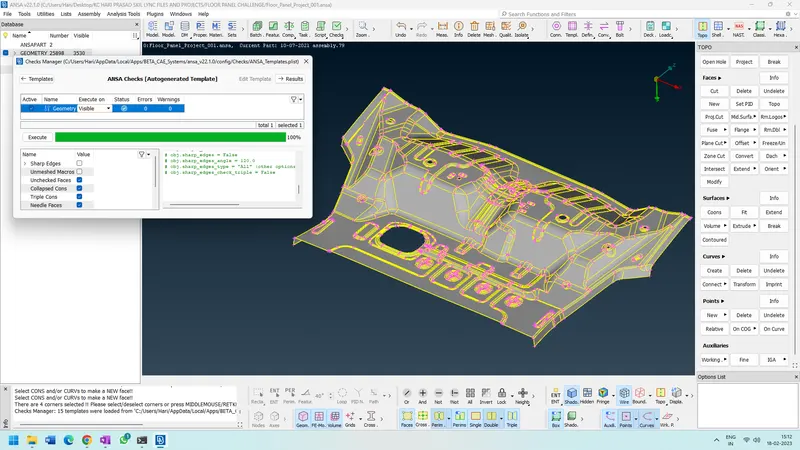

STEP 1: Please run the geometry clean up for the given CAD Model.

STEP 2: Please using the casting option generate the midsurface for the parent geometry and do the Geometry clean up.

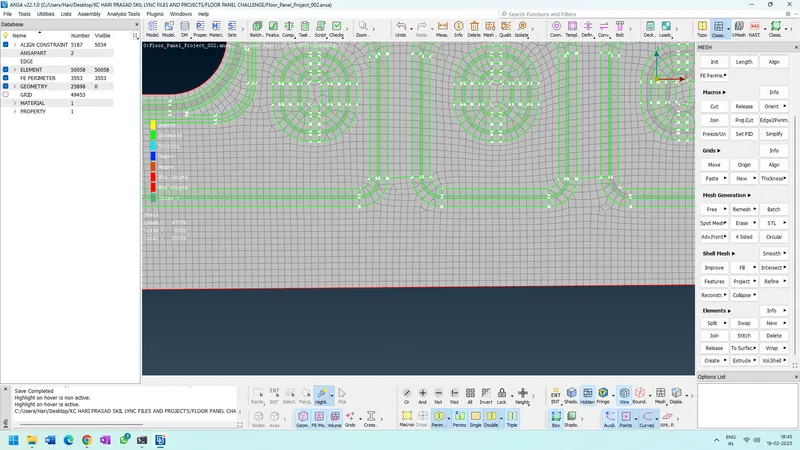

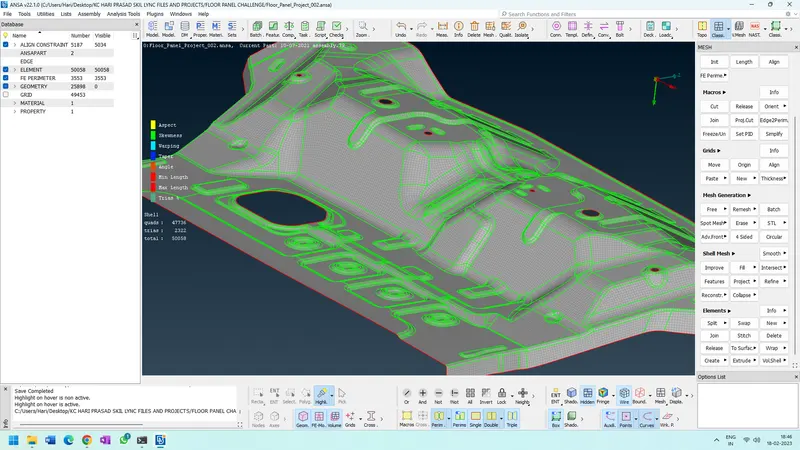

STEP 3: Please rearrrange the geometry meshing according to the mesh flow as shown in the picture ,If require please do the minor mesh modifications to get the proper mesh flow.

Please check it should meet the quality criteria at the same time the mesh flow should be propor and the flow should be smooth.
