Project 1 - Meshing of Floor Panel
Objective:
To do the mesh flow for the given component by using the given below quality criteria.
Quality Criteria:
Target Element Length = 5 Units
| S.N | Quality Criteria | Value | |
| 1 | Aspect Ratio | 5 | |
| 2 | Skewness | 45 | |
| 3 | Warping | 15 | |
| 4 | Taper | 0.5 | |
| 5 | Min. Length | 2 Units | |
| 6 | Max. Length | 8 Units | |
| 7 | Min angle Quad | 45 | |
| 8 | Max angle Quad | 135 | |
| 9 | Min angle Tria | 20 | |
| 10 | Max angle Tria | 120 | |
| 10 | Tria % | 10 |
Procedure:
Steps to be performed in the ANSA.

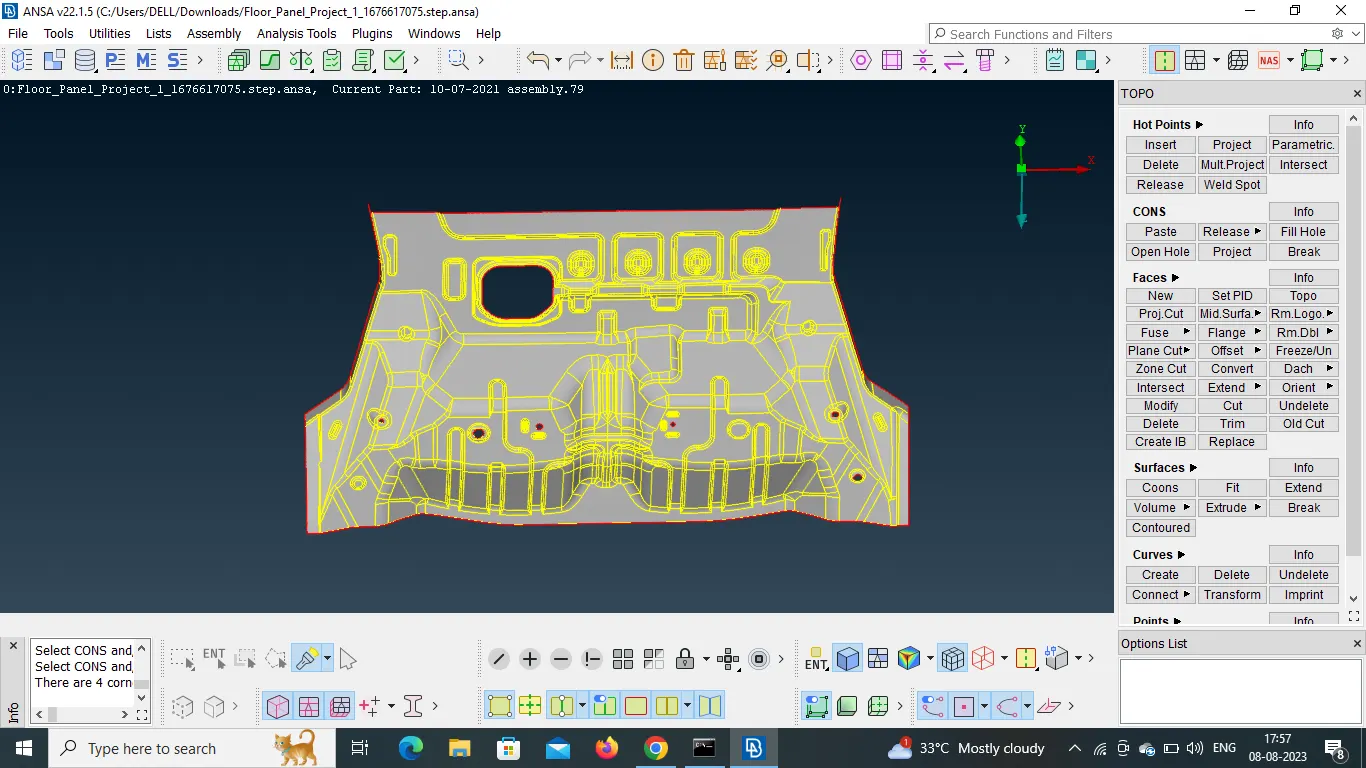

- Importing the given model in the ANSA GUI.
- By going to the file>open>download>hood challenge>Import.

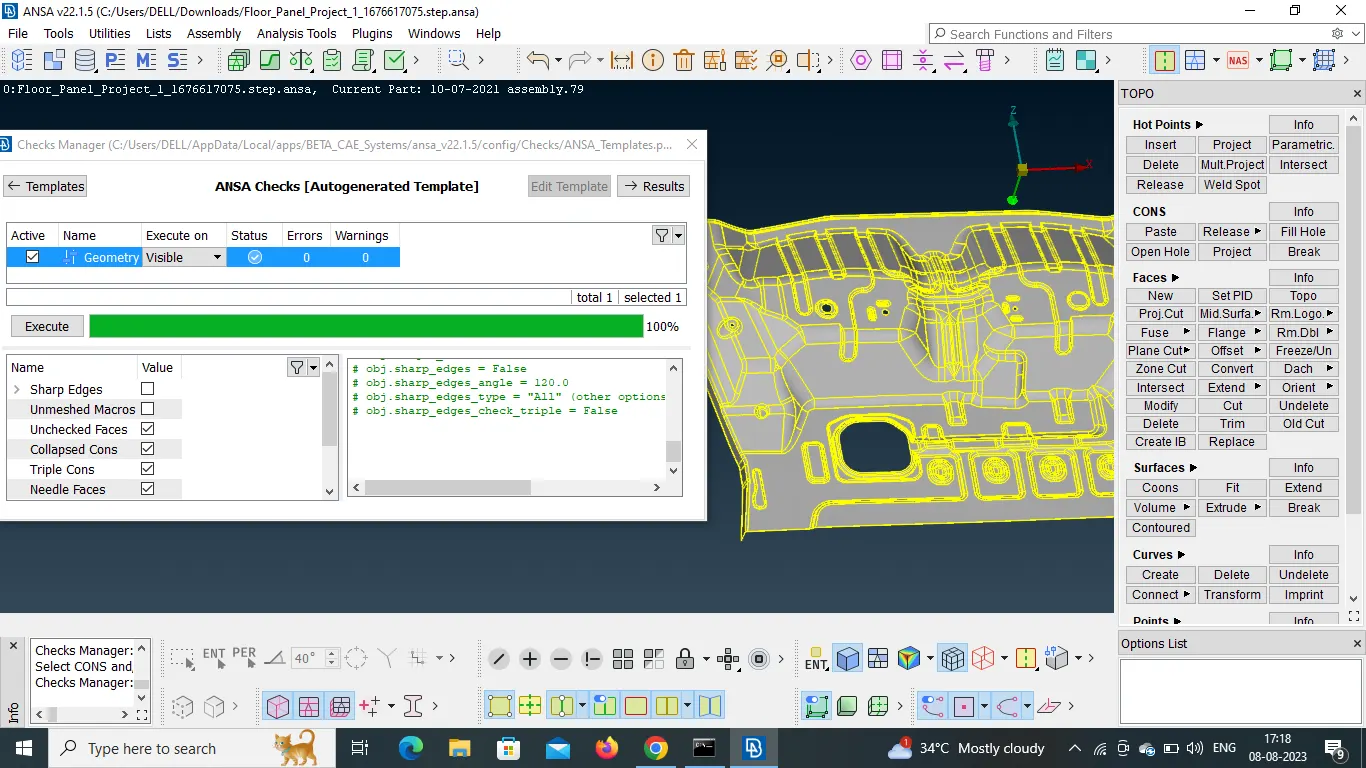

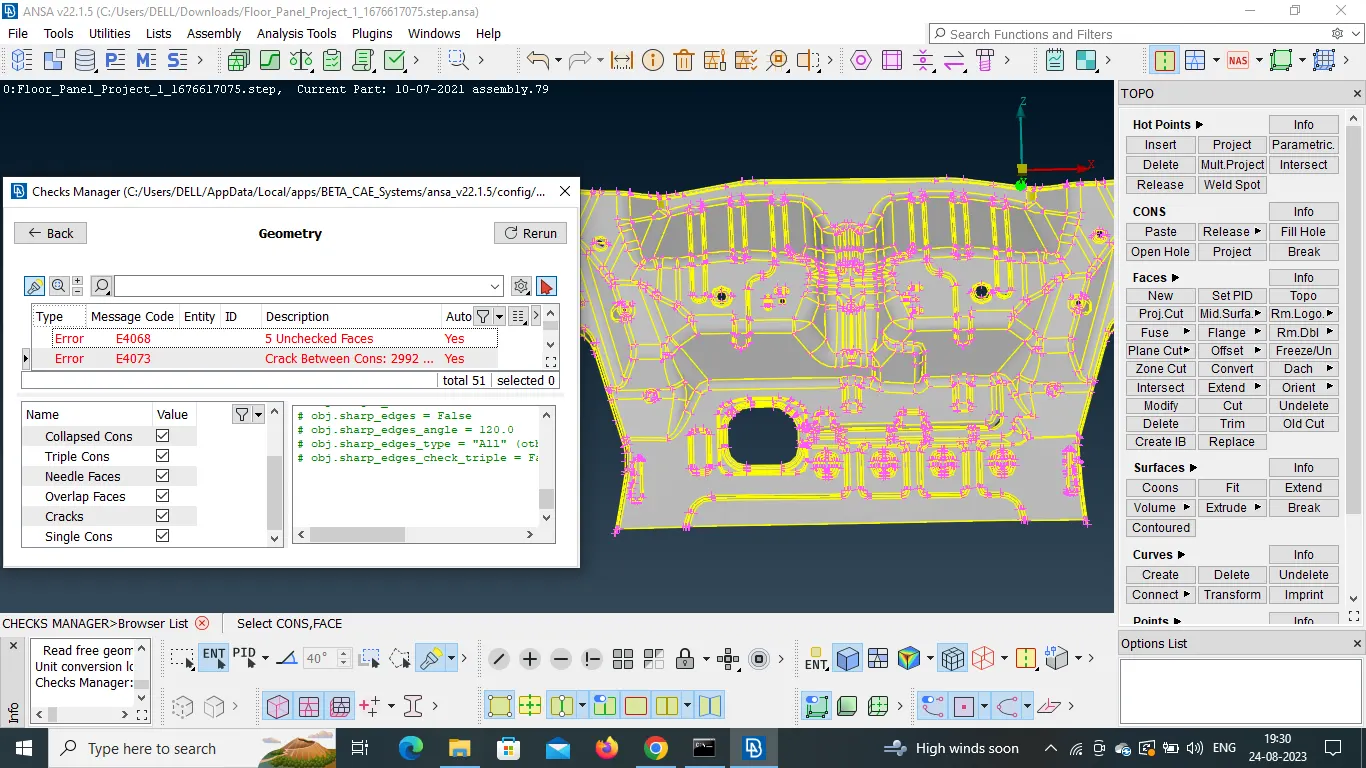

- after importing the model, then need to check the geometrical error of the model.
- by going to tools> checks > geometry

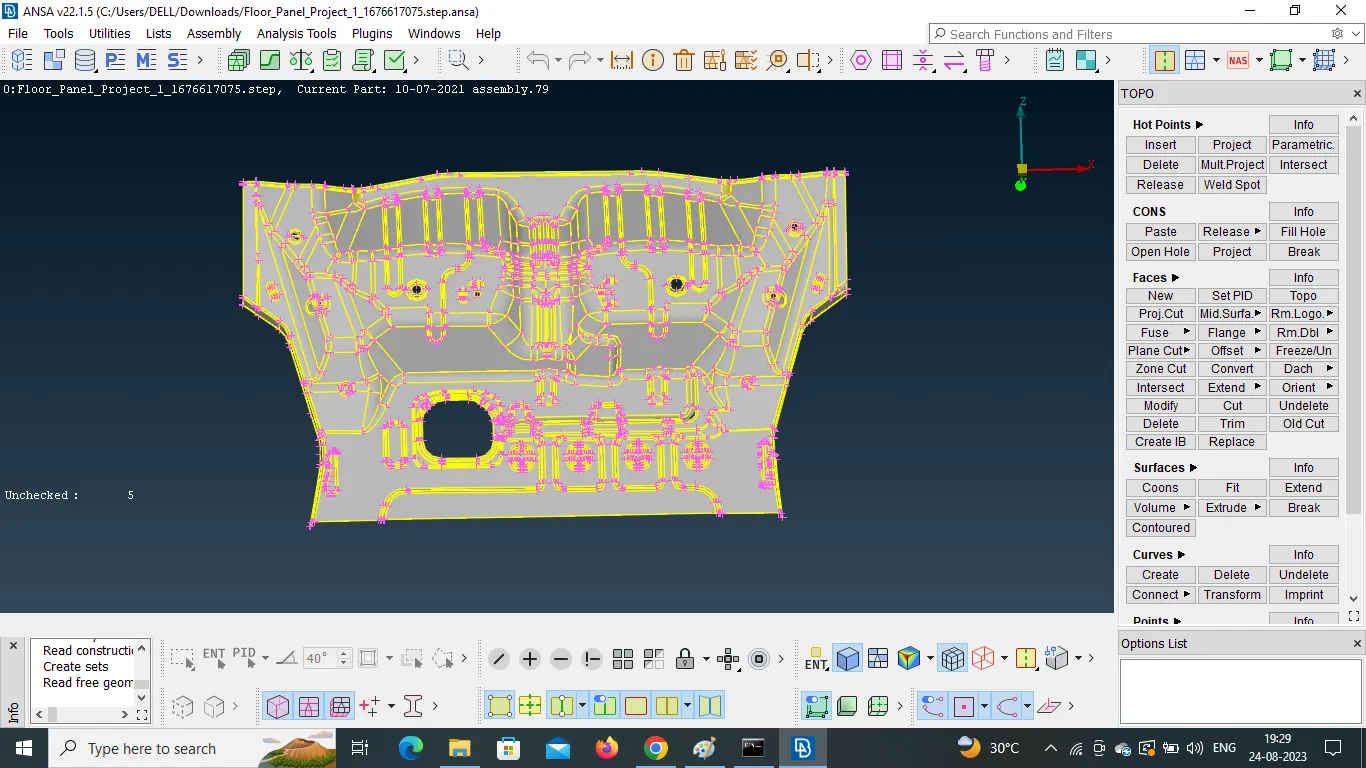

- then we need to do the geometrical and topology cleanup for a given model.
- then we need to create the mid surface for the given model by using the mid surface option.

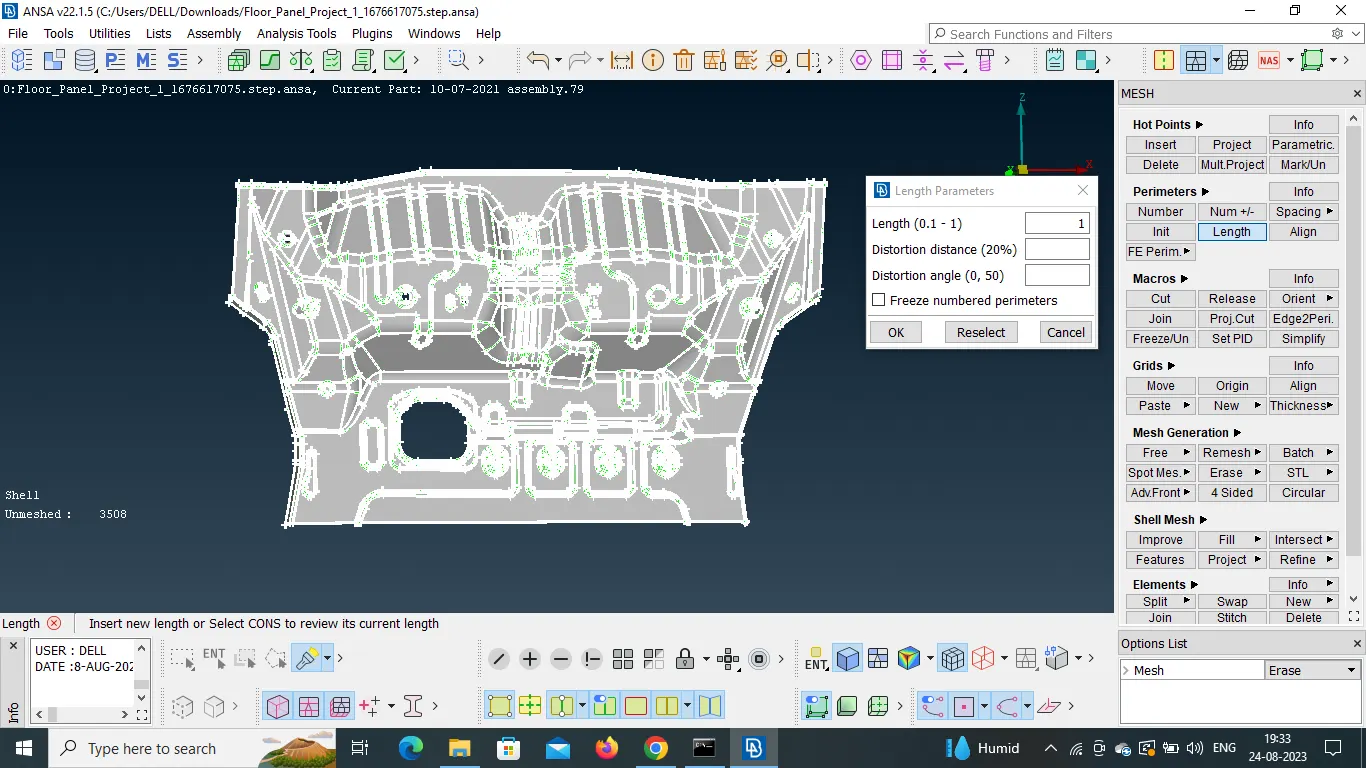

- after completing the mid surface for the given model then we need to give perimeter value size as 5.
- to give the quality criteria value as mentioned the above.

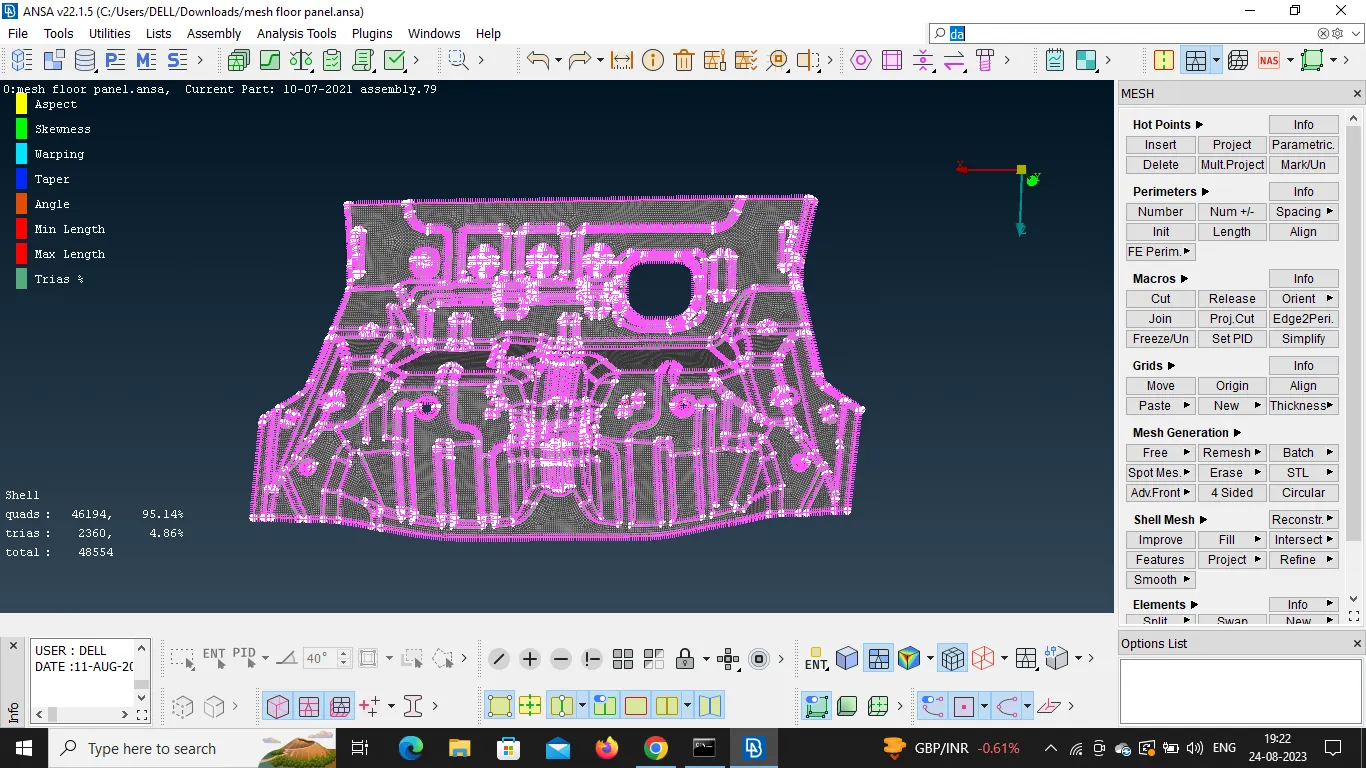

- after we need to create the mesh flow for the given model by using the given quality criteria.
- by using the options of mesh generation > batch > select.
