Project 1 - Meshing of Floor Panel
AIM : To check for the geometrical errors and mesh with the given element Quality criteria for given cad model.
CAD MODEL :
PROCEDURE :

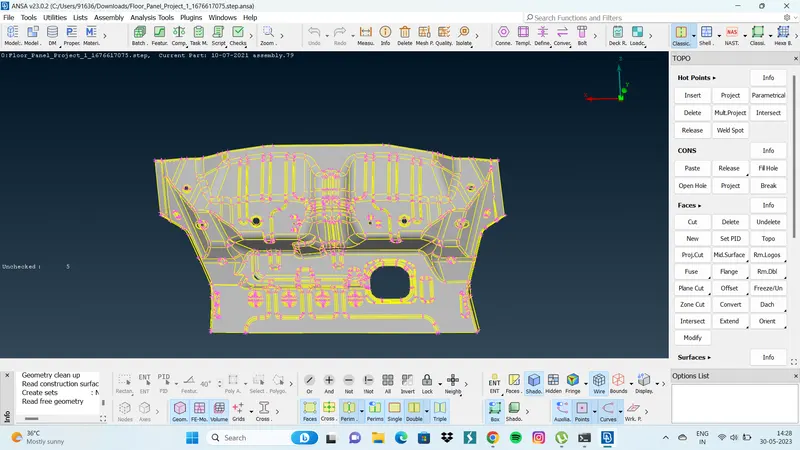

1. GEOMETRY CLEANUP
2. GENERATING MID SURFACE
3. ENTERING GIVEN ELEMENT QUALITY CRITERIA
4. MESH GENERATION
5. RESULT
1. GEOMETRY CLEANUP :

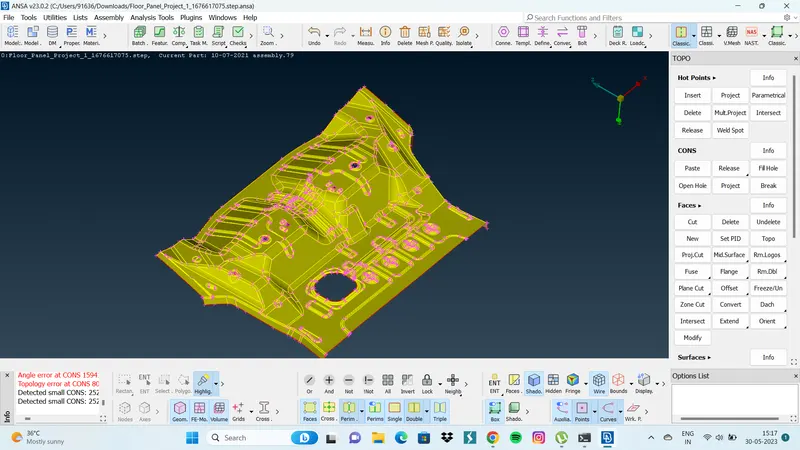

- In this given cad model topology has been performed at first to get a clear image of given cad model.

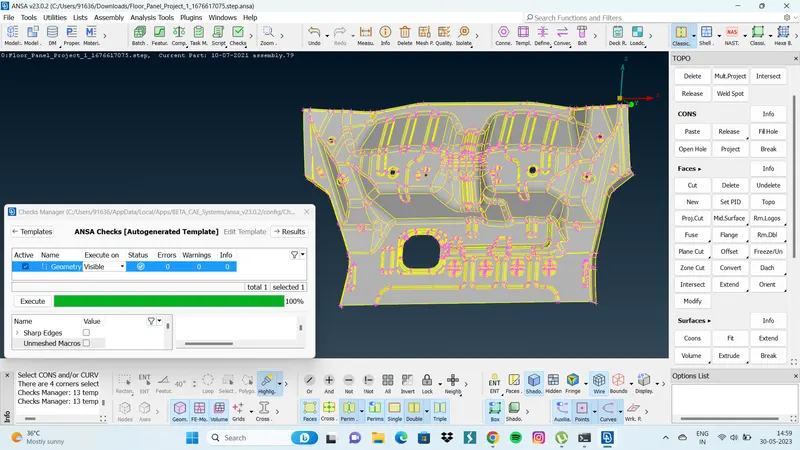

- After topology the goemetry was inspected using check geometry to find the geometrical errors in cad model.
- Using check geometry the identified errors were fixed such as deformed faces and triple cons.
2. GENERATING MID SURFACE :
- After geometry cleanup mid surface was carried out using the function Mid.Surface (Automid).
- Finally mid surface generation is succesfull.

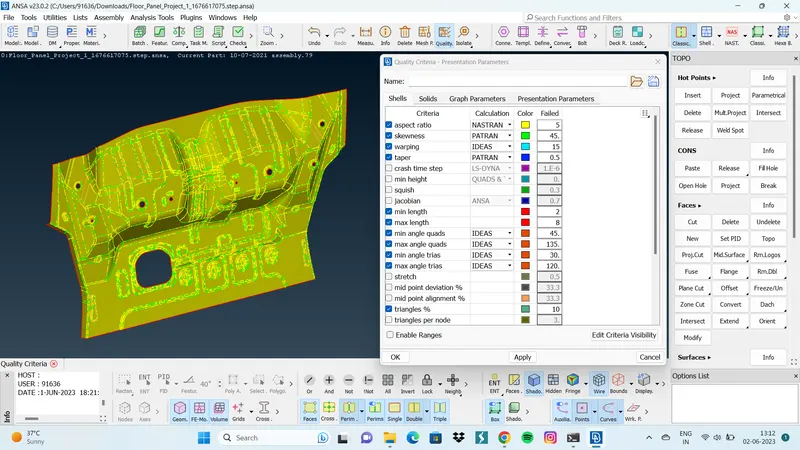

3. ENTERING GIVEN ELEMENT QUALITY CRITERIA :
- After generating mid surface the given quality criteria has been entered.
- Mesh generation should be based on the given quality parameters and it must satisfies the given parameters.

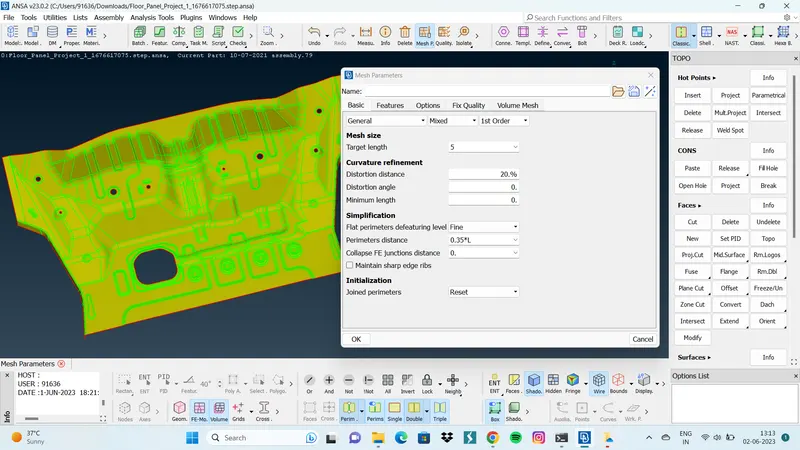

4. MESH GENERATION :

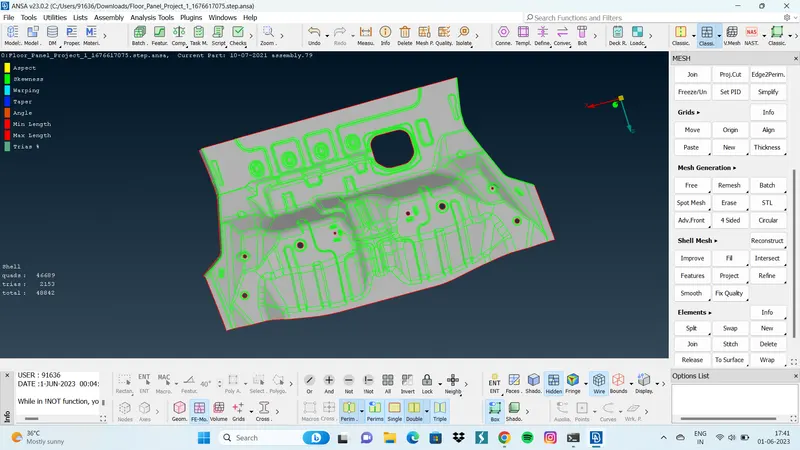

RESULT : Since the final mesh of given floor panel cad was satisfies all the given element quality criteria hence the mesh generation was sucessfull.
