Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory) using Linked List

Overview of the Project: (5 to 6 lines)

In this project, interfaces for mathematical Set Theory are implemented using C programming language. User can give the input like two list of data and this program will give the output as the union and intersection of these two lists

Goals (2 to 3 points)

• Implementation of interface for mathematical Set Theory using C programming.
• Giving two list of data as input to get the output as union & intersection for given list of data.

Key Highlights of the Project: (4 to 5 point)

• Creating two list of data using linked list method.
• Insert the node to 1st and 2nd list accordingly.
• Intersection of data of two lists.
• Getting Union of two list.

Deliverables of this project: (4 to 5 points)

• Intersection of data of two list.
• Union of data of two list

Expected Outcomes: (4 to 5 points)

• Student will get the Knowledge of creating the nodes using Linked List.
• Getting the intersection and Union of data of two list.
• Comparing the elements of two list.

/*
 ============================================================================
 Name        : Project_1.c
 Author      : Om Deore
 Date        : 08/08/2022
 Copyright   : Your copyright notice
 Description : Creation of user defined data type to implement the user interfaces
               for working with ‘Set’ (Mathematical Set theory) using Linked List
 ============================================================================
 */

#include "set_theory.h"                                 // Including the set_theory.h header file

int main()                                              // Main program
{
	struct NODE *head1 = NULL;                          // Creating head1 pointer of type struct NODE
	struct NODE *head2 = NULL;                          // Creating head2 pointer of type struct NODE
	struct NODE *res_intersection = NULL;               // Creating res_intersection pointer of type struct NODE
	struct NODE *res_union = NULL;                      // Creating res_union pointer of type struct NODE

	int first_list_nodes = 0, second_list_nodes = 0,    // Declaring variables for storing the values from user
		first_list_items = 0, second_list_items = 0;

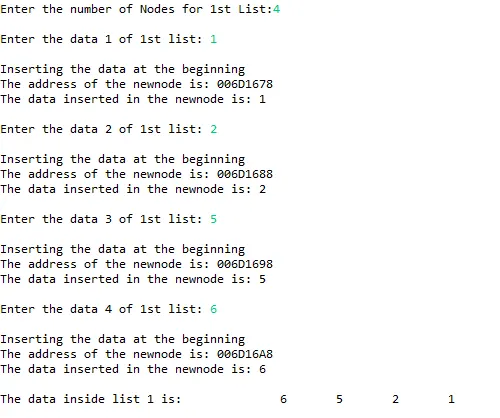

	printf("Enter the number of Nodes for 1st List:");  // Asking user for the size of 1st list
	fflush(stdout);                                     // Clearing output stream
	scanf("%d",&first_list_nodes);                      // Storing the value

	for(int i = 0; i<first_list_nodes; i++)             // Using for loop to get the data of each node
	{
		printf("\nEnter the data %d of 1st list: ",i+1);// Asking user to enter the data for particular node
		fflush(stdout);                                 // Clearing the output stream
		scanf("%d",&first_list_items);                  // Storing the value of particular node

		// Calling the insert_node function to insert the value enter by user, in new-node and getting the address of new node in return
		head1 = insert_node(head1,first_list_items);
	}

	printf("\nThe data inside list 1 is:\t");           // Printing the data entered by user in List 1
	display(head1);                                     // Calling the display function to print the list 1

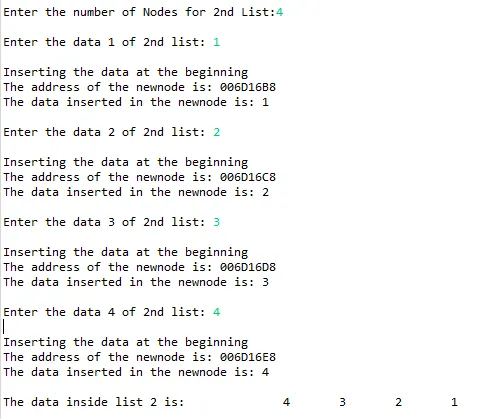

	printf("\nEnter the number of Nodes for 2nd List:");// Asking user for the size of 2nd list
	fflush(stdout);                                     // Clearing output stream
	scanf("%d",&second_list_nodes);                     // Storing the value

	for(int i = 0; i<second_list_nodes; i++)            // Using for loop to get the data of each node
	{
		printf("\nEnter the data %d of 2nd list: ",i+1);// Asking user to enter the data for particular node
		fflush(stdout);                                 // Clearing the output stream
		scanf("%d",&second_list_items);                 // Storing the value of particular node

		// Calling the insert_node function to insert the value enter by user in new-node and getting the address of new node in return
		head2 = insert_node(head2,second_list_items);
	}

	printf("\nThe data inside list 2 is:\t");           // Printing the data entered by user in List 2
	display(head2);                                     // Calling the display function to print the list 2

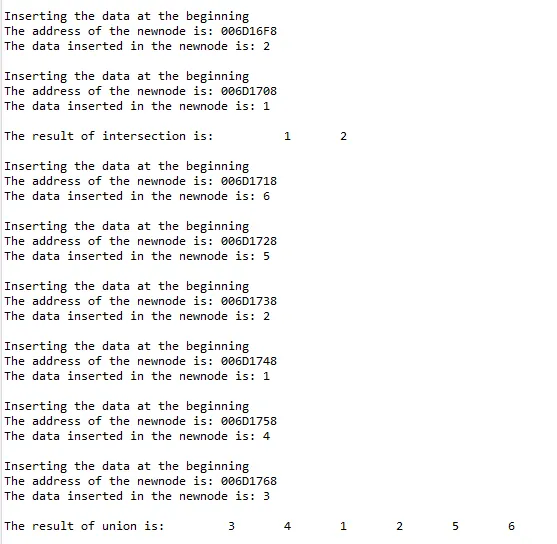

	//Calling the get_intersection function to get the common values in both lists and passing head1 and head1 as arguments
	res_intersection = get_intersection(head1,head2);   // Updating the address of result list in res_intersection
	printf("\nThe result of intersection is:\t");       // Printing the common values from both list
	display(res_intersection);                          // Calling display function to print the result

	//Calling the get_union function to get the all unique values from both lists and passing head1 and head1 as arguments
	res_union = get_union(head1,head2);                 // Updating the address of result list in res_union
	printf("\nThe result of union is:\t");              // Printing the all unique values from both list
	display(res_union);                                 // Calling display function to print the result

	return 0;
}

/*
 * set_theory.h
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This is the header file and will include all the libraries required,
 *              also declaration of functions, structures
 */

#ifndef SET_THEORY_H_                // Un-defining the name if already defined
#define SET_THEORY_H_                // Defining the name again for library

#include<stdio.h>                    // Pre-processor directives
#include<stdlib.h>                   // Adding the stdio and stdlib library to use necessary functions

struct NODE                          // Creating the node for linked list using structure
{
	int data;                        // 1st member is the data for node
	struct NODE *next;               // 2nd member to store address of next node
};

struct NODE *insert_node(struct NODE *,int );        // Declaring the insert_node function with return and 2 arguments
struct NODE *get_union(struct NODE *, struct NODE *); // Declaring get_union function with return and 2 arguments
struct NODE *get_intersection(struct NODE *,struct NODE *); // Declaring get_intersection function with return and 2 arguments
int compare(struct NODE *head,int n);                // Declaring compare function with return and 2 arguments
void display(struct NODE *);                         // Declaring display function with no return and one argument

#endif /* SET_THEORY_H_ */            // End of library

/*
 * insert_node.c
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This code will take the address of head of list and value to be inserted
 *              Then it will create new-node and store the value, update the address of head
 *              and then will return its new-node address as new reference address
 *              It will add new-node at the beginning of the list
 */

#include "set_theory.h"                               // Including the set_theory.h header file

struct NODE *insert_node(struct NODE *head,int data)  // Definition of insert_node function
{
	printf("\nInserting the data at the beginning");  // Printing that new-node is added in the beginning of linked list
    struct NODE *newnode;                             // Declaring a new-node pointer of struct NODE type
    newnode = (struct NODE *)malloc(sizeof(struct NODE));  // Allocating space to new-node in memory using malloc
    printf("\nThe address of the newnode is: %p",newnode); // Printing the memory address of new-node
    newnode->data = data;                                  // Storing the data in new-node entered by user
    printf("\nThe data inserted in the newnode is: %d\n",newnode->data); // Printing the value of data to user
    newnode->next = head;                             // Assigning the address of head to new-node
    head = newnode;                                   // Assigning the new-node address to head

    return head;                                      // Returning the new reference address of list
}

/*
 * compare.c
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This code will take the head address of a list and value to be compared to data present in list as second argument
 *              Then it will iterate through the list 1 value to check if match is obtained
 *              If match if present it will return '1' or else it will return '0'
 */

#include "set_theory.h"                 // Including the set_theory.h header file

int compare(struct NODE *c_node,int n)  // Definition of display function
{
    while(c_node != NULL)               // Using while loop to iterate through the list passed as argument
    {
    	// Using if loop to check whether the value matches with the data passed as second argument
       if(c_node->data == n)
       {
    	   return 1;                    // If true then returns 1
       }
       c_node = c_node->next;           // Assigning the next node address
    }
    return 0;                           // If no value matches then returns 0
}

/*
 * get_intersection.c
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This code will take the head address of 2 lists to be compared for common values
 *              Then it will create new head pointer to store common values
 *              After that it will iterate through the 2 lists for common value and update it in the head pointer created
 *              The address of the new pointer with common values is returned
 */

#include "set_theory.h"                                               // Including the set_theory.h header file

struct NODE *get_intersection(struct NODE *head1,struct NODE *head2)  // Definition of get_interestion function
{
	struct NODE *head_intersection = NULL;                            // Creating new head pointer called head_intersection

	while(head1 != NULL)                                              // Using while loop to iterate through the 1st list
	{
		// Using if logic to and compare function to check whether any common value is present
		if(compare(head2,head1->data))
			{
			    // If true then it will insert that data into get_intersection using insert_node function
				head_intersection = insert_node(head_intersection,head1->data);
		    }
		head1 = head1->next;                                          // Updating the next node address of list 1
	}
    return head_intersection;                                         // Returning the address of new list created
}

/*
 * get_union.c
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This code will take the head address of 2 lists to be compared for unique values
 *              Then it will create new head pointer to store unique values from both the lists
 *              After that it will iterate through the 2 lists for unique values and update it in the head pointer created
 *              The address of the new pointer with unique values is returned
 */


#include "set_theory.h"                                        // Including the set_theory.h header file

struct NODE *get_union(struct NODE *head1, struct NODE *head2) // Definition of get_union function
{
	struct NODE *head_union = NULL;                            // Creating new head pointer called head_union

	while(head1 != NULL)                                       // Using while loop to iterate through the 1st list
	{
		// Inserting the list 1 values in head_union as they all are unique
		head_union = insert_node(head_union,head1->data);
		head1 = head1->next;                                   // Updating the next node address of list 1
	}

	while(head2 != NULL)                                       // Using while loop to iterate through the 2nd list
	{
		// Using if logic and compare function to check whether any unique value is present
		if(!compare(head_union,head2->data))
		{
			// If true then it will insert that value into get_union using insert_node function
			head_union = insert_node(head_union,head2->data);
		}
		head2 = head2->next;                                   // Updating the next node address of list 2
	}
	return head_union;                                         // Returning the address of new list created
}

/*
 * display_list.c
 *
 *  Created on: Aug 8, 2022
 *      Author: OM
 * Description: This code will take the head address of a list to be displayed
 *              It will iterate through the list and will print the data present in each node
 */

#include "set_theory.h"         // Including the set_theory.h header file

void display(struct NODE *n)    // Definition of display function
{
	while (n != NULL)           // Using while loop to iterate through the list
	{
		printf("\t%d",n->data); // Printing the data present in the list
		n = n->next;            // Updating the next node address of the list
	}
	printf("\n");               // After printing entering the new line in console
}
