Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory)

Project-1:

AIM: Interfaces for mathematical Set Theory are implemented using C programming language. User can give the input like two list of data and this program will give the output as the union and intersection of these two lists.

EMBEDDED C CODE:

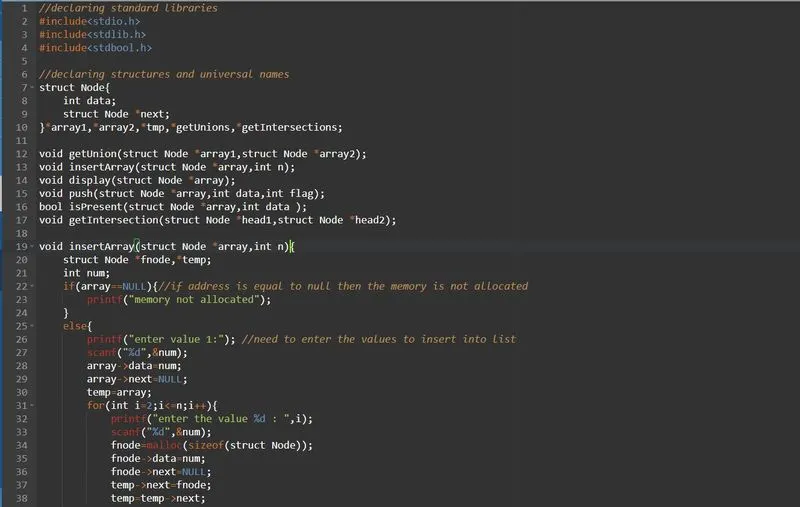

//declaring standard libraries
#include
#include
#include

//declaring structures and universal names
struct Node{
int data;
struct Node *next;
}*array1,*array2,*tmp,*getUnions,*getIntersections;

void getUnion(struct Node *array1,struct Node *array2);
void insertArray(struct Node *array,int n);
void display(struct Node *array);
void push(struct Node *array,int data,int flag);
bool isPresent(struct Node *array,int data );
void getIntersection(struct Node *head1,struct Node *head2);

void insertArray(struct Node *array,int n){
struct Node *fnode,*temp;
int num;
if(array==NULL){//if address is equal to null then the memory is not allocated
printf("memory not allocated");
}
else{
//need to enter the values to insert into list
printf("nEnter value 1:");
fflush(stdout);
scanf("%d",&num);
array->data=num;
array->next=NULL;
temp=array;
for(int i=2;i<=n;i++){
printf("Enter the value %d : ",i);
fflush(stdout);
scanf("%d",&num);
fnode=malloc(sizeof(struct Node));
fnode->data=num;
fnode->next=NULL;
temp->next=fnode;
temp=temp->next;
}
}
}

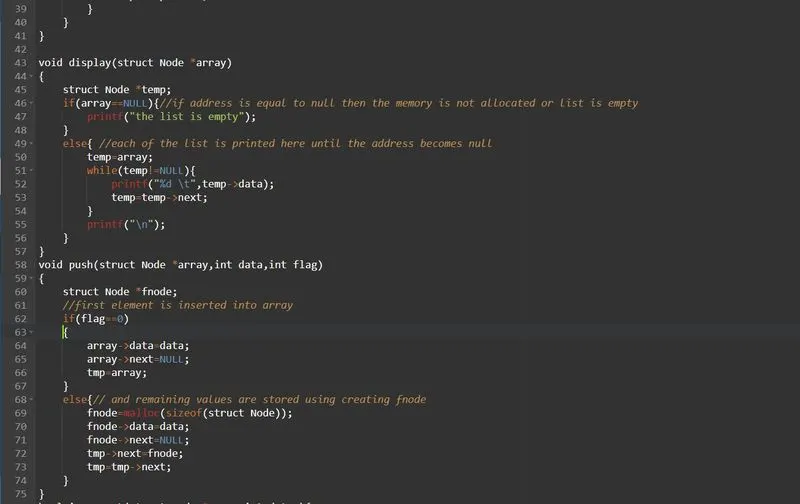

void display(struct Node *array){
struct Node *temp;
if(array==NULL){//if address is equal to null then the memory is not allocated or list is empty
printf("the list is empty");
}
else{
//each of the list is printed here until the address becomes null
temp=array;
while(temp!=NULL){
printf("%d t",temp->data);
temp=temp->next;
}
printf("n");
}
}

void push(struct Node *array,int data,int flag){
struct Node *fnode;
//first element is inserted into array
if(flag==0){
array->data=data;
array->next=NULL;
tmp=array;
}
else{// and remaining values are stored using creating fnode
fnode=malloc(sizeof(struct Node));
fnode->data=data;
fnode->next=NULL;
tmp->next=fnode;
tmp=tmp->next;
}

}

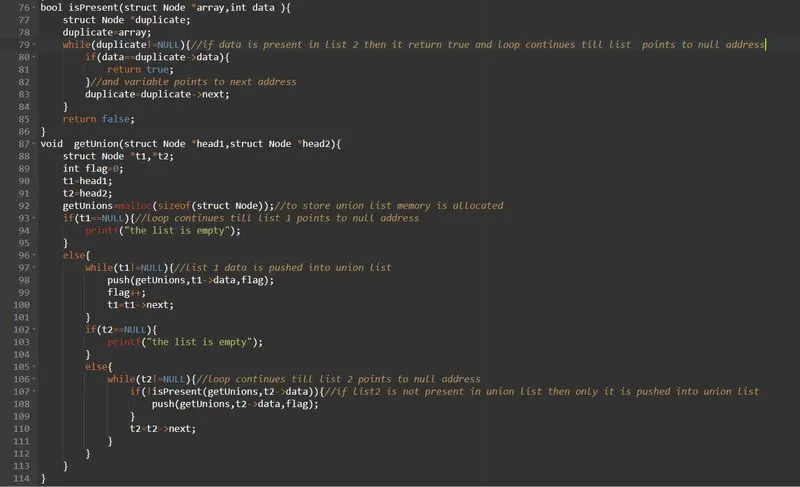

bool isPresent(struct Node *array,int data ){

struct Node *duplicate;
duplicate=array;
while(duplicate!=NULL){//if data is present in list 2 then it return true
//loop continues till list points to null address
if(data==duplicate->data){
return true;
}//and variable points to next address
duplicate=duplicate->next;
}
return false;
}

void getUnion(struct Node *head1,struct Node *head2){
struct Node *t1,*t2;
int flag=0;
t1=head1;
t2=head2;
getUnions=malloc(sizeof(struct Node));//to store union list memory is allocated
if(t1==NULL){//loop continues till list 1 points to null address
printf("the list is empty");
}
else{
while(t1!=NULL){//list 1 data is pushed into union list
push(getUnions,t1->data,flag);
flag++;
t1=t1->next;
}
if(t2==NULL){
printf("the list is empty");
}
else{
while(t2!=NULL){//loop continues till list 2 points to null address
if(!isPresent(getUnions,t2->data)){//if list2 is not present in union list then only it is pushed into union list
push(getUnions,t2->data,flag);
}
t2=t2->next;
}
}
}
}

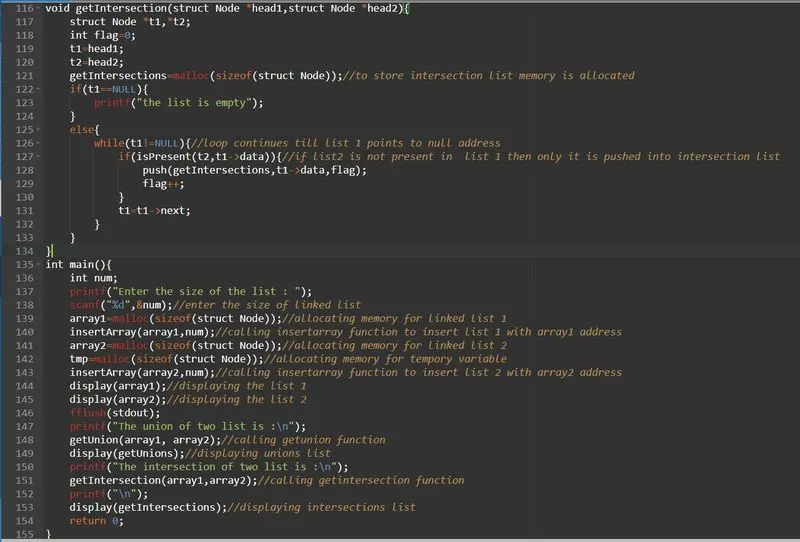

void getIntersection(struct Node *head1,struct Node *head2){
struct Node *t1,*t2;
int flag=0;
t1=head1;
t2=head2;
getIntersections=malloc(sizeof(struct Node));//to store intersection list memory is allocated
if(t1==NULL){
printf("the list is empty");
}
else{
while(t1!=NULL){//loop continues till list 1 points to null address
if(isPresent(t2,t1->data)){//if list2 is not present in list 1 then only it is pushed into intersection list
push(getIntersections,t1->data,flag);
flag++;
}
t1=t1->next;
}
}
}

int main(){
int num;
printf("Enter the size of the list : ");
fflush(stdout);
scanf("%d",&num);//enter the size of linked list

array1=malloc(sizeof(struct Node));//allocating memory for linked list 1

insertArray(array1,num);//calling insertarray function to insert list 1 with array1 address

array2=malloc(sizeof(struct Node));//allocating memory for linked list 2
tmp=malloc(sizeof(struct Node));//allocating memory for tempory variable

insertArray(array2,num);//calling insertarray function to insert list 2 with array2 address
printf("n");
printf("The two linked lists are:n");
display(array1);//displaying the list 1
display(array2);//displaying the list 2
printf("n");
fflush(stdout);
printf("The union of two list is :n");
getUnion(array1, array2);//calling getunion function
printf("n");
display(getUnions);//displaying unions list
printf("The intersection of two list is :n");
getIntersection(array1,array2);//calling getintersection function
printf("n");
display(getIntersections);//displaying intersections list
return 0;
}

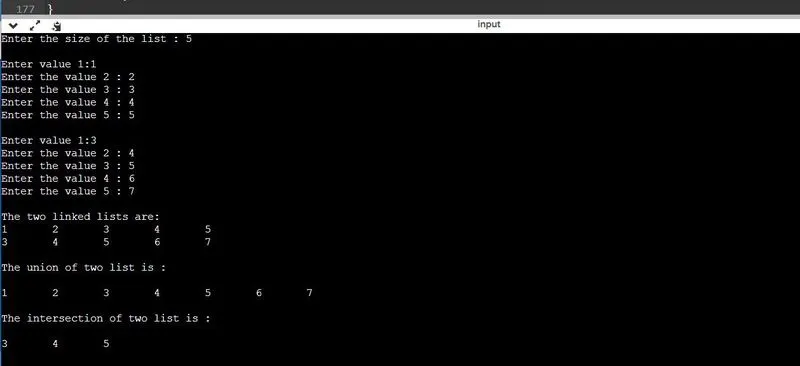

OUTPUT:

Enter the size of the list : 5

Enter value 1:1
Enter the value 2 : 2
Enter the value 3 : 3
Enter the value 4 : 4
Enter the value 5 : 5

Enter value 1:3
Enter the value 2 : 4
Enter the value 3 : 5
Enter the value 4 : 6
Enter the value 5 : 7

The two linked lists are:
1 2 3 4 5
3 4 5 6 7

The union of two list is :

1 2 3 4 5 6 7
The intersection of two list is :

3 4 5
