Challenge

Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

PPrachit Milmile26 Jan 2022

AIM:

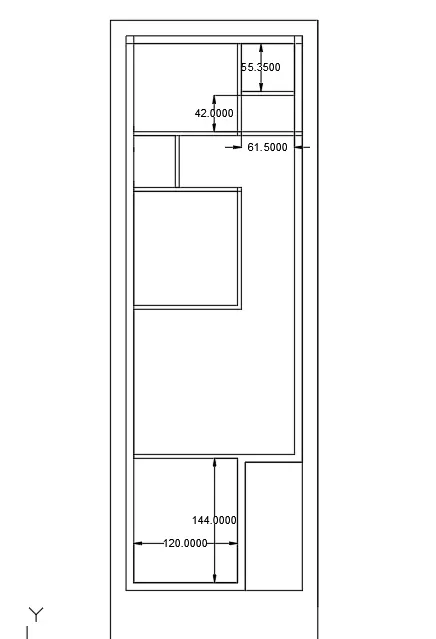

To draw residential building of dimenstion 20' x 60' with following drawings

1) Architectural Drawings

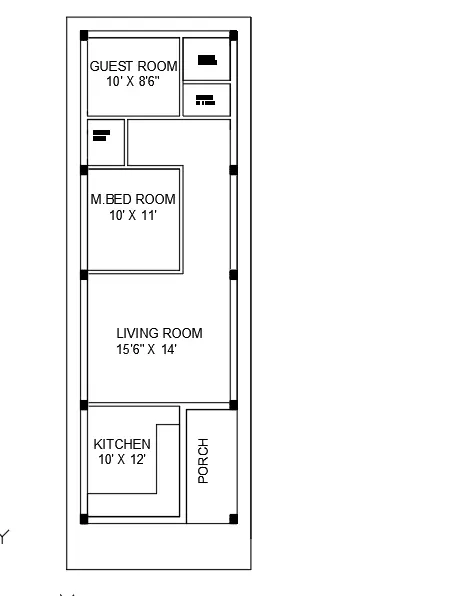

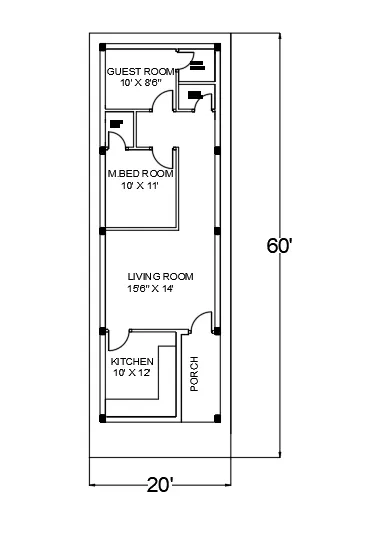

Floor plan

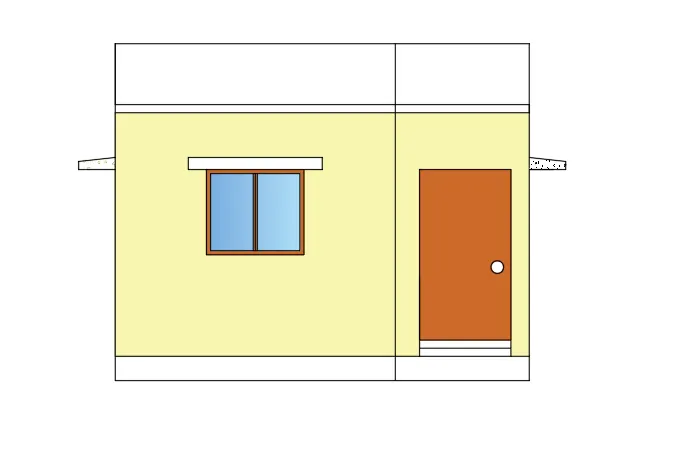

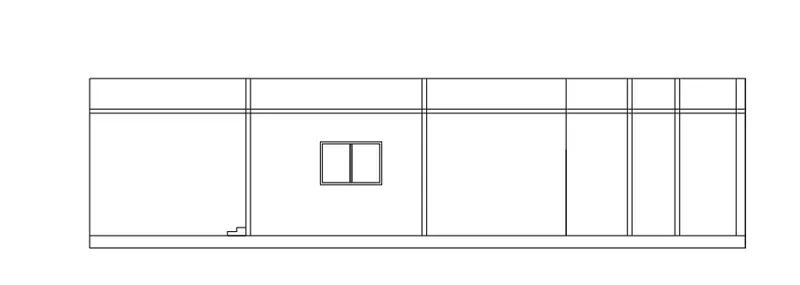

Elevation

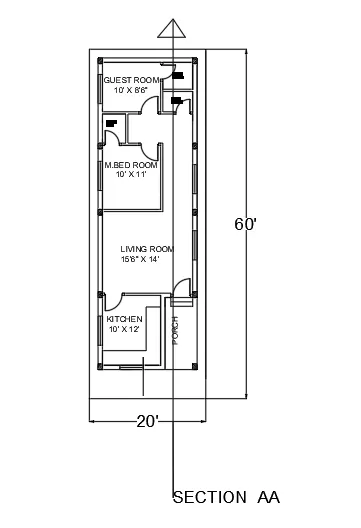

Section

2) Structural Drawings

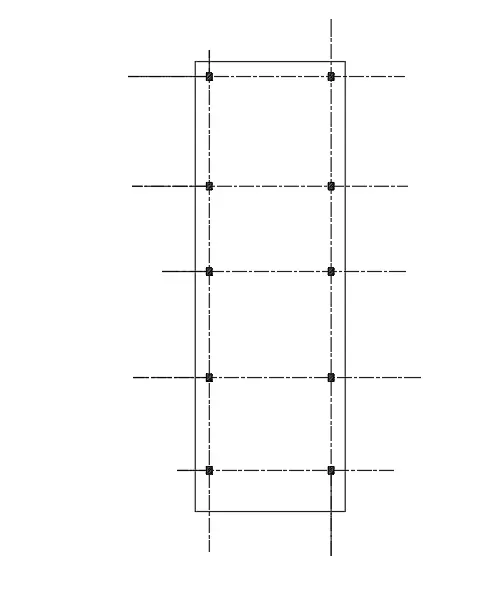

Beam Layout
Column Layout

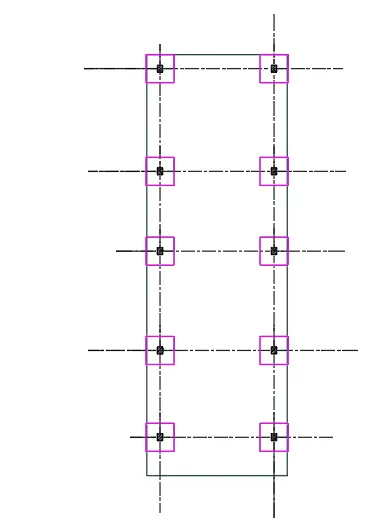

Footing Layout

Basic Information and sizes used

The plot is of 20' x 60' east facing

Wall sizes are 9" outer and 4.5" inner

Door are of 3' and toilet doors are of 2'-6"

Column sizes are 9" x 12"

Beam sizes are 9" x 9"

Procedure:

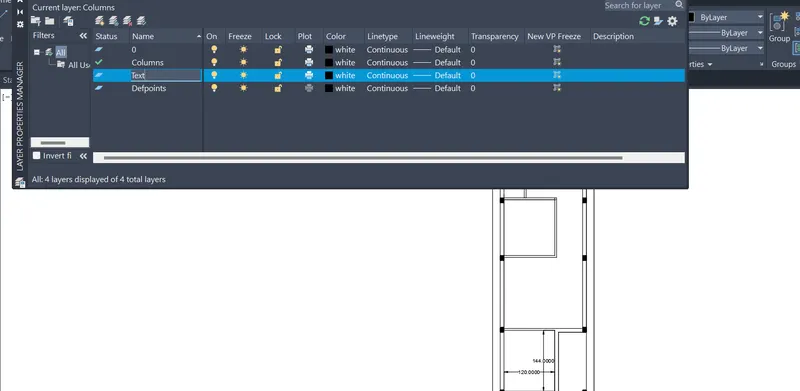

Open autoCAD

Change units to enggineering and precestion 0'0"

COMMANDS USED

Units Command

Line Commnad

Offset command

DIM command

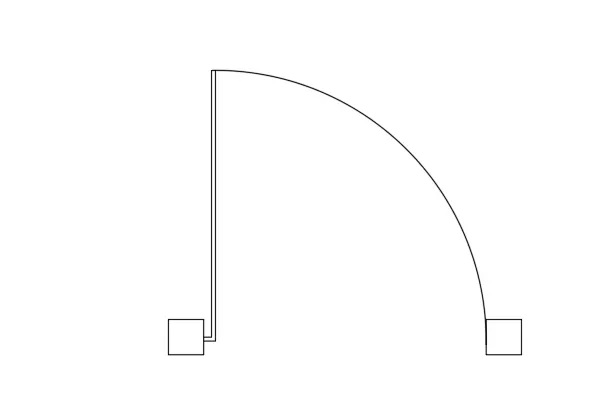

Block command

Insert command

Text Command

Continues line command

HATCH Command

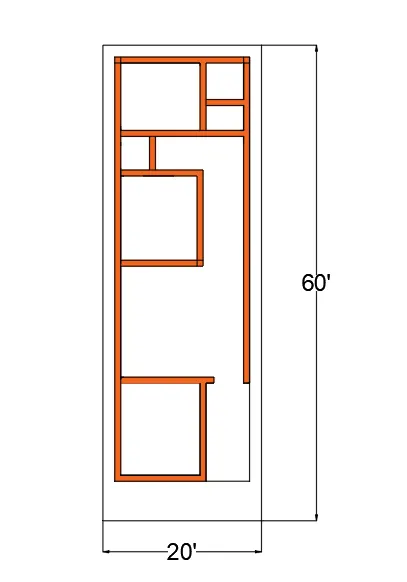

First line command is used to draw the lines 1.5' form all the sides are used as open space reaming is the buildup area. The offset of 9" is taken tpo create the outer walls . Offset commnad is used to to creatwb rooms of diamenstions. again offset is used for inner walls of 4.5". Text Command is used to name the dimenstions Trim command is used tro trim the lines
