Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

RRevanth Goud Deshini11 Dec 2022

Aim :- To Design and Draft a layout of a Residential Building having plot size of 60' X 20' ( 18.3m X 6m ), facing East-direction using AutoCAD.

Architectural Drawing :-

Site Plan Layout

Ground Floor Plan

First Floor Plan

Elevation

Section View

Structural Drawing :-

Column Layout Plan

Beam Layout Plan

Footing Layout Plan

Introduction :-

The general commands used for drawing the building is as follows :-

Line

Rectangle

Circle

Erase

Copy

Trim

Mirror

Offset

Extend

Array

Move

Rotate

Dimension

Text

Fillet

Hatch

Join

Explode

Breakepoint

Multileader

Layer

The Assumed dimensions are as following :-

External wall = 230 mm

Internal wall = 150 mm

Staircase Dimensions :-

Treads = 250 mm, Riser = 200 mm

Windows Dimensions :-

W = 1000 mm x 1500 mm, V = 700 mm x 500 mm

Doors Dimensions :-

D1 = 1500 mm x 2000 mm, D2 = 1000 mm x 2000 mm, D3 = 900 mm x 2000 mm

Beam Size = 230 mm x 350 mm

Column Size = 230 mm x 230 mm

Procedure :-

Open AutoCAD application.

Type "Un" and press enter.

Set Units to scale inserted content as "milimeter" and press Enter.

Sets limits by typing "limits" in command box.

Type "LA" in the command box and press enter.

In Layer properties manager, create new layers by clicking on new layer icon.

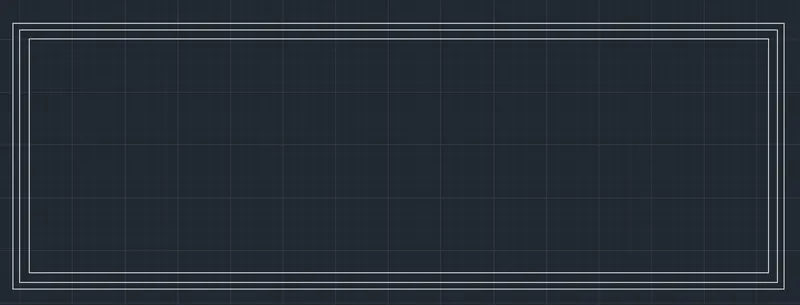

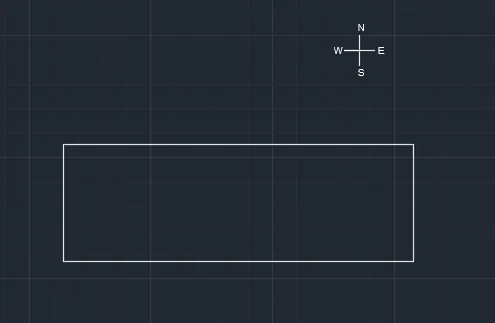

Using line command create a plot boundaary of 60'*20'

Draw direction lines for reference

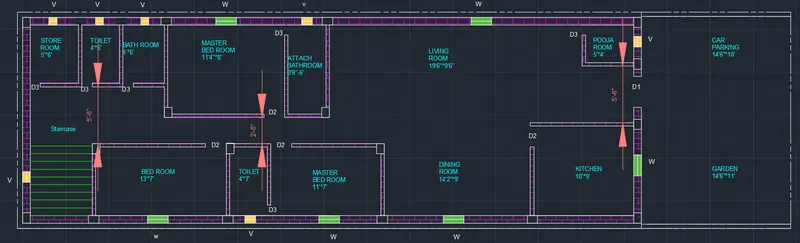

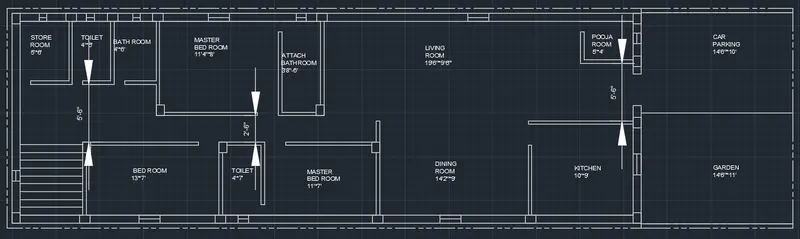

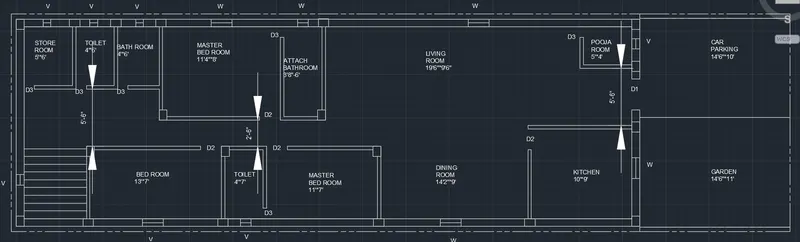

Now using line,Fillet,Trim ,Extend and various commands i have created a plan.

The plan is as per vaasthu shastra

Using line command i have created columns of sizes 9"*12" copy pasted wherever required.

Stairs are provided using line & offset command Tread of 1' & Riser 9"

Doors & windows are provided at required places

Changed the compound wall line type to Acad-ISO09W100

Using line & offset command compound wall of car parking & garden is created to a thickness of 5"

The dimension are mentioned using DTEXT command.

Used MTEXT to indicate the rooms.

Extra spaces are mentioned using Arrow marks

Using hatch commands columns are filled with AR-CONC.

From layer properties colour of window,ventilator,wall,staircase,Dimesnion,MTEXT colour is changed

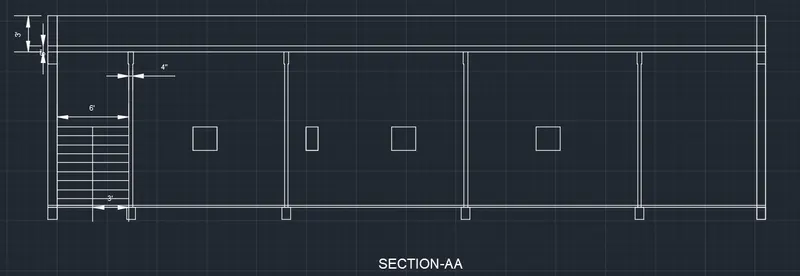

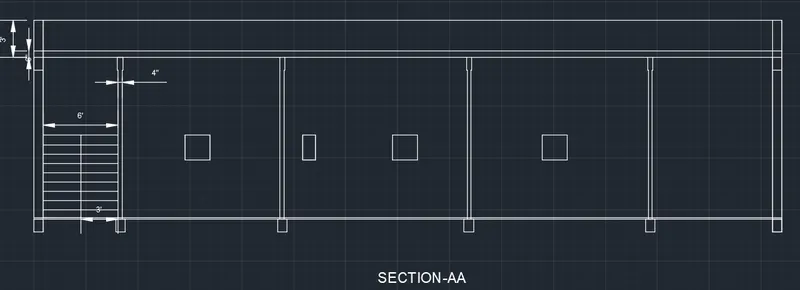

Using the commanmd XL(VERTICAL),XL(HORIZONTAL),TRIM,OFFSET i had drawn the elevation SECTION AA

Trim the unwanted lines.

Dimensions are imdicated using DIM-TEXT command.

Words are type using MTEXT

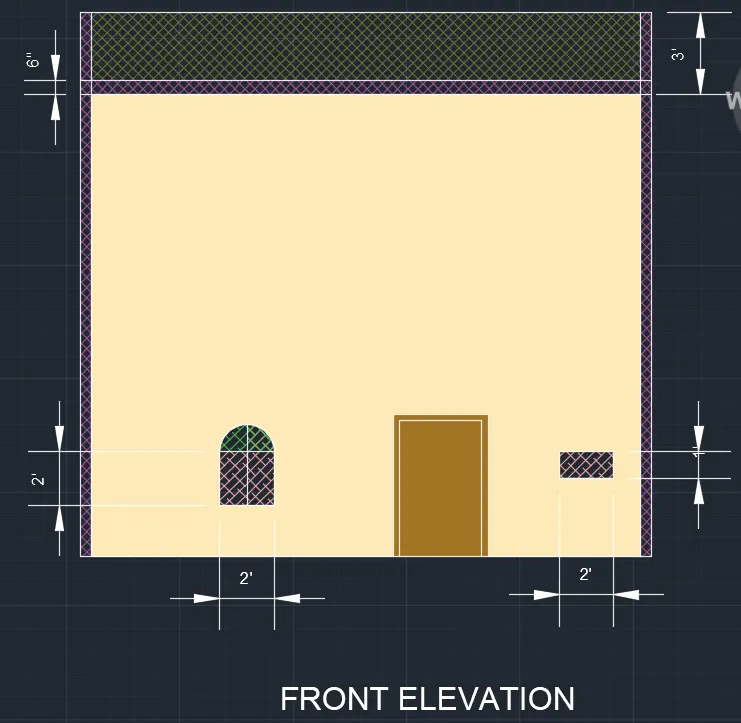

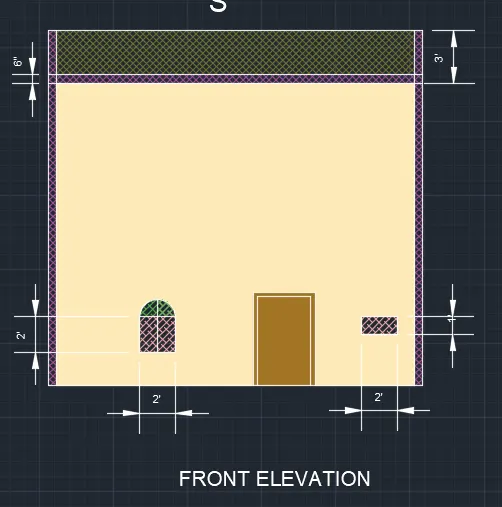

Front elevation is created using XL-VER,XL-HOR,TRIM,HATCH command

Window dimension 2'*2' & arc is used in window ,ventilator dimension,door dimension3'*5'

Dimensions are mentioned using DIM-STYLE

Text created using DIMTEXT command

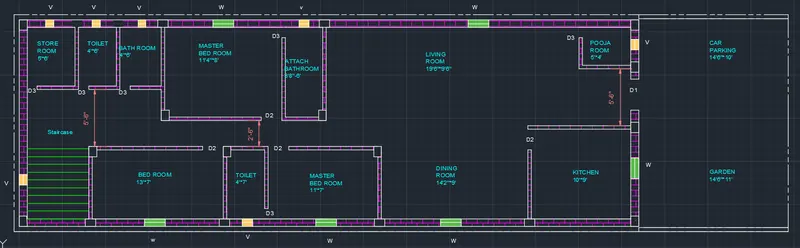

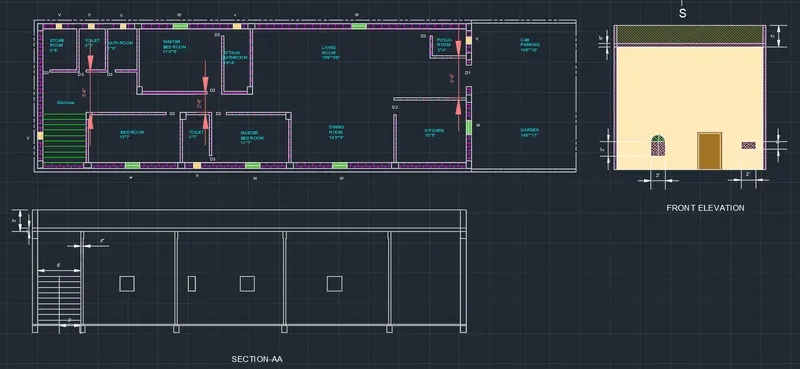

following imagess shows the Floor plan,Section-AA & Front elevation.

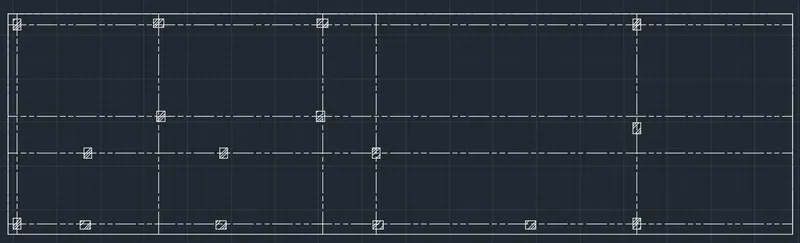

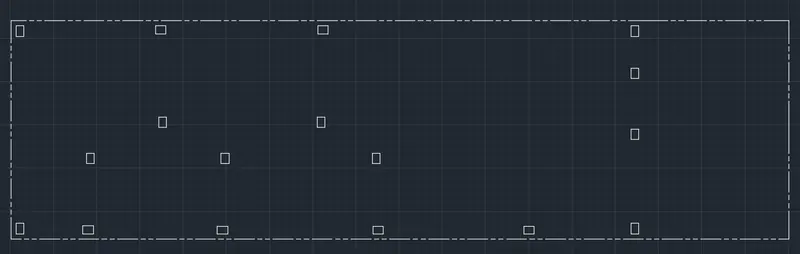

Now using copy command ,copy all the columns & plot boundary ,paste it all above the floor plan.

Hatch the columns using hatch command

Turn on midpoint from snap settings & draw grid lines using command XV(VER) & XL(HOR)

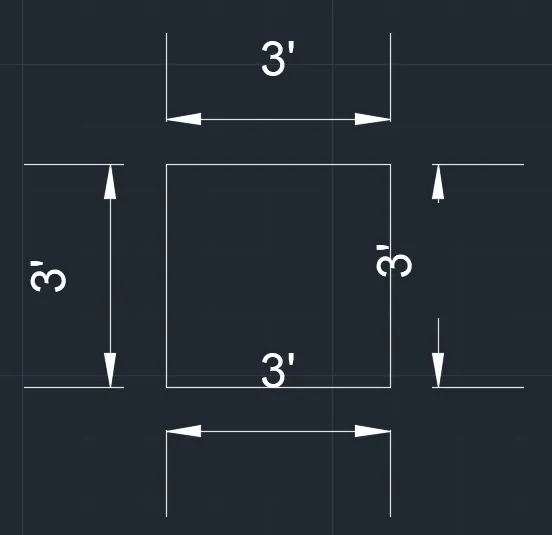

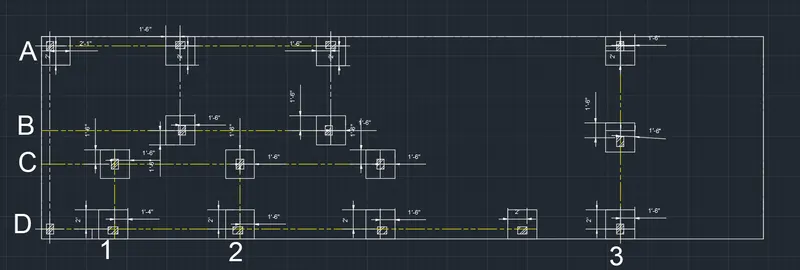

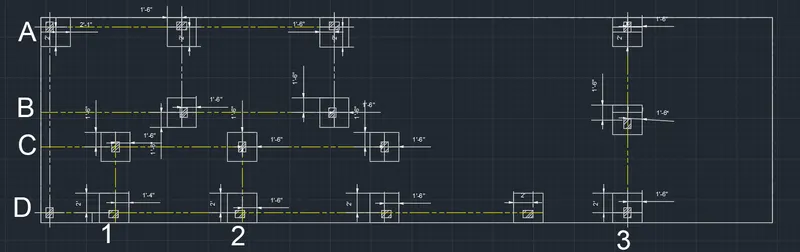

Using rectangle command the sqaure footing of size 3'*3' is provided for all columns

Turn on the midpoint in snap settings ,copy paste created square footing to all the columns

Change the lines into dash type from the By-layer properties

Mark the dimesnison of the footing using DIM STYLE command

Changing the colour of the grid lines for clear visibility

Mentional horizontal grid lines as A,B,C,D & Vertical grid lines 1,2,3

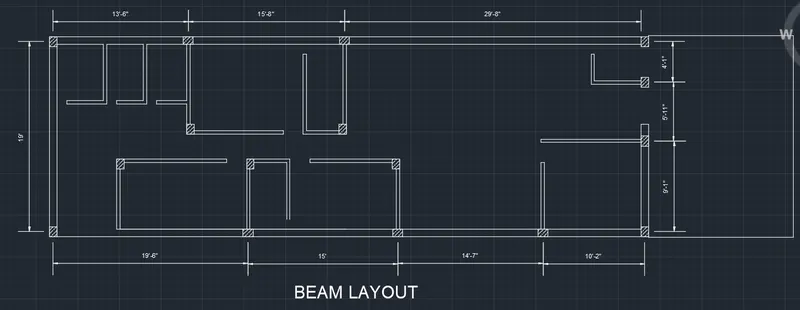

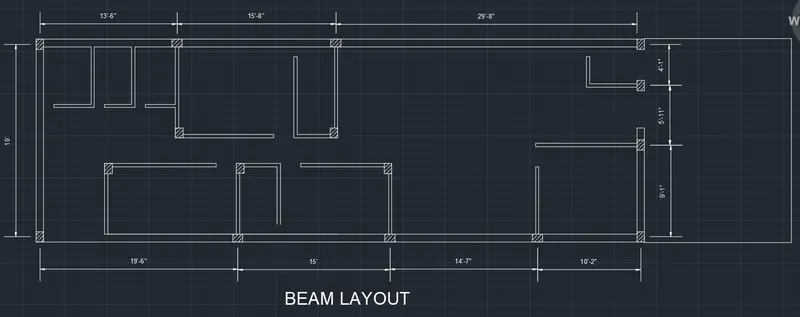

Using copy command all columns & beams are pasted.

Using DIM-LINE command centre to centre distance between each column is mentioned

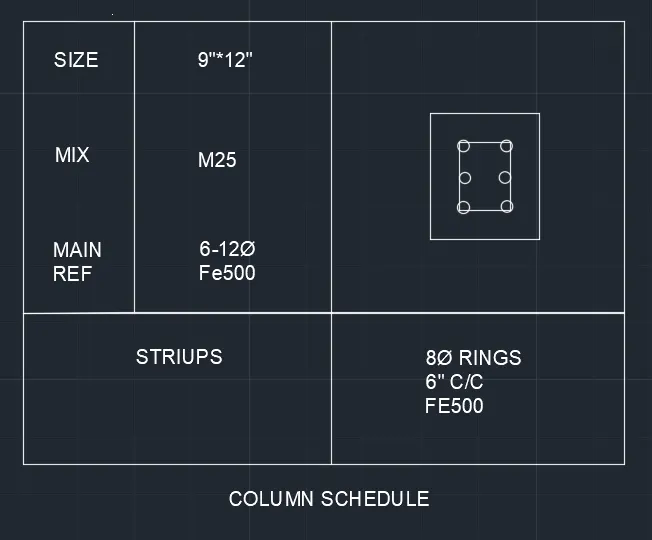

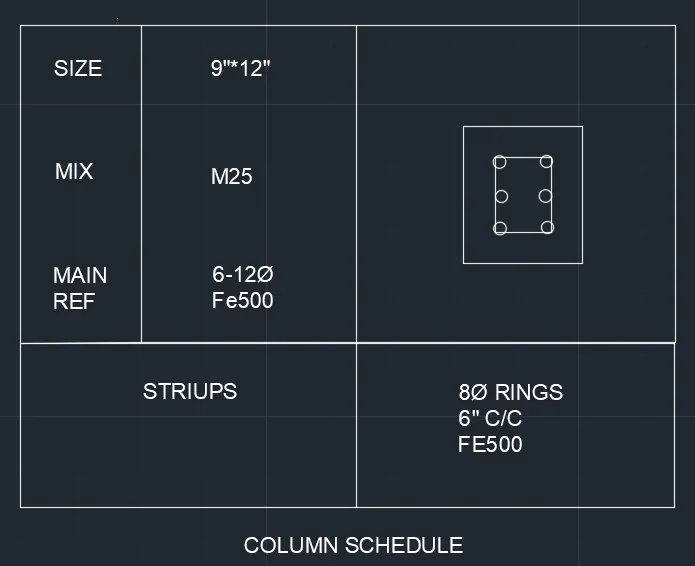

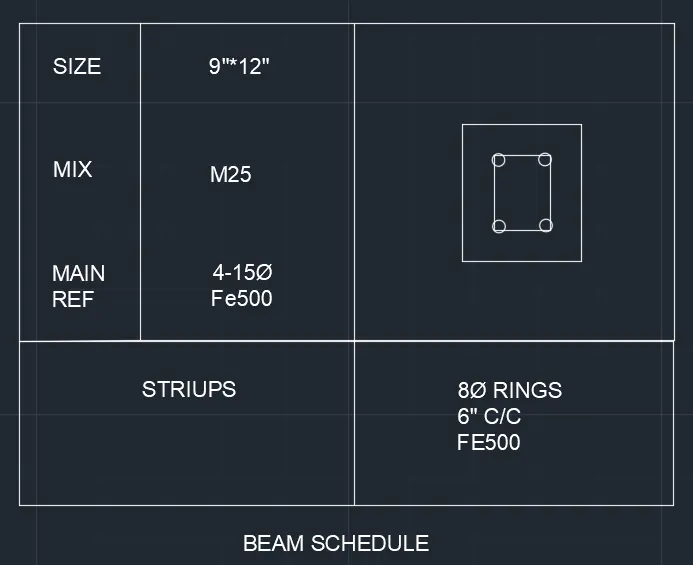

Using line ,circle,MTEXT command Column schedule,Beam schedule & Footing where created.

RESULT
