Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM: Design and draw a residential plan using Autodesk auto cad software draw Plan, Elevation, Section, column, beam, footing plans

Introduction:

As per given plot size 18.3M x 6M

Construction area is less than the plot size

Using command, like line, offset, extend, trim, xl-line, and so..

Procedure:

1. Set up the screen limit
2. Set up units

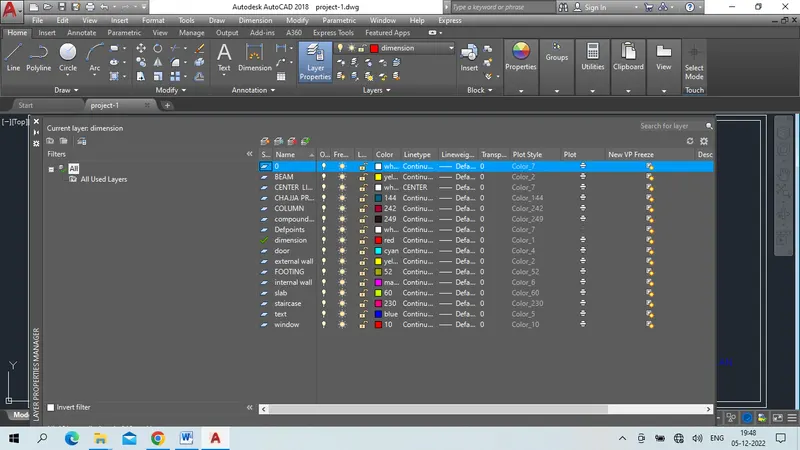

3. Making layers

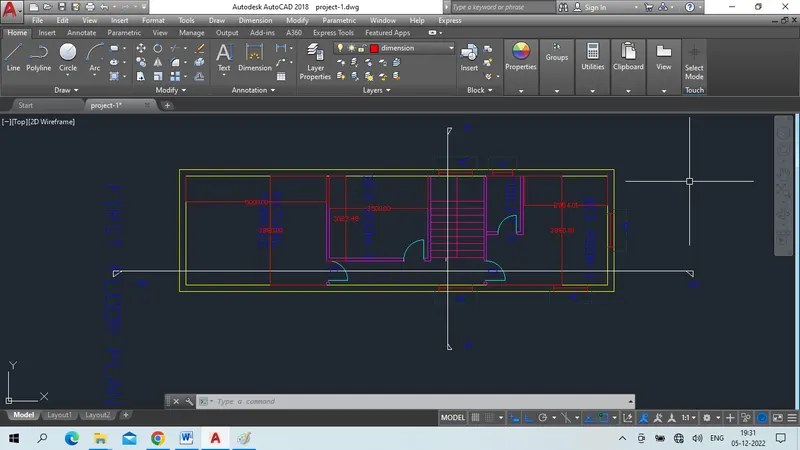

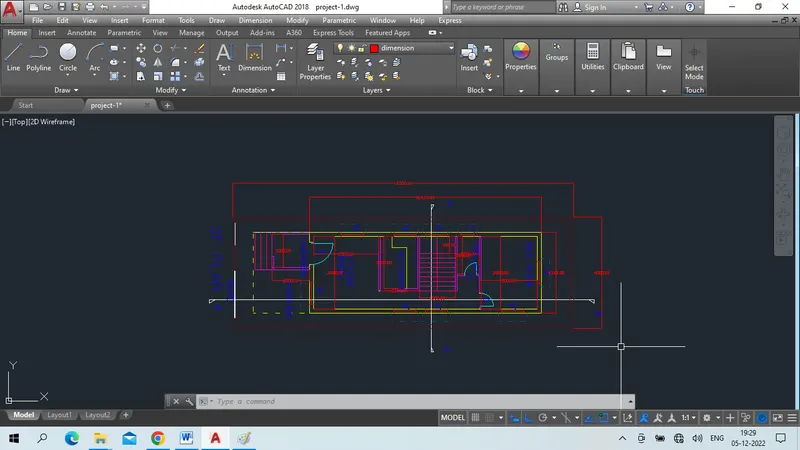

5. using layear property makes first groung floor plan

6 after gf plan drawn first floor plan

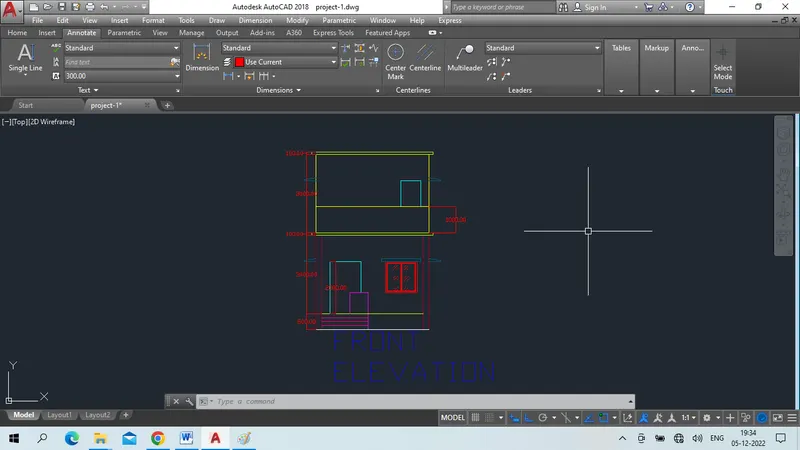

7 after complition of floor plan drawn front elevation

8 side elevation plan

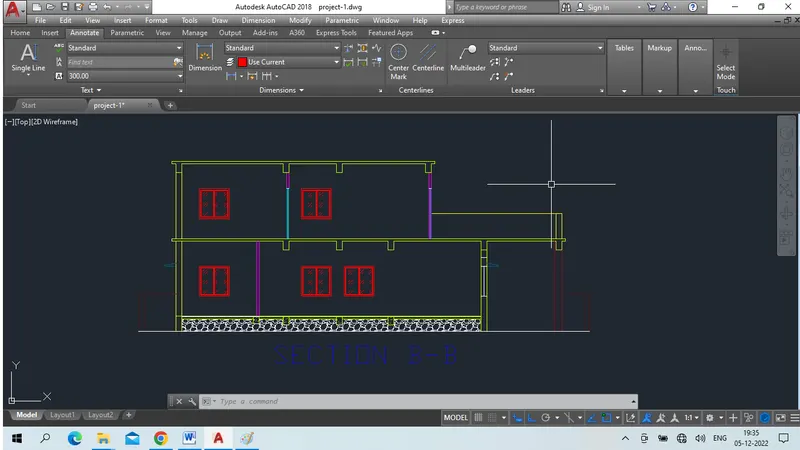

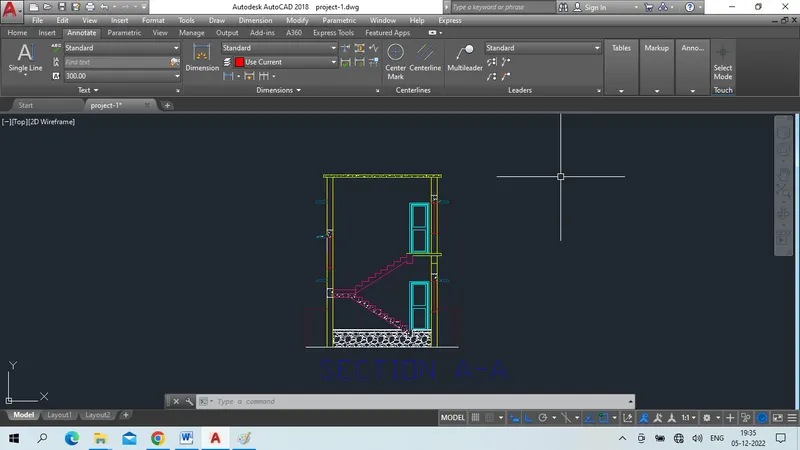

9 section AA

10 section BB

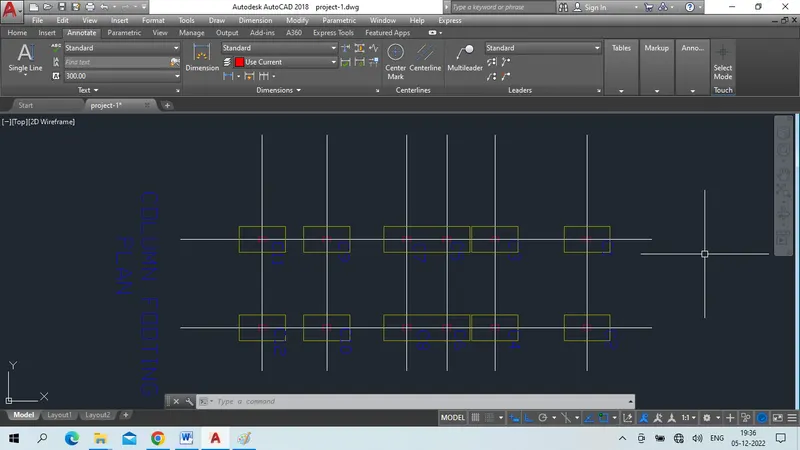

11 column footing plan

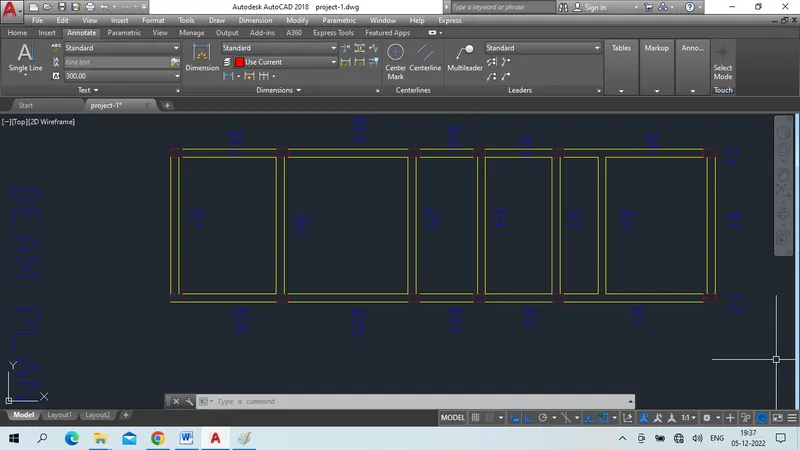

12 beam plan

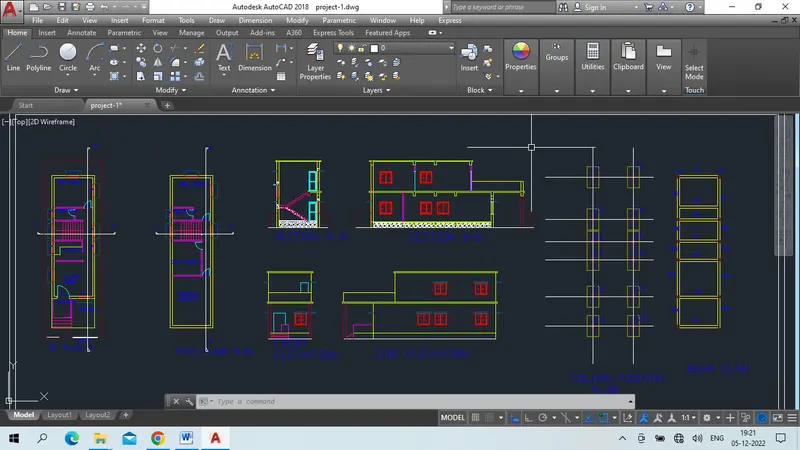

Result:

As per plot size drawn residential plan G+1 building, Plan, Elevation, Section, Column-Footing Plan, Beam plan is drawn neat sketch drawing as per requirment
