Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM : To Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

A. Structural Drawing :

B. Architectural Drawing of the building :

PROCEDURE :

COMMAND USED :

STEP WISE PROCEDURE :

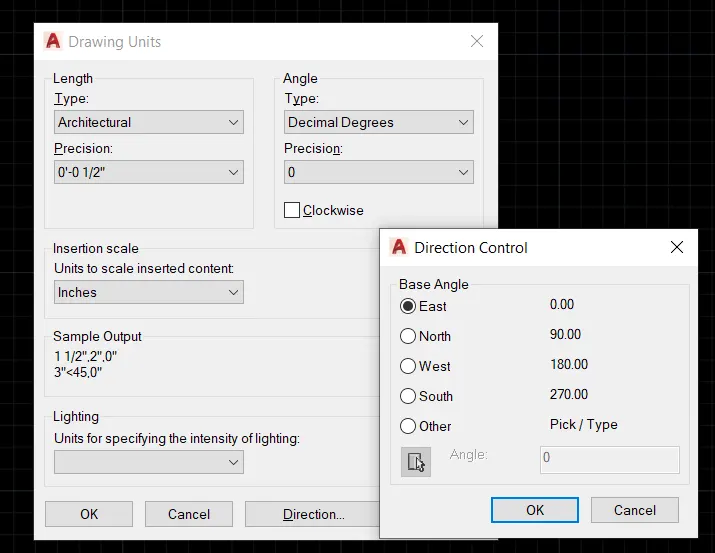

Drawing a plot and giving setback. As per the given plot size 60' x 20'. Mark the direction
By rectangle draw the plot as per the given plot size 60' x 20'
Draw External wall 9" and Internal Wall 4.5"

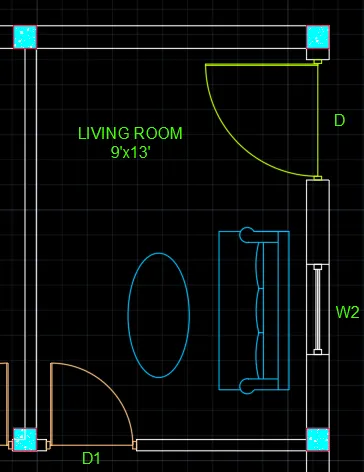

Draw a Living Room size 9' x 13'
As Orientation given in East facing, Main door should face East for living room.
Trimmed all extra line as as fig. with command (TRIM)
All works done with different layers shown in different colours
As per the Baastu Shastra North-East is favourable for Living Room and the Entrance should face North or East

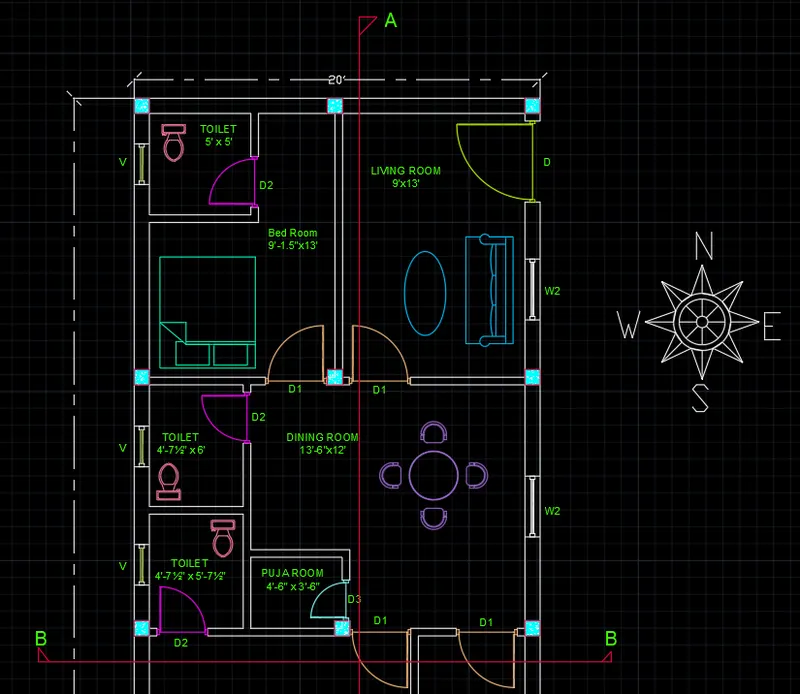

RESULT - Step - 1

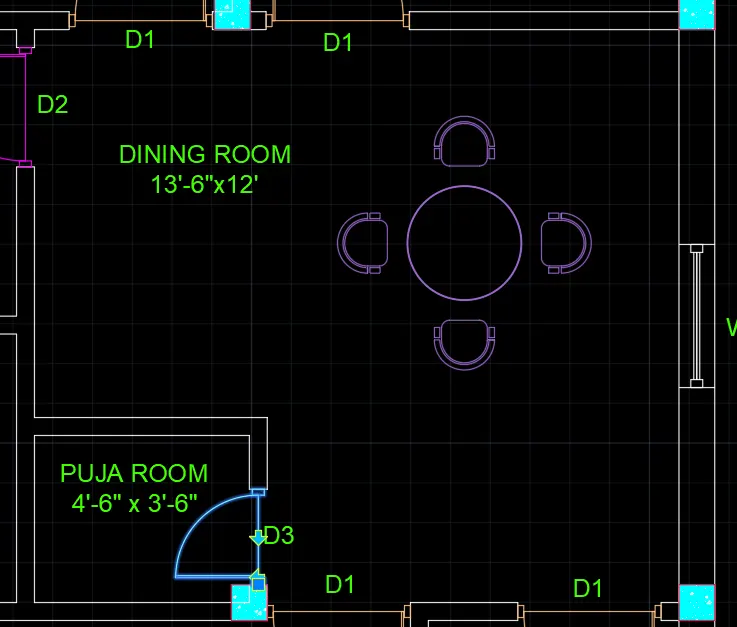

Next we draw the Dining Room with the size of 13'-6" x 12'
Next we draw the Puja Room with the size of 4'-6" x 3'-6". According to the Vaastu Shastra North-East is good for Puja Room

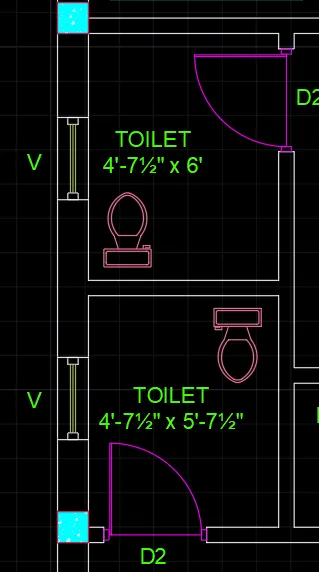

Next we draw the Toilet with the size of 4'-7½" x 6' and another Toilet with size 4'-7½" x 5'-7½"

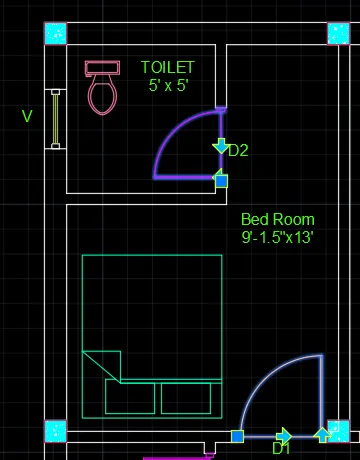

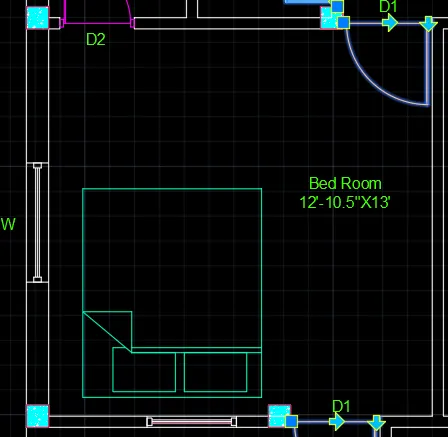

Next we draw the another Bed Room with the size of 9''-1½" x 13' and inside attached Toilet with size 5'x5'

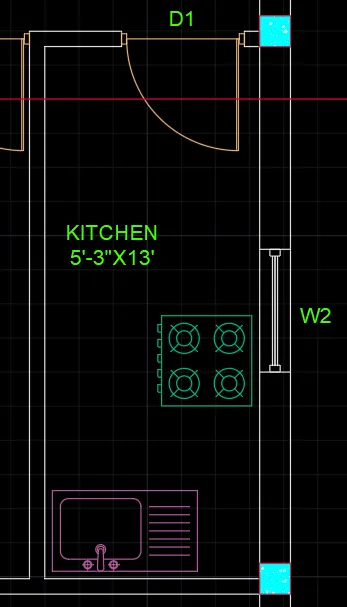

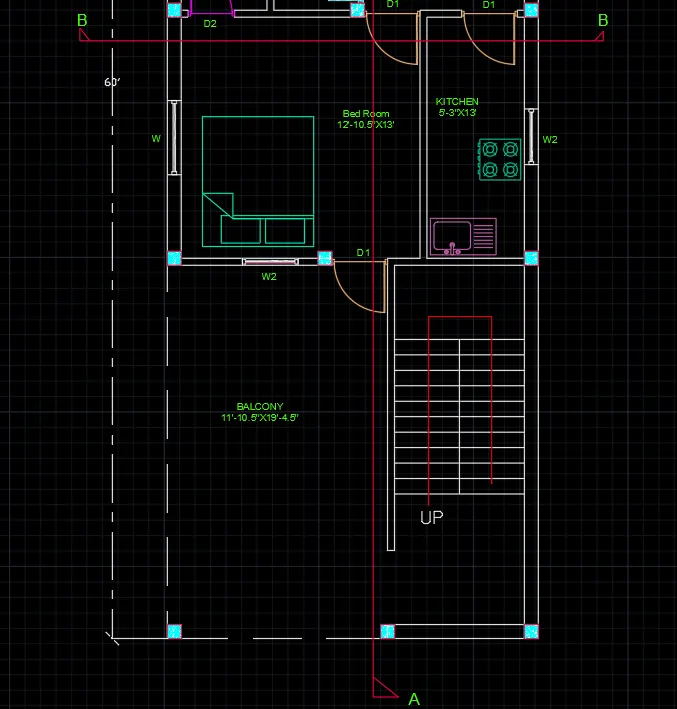

Next we draw the Kitchen with the size of 5'-3" x 13'
According to Vaastu Shastra the ideal position is South-East with cooking place facing East

With MT command for multiline text and font Arial
Write text which we have required for indicate the rooms, size, window and doors
Place the Door and Windows in the respective places

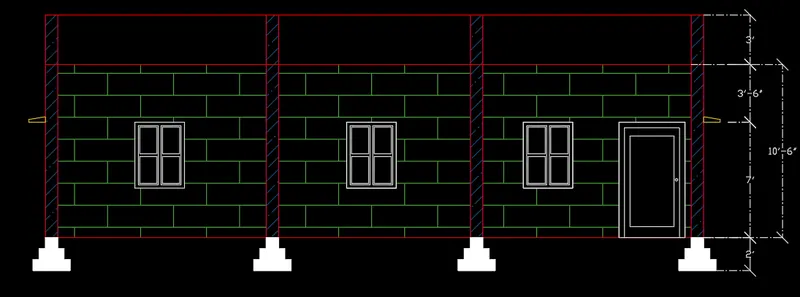

Elevation part of the projecting lines to draw the elevation.
Project the wall line to the top
Draw with XL vertical line for door and windows
Draw a horizontal line
Offset (O) 2' for plinth level
Offset 7' for lintel level
Offset 10'-6" for floor level
Offset 3' for parapet wall
Trim off the extention lines and make shutters and panels for door and windows for the architectural purpose.
Create some hatches for shown as fig.
Project the lines from the elevation for the height and the section line of plan for horizontal members
Draw Window, door and staircase in section
Using hatch the wall with bricks hatch and foundation with the concrete hatch
Place the windows and foundations in the respective layers with different colour

A. Structural Drawing :

Column Layout : Size of column 9" x 9" is considered.
Column are placed in all corners of wall and intersection of walls wherever required
Footing Layout : Isolated footing of size 2' x 2' is provided
Create the rectangle with size 2' x 2' and place the centre point of the Column

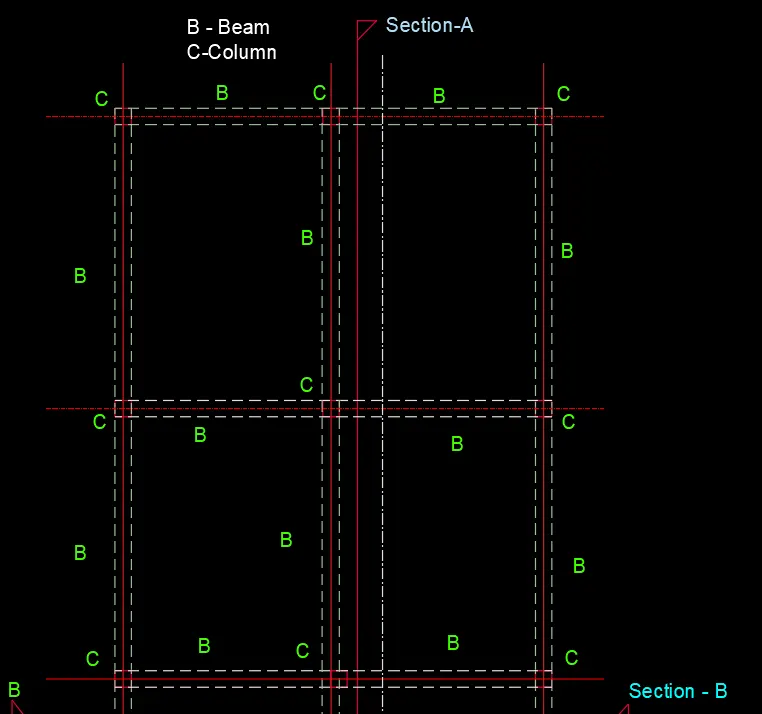

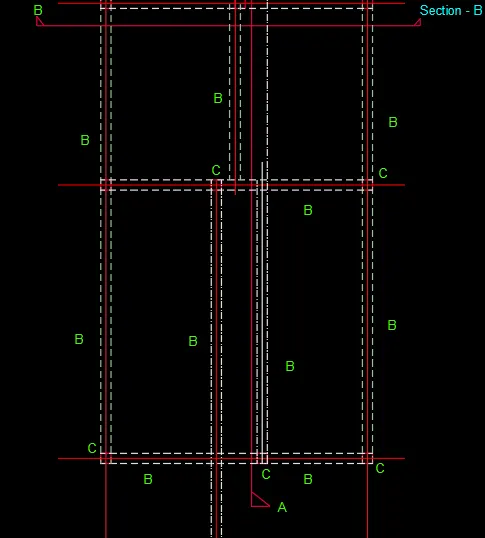

Drawing of plinth beam connect the column by beam of width 9" as the wall thickness is 9"
Plinth beam provided below all the walls
Create a new layer and put the plinth beam in that layer with different colours

Draw a center line for the column from the annotate tab center line and mark the grid line

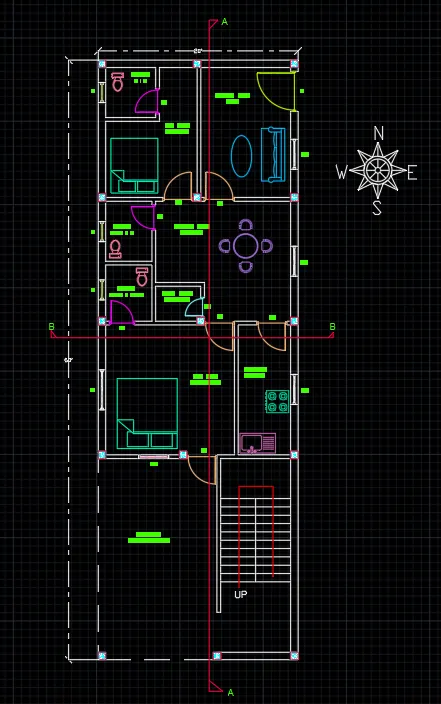

RESULT : Architectural and structural plan of a residential building is drawn

Elevation Drawing : RESULT

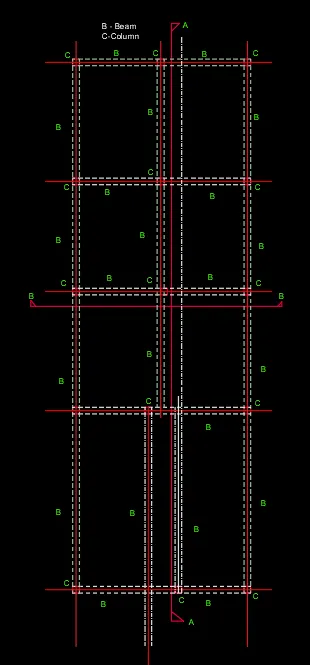

STRUCTURAL PLAN :
