Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

AIM: To design and draft a layout of a residential building and structural design.

COMMANDS USED:

• Line
• Offset
• Rectangle
• Trim
• Extend
• Block
• Filet
• Block
• Block edit
• Dimension
• Layer
• Hatch

PROCEDURE:

PLAN

Step-1:

• In the command box type units>inches
• In the command box type limmax>100',100'
• In the command box type limits>0,0
• In the command box type zoom>a

Step-2

• In the command box type xl to draft the infinite lines.
• And select the horizontal and vertical lines.
• In the command box type offset and offset to the required lines.
• In the command box type trim to remove the excess lines
• And the main entrance of my plan is facing the east side.

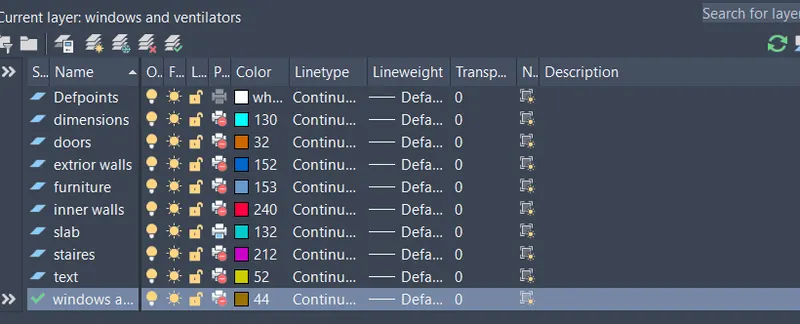

• In the ribbon bar> layers>walls,doors, etc,.

• In the command box type DC to add the furniture.
• In the command box type arc to draw the doors.
• In the command box type lines to draw the windows.
• In the command box type ST and create the new style.
• In the command box type dimension
• In the command box type dimcontinue the dimension.
• In the command box type line to create a table.
• Give the dimensions for doors and windows and ventilators.

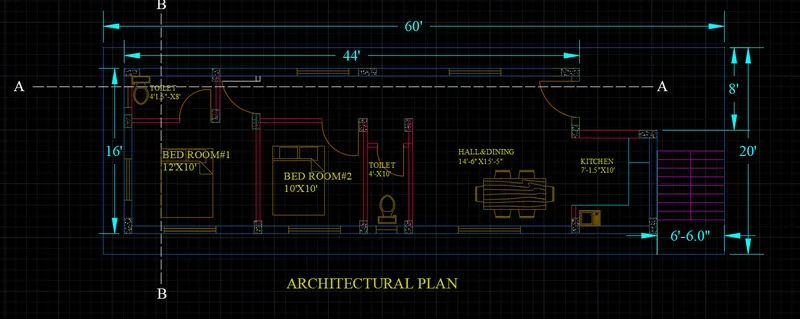

RESULT OF PLAN:

STRUCTURAL DRAWING:

Step-3:

• In the command box type xl to draw the grid lines.
• In the command box type LT to select the dotted lines
• In the command box type rec for columns
• In the command box type line for footings
• In the command box type line to draft the beams

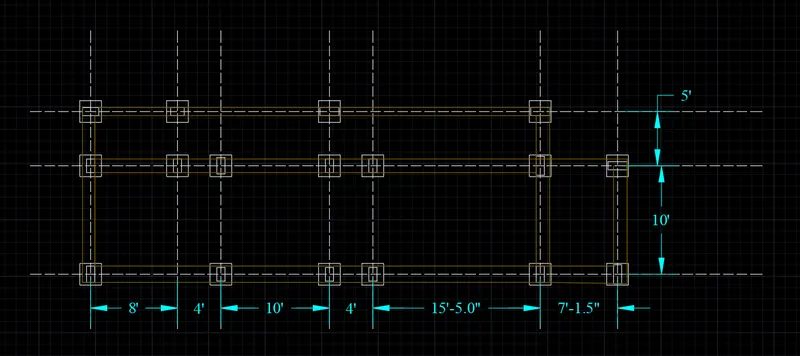

RESULT FOR STRUCTURAL DRAWINGS:

SECTION

Step-4:

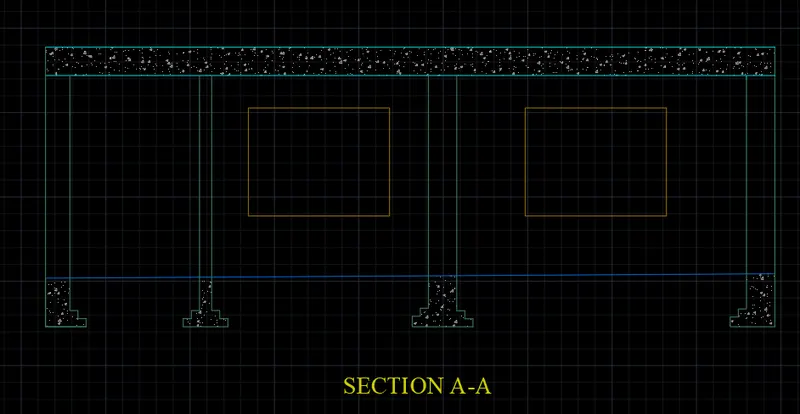

• Using dotted lines the horizontal and vertical sections are created.
• In the ribbon tab> hatch to select concrete.
• In the command box type rec to draw the window and ventilator

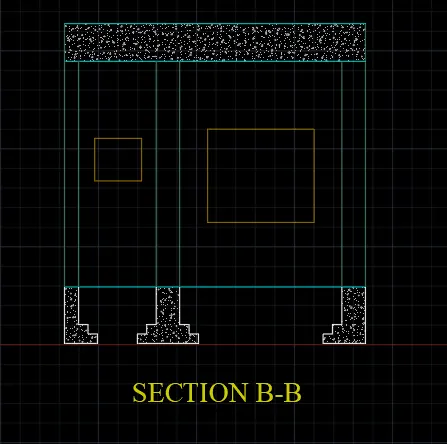

RESULT FOR SECTION:

ELEVATION

Step-5:

• In the command box type l to draft the lines.
• In the command type hatch>solid for elevation.
• In the command type dc for selecting the components.

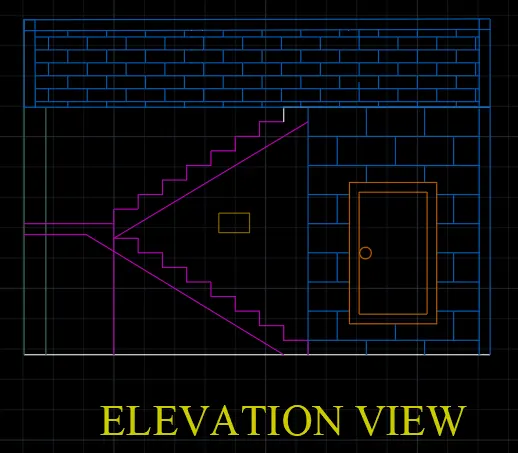

RESULT FOR ELEVATION
