Project 1 : CFD Meshing for Tesla Cyber Truck

AIM : CFD MESHING OF TESLA CYBER TRUCK

PID CREATED FOR THIS PROJECT

1. TYRES
2. BODY
3. LIGHTS

TARGET LENGTH FOR THE COMPONENTS

1. TYRES : 3
2. BODY : 4
3. LIGHTS: 2

MESH QUALITY CRITERIA

SKEWNESS : 0.5

MINIMUM LENGTH : 0.5

MAXIMUM LENGTH : 6

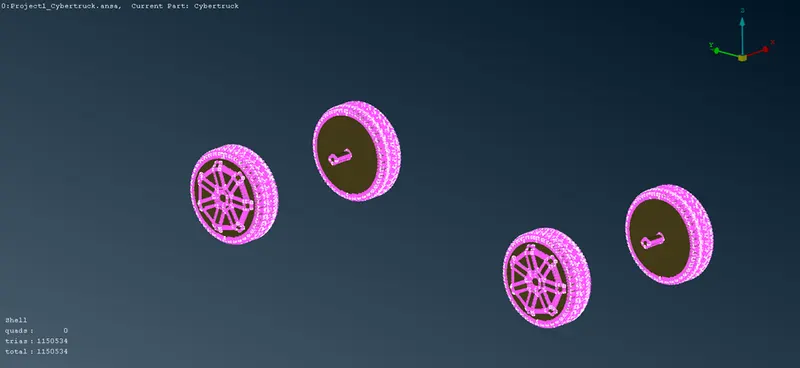

MESH FOR TYRES

MINIMUM TARGET LENGTH : 2

MAXIMUM TARGET LENGTH :4

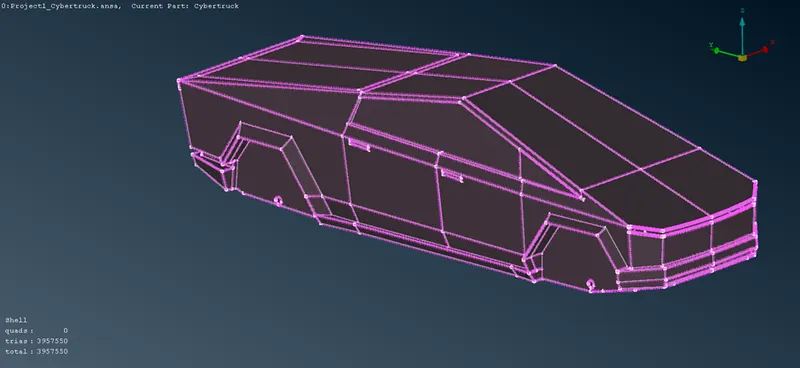

MESH FOR BODY

MINIMUM TARGET LENGTH :3

MAXIMUM TARGET LENGTH :6

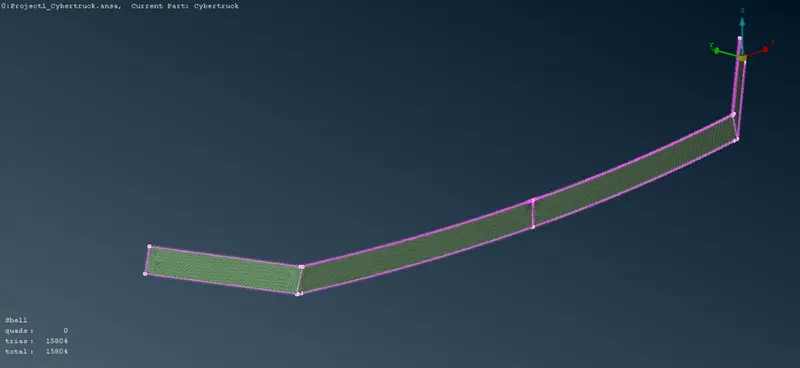

MESH FOR LIGHT

MINIMUM TARGET LENGTH : 1

MAXIMUM TARGET LENGTH :3

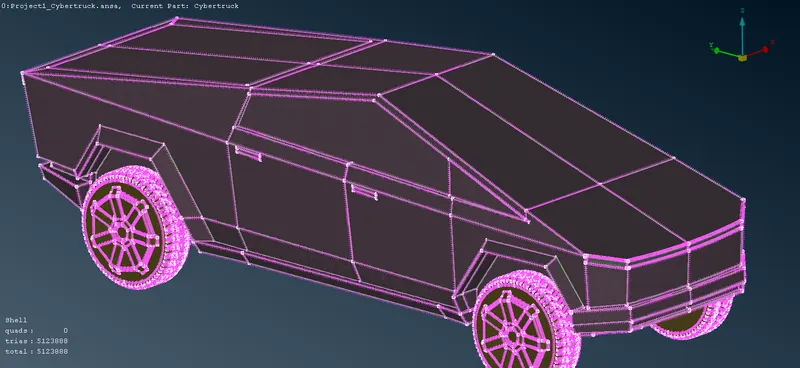

OVERALL ASSEMBLY OF TRUCK

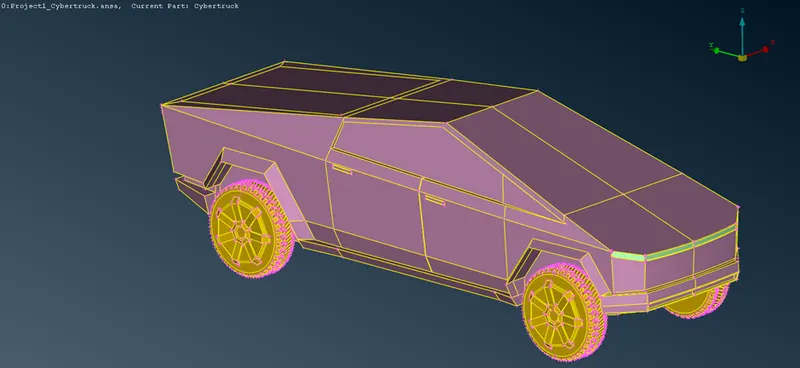

OVERALL MESHING

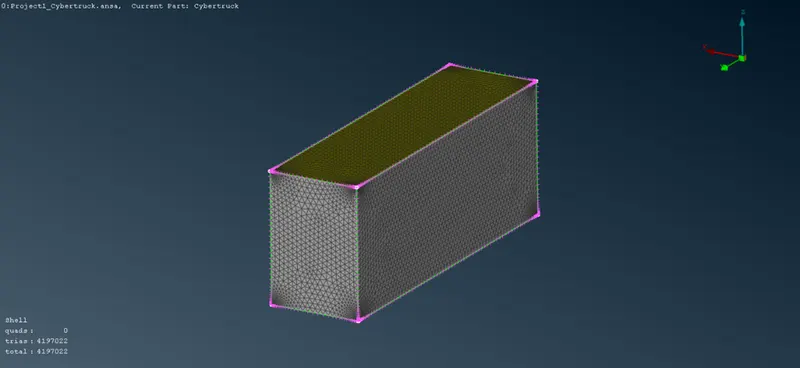

ENVELOPED DEVELPED FOR ANALYSIS

FOLLOWING IS THE LINK FOR MESH FILED

https://drive.google.com/file/d/1wFyhMv7gqNdRun5IUjSs6SIs5eTNoL-m/view?usp=sharing
