Aim

To Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5

Objective

Route the wiring harness for V-16 engine
Prepare flattaen view drawing in CATIA V5
Apply all packaging rules and industrial best practice
Provide all necessary details like clearance, clipping/clamping selection, harness fizing requirements, harness contuinity, asuumptions if required

Packaging rules and assumptions made in this project

Avoid harness routing and clipping in blind zones
Provide additional slack to the harness according to the surrounding 5-10% slack is enough
Provide enough clearance to the wiring harness with respect to the surrounding'
Provide guide channel if required
Use available holes for clamps and clips mounting

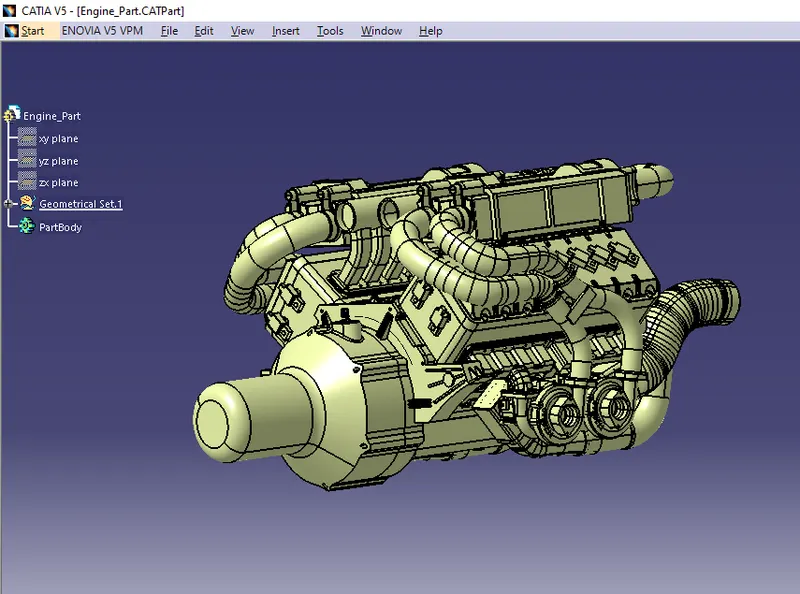

1. Download the engine model on which wiring harness to be routed

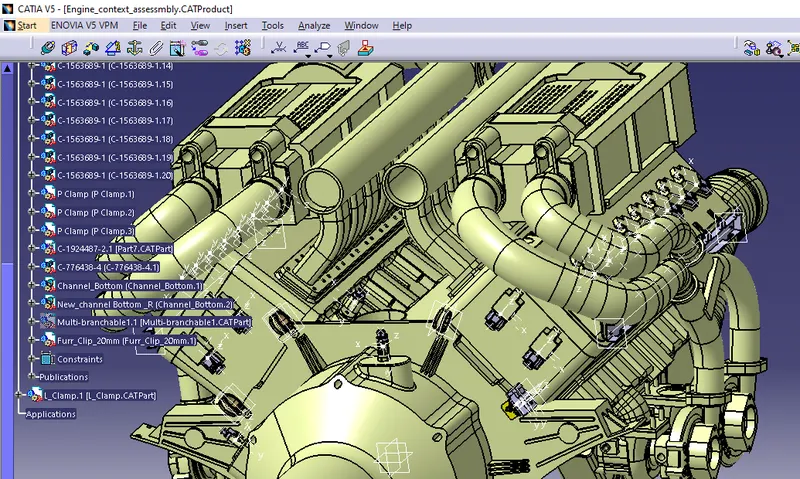

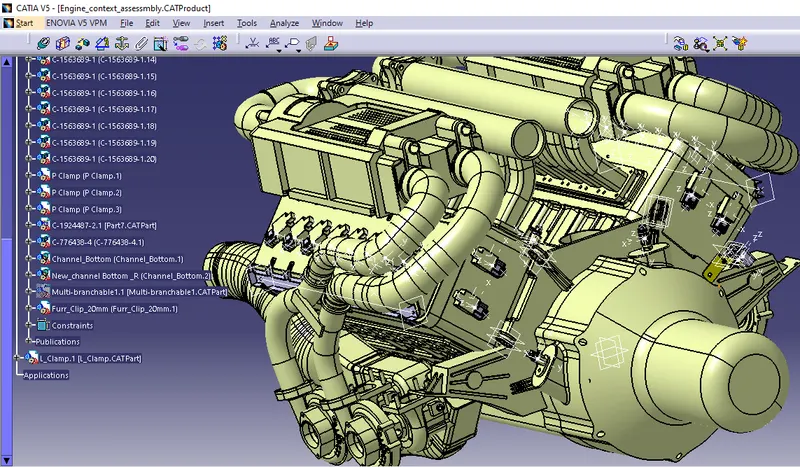

2.Engine context assembly

3.Define electrical equipments

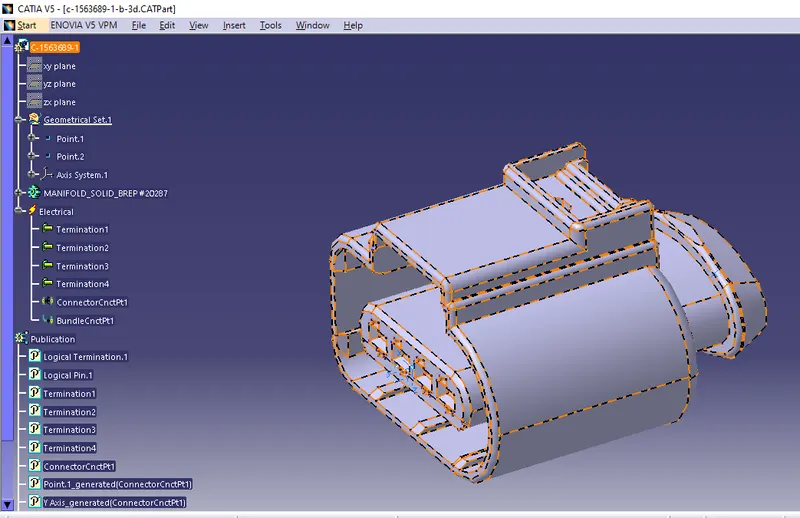

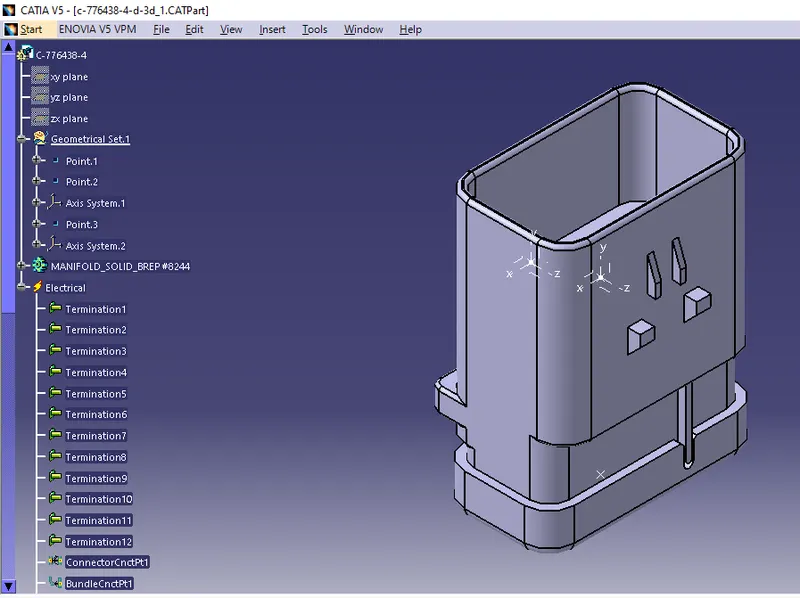

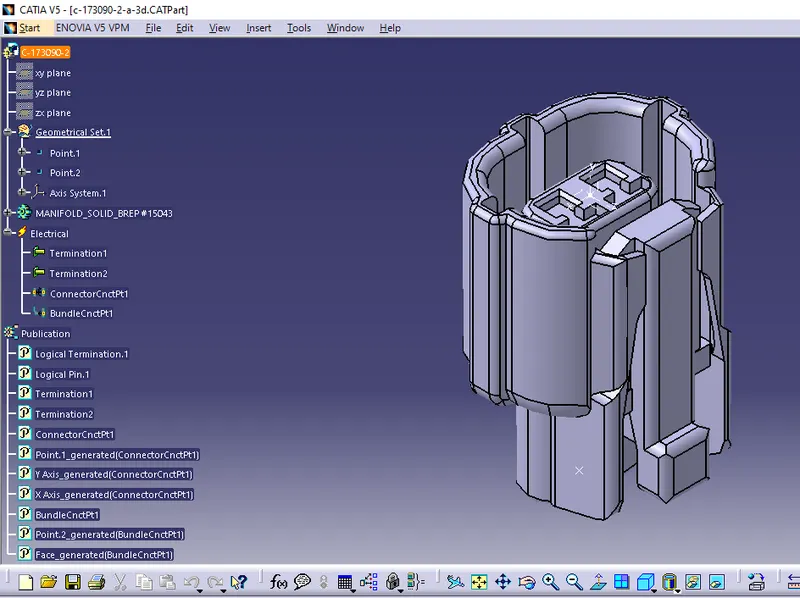

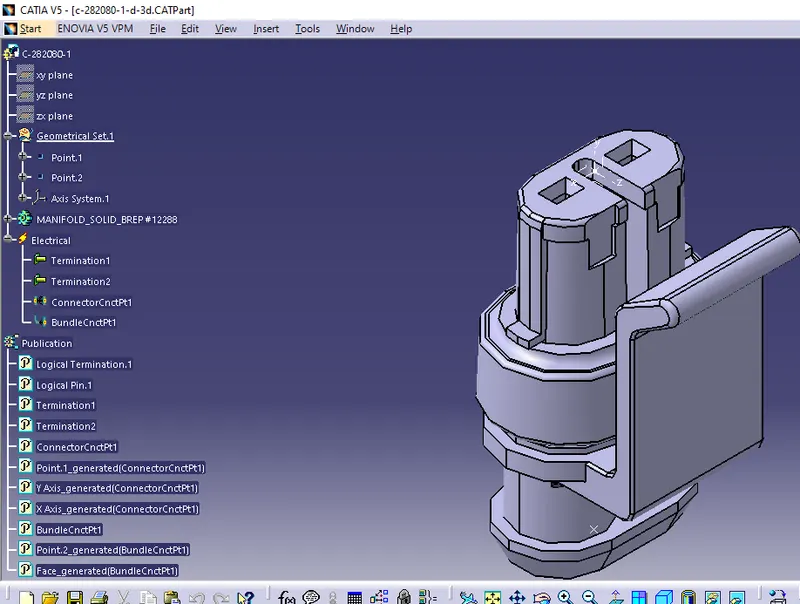

Connectors

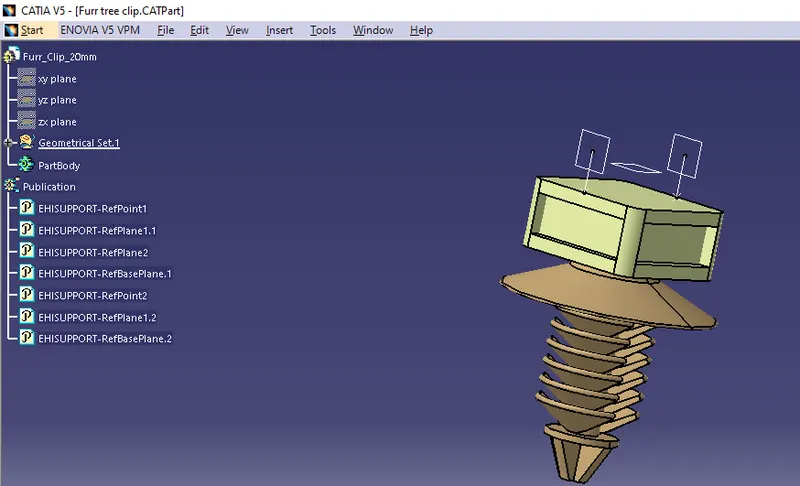

Furr tree clip

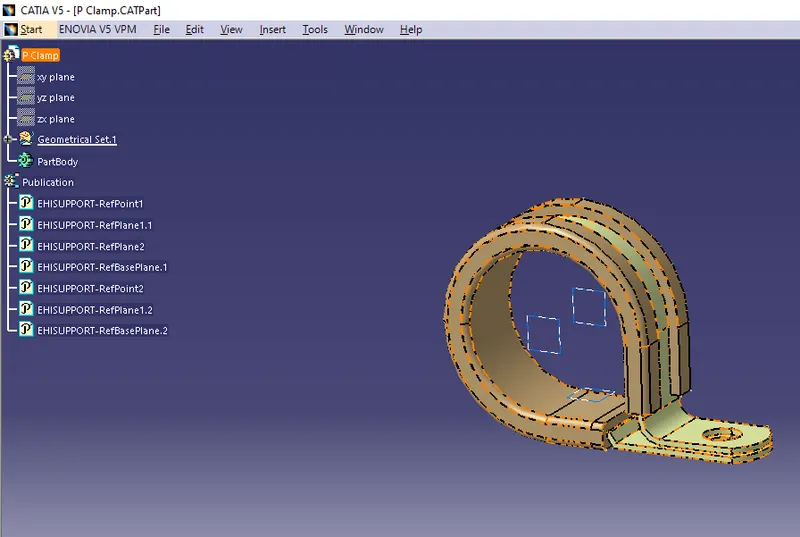

P-clamp

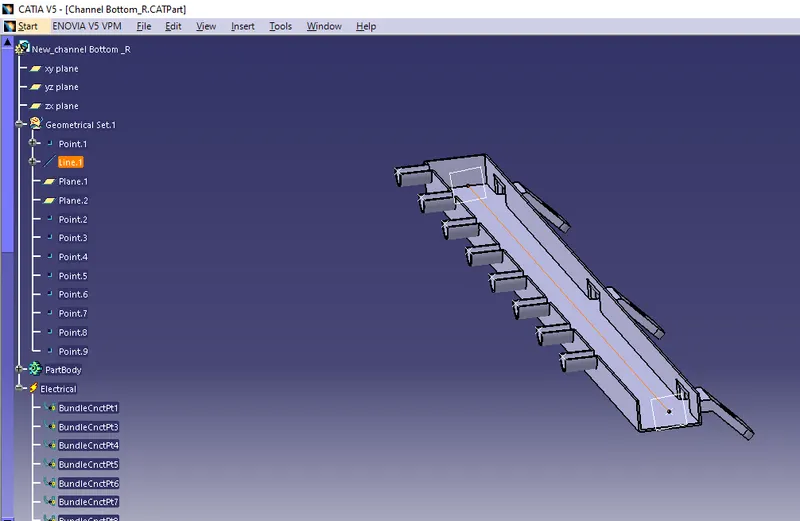

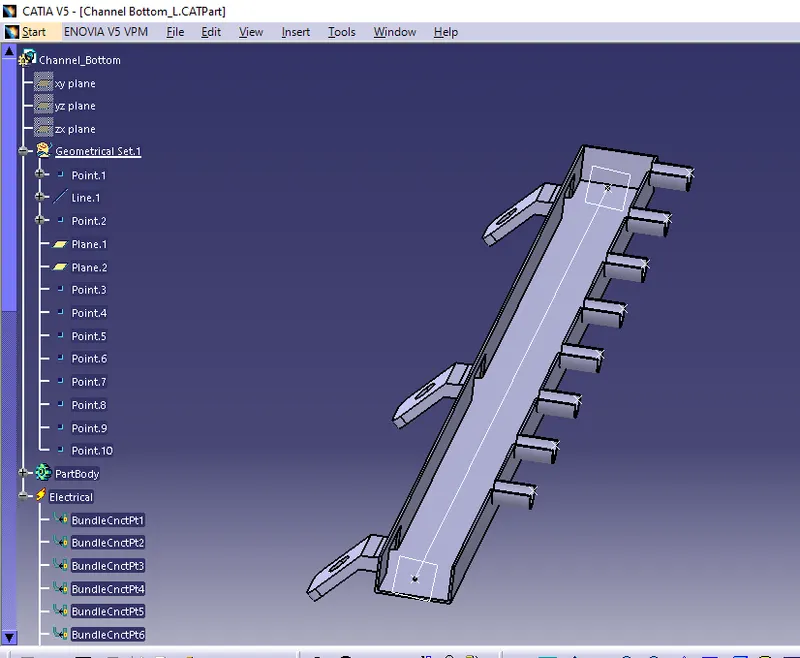

Define plastic channel

Right

Left

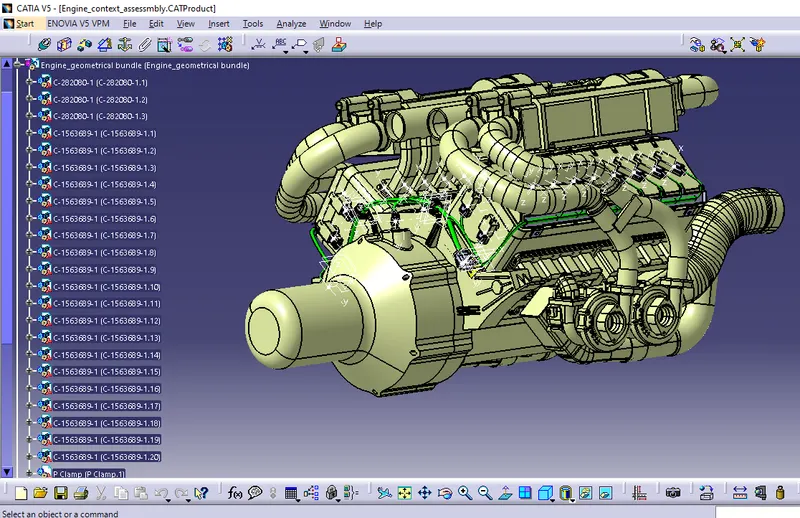

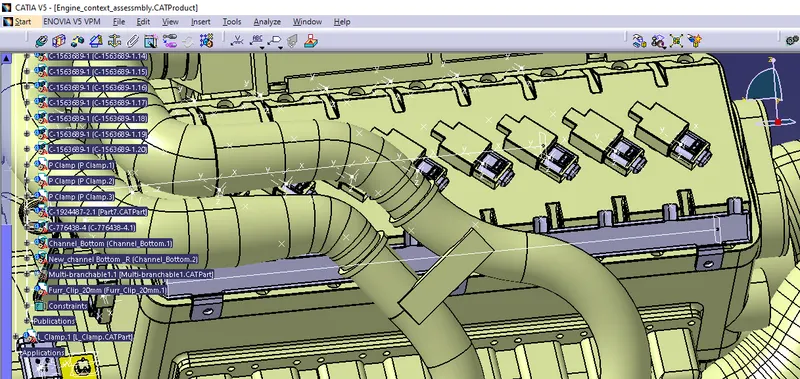

5.Assembly

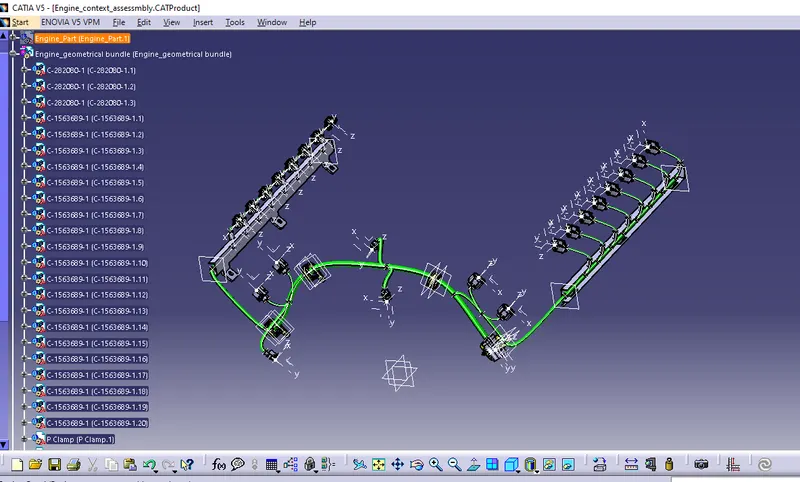

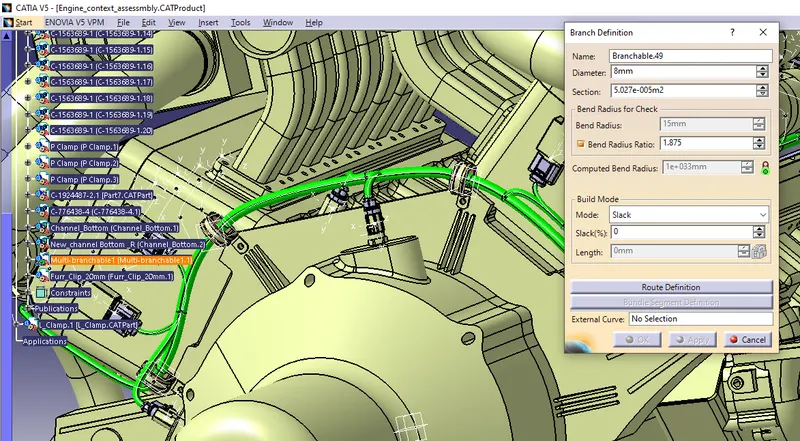

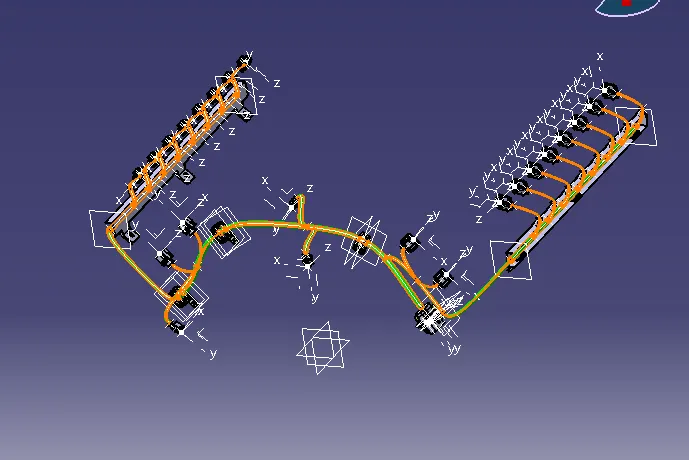

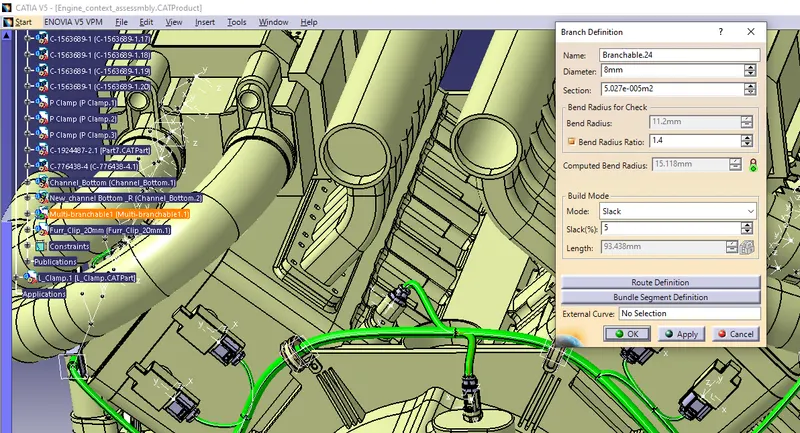

6.Bundle segement and routing definition

Route the bundle from the inter connector and it will be main branch of the bundle segment

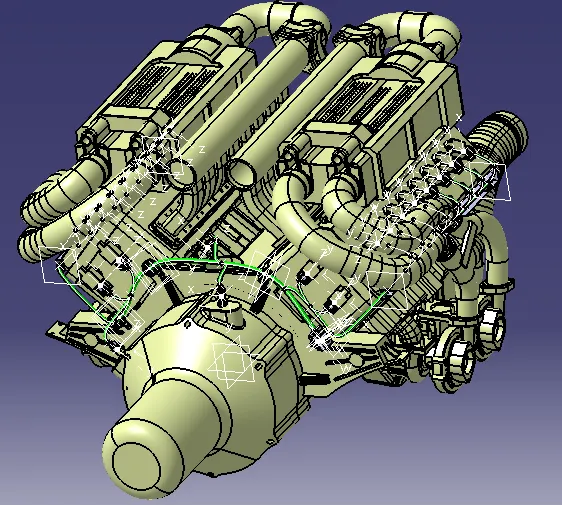

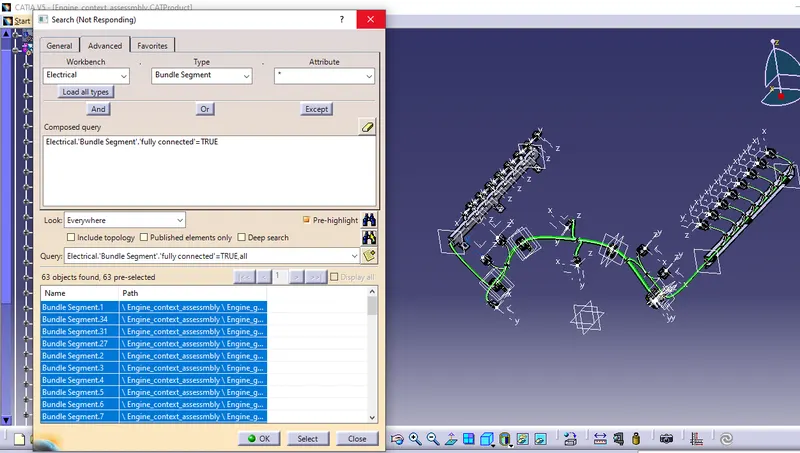

7.Fully connected

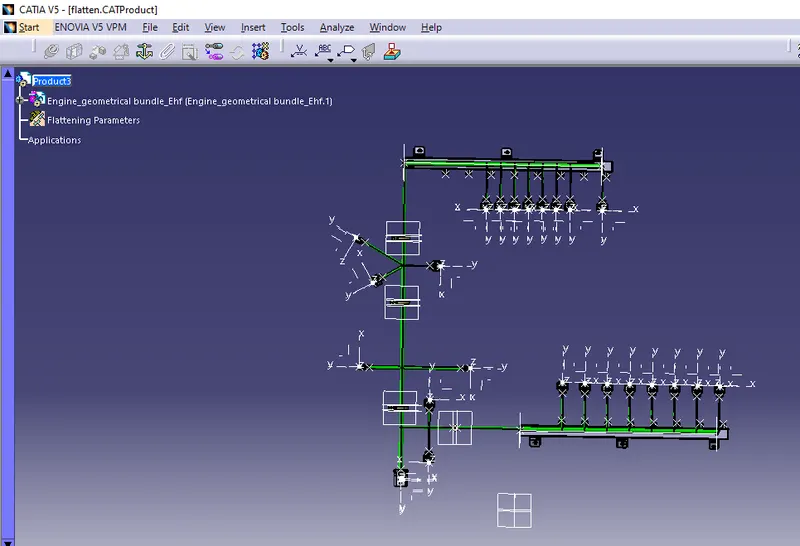

7.Electrical harness flatteing

Create ne product file
Add the flattening parametrs to the design tree
Import the engine gemetrical bundle and select any plane through which the gemetric bundle can be viewed
Do the bending, rotation, arrangement, etc as required

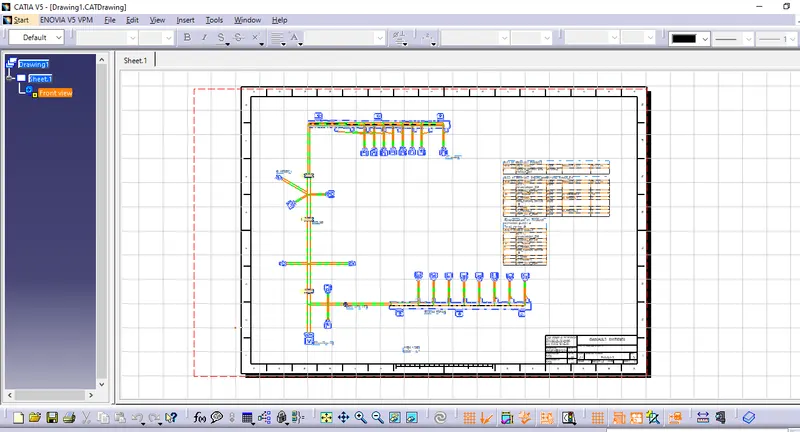

8.Drafting

Conclusion

So the V-16 engine is routed and the wire harness assembly is flattened and drafted.
