Project 1

Project - Part Modeling using Boolean Operations

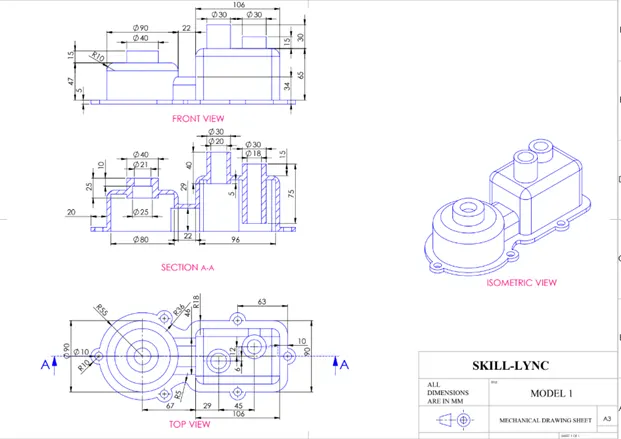

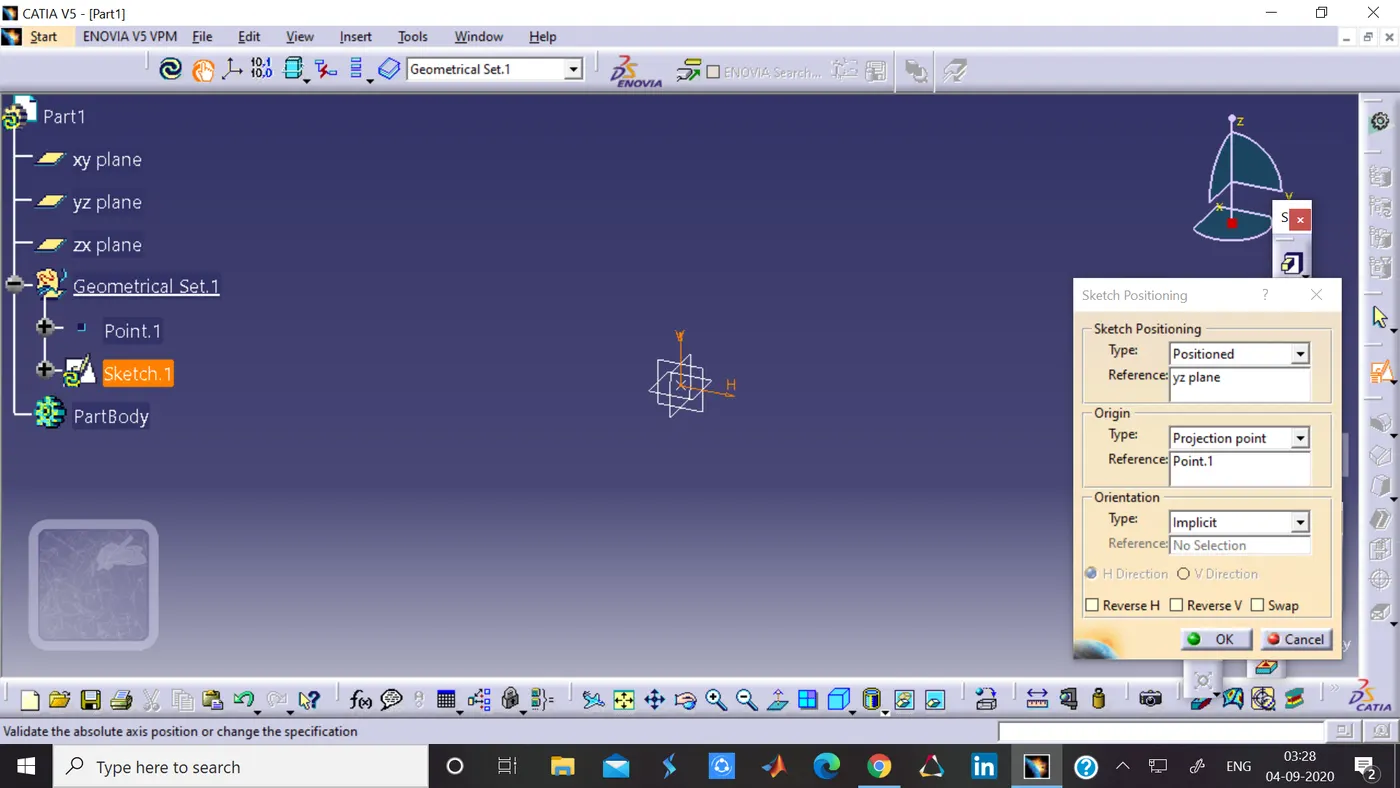

Using Positioned Sketch for all the sketches in this part modeling.

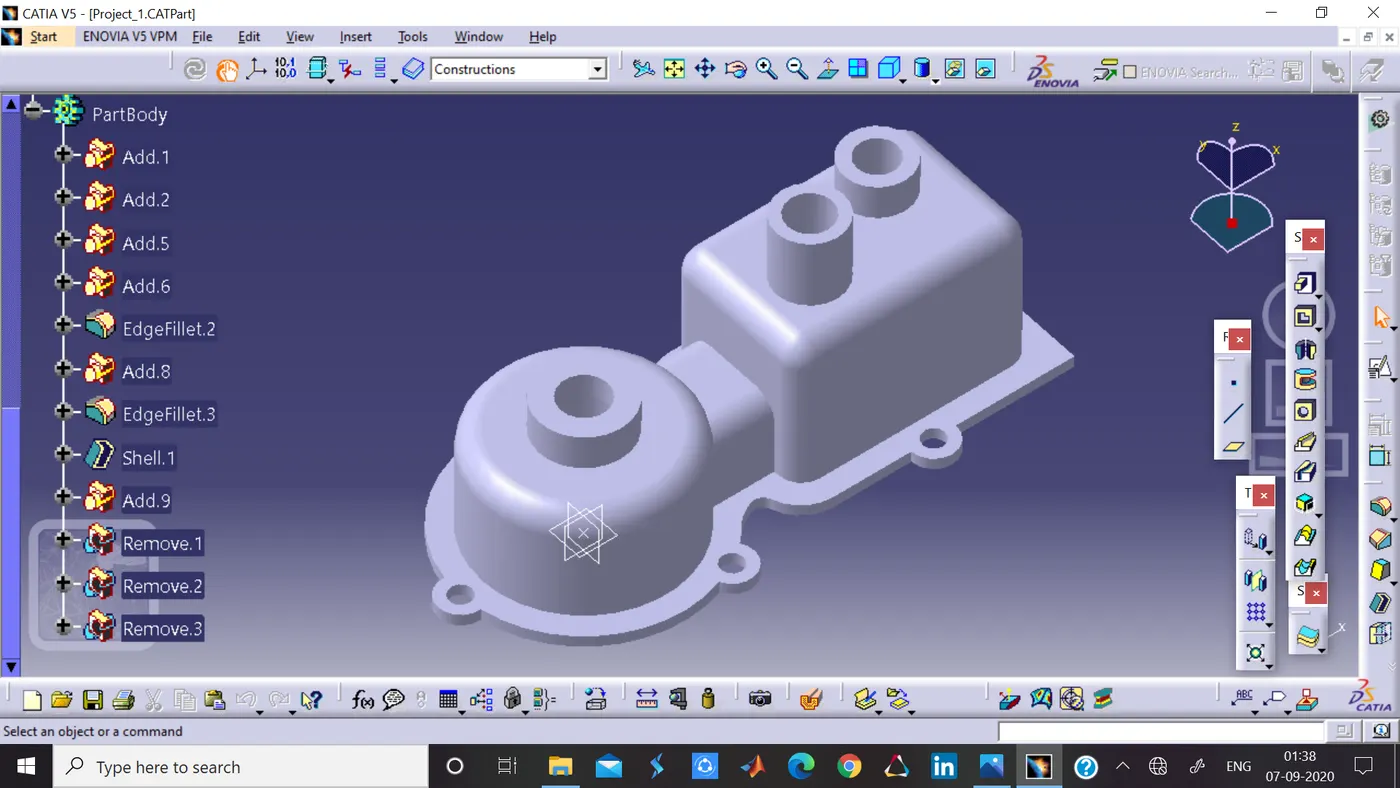

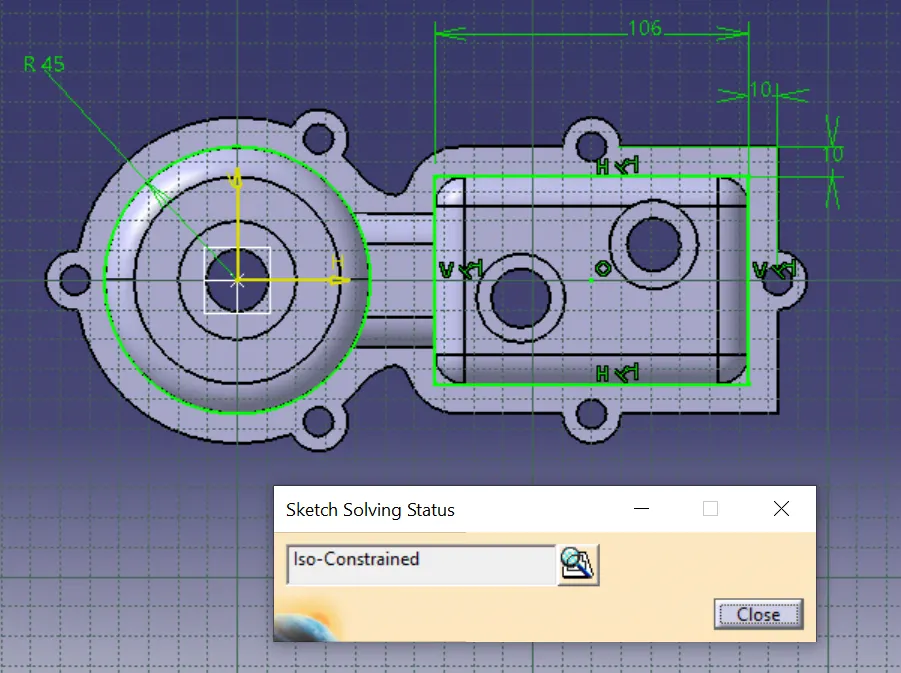

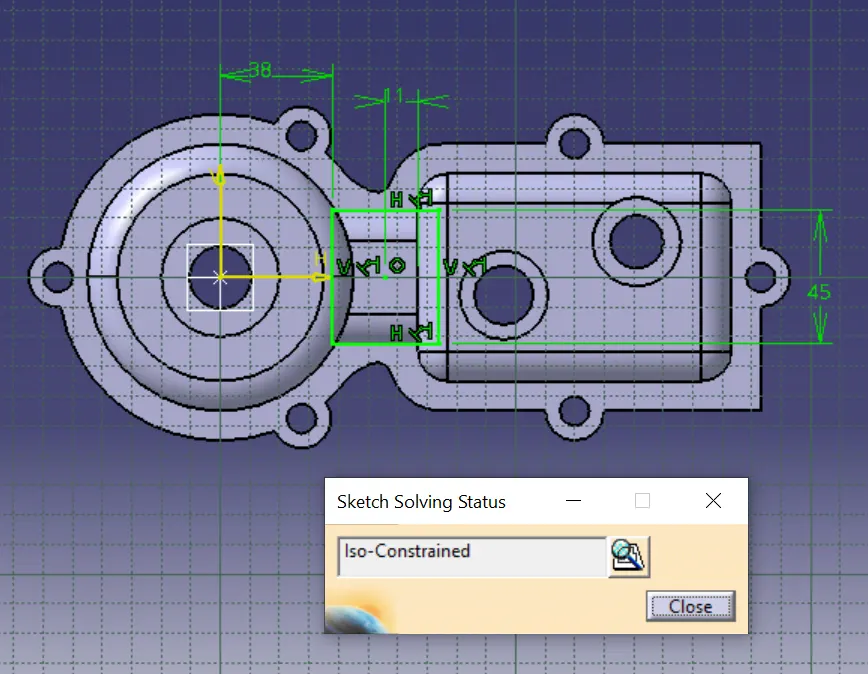

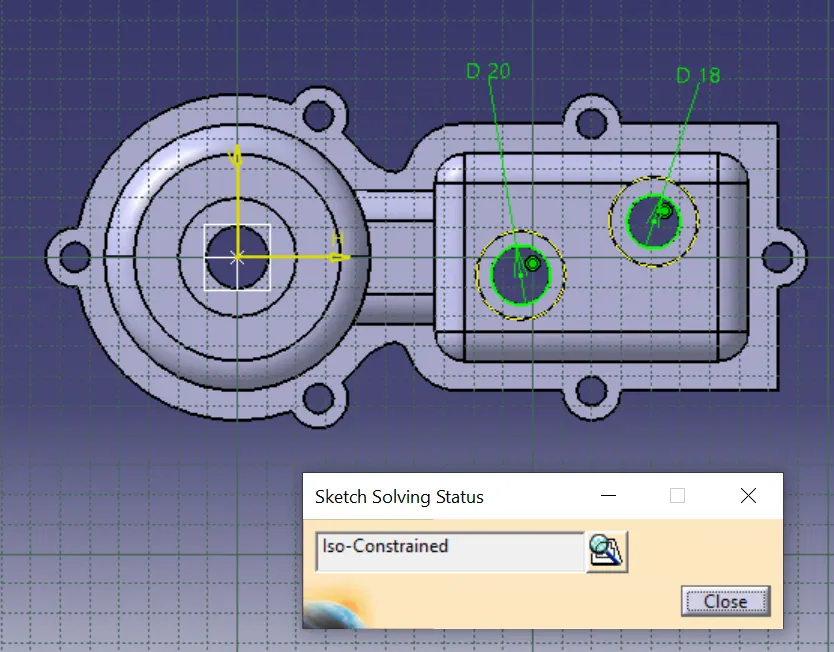

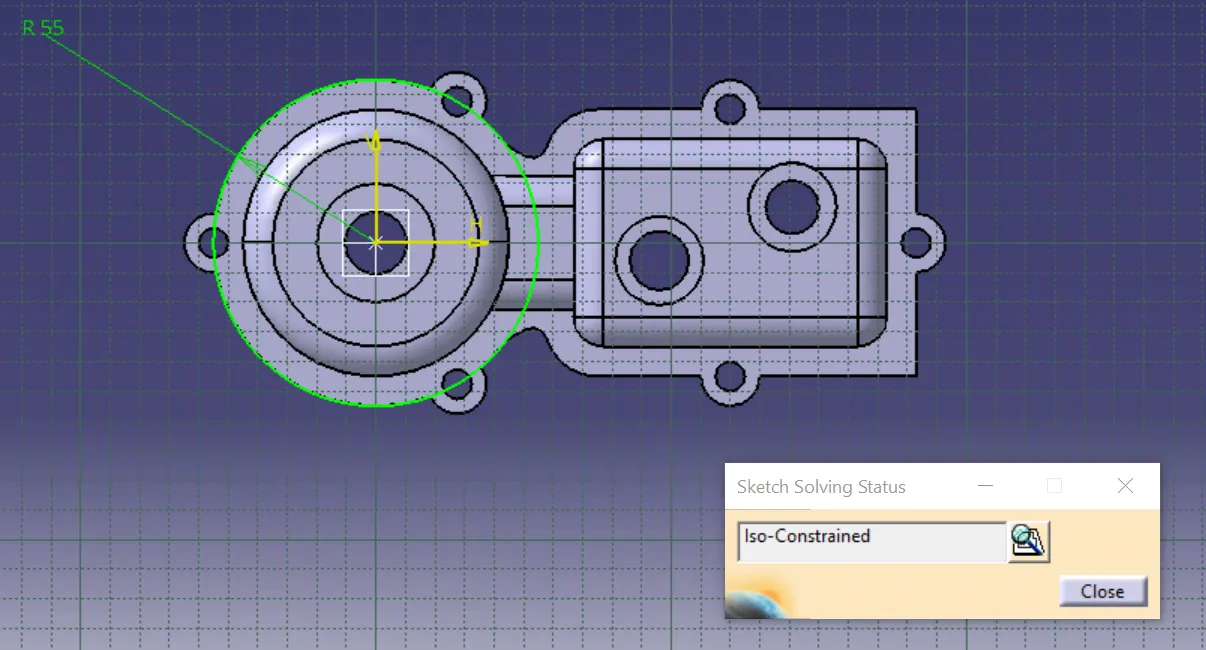

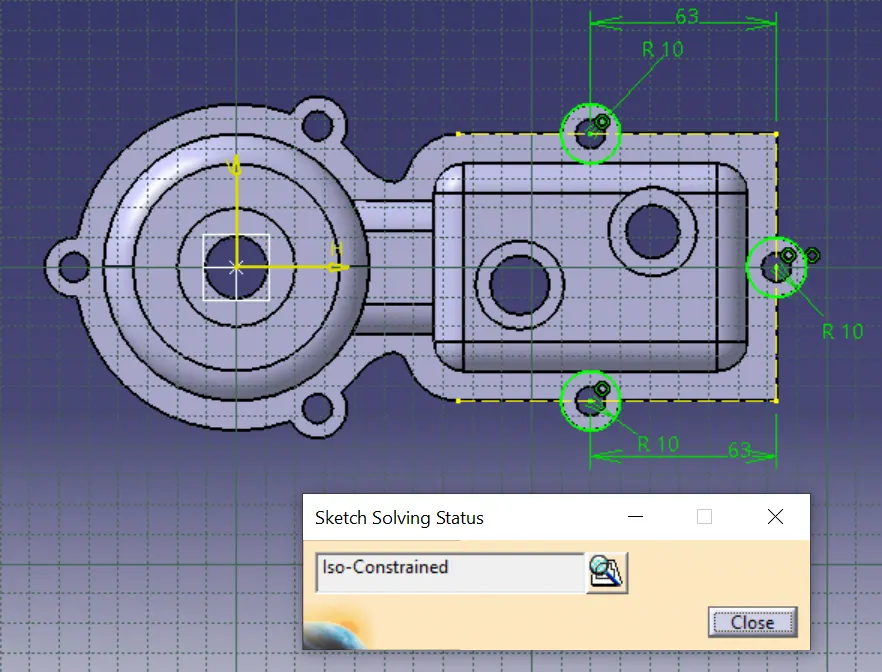

All Sketches are fully constrained, and the part model along with the tree structure illustrated below.

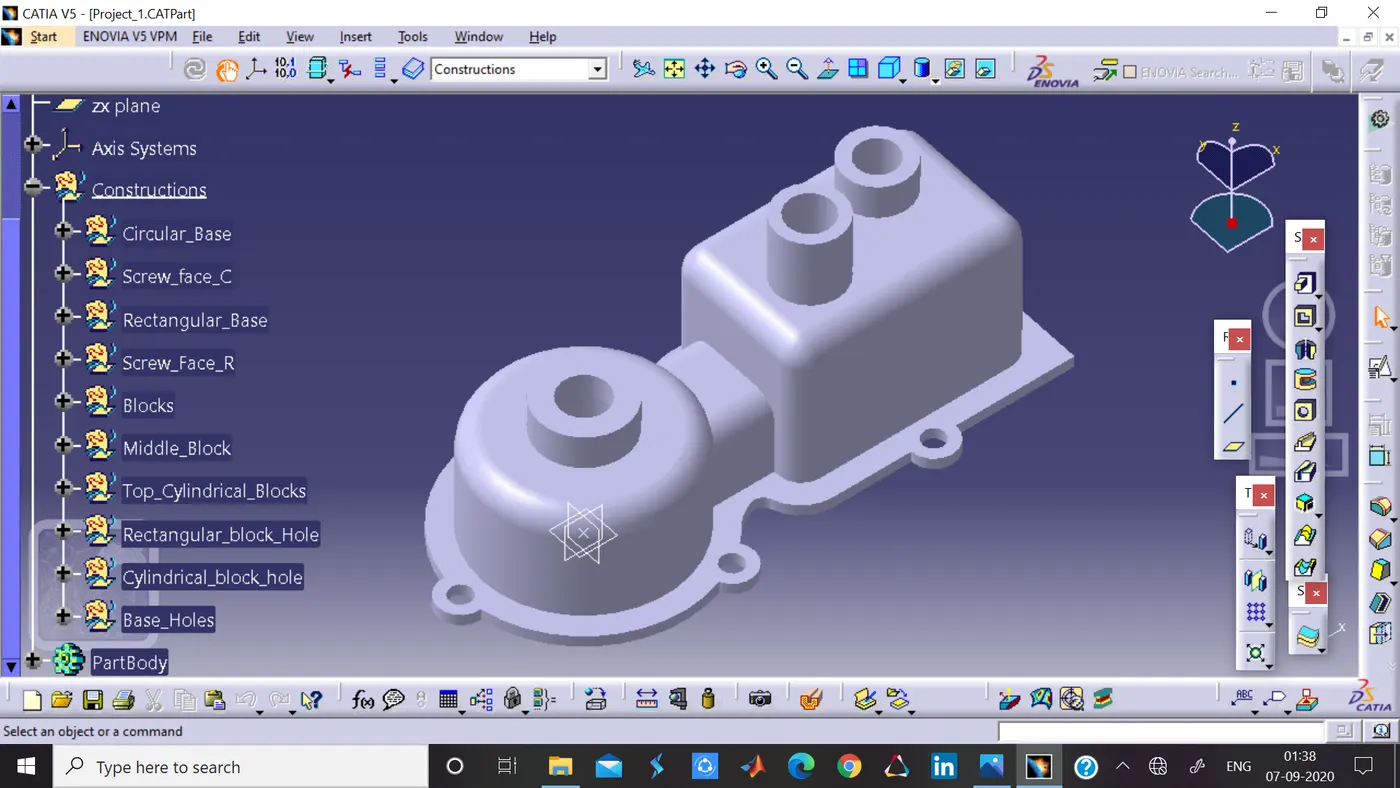

Tree Structure:

Sketches:

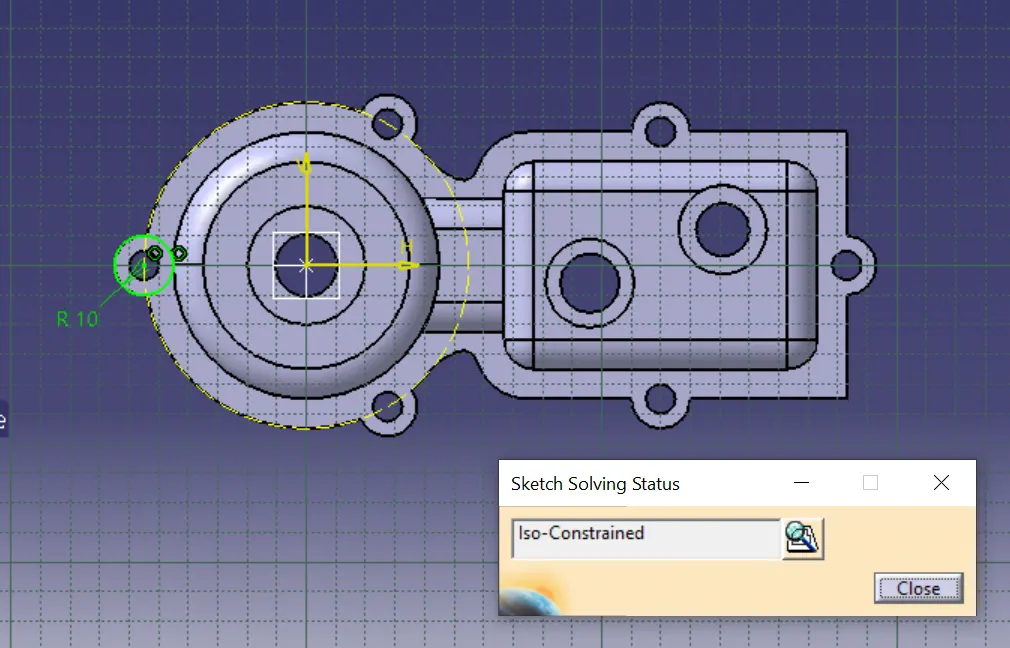

Circular base

Screwface for Circular base

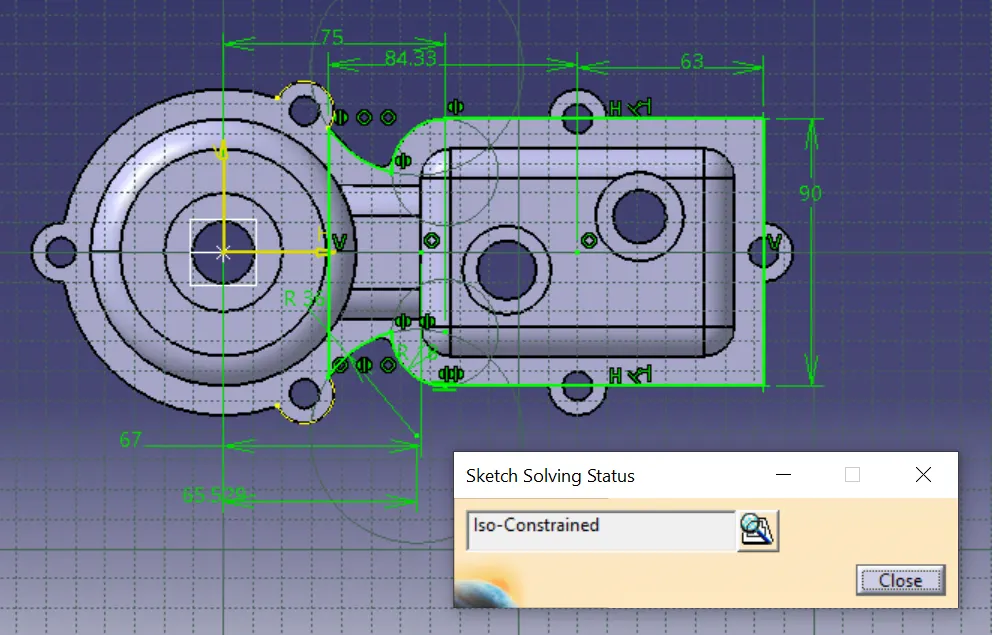

Rectangular base

Screwface for rectangular base

Blocks

Middle block

Cylindrical blocks

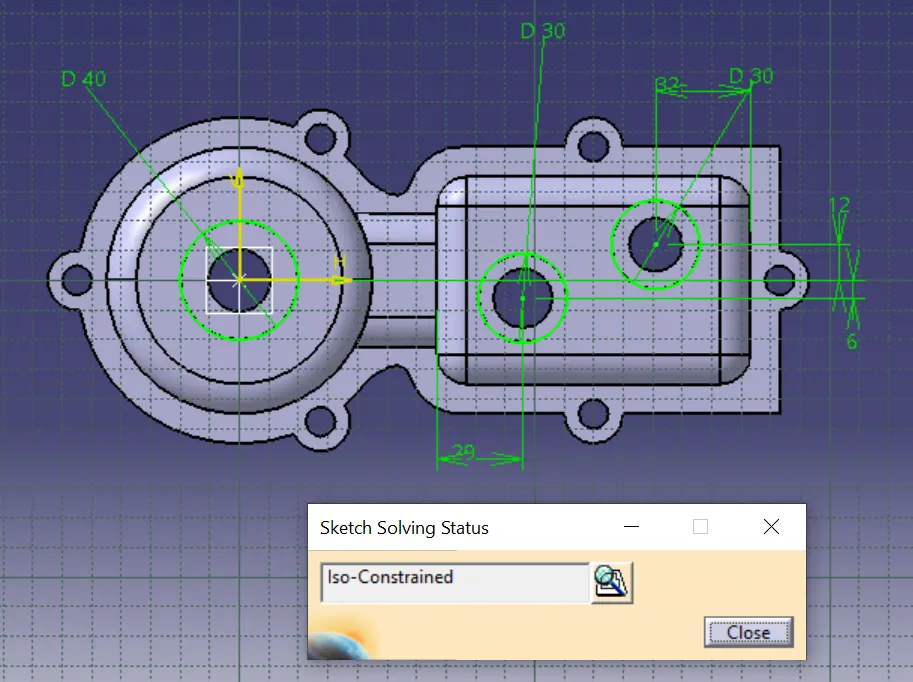

Holes for Rectangular section

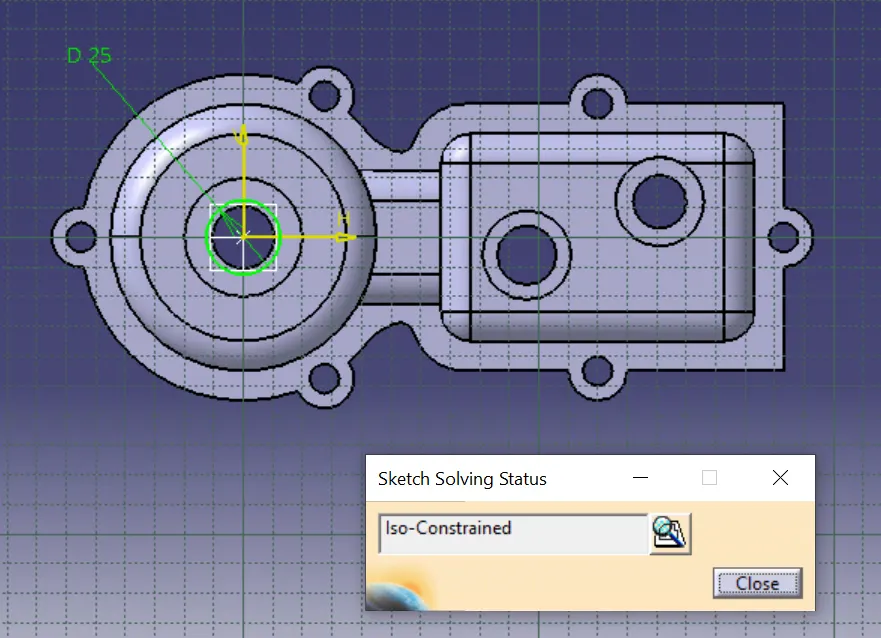

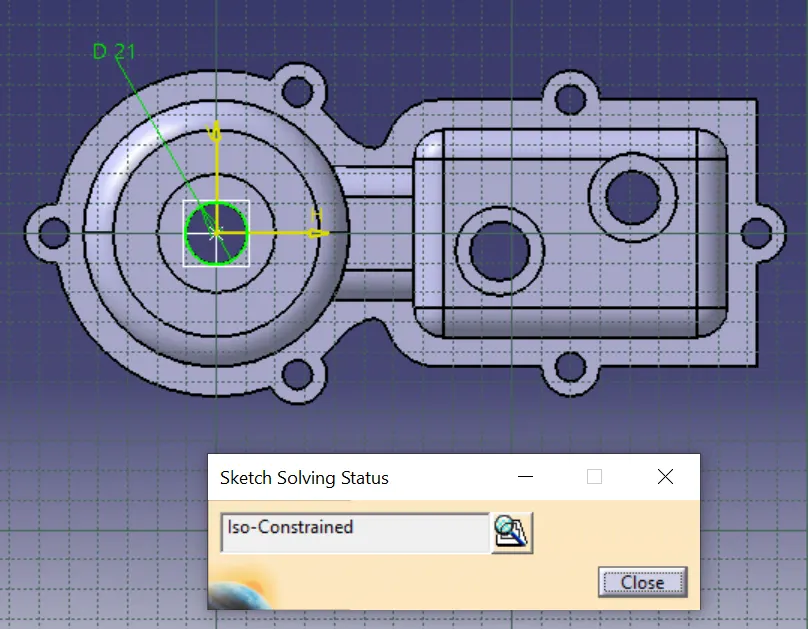

Holes for Cylindrical section

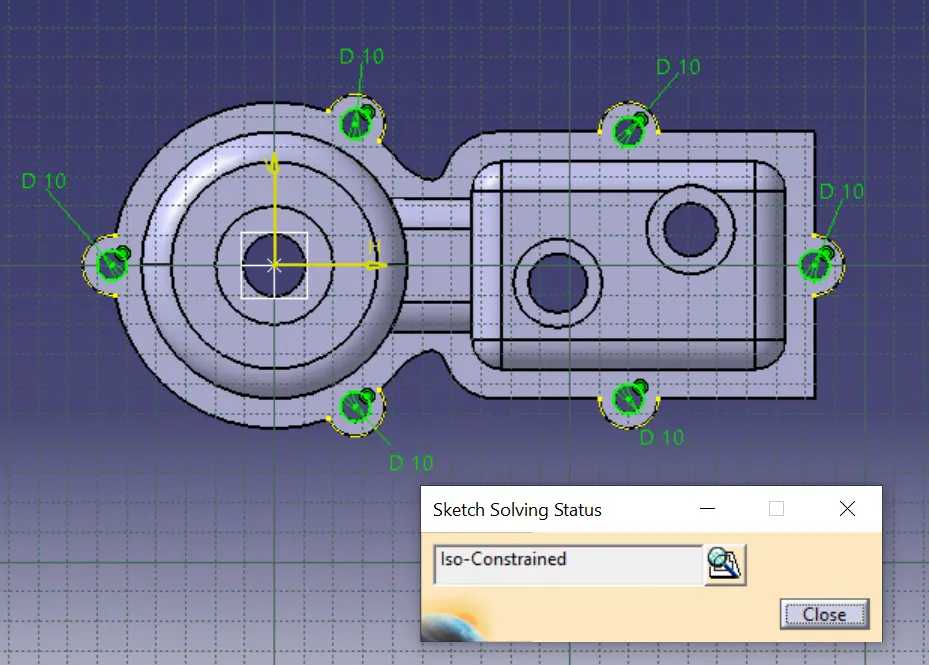

Base holes
